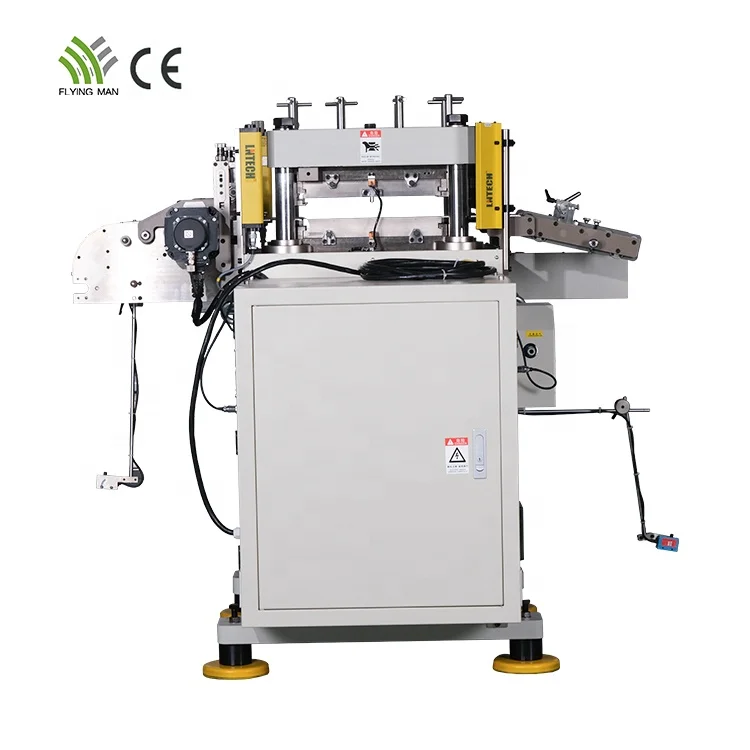

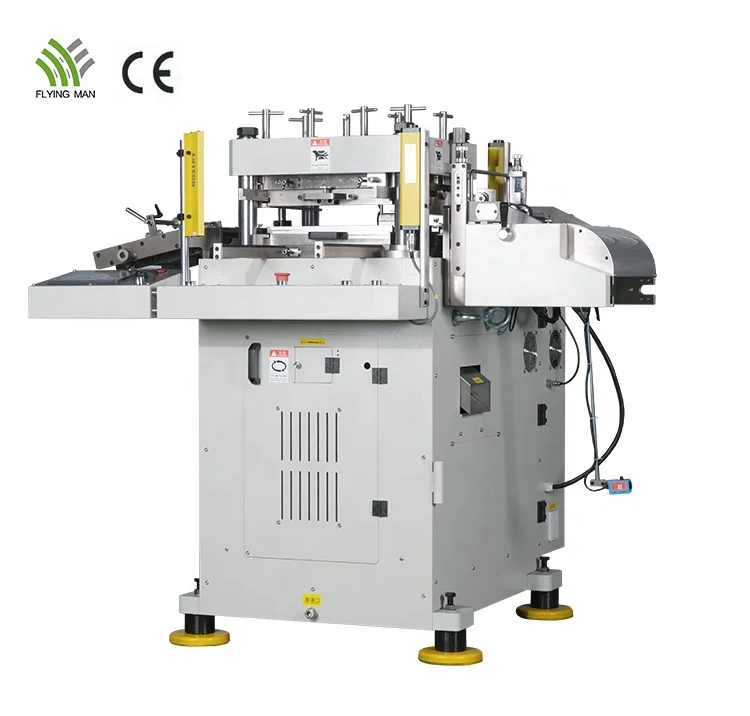

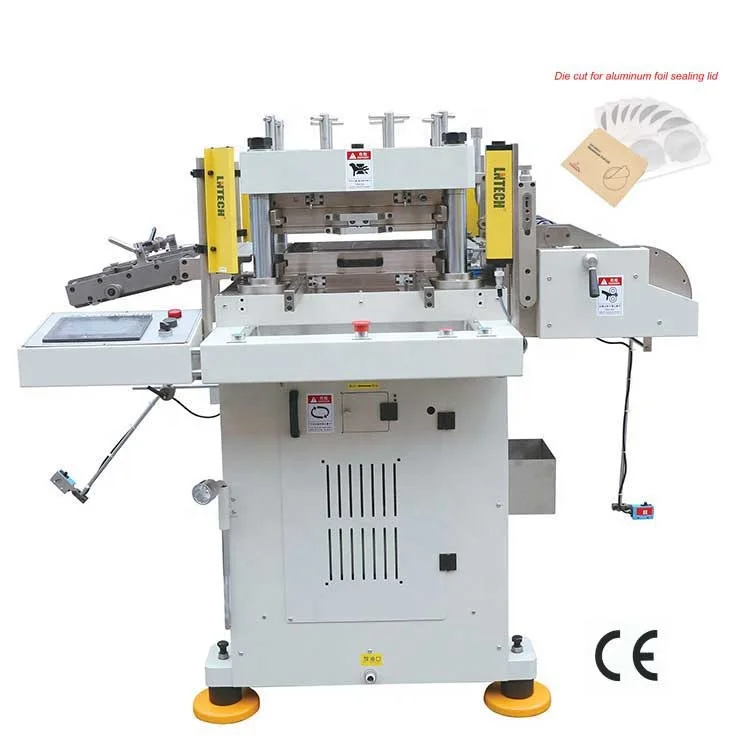

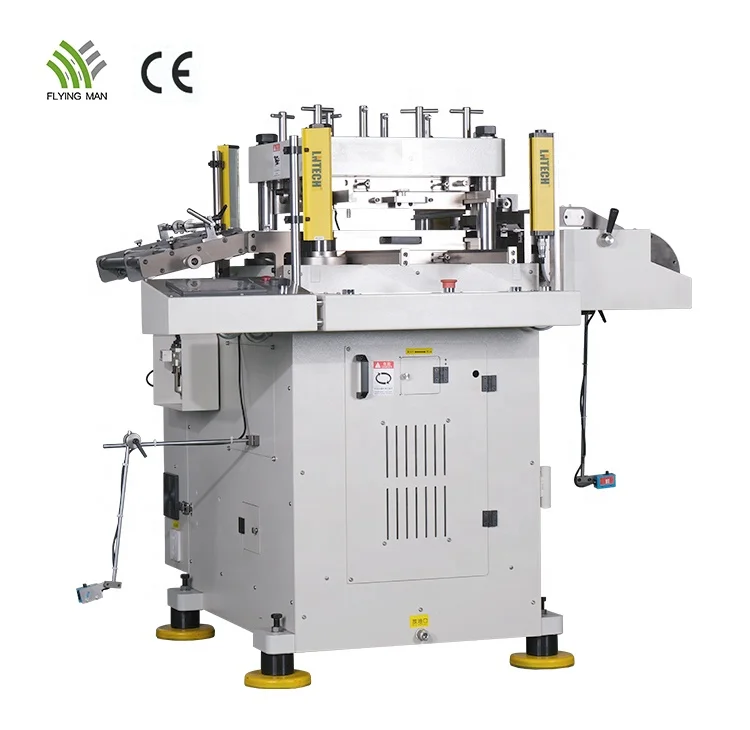

Автоматическая машина для резки алюминиевой фольги
- Категория: Electronics Production Machinery >>>
- Поставщик: Suzhou Flying Man Assembly Automation Co. Ltd.
Сохранить в закладки 1600657158510:
Описание и отзывы
Характеристики
Video Description
Products Description
Industry Highest Performance Characteristics

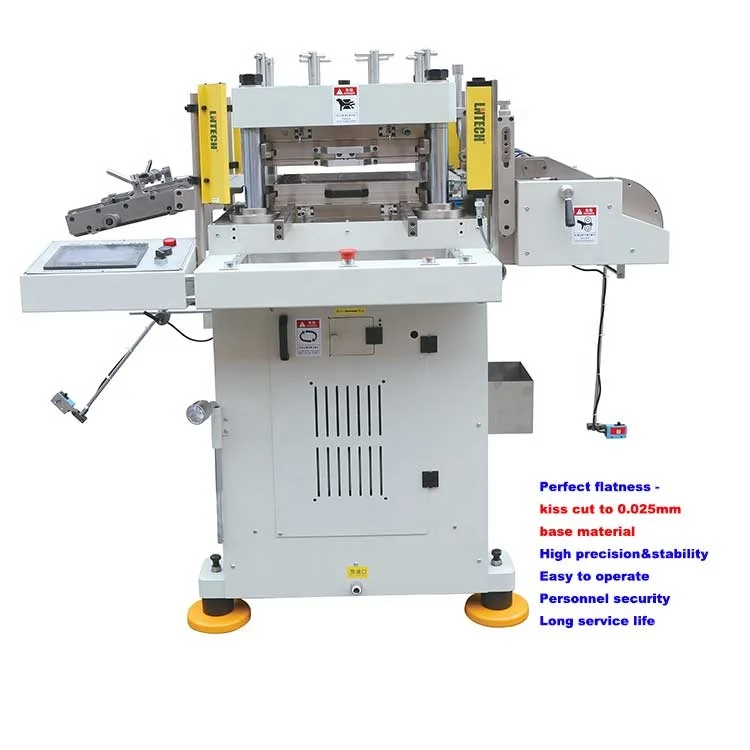

- Perfect flatness, it can kiss cut to 0.025 mm base material.
- Any acceleration and deceleration in the interval of 30-100 times/minute does not affect the cutting depth.
- Any acceleration and deceleration in the interval of 30-100 times/minute does not affect the cutting depth.
- With automatic mold clamping function, it eliminates the danger of clamping and punching, and it is easy to operate the equipment.
- A low-point acceleration patent function to solve the problem of low punching pressure of the host at low speed.
- With process saving function, the speed adjustment time is shortened.
- Precise blanking force is twice that of the same type of equipment in the industry, and the blanking force is still very stable.
- All the same mold are common and can be interchangeable conveniently with the same type of equipment.
- The operation interface is extremely simple and easy to use.
Product Paramenters
SPECIFICATIONS FOR HIGH SPEED PRECISION FLATBED DIE CUTTING MACHINE | ||||||
Model | ENZO-350 | Maximum Feeding Speed | 30 mm/min | |||
Press Force | 10T | Feeding Accuracy | < 0.1 mm | |||
Cutting stroke | 28 mm | Feeding Roller | PU/NBR | |||
Maximum Running Speed | 220 times/min | Feeding Driven | Servo Motors | |||
Stroke Adjustment | ±5 mm | Lubricate method | Fully Automatic Central Lubrication System | |||
Shut Height of Stell Mould | 115 mm | Protection | 3 Optical Safety light curtain | |||
Maximum die cutting size of Steel Mould(L*W) | 300 x 290 mm | Power Supply | 380v 5kw | |||
Turning Way | Electrically Adjust | Machine Weight | 2000 kgs | |||
Press Style | Jog/Single/Continuous | Air Source Specification | 0.5-0.6 mpa | |||
Type of Mould | Plastic board mould, Chemical sculpture mould, Metal mould | Maximum size of mode(L*W) | 350 x 350 mm | |||
Maximum Feeding width | 350mm | Machine Size (L*W*H) | 1700 x 1150 x 1500 mm | |||
Die cutting station
This unit is used to die cut material, you can install the die from here. When material passed, it pouch and die cut the products.
The speed is adjustable, the deepth and force is adjustable too.
Touch screen
You can set all parameter in touch screen, the length batch quantity ,total quantity, die cutting speed, etc. It's convenient for workers to operate.
Safety protection
There are four electronic protection light curtains around the machine. Once there is anything materials, such as the operator's hand enters the sensing range, the machine will stop working immediately.
Product Application
Flying Man precision die cutting machine is suitable to die cut thin flexible electrically insulating materials such as plastic films, rubber, fibers, and papers. These materials are widely applied many industries including Electronic devices, Servers and personal computers, Power supplies, transformers, inverters, Battery / electronic vehicle, Lighting assemblies, Aerospace systems,
Military / Defense, Automotive electronics, Medical devices and etc.
Military / Defense, Automotive electronics, Medical devices and etc.
Whole Service
Technical Service
- Free sample testing and video for your reference.
- Technical support: Professional engineers’ team to help you design a whole-set product line to get highest profit with lowest cost and offer you technical support any time.
Training service
Free training in our factory available before delivering machines.
Engineers available to service machinery overseas. Overseas service center in Vietnam available.
Engineers available to service machinery overseas. Overseas service center in Vietnam available.
After Sales Service
- Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation.
- One-year warranty, whole life technical support.
- One-year warranty, whole life technical support.
- 24 hours technical support, we will do our best to help our customers solve problems.
- We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.
process control
PACKAGE
We use exporting standard packing. First to wrap PE film around the machine, then packed by plywood case to ensure the package enough safe and strong. It’s easy for forklift to upload and download and safety transportation. We also can pack the machine according to customers special requirement.
SHIPPING
Usually we suggest customers choose ocean shipping to ship machinery, or air transport for small machine or urgent order. We also supply shipping service with our cooperation shipping forwarder to help customers to deliver the machinery in first time.
company profile
FAQ
Q: Are you a factory or trading company?
A: We are a factory and manufacturer.
Q: Where is your factory located in? How can I visit there?
A: Our factory is located in Kunshan city, Jiangsu province, and our detailed address is: No.1008, Xiangshi Road, Bacheng Town, Kunshan City, JiangSu Province, China. It’s only 40 minutes' away from Shanghai Hongqiao airport by car, and 18 minutes' away from Shanghai railway station by high-speed rail. The traffic is very convenient.
Q: what are your main products?
A: Our main products are high speed precision die cutting machines, cutting machines, slitting machines, laminating machines and printing machines.
Q: Which industries can use your machines?
A: All industries need to cut (include full cutting and kiss-cutting), slit, laminate, die cut raw materials can use our machines. Mainly used for material before and after cutting and/or printing.
Q: If there are no machines available from your list, could we customize non-standard machines from you?
A: Yes, we have our own professional design engineers, and can customize products according to your requirement. 30% of our current customer need customization on their machines.
Q: What's the trade term?
A: EXW, FOB, CFR, CIF or DDU are all workable based on customer’s requirement.
Your question will be highly appreciated.
