2X 4 портативный антикоррозийный 2 ступенчатый вращающийся лопастной Электрический вакуумный насос для лаборатории
- Категория: >>>
- Поставщик: Shanghai Yuhua Instrument Equipment Co. Ltd.
Сохранить в закладки 1600657378176:
Описание и отзывы
Характеристики
Vacuum pump refers to the device or equipment that uses mechanical, physical, chemical or physical chemical methods to extract air from the evacuated container to obtain vacuum. Generally speaking, vacuum pump is a device to improve, generate and maintain vacuum in a closed space by various methods.
According to the working principle of vacuum pump, vacuum pump can be basically divided into two types, namely gas capture pump and gas transfer pump. It is widely used in metallurgy, chemical industry, food, electronic coating and other industries.
According to the working principle of vacuum pump, vacuum pump can be basically divided into two types, namely gas capture pump and gas transfer pump. It is widely used in metallurgy, chemical industry, food, electronic coating and other industries.
Product Description

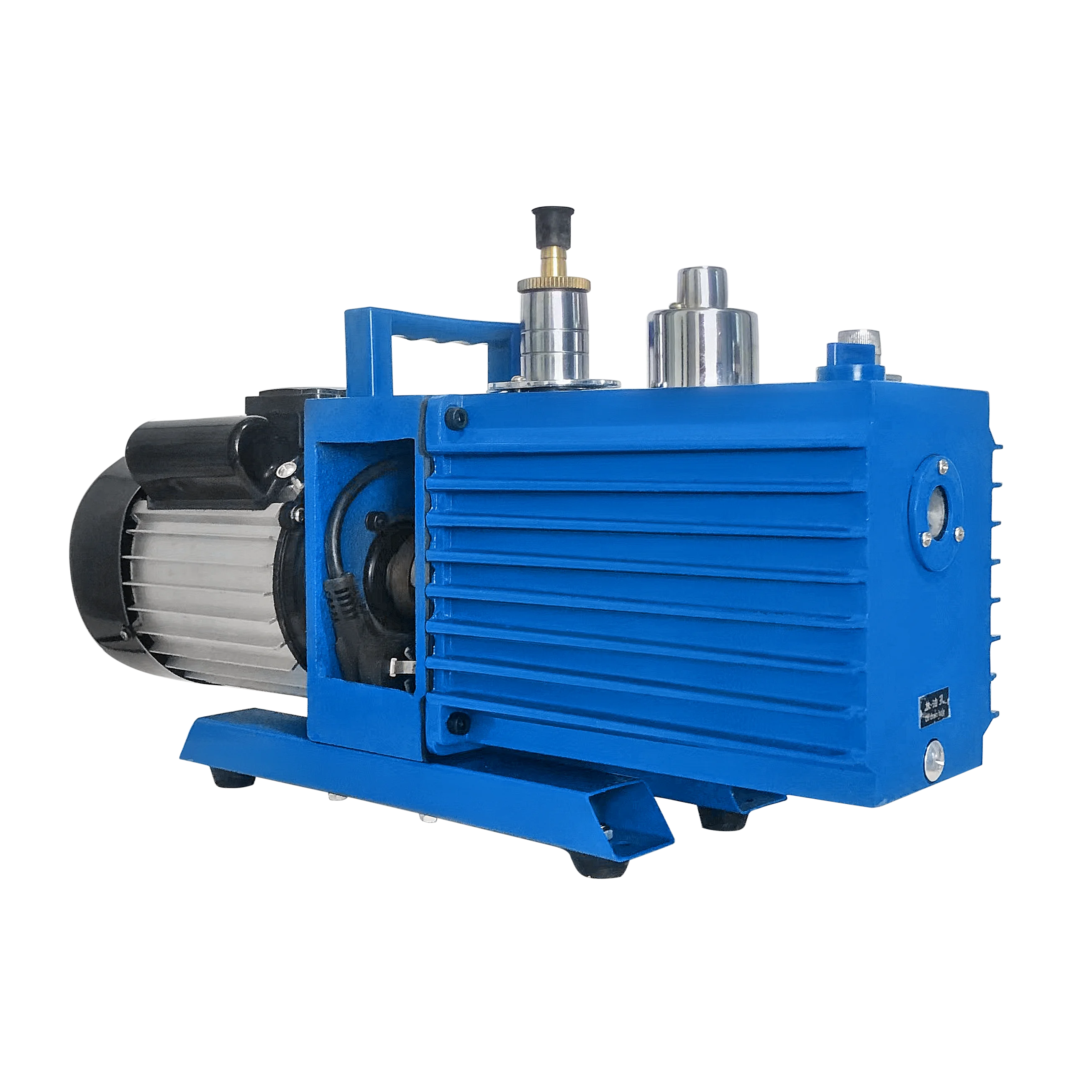

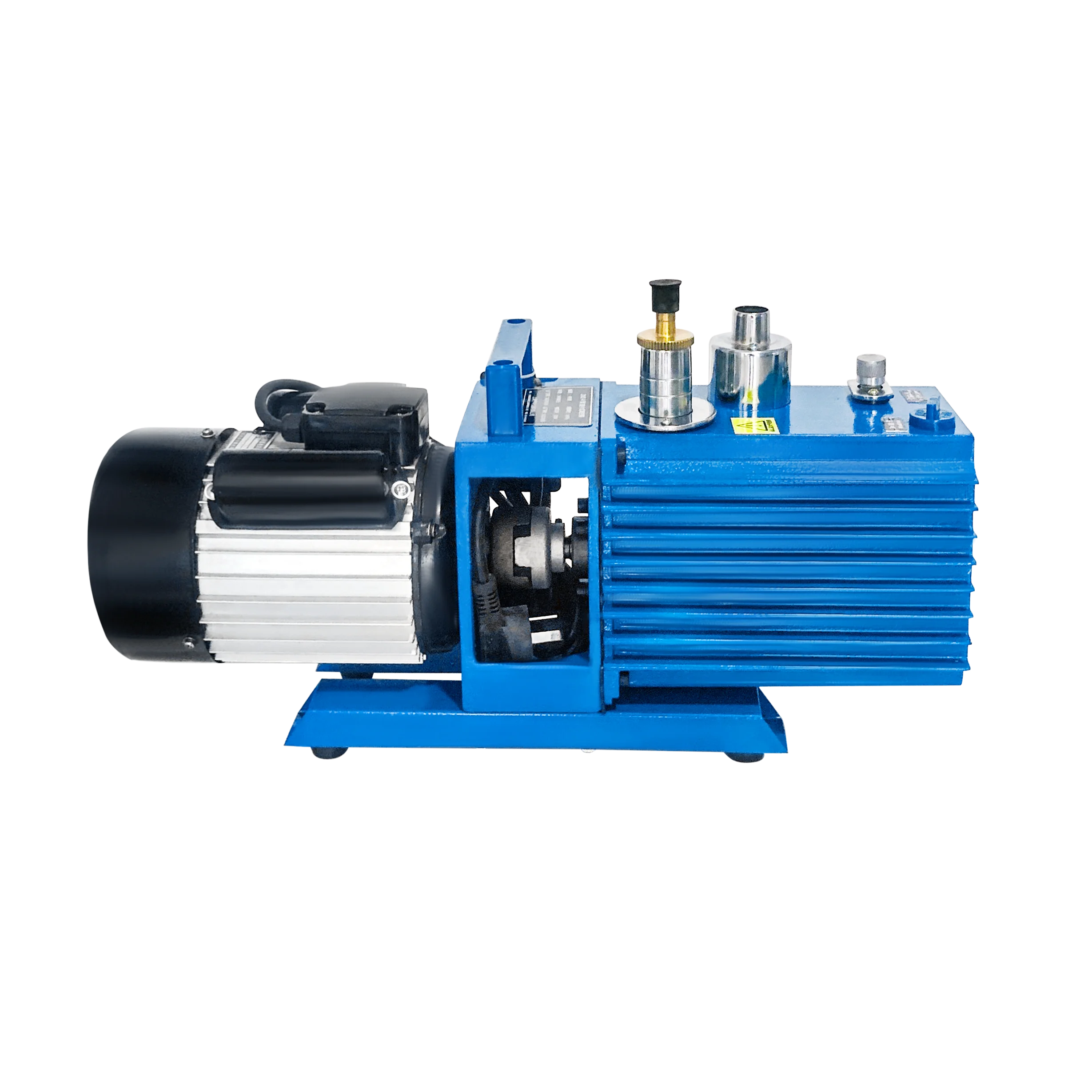

2 stage rotary vane vacuum pump
High quality aviation aluminum shell
The shell is made of aluminum alloy, which is firm and reliable
Light weight, good corrosion resistance
The shell is made of aluminum alloy, which is firm and reliable
Light weight, good corrosion resistance
All copper core motor
Powerful, stable and long service life
High heat dissipation and reliable operation ensure stable performance at high speed and high temperature

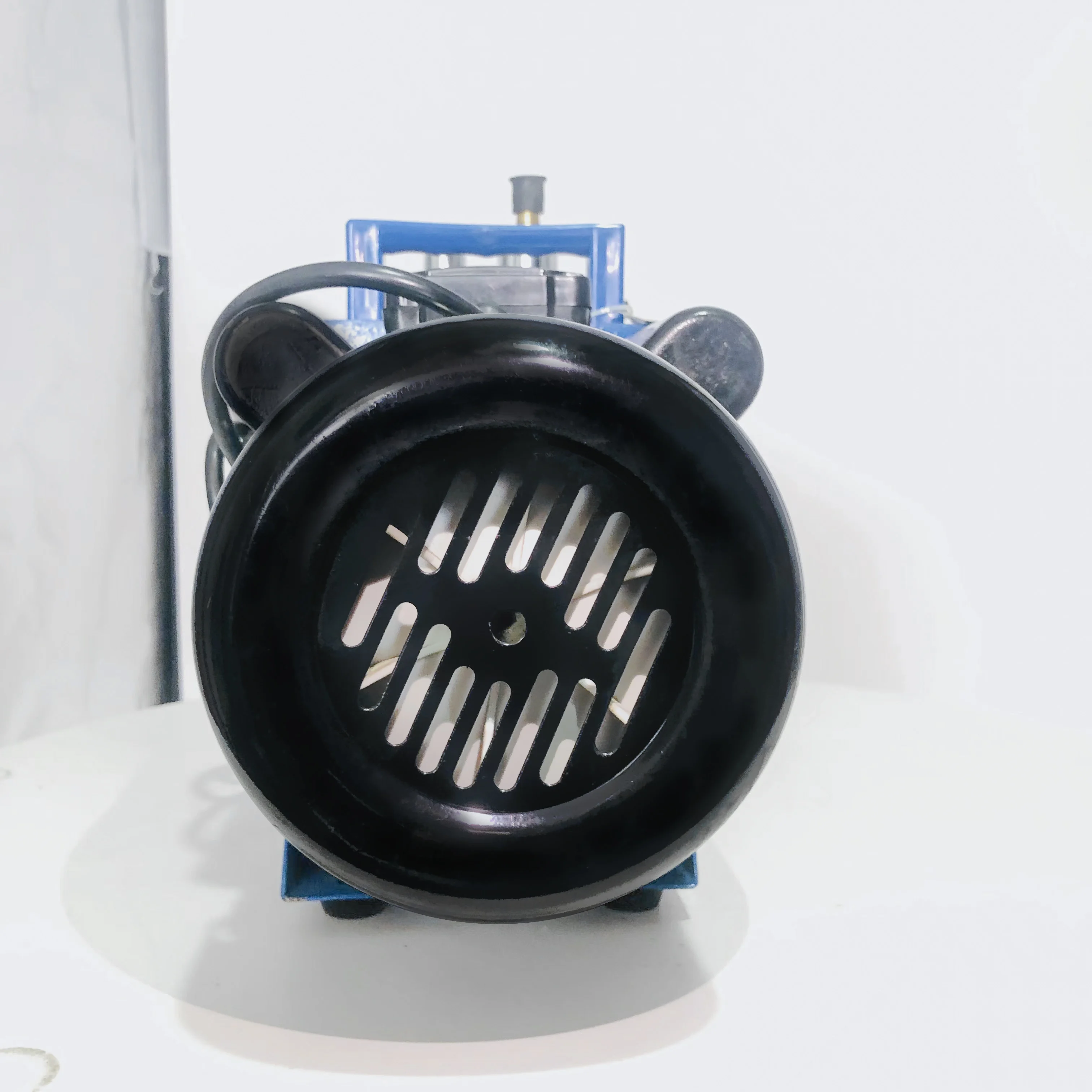

Cooling fan
Good heat dissipation and low noise
Control switch
One button start stop, easy to operate and use

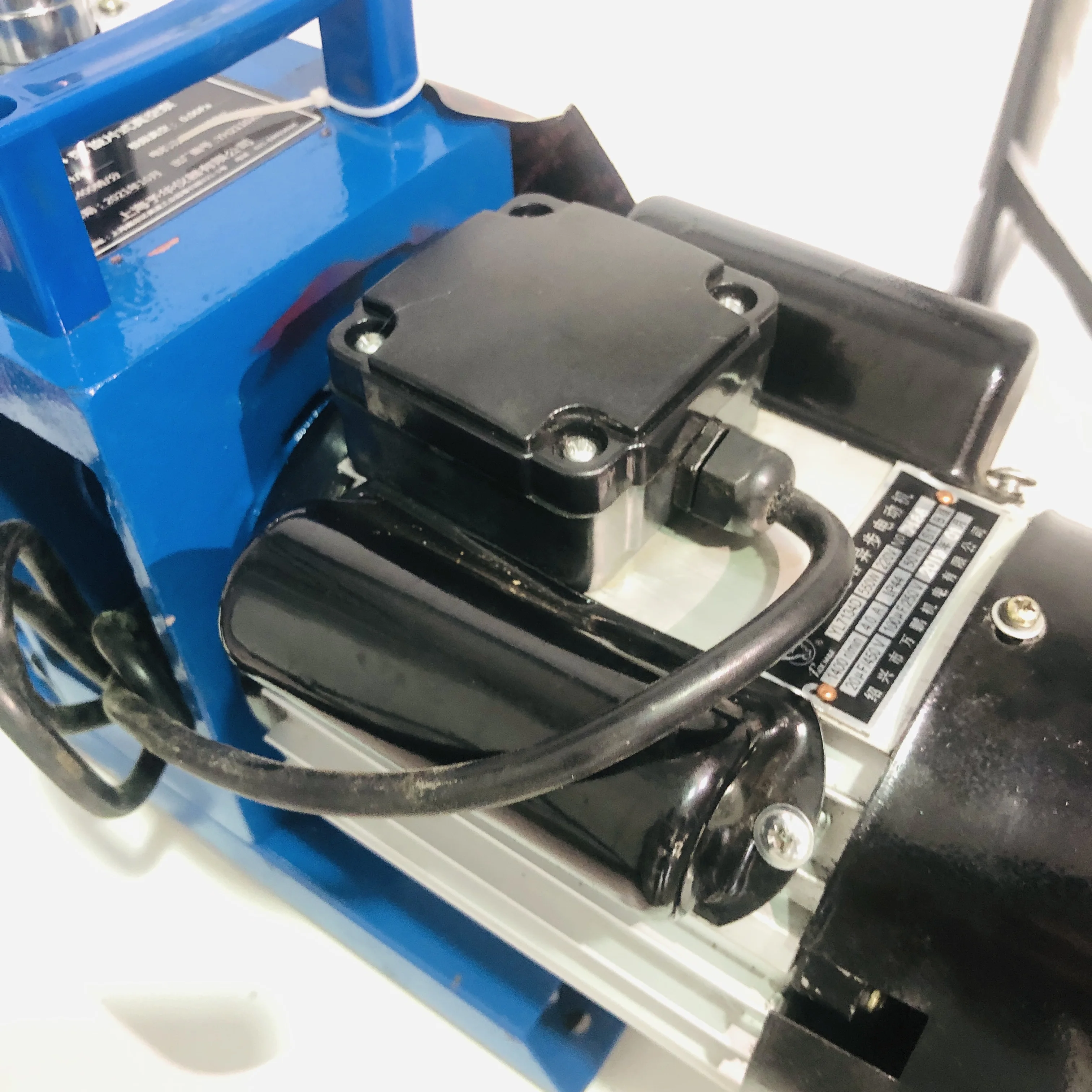

Double capacitor motor
The motor built-in protector operates stably
Aviation aluminum housing
Firm and reliable, light weight and corrosion resistance
Vacuum pump handle
Easy to move and use
Special design gas ballast valve
Equipped with specially designed gas ballast valve to prevent pump oil mixing with water from prolonging service time
Product structure
Specifications
Model | 2XZ-0.5 | 2XZ-1 | 2XZ-2 | 2XZ-4 | 2XZ-8(single-phase) | 2XZ-8(three-phase) | 2XZ-15C | ||||||
Pumping velocity | 0.5L/S | 1L/S | 2L/S | 4L/S | 8L/S | 8L/S | 15L/S | ||||||
Motor power | 0.18Kw | 0.25KW | 0.37KW | 0.55KW | 1.1KW | 1.1KW | 1.5KW | ||||||
lnlet diameter | 12MM | 12MM | 12MM | 12MM | 25MM | 25MM | 40MM | ||||||
Oil capacity | 0.4L | 0.4L | 0.48L | 0.55L | 2.3~2.5L | 2.3~2.5L | 2.8~3.3L | ||||||
Machine weight | 18KG | 19KG | 27KG | 30KG | 50KG | 50KG | 62KG | ||||||
Working voltage | 220V | 220V | 220/380V | 380V | 380V | 380V | |||||||
Motor speed | 140OR/MIN | ||||||||||||
Extreme pressure | ≤6.7X102PA | ||||||||||||
Overall dimensions | 445*125*256 | 478*148*227 | 518*148*227 | 650*240*430 | 700*240*430 | ||||||||
Matching products
Packing
About us
Yeahon was founded in 2008 and based in Shanghai, committed to providing lab and pilot apparatus applied in biochemical, fine chemical and research filed. We have 2 factories in Shanghai and Henan, covering an area of nearly 10,000 square meters, with short production cycle, high quality and low price, and guaranteed quality!
Our core products mainly include molecular distillation equipment, rotary evaporator, glass reactor, vacuum filter, drying oven, electric overhead stirrer, temperature control equipment and other supporting equipment.
Our core products mainly include molecular distillation equipment, rotary evaporator, glass reactor, vacuum filter, drying oven, electric overhead stirrer, temperature control equipment and other supporting equipment.
FAQ
Q1. What is your products range?
• Rotary Evaporator, Glass Reactor, Recirculating Cooling Chiller, Circulating Water/oil Bath, Short Path Distillation, Molecular Distillation Equipment, Electric Stirrer, Vacuum Pump, Hydrothermal Synthesis Reactor and other lab equipment.
• Know more
Q2. Are you trading company or manufacturer?
• We are professional manufacture of lab equipment and we have two factories located in Shanghai and Henan.
Q3. Do you provide samples? Is it free?
• Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.
Q4. Do you have warranty?
• Yes, we offer 1 year warranty for the spare part.
Q5. How long is your delivery time?
• Generally it is within 5 working days after receiving the payment if the goods are in stock. Or it is 10 working days if the goods are not in stock, depending on order quantity.
Q6. What is your terms of payment?
• Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.
(If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Alibaba. you will get 100% payment refund if we can't meet agreed delivery time.)
• Rotary Evaporator, Glass Reactor, Recirculating Cooling Chiller, Circulating Water/oil Bath, Short Path Distillation, Molecular Distillation Equipment, Electric Stirrer, Vacuum Pump, Hydrothermal Synthesis Reactor and other lab equipment.
• Know more
Q2. Are you trading company or manufacturer?
• We are professional manufacture of lab equipment and we have two factories located in Shanghai and Henan.
Q3. Do you provide samples? Is it free?
• Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.
Q4. Do you have warranty?
• Yes, we offer 1 year warranty for the spare part.
Q5. How long is your delivery time?
• Generally it is within 5 working days after receiving the payment if the goods are in stock. Or it is 10 working days if the goods are not in stock, depending on order quantity.
Q6. What is your terms of payment?
• Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.
(If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Alibaba. you will get 100% payment refund if we can't meet agreed delivery time.)
Contact us
Shanghai Yuhua Instrument Equipment Co.,Ltd
Email: judy@shyhyy.com
Whatsapp: +86 18569916957
Phone NO.: +86 18569916957
Add: Chuigui Road, Huangdu Industrial Park, Jiading District, Shanghai, China
Don't hesitate to contact us, this is the product you need. Please click "Send" immediately!
Email: judy@shyhyy.com
Whatsapp: +86 18569916957
Phone NO.: +86 18569916957
Add: Chuigui Road, Huangdu Industrial Park, Jiading District, Shanghai, China
Don't hesitate to contact us, this is the product you need. Please click "Send" immediately!
Похожие товары

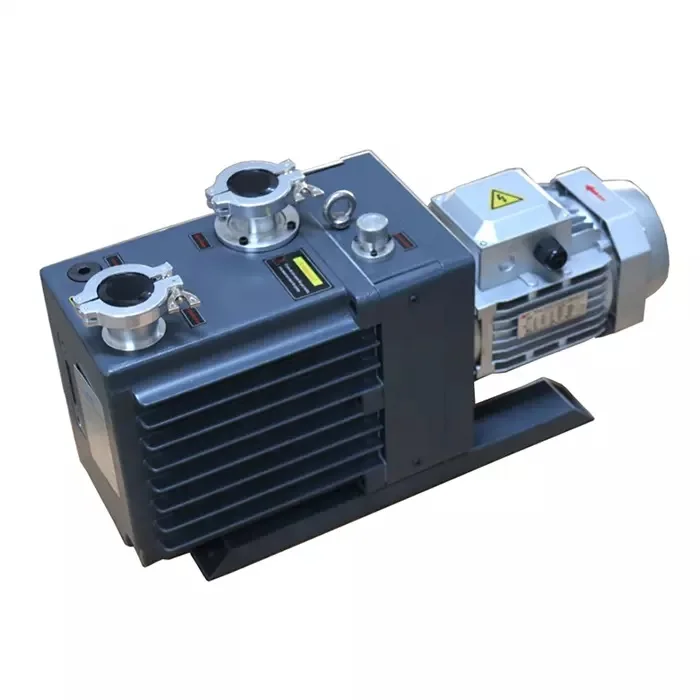

Электрический 2 этап пластинчато-роторный вакуумный насос
17 155,76 ₽

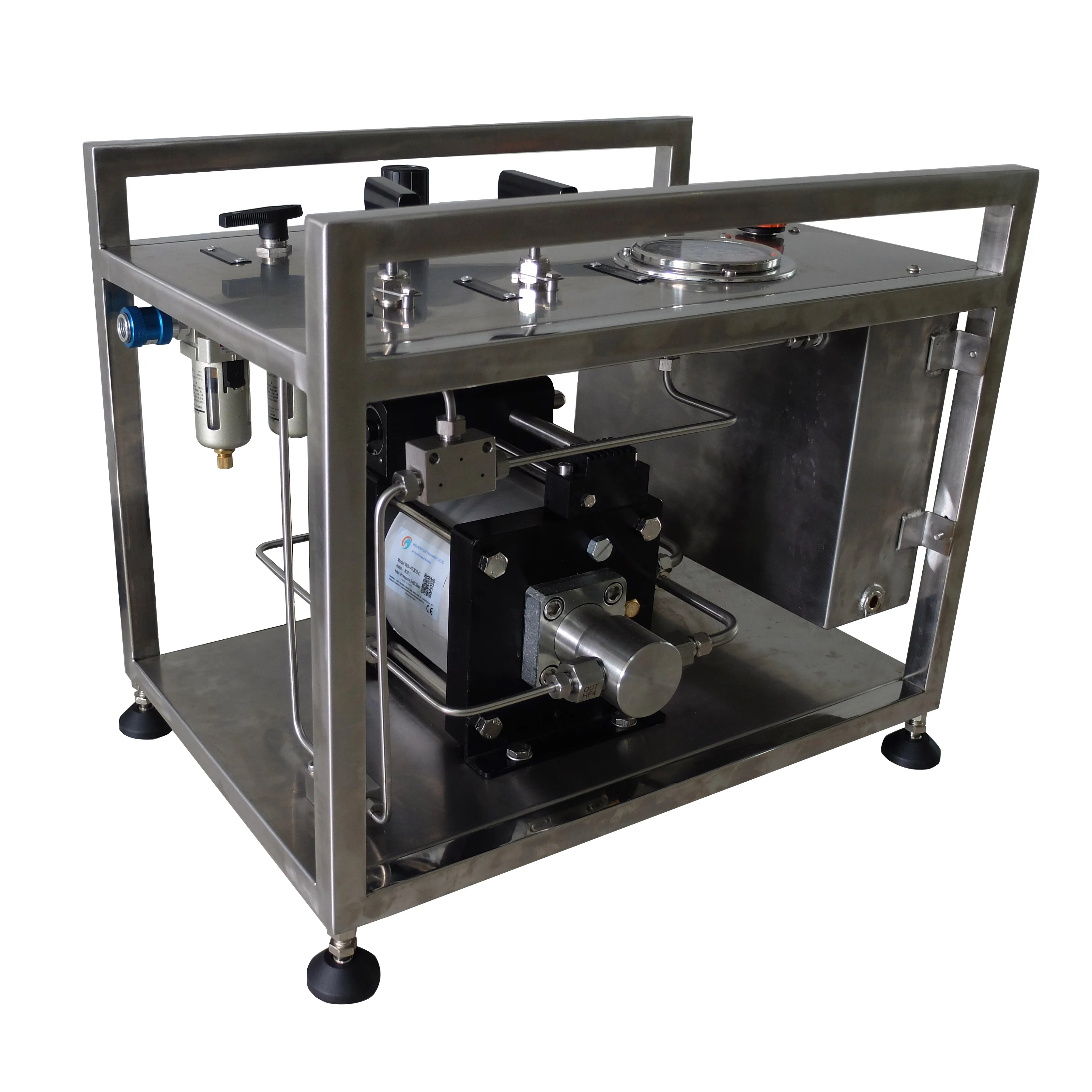

Новое поступление сшаоон Модель: US-AT170 высокого давления с пневматическим приводом на жидкости система усилитель для клапан/труба
210 400,71 ₽ - 221 190,49 ₽

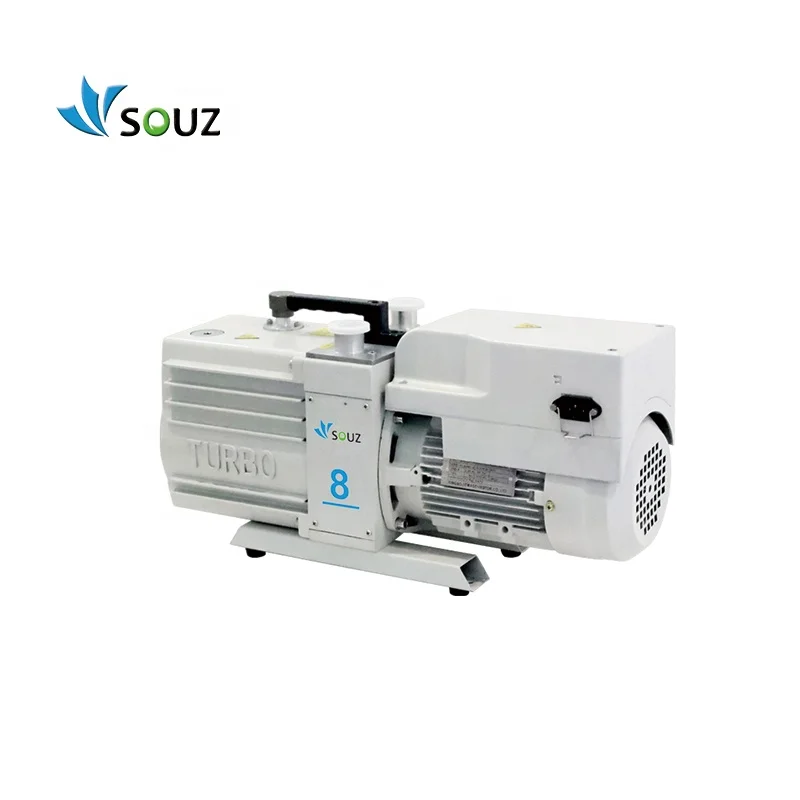

Техническое обслуживание, автомобильный промышленный Электрический 2-ступенчатый бесмасляный поворотный лопастной вакуумный насос
1 266 218,45 ₽

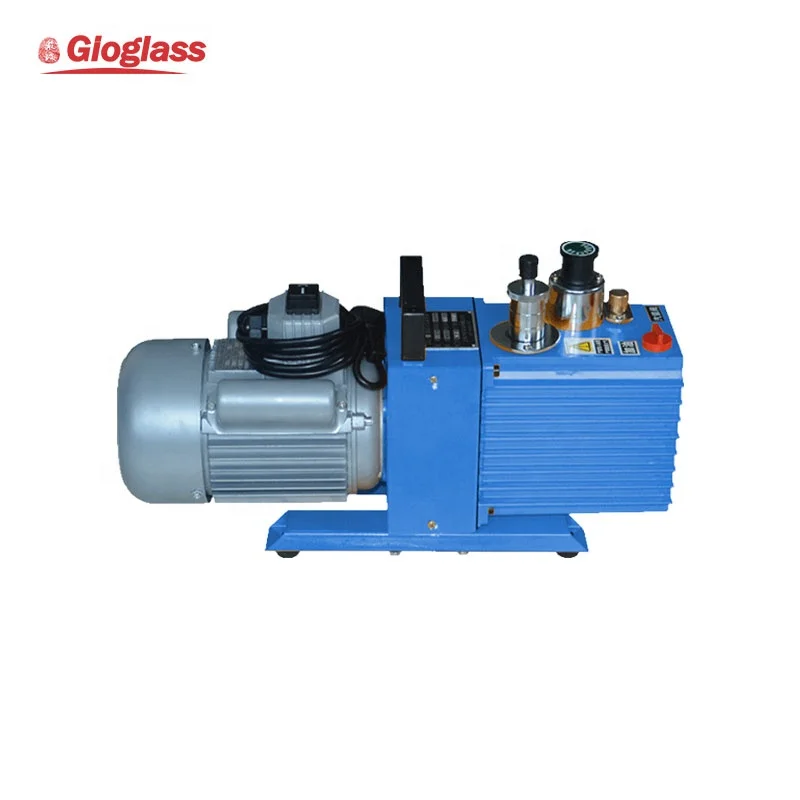

Двухступенчатый вакуумный насос с масляной смазкой, 2 ЛПС, скорость 2XZ-2C T8
Портативный 2 этап пластинчато-роторный 1400 об/мин вакуумный насос 2xz-4B
33 987,81 ₽

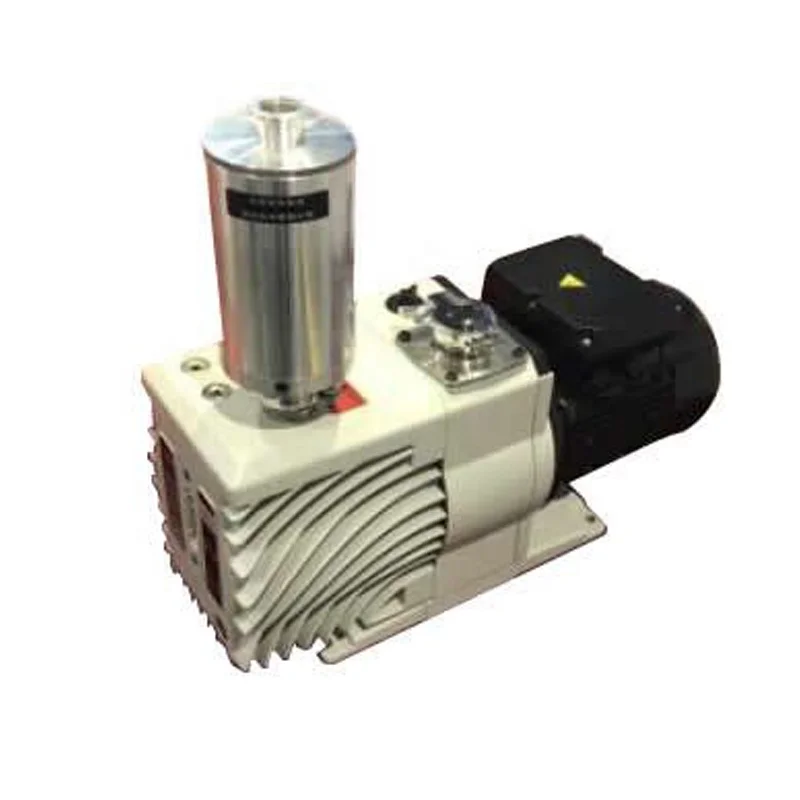

2 этап пластинчато-роторный вакуумный насос турбомолекулярный вакуумный насос ручной вакуумный насос
44 238,10 ₽

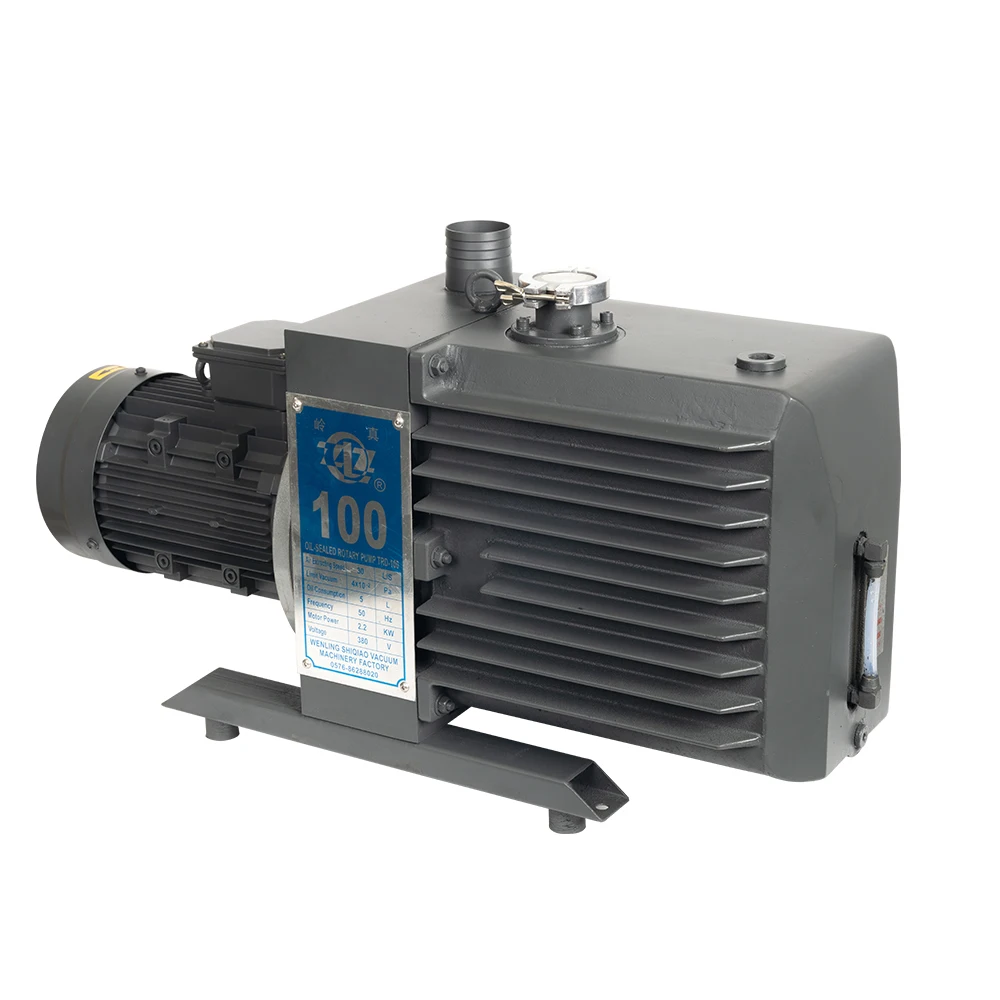

TRD-100 Высокое качество 100 м3/ч 3 кВт 2-ступенчатый воздушный вакуумный роторный насос для вакуумной сушки
