Products Description


700W WVC Series Waterproof Grade IP65 Micro Grid-Connected MPPT Inverter DC28-50V 120V 230V Auto Solar Grid Tie Converter


WVC series inverter Using IP65 waterproof streamline design which effectively prevent rainwater on the surface erosion, built-in high-performance maximum power point tracking MPPT function better able to track changes in the solar luminosity and control different output power, effectively capture and collect sunlight AC electric power transmission using the reverse transmission technology. The inverter output power can provide load priority use, extra electricity to the grid, Efficiently turns sunlight into clean and green power.


Features:

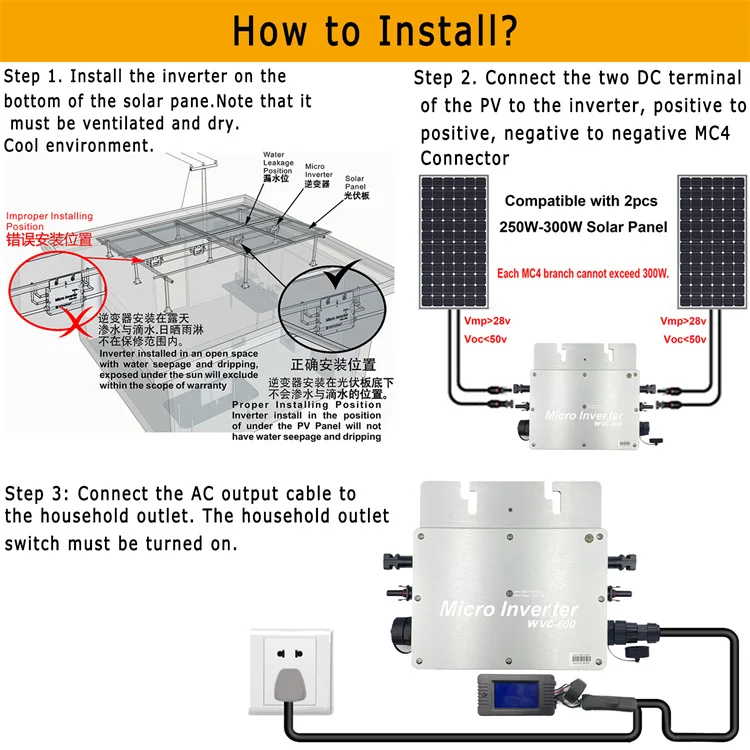

1.IP65 waterproof appearance design(Installed at the bottom of the Solar panel)
2.AC data monitoring display screen.
3.Built-in high performance maximum power point tracking function(MPPT)

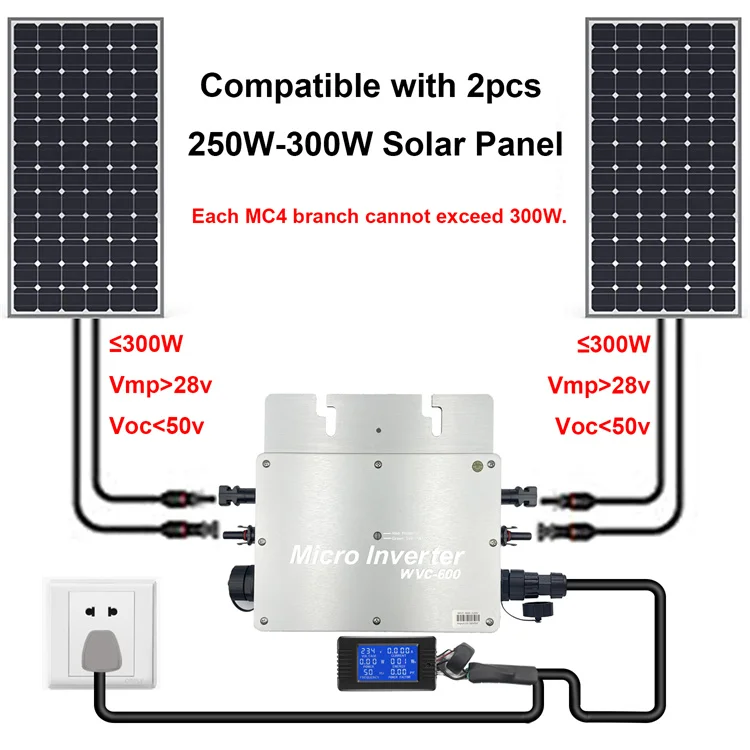

4.Suitable for 2X250W-350W 36V solar panel(Vmp30-39V; Voc36-50V)
5.Aluminum alloy material.Better heat dissipation.

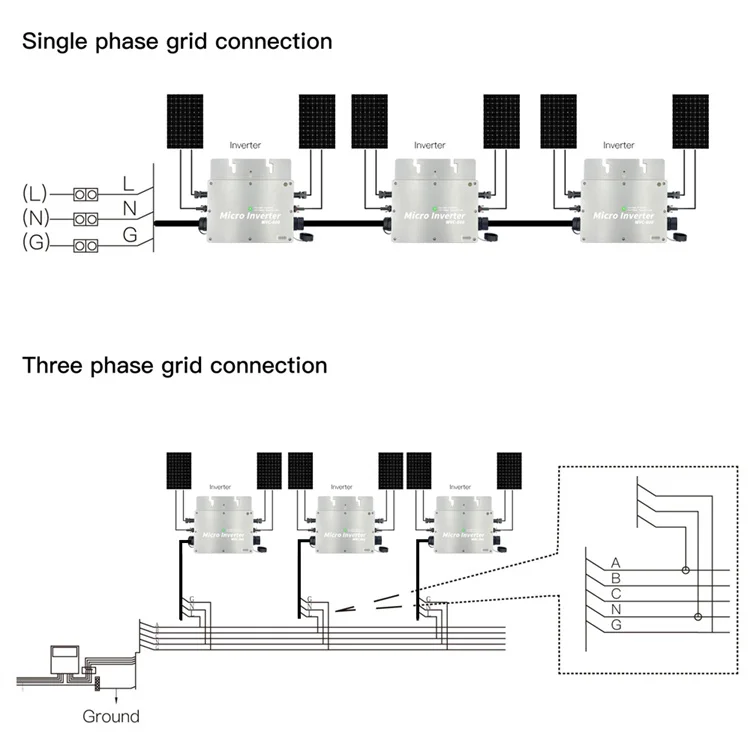

6.Support single-phase or three-phase connection.
7.Simple wiring.
8.High precision phase detection;Over and under voltage protection; Over and under frequency protection; Islanding protection.


Paramenters:
Model:WVC-700W
Rated voltage:110V / 220V
Recommend PV:2*250~350W
Reccommend PV (Voc):34~50V DC
MPPT Tracking voltage:28~40V DC
Maxi Input Current:26A
Rated output current:2.39A

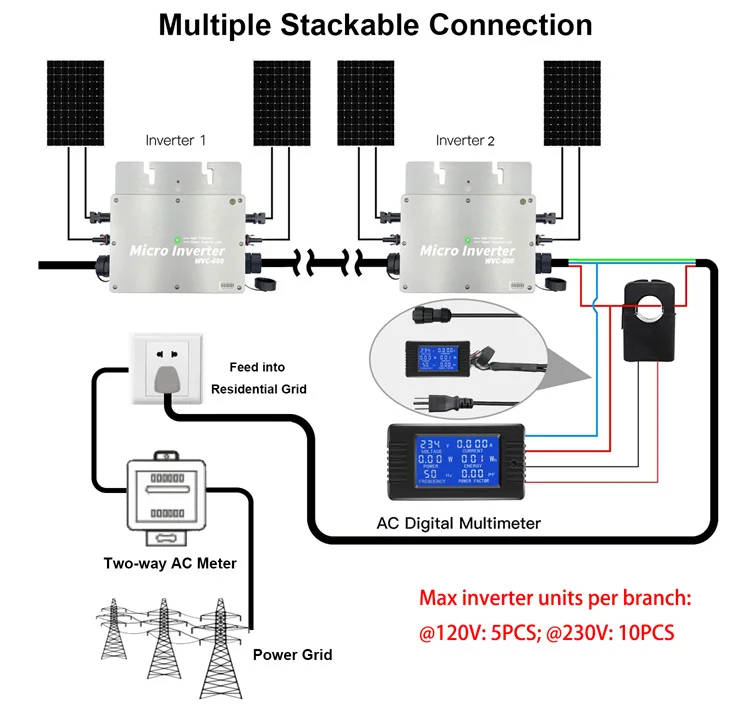

Max units per branch:10PCS
Rrequency:Auto switch 50/60Hz
Ambient temperature:- 40℃to +65℃

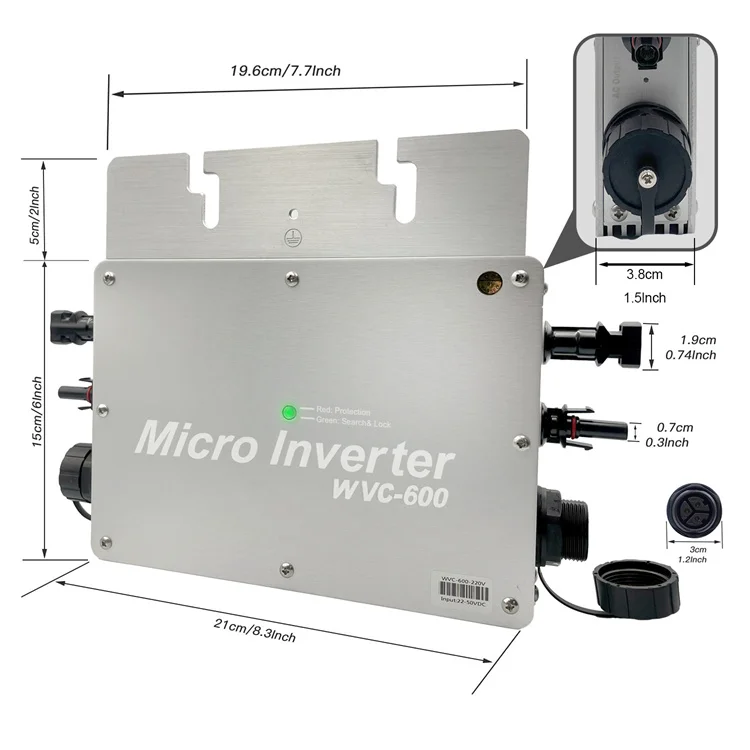

Dimensions:283mm×200mm×41.6mm
Weight:1.56kg
Cooling:Self-cooling
Certificate:CE


User notice:
• Vmp(of a solar panel) must be in the MPPT Tracking range to ensure the good output efficiency
• Use solar panel ONLY connect to this equipment.
• This equipment is ON-GRID Microinverter, To make it work properly, it must be connected to the power grid correctly,and the
power grid is working properly, When the power grid stopped working, it will also stop generating.
• Do NOT exceed PV panel(s) voltage over the Solar Grid Tie Inverter max input voltage.(Vmp>28V;Voc<50V)
• Do NOT exceed PV panel(s) power over the Grid Tie solar Inverter max input power.(2X350W)
• The positive and negative poles of the solar panel cannot be reversed. If you extend the solar panel cable. You need to be
careful about this problem.
• Install away from direct sunlight and direct rain exposure.(Ventilated, dry, cool)


Regarding the heating problem of the inverter:
this is normal phenomenon. All electronic devices generate heat during operation. The inverter uses aluminum alloy material. Metal can conduct heat better. The inverter also has over-temperature protection if the temperature is high. Then the inverter will automatically reduce the working output efficiency. Or stop working. After cooling down, restart. It is recommended to install the inverter in a ventilated, dry and cool place.


About inverter repair:
After a large amount of customer data feedback, the inverter cannot work because the DC or AC fuse is damaged. (The red light is on because the AC accessories are damaged, and if the light is off, the DC accessories are damaged)When you encounter this problem, we can send you accessories for free. And give you maintenance video instruction. You can easily replace it.

If you have any questions after receiving the product, please contact us in time, we will give you good after-sales service, so you don't have to open disputes at will.


Product Show




Company Profile


"Y&H"was established in 2016. Provide customers with one -stop solar system service.Y&H is a field of solar products,
--including hybrid inverters,
--on Grid inverters,
--OFF GRID inverters,
--MPPT/PWMsolar charging controllers,
--lithium iron phosphate batteries,
--PV components
--MC4 Connectors

Y&H has a professional and experienced technical team in the photovoltaic field, and is committed to providing high -quality products. And from Y&H, you can complete the entire set of photovoltaic equipment at one time. After -sales, warranty, etc. You only need Y&H to help you solve it.








Product packaging




Certifications






FAQ


FAQ
1. How to insatll and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation will be sent to our customers.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. what can you buy from us?
Solar Inverter,Solar Charge Controller,Solar Power System,Solar Panel,Solar Lithium Ion Battery

4:What is the payment method?
We normally require a T/T advance payment. 30% deposit and 70% before shipping.

5. Can I buy one sample for testing?
Sure,we have a 8 years experience R&D team and in timely after sale service,can help you fix any technical problem or confusion.

6. How is the delivery?
Sample:2-3 working days
Order:within 7 working days depending on the order quantities
OEM order:15-20 working days after confirming the sample

7. Can you get the the solar inverter customized for us ?
Of course, brand name, machine color, designed unique patterns available for customization.
