Main Features
1.Simple structure, light and nimble, no moving part
2.Large processing capacity
3.The classification particle size can reach 10μm
4.Low maintenance charge, easy to attach and detach, save floor space, low construction expense
2.Large processing capacity
3.The classification particle size can reach 10μm
4.Low maintenance charge, easy to attach and detach, save floor space, low construction expense
Lab Hydro-Cyclone FX-25 FX-50 FX-75 Sand Classifying System Mineral Desander Zinc Lead Mine Slurry Hydrocyclone For Sale
Jiangxi Henghong mining machinery is devoting to provide turnkey solution with worldwide clients for mineral processing plant including research, design, manufacture,installation and commissioning, personnel training, after-sale service and management of processing plant. Up to now, we have developed five major product lines: they are mining crushing machine, mining milling machine,mining classifying separator, mining flotation machine and the mining gravity separator. When you find us, you find one best mining machinery manufacturer.

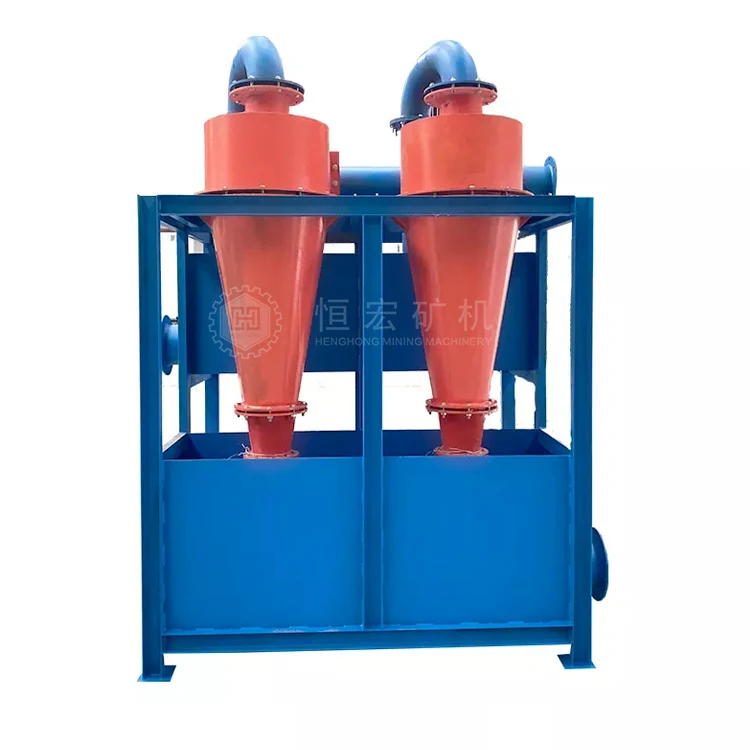

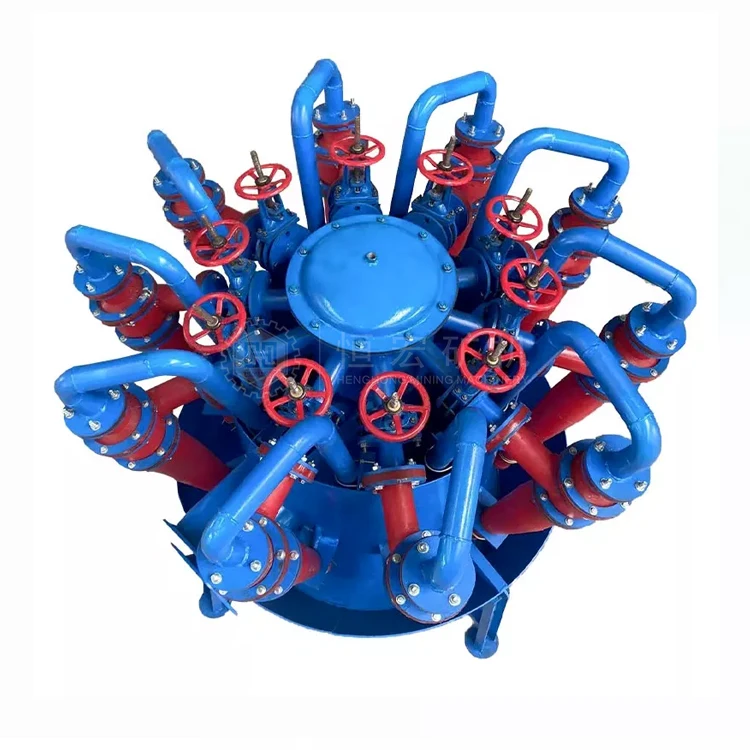

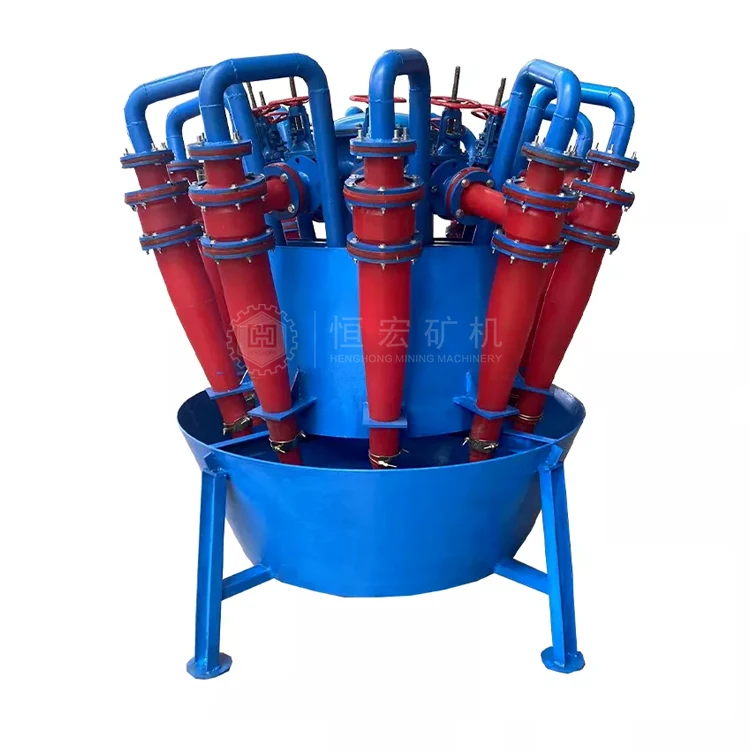

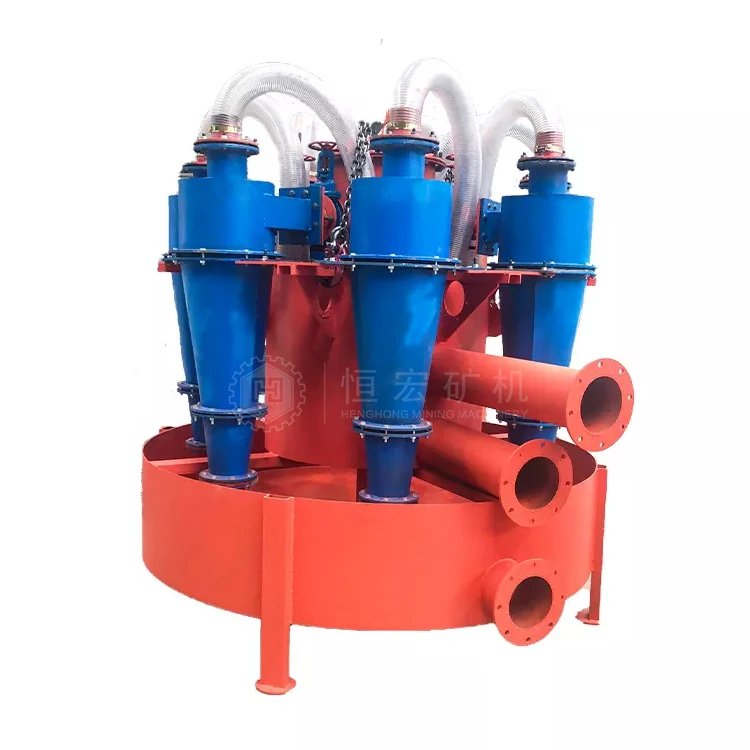

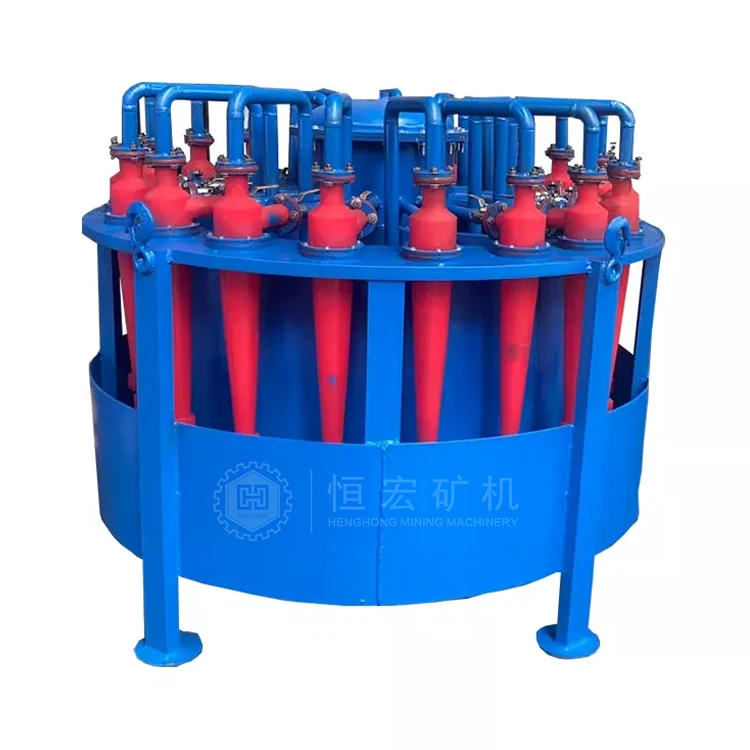

Hydrocyclone Sand Separator Introduction
Polyurethane hydrocyclone separator is the equipment used for separating, grading, sorting, concentration, and off the mud in mineral processing industry.
It has two types of pressure type and gravity type and is made up of either cylindrical structure or metal pipe. Water is fed through the top of structure (or metal pipe) by means of pressure or gravity along the tangent line. Coarse and thick particulate matters are thrown to the wall, rotated down and discharged together with the concentrated liquid formed under the action of centrifugal force. Small particulate matters are discharged together with secondary upward vortex after rotated to some extent.
After pumped into the cylinder by sand pump (or height difference) at certain pressure (generally 0.5-2.5kg/cm) and flow velocity (around 5-12m/s) through the ore feed pipe and along the tangential direction, the pulp will rotate along the cylinder wall quite fast to generate substantial centrifugal force. Under the action of centrifugal force and gravity, thick and heavy ore grains are thrown to the wall, moved down along track of the spiral line and discharged out of the sand discharge nozzle at the cone bottom.While fine ore grains form ascending pulp flow with water at the cone center that is later discharged out of the overflow pipe.
Working Principle
Polyurethane cyclone is centrifugal sedimentation, when two phases (or three phases) mixed liquid is fed into hydrocyclone by a certain pressure liquid and produces strong three-dimensional-elliptic rotational movement. Due to the different density of particles, the centrifugal force, the centripetal buoyancy and drag force is different. So most coarse particles (or heavy phase) are discharged from cyclone underflow outlet, and the fine particles (or light phase) from the overflow tube, so as to achieve separation.
Model | Specification | Capacity (m³/h) | Separation Particle Size (μm) | Diameter of Overflow Port (mm) | Diameter of Dust- Setting Nozzle (mm) | Inlet Pressure (MPa) |
FX-10 | 10 | 0.05-1 | 1-5 | 2-4 | 1-2 | 0.060-0.15 |
FX-25 | 25 | 0.3-1 | 2-10 | 5-8 | 2-5 | 0.060-0.15 |
FX-50 | 50 | 1.5-3 | 5-74 | 11-18 | 3-12 | 0.060-0.15 |
FX-75 | 75 | 2-5 | 5-74 | 15-20 | 6-12 | 0.060-0.15 |
FX-100 | 100 | 5-12 | 10-74 | 20-40 | 8-18 | 0.060-0.15 |
FX-125 | 125 | 8-15 | 20-74 | 25-40 | 8-18 | 0.060-0.15 |
FX-150 | 150 | 10-23 | 25-74 | 30-45 | 8-22 | 0.060-0.15 |
FX-200 | 200 | 17-38 | 28-80 | 40-65 | 16-32 | 0.060-0.15 |
FX-250 | 250 | 24-53 | 30-82 | 65-100 | 16-40 | 0.060-0.15 |
FX-300 | 300 | 40-100 | 36-90 | 65-120 | 20-40 | 0.060-0.15 |
FX-350 | 350 | 56-118 | 40-100 | 80-120 | 30-70 | 0.060-0.15 |
FX-375 | 375 | 74-157 | 42-105 | 90-135 | 30-70 | 0.060-0.15 |
FX-450 | 450 | 90-192 | 44-110 | 100-150 | 30-70 | 0.060-0.15 |
FX-500 | 500 | 128-300 | 50-115 | 130-220 | 35-100 | 0.060-0.15 |
FX-600 | 600 | 200-468 | 57-125 | 160-260 | 65-110 | 0.060-0.15 |
FX-660 | 660 | 237-524 | 60-130 | 180-280 | 80-150 | 0.060-0.15 |
Q: 1.What is your machine used for ?
A: Hydrocyclone Separator is the equipment used for separating, grading, sorting, concentration, and off the mud in mineral processing industry.
Q: 2.Are you factory or trade company?
A: Yes dear,we are the Professional manufacturer from 1985.So we could give you original factory price than those trade companies.
We're also warmly welcome your Visiting our factory if you are coming to China,Please contact +86-18870736160
Q: 3.Can I operate it well, if I have no experience?
A: Do not worry! Our machines is designed to use easily.You are welcome to visit our company to be trained here,And we could arrange the engineer to go to your country/company to train your workers directly as your requested and the relative travel cost will be on your account.
Q: 4.Can you send me the video to show how the machine works?
A: Surely.we have made video of every machine,so if you need we can send for you to checking in clearly.
Q: 5. What should I take care when using the machine?
A: Please using the machine in regular and Keeping the machine away from thinner and other chemical liquid.
Q: 6.How about your Service ?
A: All of our machines have one year warranty and Wholelife Technology support to make sure your machine work well.
Q: 7.How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: 8.What about the payment method?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q:9.What's Information we need from your side ?
A: What's kind of ore do you want to process ? Maximum feeding size and Capacity per hour ?
Q: 7.How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: 8.What about the payment method?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q:9.What's Information we need from your side ?
A: What's kind of ore do you want to process ? Maximum feeding size and Capacity per hour ?
Any Interest in our products,please do not hestitate to contact us.
