Высокоскоростной полностью автоматический однослойный трапециевидный железный лист с 5 ребер кровельная плитка формовочная машина
1 102 002,79 ₽ - 1 212 324,30 ₽
Распродажа Автоматический световой Манометр с прорезями U образная стальная рама изготовление металлических штифтов гусеничных станков прокатная машина
- Категория: >>>
- Поставщик: Tianjin Ironstar Industry Co. Ltd.
Сохранить в закладки 1600700028442:
Описание и отзывы
Характеристики
Product Description
UD 3 in 1 roll forming machine | u stud machine | 3 in 1 U stud machine | U profile roll forming machine | U track roll forming machine
U channel roll forming machine popular sell in many countries, common thickness between 0.3-0.6 mm, Common speed 10-20 m/min, with servo motor speed can max reach to 30-50 m/min, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc, machine details is like up type:
Machine spections
Working flow
Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table
| Part details | Item Name | Specification |
| Material | Raw material | Galvanized steel |
| Thickness | 0.3-0.8 mm | |
| Machine | Roller station | 10 |
| Shaft diameter | 55 mm | |
| Shaft material | 45# steel with 0.05mm chrome | |
| Roller material hardness 30-40 HRC | Cr 12 | |
| Machine size | About 6×1×1 m | |
| Machine weight | About 2.5 ton | |
| Machine color | As customer' request | |
| Working speed | 30-50 m/min | |
| Cutter | Hardness | 50-65 HRC |
| Cutting tolerance | ± 1 mm | |
| Material | Cr 12 | |
| Operate | Hydraulic cutting | |
| Power | Driving way | Chain 1 inch |
| Main power | 5.5 kw | |
| Pump power | 4 kw | |
| Voltage | 380v/50HZ,3P or customize as customer' request | |
| Control system | PLC brand | Delta made in Twaiwan |
| Screen | Touchable screen | |
| Language | Chinese and English or add language as customer need | |
| Decoiler | Operation | Manual |
| Weight capicatity | 3 ton | |
| Price | Free as gift | |
| Receiving table | Operation | Manual |
| Length | 3 m | |
| Price | Free as gift |

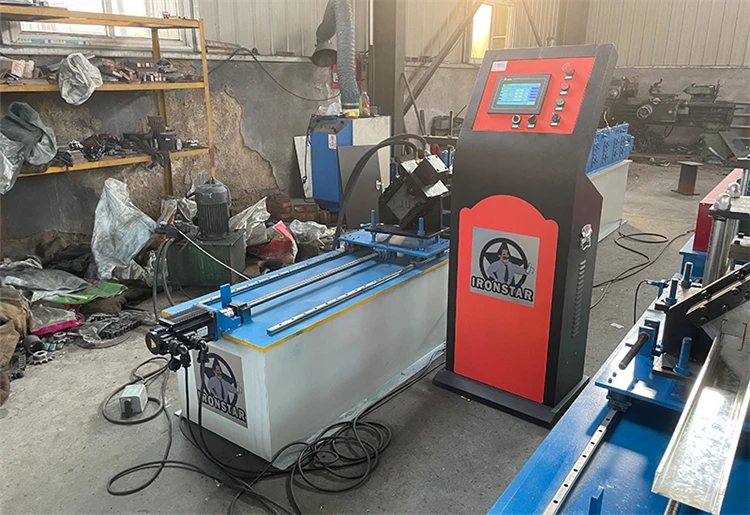

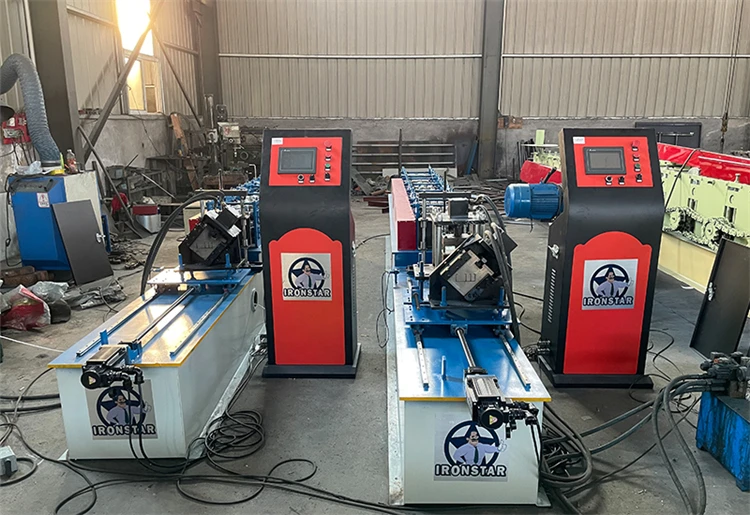

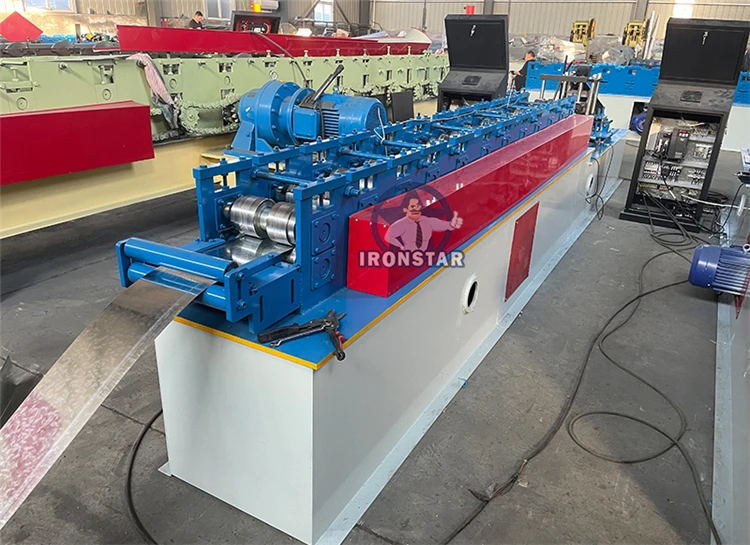

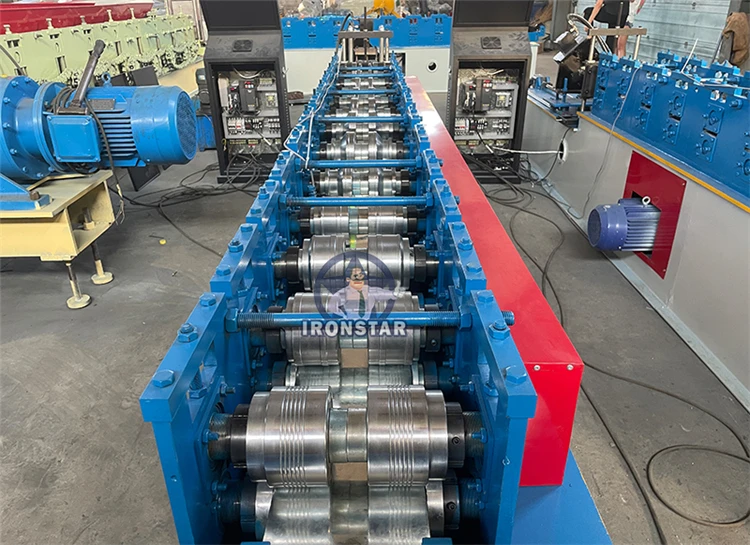

Details Images
Machine video
If u want to see the machine working video, please contact with Selena with any way below
More for you choose
1. Angle bead roll forming machine
Angle bead roll forming machine | Corner bead production line | Metal angle bead machine | Corner bead roll forming machine | V shape roll forming machine | Steel wall angle bar roll forming machine
Angle bead roll forming machine popular sell in many countries, size common include 20*20 mm, 25*25 mm, 27*27 mm, 30*30 mm. Product thickness common between 0.3-0.6 mm, machine details is like up type:
2. Omega profile roll forming machine
Omega profile roll forming machine | Omega channel roll forming machine | Omega channel roll forming machine | Top hat roll forming machine
Omega profile roll forming machine popular sell in many countries. Product thickness common between 0.3-0.6 mm, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc, machine details is like up type:
3. C channel 3 size in 1 roll forming machine
3 in 1 c channel machine | multiple c channel machine | C u channel roll forming machine
Multiple C channel machine popular sell in many countries, common thickness between 0.3-0.6 mm, Common speed 10-20 m/min, with servo motor speed can max reach to 30-50 m/min, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc, machine details is like up type:
4. C stud (CD) roll forming machine
C stud roll forming machine | Cd roll forming machine | C channel roll forming machine
C stud roll forming machine popular sell in many countries, common thickness between 0.3-0.6 mm, Common speed 10-20 m/min, with servo motor speed can max reach to 30-50 m/min, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc, machine details is like up type:
5. U stud (UD) roll forming machine
U stud roll forming machine | ud roll forming machine | u channel making machine
U stud roll forming machine popular sell in many countries, common thickness between 0.3-0.6 mm, Common speed 10-20 m/min, with servo motor speed can max reach to 30-50 m/min, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc, machine details is like up type:
6. U channel roll forming machine
U channel roll forming machine | gypsum u channel making machine | U stud roll forming machine
U channel roll forming machine popular sell in many countries, common thickness between 0.3-0.6 mm, Common speed 10-20 m/min, with servo motor speed can max reach to 30-50 m/min, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc, machine details is like up type:
7. T grid roll forming machine
Spring T grid machine |T bar rolling machine | Main T machine | Cross T ceiling keel machine
T grid roll forming machine popular sell in many countries, common thickness between 0.3-0.6 mm, Common speed 8-15 m/min, with servo motor speed can max reach to 10-30 m/min, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc, machine details is like up type:
Company Information
Tianjin Ironstar Industry Co., ltd is one professional roll forming machine manufacturer, 26 years working experience and 400 worker provide service for you. Products mainly include: Trapezoidal steel roof/wall panel machine, Glazed tile roofing roll forming machine, C U channel, Angle bead, Omega and T bar machine, Shutter slat door, door frame roll forming machine, C&Z shape interchangeable machine, Cap ridge, water gutter roll forming machine, cutting, bending, slitting, curving machine, floor deck and other customized machine etc.
