Product Overview

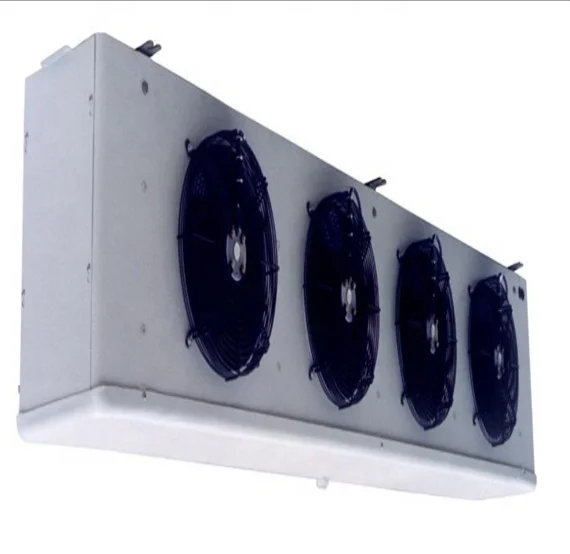

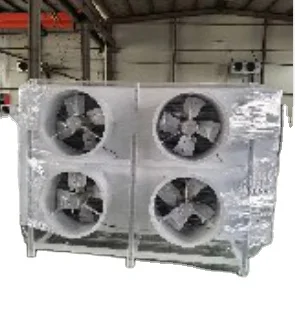

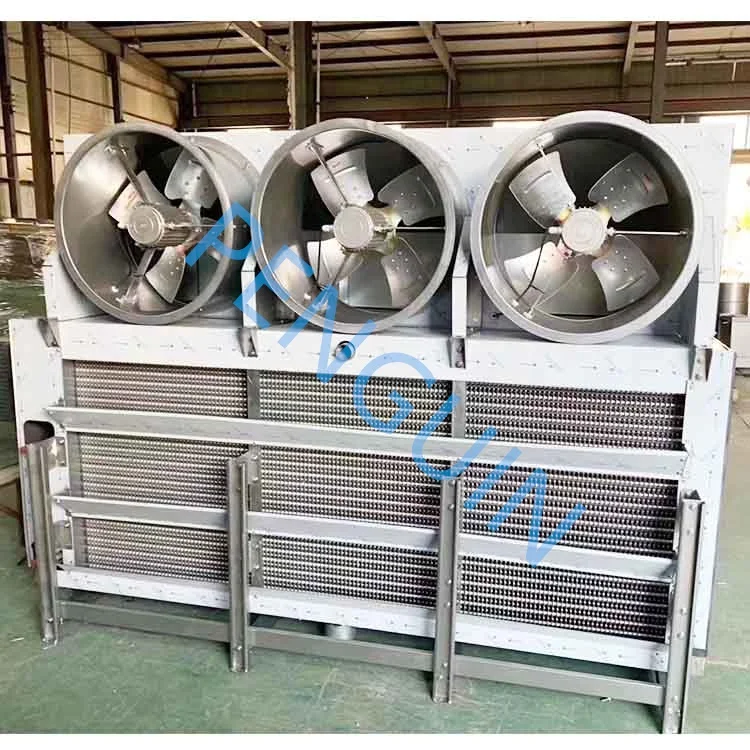

D-type air cooler is a special cooling equipment for cold storage. It has three series: DL, DD and DJ. It is suitable for high temperature (about 0 ℃), medium temperature (- 18 ℃) and low temperature (- 25 ℃) cold storage respectively. It is widely used in food processing, refrigeration, industrial air conditioning and other industries.
1. Compact shape, does not occupy the practical area of the cold storage, and is specially designed for the cold storage;
2. The coil structure design is reasonable, the pipeline flow is optimized, and the heat exchange efficiency is high;
3. Mechanical tube expansion is adopted. After tube expansion, the copper tube is closely fitted with the fin to ensure the heat exchange effect;
4. Non standard customization is available. Please contact our sales staff if necessary.
1. Compact shape, does not occupy the practical area of the cold storage, and is specially designed for the cold storage;
2. The coil structure design is reasonable, the pipeline flow is optimized, and the heat exchange efficiency is high;
3. Mechanical tube expansion is adopted. After tube expansion, the copper tube is closely fitted with the fin to ensure the heat exchange effect;
4. Non standard customization is available. Please contact our sales staff if necessary.
General features of refrigerating units:
1.Capacity is designed according to the most popular compressor sizes in this range.
2.The high efficiency unit cooler is made of high quality copper tube with diameter of 16mm and special aluminum fin.
3.The coil block is made of strong fins and can withstand the cleaning process.
4.The drain tray is designed so that the sewage faces towards the drain to reduce the water in the tray.
1.Capacity is designed according to the most popular compressor sizes in this range.
2.The high efficiency unit cooler is made of high quality copper tube with diameter of 16mm and special aluminum fin.
3.The coil block is made of strong fins and can withstand the cleaning process.
4.The drain tray is designed so that the sewage faces towards the drain to reduce the water in the tray.
Unit cooler/walking cooler refrigerating unit anticorrosive room Durable material, case thin and hard gloss powder coated or white
powder coated aluminum, galvanized steel high strength, corrosion resistance, earthquake resistance, environmental protection
powder coated aluminum, galvanized steel high strength, corrosion resistance, earthquake resistance, environmental protection
Model | Cooling Capacity | Cooling Area | Air Volume | Air Throw |
kw | m2 | m3/h | m | |
DL-20 | 4.7 | 20 | 3510 | 9 |
DL-25 | 6 | 25 | 4600 | 9 |
DL-40 | 9 | 40 | 4600 | 10 |
DL-55 | 12.7 | 55 | 7020 | 13 |
DL-80 | 17.3 | 80 | 9600 | 15 |
DL-105 | 25.1 | 105 | 9600 | 15 |
DL-125 | 29.5 | 125 | 19650 | 18 |
DL-160 | 37 | 160 | 19650 | 18 |
DL-185 | 43.1 | 185 | 26200 | 18 |
DL-210 | 49.8 | 210 | 26200 | 18 |
DL-260 | 60.1 | 260 | 25000 | 25 |
DL-330 | 70.3 | 330 | 37500 | 25 |
DL-385 | 84.5 | 385 | 37500 | 25 |
DL-435 | 103 | 435 | 50000 | 25 |
DL-550 | 128.4 | 550 | 50000 | 25 |
DL-600 | 140 | 600 | 50000 | 25 |
Our advantages
1、Safety & reliability
Having motor protection consisting of PTC thermistor element embedded in the motor and motor protector that can effectively prevent motor burnout for poor cooling, locked-rotor, power phase unbalance and so forth.
2、Reasonable
Having advanced design, rational structure, spare parts of high generality, light and handsome shape, small size, smooth performance, low noises and slight vibration for compressor.
3、Generality
Having design of compressor conforming to the national standard for environmental protection and applicable to refrigerant such as R22, R134a, R404a, R407C.
Having design of compressor conforming to the national standard for environmental protection and applicable to refrigerant such as R22, R134a, R404a, R407C.
4、Wear Resistance
Having ion nitriding treatment on the surface of primary moving parts to greatly enhance the service life of compressor.
Having sliding bearing with low friction.
Having aluminum piston being equipped with piston ring that has hard chromium plating on its surface.
Having sliding bearing with low friction.
Having aluminum piston being equipped with piston ring that has hard chromium plating on its surface.
5、Salient Performance-To-Price
Having valve plates which material are spring steel and stainless steel with high quality and impact-resistance being designed excellently.
Having minimal dead point clearance.
Having optimized air passage.
Having minimal dead point clearance.
Having optimized air passage.
Successful Project
Other products
Why choose us
Jiangsu Taixing Jingchuang PENGUIN Refrigeration Equipment Manufactory is an enterprise specializing in the development and production of refrigerating compressors & units. The main products range from semi-hermetic refrigerating compressors & units to open-type refrigerating compressors & units that have extensively been applied into freezing & cold storage, large refrigerated warehouse in the industry of Chemical, Refinery, Pharmaceutical, Restaurant, Supermarket, Factory workshop and Food.The company has successively certified by ISO9001-2000 quality system certification, product compulsory certification and CQC quality certification. The product of refrigerating compressors & units has acquired the national industrial product manufacturing license and won the title of provincial “Quality Trustworthy Product”.The enterprise possesses advanced processing equipments for compressors such as modernized assembly line, Due to consummate technics, highly skilled production team, austere quality strategy and completely new management, the "PENGUIN"-branded products are in great demand nation-wide and have been exported to many overseas markets as Africa and South-East Asia.We are always transcending, and the "PENGUIN" is willing to be shoulder to shoulder, arm in arm with you to jointly develop splendid refrigeration cause.
FAQ
1. Who are we?
We are based in Jiangsu, China, start from 2008,sell to Domestic .There are total about 101-200 people in our office.
We are based in Jiangsu, China, start from 2008,sell to Domestic .There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;
Always a pre-production sample before mass production;Always final Inspection before shipment;
3.What can you buy from us?
Refrigeration Compressor,Condensing Unit,Refrigeration Equipment and Parts
Refrigeration Compressor,Condensing Unit,Refrigeration Equipment and Parts
4. Why should you buy from us not from other suppliers?
(1).The professional manufcturer of compressor and condensing unit (Year1992 until now) ,owns Two factories area about 35000 square meter,more than one hundred workers.
(1).The professional manufcturer of compressor and condensing unit (Year1992 until now) ,owns Two factories area about 35000 square meter,more than one hundred workers.
(2).We have Modern assembly line and sophisticated equipment.
(3).We have innovativeness,more professional, with price advantage, and fast delivery, after-sales system perfect.
Похожие товары
WLD-L800 полностью автоматический A/C эвакуационной и зарядочной
Вакуумный кулер на 8 поддонов для свежих овощей, салата, цветной капусты с завода eicups
105 300,00 $
Вакуумная охлаждающая машина Заводская поставка вакуумный кулер для клубники быстрое охлаждение после сбора
63 600,00 $
Жидкий погружной охлаждающий охладитель Venttk сухого типа/открытый
3 000,00 $
Промышленный охладитель с воздушным охлаждением для индустрии выдувного
31 280,00 $

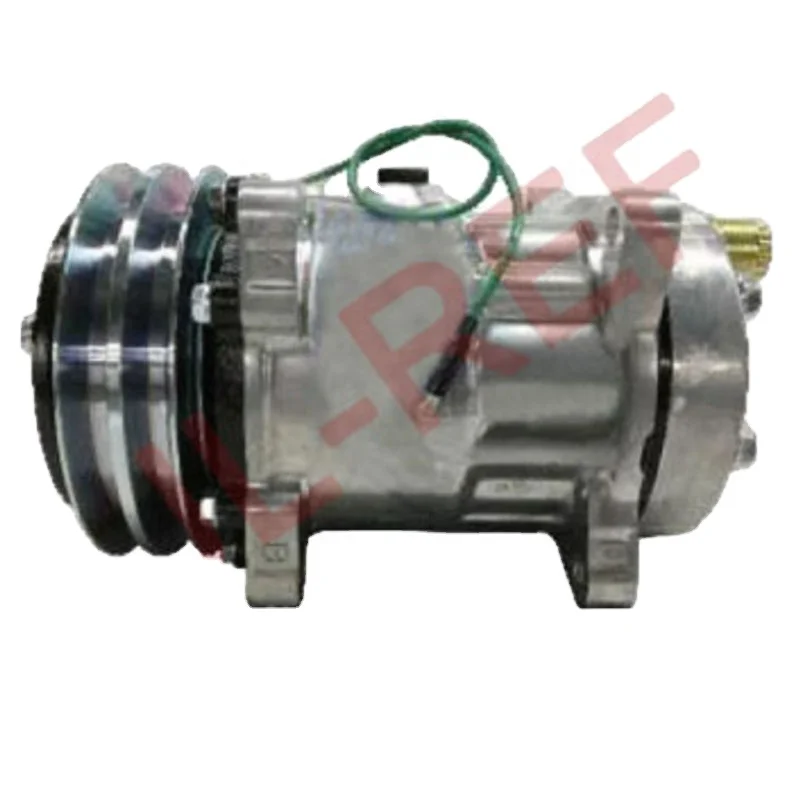

Компрессор для холодильника 7H компрессор автоматический переменного
