Protect Your Printed Materials From Scratches, Scuffs, And Fading with Our State-of-the-art UV Coating Technology
Product Overview

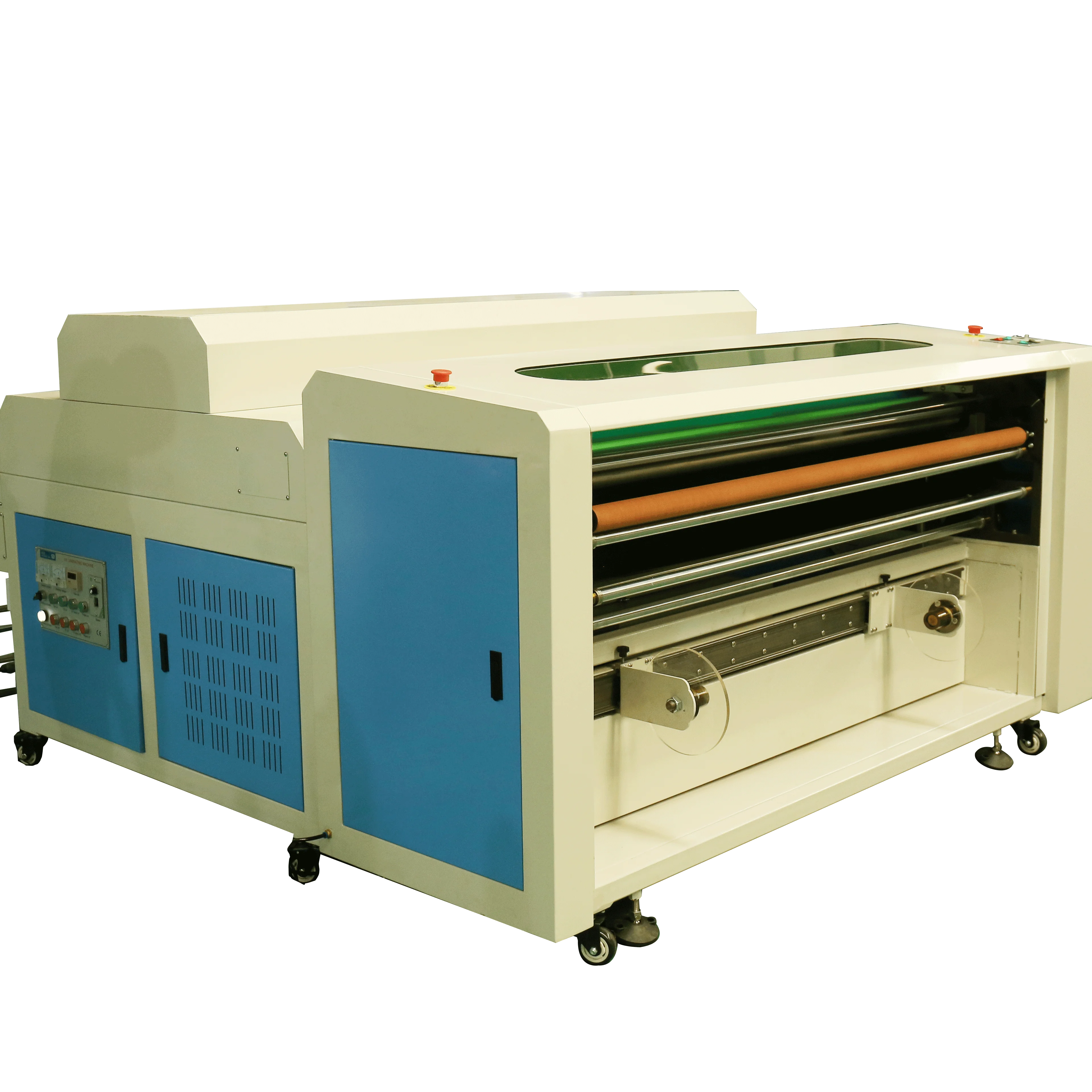

LBL UV COATER SERIES
Discover the power of our large format UV coating machine - the ultimate solution for achieving high-quality, professional-grade results on a variety of substrates. Without cutting-edge necessory and user-friendly interface, our machine delivers exceptional results with speed and precision, helping you save time and money while boosting your business's success. Contact us today to learn more and take your printing to the next level.
Fifth, Cost savings: By eliminating the need for traditional lamination processes, our machine can help you save on material costs and increase your profit margins.
Double100's UV coating machine have following features:
Firstly, its advanced UV-curing technology ensures that prints dry quickly and uniformly, without compromising on quality or clarity. Secondly, its user-friendly interface and intuitive controls make it easy to use, regardless of your level of experience.
Third, the machine's large format capabilities With the ability to handle substrates up to 2 meters in width,make it ideal for printing companies, sign makers, and other businesses that require high-quality, professional-grade results on larger substrates.
Fourth, our machine include its ability to work with a wide range of coating options, including gloss, matte, and satin finishes,
Fourth, our machine include its ability to work with a wide range of coating options, including gloss, matte, and satin finishes,
Fifth, Cost savings: By eliminating the need for traditional lamination processes, our machine can help you save on material costs and increase your profit margins.
Overall, investing in our UV coating machine is an investment in your business's success, as it can help you achieve outstanding results with ease, increase your efficiency and productivity, and ultimately save you time and money in the long run.
PRODUCT SPECIFICATIONS
Lbl QH-Coat 12"(350mm) | Rol QH-Coat 50"(1350mm) | Rol QH-Coat 63"(1600mm) | Rol QH-Coat 78"(2000mm) | |||
Max Coating Width | 12"(350mm) | 50"(1350mm) | 63"(1600mm) | 78"(2000mm) | ||
Min Material Thickness | 120g | 120g | 120g | 120g | ||
Max Material Thickness | 400g | 70mm | 70mm | 70mm | ||
Speed | 0-24m/min | 0-24m/min | 0-24m/min | 0-24m/min | ||
Curing Way | UV Lamp | UV Lamp | UV Lamp | UV Lamp | ||
IR lamp | Optional | Optional | Optional | Optional | ||
Lamp No. | 1 piece | 1 piece | 1 piece | 1 piece | ||
Effect | Glossy/Matt | Glossy/Matt | Glossy/Matt | Glossy/Matt | ||
collector | yes | yes | yes | yes | ||
application | label | vinyl, banner, sticker, relective roll, pp sticker, paper, PVC board ect | ||||
function | give effect, make it water proof and last long time, and anti-scratch | |||||
material | roll | sheet / roll | sheet / roll | sheet / roll | ||
Power | 2500w | 5600w | 5600w | 5600w | ||
Weight(With Package) | 280kg | 530+430+40=1000kg | 590+480+50=1120kg | 650+530+70=1250kg | ||
Dimension(With Package) | 80*110*135cm | 200*87*132cm coater 195*192*142cm dryer 175*57*72cm collector | 225*87*132cm coater 215*192*142cm dryer 200*57*72cm collector | 265*87*132cm coater 255*192*142cm dryer 240*57*72cm collector | ||
Key Point | for label rolls, | large format， for advertising rolls, and for plates | large format，universal size, for advertising rolls, and for plates | large format， for advertising rolls, and for plates | ||

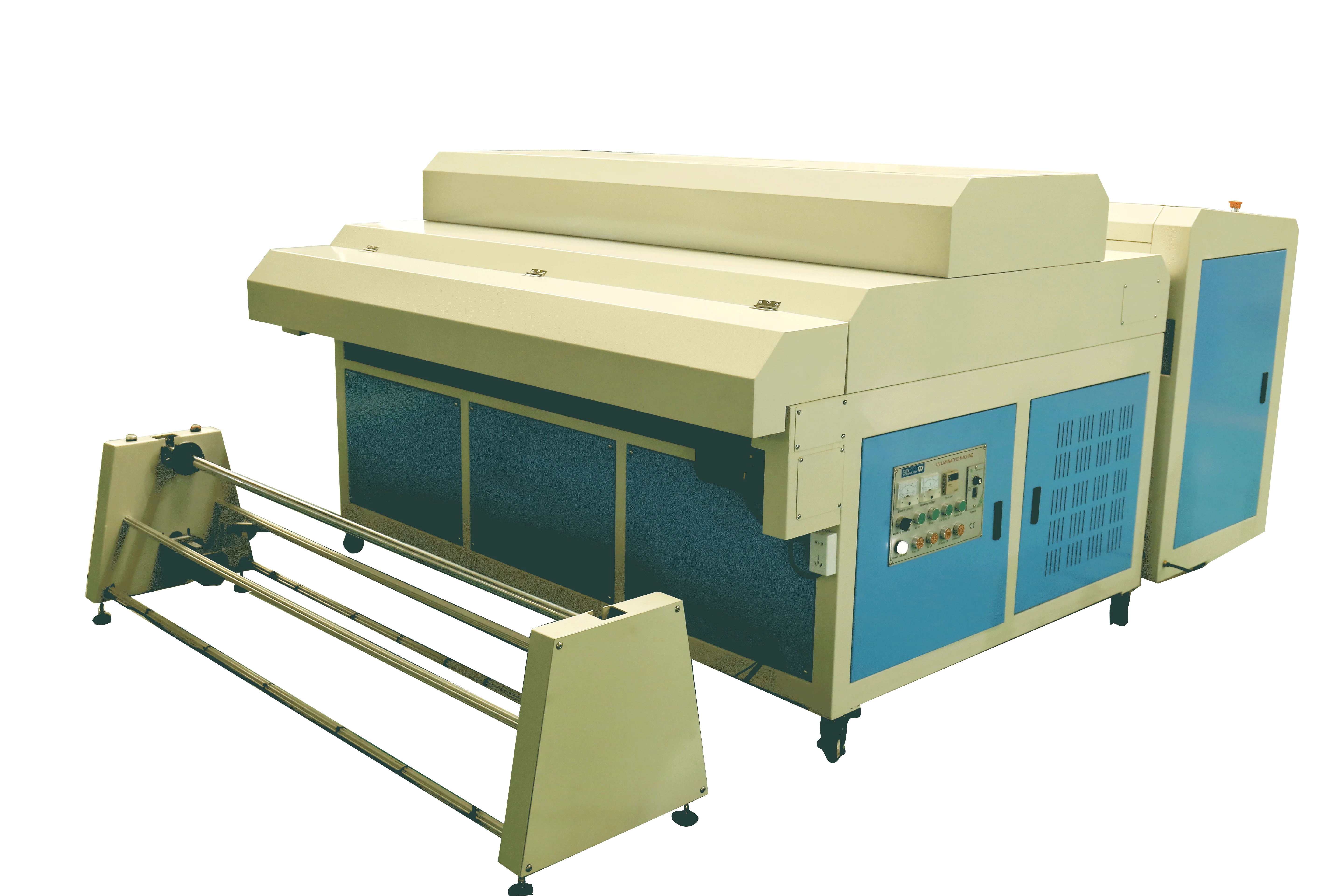

PRODUCT CONFIGURATION
Characteristics
*Our large format UV coating machine comes in three sizes: 1350mm, 1600mm, and 2000mm width.
*It has three main parts: the coating part, curing part, and rewinding part.
*The coating part is controlled by air, making it suitable for different thicknesses of materials, up to 7cm.
*The machine can work with both plate and roll materials, and the coating thickness and liquid are adjustable.
*The machine has a 5.6kw UV lamp and is powered by 380V.
*It is suitable for a wide range of applications, including vinyl, car stickers, reflective signs, and more.
*Our machine delivers exceptional results with speed and precision, ensuring that your prints dry quickly and uniformly without compromising on quality or clarity.
*It offers a range of coating options, including gloss, matte, and satin finishes.
*Our machine is user-friendly and intuitive, making it easy for anyone to achieve outstanding results regardless of experience level.
*It is an ideal investment for printing companies, sign makers, and other businesses that require high-quality, professional-grade results on larger substrates.
*It has three main parts: the coating part, curing part, and rewinding part.
*The coating part is controlled by air, making it suitable for different thicknesses of materials, up to 7cm.
*The machine can work with both plate and roll materials, and the coating thickness and liquid are adjustable.
*The machine has a 5.6kw UV lamp and is powered by 380V.
*It is suitable for a wide range of applications, including vinyl, car stickers, reflective signs, and more.
*Our machine delivers exceptional results with speed and precision, ensuring that your prints dry quickly and uniformly without compromising on quality or clarity.
*It offers a range of coating options, including gloss, matte, and satin finishes.
*Our machine is user-friendly and intuitive, making it easy for anyone to achieve outstanding results regardless of experience level.
*It is an ideal investment for printing companies, sign makers, and other businesses that require high-quality, professional-grade results on larger substrates.
*Liquid Cycle running system saving coating cost
*The machine is free of cleaning, and can supplementing the uv liquid automatically
*The coat is low about 0.2-1yuan, and the thickness of UV can be changeable.
Looking for high-quality and reliable UV coating machines for your printing needs? Look no further than our factory. Send us an inquiry to get started.
