Products Description
Tinplate Coils/Strips
Tinplate is a thin steel sheet coated by tin. It has an extremely beautiful metallic luster as well as excellent properties in
corrosion resistance, solderability, and weldability.
corrosion resistance, solderability, and weldability.
Commodity | Tinplate |
Standard | GB2520-2000,JISG3303-2002and DINEN10202-2001 |
Material | SPCC/MR/Q195/S08Al/SPHC~SPHD/SPTE |
Thickness | 0.135-0.7mm (tolerance -/+0.01 mm) |
Width | 300~1250mm (Tolerance: 0~3mm) or as per customers' requires |
Cutting Length | 400~1250mm (Tolerance: 0~3mm) or as per customers' requires |
Annealing | BA & CA |
Temper | T1 T2 T3 T4 T5 DR8 DR9 BA and CA both |
Tin Coating | 1.1/1.1 2.8/2.8 5.6/5.6 Or as per customers' requires |
Surface finish | Bright, Stone, Silver, Matt |
Coil Diameter | ID 420/ 508/610mm, OD from 1,000 to 1,250m |
Coil Weight | 3~10 MT |
Package | Seaworthy Standard with wooden pallet, corner protected. by sheet or coils according customer's requires. |
Product line | BA furnace line: LOI company CA line: SMS |
Applications | Metal package usage like paint, chemical can,aerosol can and different food can production, Also battery,electric cable and other industries |
Type of High Quality Electrolytic Tinplate Sheet Coil/Tinplate(SPTE/ETP)ETP Prime Electrolytic Tinplate Steel Sheet Coil TinPlate：
Type | Designation of Tin Coating | Min.average tin coating weight |
Equal tin coating | 1.4/1.4 | 1.2/1.2 |
2.2/2.2 | 2.0/2.0 | |
2.8/2.8 | 2.45/2.45 | |
5.6/5.6 | 5.05/5.05 | |
8.4/8.4 | 7.55/7.55 | |
11.2/11.2 | 10.1/10.1 | |
Different tin coating | 1.4/2.8 | 1.2/2.45 |
2.2/2.8 | 2.2/2.45 | |
2.8/5.6 | 2.45/5.05 | |
2.8/8.4 | 2.45/7.55 | |
2.8/11.2 | 2.45/10.1 | |
5.6/8.4 | 5.05/7.55 | |
5.6/11.2 | 5.05/10.1 | |
8.4/11.2 | 7.55/10.1 |
Surface finish | Nominal surface roughness (um Ra) | Description |
Bright finish | ≤Q0.35 | Glazed surface obtained after melting treatment of electrotinned smooth raw materail strip with extremely fine rubstone fingure by processing. |
Stone finish | 0.25~0.60 | Glazed surface obtained after melting treatment of electrotinned smooth raw materail stripfeaturing certain rubstone figures. |
Silver finish | 0.50~1.00 | Glazed surface obtained after melting treatment of electrotinned smooth raw material strip with rough matt furface. |
Matte finish | 0.80~2.50 | Matt surface of general matt raw material strip without melting treatment. |

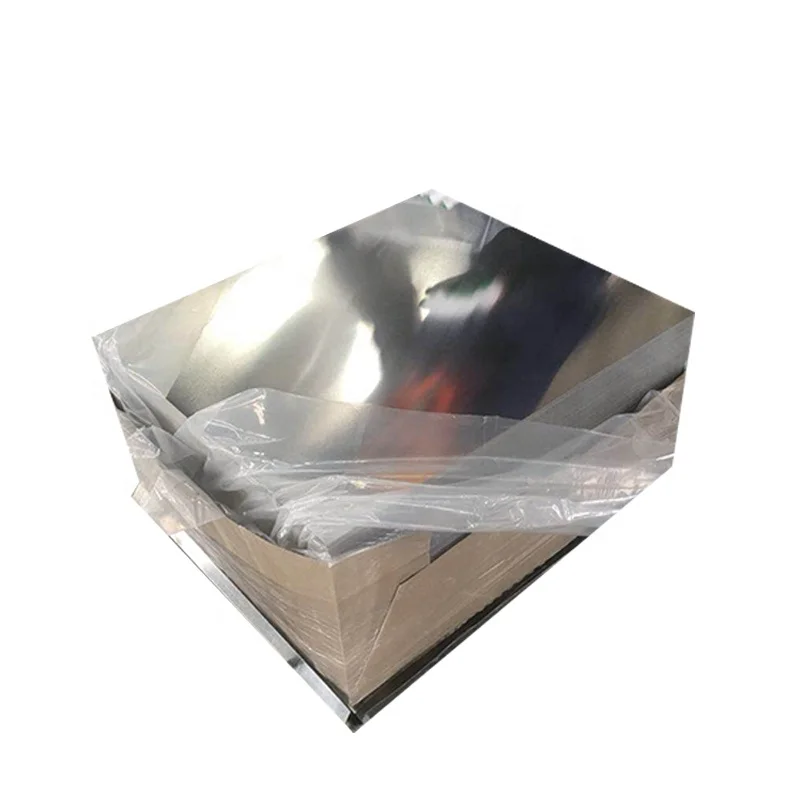

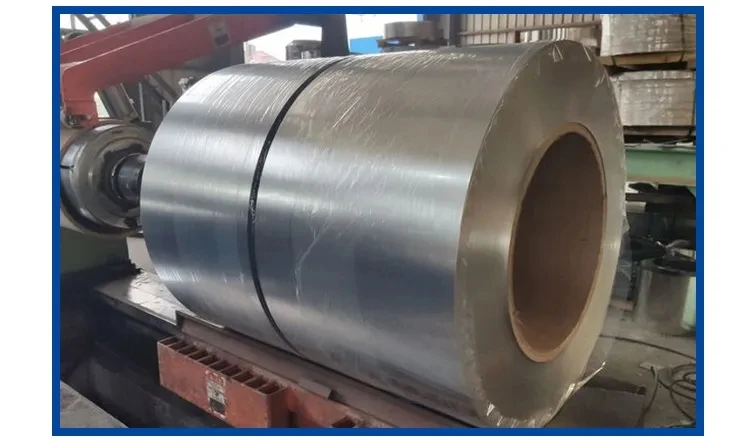

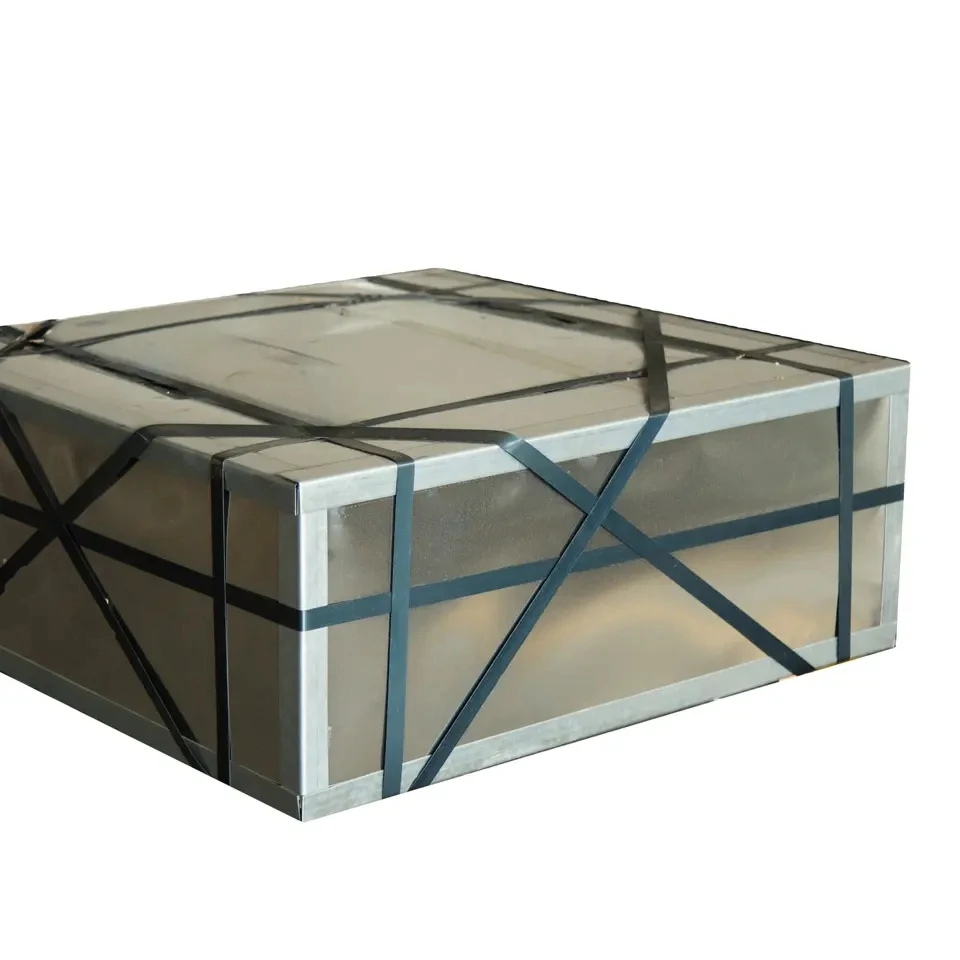

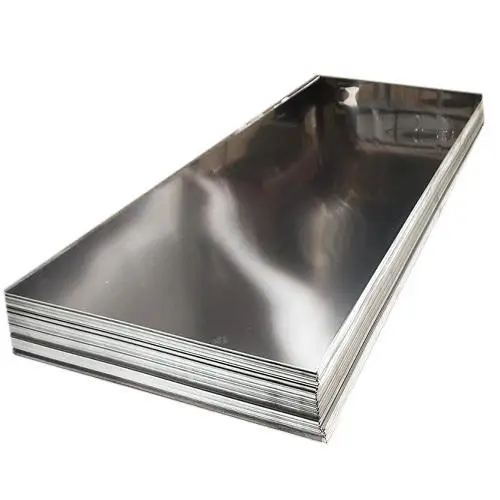

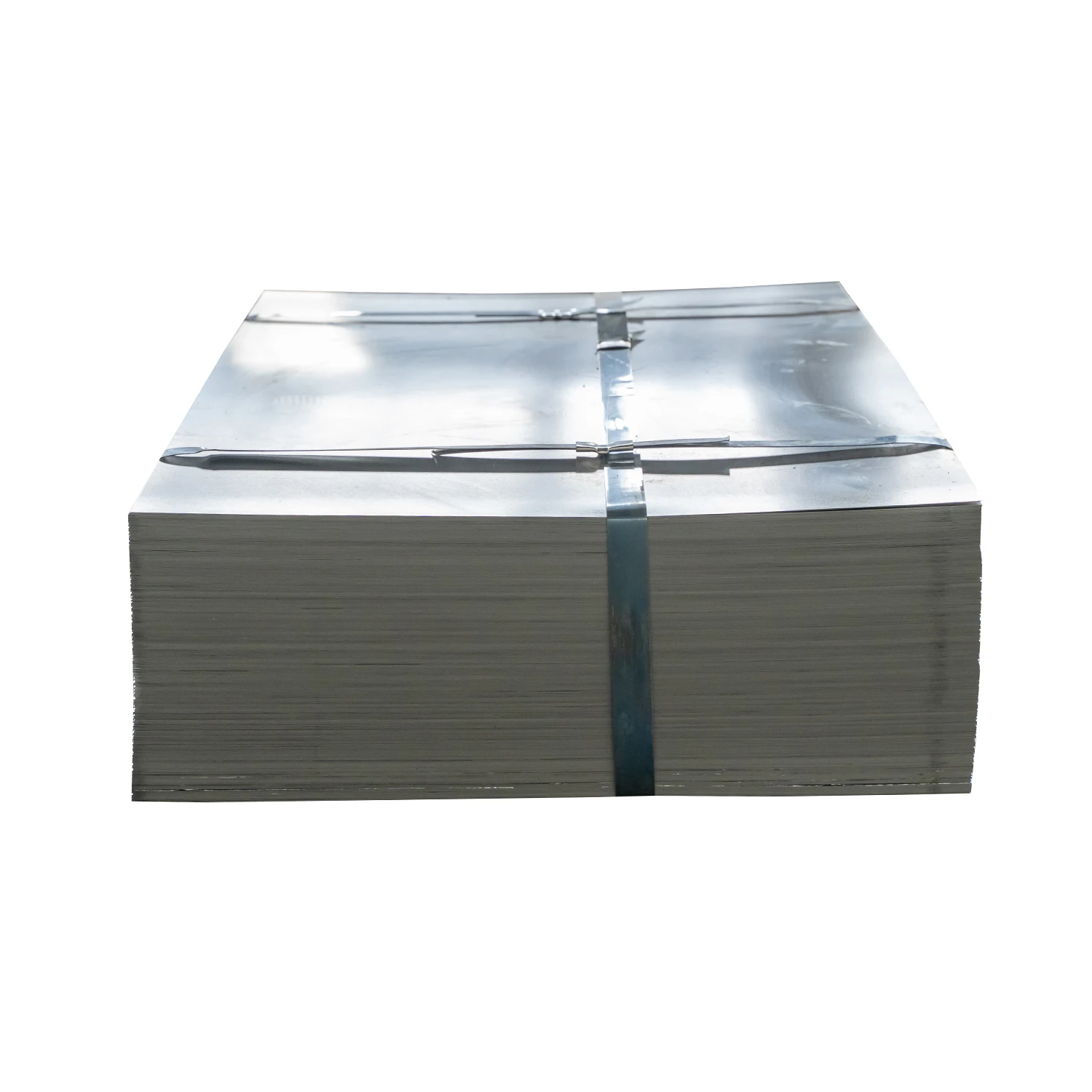

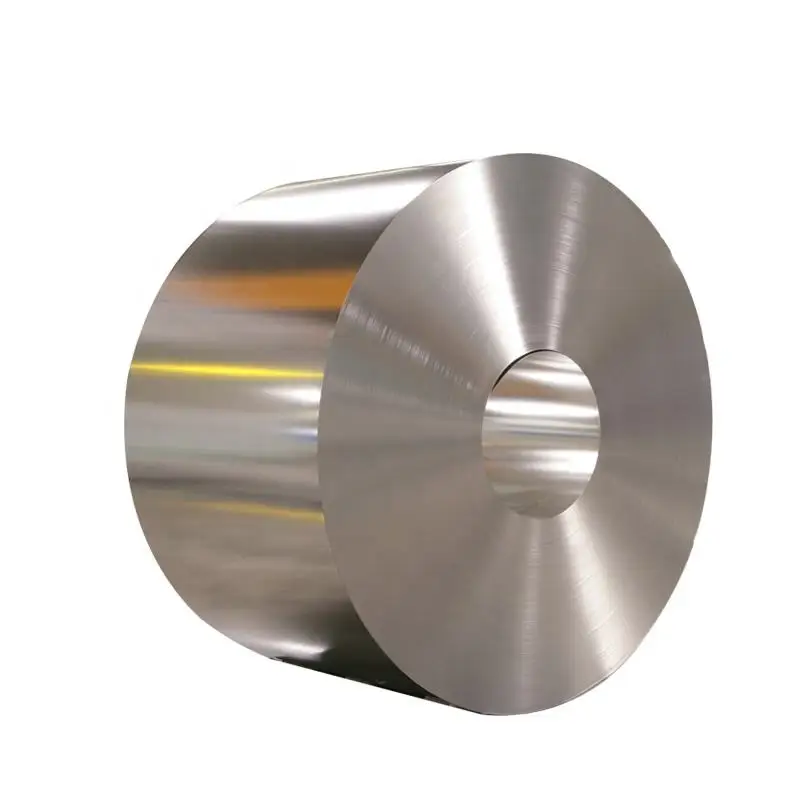

Product Display
Tinplate (SPTE/ETP) is a common name for electroplated tin steel sheets, which refers to cold-rolled low-carbon steel sheets or strips coated with commercial pure tin on both sides.
Tin mainly acts to prevent corrosion and rust. It combines the strength and formability of steel with the corrosion resistance,solderability and aesthetic appearance of tin in a material with corrosion resistance, non-toxicity, high strength and good ductility.
Tin-plate packaging has a wide range of coverage in the packaging industry because of its good sealing, preservation, light-proof,ruggedness and unique metal decoration charm.

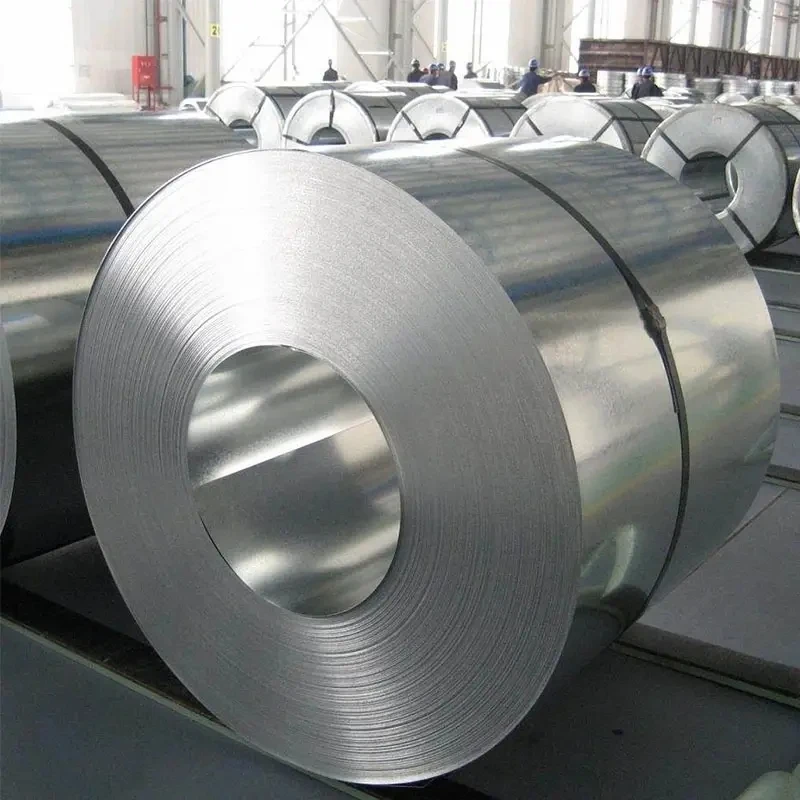

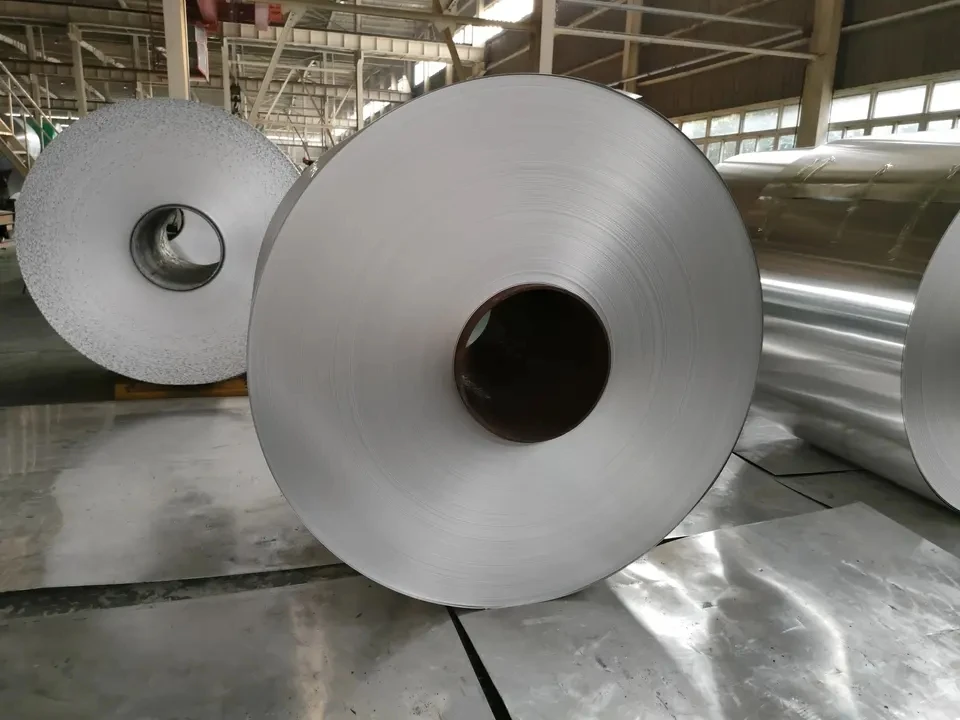

Factory Produced
WHY CHOOSE US
Custom service
We can provide customized services such as cutting, polishing and bending according to customers' needs!
Every batch of products from customers must be tested!
Application
Because of its strong antioxidant, diverse styles and exquisite printing, tinplate packaging container is popular with customers,and widely used in food packaging, pharmaceutical packaging, commodity packaging,instrument packaging, industrial packaging and so on.
Certifications
FAQ
Q: Are you manufacturer?
A: Yes, we are.
Q:Can you produce according to my requirement?
A:Yes, all the design, size, printing and packaging can be done according to customer's request.
Q: Do you offer free samples?
A: Sure,we are glad to send you free samples for your evaluation.But currently we need you to kindly pay the delivery charge on your side if you'd like to have our samples.
Q: What's your MOQ?
A: Normally 1 Tons are requested as the minimum order quantity on our side.
We can accept smaller quantities if the warehouse has the right stock size.
Q:What specification should I tell you if I wanna get the quotation?
A: 1. Alloy 2.Size 3. Temper 4. Purchase quantity
Q: What's your payment term?
A: We accept T/T,Western Union, L/C,D/A,D/P etc.
Q:Can you produce according to my requirement?
A:Yes, all the design, size, printing and packaging can be done according to customer's request.
Q: Do you offer free samples?
A: Sure,we are glad to send you free samples for your evaluation.But currently we need you to kindly pay the delivery charge on your side if you'd like to have our samples.
Q: What's your MOQ?
A: Normally 1 Tons are requested as the minimum order quantity on our side.
We can accept smaller quantities if the warehouse has the right stock size.
Q:What specification should I tell you if I wanna get the quotation?
A: 1. Alloy 2.Size 3. Temper 4. Purchase quantity
Q: What's your payment term?
A: We accept T/T,Western Union, L/C,D/A,D/P etc.
