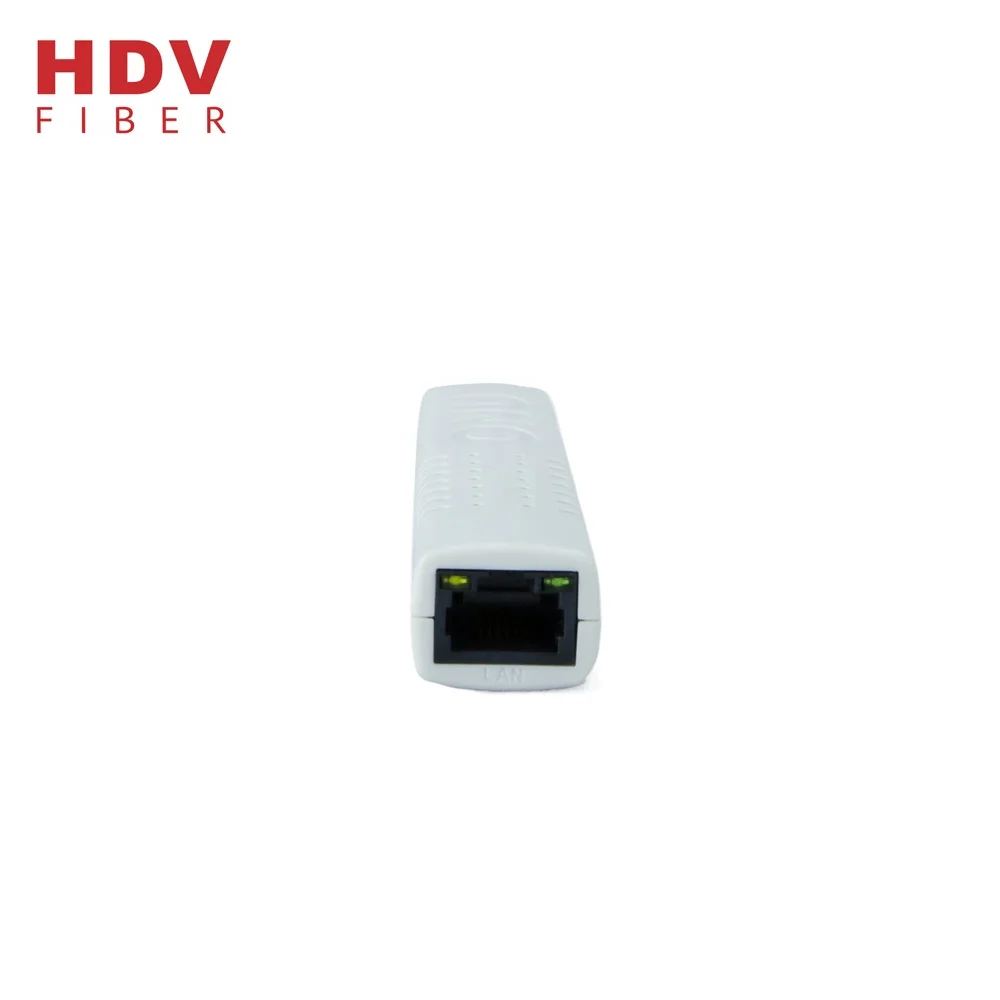

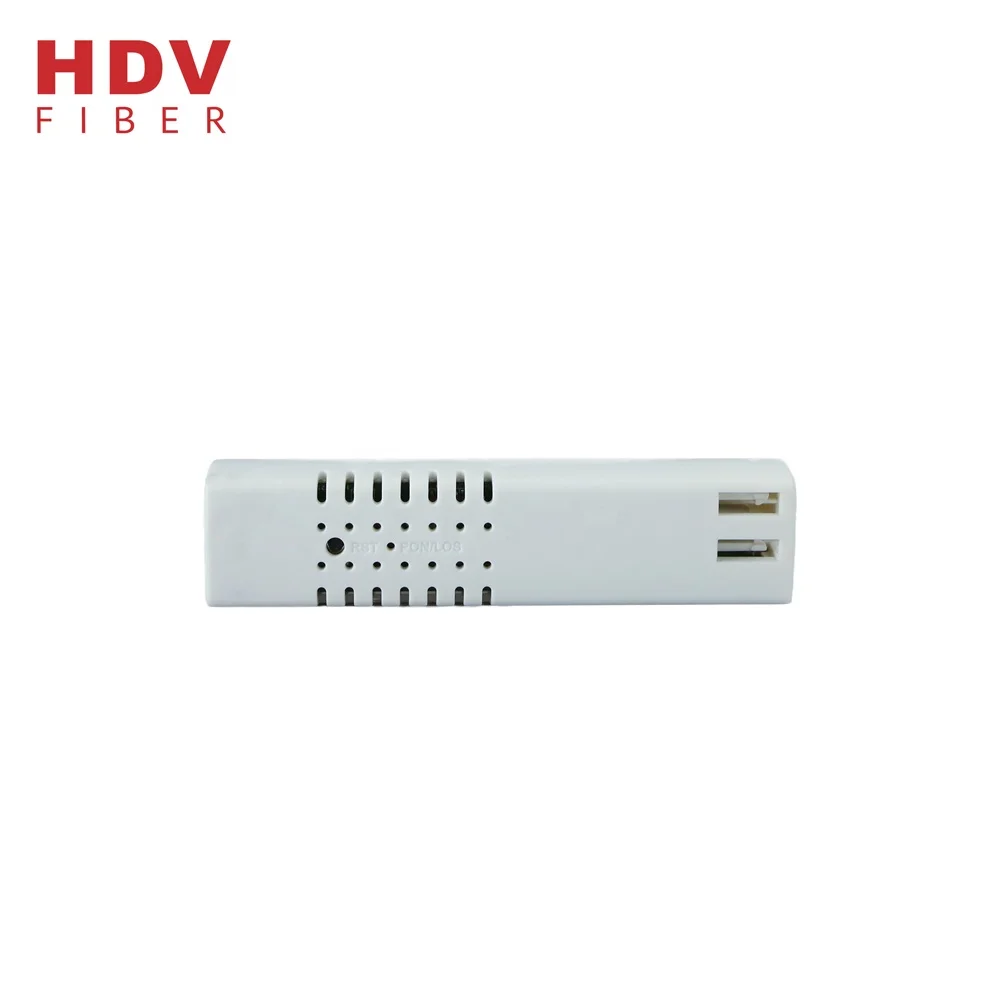

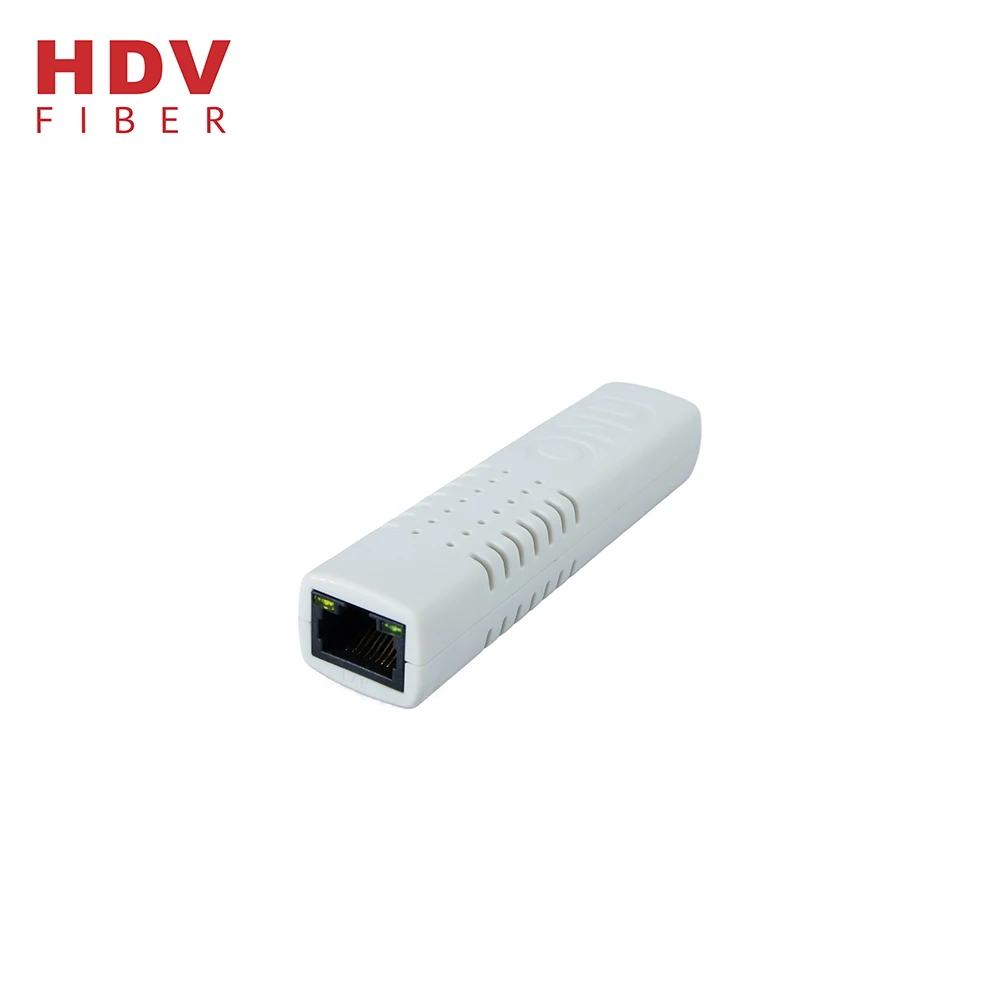

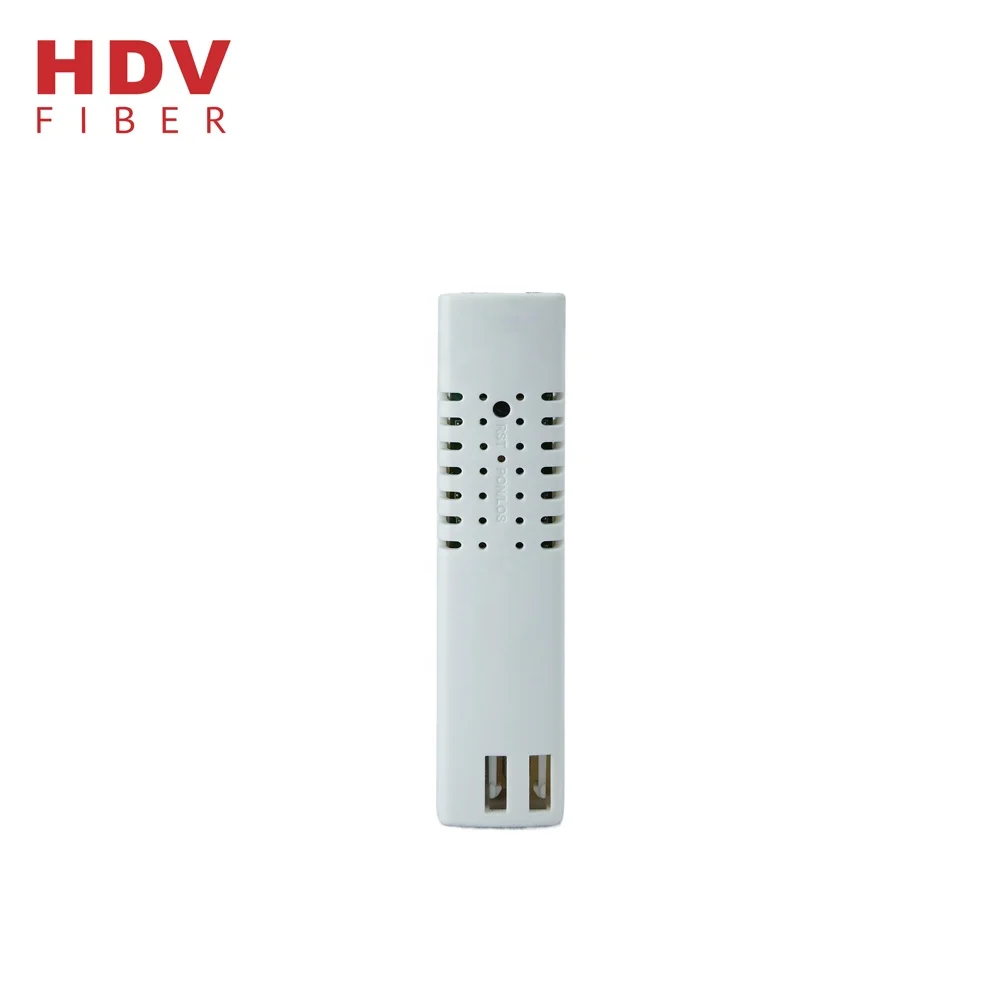

Hot Popular Fiber Optical Network Unit 1GE+3FE POTS XPON ONU Wifi With CATV Shenzhen Manufacturer 1Ge 3Fe CATV 2Wifi XPON Onu
1. Overview
* HTZ2046X series single-user ONU is designed for ONU in different FTTH solutions, The carrier-class FTTH application provides date service access.
* HTZ2046X series adopts high-performance and low-consumption chips, and supports CTC V2.0 interconnection and interworking standard of China Telecom. With the help of NGBN View NMS, it can provide subscribers with abundant services, and totally meet the needs of carrier-class FTTH devices.
* HTZ2046X series is designed by ZTE chipset.
* Small size, suitable for installation in various occasions
* HTZ2046X series adopts high-performance and low-consumption chips, and supports CTC V2.0 interconnection and interworking standard of China Telecom. With the help of NGBN View NMS, it can provide subscribers with abundant services, and totally meet the needs of carrier-class FTTH devices.
* HTZ2046X series is designed by ZTE chipset.
* Small size, suitable for installation in various occasions
2. Functional Feature
* Router mode supports PPPoE / DHCP / static IP
* Support port-based rate limitation and bandwidth control
* In compliant with ITU-T G.984 Standard
* Up to 20KM transmission Distance
* Support data encryption, group broadcasting, port VLAN separation, etc.
* Support Dynamic Bandwidth Allocation (DBA)
* Support IPv4 &IPv6
* Support ONU auto-discovery/Link detection/remote upgrade of software
* Support VLAN division and user separation to avoid broadcast storm
* Support power-off alarm function, easy for link problem detection
* Support broadcasting storm resistance function
* Specialized design for system breakdown prevention to maintain stable system
* Support software online upgrading EMS network management based on SNMP, convenient for maintenance
* Support port-based rate limitation and bandwidth control
* In compliant with ITU-T G.984 Standard
* Up to 20KM transmission Distance
* Support data encryption, group broadcasting, port VLAN separation, etc.
* Support Dynamic Bandwidth Allocation (DBA)
* Support IPv4 &IPv6
* Support ONU auto-discovery/Link detection/remote upgrade of software
* Support VLAN division and user separation to avoid broadcast storm
* Support power-off alarm function, easy for link problem detection
* Support broadcasting storm resistance function
* Specialized design for system breakdown prevention to maintain stable system
* Support software online upgrading EMS network management based on SNMP, convenient for maintenance
3.Hardware Specification
Item | Parameter | |
Interface | PON Interface | 1 XPON optical interface Meet Class B+ standard Upstream 1.244Gbps, downstream 2.488Gbps SC-UPC single-mode fiber split ratio:1:128 Transmission distance 20KM |
User Ethernet Interface | 1*10/100/1000M auto-negotiation Full/half duplex mode RJ45 connector 100m distance | |
Power Interface | 5V Type-C Power supply | |
Performance Parameters | PON Optical Parameter | Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power:0.5~+5dBm Rx Sensitivity: -27dBm Saturation Optical Power: -8dBm Connector Type: SC-UPC Optical Fiber: 9/125um single-mode fiber |
Data Transmission Parameter | Packet Loss Ratio:<1*10E-12 latency: <1.5ms | |
Gateway | Router mode supports PPPoE / DHCP/ static IP WAN support Router and Bridge mode WAN support Internet LAN supports DHCP and static IP Support NAT and NAPT | |
Business Capability | Layer 2 wire speed switching Support VLAN TAG/UNTAG, VLAN conversion Support Port-based speed limitation Support Priority classification Support storm control of broadcast | |
Network Management | Management Mode | Support ITU-T G.984 OMCI, ONU can be remotely managed by OLT Support Remote management through Telnet or http Local management |
Management Function | Status monitor, Configuration management, Alarm management, Log management | |
Indicator | LED Indicator | PWR: Power up or down LOS: Optical Link Status PON:ONU Registered LINK/ACT: Link Status of Ethernet Interface |
Physical Features | Shell | Plastic casing |
Power | External 5V 1A Type-C power supply Power consumption: <2W(FD101HC),<2.3W(FD111HC) | |
Physical Specifications | Item Dimension:92mm(L) x 21.5mm(W) x 17mm (H) Item weight:0.03kg | |
Environmental Specifications | Operating temperature: -20 to 70 ºC Storage temperature: -40 to 85 ºC Operating humidity: 10% to 90% (Non-condensing) Storage humidity: 10% to 90% (Non-condensing) | |
4. Ordering information
Product Name | Product Model | Descriptions |
BOB Type XPON ONU | HTZ2046X | 1*10/100M /1000M Ethernet interface, 1 XPON interface, plastic casing, external power supply adapter |
Hot products
Company Information
Packaging & Shipping
Похожие товары
ODI - Mini ONU ONT Tx Tower 1310nm 20km Stick SFP
40,00 $ - 42,00 $
6COM Alcatel-Lucent iSFP-10G-SR/SFP-10G-SR/iSFP-10G-SR Совместимость 10GBASE-SR для программирования в производственных условиях + 850nm 300m DDM LC двойное модуль
6,00 $ - 7,50 $
Ftth прямой провод в Бразилии для оптоволоконного
0,04 $
Shenzhen onu оптическая фабрика epon gepon мост IPTV
5,99 $ - 6,99 $
Huawei брандмауэр USG9520/9560/9580 E8KE-X8-SRUA-200

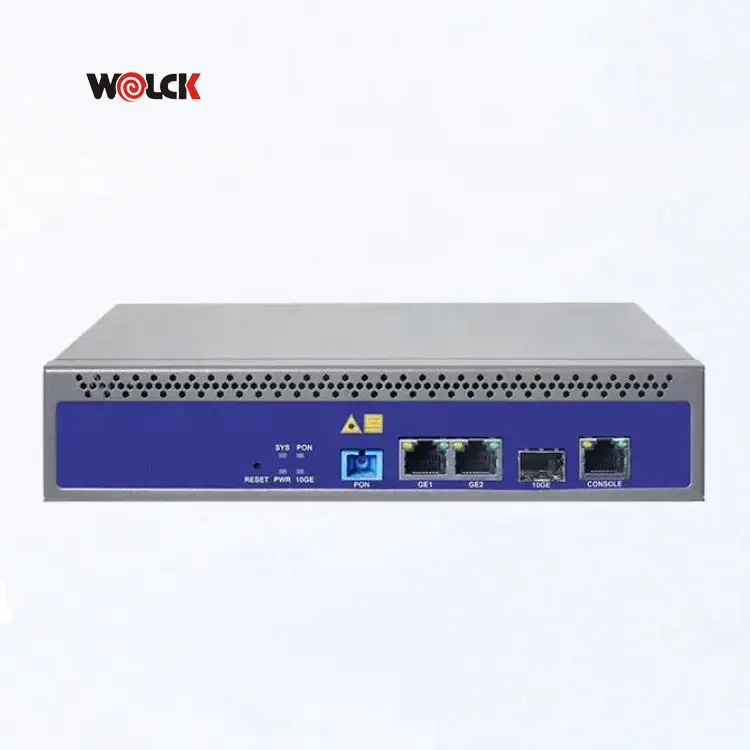

Wolck OLT Vsol Single PON Mini GPON 1 порт с SFP C ++
200,00 $ - 210,00 $

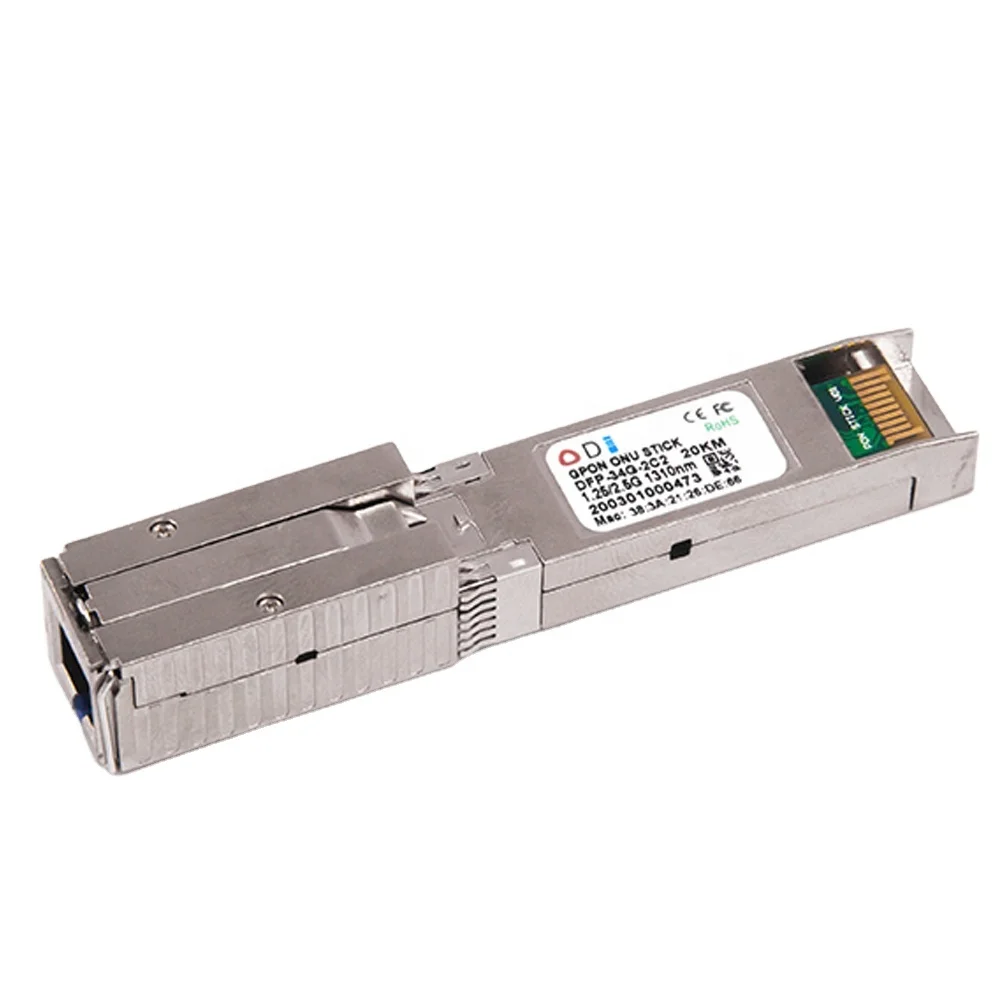

ODI GPON ONU PON Stick 1,25G 2,5G 20KM Tx Power 1310nm GPON Pon Stick
