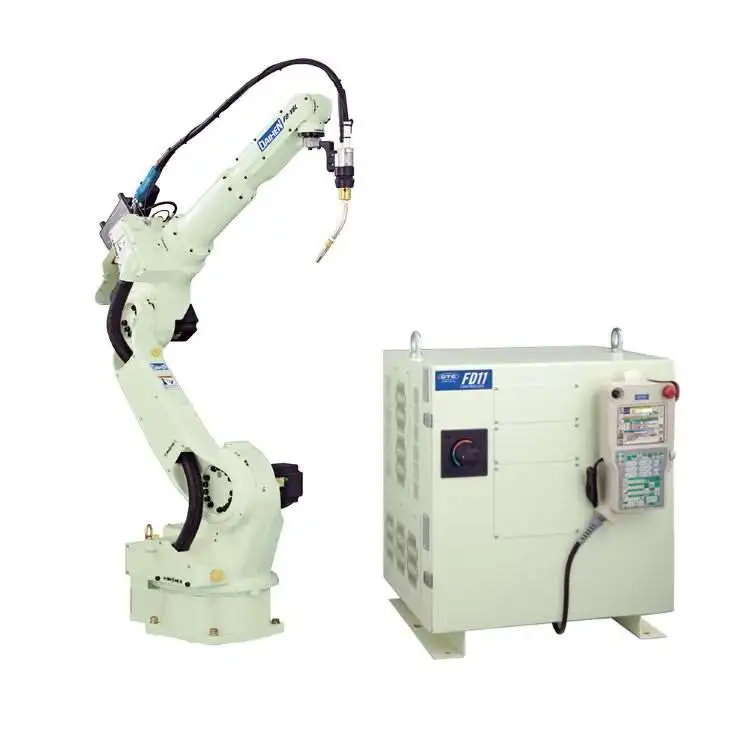

MIG сварщиков DM500 в сочетании с сварочным аппаром для FD-V8L для сварки, как автоматический сварочный робот
4 295 146,00 ₽ - 4 956 062,81 ₽

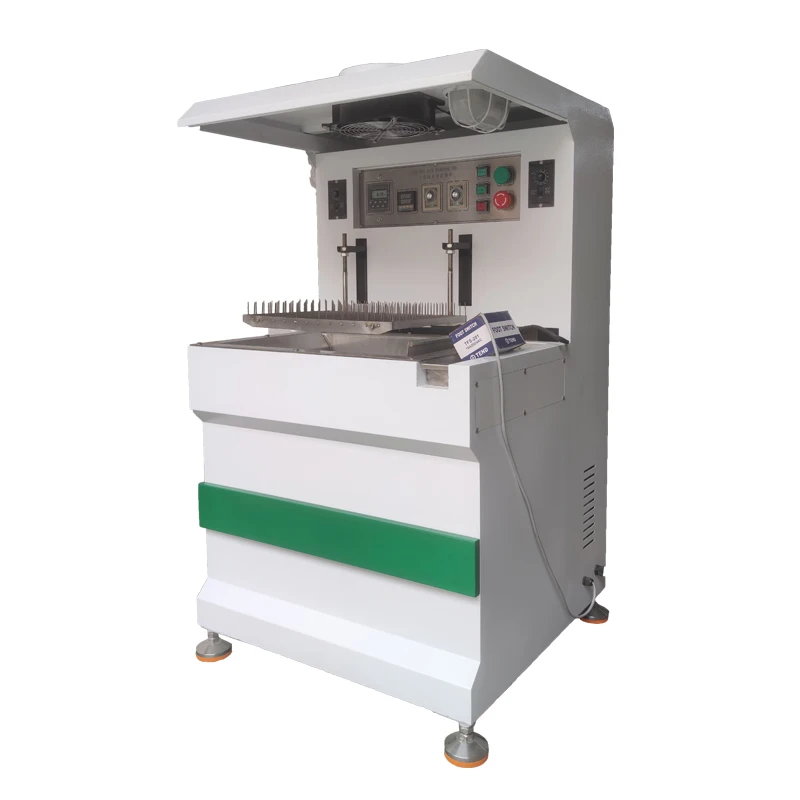

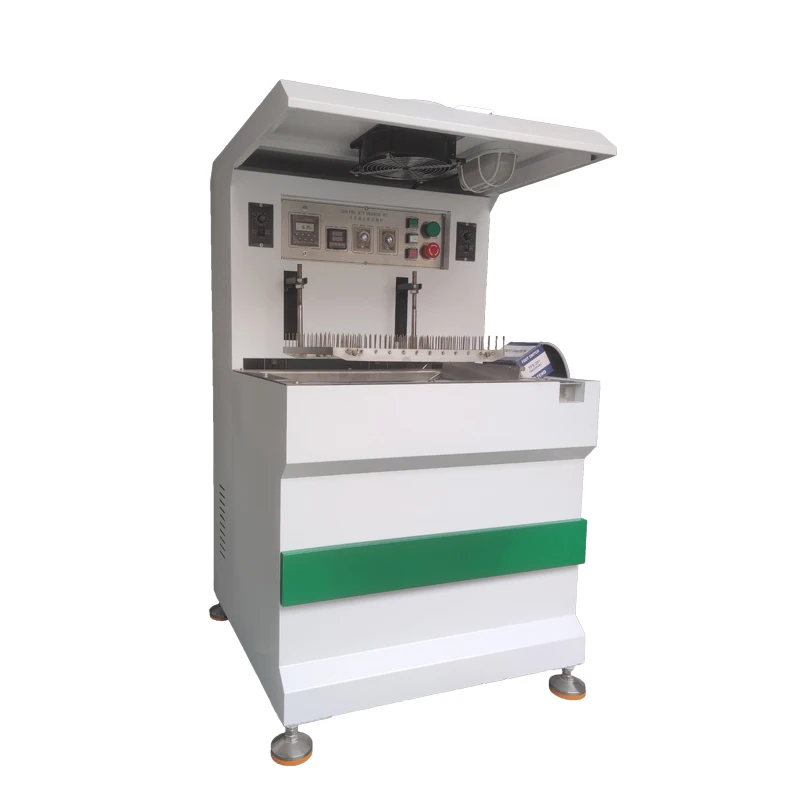

YX 4500 YINGXING без свинца Pcb паять Reflow машина и припоя для Прочее сварочное оборудование
- Категория: >>>
- Поставщик: Wenzhou Yingxing Import&Export Co. Ltd.
Сохранить в закладки 1600755791615:
Описание и отзывы
Характеристики
●Start control mode:Manual control and foot switch control
●Heat-up time:The tin stove heats up for about 50 minutes
●Dip welding method:As long as superior flux of the substrate, placed in the needle on the shelf, and then stepping on foot switch, one will more pieces of various substrate can be welding is complete, from the level of substrate Angle into the tin to welding time, and the Angle of the base board out of the tin, all through the microcomputer control, complete simulation principle of manual welding, man Personnel training free, any person can dip welding operation, no need to be skilled, stable welding quality, but also can improve production efficiency.

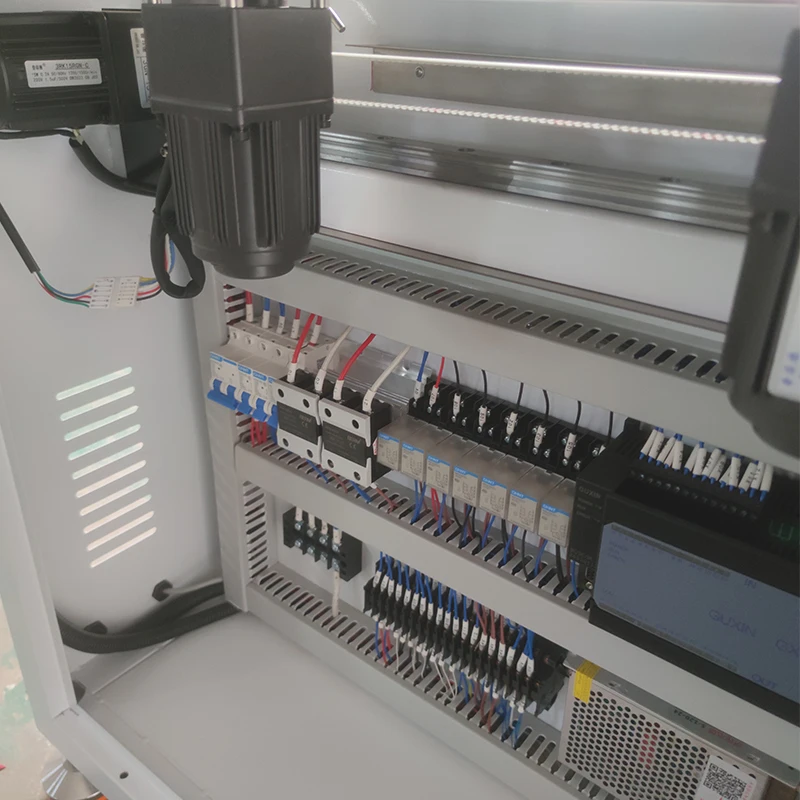

●System control mode:PLC with high strength overload contact, high efficiency and stability, service life can be guaranteed for more than eight years.
●Function Introduction:Work capacity:
◇ Meet the circuit board and general soldering products use (with appropriate fixture).
Improve welding quality and imitate manual welding.
◇ Improve production efficiency, can be welded batch products at the same time, compared to manual increase about 1-4 times.
Features:

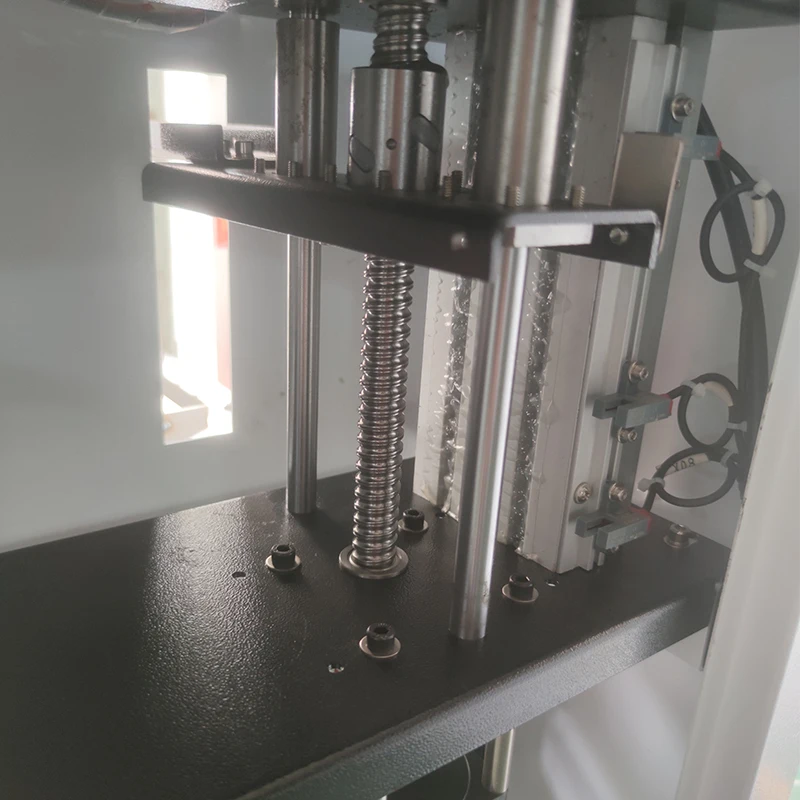

◇ Up and down motion using electric motor lifting mode, up and down speed can be adjusted separately, solder depth is accurate.
The circuit board floats on the tin surface for dipping, not affected by the solder depth.
The dip speed of the product can be adjusted, and the board can be adjusted to dip the tin Angle, reduce the surface tension, to meet the process requirements.
With each working cycle automatic scraping surface oxide to tin slag tank, improve welding quality.
◇ Can preheat the surface of circuit board and flux to improve the activity and welding quality.
Solder time, the range from 1 SEC to 10 SEC can be adjustable, preheating time can be set in the range of 0 to 30 seconds.
◇ Adopt high temperature heating pipe, after insulation treatment, long life.
Matching products with a variety of soldering fixtures, can be optional, also accept custom.
◇ Temperature setting range up to 400℃.
◇ Meet the circuit board and general soldering products use (with appropriate fixture).
Improve welding quality and imitate manual welding.
◇ Improve production efficiency, can be welded batch products at the same time, compared to manual increase about 1-4 times.
Features:
◇ Up and down motion using electric motor lifting mode, up and down speed can be adjusted separately, solder depth is accurate.
The circuit board floats on the tin surface for dipping, not affected by the solder depth.
The dip speed of the product can be adjusted, and the board can be adjusted to dip the tin Angle, reduce the surface tension, to meet the process requirements.
With each working cycle automatic scraping surface oxide to tin slag tank, improve welding quality.
◇ Can preheat the surface of circuit board and flux to improve the activity and welding quality.
Solder time, the range from 1 SEC to 10 SEC can be adjustable, preheating time can be set in the range of 0 to 30 seconds.
◇ Adopt high temperature heating pipe, after insulation treatment, long life.
Matching products with a variety of soldering fixtures, can be optional, also accept custom.
◇ Temperature setting range up to 400℃.
●Bottom frame, furnace bladder, frame and electric control box four parts:Bottom frame, furnace bladder, frame and electric control box four parts,
●Structural form:Cold rolled steel plate, surface spray, high temperature paint.
●Shell material:Adopt stainless steel plate, and anti corrosion and anti rust.
●Anti-corrosion material around furnace liner:The tin furnace is made of 3.0mm 316L stainless steel imported from the Netherlands, which can work at 400℃ for a long time.
Detailed parameters | ||
Body part parameters | ||
External dimension (mm) | L700×M700×H1280 | |
Weight (kg) | 150KG | |
Total starting power (KW) | 4.5KW | |
Total working power (KW) | 0.8-1.5KW | |
lighting | AC220V LED5W×1 | |
Power supply | AC220V 50Hz | |
Tin furnace partial parameters | ||
Production mode of tin furnace | Immersion welding (automatic cleaning of tin slag) | |
Tin furnace temperature control range | Room temperature ~ 300℃ | |
Tin furnace heating power | 4.5kw | |
Tin furnace capacity | 85KG-100KG | |

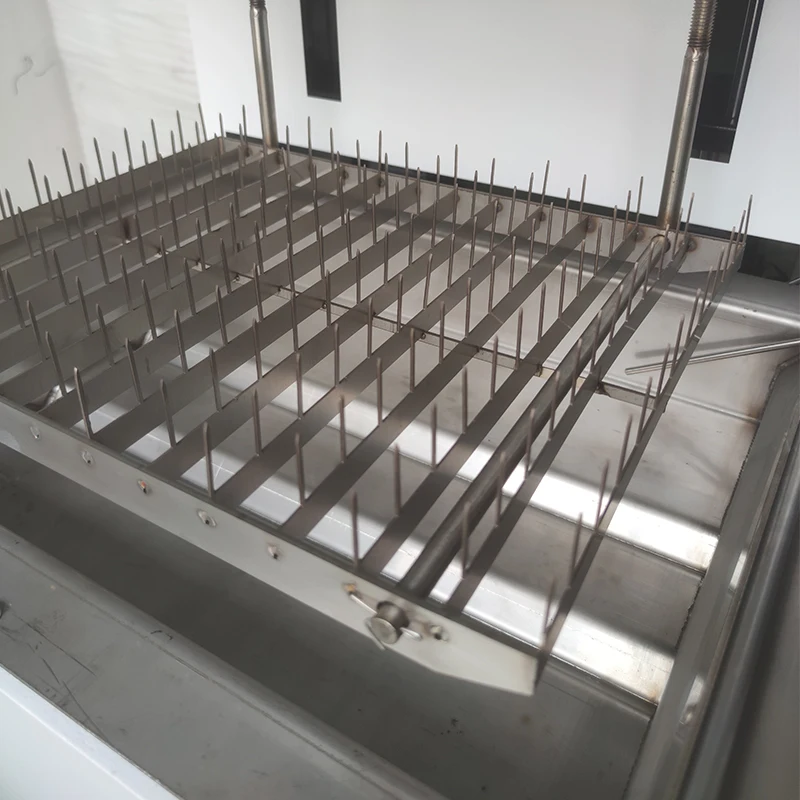

Needle surface size | L420×M320 | |
Other parameters | ||
Timing switch | Programmable setting | |
Cooling plant | Rapid air cooling | |
Похожие товары

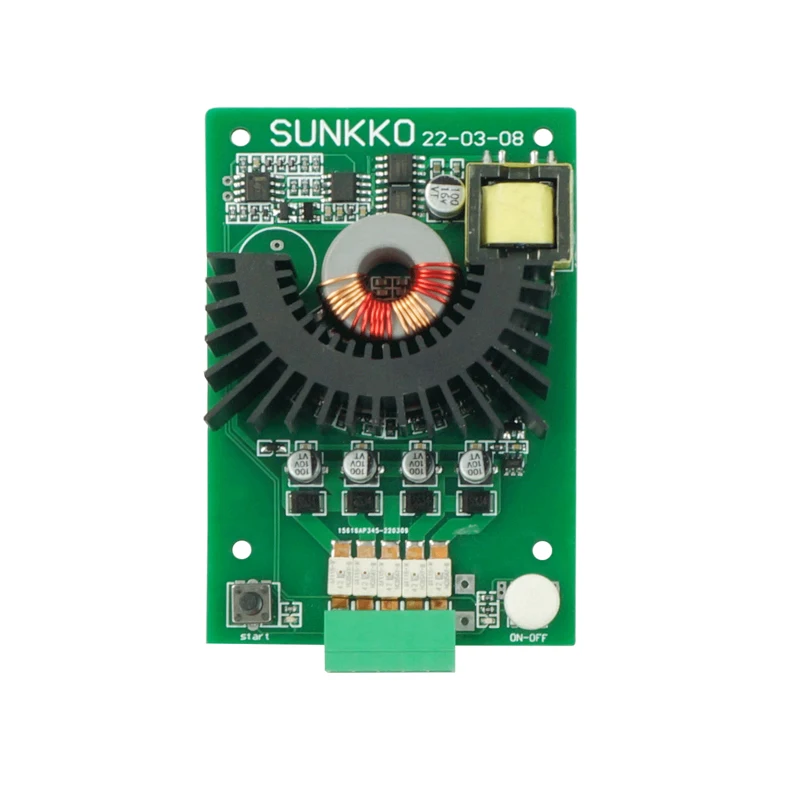

SUNKKO, активный эквалайзер, батарея, эквалайзер, 4 струны, аккумуляторы, 8А, активный балансировщик
1 842,33 ₽ - 2 059,20 ₽

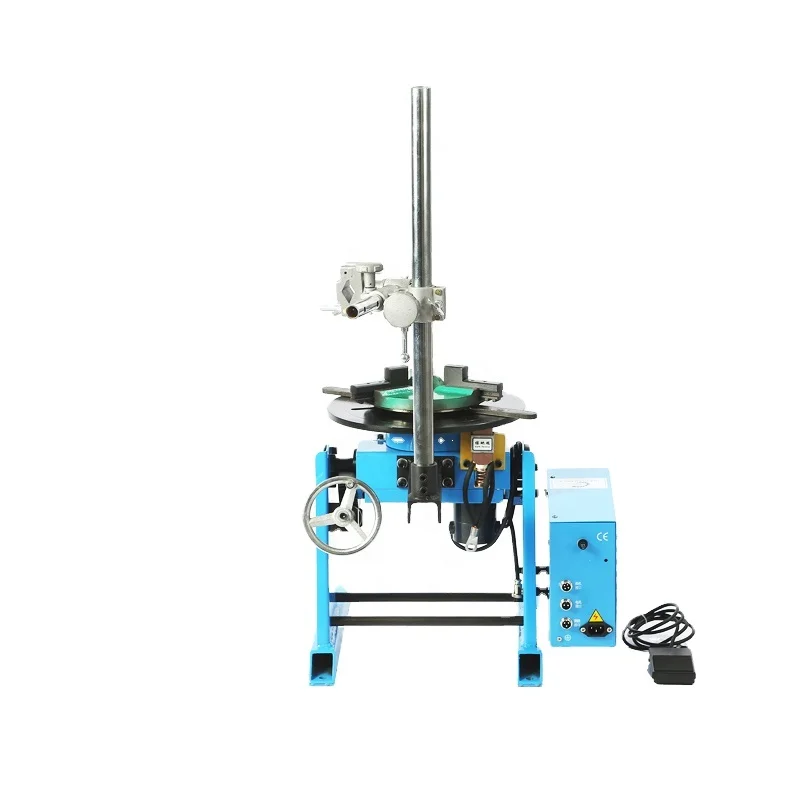

Фланцевая трубка сварочная труба роторный Сварочный позиционер с ЧПУ поворотный стол
46 627,44 ₽
Прожёсткий поворотный стол с ЧПУ, 50 кг

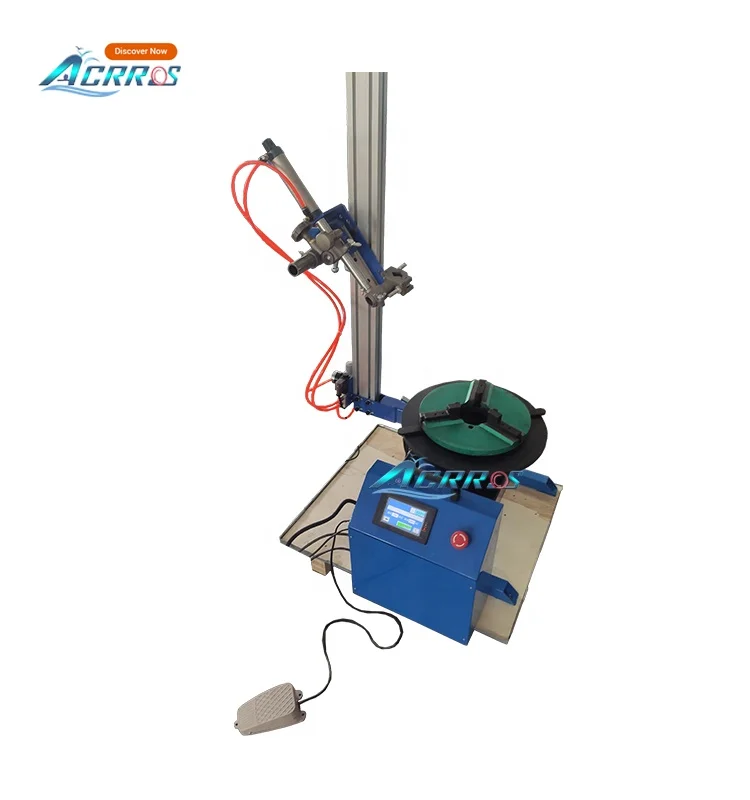

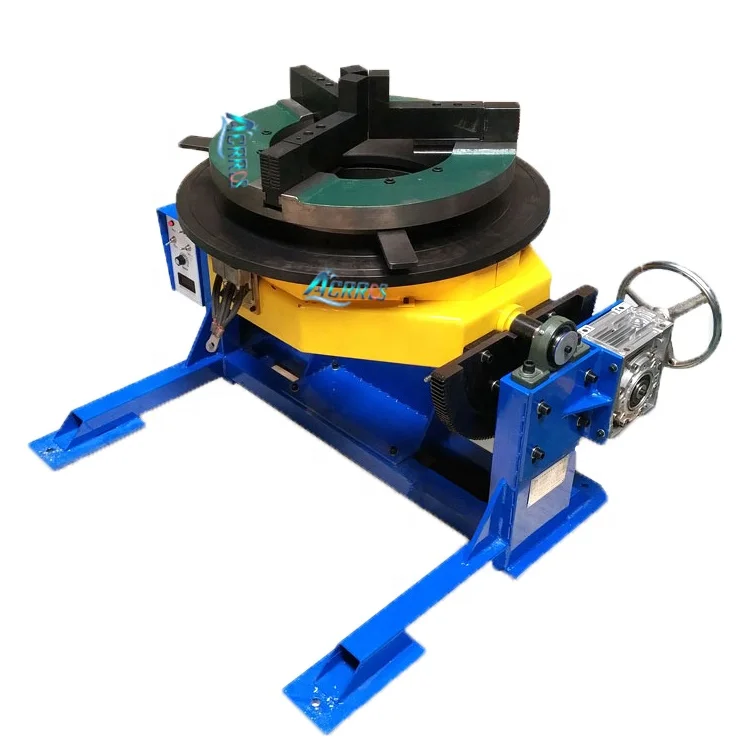

Acrros 500 кг, 300 кг, 600 кг, Сварочный позиционер с шаговым двигателем PLC, скорость 0,1r
184 232,60 ₽ - 186 184,45 ₽
Полностью автоматическая машина для ZS-660 инфракрасный SMD паяльная станция для мобильного телефона Ноутбук печатная плата с общей топливной магистралью
487 961,55 ₽ - 867 487,20 ₽

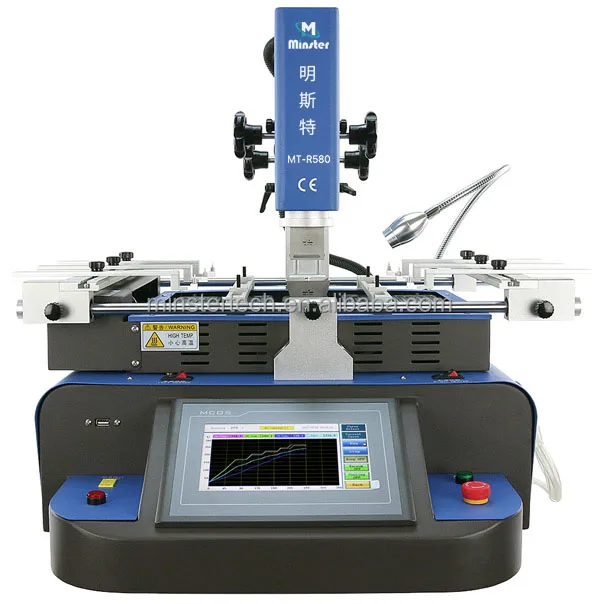

MT-R580 инфракрасная ремонтная паяльная станция
149 641,55 ₽ - 171 328,73 ₽

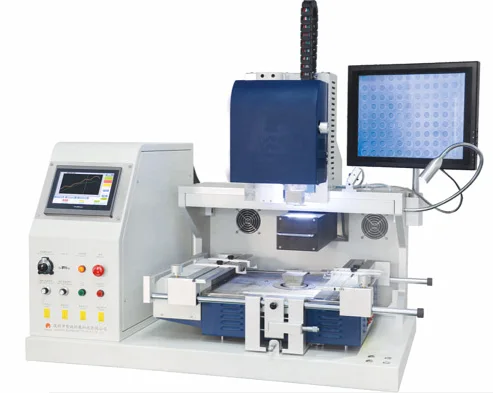

Подгонянная паяльная станция для переделок BGA, станция для переделок BGA, инфракрасная станция для переделок BGA в Шэньчжэне, самая продаваемая
