Product Overview
Servo Web guide system GL-1000 - Ultrasonic sensor
GL1000 is a high-performance servo correction controller, Configuration system，specially used for tracking material edges, tracking lines, contrast, suitable for material take-up, unwinding, intermediate orientation and other automatic control, through ultrasonic, infrared CCD sensor detection signal, Calculate the deviation of the material, and drive the
servo motor and the coding feedback to correct the deviation accurately according to the result
servo motor and the coding feedback to correct the deviation accurately according to the result
Include :
1pc Controller
1pc Ultrasonic Sensor
1pc Actuator

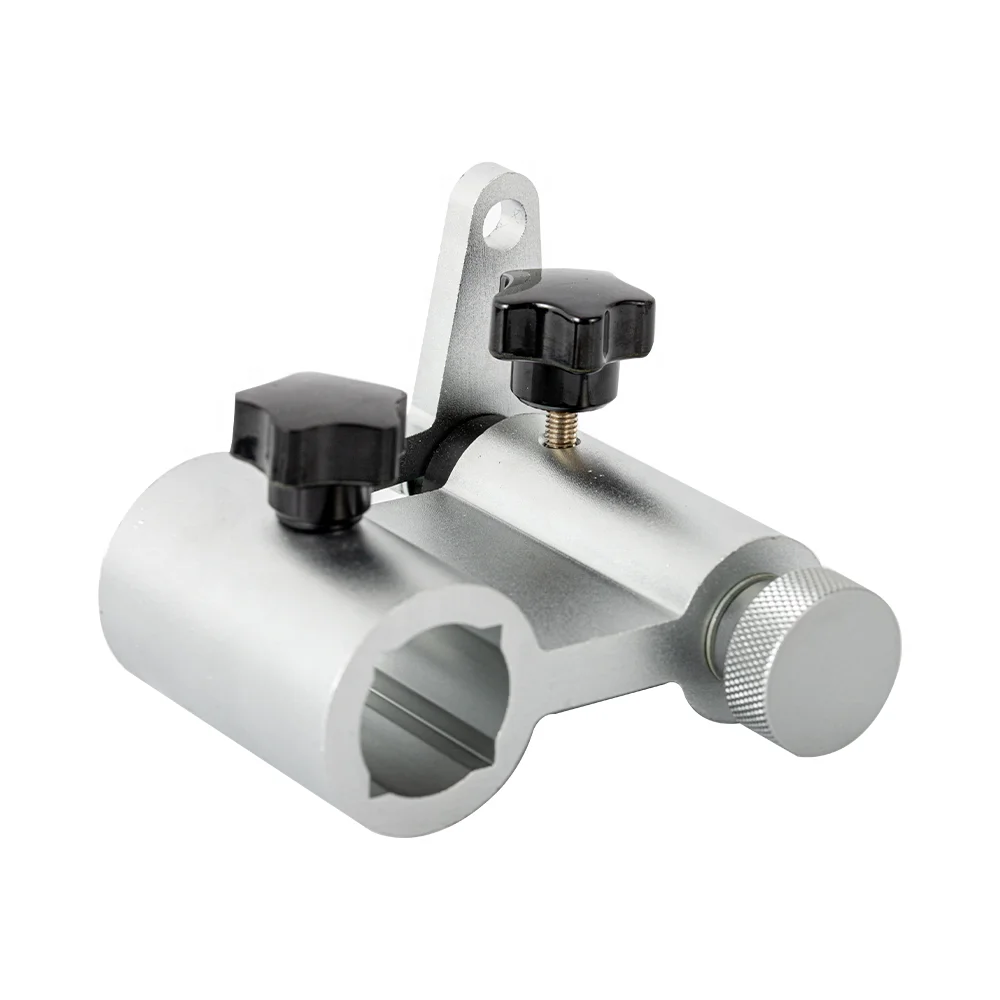

1pc Support
1pc Switching Power Supply
2pc Wires

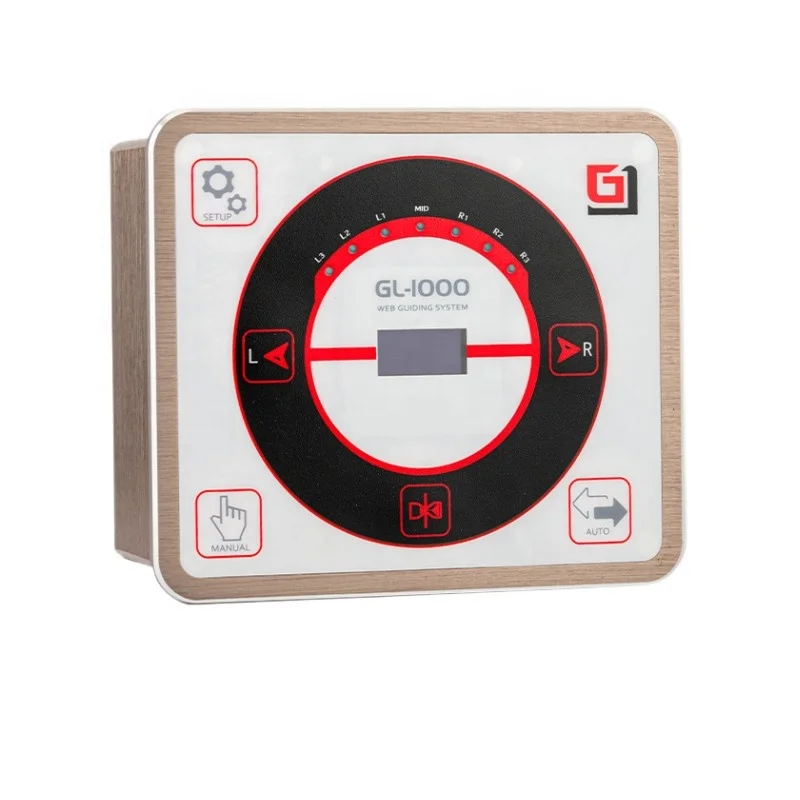

Web Guide Controller
Features :
1. CPU adopts 32-bit dual-core (FPGA+ARM), working frequency up to 168MHz
2. The motor drive adopts FPGA drive (no need for external capacitor resistance commutation, no need to replace carbon brush, high performance far exceeding traditional DC motor)
3.16-bit imported high-precision AD sampling chip with 1us sampling time and the sensor signal is much more stable.
4. 260,000-color TFT LCD Screen
5. Graphical multi-level menu for convenient operation
6. Using the fuzzy adaptive PID Control and any material is adaptive.
7. The universal sensor interface can be connected to single/dual photoelectric eyes, ultrasonic sensors, and CCD sensor.
8. Electronic commutation, maintenance-free, high reliability, high safety without sparks when commutation.
9. With metal shell, stronger anti-interference
2. The motor drive adopts FPGA drive (no need for external capacitor resistance commutation, no need to replace carbon brush, high performance far exceeding traditional DC motor)
3.16-bit imported high-precision AD sampling chip with 1us sampling time and the sensor signal is much more stable.
4. 260,000-color TFT LCD Screen
5. Graphical multi-level menu for convenient operation
6. Using the fuzzy adaptive PID Control and any material is adaptive.
7. The universal sensor interface can be connected to single/dual photoelectric eyes, ultrasonic sensors, and CCD sensor.
8. Electronic commutation, maintenance-free, high reliability, high safety without sparks when commutation.
9. With metal shell, stronger anti-interference
Parameters :
ITEM | GL-1000 web guide system | Other brand system |
CPU | 32-bit dual-core (FPGA+ARM) | 8-bit microcontroller such as C51/PIC/AVR |
working frequency | 210MHz | 8MHz |
Motor drive | Closed loop servo motor | Relays drive AC synchronous motors or DC brushed motors (open loop) |
Response time | 0.02ms | 10ms or more |
Encoder | 1000 line imported encoder | None |
precision | 0.004mm | 0.5mm or more |
Motor speed regulation | Adjustable motor speed (automatic shifting) | AC synchronous motor cannot be speed controlled |
sensor interface | Single/dual photoelectric eye,ultrasonic sensor, CCD tracking sensor, | Only accept single/dual photoelectric eyes |
Anti-interference | metal shell, stronger anti-interference | Plastic shell, general anti-interference |
change direction | electronic commutation | Resistor-capacitive commutation or carbon brush commutation |
reliability | high | general |
maintenance cost | Maintenance free | Resistor capacitor or carbon brush replacement |
Antistatic | 30000v | 500v-5000v |
safety | High safety without sparks | Reversing will spark, unsafe |
Installation Dimensions and Wire Connections

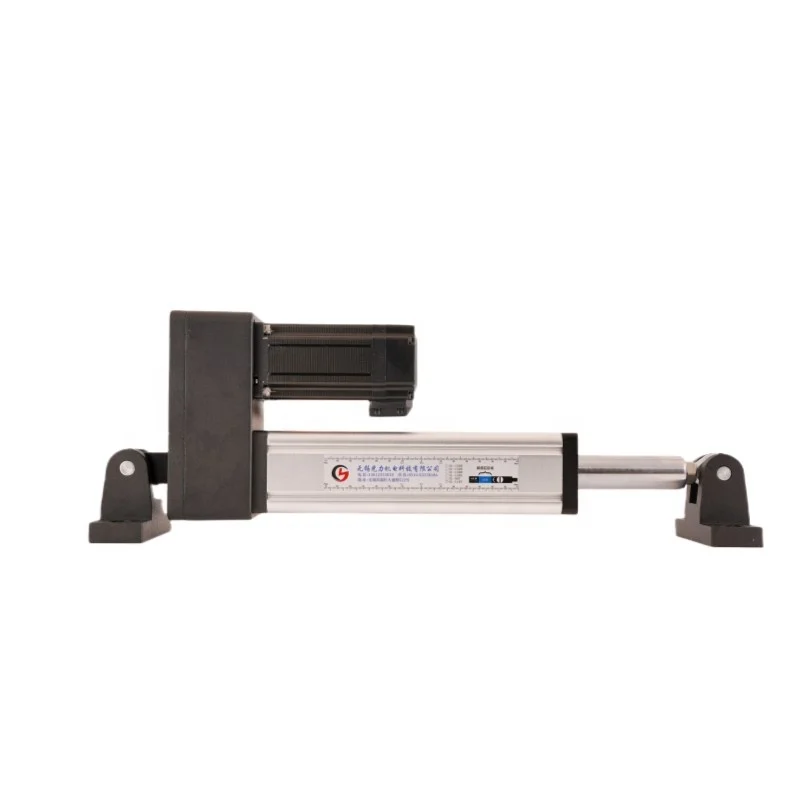

Web Guide Actuator
Parameters:
1. Adopts Japan's Sanyo electric motor as the actuator, without carbon brush
2. Fully reliable and long service life, truly realize long-term maintenance-free during use
3. It has the characteristics of energy-saving and environmental-friendly,
4. Adopting Taiwan precision ball screw with the smallest gap
5. Clearance and durability, so that the actuator has no backlash error.
6. Choosing from75-300mm stroke, 0.5T-10T thrust weight
7. Installation method has direct connection type and L type
2. Fully reliable and long service life, truly realize long-term maintenance-free during use
3. It has the characteristics of energy-saving and environmental-friendly,
4. Adopting Taiwan precision ball screw with the smallest gap
5. Clearance and durability, so that the actuator has no backlash error.
6. Choosing from75-300mm stroke, 0.5T-10T thrust weight
7. Installation method has direct connection type and L type
Drive model | Allowable thrust | Allowable weight | Stroke | Actuating Speed | Motor Power | motor | ||||||
(kg.f) | (kg) | (mm) | (mm) | |||||||||
SL-75B | 200 | 2000 | 75 | 30 | DC24V | Servo built-in encoder | ||||||
SL-150B | 200 | 2000 | 150 | 30 | DC24V | |||||||
SL-200B | 200 | 2000 | 200 | 30 | DC24V | |||||||
SL-300B | 200 | 2000 | 300 | 30 | DC24V | |||||||
The actuator stroke size rectifying thrust 1000N--8000N can be customized according to customer requirements | ||||||||||||
Installation Dimensions
Web Guide Sensor
Web Guide Sensor SG-200 CCD sensor / SGA-200 / SGA-100
Optional Sensors and Installation Dimensions

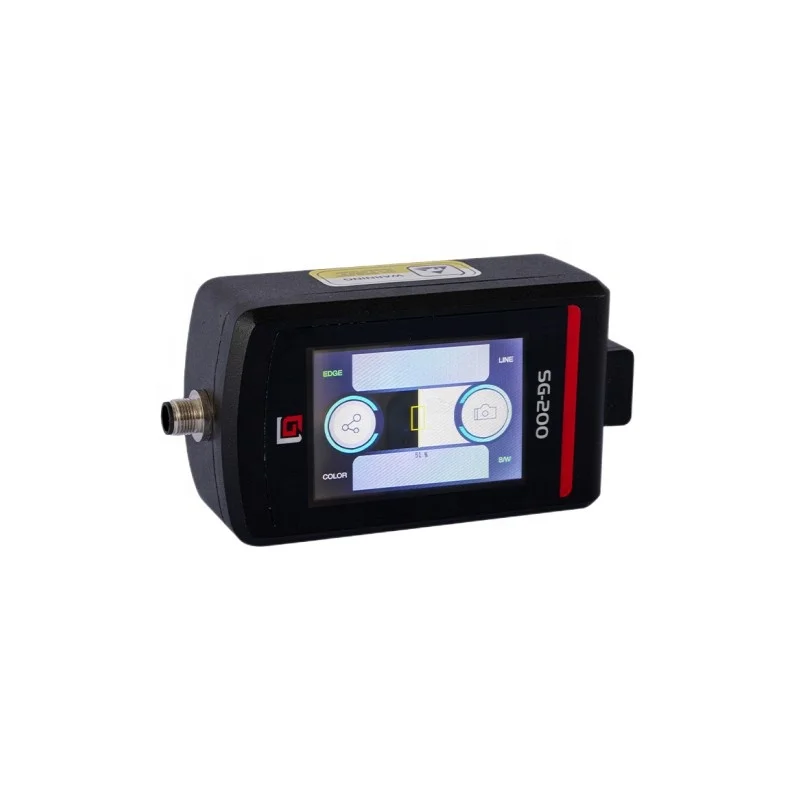

CCD image sensor SG-200
● No polarity conversion required.
● No need to readjust the gain.
● Position signal holding function.
● LED display line (edge) position.
● An LED indicator lights up when the detected edge is in the center of the field of view.
Ultrasonic sensor SGA-200
Installation Dimensions
Infrared sensor SGA-100
Installation Dimensions
Parameters
Model | SGA-200 ultrasonic sensor | SGA-100 Infrared sensor | SG-30B Diffuse sensor | SG-50B Thru-beam sensor |
Detection mode | For edges | Opposite side | Reflective | Thru-beam |
Detection distance (mm) | 51mm | 30mm | 300mm | 10m |
Detection range (mm) | 0.01 | 0.01 | 0.5 | 0.5 |
Detecting element | ultrasonic | Imported silicon photocell | LED red light | LED red light |
Working voltage | DC10-30V | DC10-30V | DC12-24V | DC12-24V |
Use and characteristics | Ultra-transparent film,narrow film | Ordinary transparent, mesh semi-transparent film, | Black non-reflective and reflective material | Opaque material |
How to choose sensor ?
Coiled Material | Ultrasonic Sensor | Photosensor / Infrared Sensor |
Transparent film | ok | Transparence less than 90% |
Untransparent film | ok | ok |
Paper | ok | ok |
Chaff | ok | ok |
Metal sheet | ok | ok |
Cloth | ok | |
Cloth/permeability materials | ok |
Main Hot Products
Applications
Company Profile
FAQ
Galy Printing Machine Servo Edge Position Control System Web Guide Control System With CCD Sensor CCD Color Sensor GL-1000
1. What parts are included of one whole set?Web guide controller, web guide sensor, web guide actuator, support, wire, switching power supply.
2. When can I get the quotation?
We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell
usin your email, so that we can regard your inquiry priority.
3. What’s your MOQ basis?
Normally, we don’t have MOQ request, except the rollers.
4. What about the lead time for production?
Usually we have in stock and can ship within 3 days after payment.If it is customized or the quantity is relatively large, it
generally takes 10-15 days to ship.
5. What is the term of delivery?
We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
