Product Description
Turning tire is suitable for any turning of workpiece 0°-360° clockwise or counterclockwise between processes to realize turning and lifting of workpiece. The whole machine structure of the equipment is inverted gantry type, using four reducer to drive the lifting chain to drive the workpiece turnover.
Major Component
Tire rotation mainly consists of swing arm, column, reset device, electric control and operating system.It consists of four columns, which are connected to the left and right columns.A driving mechanism is arranged on each column, and the sprocket is driven by a brake motor through a cycloid pin wheel reducer.
Two upper pulleys are arranged above the sprocket, and the upper pulleys are installed on the swing arm.The role of the upper pulley is to change the direction of movement of the chain and the position of the chain expansion.A guide wheel is attached to the lower part of the sprocket to increase the wrap Angle of the chain on the sprocket.
Size Information
Model | Loading Capacity(kg) | Rotary Speed(rpm) | Tilting Speed(rpm) | Rotation Angle(^) | Tilting Angle(^) | Lifting Speed(mm/min) | Max Gravity(mm) | Max Eccentricity(mm) | Worktable Dia.(mm) |
HBL-10 | 1000 | 0.05-0.5 | 0.5 | n*+-360 | +-180 | 600 | 200 | 200 | 700 |
HBL-30 | 3000 | 0.05-0.5 | 0.3 | n*+-360 | +-180 | 600 | 300 | 200 | 800 |
HBL-50 | 5000 | 0.05-0.5 | 0.2 | n*+-360 | +-180 | 600 | 300 | 200 | 1000 |
HBL-70 | 7000 | 0.05-0.5 | 0.2 | n*+-360 | +-180 | 500 | 300 | 200 | 1000 |
HBL-100 | 10000 | 0.05-0.5 | 0.2 | n*+-360 | +-180 | 500 | 400 | 200 | 1200 |
Our Advantages
1, The column adopts box welding structure, with enough stiffness and strength to meet the stability of the equipment in long-term use.
2, The upper part of the column is equipped with a swing arm and a hammer device, whose function is to rotate the swing arm down an Angle when the workpiece needs to be turned.When there is no need to flip, the swing arm is lifted and the chain is loosened, which is convenient for conveying the workpiece back and forth.
3, The reversing tire uses the lifting chain to rotate the workpiece to solve the insecure problem of the workpiece turning and skidding. The four reducer can rotate in the same direction or reverse direction. The workpiece can be flipped in the same direction and the workpiece can be lifted and lowered in the reverse direction.
4, The control system includes: the manual control box of the main control cabinet. The manual control box is equipped with a 15-meter wire connection to the control cabinet. The manual control box can be used to operate the equipment in different positions of the equipment.
5, The manual control operation box and the main control cabinet are equipped with power start and stop buttons, flip direction selection switches and emergency stop buttons.
6, The control system is equipped with motor over current, over voltage and over torque protection.
7, The control system is equipped with temperature detection device, when over temperature stop and alarm.
8, The control system has simple and convenient operation, reliable operation, the whole operation can be near or far control operation, convenient for the operator to use at any station.

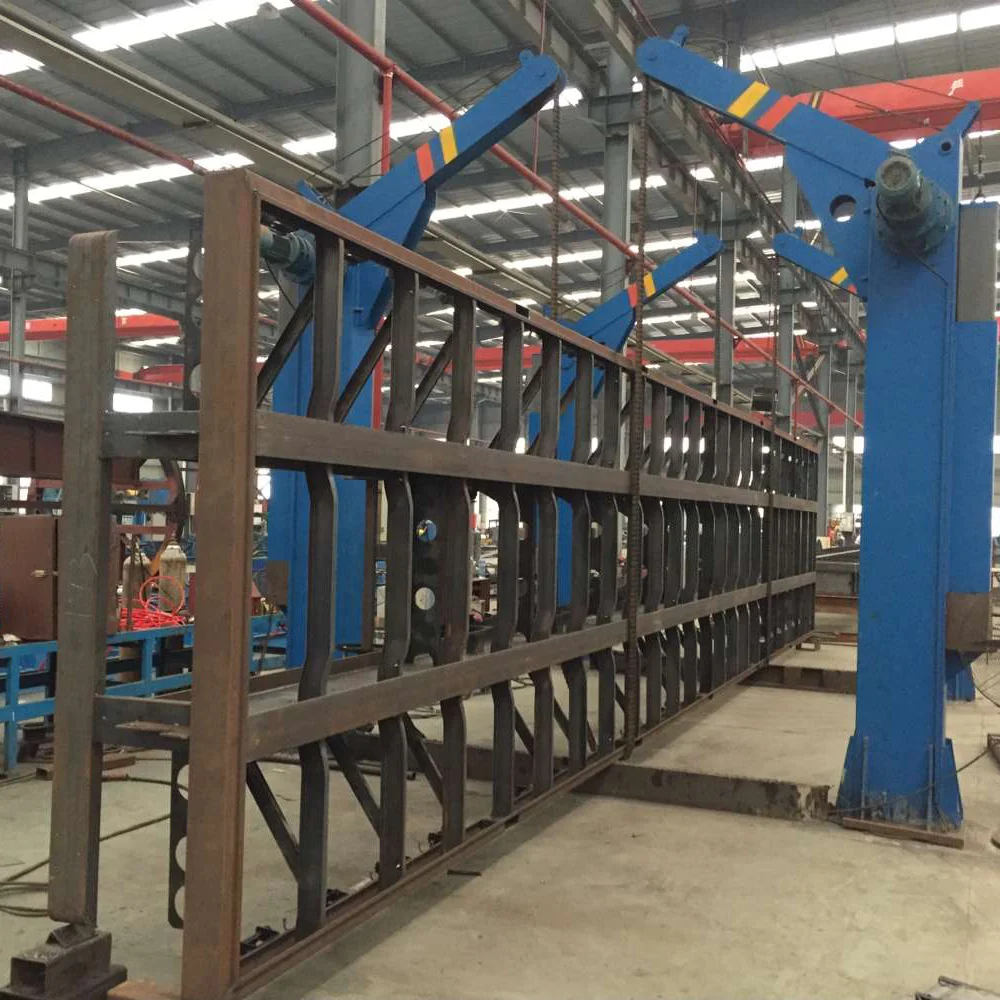

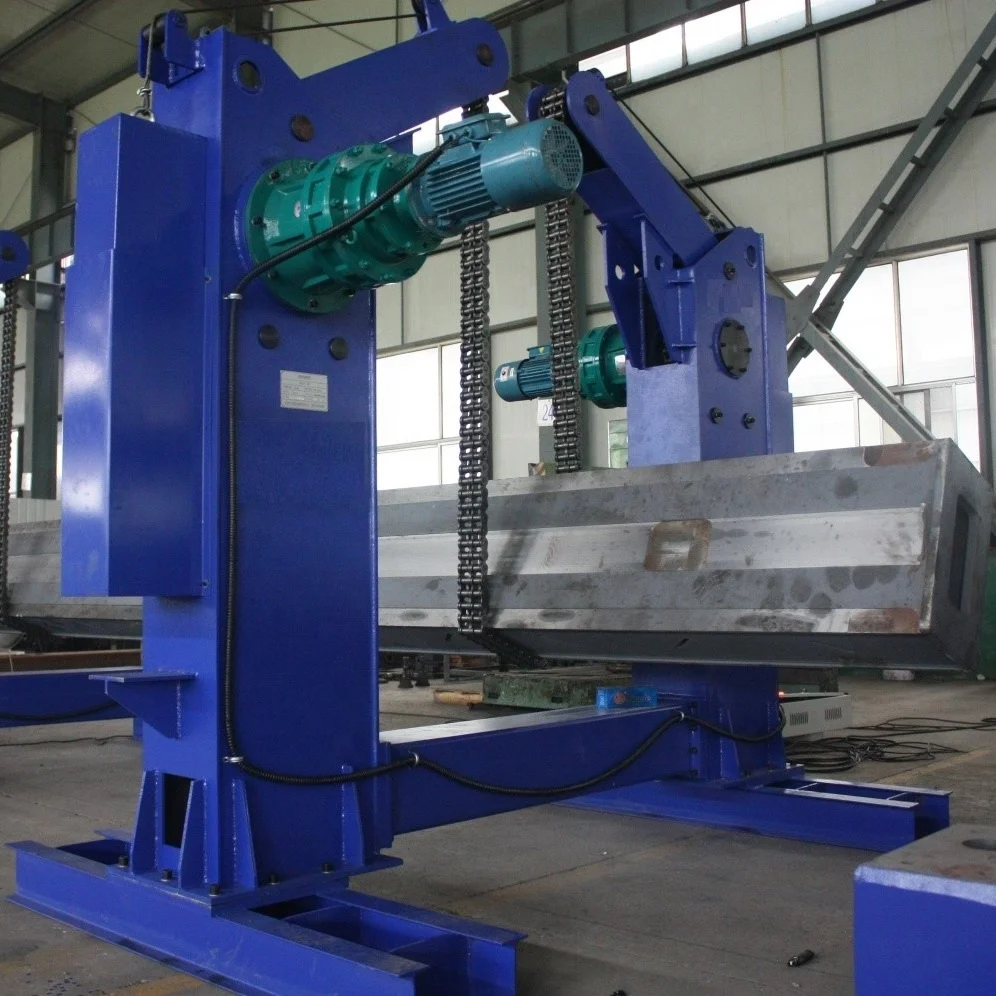

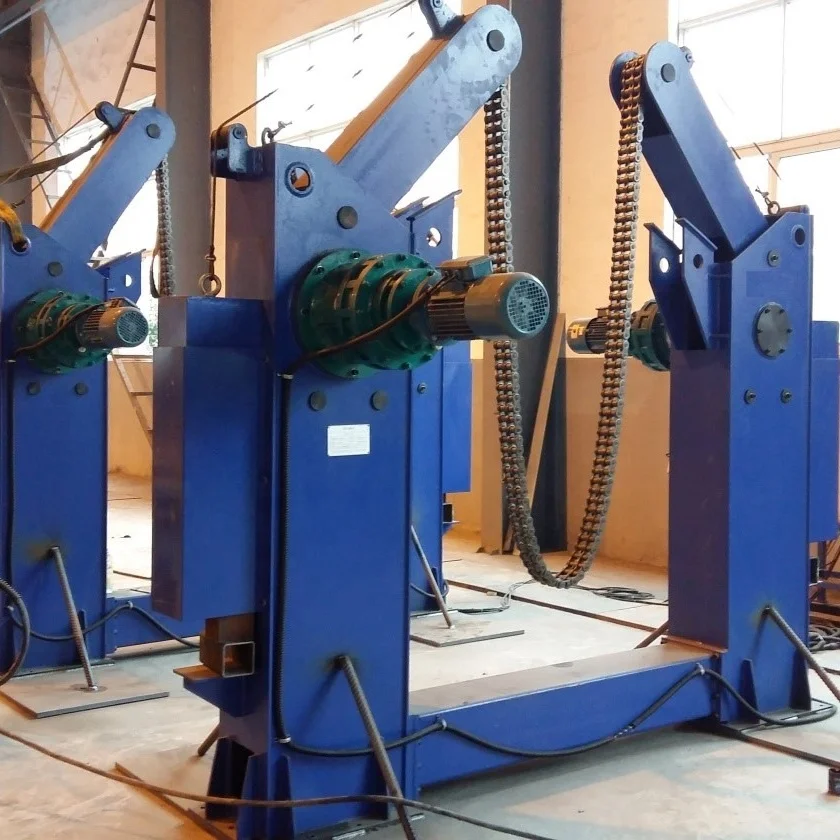

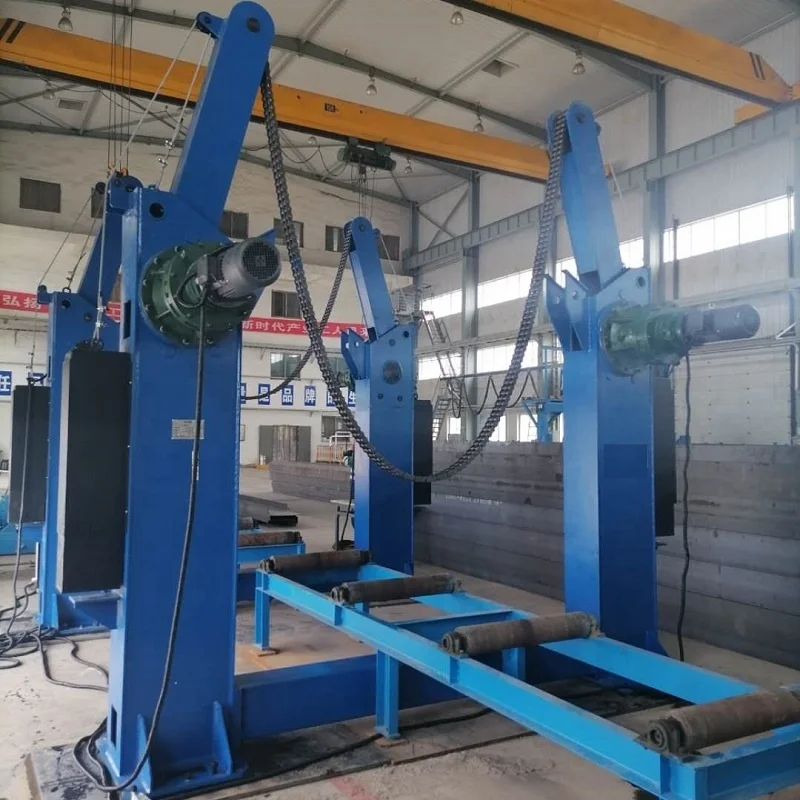

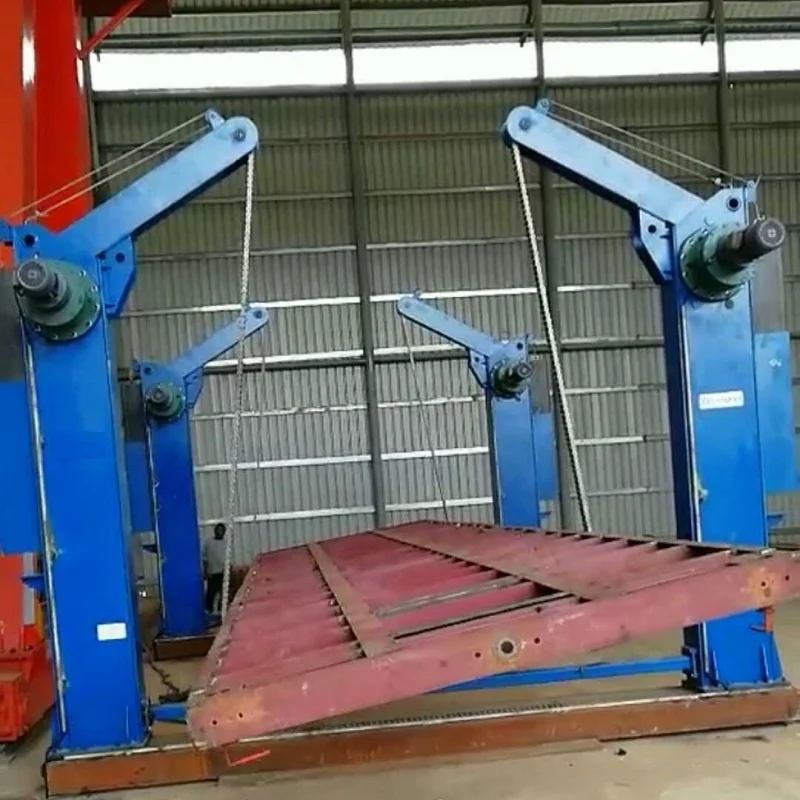

Details Images
Company Introduction
Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.
Our Services & Strength
We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.
Based client’s facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.
To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.
