Гроватт инвертор мод 3000 ~ 10000TL3-XH на сетке микроинвертор 3-фазный гибридный инвертор
181 139,16 ₽ - 227 849,38 ₽
Однофазный инвертор Growatt 750 Вт 1 кВт 2 3 в наличии
- Категория: >>>
- Поставщик: Green Energy Co. Ltd.
Сохранить в закладки 1600789211908:
Описание и отзывы
Характеристики
Datasheet | MIC 750TL-X | MIC1000TL-X | MIC1500TL-X | MIC2000TL-X | MIC2500TL-X | MIC3000TL-X | MIC3300TL-X | |||||||
Input data (DC) | ||||||||||||||
Max. recommended PV power | 1050W | 1400W | 2100W | 2800W | 3500W | 4200W | 4290W | |||||||
Max.DC voltage | 500V | 500V | 500V | 500V | 550V | 550V | 550V | |||||||
Start voltage | 50V | 50V | 50V | 50V | 80V | 80V | 80V | |||||||
Nominal voltage | 120V | 180V | 250V | 360V | 360V | 360V | 360V | |||||||
MPPT voltage range | 50V-500V | 50V-500V | 50V-500V | 50V-500V | 65V-550V | 65V-550V | 65V-550V | |||||||
No. of MPP trackers | 1 | 9 | 12 | 15 | ||||||||||
No. of PV strings per MPP tracker | 1 | 4/3/3 | 4/4/4 | 4/4/4 | ||||||||||
Max. input current per MPP tracker | 13A | 52A/39A/39A | 52A/52A/52A | 52A/52A/52A | ||||||||||
Max. short-circuit current per MPP tracker | 16A | 35kW | 40kW | 55kW | ||||||||||
Output Data(AC) | ||||||||||||||
Rated AC output power | 750W | 1000W | 1500W | 2000W | 2500W | 3000W | 3300W | |||||||
Max. AC apparent power | 750VA | 1000VA | 1500VA | 2000VA | 2500VA | 3000VA | 3300VA | |||||||
Nominal AC voltage（range*） | 230V (180-280V) | 277V/480V (425-540V) | 230V/400V (340-440V) | 277V/480V (425-540V) | ||||||||||
AC grid frequency（range*） | 50/60 Hz (45-55Hz/55-65 Hz) | |||||||||||||
Max. output current | 3.6A | 4.8A | 7.1A | 9.5A | 11.9A | 14.3A | 14.3A | |||||||
Adjustable power factor | 0.8leading ...0.8lagging | |||||||||||||
THDi | <3% | |||||||||||||
AC grid connection type | Single phase | 3W+PE | 3W+N+PE | 3W+PE | ||||||||||
Efficiency | ||||||||||||||
Max. efficiency | 97.4% | 97.4% | 97.4% | 97.4% | 97.6% | 97.4% | 97.4% | |||||||
European efficiency | 96.5% | 96.5% | 97.0% | 97.0% | 97.0% | 97.1% | 97.1% | |||||||
MPPT efficiency | 99.9% | |||||||||||||
Protection devices | ||||||||||||||
DC reverse polarity protection | Yes | |||||||||||||
DC switch | Yes | |||||||||||||
AC/DC surge protection | Type III | |||||||||||||
Insulation resistance monitoring | Yes | |||||||||||||
Ground fault monitoring | Yes | |||||||||||||
Grid monitoring | Yes | |||||||||||||
Residual-current monitoring unit | Yes | |||||||||||||
AC short-circuit protection | Yes | |||||||||||||
Anti-islanding protection | Yes | |||||||||||||
General Data | ||||||||||||||
Dimensions (W / H / D) | 274/254/138mm | |||||||||||||
Weight | 6kg | 6kg | 6kg | 6kg | 6.2kg | 6.2kg | 6.2kg | |||||||
Operating temperature range | –25°C ... +60°C | |||||||||||||
Nighttime power consumption | <0.5W | |||||||||||||
Topology | Transformerless | |||||||||||||
Cooling | Smart air cooling | |||||||||||||
Protection degree | IP65 | |||||||||||||
Relative humidity | 0~100% | |||||||||||||
Altitude | 4000m | |||||||||||||
DC connection | H4/MC4(Optional) | |||||||||||||
AC connection | Connector | |||||||||||||
Display | OLED+LED/WIFI+APP | |||||||||||||

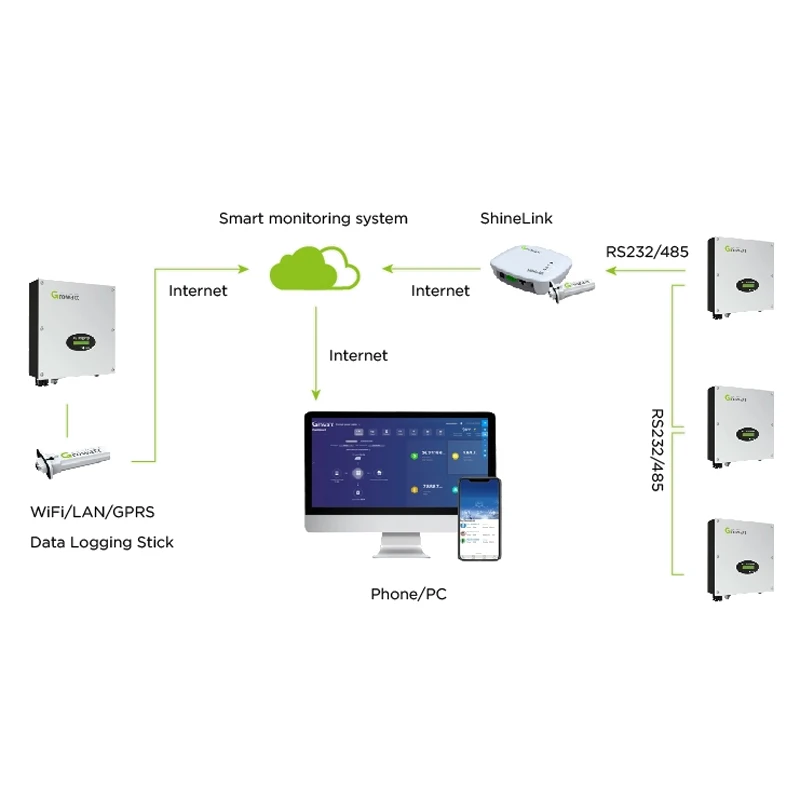

Interfaces: RS485 / USB /WiFi/ GPRS / RF | Optional | |||||||||||||
FAQ
1.What is the difference between PWM inverter and MPPT inverter
PWM is Pulse width modulation, it is a old solar power controller technology, its efficiency is about 70%.MPPT is Maximum Power Point Tracking, it is the latest technology. it contains Low Voltage and High Voltage, 2 types. High voltage inverter efficiency up to 95%
2: How to distinguish Low voltage and high voltage inverter
Low voltage, Max PV voltage Voc < 150V. High voltage, Max PV voltage Voc > 450V
3. What is the difference between a modified sine inverter and pure sine wave inverter?
Modified sine wave power inverter is more portable than pure sine wave power inverter, lighter, and lower in cost. If the device handles voltage fluctuations, a modified sine wave inverter should be considered.Most devices that people typically wish to power will work fine with a modified sine wave inverter.Pure sine wave power inverter allows motors to run cooler, last longer and provide very clean power that is same quality with State Grid . Devices such as air conditioner, Freezer and most medical equipment require a pure sine wave inverter to run.
5.How long of the delivery time, sample order and wholesale order?
For Sample order, within 3 days; For 1000pcs wholesale order, 7-15 working days.
6. How do I know which inverter to buy?
Different devices require specific wattages to run. Please check the following formula to determine the correct watt model: AMPS x 120 = Watt For Example: 20 Amp Freezer Unit * 120 = 2400 Watts
PWM is Pulse width modulation, it is a old solar power controller technology, its efficiency is about 70%.MPPT is Maximum Power Point Tracking, it is the latest technology. it contains Low Voltage and High Voltage, 2 types. High voltage inverter efficiency up to 95%
2: How to distinguish Low voltage and high voltage inverter
Low voltage, Max PV voltage Voc < 150V. High voltage, Max PV voltage Voc > 450V
3. What is the difference between a modified sine inverter and pure sine wave inverter?
Modified sine wave power inverter is more portable than pure sine wave power inverter, lighter, and lower in cost. If the device handles voltage fluctuations, a modified sine wave inverter should be considered.Most devices that people typically wish to power will work fine with a modified sine wave inverter.Pure sine wave power inverter allows motors to run cooler, last longer and provide very clean power that is same quality with State Grid . Devices such as air conditioner, Freezer and most medical equipment require a pure sine wave inverter to run.
4. Do you accept OEM and ODM service?
Yes, we accept OEM and ODM service.
Yes, we accept OEM and ODM service.
5.How long of the delivery time, sample order and wholesale order?
For Sample order, within 3 days; For 1000pcs wholesale order, 7-15 working days.
6. How do I know which inverter to buy?
Different devices require specific wattages to run. Please check the following formula to determine the correct watt model: AMPS x 120 = Watt For Example: 20 Amp Freezer Unit * 120 = 2400 Watts
