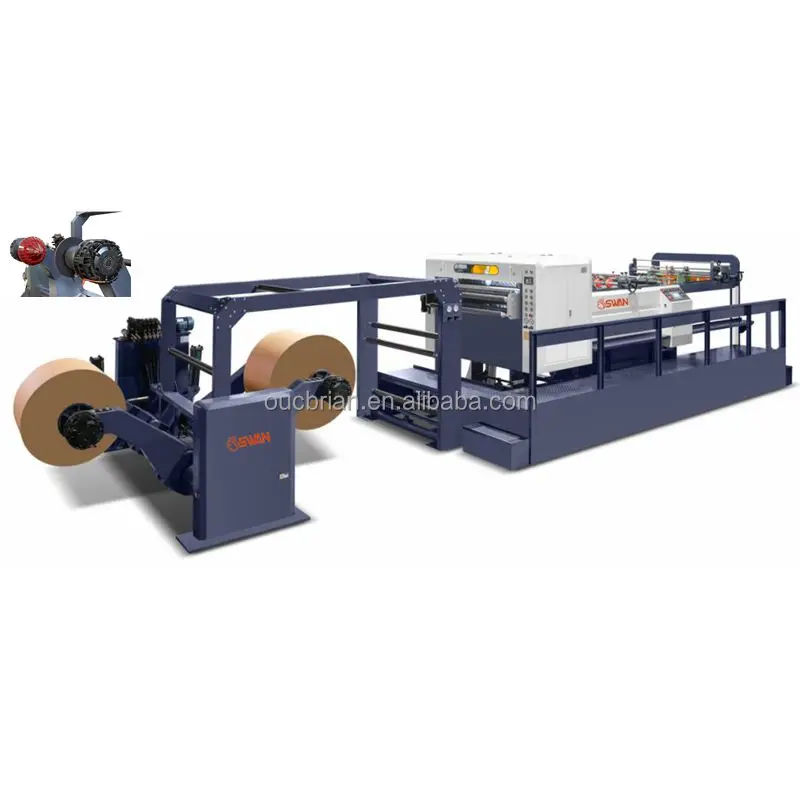

1400 мм сервопривод точность высокая скорость рулон бумаги к листу резак машина
- Категория: >>>
- Поставщик: Weifang Swan Machinery Co. Ltd.
Сохранить в закладки 1600790948375:
Описание и отзывы
Характеристики
Product Description
Detailed Images

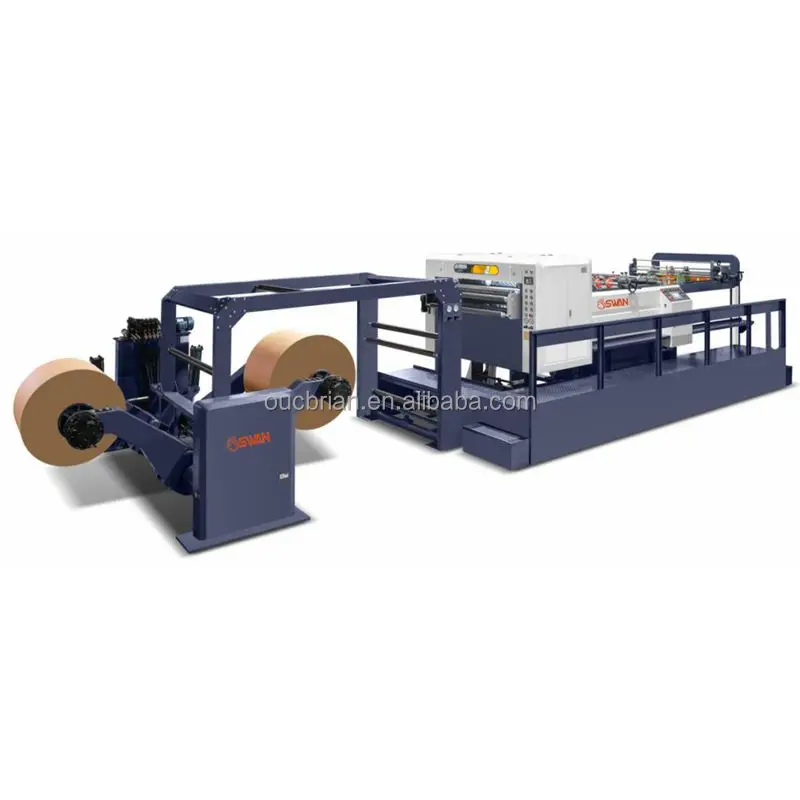

Automatic Roll Unwinding Unit
Automatic Roll Unwinding Unit is Equipped with Hydraulic Shaftless Roll Stands two clamps and Braking system, which are
Easy-to-use During Roll Manipulations

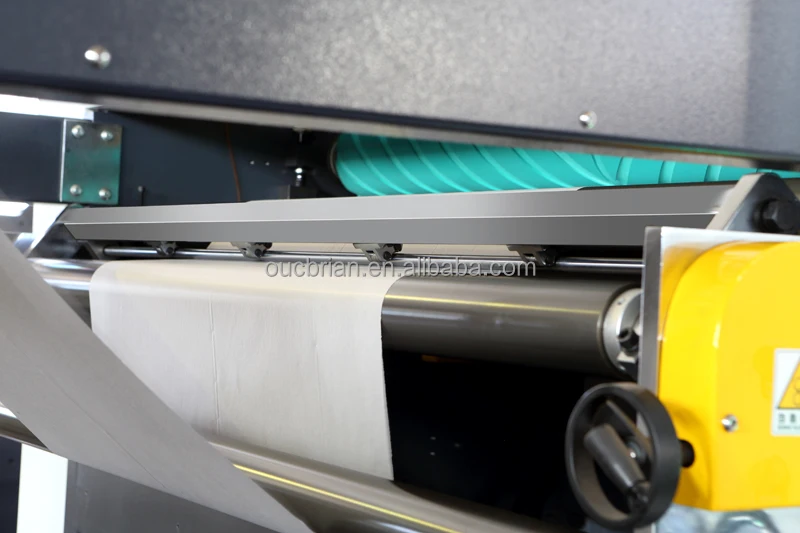

Prevent curling system
Adjusting the roll paper due to the curl of the paper, make the paper smooth after cutting

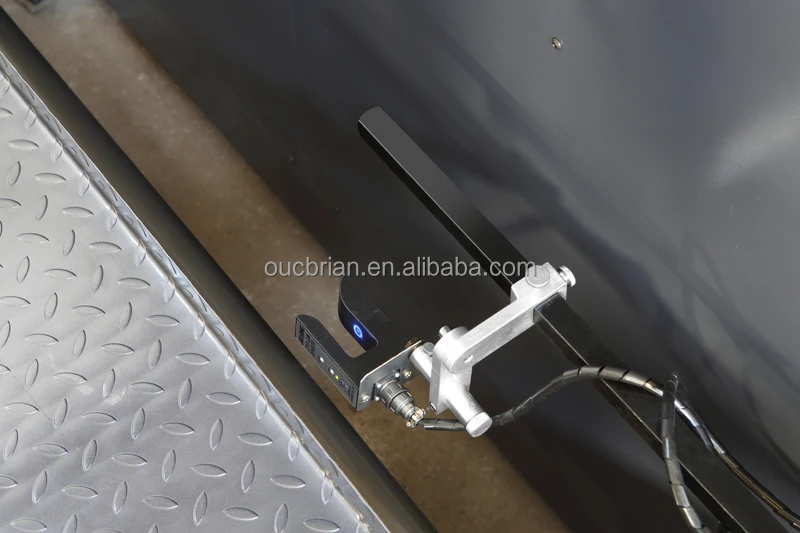

Correct paper offset system
There are three correct paper offset modules,that meas the upper paper will align the lower paper automatically while the all four reel working at the same time.

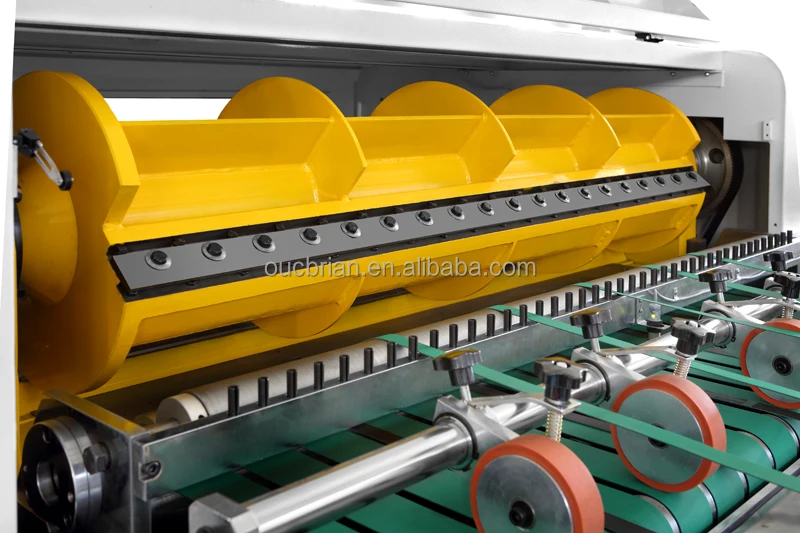

Sub-knife system(Selective accessories)
There are totally three sub-knife, knives for
web slitting and web edge trimming,and is equipped with a waste paper collector to discharge the waste paper.
Technical details for1400 Paper cutter machine 2 Roll | four rolls | ||
Reference weight of cutting paper (g/m2) | 50-500gsm | 50-500gsm | |
Max.Diameter of paper | 1800mmMax | 1800mmMax | |
Max.Width of paper | 1400mm(55〃)Max | 1650mm | |
Total power | 25KW | 28KW | |
Cutting length (mm) | 400-1600 | 400-1600 | |
Cutting accuracy (mm) | +/- 0.4 | +/- 0.4 | |
Maximum cutting speed | 300cuts/min | 300cuts/min | |
Maximum cutting meter speed | 300m/min | 300m/min | |
Overall dimensions approx: | 12m×3.9m×2.35m | 12m×3.9m×2.35m | |
Atmospheric pressure | 0.8MPa | 0.8MPa | |
Weight | 11000kg | 13000kg | |
Any inquiry, please feel free to contact with us.
Tel/Whatsapp/Wechat:86-186 7806 1686
Email: lisa.wang@swanmachinery.comlisa@jiguo.net
Q1.Are you a manufacturer or a trading company?A:Our Weifang office is mainly doing export.

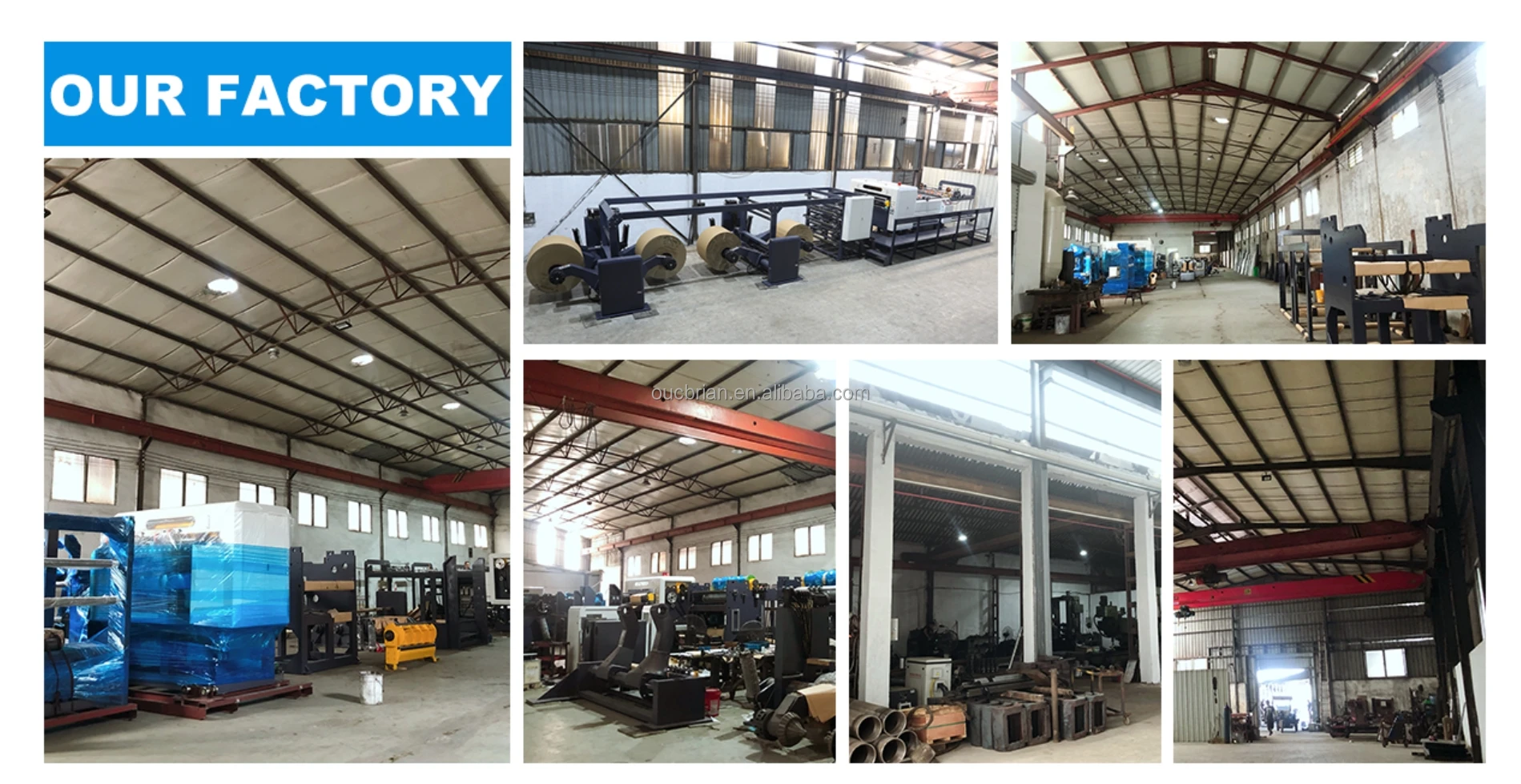

We have our own factory in Heibei, Wenzhou, Zhejiang Province.
Q2.What is the machine warranty?
A:One year. After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Tel/Whatsapp/Wechat:86-186 7806 1686
Email: lisa.wang@swanmachinery.comlisa@jiguo.net
Q1.Are you a manufacturer or a trading company?A:Our Weifang office is mainly doing export.
We have our own factory in Heibei, Wenzhou, Zhejiang Province.
Q2.What is the machine warranty?
A:One year. After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?

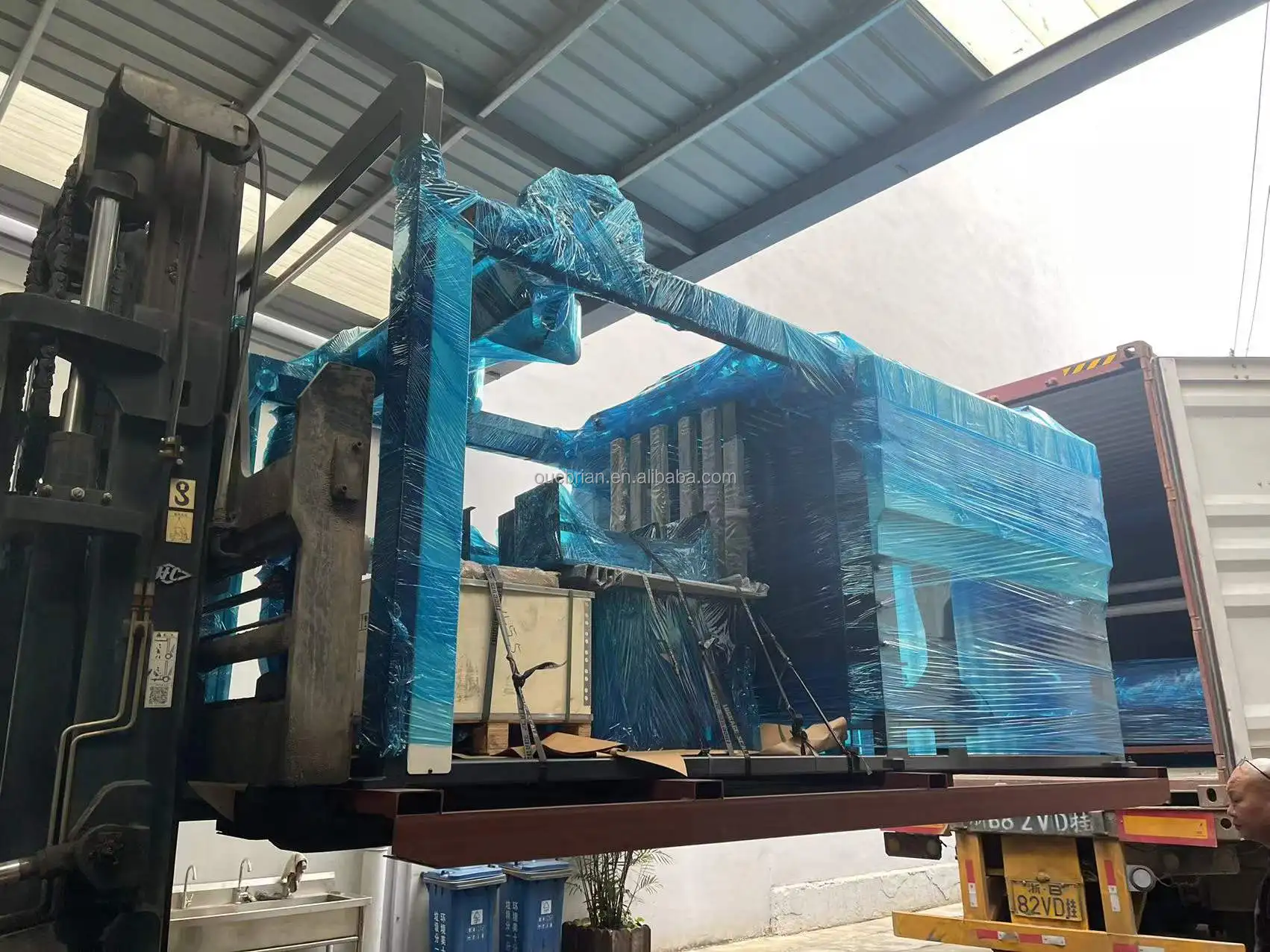

A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.
A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.
For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.
We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The weifang company since in 2008,the factory is more than 25 years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries, and running more than 2,000 sets of machine in the whole world.
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.
A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.
For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.
We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The weifang company since in 2008,the factory is more than 25 years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries, and running more than 2,000 sets of machine in the whole world.
