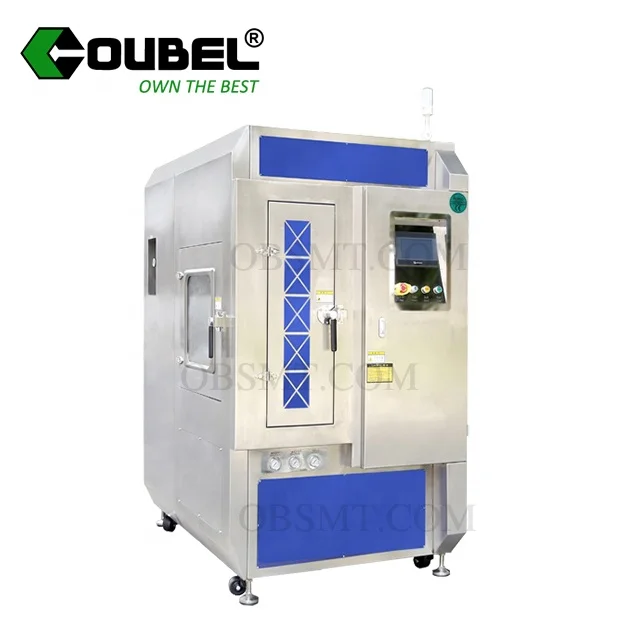

Энергосберегающая машина для очистки и проверки хранения сопла SMT автоматический очиститель в Китае

Energy Saving SMT Nozzle Cleaning&Inspection&Storage Machine Automatic SMT Nozzle Cleaner In China

Features:
1.Automatic cleaning mode: heating cleaning - spraying, air drying, scanning detection, classification of the whole process completed;
2.Visualization of the whole process: the cleaning room is equipped with a visual window to make the cleaning process clear at a glance;
3.Suction nozzle vacuum detection, the accuracy can be plus or minus 100PA, MES upload function, cleaning detection process can be traced;
4.It can effectively identify and read the two-dimensional code on the suction mouth, and also read the customer's self-made two-dimensional code;
5.The visualization nozzle pressure can be adjusted, the nozzle can be detachable, small nozzle in the cleaning of high pressure spray conditions of collision, splashing problem;

6.Light transmission detection of suction nozzle inner wall, dirt, blockage, damage;

7.FUJI suction nozzle up and down movement smoothness can be detected, products qualified or unqualified can be classified, and can be reflow and re-washed;

8.Different suction nozzle can be stored, up to 3000 suction nozzle storage, only need to replace the tray, easy to adapt to different suction nozzle;

9.Suction nozzle cleaning, detection, the whole process is completed, every minute can complete 8 suction nozzle;

10.Pure water cleaning, can be directly discharged, replace the filter element.

Parameter configuration

Cleaning Part:

1.The cleaning tank is used for recycling and storage, and carries out secondary filtration, heating, monitoring and liquid level monitoring for cleaning;

2.Water pump: 980W (1), 2 spray arms, 16 nozzles;

3.Liquid storage tank volume: ≤ 42L (1);

4.Filter device: stainless steel filter net 1mm (1 piece), cleaning and recycling filter element 0.45um (1 piece);

5.Heating power: 1KW (1 bar), heating temperature: room temperature --60℃ (adjustable);

6. Liquid level protection: low position, stop position, over limit position;

7.Spray pressure: 0.1-0.6mpa (adjustable);

8.Cleaning and testing trays equipped: 2pcs.

Inspection Part:

1.Template comparison, vacuum detection, automatic discrimination of damage software;

2.Industrial cameras: 5 megapixel cameras: 2units, 1.3 megapixel cameras: 1unit;

3.Vacuum detection system: 1 set;

4.Two-dimensional code system: 1 set;

5.Hole detection system: 1 set;

6.Damage detection system: 1 set;

7.Gravity pull rod test system: 1 set;

Storage Part:

1.The suction nozzle is stored in 10 layers and can store up to 3000 suction nozzle;

2.The maximum number of storage respectively into: such as ASM suction nozzle can be put: 80 magazines; If Fujifilm suction nozzle can put: 30 magazines; If Panasonic suction nozzle can be put: 20 magazines;

3.Cleaning OK good suction nozzle storage disk number: 5*10 layers =50 disks;

4.Quantity and type of dirty suction nozzle storage: up to 3 kinds of placement machine "clip" storage, about 500 suction nozzle;

5.Sorting mode: Qualified products nozzle return to the original way, separate storage, classification storage optional;

6.Sorting and storage path: software independent setting, support TXT file import.

Systems Part:

1.Computer type: Monitor: 17 inches;

2.System: High performance industrial control host, WIN10 system;

3.CPU: Intel I7 Fourth generation;

4.CPU Memory capacity :16GB;

5.Disk capacity: 1 TB;

Packing Details :Plywood case, for export!
Port:Shenzhen
Delivery Details : 20-25 days
