Шаровой мельнице мокрого помола завод минеральных шлифовальная машина
606 146,20 ₽
Вертикальные роликовые шаровые мельницы цементная машина в цементной промышленности цена используется клинкерная Цементная Мельница
- Категория: >>>
- Поставщик: Henan Zhongke Engineering & Technology Co. Ltd.
Сохранить в закладки 1600829454028:
Описание и отзывы
Характеристики
Leading manufacturer of ball mill
Widely used in construction,electricity,coal,metal ore etc industies.Capacity range from 1-130 tph, final product can reach to 500 mesh !
Ball Mill Features
1).is an efficient tool for grinding many materials into fine powder.
2).The ball mill is used to grind many kinds of mine and other materials, or to select the mine
3).Ball mill is widely used in building material, and chemical industry.
4).There are two ways of grinding: the dry way and the wet way.
5).Ball mill can be divided into tabular type and flowing type according to differentexpelling mine
6).To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.
7).As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the
product into fine powder over a period of several hours.
7).As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the
product into fine powder over a period of several hours.
8).The longer the ball mill runs, the finer the powder will be.
9).Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.
9).Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs.
10).Our ball mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals.
11).Complet ely enclosed welded design in high-grade steel.
- Direct drive via bearing journal with top-mounted gearbox.
Motor connected to gearbox via a V-belt drive.
Motor connected to gearbox via a V-belt drive.
- Product discharge via slots located around the periphery of the drum.
Ball mill Working principle
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finishedBall mill grinds material by rotating a cylinder with a steel grinding ball, causing the ball to fall back into the cylinder and onto the material to be grinded. The rotation speed is usually from 4 to 20 revolutions per minute, depending on the diameter of the mill. The larger the diameter, the slower the rotation. If the circular speed of the mill is too high, it will start to act like a centrifuge, and the ball will not fall, but stay around the mill. The point at which a mill becomes a centrifuge is called the "critical speed," and ball mills typically operate at 65 to 75 percent of that critical speed.
Technical Parameters
Type | Rotary speed (r/min) | Balls load(t) | Feeding size (mm) | Discharging size(mm) | Capacity(t/h) | Motor power(kw) | Weight(t) |
Ø900*1800 | 36-38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 4.6 |
Ø900*3000 | 36 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 5.6 |
Ø1200*2400 | 36 | 3 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30 | 12 |
Ø1200*3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
Ø1200*4500 | 32.4 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
Ø1500*3000 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 | 15.6 |
Ø1500*4500 | 27 | 11 | ≤25 | 0.074-0.4 | 3-6 | 110 | 21 |
Ø1500*5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
Ø1830*3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 | 28 |
Ø1830*4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 155 | 32 |
Ø1830*6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
Ø1830*7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 36 |
Ø2100*3000 | 23.7 | 15 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 34 |
Ø2100*4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 | 42 |
Ø2100*7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 | 50 |
Ø2200*4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 | 48.5 |
Ø2200*6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
Ø2200*7000 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 | 54 |
Ø2200*7500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 | 56 |
Ø2400*3000 | 21 | 23 | ≤25 | 0.074-0.4 | 7-50 | 245 | 54 |
Ø2400*4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 65 |
Ø2700*4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 12-80 | 400 | 94 |
Ø2700*4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 12-90 | 430 | 102 |
Ø3200*4500 | 18 | 65 | ≤25 | 0.074-0.4 | ----- | 800 | 137 |
Applicable Materials
are generally used to grind material 1/4 inch and finer, down to the particle size of 20 to 75 microns. To achieve a reasonable efficiency with ball mills, they must be operated in a closed system, with oversize material continuously being recirculated back into the mill to be reduced. Various classifiers, such as screens, spiral classifiers, cyclones and air classifiers are used for classifying the discharge from ball mills. Ball mill is an efficient tool for grinding many materials into fine powder. The ball mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry process and the wet process. It can be divided into tabular type and flowing type according to different forms of discharging material.
1.Dolomite 2.Platinum 3.Marble 4.Calcite 5.Calcium ore
1.Chromium ore 2.Cobalt ore 3.Granite 4.talc 5.Chemical Industry
1.Building material 2.Gold mine 3.Phosphate rock 4.Bauxite 5.Aluminum ore
1.Gangue 2.Magnesium ore 3.Manganese ore 4.Nickel ore 5.Bentonite

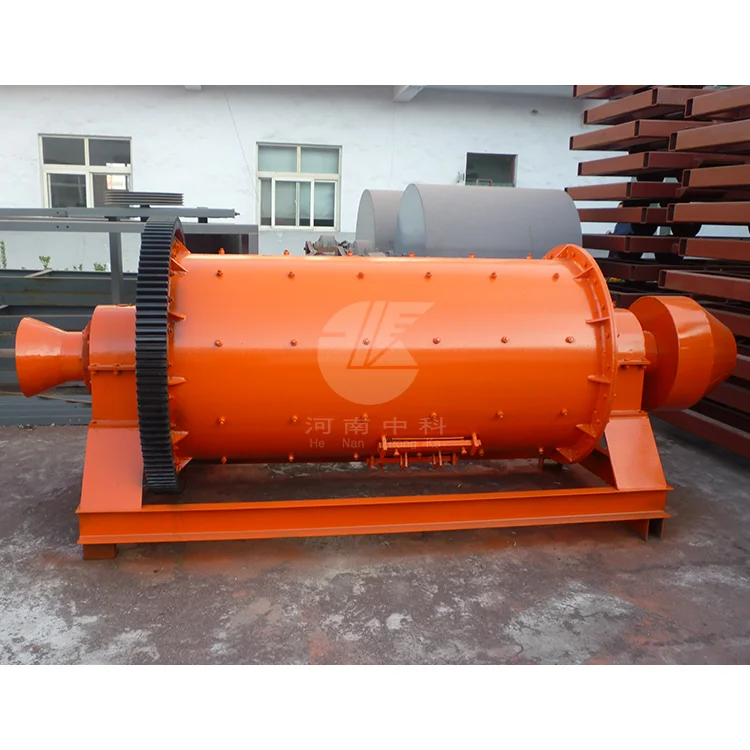

Product details
Installation Site
More Products
Packaging & Shipping
Packaging Details: We will make different packaging according to different machine sizes .standard international export packing, container, wooden box.
Delivery Time: We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 20 to 30 working days.
Our factory is capable of shipping large machine even more than 100 tons
Company Information
Henan Zhongke Engineering & Technology Co.,Ltd. is specialized in large and medium-sized series of mining machinery, metallurgical machinery, building materials equipments, cement equipment and rotary kiln. R&D, production and marketing into a joint-stock enterprise, our company is headquartered in Zhengzhou Country’s High-tech Industrial Development Zone, which consists of three branches, a research and development department.
Since the establishment of our company, always adopt advanced modern management system, and focused on innovation, has brought together a number of scientific and technological elite, our company develop very fast we have over 500 employees, 29 senior engineers and more than 100 middling technicians. We have a good long-term cooperation with domestic scientific research units, have introduced advanced technology and testing system at home and abroad.
Our company pays more attention to basic managements, we constantly improve and perfect the quality management system to ensure to provide high-quality products, work site achieve fixation management, logistic achieve ABC management; our office achieve computer automatization; production technology adopt computer management; product development process design using CAD,CAPP, PROE technology. We have completed ISO9001-2000 quality certification.
Our company constantly insist on the development of new products and development investment funds for technological renovation to meet with different requirements from different countries. Our products are very popular in Africa, South America and Southeast Asia.
Since the establishment of our company, always adopt advanced modern management system, and focused on innovation, has brought together a number of scientific and technological elite, our company develop very fast we have over 500 employees, 29 senior engineers and more than 100 middling technicians. We have a good long-term cooperation with domestic scientific research units, have introduced advanced technology and testing system at home and abroad.
Our company pays more attention to basic managements, we constantly improve and perfect the quality management system to ensure to provide high-quality products, work site achieve fixation management, logistic achieve ABC management; our office achieve computer automatization; production technology adopt computer management; product development process design using CAD,CAPP, PROE technology. We have completed ISO9001-2000 quality certification.
Our company constantly insist on the development of new products and development investment funds for technological renovation to meet with different requirements from different countries. Our products are very popular in Africa, South America and Southeast Asia.
Our service
Service---customers is the first!
We not only have experienced engineers and after-sales groups but deal with the trade through internet and form our own sales network.
1. Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1>. Select equipment model;
2>. Design and manufacture products according to clients' special requirement;
3>. Train technical personnel for clients.
2. Services during the sale:
Respect clients, devote ourselves to improving the total value of clients.
1>. Pre-check and accept products ahead of delivery;
2>. Help clients to draft solving plans.
3. After-sale services:
Provide considerate services to minimize clients' worries.
1>. Assist clients to prepare for the first construction scheme;
1>. Assist clients to prepare for the first construction scheme;
2>. Install and debug the equipment;
3>. Train the first-line operators;
4>. Examine the equipment;
5>. Take initiative to eliminate the troubles rapidly;
6>. Provide perfect service;
7>. Provide technical exchanges.
FAQ
Q1: How long is the warranty of the ball mill?
A1: Our warranty period is one year generally.
Q2: How long shall we replace the grinding ball?
A2: Usually 6-12 months(Depends on the hardness of your raw material)
Q3: Can I visit your factory?
A3: Yes. We warmly welcome you to visit our factory.
We will take you to our customer site to have a real look.
We will arrange a car to pick you up at the Xinzheng International Airport.
We will take you to our customer site to have a real look.
We will arrange a car to pick you up at the Xinzheng International Airport.
Q4: Do you provide equipment operation training?
A4: Yes. We can send professional engineers to the working site for installation, adjustment, and operation training. All of our engineers have passports.
Q5: Do you provide beneficiation flow chart?
A5: Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
Q6: Can you test our samples?
A6: Yes. You can send your samples to us for test and analysis.
Похожие товары

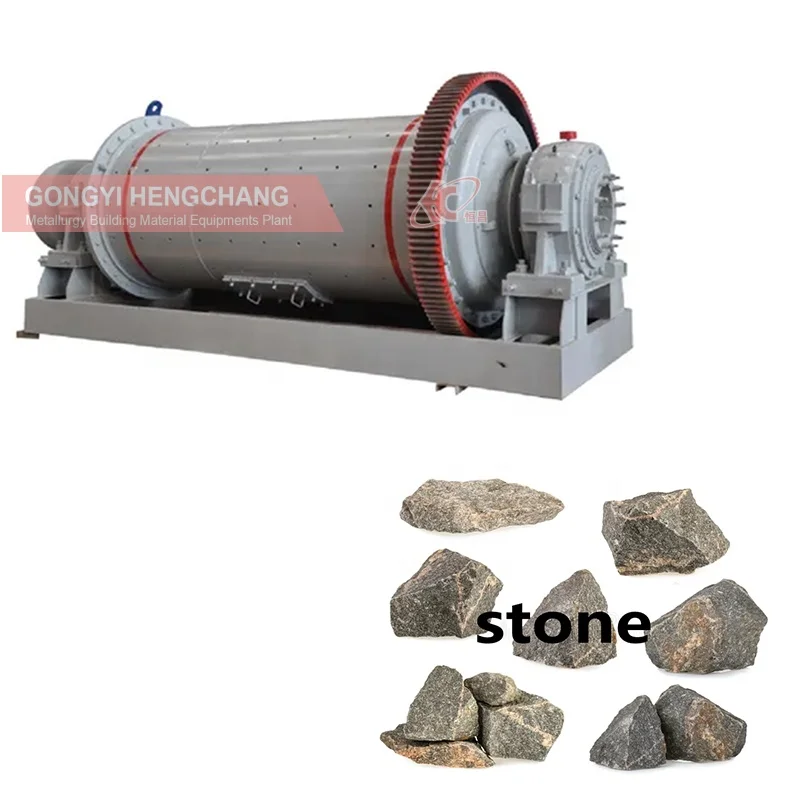

Небольшая шаровая мельница 4 тонны в час для продажи рудных мельниц Зимбабве непрерывная
3 473 768,77 ₽

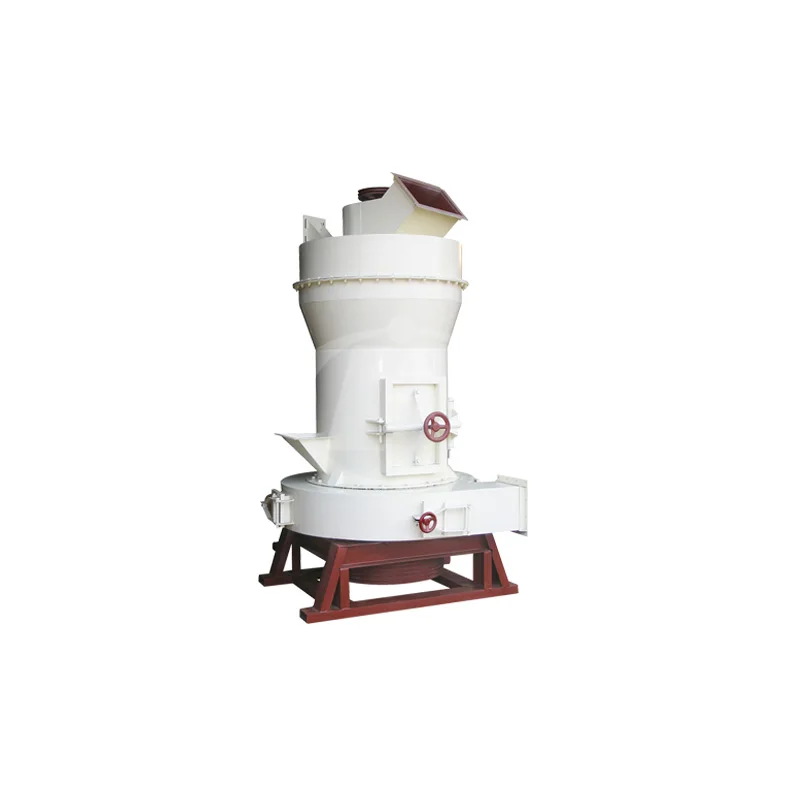

Mtw минеральная доломитовая бентонитовая активная углеродная порошковая мельница Raymond
330 625,20 ₽
Высоконапорный промышленный HGM трехрулонный Золотой бентонитовый кварцевый песчаный камень известняк 4R 5R ультратонкие шлифовальные мельницы
2 204 168,00 ₽
80- 325 сетка MB5X Известняковая мельница гипсовый бентонитовый порошковый шлифовальный станок мощностью 1-2 т/ч горячая Распродажа
3 306 252,00 ₽ - 4 408 336,00 ₽

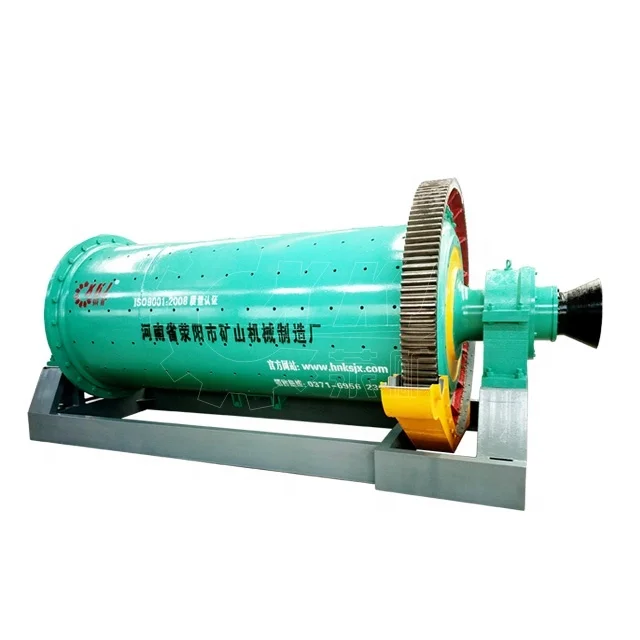

Шаровая мельница для добычи золота с сертификатом Iso измельчитель песка из бентонита шлифовальный станок
