Заводская цена датчики пламени УФ ИК тестер газовый ионизационный детектор для котельной

Заводская цена датчики пламени УФ ИК тестер газовый ионизационный детектор для котельной

Категория: Boilers & Parts >>>
Поставщик: Guangzhou Liancheng Energy Technology Development Co. Ltd.

Цена:66,00 $ - 88,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Boiler Parts Stainless Steel UV Flame Detector For Replacement

Summary:

Flame detectors are used in conjunction with Siemens combustion controllers for monitoring of gas or oil flames. QRA...for OEMs integrating flame detectors into their products.

Model	LEN-SENSOR01
Installation Guide	Controller unit and other cables must be installed separately from high voltage ignition cables
Notice	Do not run detector cables with other cables

Use:

Flame detectors are used to monitor gas flames, yellow or blue fuel combustion flames, and calibration of ignition sparks.

UV (1).png UV (2).png UV (3).png

.jpg




1 DESCRIPTION

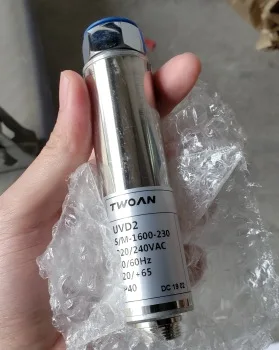

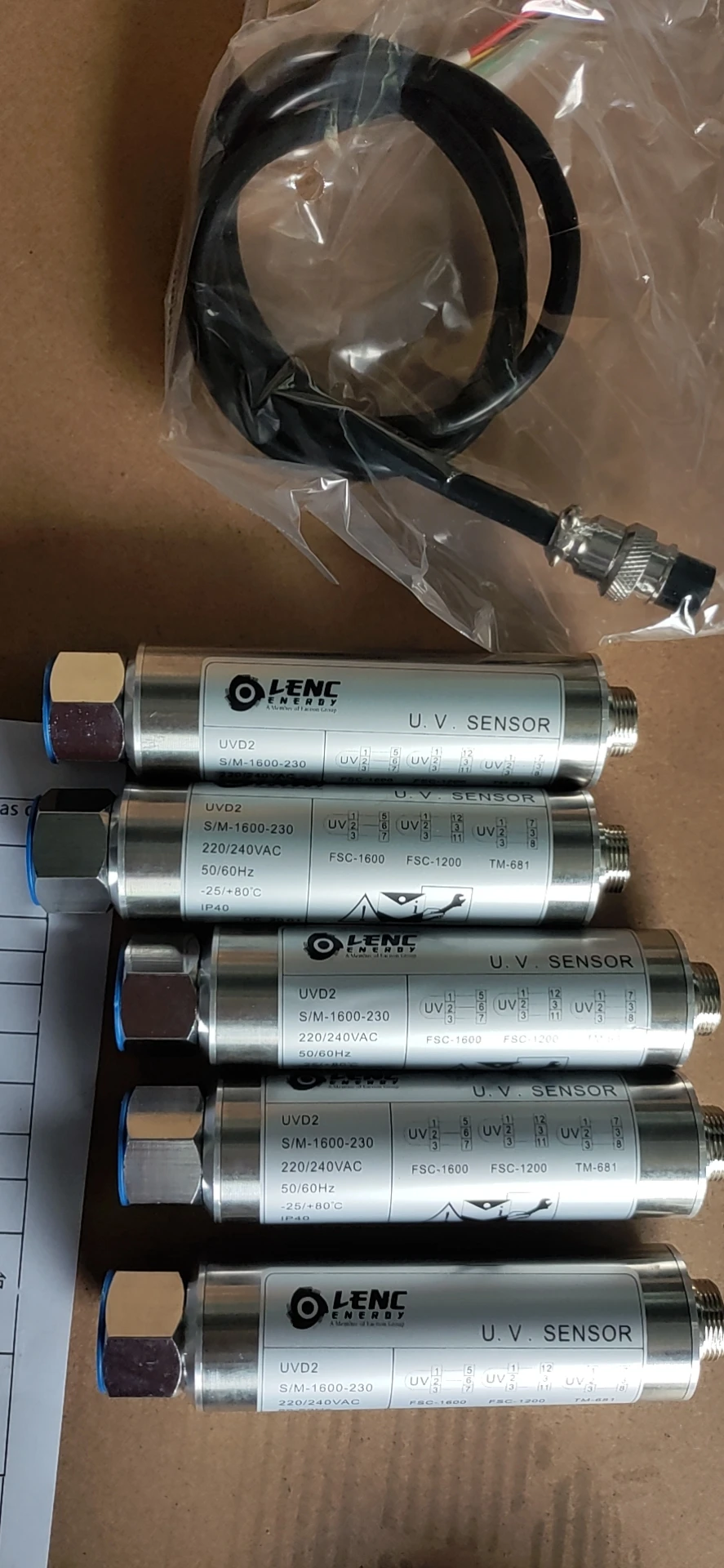

UVD2 is to be coupled with FSC-1600/1200, to detect the UV light that generate by combustion. It has fast response to UV light, long service life and high sensibility. It can be used to all kinds of burners.

2 CHARACTERISTICS

2.1 AC power supply

2.2 Pulse Output

2.3 Uses high sensibility unit, with wide working voltage, fast response and long service life

3 TECHINICAL DATA

Working Current	2mA r.m.s
Peak Wavelength	210mm
Working Voltage	220VAC 50/60HZ
Optical Spectrum	190-290mm
Environment Temperature	-25~80°C
Light Direction	180°C
Weight	300g
Service Life	10000 hrs

4 INSTALLATION AND WIRING

4.1 WARNING:To prevent malfunction, UVD2 must be checked before ignition.

Detailed procedures:

a) Shut all gas valves and take off UVD2 from the burner;

b) Connect UVD2 to power and turn on the controller;

c) Point UVD2 to a lighter, the controller should have a Yellow light, and when the flame goes off, it should have a red light. Repeat the above steps several times, only if all are normal, it can be used to a burner.

4.2 WIRING WITH FSC 1600

LINE 1 = GREEN

LINE 2 = RED

LINE 3 = BLUE
