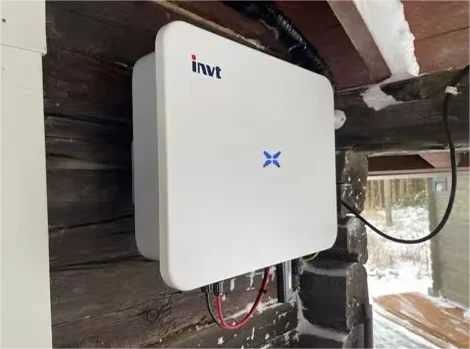

INVT 15 кВт 20 на сетке солнечный инвертор продажа чистой электроэнергии в сетевую Сеть двойной MPPT Солнечный контроллер встроенный

Сохранить в закладки 1600847762093:


Цена:61 260,31 ₽ - 64 979,68 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики





Product Descripation

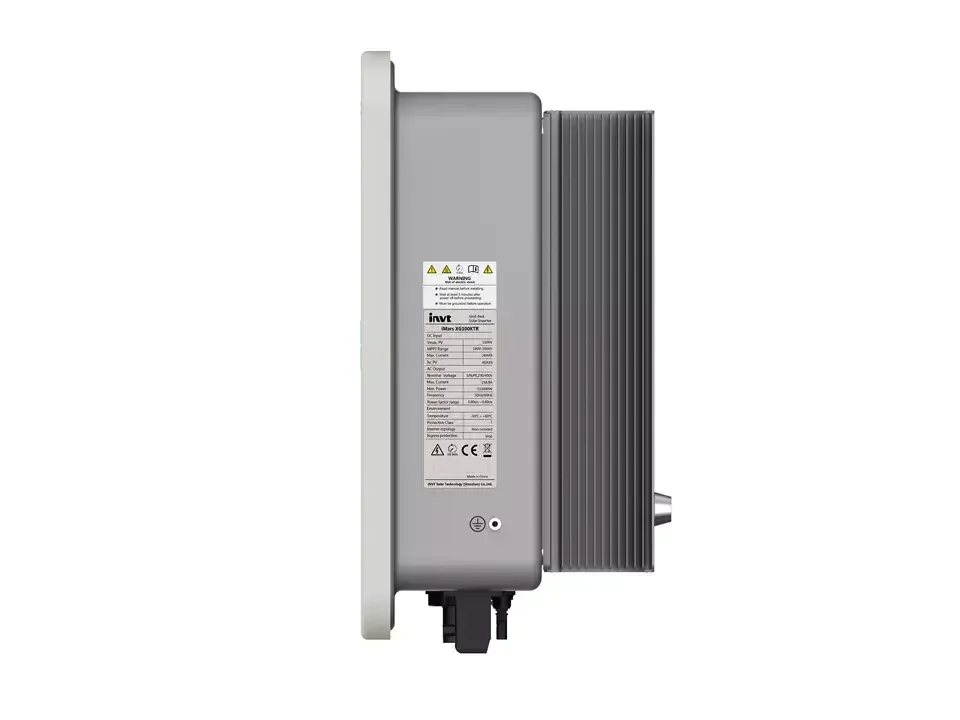

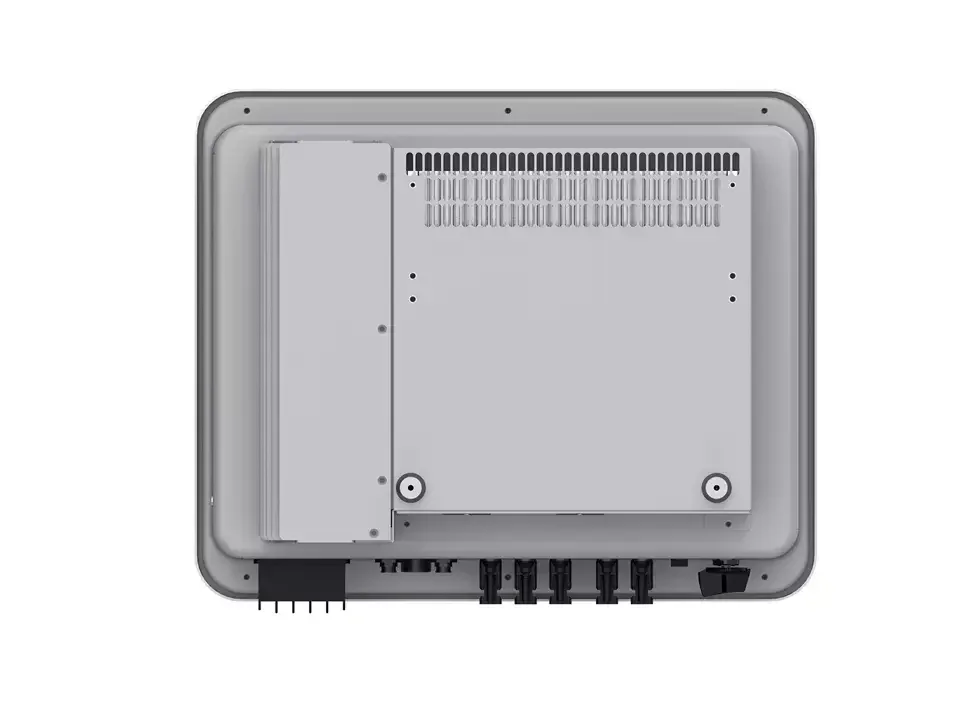

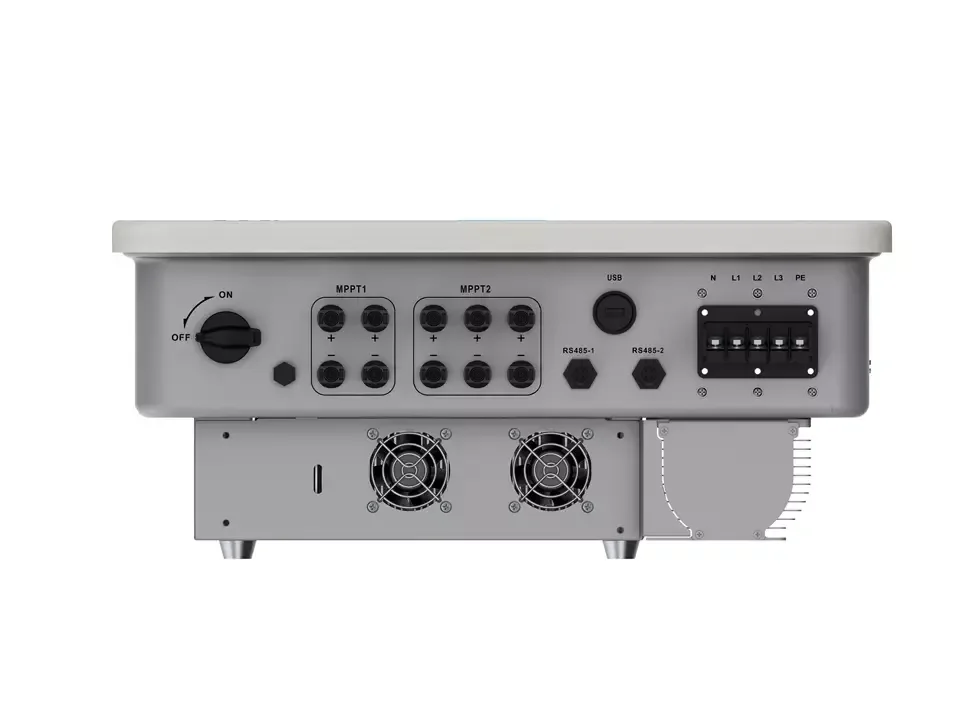

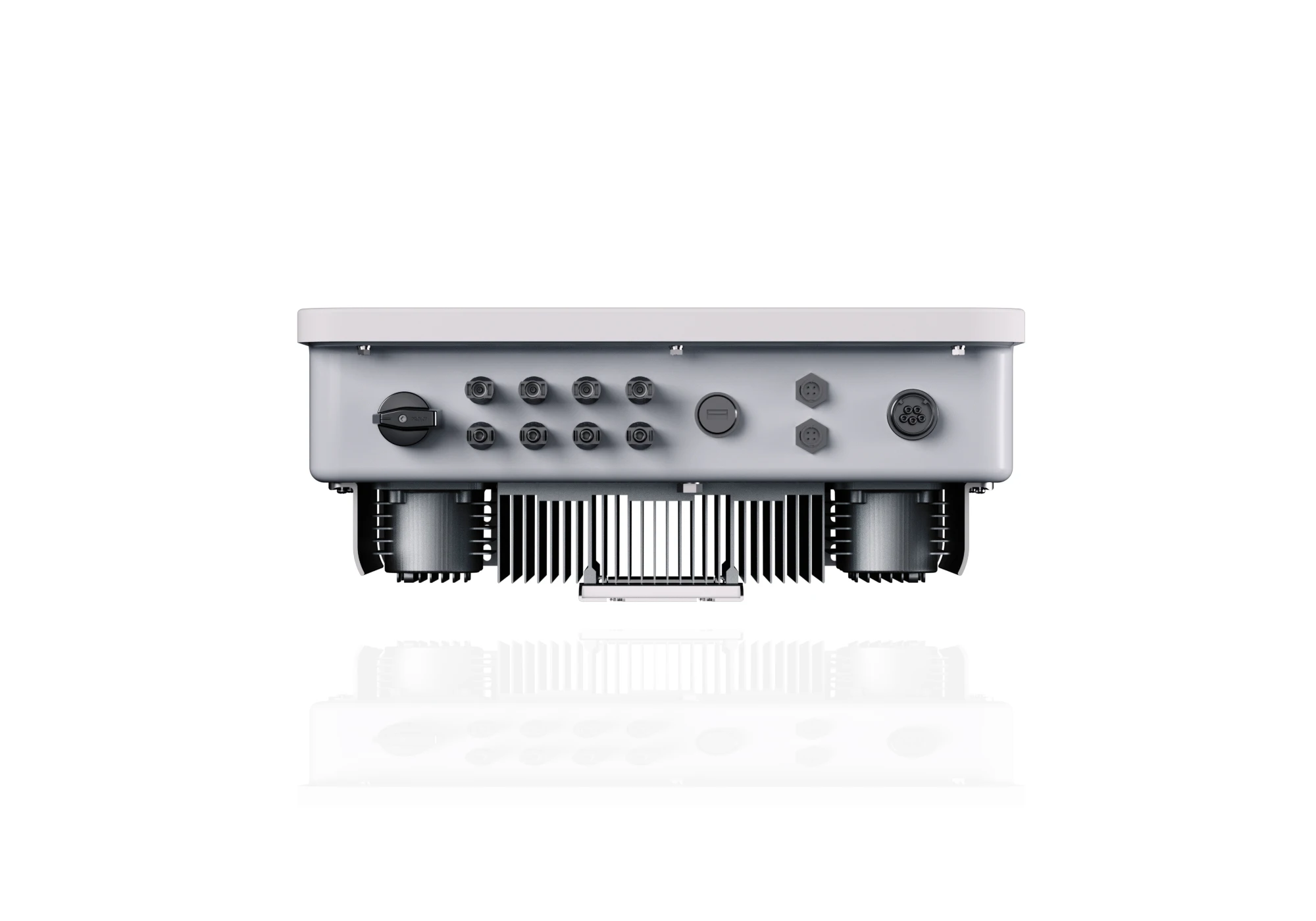

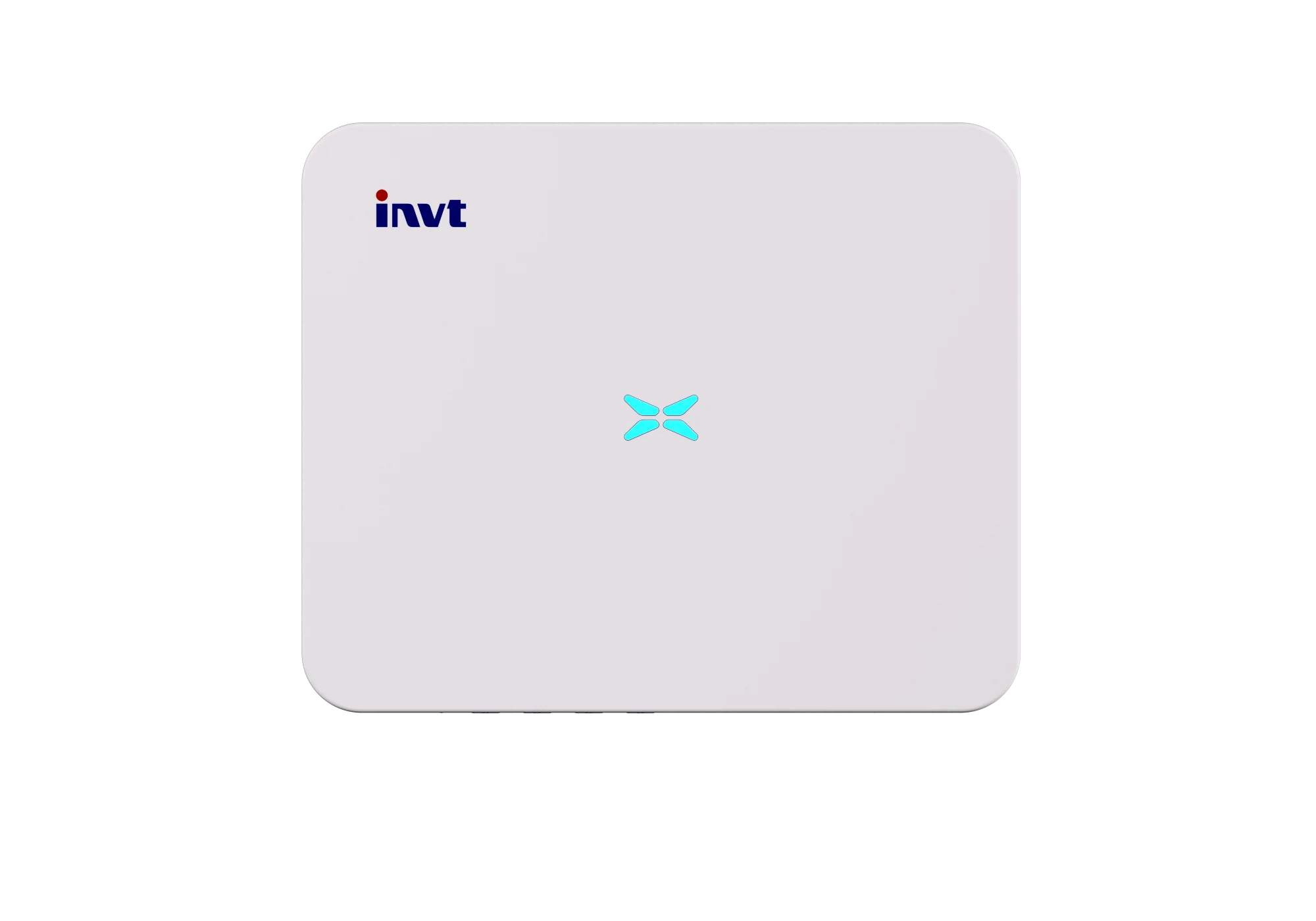

XG15-25kW

Three Phase On-Grid Solar Inverter




Efficient Higher revenue
* 2MPP Trackers, high single circuit tracking accuracy, fast dynamic response.
* 160% DC Input Oversizing
* Maximum efficiency 98.4%. Wide MPPT voltage range: 200V-1000V
* Compatible with high power modules
Intelligent Simple O&M
* Smart I-V Curve Diagnosis Function: locate PV string faults accurately and automatically detect faults
* Intelligent Fault Detection: ac-side voltage and current waveforms real-time recorded, fast fault location
* Support RS485/USB(WiFi/GPRS/Ethernet optional):remote monitoring and operation via PC or mobile phones
Reliable Worry free
* IP66 Protection degree: support outdoor installation
* DC & AC Type Il SPD: prevent lightning damage
* AFCI Function (Optional): when an arc-fault is detected the inverter immediately stops operation


Specification


XG15KTR
XG17KTR
XG20KTR
XG22KTR
XG25KTR
Input (DC)
Max. DC input power
24kW
27.2kW
32kW
35.2kW
40kW
Max. DC input voltage
1100V
1000
Start Voltage
250V
Rated Input Voltage
600V
Full-load MPP Voltage Range
480V ~ 800V
520V ~ 800V
560V ~ 800V
MPPT Voltage Range
200V ~ 1000V
2/1
2/1
Number Of MPP Trackers
2
Number of string per MPPT
2 / 2
2 / 3
Max. Current per MPPT
26A
26A / 39A
Max. Short Circuit Current per MPPT
32A
10x2
10x2
12x2
32A / 48A
Output (AC)
Rated output power
15kW
17kW
20kW
22kW
25kW
Max. output current
24.1A
27.2A
32.1A
35.3A
39.8A
Max. Output Power
16.6kVA
18.8kVA
22.2kVA
24.4kVA
27.5kVA
Rated Grid Frequency
50Hz / 60Hz




Rated Grid Voltage
230Vac / 400Vac, 3L / N / PE




Power factor
>0.99 (at rated power)
THDi
<3% (at rated power)
Efficiency
Max. efficiency
98.40%
98.10%
98.20%

98.30%
Euro-efficiency
98.00%
97.60%
97.70%
98.50%
97.80%
MPPT efficiency
99.90%
Protection
DC reverse polarity protection
Yes
Anti-islanding protection
Yes
AC short circuit protection
Yes
Residual current monitoring unit
Yes
Insulation resistance monitoring
Yes
Ground fault monitoring
Yes
Grid monitoring
Yes
PV string monitoring
Yes
Surge protection
Type II
AFCI protection
Optional




Communication
Display
LED / LCD / WiFi+App
Communication
Standard: RS485/ USB
Optional:WiFi / GPRS / Ethernet
Standard Compliance
Grid Connection Standards
IEC 61727, IEC 62116, IEC 60068, IEC 61683, VDE-AR-N 4110:2018, VDE-AR-N 4105:2018,
VDE-AR-N 4120:2018, EN 50549, AS/NZS 4777.2:2020, CEI 0-21, VDE 0126-1-1/A1 VFR 2014,
UTE C15-712-1:2013, DEWA DRRG, NRS 097-2-1, MEA/PEA, C10/11, G98/G99
Safety / EMC
 IEC 62109-1:2010, IEC 62109-2:2011, EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011
General Data
Dimension (W x H x D)
534 x 440 x 220 mm
575x360x150
Weight
24kg
13.5
Operating Temperature Range
 -30° C ~ +60° C
Cooling Method
Smart Cooling
Protection Degree
IP66
Max. Operating Altitude
4000m
Relative Humidity
0 ~ 100%
Topology
Transformerless
Night Power Consumption
<1W

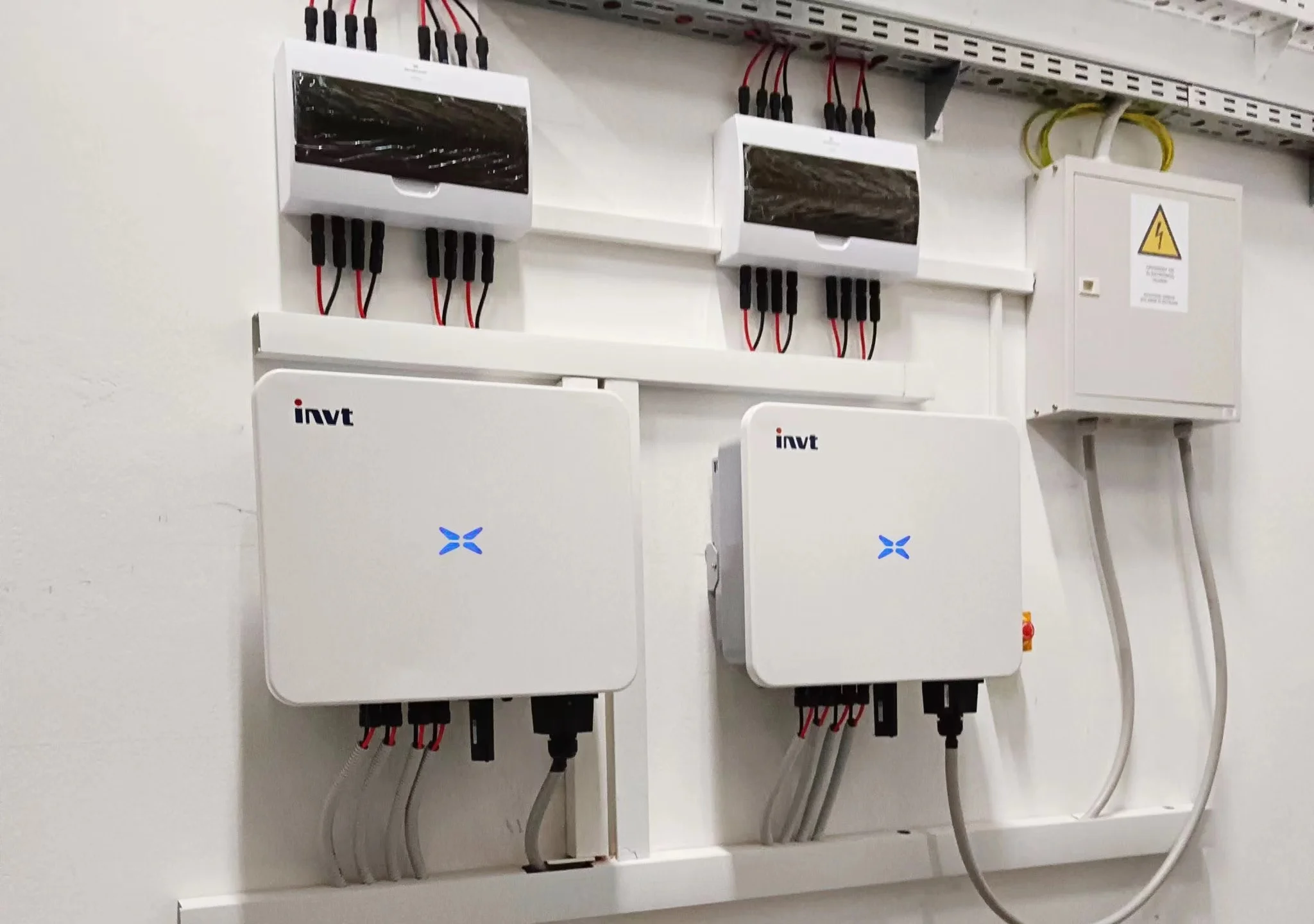

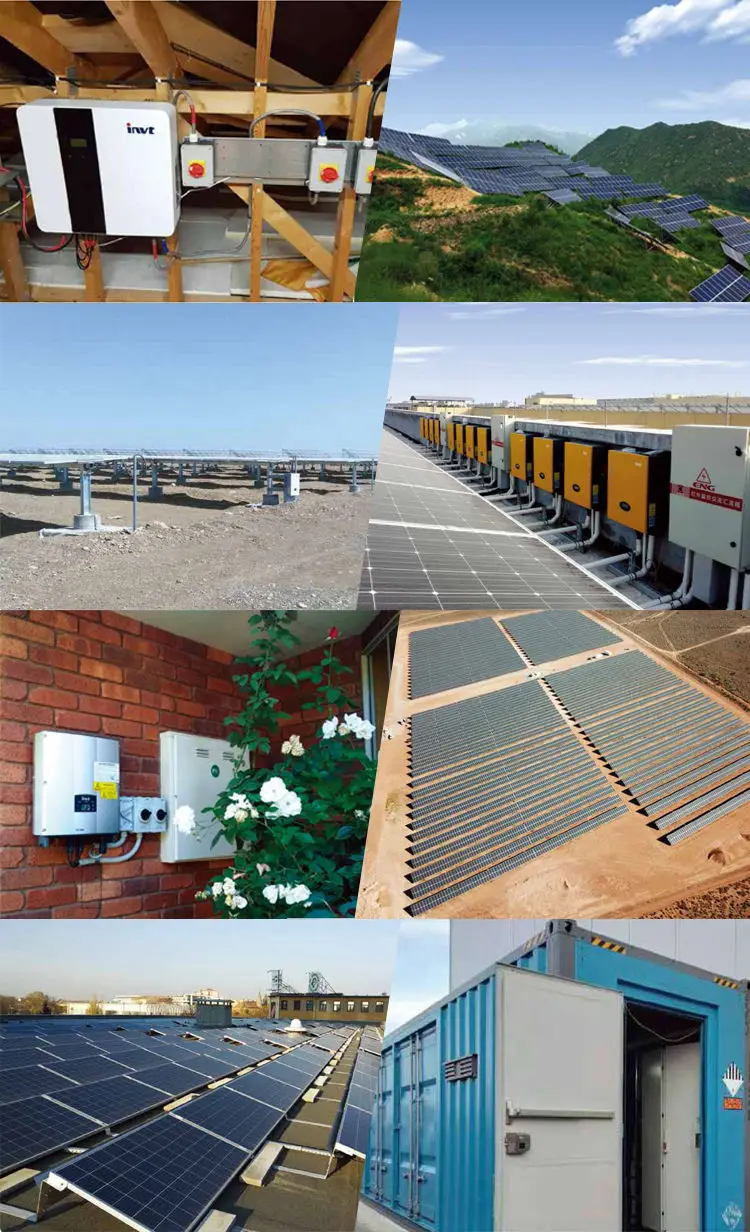

Product Cases

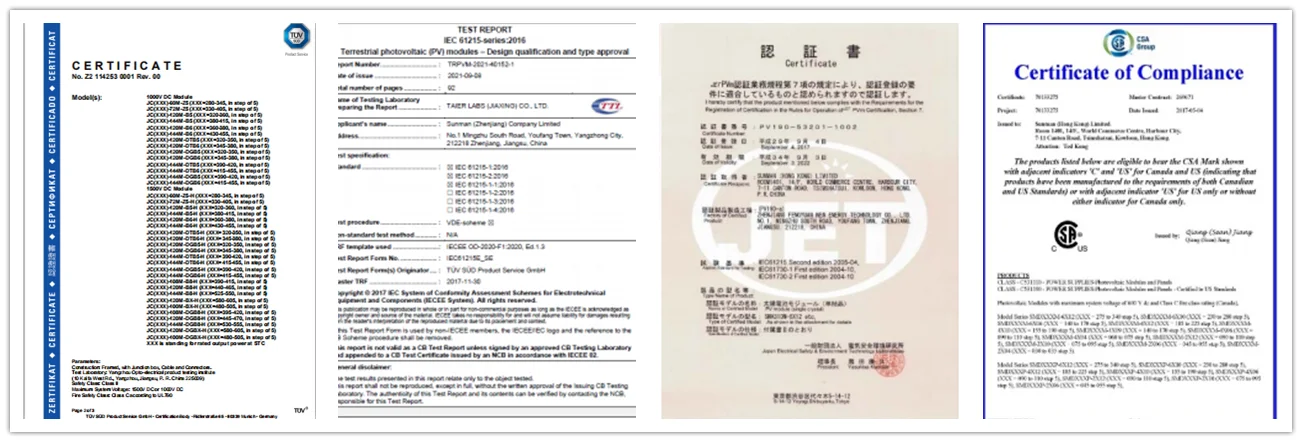

Certifications

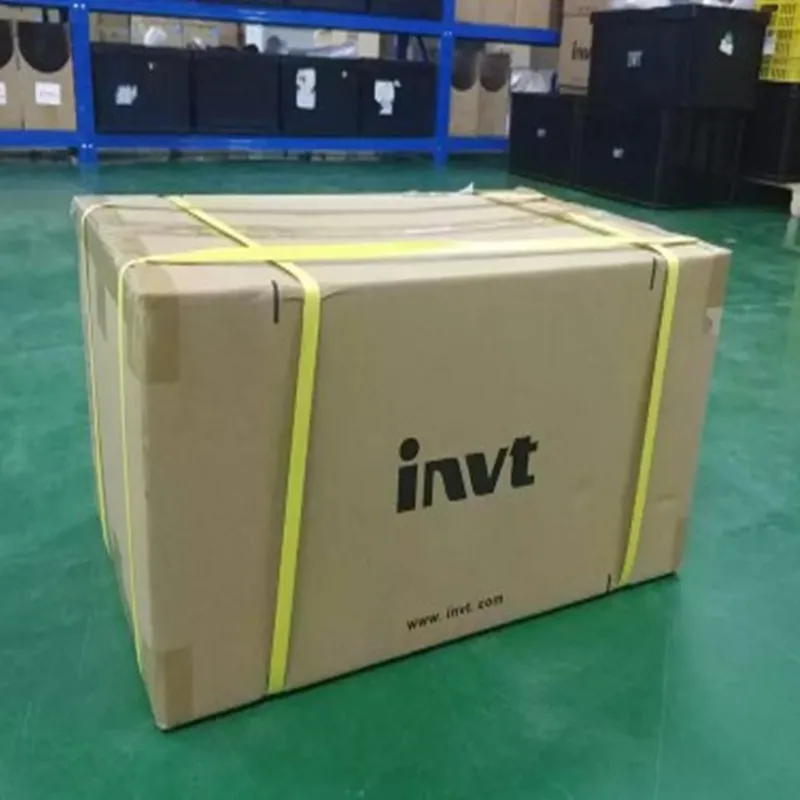

Packing & Delivery






To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Company Profile




SSS Solar belongs to China SSS Group, which was founded in 2007, is an integrated company focused on industrial, commercial andresidential photovoltaic applications.The headquarter of R&D and operation is in Anhui Hefei, with a total area of 10,000 square meters. We have an 800MW advanced automatic solar panel production line and an annual production capacity of 100,000 solar controllers, inverters, and home energy storage systems.
We have four-level power facility license qualification for decoration,repair and trial provides customers with one-stop general consulting, investment and financing, feasibility study report, designscheme, EPC general contracting, operations and maintenance for solar power plants. Our company successively won the honors ofhigh-tech enterprises, high-tech products in Anhui Province, innovative enterprises in Hefei, contract-honoring and trustworthyunits, smart factories, and digital workshops.

As a leading solar product manufacturer in China, we has passed ISO9001, ISO14002, ISO45001 and so on. Our products have the following certifications: ISO, TUV, IEC,CE, CEC, CQC, INMETRO, UL, RoHS, KS, PSE, FIDE, etc. Our export products are mainly sold to more than 60 countries and regions in Europe, Asia, Americas and the Africa.

Our company is committed to the concept of environmental protection, reduce carbon emissions, let the mountains greener, let the water bluer, let the earth healthier!
Our corporate culture: Sincerity, Staunch, Success.
Our aim is: let the sun supply energy in 24 hours for human !
We sincerely welcome friends from all over the world to consult and look forward to cooperating with you!


FAQ


Q: Are you manufacturer ?
A: Yes,we have our own R&D team and sales team,We provide you one-stop service.
Q: Do you have CE,ROHS,ISO,TUV?
A: Yes,our products are approved by CE,ROHS,ISO,TUV
Q: Is OEM &ODM available in your factory ?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your Packing details?
A: 1.Wooden case or carton package,standard export packages
2. All of the productions are inspected carefully by QC before delivery.
Q: What is your Min.order?
A: There's no minimum quantity
Q: Our advantages
A: 1. Ready To Ship 2. Sample Available
3. One-Stop Service 4. Online customization
5. Many years' experiences of manufacturing since 2007 and services available in 24 hours


Payment Terms & Delivery Time





Payment Terms



TT
EXW



30% T/T in advance



70% negotiable
FOB/FCA
CNF CFR
CIF
DDU/DAP
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West union
Amount lower than 5000usd
Other payment
To be negotiable
Delivery Time
7~30 days after receiving the payment
