Dongsheng 2024, пылеуловитель с пульсирующим мешком для промышленного удаления пыли, продажа технических деталей
162 653,85 ₽
Мешок для пылесборника
- Категория: >>>
- Поставщик: Zhengzhou Mascot Environmental Technology Co. Ltd.
Сохранить в закладки 1600875279022:
Описание и отзывы
Характеристики
Baghouse pulse cartridge jet dust collector bag,pulse bag filter industrial sandblasting dust collector air filter machine price
Baghouse type bag filter dust collector
DMC type bag filter has much simpler structure and much smaller footprint compared with other pulse cleaning filtration systems. Very short cleaning time does not affect filtration work.It is one of the most commonly used dust collecting machine. Widely used for Low noises stainless steel industrial dust collectoR during crushing, packing, lifting, conveying and other process producing powders.
| Model | Total filter area (m2) | Filtering wind speed (m/s) | Input air (m³/h) | No. of filter bag (pc) | Specification of filter bag (mm) | Air consumption (m³/h) | Density of inlet (g/m³) | Density of outlet (mg/m³) |
| DMC-32 | 24-32 | 1.04-1.67 | 1500-2400 | 32 | ∅120x2000/∅130x2500 | 0.032 | 200 | 50 |
| DMC-48 | 36-48 | 1.15-1.62 | 2500-3500 | 48 | ∅120x2000/∅130x2500 | 0.048 | ||
| DMC-64 | 48-64 | 1.21-1.74 | 3500-5000 | 64 | ∅120x2000/∅130x2500 | 0.064 | ||
| DMC-80 | 60-80 | 1.25-1.67 | 4500-6000 | 80 | ∅120x2000/∅130x2500 | 0.08 | ||
| DMC-96 | 72-96 | 1.27-1.62 | 5500-7000 | 96 | ∅120x2000/∅130x2500 | 0.096 | ||
| DMC-112 | 84-112 | 1.28-1.68 | 6500-8500 | 112 | ∅120x2000/∅130x2500 | 0.11 | ||
| DMC-128 | 90-128 | 1.31-1.76 | 7500-9500 | 128 | ∅120x2000/∅130x2500 | 0.12 | ||
| DMC-168 | 126-168 | 2.54-2.87 | 9500-10500 | 168 | ∅120x2000/∅130x2500 | 0.168 |
Application:
* Cement production * Powder processing * Steel melting * Material handling * Primary metals, including steel-making * Metals fabrication: grinding, sawing, sanding, polishing * Paper making * Mixing and blending options * Mining * Foundries * Glass Plants * Battery Plants * Universities * Other industrial of management of dust in normal temperature.
Descriptions of Pulse Dust Collector:
Baichy pulse dust collector is researched and developed for dust removel and dust collection of crusher and grinder. Pulse bag dust collector uses advanced cleaning technology, increases ratio of substantial air into bags, dust removal efficiency can reach above 99%. Baichy pulse dust collector is our sophisticated technology and efficient dust removal equipment.
Features of Pulse Dust Collector:
1.High Purification efficiency, ability to handle large gas.
2.Stable performance,long service life.
3.Convenient operation and maintenance.
4.Suitable for dust removing of a variety of multiple points of dust producing.

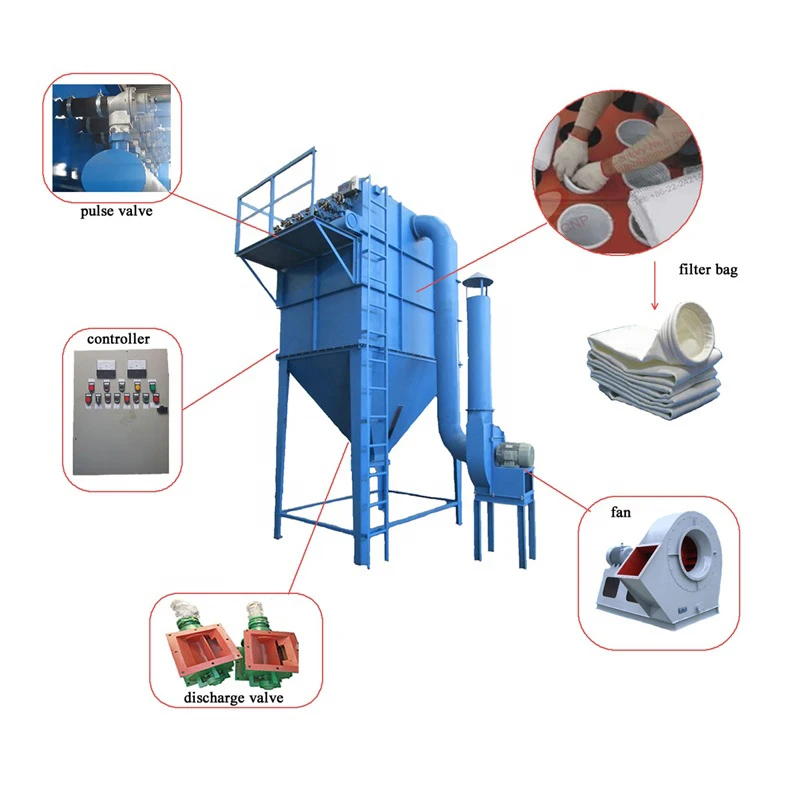

Product Structure:
Under the effect of the air fan,air flow with dust is sucked into the dust collecting chamber from the bottom or one side. For those big dust particles, they will go downwards because of the decreasing speed of the air flow.While, for those fine dust particles,they will be stopped to the outside layer of the filter bag. When compressed air blow reverse back the filter bag, the fine particles will break away from the bag and go downwards with the big particles. Finally, dust particles will be discharged outside and the purified air will be discharged upon the upper side of the cleaning chamber. Finally, it plays the role of collecting dust, air pollution prevention purpose.

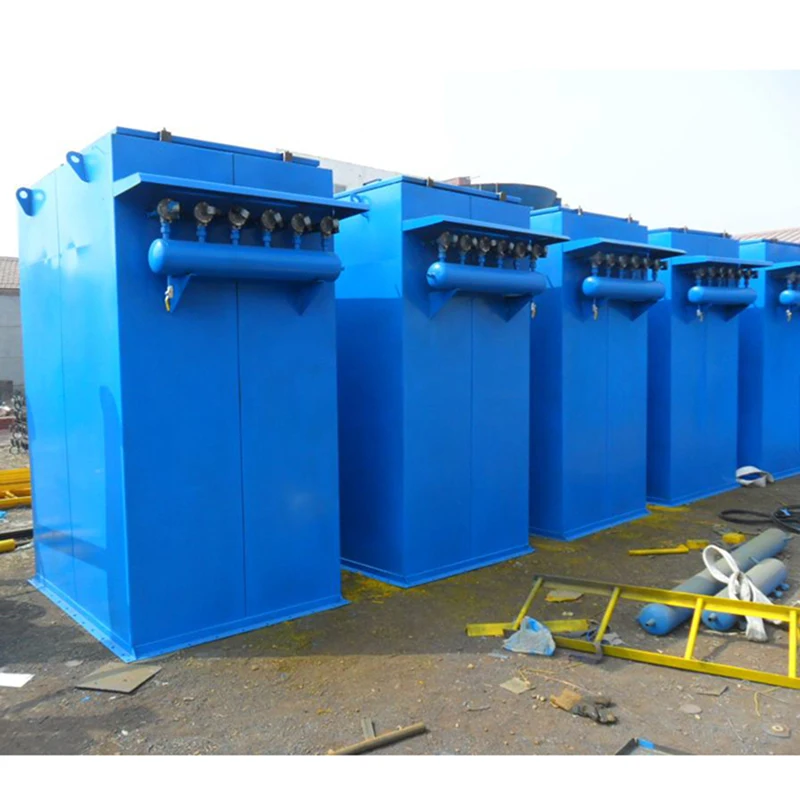

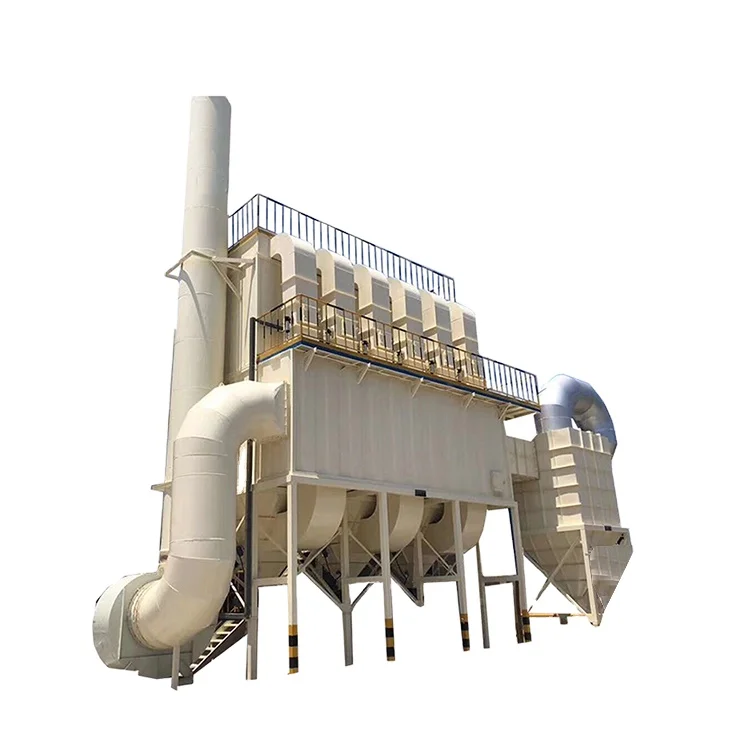

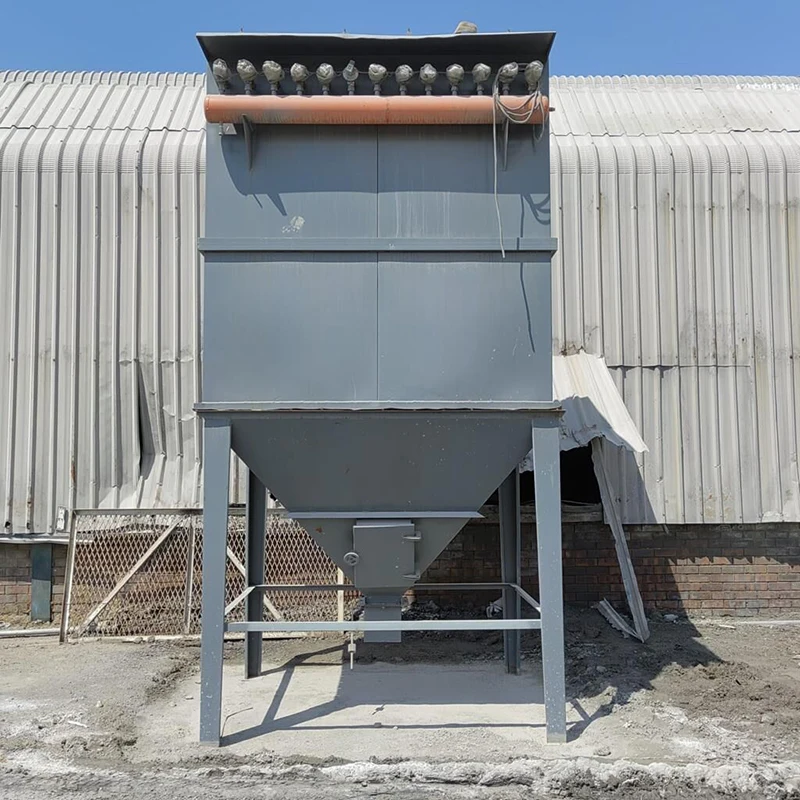

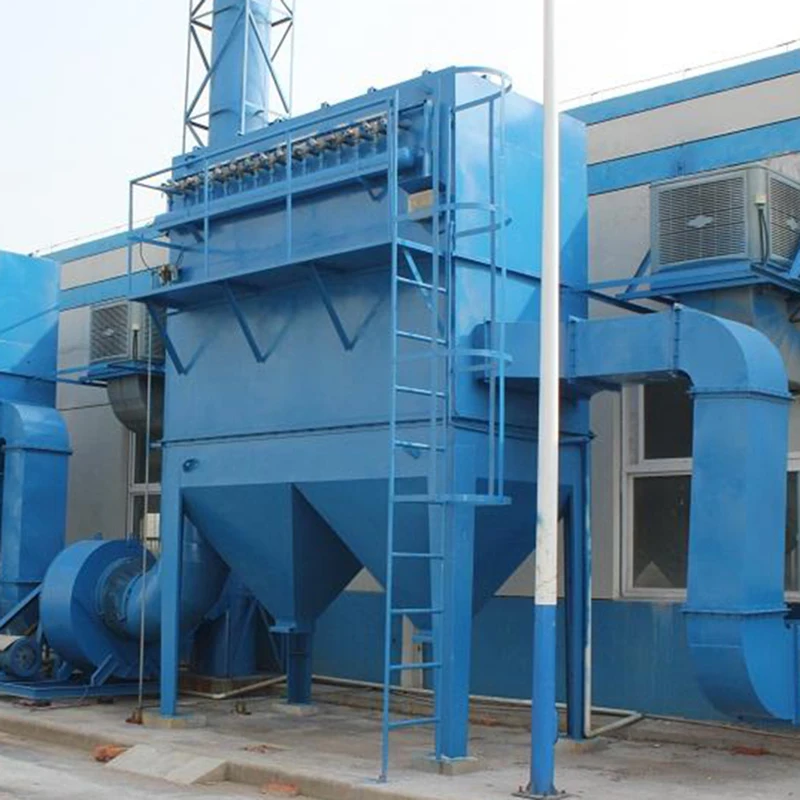

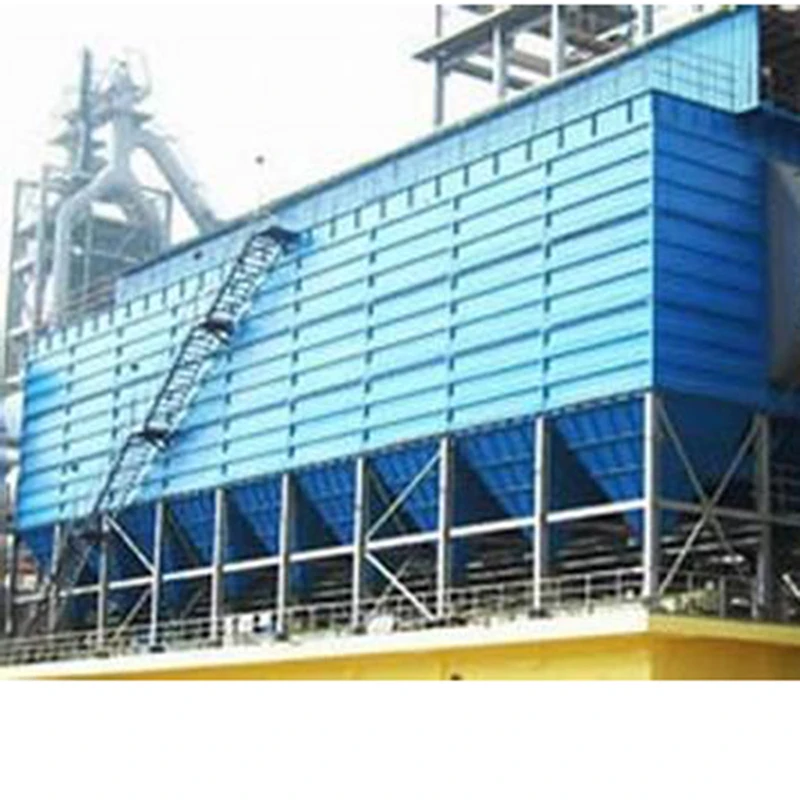

Project site photo
Zhengzhou Mascot Environmental Technology Co., Ltd is a company that integrates science, industry, and trade. The company mainly sells mechanical equipment and accessories, briquette-making machines, shredder machines, granulating machines, and mineral processing equipment. Our company follows a human-oriented mentality, honest, pioneering entrepreneurial spirit with scientific and technological innovation. We always regard technology as the motive force, and the market as the orientation to make the products at the first-class level. In product sales, we pursue the refined service and keep improving from pre-sales consulting, and on-purchase service to after-sales service.
Mascot's comprehensive service system covers technical support, after-sales service support, and spare part support, which is one of the important reasons why we are appreciated by customers. Mascot always strives to provide customers with the most valuable purchasing experience.
FAQ
1. Are you a manufacturing or trading company?
We are a factory, established in 2010.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at the lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already built many mining projects in China & Overseas.
