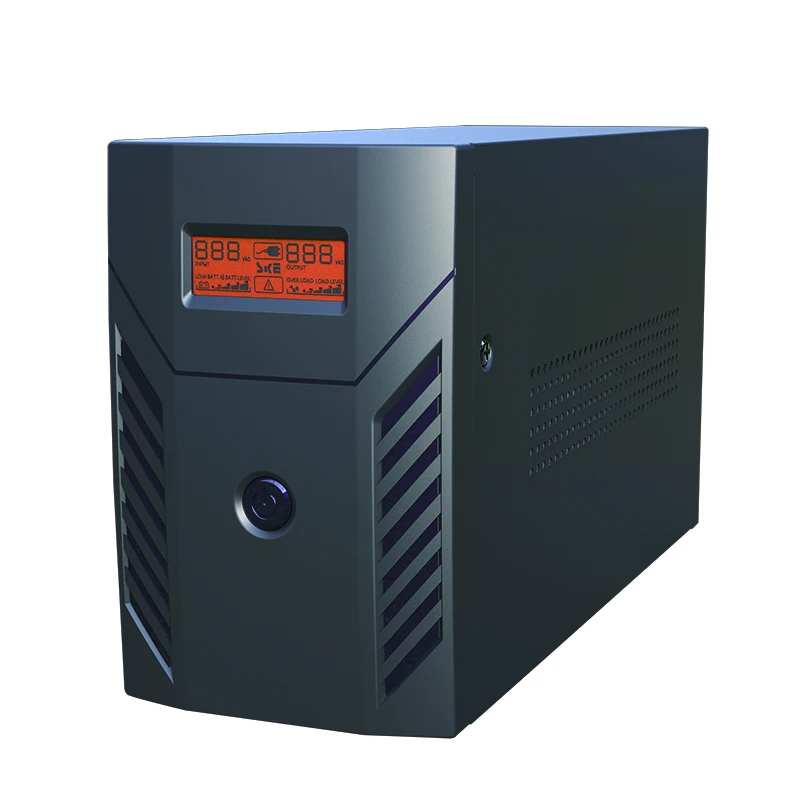

Источник питания от производителя UPS 500va 600va 1000va 1500va интерактивные для компьютера в автономном режиме
17,00-21,50 $
30KVA 30KW высокочастотная онлайн система UPS включая аккумулятор с сертификатом оценки морской перевозки.
- Категория: >>>
- Поставщик: Shenzhen Jingyuan Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1600896157834:
Описание и отзывы
Характеристики
Scope of application
Hospital imaging equipment, SMT Mounter and other precision production and testing equipment, small and medium-sized data
centers, control centers in transportation and energy fields. It is especially suitable for providing power-off delay and
protection for large medical imaging equipment such as DR, CT and MRI.
centers, control centers in transportation and energy fields. It is especially suitable for providing power-off delay and
protection for large medical imaging equipment such as DR, CT and MRI.
Details Images
Product Description
1.Online double-conversion
2.DSP technology guarantees high reliability
3.Output power factor up to 100%
4.50hz/60hz frequency conversion mode
5. Compatible with generator input
6. The number of batteries is adjustable

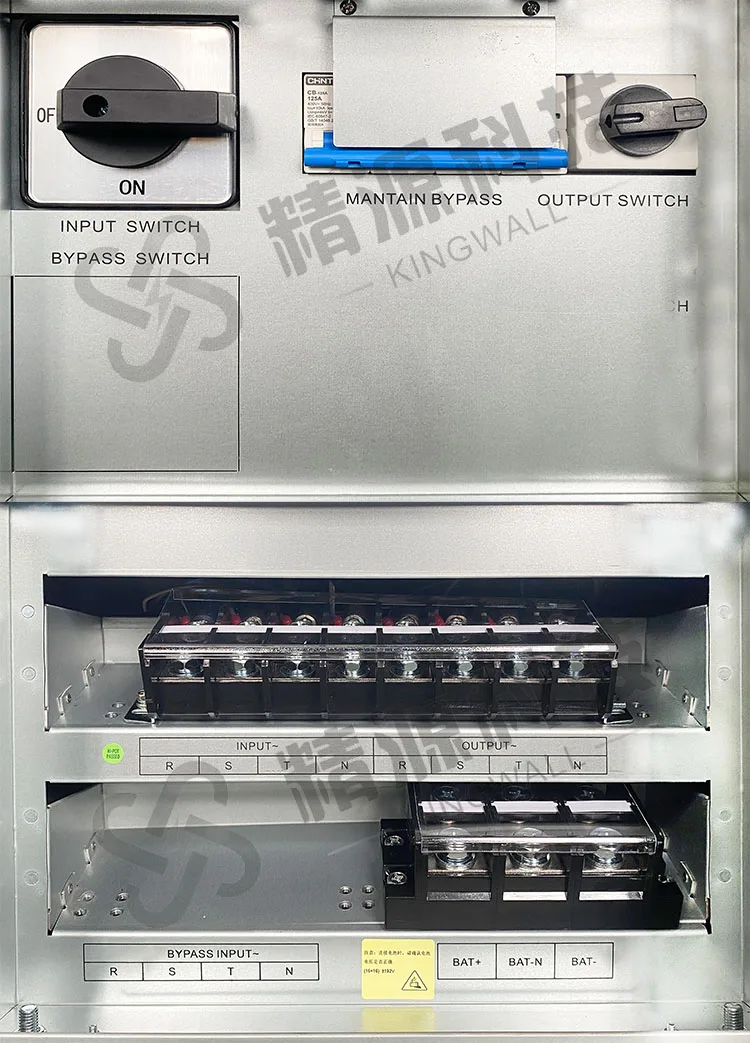

7. Built in maintenance bypass switch for easy maintenance
8. Isolation transformer can be selected to ensure stable power output of the system and eliminate various noises
MODEL | 3C3-30KVA | 3C3-40KVA | 3C3-60KVA | 3C3-80KVA | ||||||||
INPUT | ||||||||||||
Rated voltage | 3P380VAC/400VAC/415VAC(3ph+N+PE) | |||||||||||
Voltage range | Phase voltage:110-300 VAC, load 50%; 176-276 VAC, 100% load | |||||||||||
Line voltage:191-520 VAC, load 50%; 304-478 VAC, 100% load | ||||||||||||
Frequency Range | 46Hz ~ 54 Hz @ 50Hz system 56Hz ~ 64 Hz @ 60Hz system | |||||||||||
Phase | 3 Phase with Neutral | |||||||||||
Power Factor | ≧ 0.99 at 100% Load | |||||||||||
OUTPUT | ||||||||||||
Phase | 3 Phase with Neutral | |||||||||||
Output voltage | 3P380VAC/400VAC/415VAC | |||||||||||
AC Voltage Regulation | ± 1% | |||||||||||
Frequency Range (Synchronized Range) | 46Hz ~ 54 Hz @ 50Hz system 56Hz ~ 64 Hz @ 60Hz system | |||||||||||
Frequency Range (Batt. Mode) | 50 Hz ± 1% or 60Hz ±1% | |||||||||||
Current peak ratio | 3: 1 (max.) | |||||||||||
Harmonic distortion (THDv) | ≤ 1% thd (linear load); ≤ 3% thd (nonlinear load) | |||||||||||
Transfer Time | Line to Battery | 0 ms | ||||||||||
Inverter to Bypass | 0 ms (When phase lock fails, <4ms interruption occurs from inverter to bypass) | |||||||||||
Overload | 100-110% 60 min, 11-125% 10 min, 126% - 150% 1 min; > 150% 400ms | |||||||||||
Bypass | ||||||||||||
Output voltage | 3P380VAC/400VAC/415VAC | |||||||||||
Voltage range | Voltage range: - 30% ~ + 20% (adjustable) | |||||||||||
Frequency range | 46 ~ 54hz or 56 ~ 64Hz | |||||||||||
Overload | >130% 1 minute (default); Continue operation until circuit breaker protection (optional) | |||||||||||
EFFICIENCY | ||||||||||||
AC mode | 96.00% | |||||||||||
ECO mode | 99.00% | |||||||||||
Battery mode | 96.00% | |||||||||||
BATTERY | ||||||||||||
Battery type | Lead acid gel battery, or lithium ion battery | |||||||||||
Numbers | 32 ~ 40 (adjustable) | |||||||||||
Charging Current | 1A~12A, adjustable | 1A~16A, adjustable | 1A~20A, adjustable | 2A ~ 32A, adjustable | ||||||||
Charging Voltage | ± 13.65v*n (n = 16 ~ 20), N is the number of batteries | |||||||||||
Display description | ||||||||||||

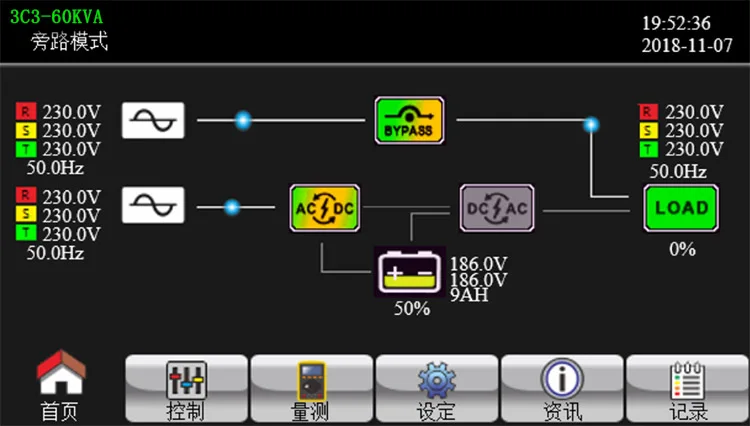

LCD display | UPS status, load capacity, battery capacity, input / output voltage, discharge time and fault indication | |||||||||||
PHYSICAL | ||||||||||||
Dimension, D X W X H mm | 815 x 300 x 1000 | 815 x 300 x 1000 | 815 x 300 x 1000 | 800 x 360 x 1000 | ||||||||
Net Weight (kgs) | 65 | 67 | 79 | 120 | ||||||||
ENVIRONMENT | ||||||||||||
Operation Temperature | 0 ~ 40°C (the battery life will down when > 25°C) | |||||||||||
Operation Humidity | <95 % and non-condensing | |||||||||||
Altitude | 0 ~ 1500m under full load | |||||||||||
Acoustic Noise Level | Less than 63dB @ 1 Meter | Less than 65dB @ 1 Meter | ||||||||||
MANAGEMENT | ||||||||||||
Smart RS-232 or USB | Supports Windows® 2000/2003/XP/Vista/2008/7/8/10, Linux, Unix, and MAC | |||||||||||
Optional SNMP | Power management from SNMP manager and web browser | |||||||||||
Derate capacity to to 90% when the output voltage is adjusted to 208VAC. If the UPS is installed or used in a place where the altitude is above than 1000m, the output power must be derated 1% per 100m. Product specifications are subject to change without further notice | ||||||||||||
Company Profile
Shenzhen Jingyuan Technology Co., Ltd., established in 2011, is a subsidiary of Taiwan Jingyuan Technology Co., Ltd. in Guangdong Province and a member of China power supply society.
Its production base is located in Heping Industrial Park, Longhua street, Longhua District, Shenzhen, with a production site of more than 5000 square meters. The company specializes in research and development and production of voltage stabilizers, UPS, transformers and other series of power products
In the Chinese market, as a large-scale manufacturer in the power supply industry, Jingyuan technology is also in a leading position in product professionalism, new product development and problem solving, and has complete stock specifications, service networks in many places in China, and after-sales service response is very timely. Our products are used in high-grade medical institutions, group enterprises and military bases such as Northwest women's and children's Hospital, Affiliated Hospital of Henan University, Ciming physical examination group, phoenix optics group, Zhanjiang military port of the Chinese Navy, Guangdong Changlu group and Guangdong Wenshi food group.
Its production base is located in Heping Industrial Park, Longhua street, Longhua District, Shenzhen, with a production site of more than 5000 square meters. The company specializes in research and development and production of voltage stabilizers, UPS, transformers and other series of power products
In the Chinese market, as a large-scale manufacturer in the power supply industry, Jingyuan technology is also in a leading position in product professionalism, new product development and problem solving, and has complete stock specifications, service networks in many places in China, and after-sales service response is very timely. Our products are used in high-grade medical institutions, group enterprises and military bases such as Northwest women's and children's Hospital, Affiliated Hospital of Henan University, Ciming physical examination group, phoenix optics group, Zhanjiang military port of the Chinese Navy, Guangdong Changlu group and Guangdong Wenshi food group.
Our Advantages
In the international market, our products have been used in medical institutions and Vietnamese enterprises in Asia, the Middle East, the CIS and African countries. Now it is in a pioneering and growing trend.
Since its establishment, the company has adhered to the development program of "survival by quality, development by technology and personalized service to customers". We have continuously made independent innovation, introduced and absorbed advanced technologies, new processes and new devices at home and abroad, so as to continuously improve the product quality, improve the function and make the performance more reliable.
Since its establishment, the company has adhered to the development program of "survival by quality, development by technology and personalized service to customers". We have continuously made independent innovation, introduced and absorbed advanced technologies, new processes and new devices at home and abroad, so as to continuously improve the product quality, improve the function and make the performance more reliable.
Certifications
Shipping
5-7 working days 5-7 working days 5-7 working days 5-7 working days 5-7 working days
WWW.TNT.COM WWW.EMS.COM WWW.DHL.COM WWW.UPS.COM WWW.UPS.COM
WWW.TNT.COM WWW.EMS.COM WWW.DHL.COM WWW.UPS.COM WWW.UPS.COM
FAQ
Q1: Why choose us?
A1: We have very stable quality and fast service support, a large number of stocks, and fast delivery.
Q2: In which areas are we more professional?
A2: We are more professional in supporting medical equipment, and are often used in conjunction with DR, CT, MRI, color Doppler
ultrasound and laboratory equipment in hospital imaging departments.
Q3: What are the payment terms?
A3: We accept T/T, cash, Western Union remittance, and you are also welcome to trade with us through Alibaba trade guarantee
orders.
Q4: How is the transportation method?
A4: Generally, it is sea transportation, but air transportation is also possible.
Q5: What kind of certification do you have?
A5: ---ISO9000, CE, EMC, LVD, RoHS
Q6: What is the delivery date?
A6: Most specifications are available in stock. For a complete set of UPS, it takes a few days to integrate the main parts and
accessories, which takes about 5 days. But if the order is larger, please inquire further.
Q7: How about the label and LOGO?
A7: Customized labels and LOGO are possible.
Q8: What is the minimum order quantity?
A8: The minimum order quantity for high-power products is one set, and the minimum order quantity for low-power products is 3
pieces. If you need samples, please chat privately.
Q9: What is the warranty period?
A9: Our voltage stabilizer products are guaranteed for one year, UPS products are guaranteed for two years, and the core
components and control boards are directly replaced with new ones.
A1: We have very stable quality and fast service support, a large number of stocks, and fast delivery.
Q2: In which areas are we more professional?
A2: We are more professional in supporting medical equipment, and are often used in conjunction with DR, CT, MRI, color Doppler
ultrasound and laboratory equipment in hospital imaging departments.
Q3: What are the payment terms?
A3: We accept T/T, cash, Western Union remittance, and you are also welcome to trade with us through Alibaba trade guarantee
orders.
Q4: How is the transportation method?
A4: Generally, it is sea transportation, but air transportation is also possible.
Q5: What kind of certification do you have?
A5: ---ISO9000, CE, EMC, LVD, RoHS
Q6: What is the delivery date?
A6: Most specifications are available in stock. For a complete set of UPS, it takes a few days to integrate the main parts and
accessories, which takes about 5 days. But if the order is larger, please inquire further.
Q7: How about the label and LOGO?
A7: Customized labels and LOGO are possible.
Q8: What is the minimum order quantity?
A8: The minimum order quantity for high-power products is one set, and the minimum order quantity for low-power products is 3
pieces. If you need samples, please chat privately.
Q9: What is the warranty period?
A9: Our voltage stabilizer products are guaranteed for one year, UPS products are guaranteed for two years, and the core
components and control boards are directly replaced with new ones.
