5% генератор с низкой напором воды мини Гидротурбина 25 кВт водяной турбинный
- Категория: >>>
- Поставщик: Chengdu Forster Technology Co. Ltd.
Сохранить в закладки 1600902756644:
Описание и отзывы
Характеристики
5%Off Low Head Water Power Generator Mini Hydro Turbine 25kW Water Turbine Generator
Product Features
1 Francis turbine has the advantages of compact structure, high efficiency, can adapt to a wide range of water head of turbine type, is one of the widely used around the world; when the water flow through the turbine wheel, it flows into, axial to radial, so it is also called the radial axial flow turbine;
2. the flow from the surrounding radial inflow runner, then approximate axial flow runner, runner by the crown, under the ring and the blade; it is applicable to the head from a range of 20meters of up to 700meters, has the advantages of simple structure, stable operation, and high efficiency ,but it is generally used in the head in the range(50 to 400 meters). Single power from a few kw to several 101000 tile. At present, the turbine output has exceeded 700000 kilowatts, the maximum. A turbine is one of the most widely used.
Axial flow turbine generator unit is widely used for low water head such as small river, small dam, etc. The mini axial turbine generator is made by generator and Impeller coaxial. Working principle and installation method: Choose suitable installation place ( riverside, rocky place of downstream river),use concrete and stone to build water channels; use wood to make a water gate; use barbed wire to make filter; use concrete and stone to make spiral case; build trumpet-style draft tube under the spiral case; the draft tube should be covered and under water 20-50m. The length of draft tube is the water head. The mini axial turbine generator is suitable for water head 1-6m.
Forster Water Turbine Specifications
| HL110-WJ-30 Francis turbine performance data and supporting table | ||||||
| Model | Turbine Parameters | Generator Parameters | ||||
| Design head(m) | Under the design head | Design speed (r/min) | The power of generator | Rated speed(r/min) | ||
| Flow rate (m3/s) | The output(kw) | |||||
| HL1 10-WJ-30 | 13 | 0.11 | 12 | 745 | 12 | 750 |
| 14 | 0.12 | 14 | 773 | 15 | 750 | |
| 16 | 0.13 | 17 | 827 | 18 | 750 | |
| 18 | 0.13 | 20 | 877 | 20 | 750 | |
| 19 | 0.14 | 22 | 901 | 18 | 1000 | |
| 20 | 0.14 | 23 | 924 | 25 | 1000 | |
| 22 | 0.15 | 27 | 969 | 30 | 1000 | |
| 24 | 0.15 | 31 | 1012 | 30 | 1000 | |
| 25 | 0.16 | 33 | 1033 | 35 | 1000 | |
| 27 | 0.16 | 37 | 1074 | 35 | 1000 | |
| 29 | 0.17 | 41 | 1113 | 40 | 1000 | |
| 31 | 0.18 | 45 | 1151 | 45 | 1000 | |
| 33 | 0.18 | 50 | 1187 | 50 | 1000 | |
| 34 | 0.18 | 52 | 1205 | 50 | 1000 | |
| 40 | 0.2 | 66 | 1307 | 60 | 1500 | |
| 42 | 0.2 | 71 | 1339 | 70 | 1500 | |
| 49 | 0.22 | 90 | 1447 | 85 | 1500 | |
| 52 | 0.23 | 22 | 1476 | 100 | 1500 | |

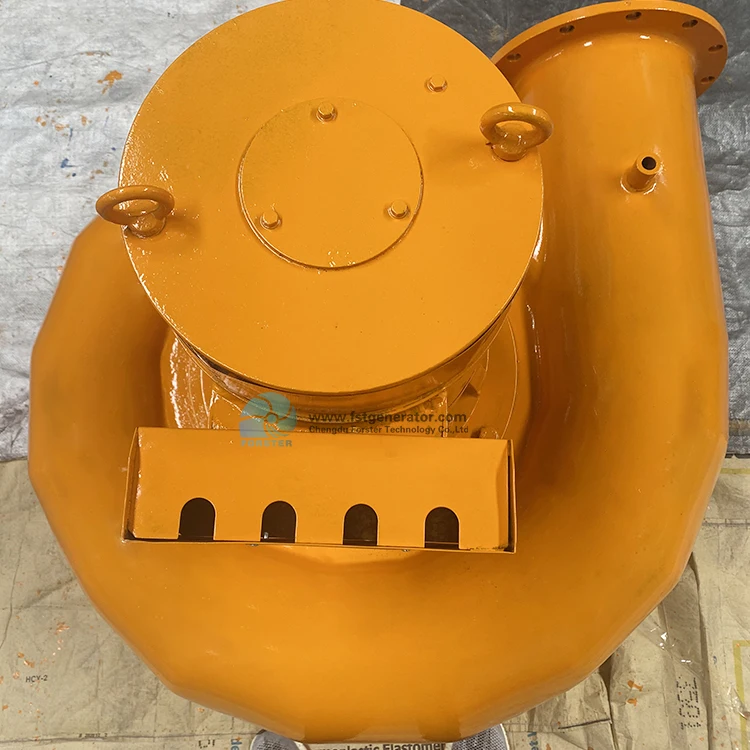

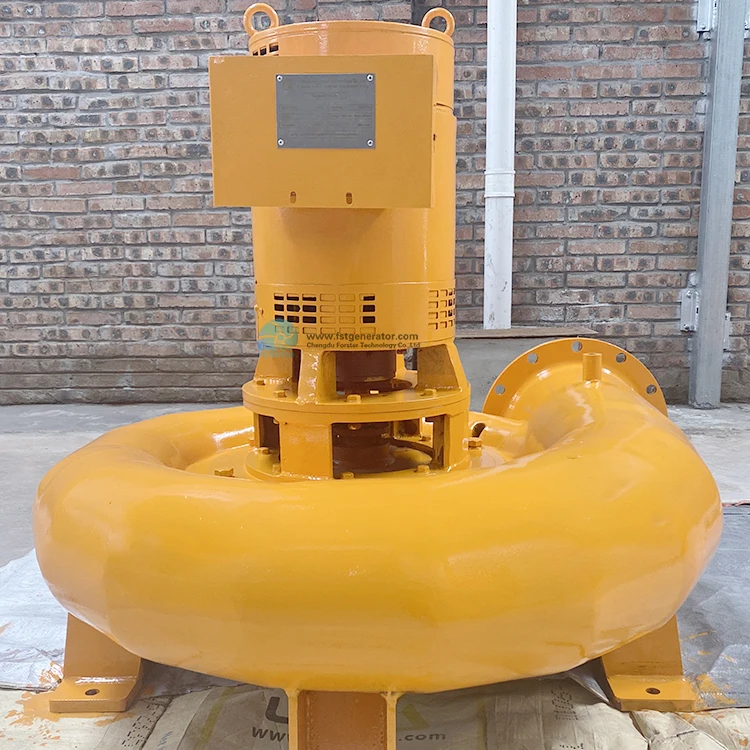

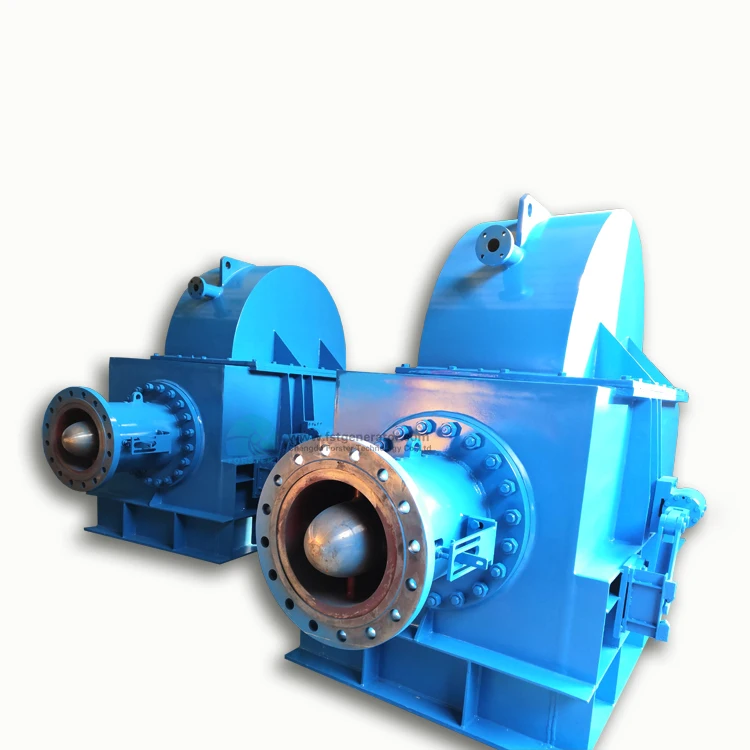

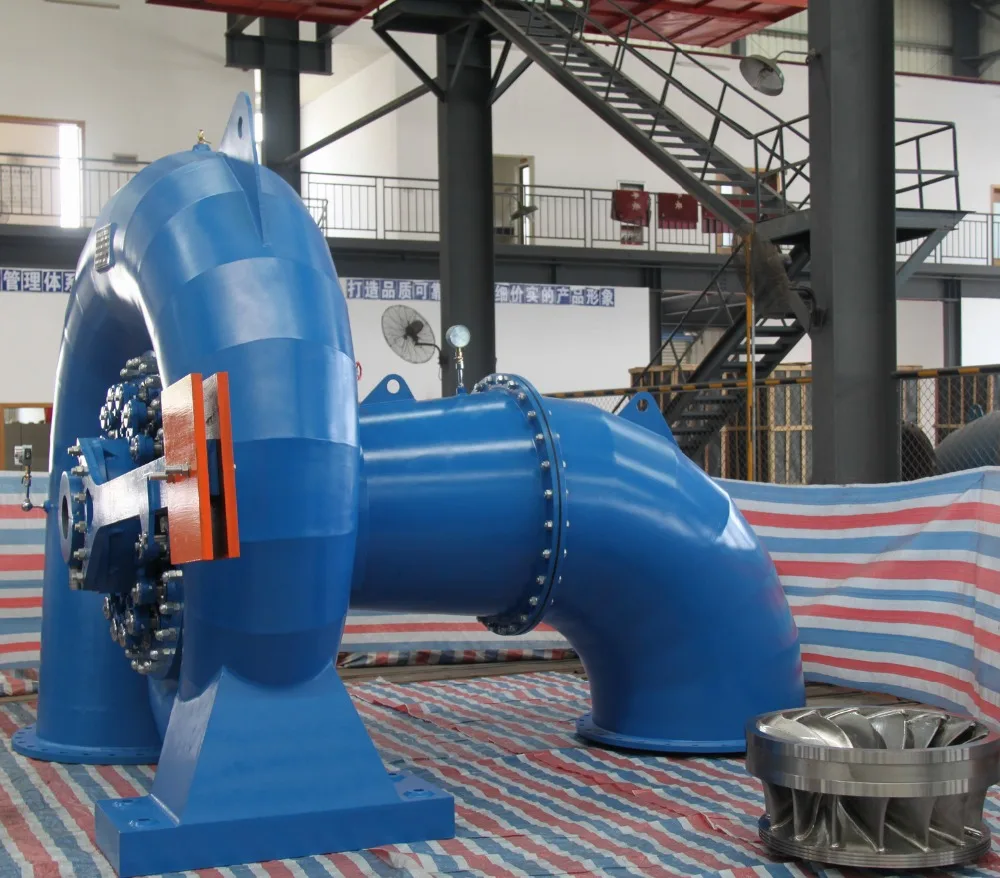

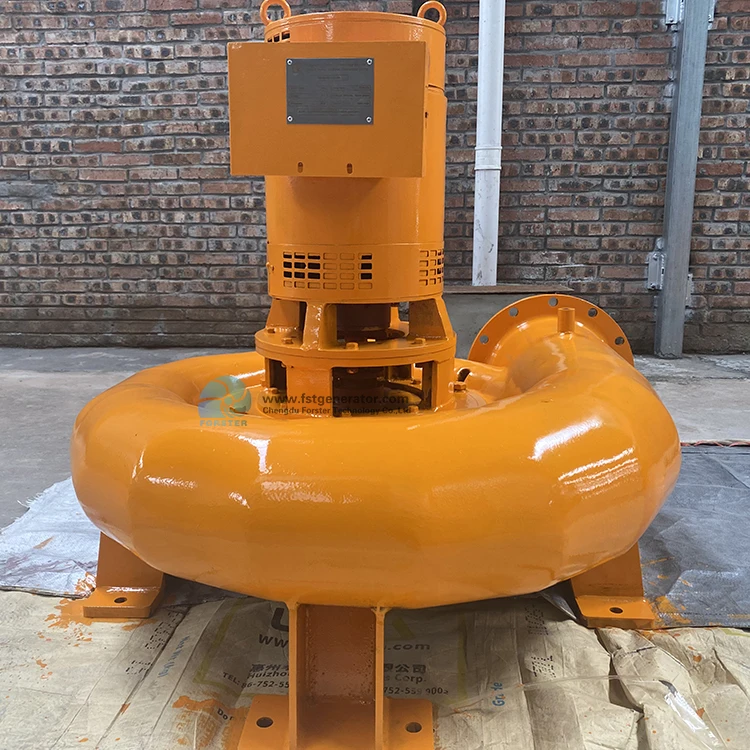

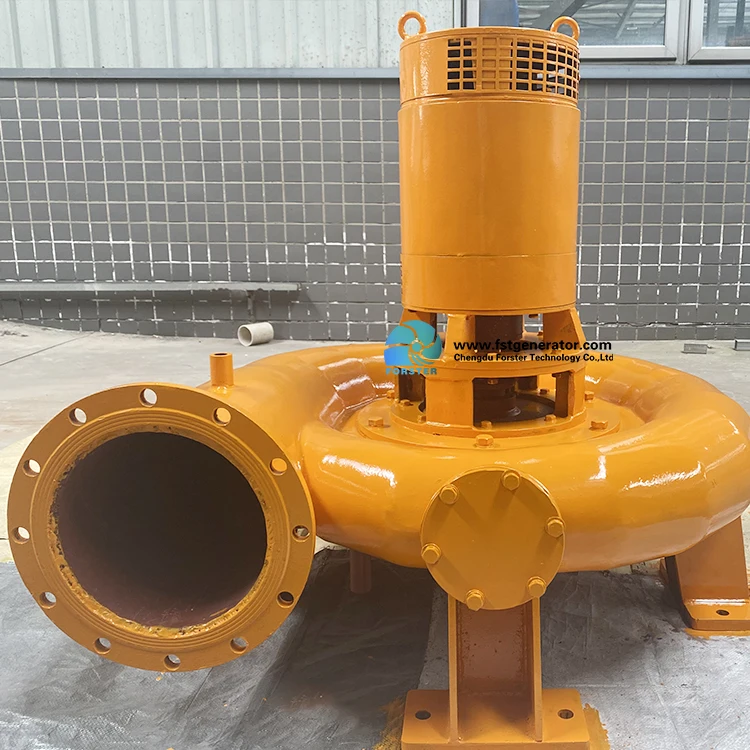

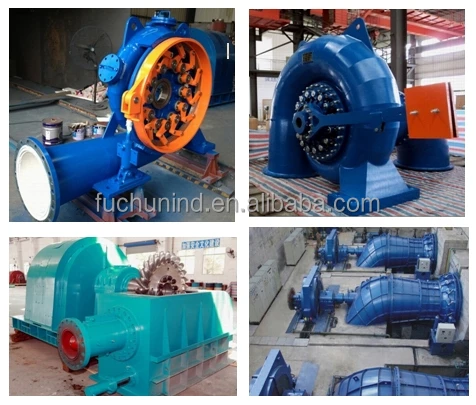

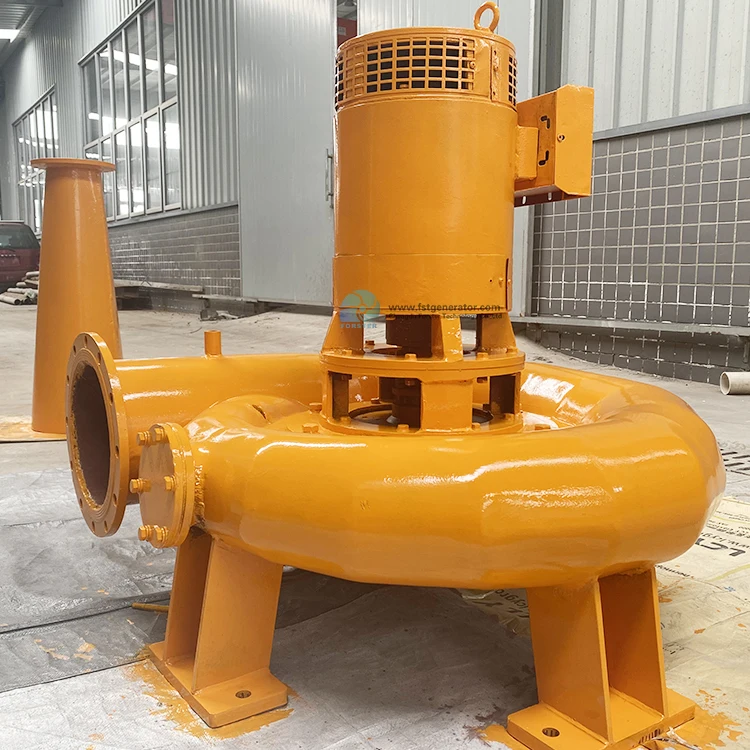

Product Pictures
Company Information
Main Product
Our main products included:
1, Axial flow type turbine generators series
2,Turgo turbine generators series, e.g. vertical type and horizontal type.
3,Tubular turbine generators series, e.g. Bulb type and shaft extension type
4,Francis turbine hydro generators series
5,Impulse turbine generators series and double turbine generators series and so on.
Our workshop
Advantages
FAQ
1. You are a trading company or a manufacture?
We are a hydro turbine manufacture with over 60 years of experiences, we have facilities in Zigong City, pay a visit to our factory you will know more about us.
2. How to choose a right turbine? There are so many models offering on your website. And how to calculate the turbine capacity?
Just tell me the water head, flow rate, our senior engineer will work out the solution for you. The turbine capacity: P=Flow rate(cubic meter/second) * Water head(m) * 9.8(G) * 0.8(efficiency).
3. What information shoul I provide for getting the quotation?
We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution.
4. When my turbine shut down, who can help me solve the problem?
You are free to call me day or night at my cellphone number +8613540368205. I am sure our engineer able to fix the problem either by changing spare parts or remove something.
5.Can you do EPC for a hydroelectric power plant?
Yes, we can provide TURN-KEY and EPC services including measurement, design, manufacturing, construction, manufacturing, commissioning, inspection, maintenance runner replacement and refurbishment/upgrade/improvement/repair/refurbishment of turbines/generators including bearings, seals For parts and key parts, we will send technicians and workers to install equipment.
6. How can I trust you?
Pay us via trade assurance is not a problem. And we also accept L/C. To build mutul-trust we think pay a visit to our facility is the best way.
Q7,Does your company have its own independent official website?
Of course, and we can see more information about our company and products on our official website. website address: www.fstgenerator.com
Hydro Turbine belongs to customized products. We could design products according to your requirement. Could you give us the following parameters so that we could make a professional solution for your project.
1.Flow rate ( lit/sec or m³/sec?)
2.Water head ( m?)
3.Total power you need( KW?)
4.Frequency ( 50 hz or 60 hz?)
5. Voltage( V?)
6. On grid or off grid?
7. Voltage of transmission line if it is on grid( V?)
8. Elevation(MSL)
9. Is it clean fresh water(with our sand, stone and silt ect,.)
By the way,could you tell me your whatsapp number(phone number) ?
Похожие товары
Бесщеточный низкоскоростной 3000 кВт 3 МВт pmsg промышленный генератор переменного тока для ветровой турбины
13 271 429,40 ₽
Лидер продаж, 3 м головка микро-приведенный в действие Электрический водяной турбины генератора
1 942 160,40 ₽

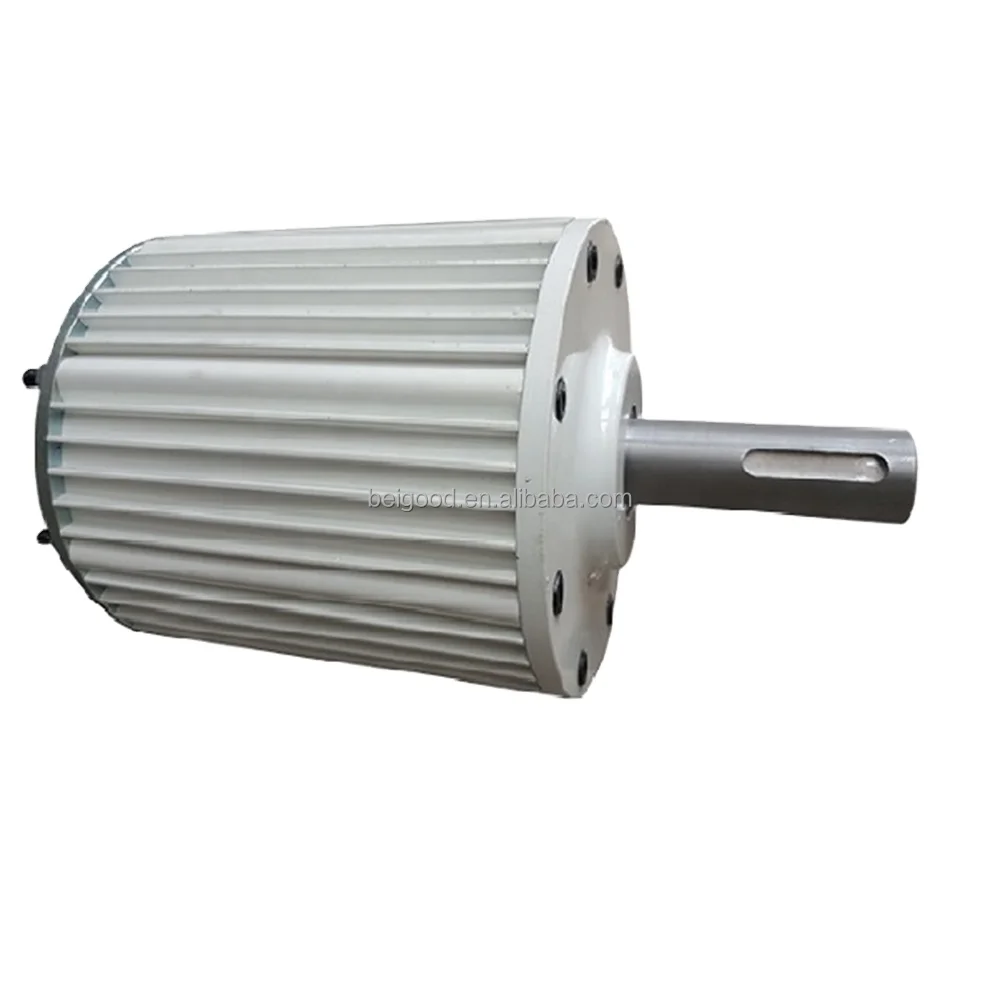

Небольшой гидроэлектрический маховик, генератор свободной энергии, 3-фазный генератор, маховик 100 кг
3 970 639,04 ₽

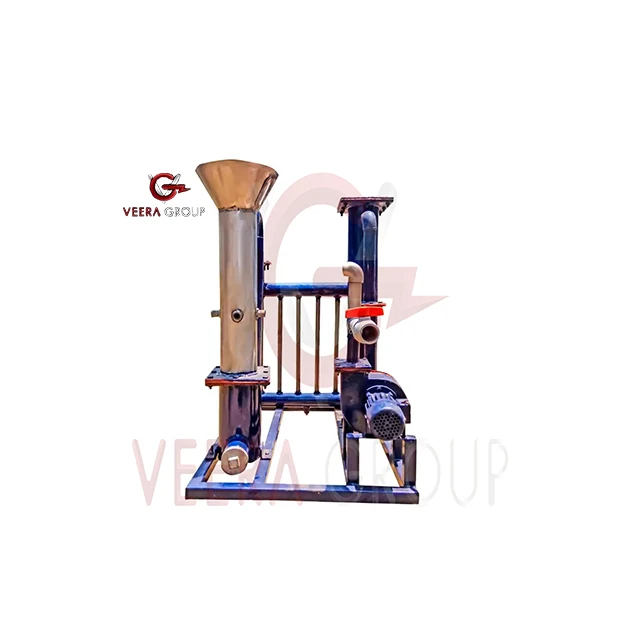

2024 продаж, газификаторы биомассы с уникальным дизайном Veera G10 для выработки газообразного топлива, используемого в двигателях котлов
