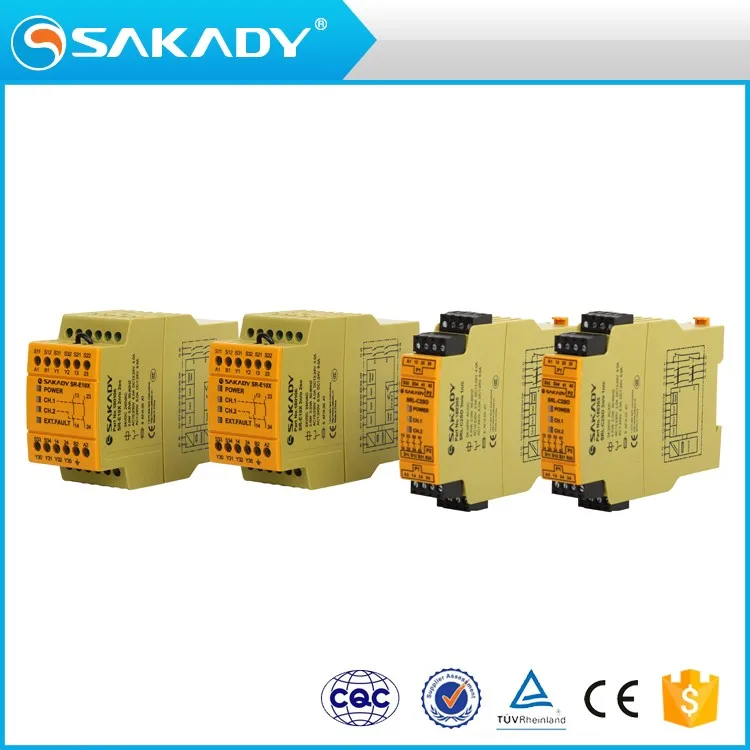

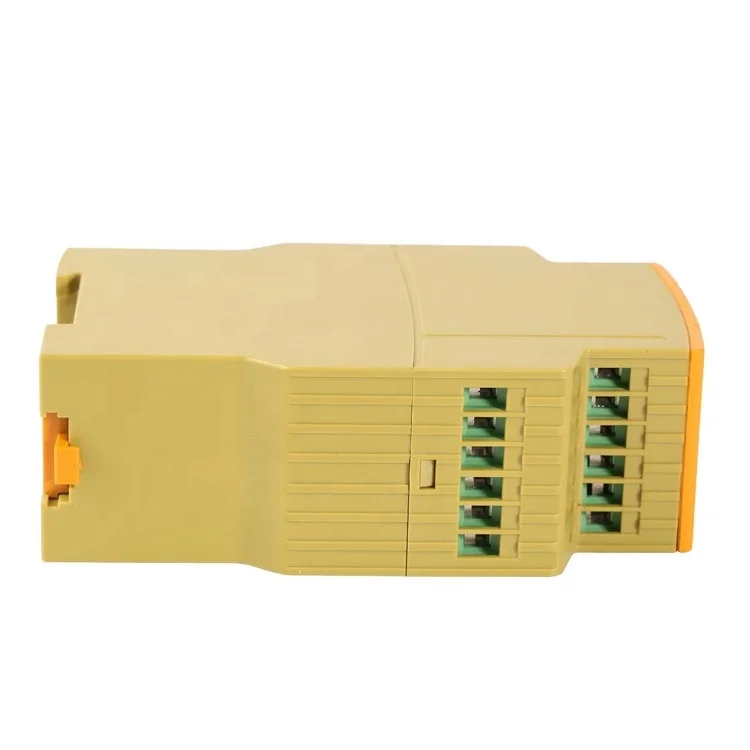

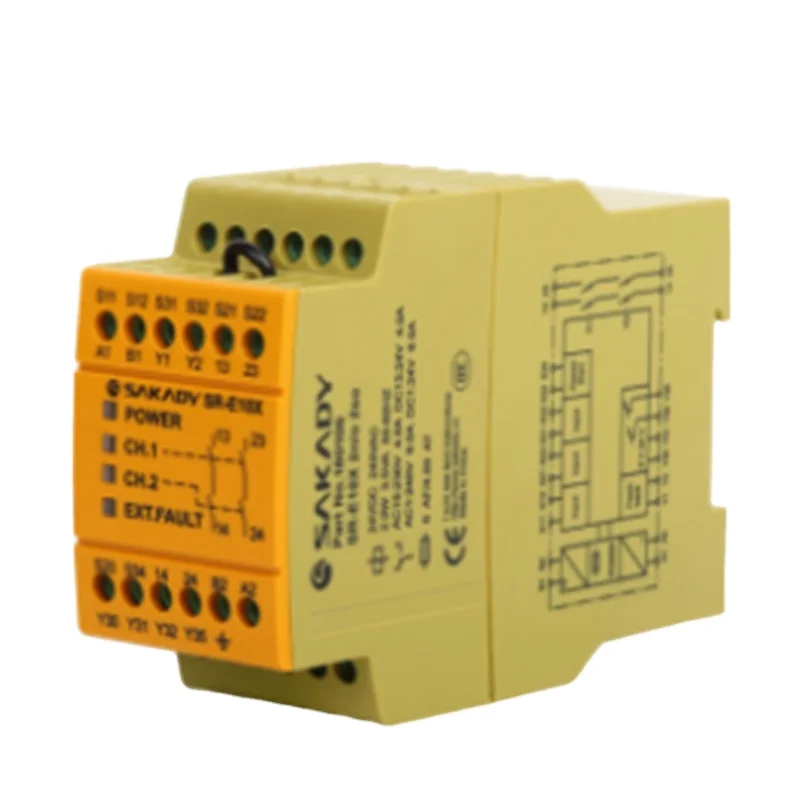

Установка диверсификации CCC CE TUV промышленное автоматическое реле безопасности 24 В заводская цена
- Категория: >>>
- Поставщик: Hangzhou Sakady Sensor Co. Ltd.
Сохранить в закладки 1600910073510:
Описание и отзывы
Характеристики
Product Overview
door switch .
●Comply with IEC / EN60947-5-1, IEC / EN60204-1, VDE0113-1 standard .
●With 2 series safety contacts NO .
●Manual/automatic reset .
●Indicators for CH1, CH2, power LED and fault signal .
●Comply with IEC / EN60947-5-1, IEC / EN60204-1, VDE0113-1 standard .
●With 2 series safety contacts NO .
●Manual/automatic reset .
●Indicators for CH1, CH2, power LED and fault signal .
PRODUCT SPECIFICATIONS

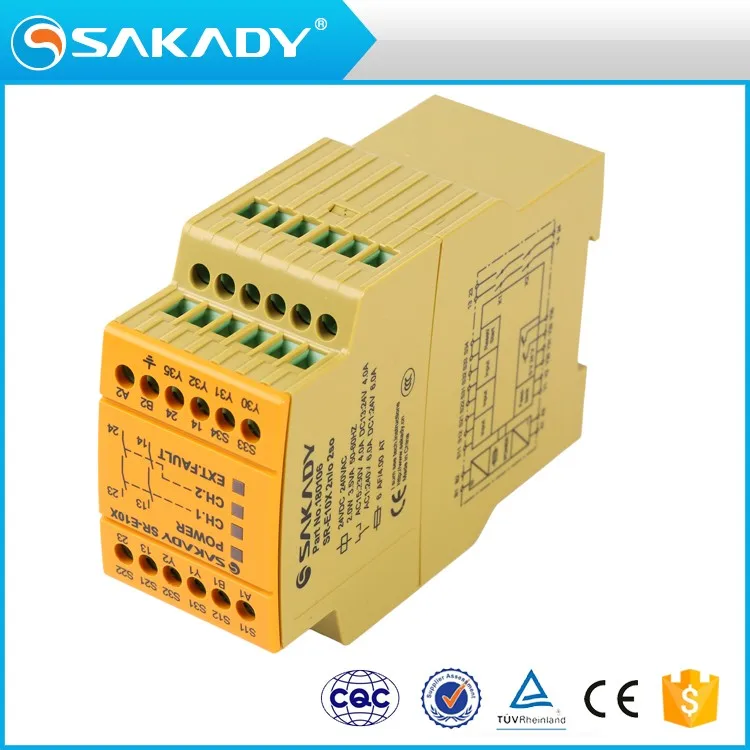

Model | SR-E10X | ||||
Contact resistance *1 | 100m Ω | ||||
Insulation resistance *2 | 100m Ω or more(DC500V) | ||||
Rated insulation voltage | 250V | ||||
Over voltage category | Level 3/Level 2 | ||||
Safety mat and edge resistance | 80 m Ω | ||||
Max. total Resistance of input and reset circuit cable | DC: Single-channel | 45 m Ω | |||
AC: Single-channel | 80 m Ω | ||||
DC: Dual-channel with detection of contact shorts | 80 m Ω | ||||
AC: Dual-channel with detection of contact shorts | 80 m Ω | ||||
Time | Switch-on delay | With automatic reset(max) | 350ms | ||
With automatic reset after power on(max) | 450ms | ||||
With manual reset(max) | 350ms | ||||
Emergency stop | E-STOP(max) | 30ms | |||
delay | With power failure max | About 25ms | |||
Insulation strength | Between different outputs | 2,500 VAC, 50/60 Hz for 1 min | |||
Between inputs and outputs | |||||
Between power inputs and output | |||||
Vibration resistance | 10 to 55 to 10 Hz, 0.375-mm single amplitude (0.75-mm double amplitude) | ||||
Shock resistance | Destruction | 300m/s2 | |||
Malfunction | 100m/s2 | ||||
Durability *5 | Mechanical | 10,000,000 operations min | |||
Electrical | 100,000 operations min | ||||
Failure rate (P level) (reference value) | DC 5V/1mA | ||||
Ambient operating temperature | −25 to 55°C (with no icing or condensation) | ||||
Ambient operating humidity | 35% to 95%（with no condensation） | ||||
Terminal tightening torque | 0.5 N·m | ||||
● Power Input | ||||||||
Model | SR-E10X | |||||||
Power supply | 240V AC: 50~60Hz 24V DC: 24V DC | |||||||
Operating voltage range | 85% to 110% of rated power supply voltage | |||||||
Power consumption | Less than 4.5VA/2.5W | |||||||
WHY CHOOSE US
COMPANY PROFILE
Sakady is a diversified enterprise integrating R & D, production and sales of sensor industrial control safety equipment,
providing customers with standardized and customized industrial automation safety equipment. The products mainly include safety light curtain, safety carpet, safety edge, safety relay and photoelectric switch, etc.
providing customers with standardized and customized industrial automation safety equipment. The products mainly include safety light curtain, safety carpet, safety edge, safety relay and photoelectric switch, etc.
The company strictly checks every step in the production process. The enterprise has fully passed ISO9000 certification, and the product series has passed CCC , TUV and CE certification. Equipped with a professional R & D team, the company adheres to the road of independent R & D, not only draws on the advanced sensor technology of Germany, but also cooperates with the scientific research institutions of Zhejiang University to gradually form a strong technical and brand advantage.
CERTIFICATION
BUYER COMMENTS
OEM or ODM
product is also our
cusyomized service
25% employess
enganged in R＆D
More than 3000 project
applictions have won
wide reception from
customers
PRODUCT CATEGORIES
PAYMENT
Standard payment terms: T/T 30% DEPOSIT, 70% BALANCE AGAINST B/L COPY or 100% irrevocable LC at sight.
Online trade assurance order, all is up to youMore payment terms could be provided(PAYPAL,WETERN,UNION)
SHIPPING.
Online trade assurance order, all is up to youMore payment terms could be provided(PAYPAL,WETERN,UNION)
SHIPPING.
TRANSPORT
• Delivery time: Generally 5-10 days if the goods are in stock. 15-20 days if the goods are notin stock. And it is also depend on your quantity.
• Packing: General export packing, or customized packing as your request.• Professional goods shipping forward.
• Packing: General export packing, or customized packing as your request.• Professional goods shipping forward.
FAQ
Q1: What is the MOQ? | ||||||||
A : 1 pcs for our own available designs. | ||||||||
Q2: Can I put my logo on the product? | ||||||||
A : Yes, we can print your logo on the items. | ||||||||
Q3: How about the quality of your products? | ||||||||
A : Our products have passed TUV, CCC and CE certification. | ||||||||
Q4: How long is the delivery time of 1000 products ? | ||||||||
A : 7 days | ||||||||
Q5: Can I get a lower price if I order large quantities? | ||||||||
A : Yes, Cheaper prices with bigger size orders | ||||||||
Q6: Can I get a sample? | ||||||||
A : Of course, but you need to pay the minimum sample fee | ||||||||
Q7: Can I add or delete items from my order if I change mind? | ||||||||
A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it. | ||||||||
Q8: How can you guarantee the production quality? | ||||||||
A : The quality of our products has passed TUV, CE, CCC, IS09000 certification. We have 15+ years OEM labeling experience with global top sensor brands. | ||||||||
Похожие товары

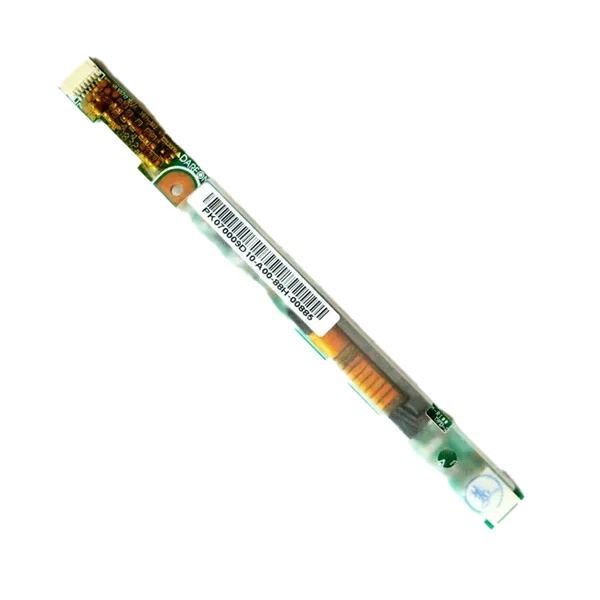

ЖК-инвертор для ноутбука Acer Aspire 5535, 5235, 5536, 5330, 5335, 5335Z, 5735, 5735Z, инвертор с ЖК-дисплеем

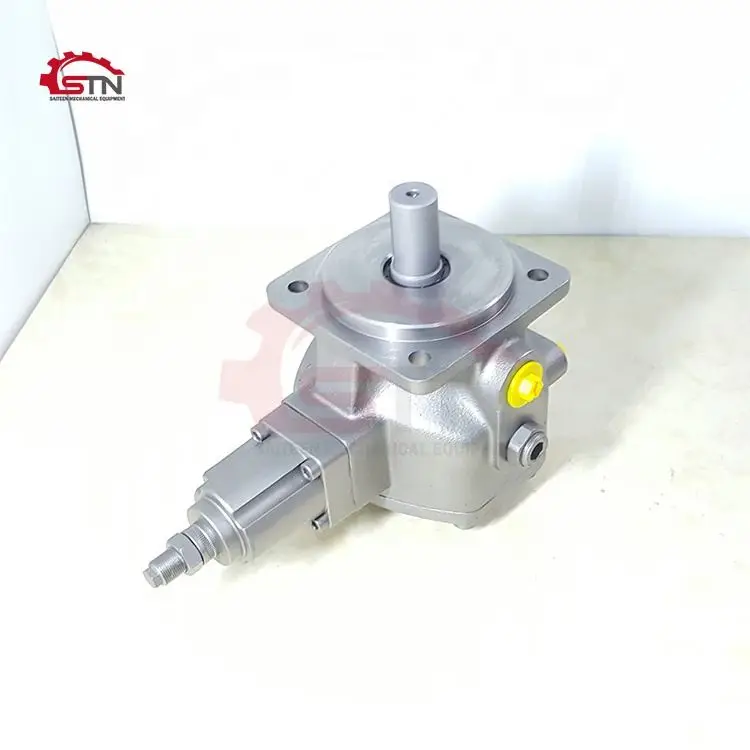

PV7-2X-20-25RA01MA0-05 лопастной насос Rexroth, гидравлический насос с переменным поршнем, PV7-2X-20-25RA01MA0-05
1 800,00 $ - 2 000,00 $

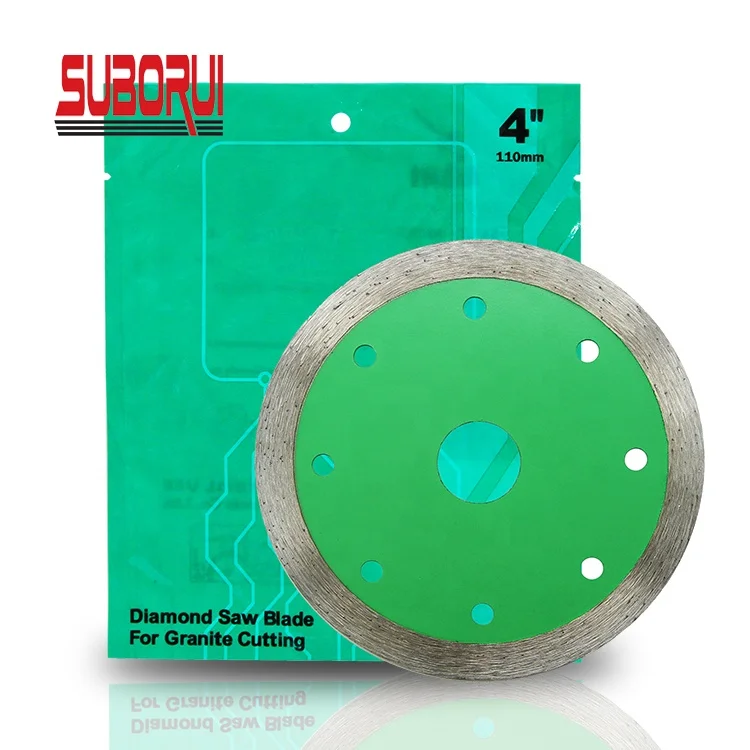

SUBORUI холодный пресс Спеченный непрерывный обод алмазная пила для резки камня гранита мрамора бетона
1,20 $ - 1,30 $

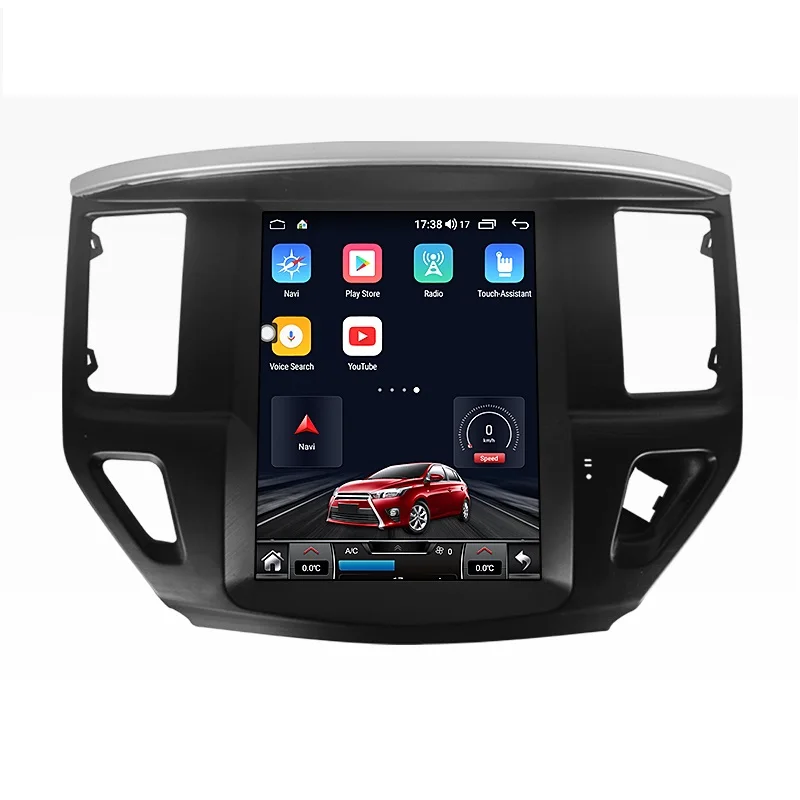

Оптовая продажа, высокое качество, сенсорный экран Tesla, Android 12,0, автомобильный видеоплеер для Nissan Pathfinder с GPS BT WIfi

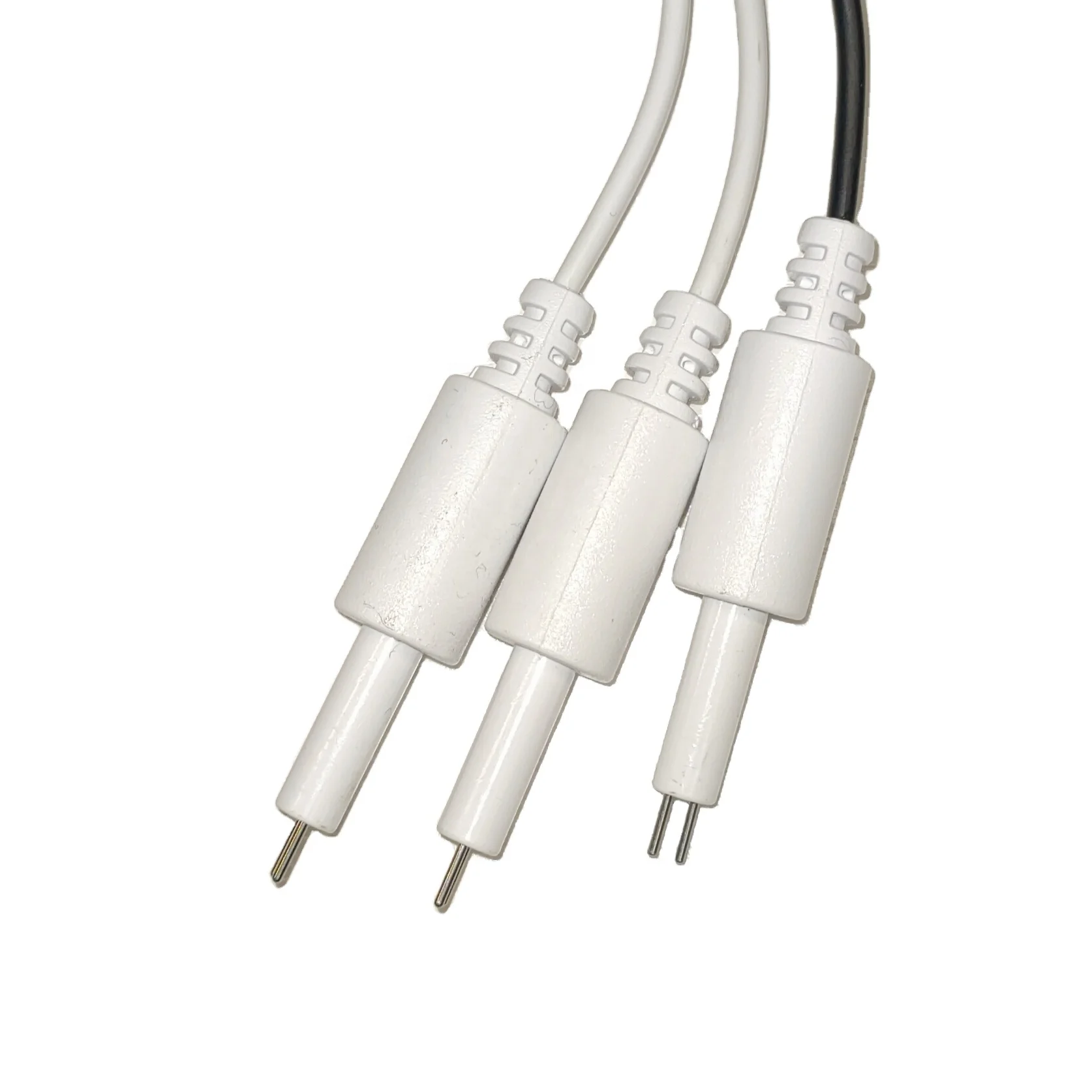

Производитель переключателя потока воды испытательного оборудования для водоочистителя TDS кабель Магнитный теоретический переключатель потока
2,20 $ - 3,50 $

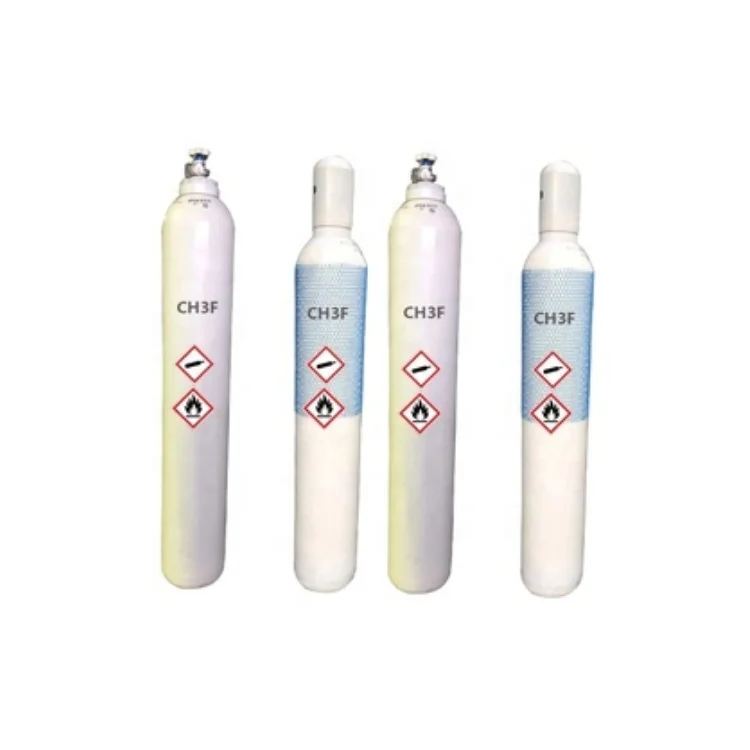

Высококачественный галокарбон 41 CAS #593-53-3 метилфторид CH3F газ R41
25,00 $ - 45,00 $

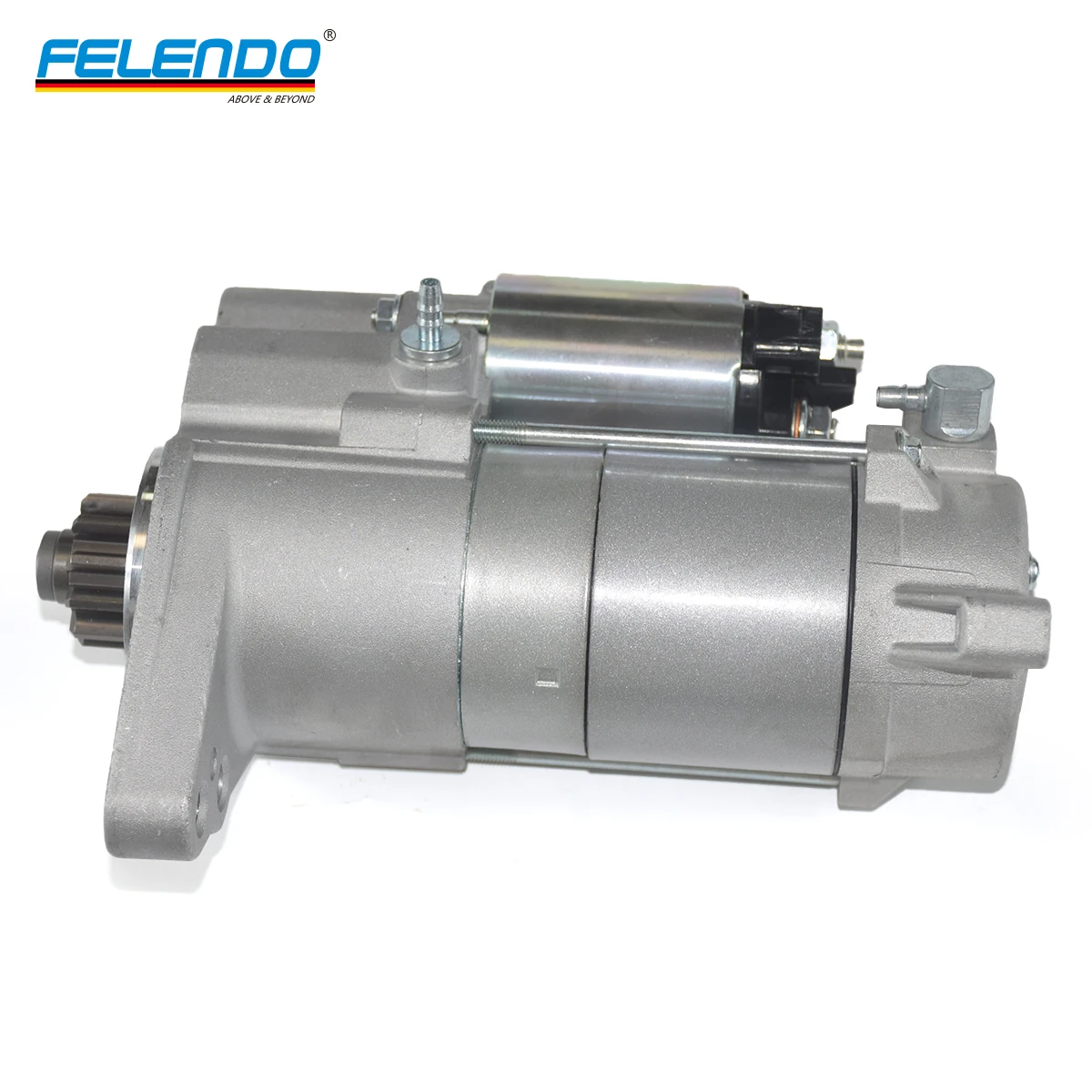

FELENDO LR034027 LR080305 3,0 дизельный двигатель 24 В DOHC TC двигатель стартер для Range Rover Vogue Sport
