SDE3 2-осевой Солнечный трекер двухосевой поворотный привод с гидравлическим двигателем 24 В постоянного тока вращающийся электродвигатель
54 977,01 ₽
Luoyang JW 3 дюймовый Высокоточный двухосевой поворотный привод SE3 SE3 2 SDE3 SDD3 для солнечной системы слежения
- Категория: >>>
- Поставщик: Luoyang Jiawei Bearing Manufacturing Co. Ltd
Сохранить в закладки 1600914197445:
Описание и отзывы
Характеристики
Product Description
Luoyang JW 3 Inch High Precision Dual Axis Slewing Drive SE3 SE3-2 SDE3 SDD3 For Solar Tracking System
Product Name | Luoyang JW 3 Inch High Precision Dual Axis Slewing Drive SE3 SE3-2 SDE3 SDD3 For Solar Tracking System | ||||
Brand | Luoyang Jiawei (LYJW) | ||||
Feature | Customization | ||||
Place of origin | Luoyang City,Henan Province,China | ||||
Warranty | 12 Months | ||||

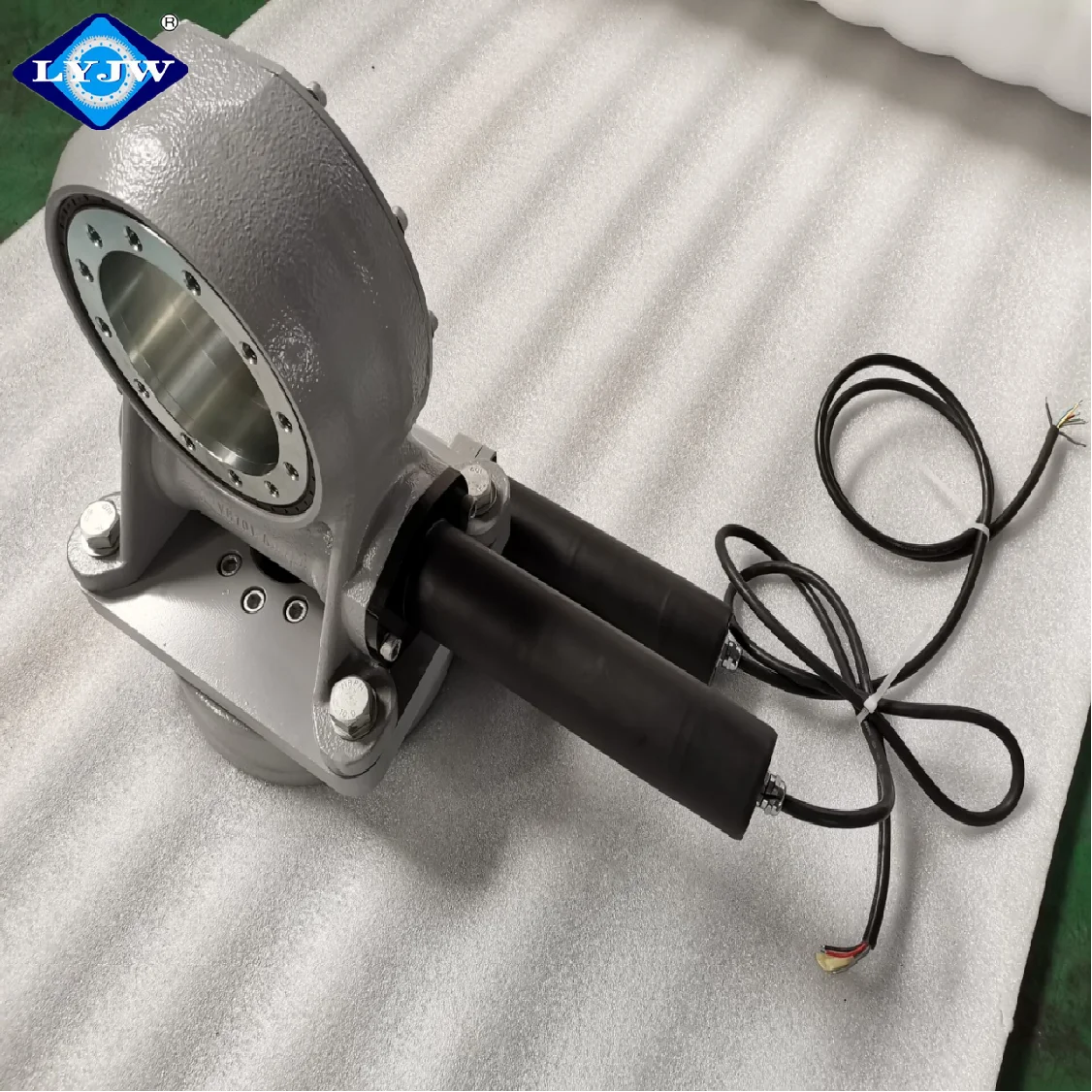

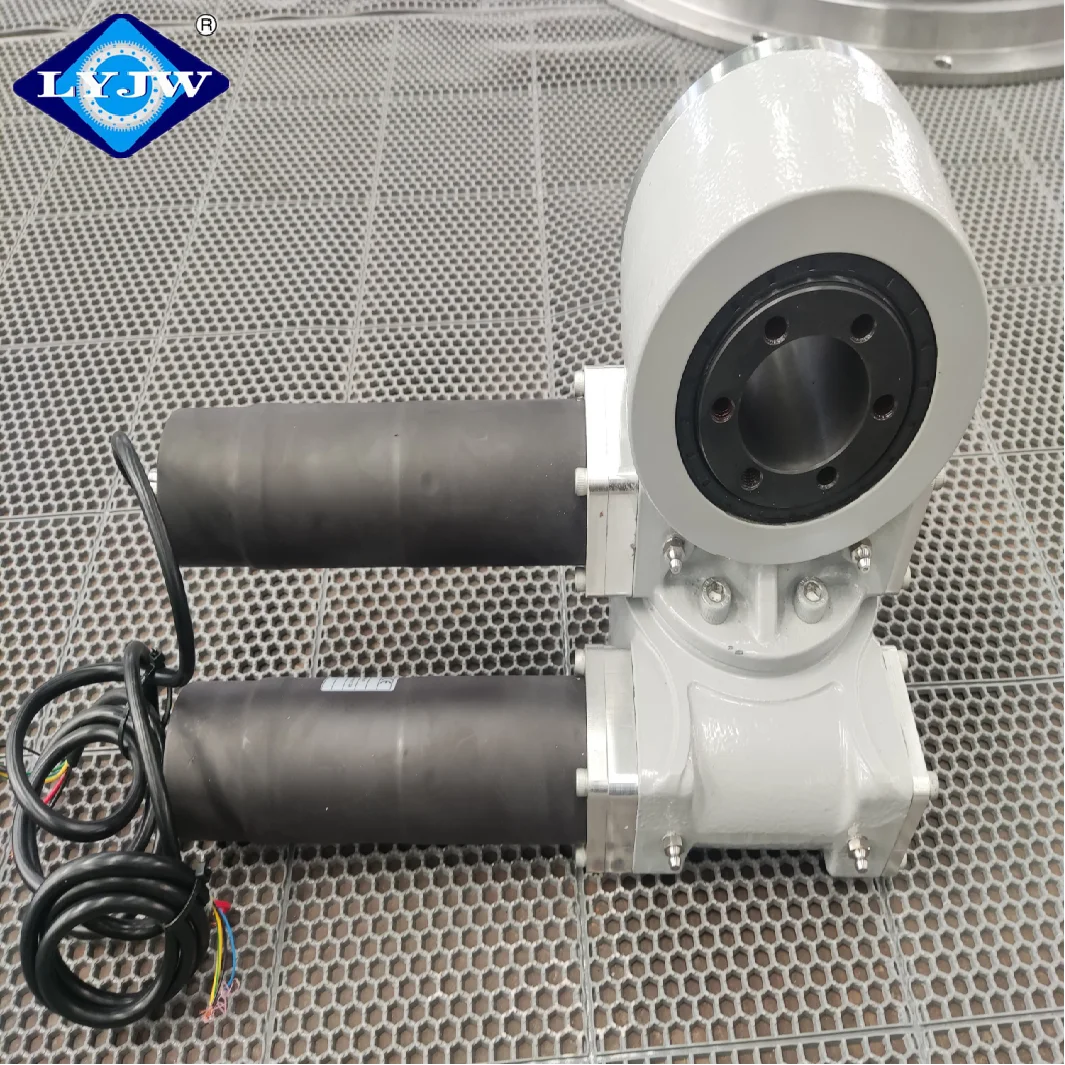

SE3/SDE3 slew worm drive system is a compactly constructed unit which consists of a slewing ring, base plate and worm. This unit brings the advantages of a slewing ring and a worm into one unit.
It is suitable for applications which demand slow rotation with a continuous or cyclical movement capable of handling combined loads. The product is with standard dimensions for coupling an electric or hydraulic motor as well as coupling a whole system to equipment.

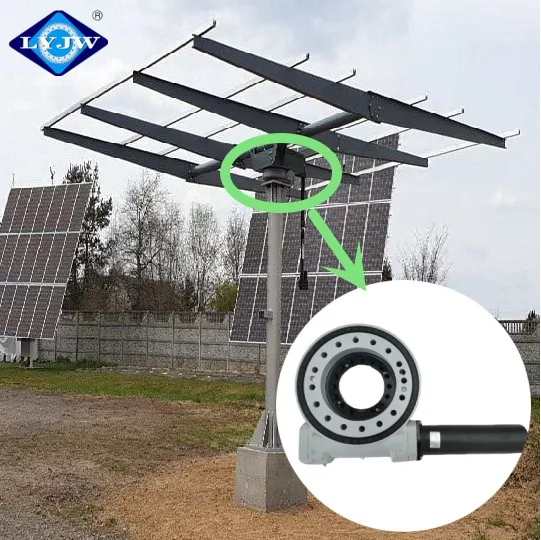

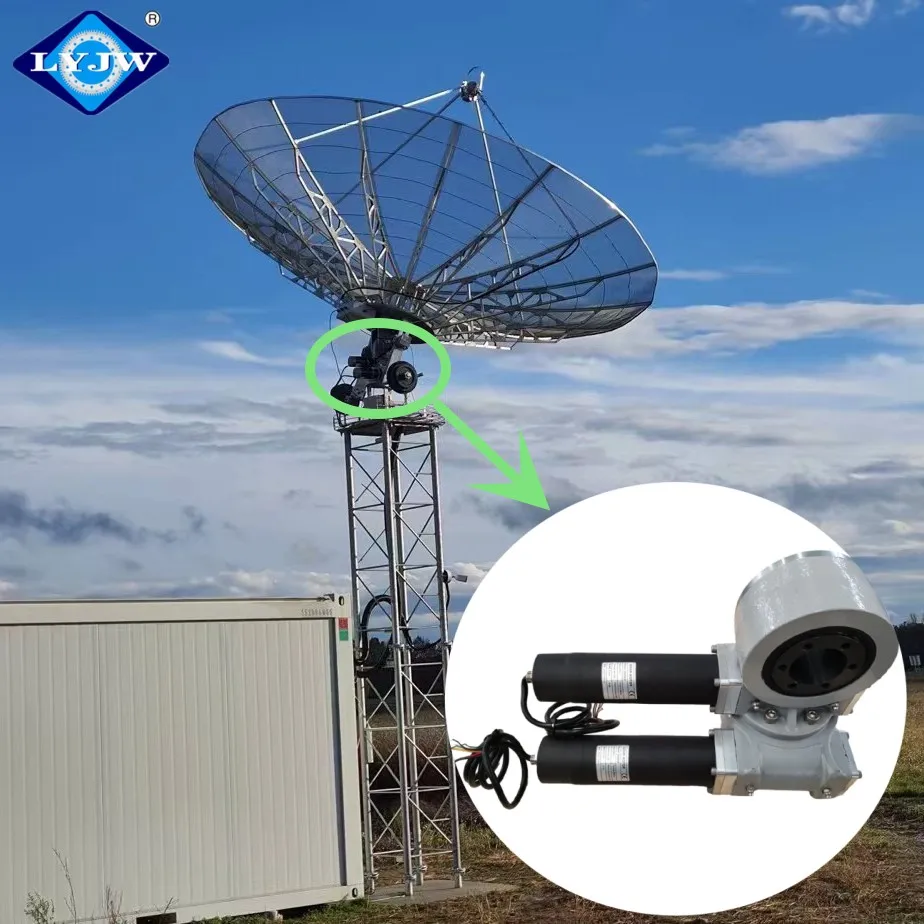

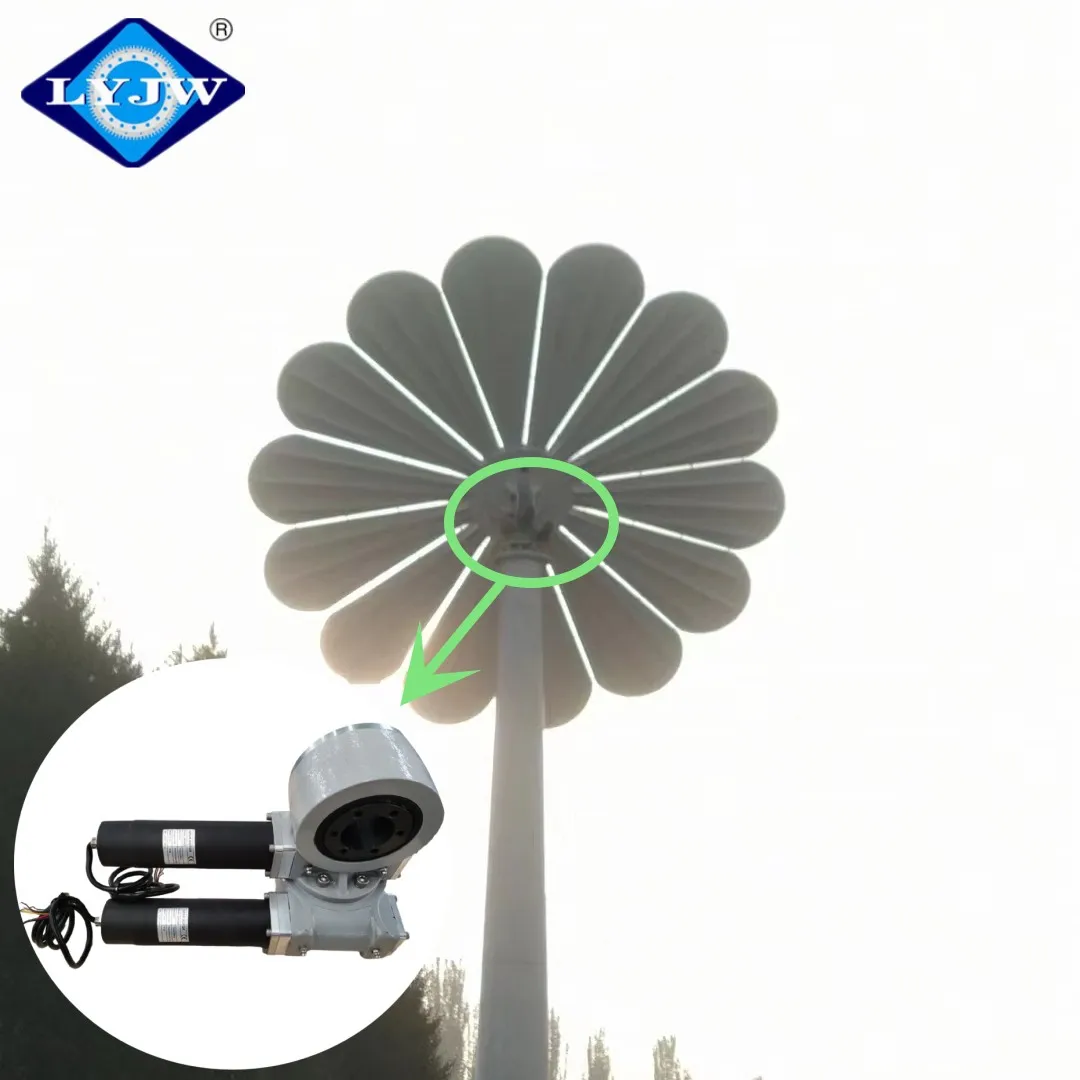

Due to its compactness, high rigidity and other mentioned advantages, a worm drive system is used in varying equipment such as Solar Power System, mobile assembly platforms, satellite system, hydraulic loading cranes on haulage vehicles, small marine cranes, extendable rotating ladders, in wheel units of large marine portal transporters.
Some Data Explaination:
1)Tilting Moment Torque: Torque is the load multiplied by distance between the position of load and the center of slewing bearing. If the torque generated by load and distance is greater than the rated tilting moment torque, slewing drive will be overturned.
2) Radial load: Load vertical to the axis of slewing bearing.
3) Axial load: Load parallel to the axis of slewing bearing.
4) Holding torque: It is the reverse torque. When the drive is rotating reversely, and parts are not damaged.
5) The maximum torque achieved is called holding torque.
6) Self-locking: Only when loaded, the slewing drive is not able to reverse rotate and thus called self-locking.
2) Radial load: Load vertical to the axis of slewing bearing.
3) Axial load: Load parallel to the axis of slewing bearing.
4) Holding torque: It is the reverse torque. When the drive is rotating reversely, and parts are not damaged.
5) The maximum torque achieved is called holding torque.
6) Self-locking: Only when loaded, the slewing drive is not able to reverse rotate and thus called self-locking.
ADVANTAGE
1. Azimuth 360° rotation, elevation 180° rotation. 2. Connection of a driving motor from the left or right side
3. During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory
4. Simple installation and low maintenance
5. Rational space utilization
6. The gear is self-locking; therefore a brake is not necessary
7. Easy and fluent method of starting and stopping
Application
It is mainly engaged in the research and development ,production, sales and maintenance of solar photovoltaic and engineering machinery rotary reducers and their parts .It can produce more than 200000 rotary drive devices annually .At present, The products cover a variety of specifications and styles from 3 inches to 37 inches, It can meet the needs of different types of photovoltaic solar thermal tracking power station and construction machinery market.
Certificate
Company Introduction
LYJW slewing bearings can be divided into single-row four-point contact ball slewing bearings, single-row cross roller slewing bearings, double-row different ball diameter slewing bearings, three-row cylindrical roller slewing bearings and ball combined slewing bearings according to their structure. The product diameter ranges from 100-15000 mm.This type of bearing can be divided into no-gear bearings, external gear bearings and internal gear bearings. The bearings we produce have the characteristics of reasonable design, light weight, high carrying capacity, and wide application range.
Established in 1998, Luoyang Jiawei Bearing Manufacturer Co., Ltd. (LYJW) is a professional manufacturer of slewing
bearings/slewing drive and we can design and manufacture single-row ball slewing ring bearing, double-row ball slewing ring bearing, three-row roller slewing bearing, ball-roller combination slewing ring, crossed roller bearing, turntable bearing, slew drives and custom bearings.
bearings/slewing drive and we can design and manufacture single-row ball slewing ring bearing, double-row ball slewing ring bearing, three-row roller slewing bearing, ball-roller combination slewing ring, crossed roller bearing, turntable bearing, slew drives and custom bearings.
Exhibition
Packing&Shipping
FAQ
1.Q: Are you trading company or manufacturer ?
A: We are professional slewing bearing manufacturer with 25 years' experience
2.Q: How long is your delivery time ?
A: Generally it is 2 days if the goods are in stock. or it is about 30 days for new production
3.Q: Do you provide samples ?
A: Yes, we could offer the sample
4.Q: What is your terms of payment ?
A: Negotiable
5.Q: Can you provide special customization according to the working conditions ?
A: Sure, we can design and produce products for different working conditions
A: We are professional slewing bearing manufacturer with 25 years' experience
2.Q: How long is your delivery time ?
A: Generally it is 2 days if the goods are in stock. or it is about 30 days for new production
3.Q: Do you provide samples ?
A: Yes, we could offer the sample
4.Q: What is your terms of payment ?
A: Negotiable
5.Q: Can you provide special customization according to the working conditions ?
A: Sure, we can design and produce products for different working conditions
Contact Us
Hot Sale Line | ||||||||
Contact | Dickson | |||||||
E-Mail | LYJW08@jw-bearing.com dickson-tools@hotmail.com | |||||||
Tel. | Mobile/Skype/Whatsapp/Wechat: 0086 183 3790 6715 | |||||||
Fax | 0086-379-68777180 | |||||||
Похожие товары
10 кВт мини pv 2 оси Солнечный двухосевой привод для солнечной системы слежения
55 302,31 ₽
Бескислородная медь высокой степени очистки, 0,2x5,0 мм, солнечная панель, паяльная ячейка, шина, провод
1 875,95 ₽ - 2 385,59 ₽
USFULL OEM ODM PV комбайнер от 2 до 24 струн 1000 В 1500 В 6 в 1 для системы солнечной энергии мощностью 10 кВт с разрядником напряжения постоянного тока
5 421,80 ₽ - 14 638,85 ₽
MOREDAY IP66 4 в 1 из 4 струн 15A 1000V DC солнечный PV Массивный блок с выключателями и Молниеносным разрядником
5 224,45 ₽ - 5 658,19 ₽

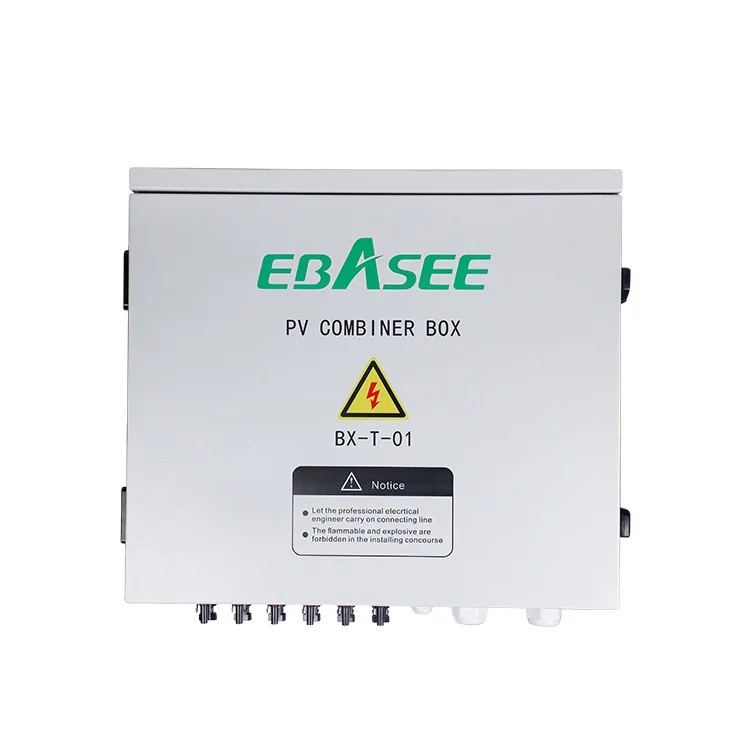

Ящик комбайна постоянного тока для солнечной фотоэлектрической системы, 4-струнный фотоблок, 1000 В
