Печь для пекарни 120 кВт горелка отработанного масла с одобрением
- Категория: Boilers & Parts >>>
- Поставщик: Qingdao Kingwei Energy Saving Equipment Co. Ltd.
Сохранить в закладки 1600917007819:
Описание и отзывы
Характеристики
Picture & Parameter
Product Feature

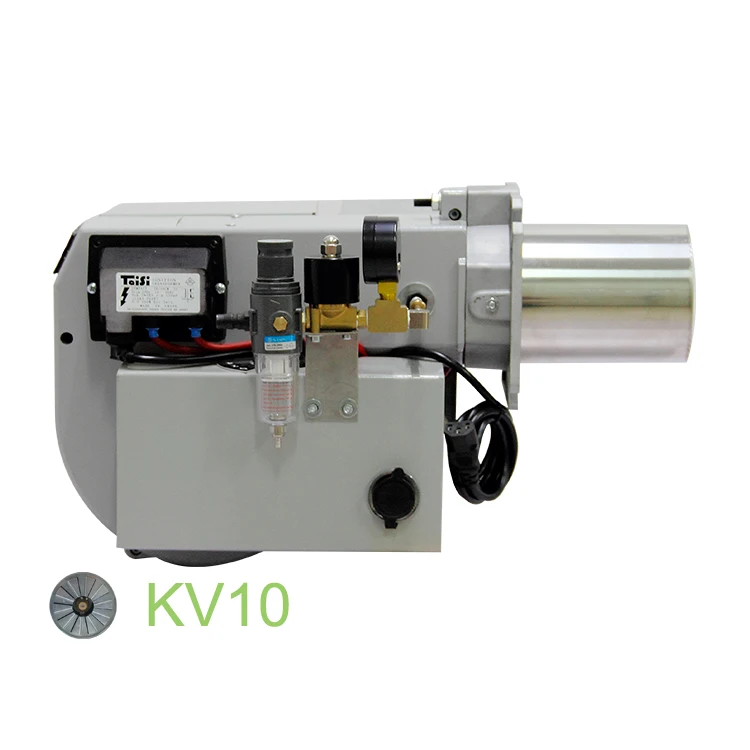

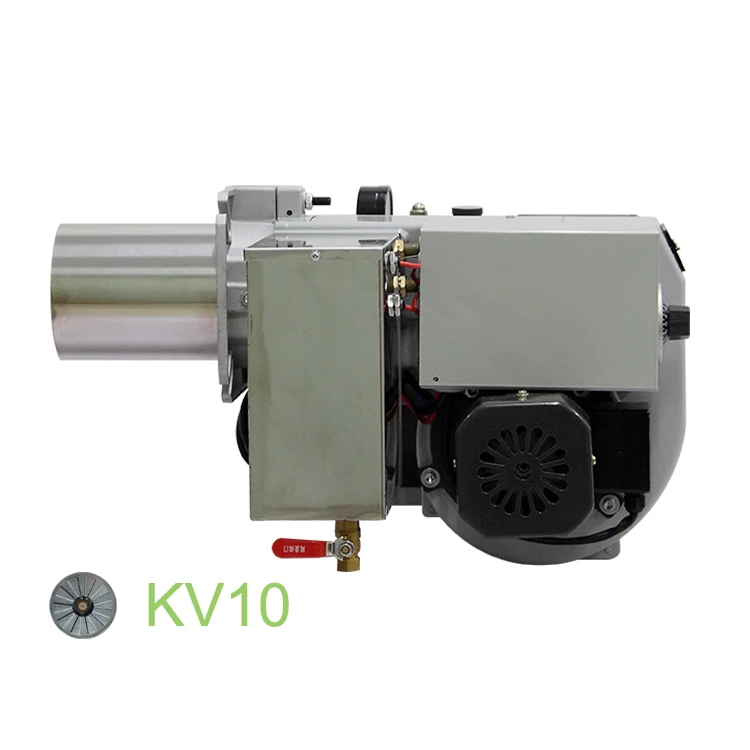

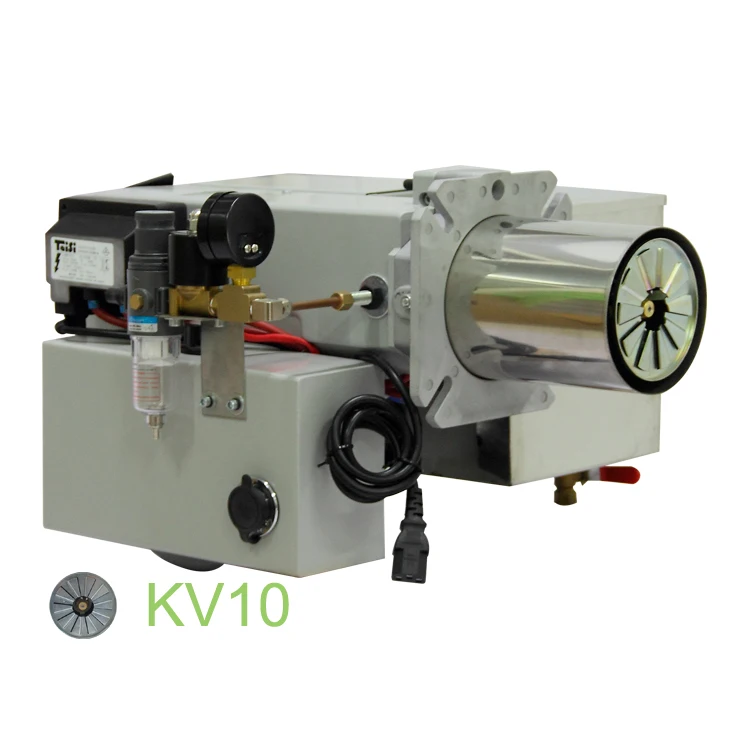

KV10 is our top popular model.
Output power is 120kw, 100 000Kcal/h; oil consumption is only 6-8 liter per hour.
KV10 has the most expansive applications for both individual and industrial areas such as boilers, heater, furnace, open oven, reactor, grain dryer, mold casting, incinerator, fryer, brick kiln.

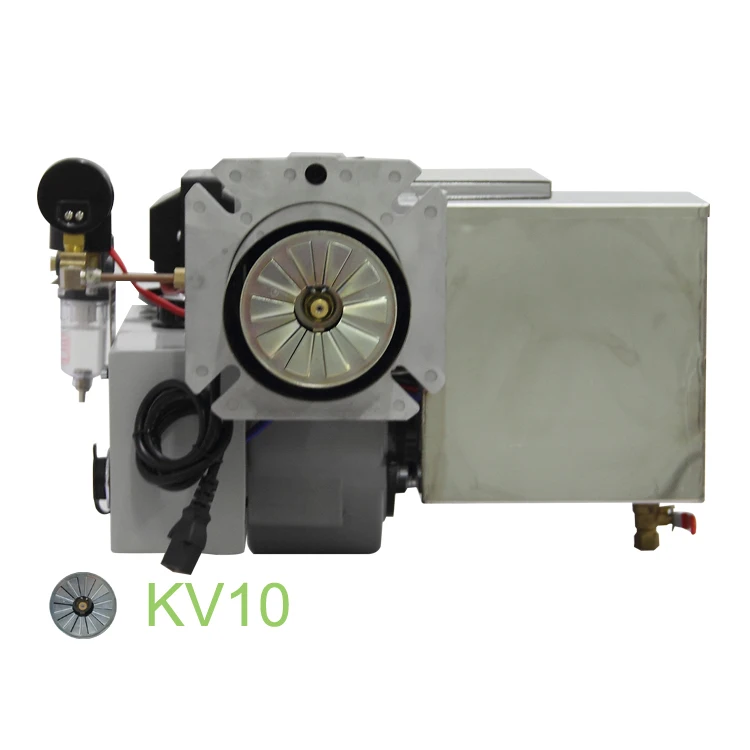

Kingwei Original Flame Ring-
Kingwei original flame ring and the specific customized nozzles guarantee sufficient combustion, strong&stable flame column, and less carbon deposits.
Kingwei original flame ring and the specific customized nozzles guarantee sufficient combustion, strong&stable flame column, and less carbon deposits.
More Fuel-
The KV10 burner can utilize all kinds of liquid oil/waste oil with or without impurities, can be divided to six types,
1) Waste car/engine oil from car, truck, garage, motor oil ,hydraulic oil, etc
2) #2-#5 fuel oil
3) Vegetable oils, like palm oil, soybean oil, used cooking oil from restaurant as well as animal fat oil, etc
4) Mix oil
5) Diesel oil
The KV10 burner can utilize all kinds of liquid oil/waste oil with or without impurities, can be divided to six types,
1) Waste car/engine oil from car, truck, garage, motor oil ,hydraulic oil, etc
2) #2-#5 fuel oil
3) Vegetable oils, like palm oil, soybean oil, used cooking oil from restaurant as well as animal fat oil, etc
4) Mix oil
5) Diesel oil
No Smoke-
KV05 Burner With Hot Water Boiler(from 1:29)-Smoke adjustment: https://youtu.be/_HSxYX7PmZ8
KV20 Burner With Waste Oil Heater-Smoke adjustment: https://youtu.be/GWDCaeN8gsk
Reference video link,
KV05 Burner With Furnace No Smoke(from a client): https://youtu.be/9uU3MQkJPDY
KV05 Burner With Furnace No Smoke(from a client): https://youtu.be/9uU3MQkJPDY
KV05 Burner With Hot Water Boiler(from 1:29)-Smoke adjustment: https://youtu.be/_HSxYX7PmZ8
KV20 Burner With Waste Oil Heater-Smoke adjustment: https://youtu.be/GWDCaeN8gsk
Intelligent-
PC Board control, works fully automatically
Work stage & malfunction readable
Work stage & malfunction readable
Multi safety protection
Factory Pricing-
Unequaled Service And Support-
1.Detailed manual & installation instructions
2.Quality warranty for one year
3.Online support & spare parts for a lifetime
2.Quality warranty for one year
3.Online support & spare parts for a lifetime
Air Compressor Selection Guide
The KV10 burner must work with an external air compressor, which guarantees a better combustion effect, longer service time than those burners needn't. Below is the reference air compressor parameter.
Waste Oil Burner Catalog
Model | |
Oil Consumption | 2-3Liter per hour |
Output Power | 14-40Kw |
Max. Output Heat | 300 000Kcal/h |
Tube Diameter | 90mm |
Nozzle | 1x1.0mm |
Voltage | 220v Or 110v |
Model | |
Oil Consumption | 2-3Liter per hour |
Output Power | 30-60Kw |
Max.Output Heat | 500 000Kcal/h |
Tube Diameter | 114mm |
Nozzle | 1x1.0mm |
Voltage | 220v Or 110v |
Model | |
Oil Consumption | 6-8Liter per hour |
Output Power | 80-120Kw |
Max. Output Heat | 100 000Kcal/h |
Tube Diameter | 114mm |
Nozzle | 1x2.0mm |
Voltage | 220v Or 110v |
Model | |
Oil Consumption | 10-12Liter per hour |
Output Power | 230Kw |
Max. Output Heat | 200 000Kcal/h |
Tube Diameter | 114mm |
Nozzle | 2x2.0mm |
Voltage | 220v Or 110v |
Model | |
Oil Consumption | 12-15Liter per hour |
Output Power | 340Kw |
Max.Output Heat | 300 000Kcal/h |
Tube Diameter | 114mm |
Nozzle | 3x2.0mm |
Voltage | 220v Or 110v |
Model: KV40
Oil Consumption: 30-40L/h
Output Power: 460Kw
Max.Output Heat: 400 000Kcal/h
Tube Diameter: 160mm
Nozzle: 4x2.0mm
Voltage: 220v Or 110v
Model: KV50
Oil Consumption: 40-50L/h
Output Power: 570Kw
Max.Output Heat: 500 000Kcal/h
Tube Diameter: 160mm
Nozzle: 5x2.0mm
Voltage: 220v Or 110v
Output Power: 570Kw
Max.Output Heat: 500 000Kcal/h
Tube Diameter: 160mm
Nozzle: 5x2.0mm
Voltage: 220v Or 110v
Model: KV60
Oil Consumption: 50-60L/h
Output Power: 690Kw
Max.Output Heat: 600 000Kcal/h
Tube Diameter: 160mm
Nozzle: 6x2.0mm
Voltage: 220v Or 110v
Output Power: 690Kw
Max.Output Heat: 600 000Kcal/h
Tube Diameter: 160mm
Nozzle: 6x2.0mm
Voltage: 220v Or 110v
Model: KV90
Oil Consumption: 70-80L/h
Output Power: 1030Kw
Max.Output Heat: 900 000Kcal/h
Tube Diameter: 160mm
Nozzle: 9x2.0mm
Voltage: 220v And 380v
Output Power: 1030Kw
Max.Output Heat: 900 000Kcal/h
Tube Diameter: 160mm
Nozzle: 9x2.0mm
Voltage: 220v And 380v
Model: KV120
Oil Consumption: 100-120L/h
Output Power: 1400Kw
Max.Output Heat: 1200 000Kcal/h
Tube Diameter: 202mm
Nozzle: 12x2.0mm
Voltage: 220v And 380v
Output Power: 1400Kw
Max.Output Heat: 1200 000Kcal/h
Tube Diameter: 202mm
Nozzle: 12x2.0mm
Voltage: 220v And 380v
Model: KV180
Oil Consumption: 120-180L/h
Output Power: 2050Kw
Max.Output Heat: 1800 000Kcal/h
Tube Diameter: 240mm
Nozzle: 18x2.0mm
Voltage: 220v And 380v
Output Power: 2050Kw
Max.Output Heat: 1800 000Kcal/h
Tube Diameter: 240mm
Nozzle: 18x2.0mm
Voltage: 220v And 380v
Model: KV240
Oil Consumption: 200-240L/h
Output Power: 2800Kw
Max.Output Heat: 2400 000Kcal/h
Tube Diameter: 240mm
Nozzle: 25x2.0mm
Voltage: 220v And 380v
Output Power: 2800Kw
Max.Output Heat: 2400 000Kcal/h
Tube Diameter: 240mm
Nozzle: 25x2.0mm
Voltage: 220v And 380v
Model: KV360
Oil Consumption: 300-500L/h
Output Power: 4090Kw
Max.Output Heat: 3600 000Kcal/h
Tube Diameter: 240mm
Nozzle: 36x2.0mm
Voltage: 220v And 380v
Output Power: 4090Kw
Max.Output Heat: 3600 000Kcal/h
Tube Diameter: 240mm
Nozzle: 36x2.0mm
Voltage: 220v And 380v
Custom-made Burner
-Upward Burner
-Artesian Oil Burner
-Burner With Length Tube
-Burner With Separate Control Box
Order Display
Company Profile
Kingwei Energy is a direct factory for waste oil heater, waste oil burner for 18 years; We set up the international sales team in 2013. Our Band is KING VITAL & KINGWEI ENERGY.
-Kingwei Workshop
Our factory mainly includes two workshops and two-section,
machine tool workshop,
burner&heater assemble workshop,
burner&heater test section,
package section
-Kingwei Team
Since the international sales team was set up, We are honored to have several reliable clients stood by us all way along. Happy
to see several customers trust us and started a dealership. We also supply burner&heater to end-users directly. We learn from all
clients&customers above. It is a fantastic journey that we may never meet but benefit from each other now.
to see several customers trust us and started a dealership. We also supply burner&heater to end-users directly. We learn from all
clients&customers above. It is a fantastic journey that we may never meet but benefit from each other now.
Andy has long exprience dealing with waste oil heater, waste oil burner. Get in touch today to discover how to utilize your waste oil once for all.
Email: andyzhang_ceo@kingweienergy.com
Helen is in our sales team since the begining. She is happy to help you find the ring product and help you ship it anywhere in the world.
Email: helenjiang_sales1@kingweienergy.com
Phone number/ Whatsapp Number/ WeChat:
+8613012513355
Tom is responsible for product quality and customized products. He has a long experience as a engineer to make sure that every component is designed and delivered to the highest possible standards.
Email: tomzhou_techsupport1@kingweienergy.com
-Company News
Factory and office are now merged together. All orders will be arranged more efficiently. All advice will be executed immediately. The Boiler workshop was set up in the year of 2018. We are ready to provide a one-stop service to utilize your waste oil!
Contact Information
Contact name: Helen Jiang
ID: cn1513245264
Phone/whatsapp/wechat: 86-130 1251 3355
Fax: 0532-68876247
Email: helenjiang_sales1@kingweienergy.com
Facebook: https://www.facebook.com/wasteoilburnersupplier
Youtube channel: https://www.youtube.com/channel/UCd2DtCB7ma4BzUwCRPVs4ow
Alibaba shop: //kingvital.en.alibaba.com
Office&factory address: No997 Wangsha Road Chengyang District Qingdao Shandong China
ID: cn1513245264
Phone/whatsapp/wechat: 86-130 1251 3355
Fax: 0532-68876247
Email: helenjiang_sales1@kingweienergy.com
Facebook: https://www.facebook.com/wasteoilburnersupplier
Youtube channel: https://www.youtube.com/channel/UCd2DtCB7ma4BzUwCRPVs4ow
Alibaba shop: //kingvital.en.alibaba.com
Office&factory address: No997 Wangsha Road Chengyang District Qingdao Shandong China
