Product Description

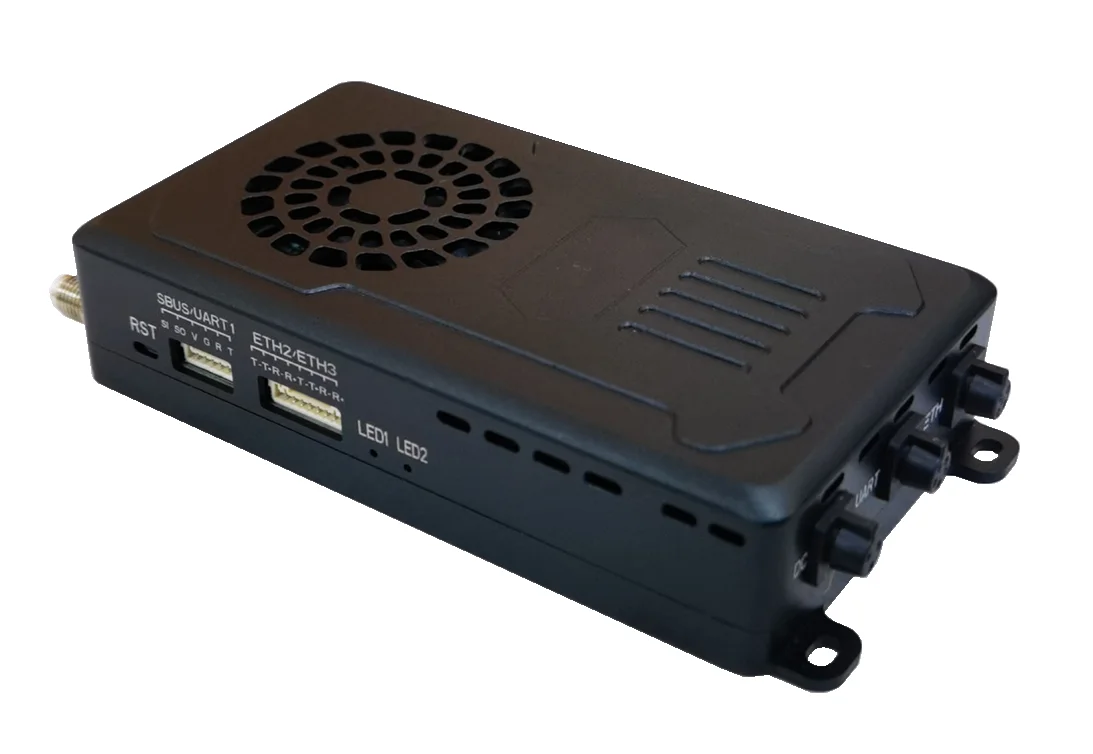

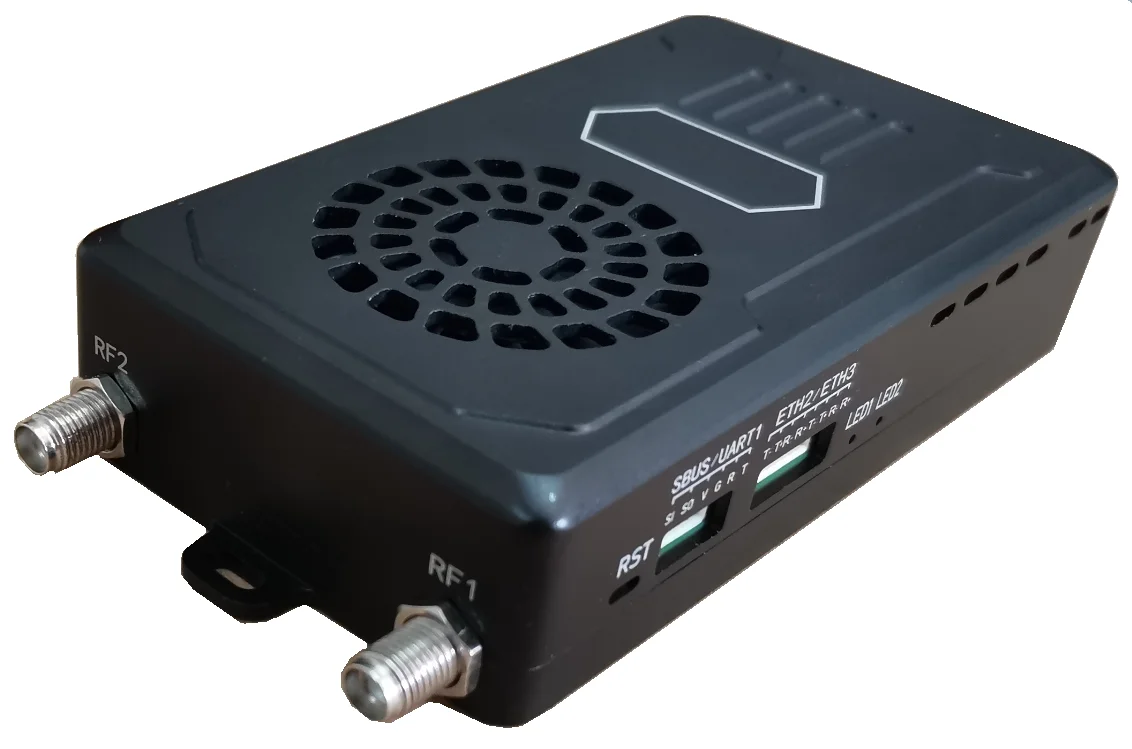

Product Name | XK-F301AE |
Material | HD wireless digital video and data transmission device |
Function | Supports simultaneous transmission of 3 network port devices. |
Package | Packed in a professional shipping box |
1. Product performance description
China Manufacturer 17km Drone Radio Transceiver UGV USV Long Range RF Video Telemetry RC Link NLOS OFDM Hopping Frequency UAV Communication Supplier 15~17km N-LOS HD Digital Tactical Defined Radio Transceiver and For UAV/UGV/USV/Vehicle 1080P Long Range RF Mobile Wireless Video data links Communication with Low Latency Video+Telemetry+RC Link. Broadband wireless video and data transmission system Two-way communication: Video+data camera control/drone control/telemetry 3 in 1 Point to Point; Point to Multi-Points relay mode.
XK-F301AE is a style of HD wireless digital video and data transmission device, with low power consumption, long communication distance and other characteristics, Supportthe transmission of the network data, flight control data, PTZ control data, remote control data...at the same time. The air unit can be configured as point-to-point and also point to multi-pointsrelay mode, Users only need to add air units to expand the application scenarios. At the same time, it has encryption function, and users can set the channel encryption key independently.
XK-F301AE supports transparent transmission protocol, which can transmit flight control data and other data information at the same time. The ground unit can interact data with ground station through serial port or network port (UDP / TCP). Support serial port and SBUs transparent transmission function.
2.Features
1. Support multiple frequency bands and multiple bandwidths.

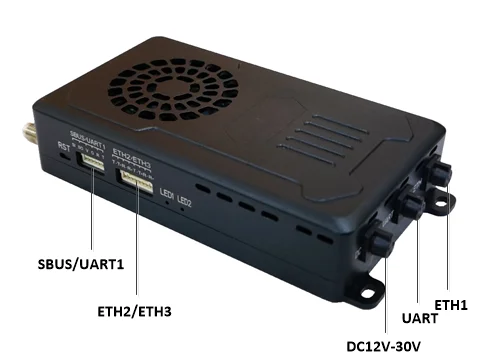

2. Rich control interface.
3. High carrier-to-noise ratio.
4. Wide input voltage range, support DC8~30V voltage input.
5. Low power consumption.
6. Downlink maximum configuration rate 30Mbps, bandwidth 20MHz, uplink maximum configuration rate 26Mbps, bandwidth 20MHz.
7. Support OTA upgrade, support local and remote upgrade.
8. Support point-to-multipoint, applicable to a variety of scenarios.
2. Rich control interface.
3. High carrier-to-noise ratio.
4. Wide input voltage range, support DC8~30V voltage input.
5. Low power consumption.
6. Downlink maximum configuration rate 30Mbps, bandwidth 20MHz, uplink maximum configuration rate 26Mbps, bandwidth 20MHz.
7. Support OTA upgrade, support local and remote upgrade.
8. Support point-to-multipoint, applicable to a variety of scenarios.
3.Functions
1. 800MHz/1.4GHz/2.4GHz working frequency band, user settable.
2. Adjustable bandwidth, including 3MHz, 5MHz, 10MHz, 20MHz.
3. Adaptive adjustment of mapping methods, including QPSK, 16QAM, 64AQM.
4. Support multiple serial ports, SBUS.

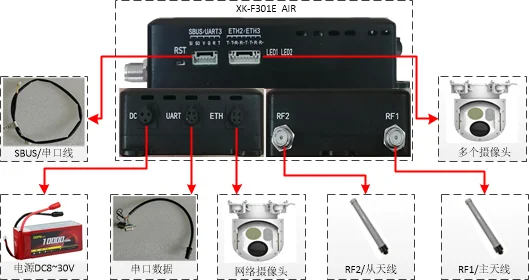

5. Supports up to 3-way network port devices to transmit at the same time.
2. Adjustable bandwidth, including 3MHz, 5MHz, 10MHz, 20MHz.
3. Adaptive adjustment of mapping methods, including QPSK, 16QAM, 64AQM.
4. Support multiple serial ports, SBUS.
5. Supports up to 3-way network port devices to transmit at the same time.
4. Technical Parameters
Item | Spec/Parameters | ||
Air Unit | Ground Unit | ||
Operation Voltage | DC8V~DC30V，Standard input DC12V | ||
Power Consumption | ≤7W @ 25dBm | ||
Modulation | OFDM | ||

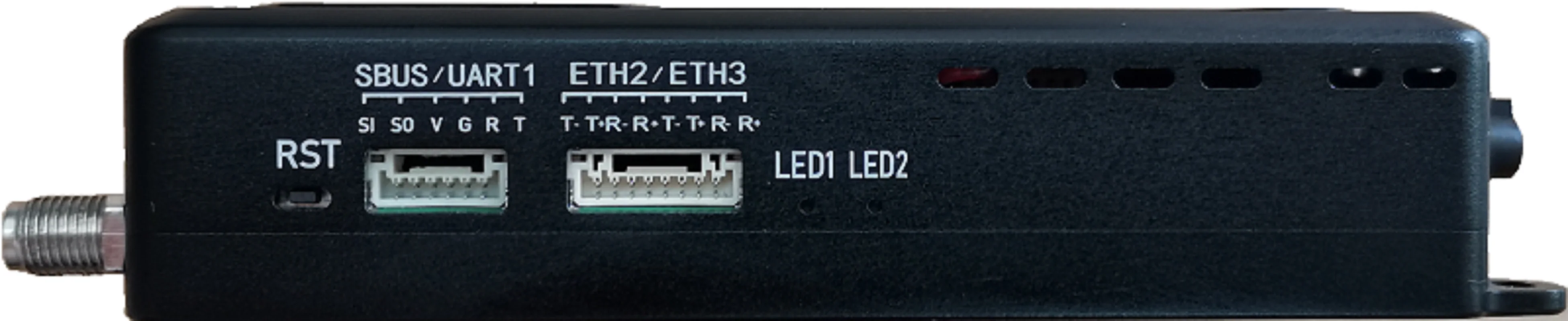

Data interface | UART（TTL/RS232）/SBUS | ||
Frequency | 800MHz/1.4GHz/2.4Ghz,adjustable | ||
Channel rate | Uplink(Max): 30Mbps，Downlink(Max):26Mbps | ||
Bandwidth | 3/5/10/20MHz | ||
Latency | ≤15ms | ||
Tx Power | ≤25dBm（Adjustable） | ||
Working temperature | -30℃~60℃ | ||
Storage temperature | -40℃~75℃ | ||
Antenna | 2.5dBi | 7dBi | |
Communication Protocol | IEEE802.3，Transparent serial data | ||
Communication | Point to Point, Point to Multi-Points relay mode | ||
Range | 15Km | ||
Dimensions | 93*58*23.5mm | ||
Weight | ≤133g | ||
Packing&Shipping
Packing: Packed in a professional shipping box
Port: Yantian, Shekou or Hong Kong
Company Introduction
Our R&D team has over 20 years of professional technical experience in design, develop, build, support and delivery ot end-to-end communications&advanced networkings. The company attaches great importance to the construction of the R&D team, with a team who with extensive industry experience and accumulation in the fields of RF communication, Baseband unit, and images processing.
Our products range includes mimo mesh network, military radio, tactical radio, software detined radio, tactical data link, ip encoder, there has also been continued demand in the areas of military C2/C3/C4ISR/C5ISR mission systems, border and perimeter security systems, unmanned aircraft systems, unmanned surtace vessels, remote controlled systems, and homeland security solutions, law enforcement and also covering film, broadcast and live stream activities that who can't risk communication failure.
Exhibitions
Testing Instruments
Certifications
Cooperative Partners
FAQ
Q1: Who we are?
A1: We are a Global leading high-tech enterprise engaged in R&D development and production of RF wireless communication systems for the broadcast, public surveillance and defense industries.
Q2: Could you support OEM&ODM ?
A2: We are able to offer you the best solutions on market by providing you OEM/ODM service.
Q3: How can you guarantee quality?
A3: For all systems before shipment, will undergo a series of tests, including vibration testing, test for functional interface&RF indicators&sensitivity¶meter settings, high and low temperature testing, trial aging testing, test the interface and all wiring, field testing outsides etc.
Q4: How long is the delivery time ?
A4: Normally small quantity orders will be dispatched within 2-5 working days after receiving payment. For bulk order, we will ship out within 10-15 days.
Q5: What is your usual payment terms for orders?
A5: T/T, Western Union.
Q6: How do we make a business long term and good relationship with you?
A6: We will protect our partner's profit by providing them with good quality products and competitive prices. We treat every customer as a friend and do business with everyone sincerely. no matter where they come from.
A1: We are a Global leading high-tech enterprise engaged in R&D development and production of RF wireless communication systems for the broadcast, public surveillance and defense industries.
Q2: Could you support OEM&ODM ?
A2: We are able to offer you the best solutions on market by providing you OEM/ODM service.
Q3: How can you guarantee quality?
A3: For all systems before shipment, will undergo a series of tests, including vibration testing, test for functional interface&RF indicators&sensitivity¶meter settings, high and low temperature testing, trial aging testing, test the interface and all wiring, field testing outsides etc.
Q4: How long is the delivery time ?
A4: Normally small quantity orders will be dispatched within 2-5 working days after receiving payment. For bulk order, we will ship out within 10-15 days.
Q5: What is your usual payment terms for orders?
A5: T/T, Western Union.
Q6: How do we make a business long term and good relationship with you?
A6: We will protect our partner's profit by providing them with good quality products and competitive prices. We treat every customer as a friend and do business with everyone sincerely. no matter where they come from.
Contact Details
Похожие товары
Лидер продаж, украшение для парка развлечений, стекловолоконная скульптура King Kong
Electronic Components The Best Quality MB90F020CPMT-GS-9165 for development boards, kits, programmers
Опорные шарики из микрофибры, Экологически чистая микрофибра, стойкость к гидролизу, ПВХ синтетическая кожа для изготовления опорных шариков
7,37 $ - 7,57 $

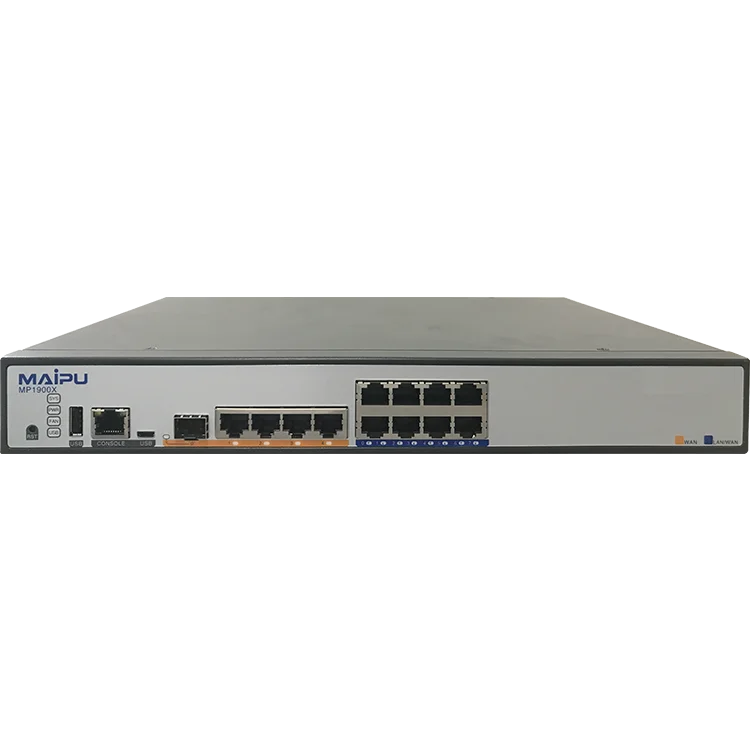

Maipu MP1900X-22 Gigabit MPLS VPN Enterprise Router GE WAN 8 Port GE LAN
285,00 $ - 500,00 $
Станок для опалубки древесины H20 станок и бетонных
1,50 $ - 2,00 $

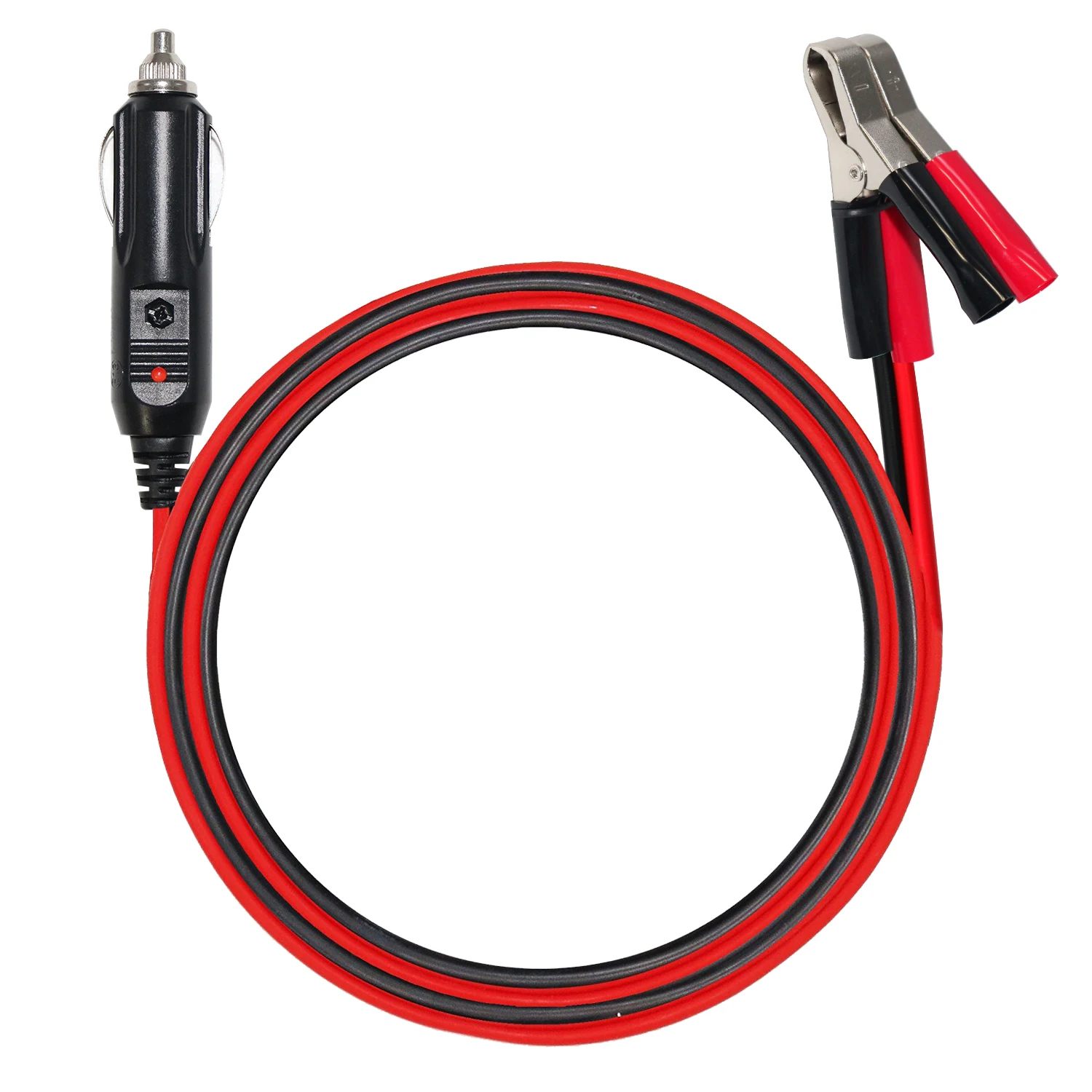

Зажим типа «крокодил» для аккумулятора, водонепроницаемый крокодиловый зажим, автоматическое Пуск, латунная линия, Автомобильный Кабель, удлинитель 12 В
0,93 $ - 1,05 $

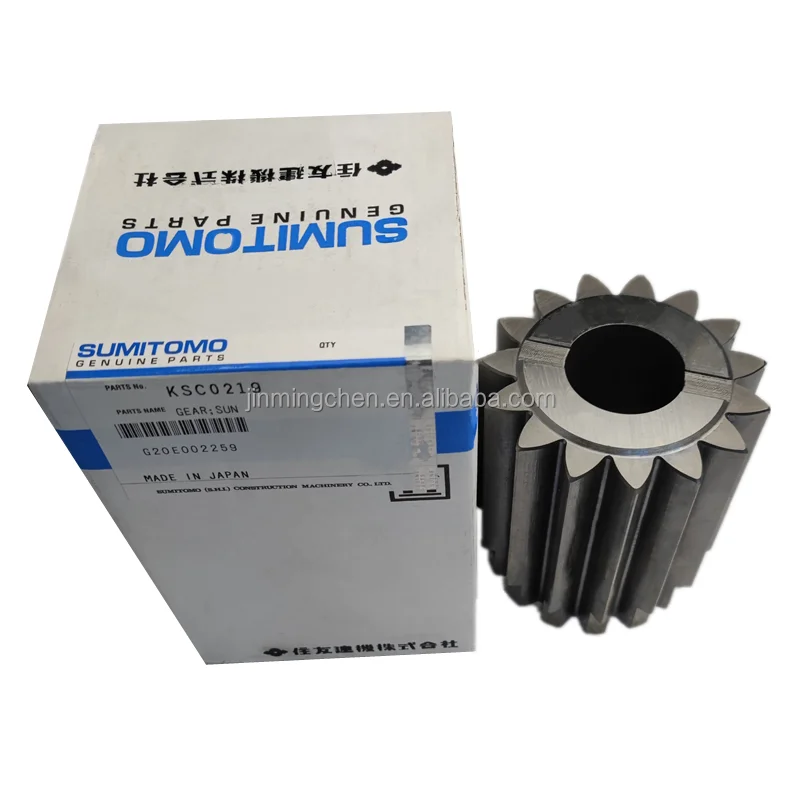

Оригинальные Запчасти для экскаватора, поворотный редуктор, вторичная Солнечная Шестерня KSC0219 для SH350-5 lbx360 X 2
