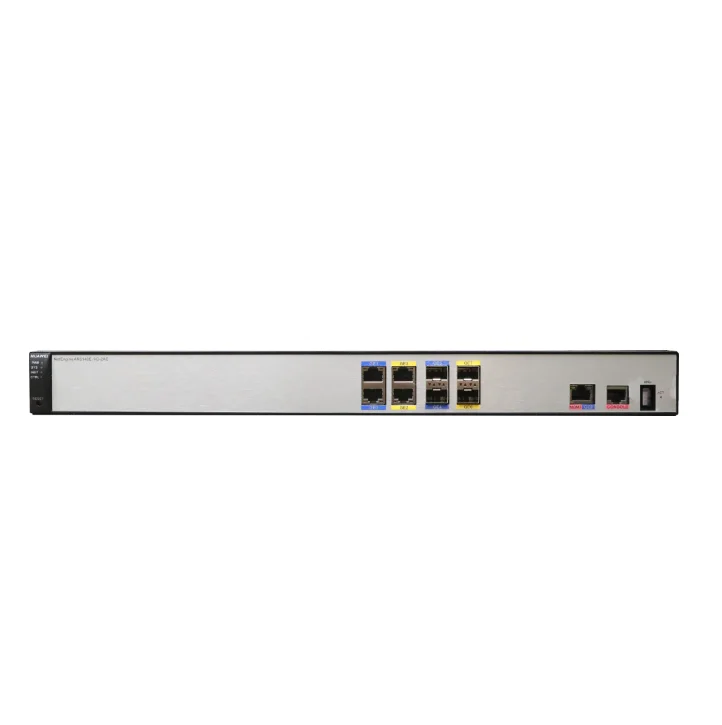

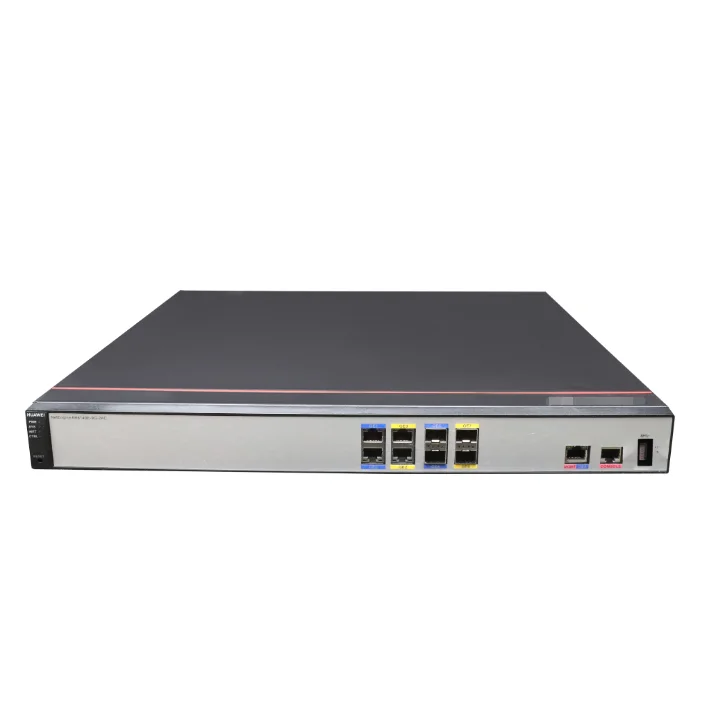

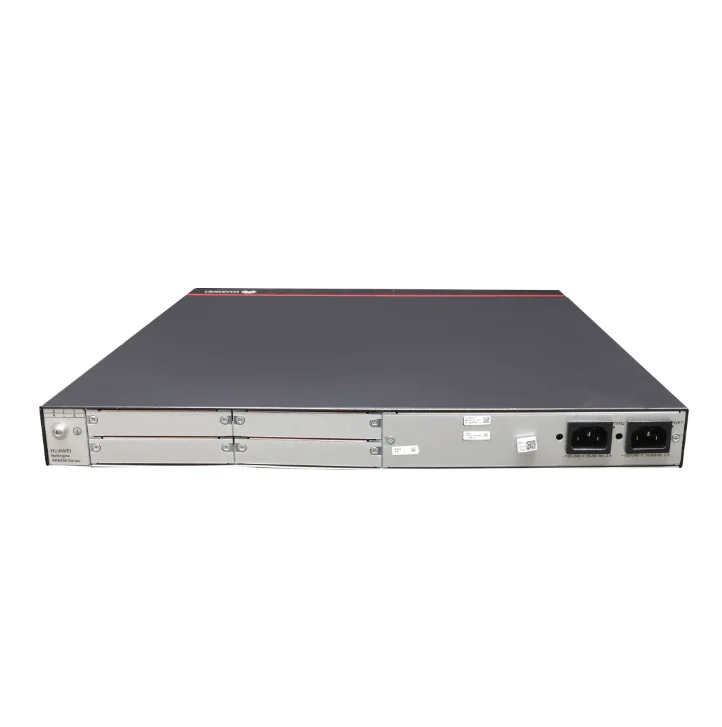

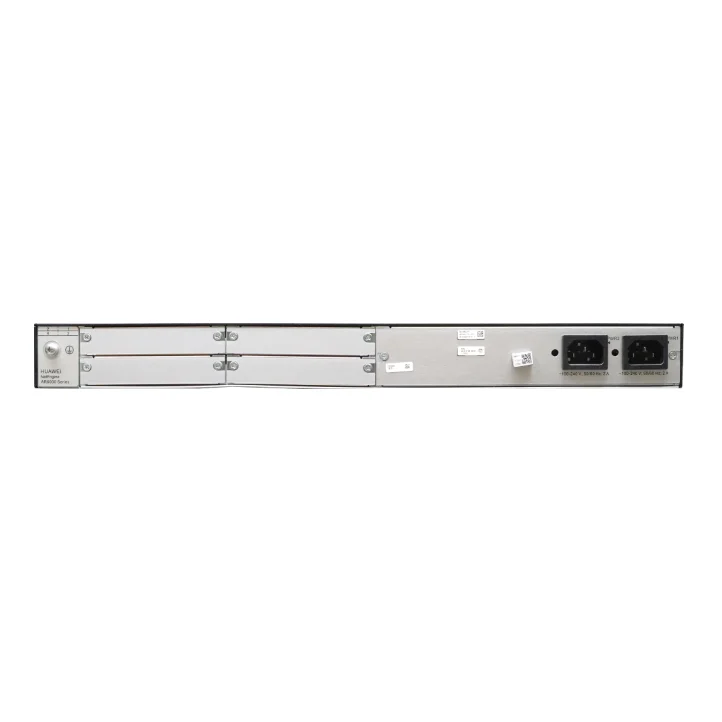

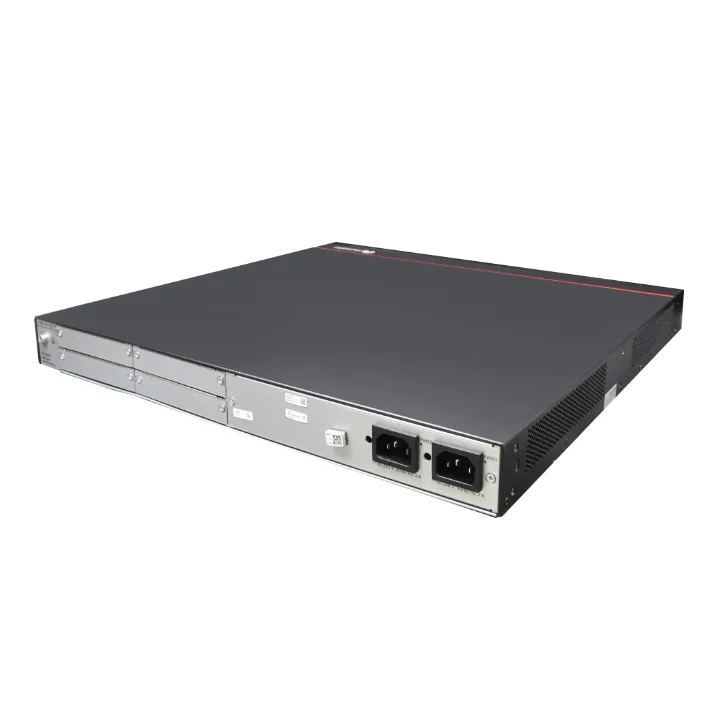

AR6140E 9G 2AC 5 GE RJ45 4 SFP порт высокопроизводительный легкий O & M сетевой двигатель
- Категория: >>>
- Поставщик: Beijing Tongruida Information Technology Co. Ltd.
Сохранить в закладки 1600933387635:
Описание и отзывы
Характеристики
Product Description
NetEngine AR6140-9G-2AC NetEngine AR6140E-9G-2AC |
⚫ Forwarding Performance: 2 Gbps ⚫ Fixed WAN ports: 2*GE RJ45, 2*GE SFP ⚫ Fixed LAN ports: 2*GE SFP, 3*GE RJ45 (can be configured as WAN) ⚫ Dimensions (H x W x D): 44.5 mm x 442 mm x 420 mm |
Item | NetEngine AR6000 | |
Basic function | DHCP server/client/relay, PPPoE server/client, NAT, and sub-interface management | |
LAN | IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, VLAN aggregation, MAC management, STP/RSTP | |
WLAN (AC) | AP management (AC discovery, AP access, and AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n/ac), WLAN QoS (WMM), WLAN security (WEP, WPA, WPA2, key management) | |
IPv4 unicast routing | Routing policies, static routes, RIP, OSPF, IS-IS, BGP | |
IPv6 unicast routing | Static routes, routing policies, RIPng, OSPFv3, IS-ISv6, BGP4+ | |
Basic IPv6 function | IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, ICMPv6, DNSv6, DHCPv6 | |
IPv6 tunneling | Manual tunnel, automatic tunnel, GRE tunnel, IPv6 over IPv4 tunnel, 6 to 4 tunnel, ISATAP | |
Multicast | IGMP v1/v2/v3, PIM-SM, PIM-DM, MSDP, MBGP, IPv6 PIM, MLD | |
MPLS | LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR | |
VPN | IPsec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, L2TPv3 VPN | |
QoS | DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance, congestion management, MQC (traffic classifier, traffic behavior, and traffic policy), hierarchical QoS, Smart Application Control (SAC) | |
WAN Optimization | Multi-fed and Selective receiving, per-packet load balancing | |
Security | ACL (v4/v6), domain-based stateful firewall, 802.1X authentication, MAC address authentication, portal authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, PKI, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, attack source tracing, online behavior management, IPS, URL filtering | |
Management and maintenance | Upgrade management, device management, web-based network management, GTL, SNMP (v1/v2c/v3), RMON, NTP, CWMP, Auto-Config, URL-based/USB-based/DHCP deployment, NETCONF/YANG, CLI, NetStream, IP FPM, TCP FPM, TWAMP Light, IP accounting, NQA | |
*** Note: V300R019C13 and later versions, NetEngine AR6000 support WAN Optimization features. | ||
Specification
Item | NetEngine AR6140-9G-2AC NetEngine AR6140E-9G-2AC | |
System Parameters | ||
Forwarding Performance (LAN - > WAN + WAN - > LAN, NAT + ACL + QoS, IMIX) | 2 Gbps | |
IPsec performance (IMIX) | 2 Gbps | |
IPsec performance (1400 bytes) | 4 Gbps | |
Fixed WAN ports | 2 x GE RJ45, 2 x GE SFP | |
Fixed LAN ports | 2 x GE SFP, 3 x GE RJ45 (can be configured as WAN) | |
5G uplink | Support 5G SIC | |
SIC slots | 4 | |
WSIC slots | 0 (default)/2 (maximum) | |
XSIC slots | 0 (default)/1 (maximum) | |
USB port | 1 x USB | |
Auxiliary or console port | 1 x RJ45 console port | |
Memory | NetEngine AR6140-9G-2AC: 2 GB NetEngine AR6140E-9G-2AC: 4 GB | |
Flash memory | 1 GB | |
Hot swapping | Supported | |
Dimensions and Weight | ||
Router dimensions, With no mounting bracket installed (H x W x D) | 44.5 mm x 442 mm x 420 mm | |
Router dimensions, With mounting bracket installed (H x W x D) | 44.5 mm x 482.6 mm x 572.5 mm | |
Weight | 5.0 kg | |
Rack | IEC | |
Occupied rack space | 1U | |
Power Specifications, Power Consumption, and Heat Dissipation | ||
Rated input voltage range (AC) | 100 V to 240 V | |
Rated input frequency (AC) | 50 Hz/60 Hz | |
Maximum input voltage range (AC) | 90 V to 264 V | |
Maximum input current (AC) | 3A | |
Maximum output power (AC) | AR6140E-9G-2AC:70W AR6140-9G-2AC:60W/70W | |
Typical power consumption | 18 W | |
Maximum power consumption | AR6140E-9G-2AC:34W AR6140-9G-2AC:32W | |
Power supply redundancy | Supported | |
Fan module | Built-in unpluggable fan modules | |
Airflow | Left to right | |
Noise level | 54 dB | |
Environment Parameters | ||
Operating temperature | 0 ºC to 45 ºC | |
Operating humidity | 5% to 95% (non-condensing) | |
Operating altitude | < 5000 m (16404.2 ft.) | |
Storage temperature | –40 ºC to +70 ºC | |
Storage altitude | < 5000 m (16404.2 ft.) | |
Product packaging
Company Profile
Beijing Tongruida Information Technology Co., Ltd. was established in 2021 with a registered capital of 5 million yuan. It is a system integrator and internet service provider specializing in network transmission equipment in Beijing, China. It is also a comprehensive enterprise that integrates warehousing, import and export, international trade, and technical services. It can provide complete business support to our global partners and customers.
The company's products include various well-known brands of network communication equipment, including switches, routers, firewalls, wireless access points, servers, etc. We focus on ICT projects in industries such as government, enterprises, hotels, education, healthcare, finance, electricity, energy, and provide solutions based on customer needs.
All employees of our company will spare no effort to provide customers with high-quality products and help them create considerable benefits and profits.
The company's products include various well-known brands of network communication equipment, including switches, routers, firewalls, wireless access points, servers, etc. We focus on ICT projects in industries such as government, enterprises, hotels, education, healthcare, finance, electricity, energy, and provide solutions based on customer needs.
All employees of our company will spare no effort to provide customers with high-quality products and help them create considerable benefits and profits.
FAQ
Q1. Who are we?
Beijing Tongruida Information Technology Co., Ltd. Our headquarters are located in Beijing, China, and we are a system integrator and internet service provider specializing in network transmission equipment.
Q2. What can you buy from us?
Network equipment: switches, routers, wireless access points, firewalls, servers.
Q3. Why did you choose us?
Our company has been engaged in the sales of network equipment for over 8 years and has many years of sales experience. Additionally, we are certified suppliers of products for Huawei, H3C, and Cisco.
Q4. How do we ensure quality?
Our products belong to well-known Chinese brands and are directly supplied by manufacturers;
Before shipment, there are also dedicated employees conducting final inspections.
Q5. What services can we provide?
Acceptable delivery conditions: FOB, CFR, CIF, EXW, FAS, etc;
Accepting payment currencies: USD, EUR, HKD, RMB, etc;
Accepted payment types: T/T, L/C, D/P D/A, PayPal, Alipay, Credit Card, Western Union Remittance, Cash, etc;
Spoken language: Chinese, English.
Beijing Tongruida Information Technology Co., Ltd. Our headquarters are located in Beijing, China, and we are a system integrator and internet service provider specializing in network transmission equipment.
Q2. What can you buy from us?
Network equipment: switches, routers, wireless access points, firewalls, servers.
Q3. Why did you choose us?
Our company has been engaged in the sales of network equipment for over 8 years and has many years of sales experience. Additionally, we are certified suppliers of products for Huawei, H3C, and Cisco.
Q4. How do we ensure quality?
Our products belong to well-known Chinese brands and are directly supplied by manufacturers;
Before shipment, there are also dedicated employees conducting final inspections.
Q5. What services can we provide?
Acceptable delivery conditions: FOB, CFR, CIF, EXW, FAS, etc;
Accepting payment currencies: USD, EUR, HKD, RMB, etc;
Accepted payment types: T/T, L/C, D/P D/A, PayPal, Alipay, Credit Card, Western Union Remittance, Cash, etc;
Spoken language: Chinese, English.
Похожие товары

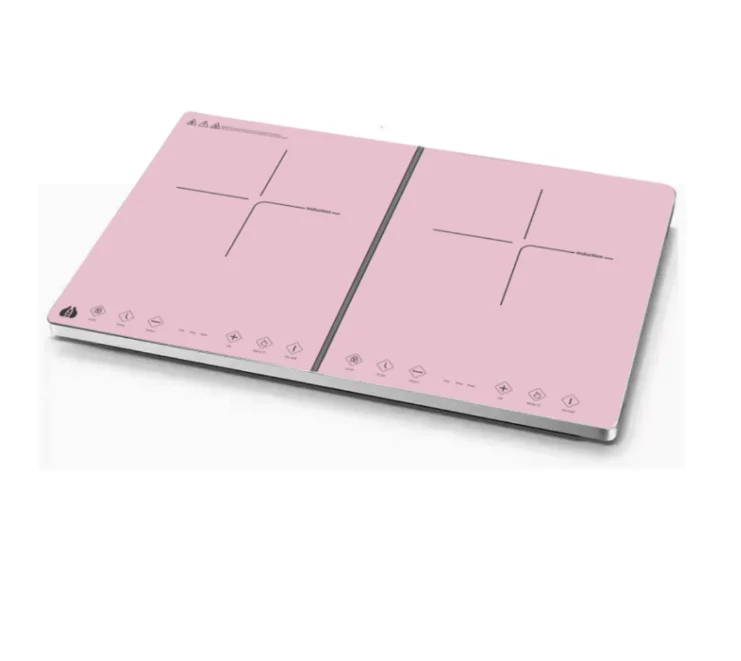

2023 новая модель бытовой техники, 2 горелки, Земляная керамическая плита, инфракрасная электрическая кухонная плита
45,00 $ - 118,00 $

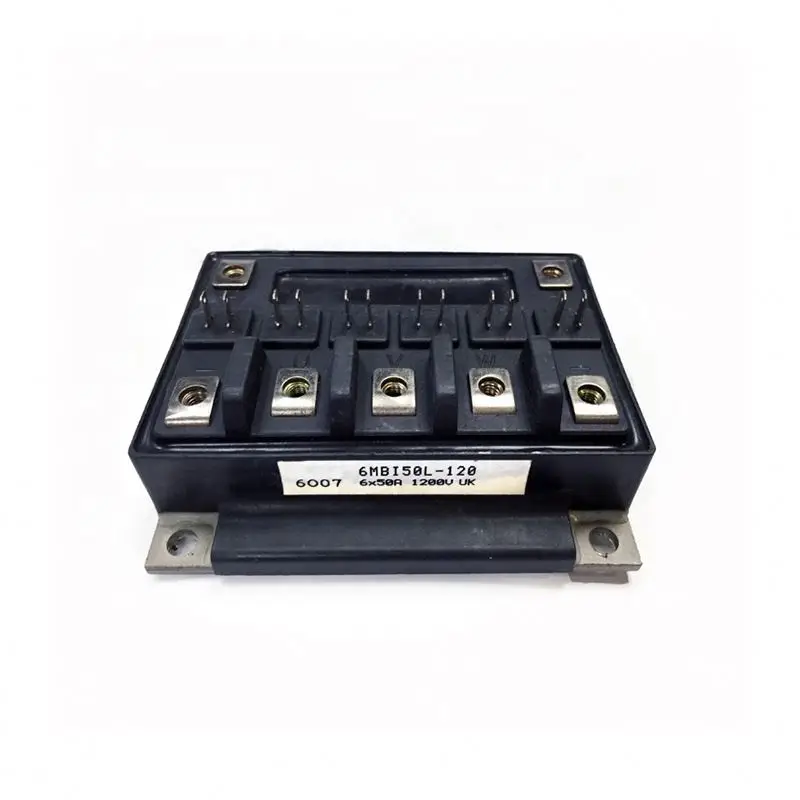

Новый и оригинальный модуль бтиз Zhida Shunfa 6MBI50JB-060 6MBI50JB 6MBI50 6MBI50JB-060

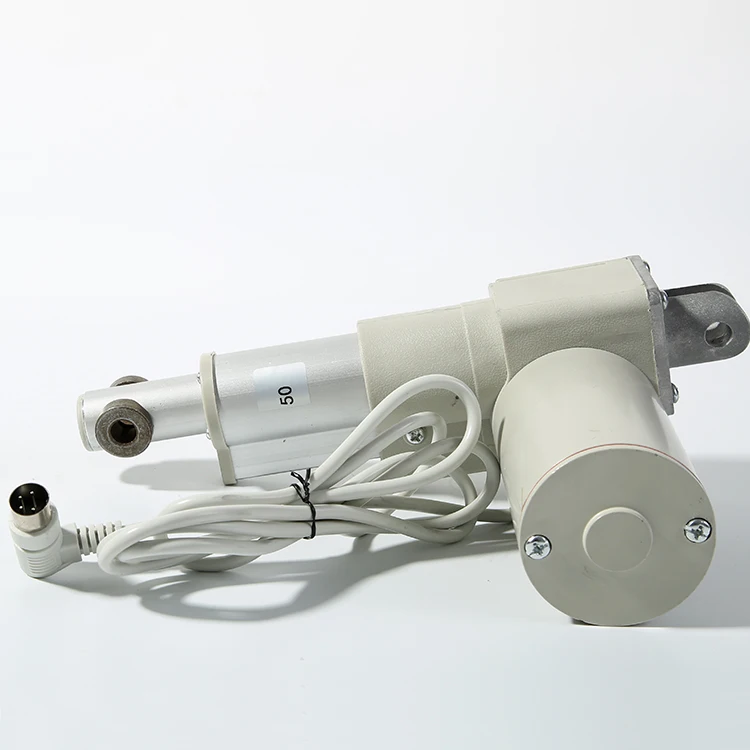

Электрический линейный привод IP42 для поколения солнечной энергии, 600 мм, 24 В постоянного тока
17,00 $ - 25,00 $

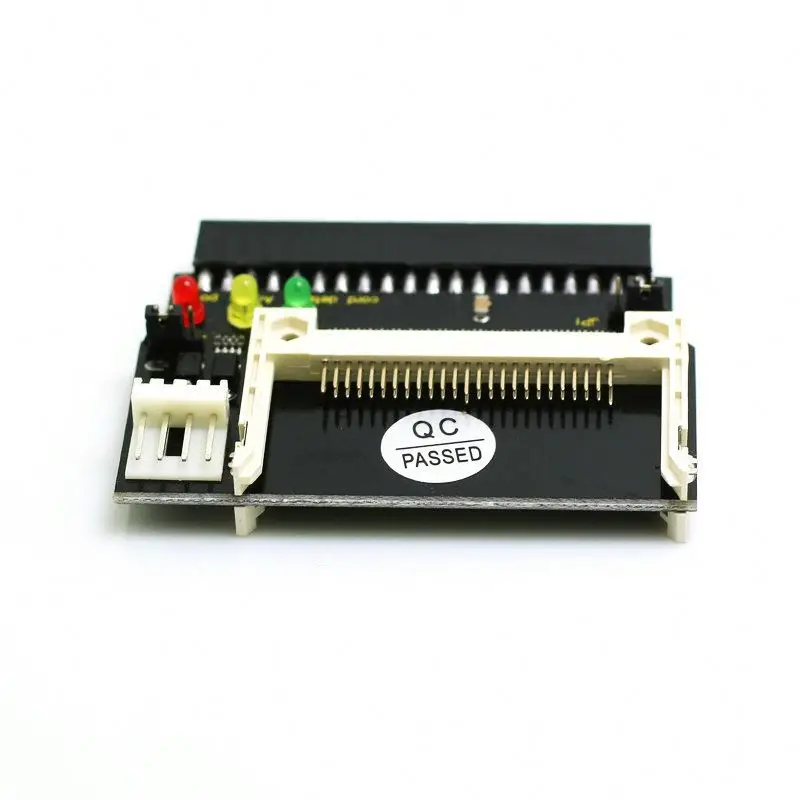

Переходная карта Compact Flash CF для IDE/SATA 40 контактный разъем IDE для CF адаптер Поддержка DMA

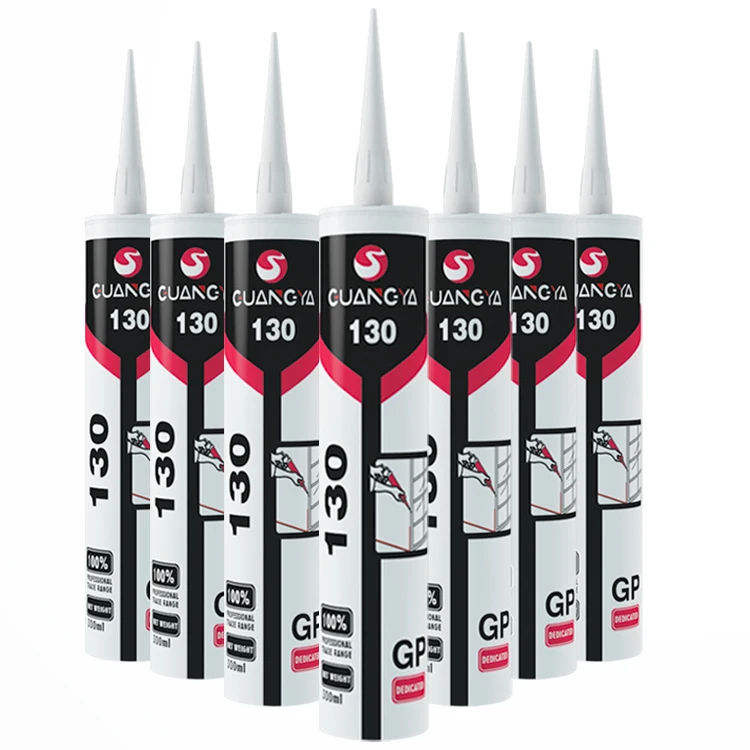

Купить оптовиков структурный сильный клей водонепроницаемый 995 upvc клей аквариум и аквариум силиконовый герметик
0,96 $ - 1,20 $

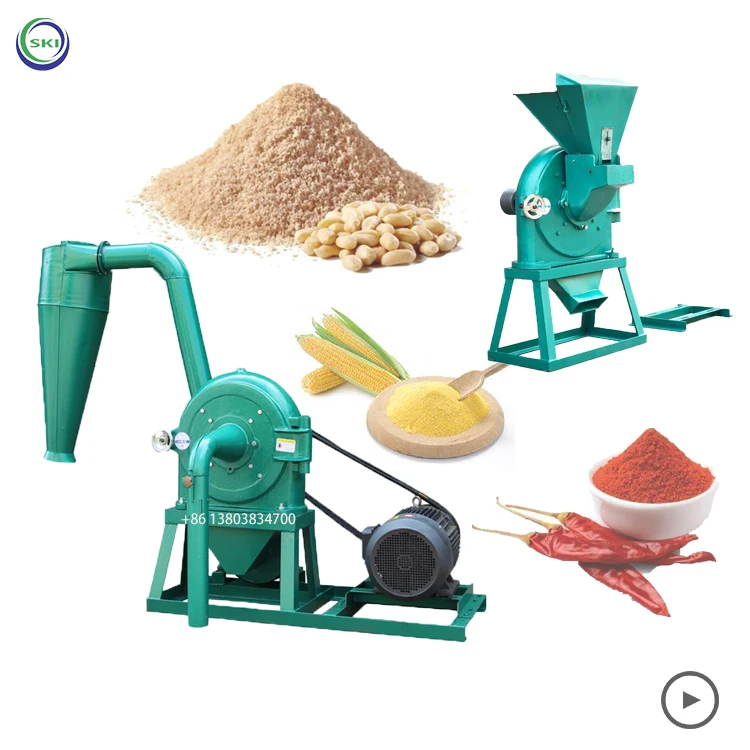

Зерновая кукурузная мука, молотковая мельница, машина для измельчения кукурузы, цена в Кении, маленький рисовый Электрический фрезерный станок для кукурузы и пшеницы
350,00 $

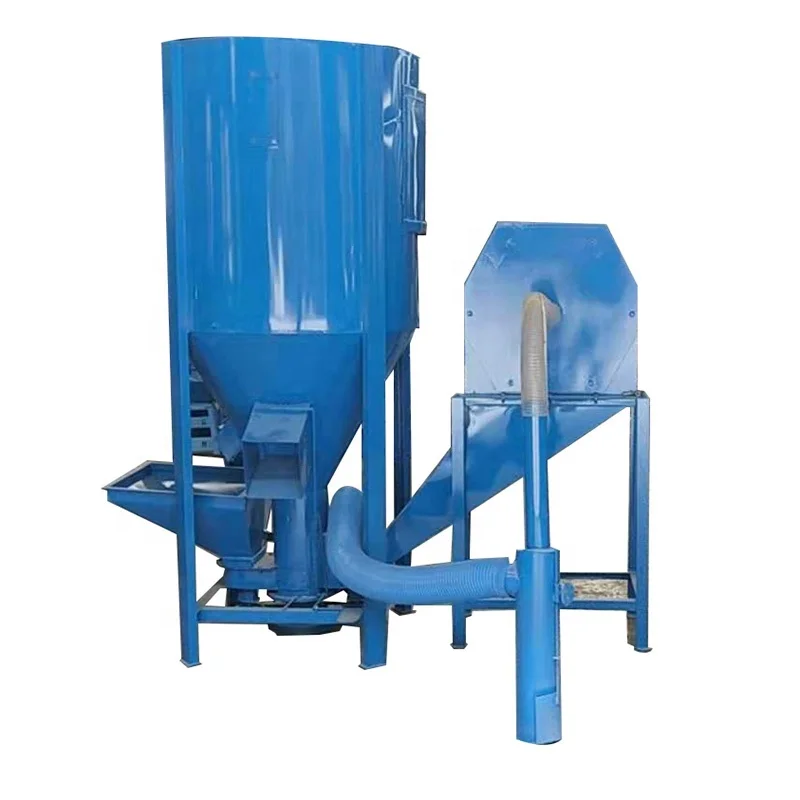

SH-500 сельскохозяйственная машина для измельчения зерна для производства корма для птицы
