HK-11WG Магнитная автоматическая тележка для сварки стальных труб для строительного оборудования
363 260,27 ₽
HK 8SS Huawei автоматическая тележка для сварки магнитным филе
- Категория: >>>
- Поставщик: Shandong Hanqi Electromechanical Equipment Co. Ltd.
Сохранить в закладки 1600967793418:
Описание и отзывы
Характеристики
Field of use
Scope of application
CO2 welding automatic trolley is widely used in ship, bridge, locomotive, steel structure, petrochemical industry and other industries. It is suitable for welding various welding structures, such as: welding of reinforcing ribs, ribs, cross parts, welding of box girders, etc.Its main advantages are: reducing labor intensity, improving working environment and improving work efficiency, which is 1.5 times higher than that of manual welding, avoiding poor quality of welds caused by human factors. Generally, poor rate of manual operation is about 20%, while automatic welding trolley does not produce poor rate of welding, so its comprehensive benefit is nearly 200% higher than that of manual welding.High degree of automation to ensure the stability of welding quality.
Products Description

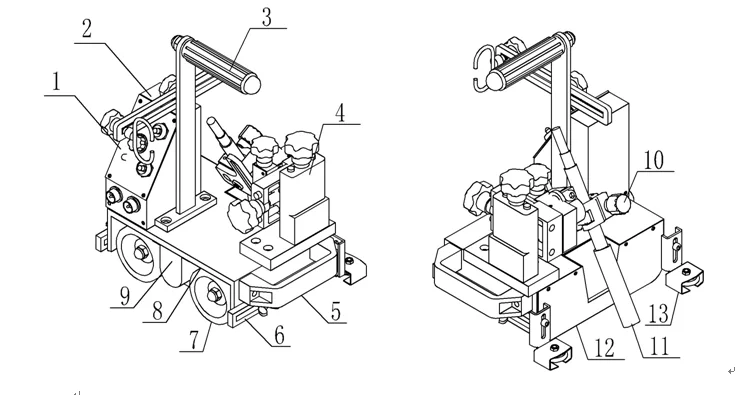

Component name and description:

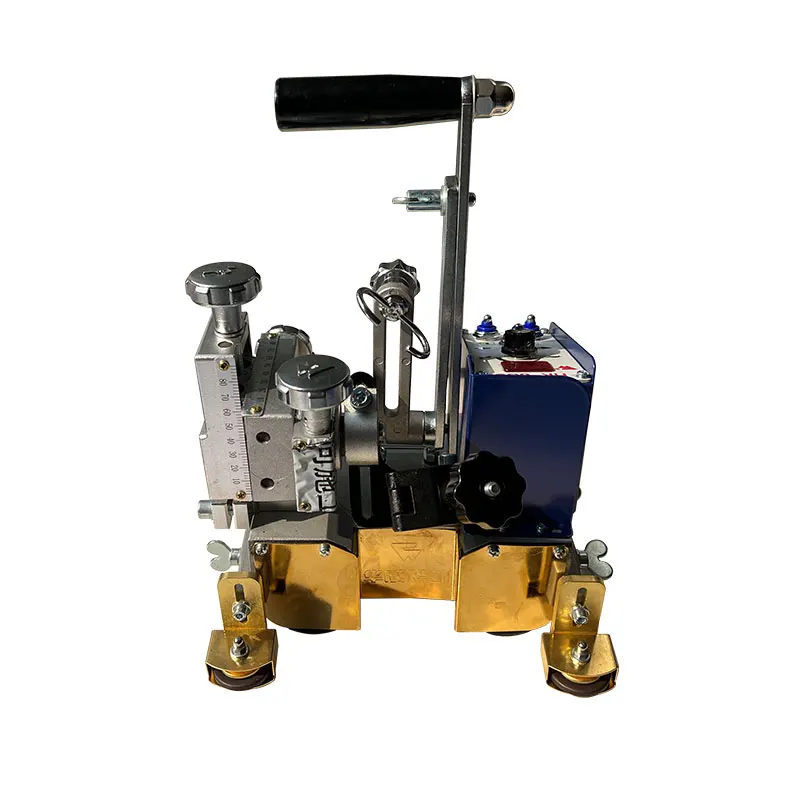

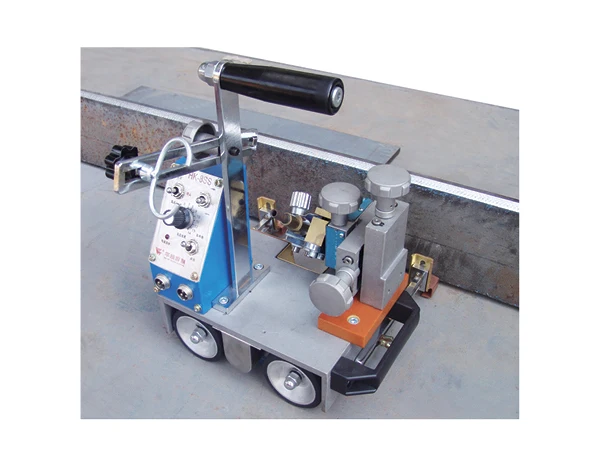

HK-8SS consists of car body, X-Y slider, guide wheel, gun handle, gun oscillator, control box and other components.
Car body part: it is the frame of the whole machine and the carrier of other parts.
Car body part: it is the frame of the whole machine and the carrier of other parts.
1. Control panel
2. Control box: can adjust all actions of the car, refer to the "Control Panel Instructions" for details.
3. Handle: Pull the handle up while moving the machine.
4.X-Y mobile slider: device for adjusting the position of welding gun, during welding, the welding gun can be fine-tuned from top to bottom.
5. Plastic handle
6. Guide Rod
7. Traveling Wheel
8. Base
9. Motor housing
10. Gun holder assembly: It is the holding device of the welding gun, which can be easily repaired, adjusted and disassembled.
11. Welding gun
12. Heat Shield
13. Guiding pulley: A device that rolls along the base metal surface to guide the precise welding area.
1. Host | 1 set |
2.DC 24V Power Supply | 1 set |
3.Three-core plug (connection line 20m) | 1 set |
4.Two-core plug (5m connecting line of welding gun) | 1 set |
5. Insurance 3A | 3 |
6. Allen wrench (M3, M4, M5, M6) | 1 each |
7. Instructions, Certificates of Compliance | 1 for each |
Product Paramenters
Main technical parameters:
1. Outline Dimensions: | 215mm×275mm×215mm | |||
2. Machine weight: | 8.5Kg | |||
3. Supply Voltage: | Input AC 220V/Output DC 24V | |||
4. Power: | 22W | |||
5. Adsorption: | 10～25Kg | |||
6. Welding speed: | 150～900mm/min | |||
7. Adjustment range of welding gun | Up and down: | 50mm | ||
left and right: | 50mm | |||
Operating angle: | ±45° | |||
Carry out angle: | 10° | |||
Rotation angle: | 360° | |||
Welding parameters:
Wire diameter: | Welding type: | φ1.2mm | φ1.4mm | φ1.6mm | |||
Current (A): | Flat welding: | 120-300 | 150-380 | 180-430 | |||
Flat fillet weld: | 120-280 | 150-320 | 180-380 | ||||
Cross welding: | 120-280 | 150-300 | 180-330 | ||||
Voltage (U): | 1) U = 14 + 0.051 2) U=0.041+16 below 300A±1.50 3) U=0.041+20 above 300A±2.0 | ||||||
Distance between nozzle and workpiece (H): | 1) H=10-15mm below 200A 2) H=15-20mm at 200-350A 3) H=20-25mm at 350-500A | ||||||
Wire Extension Length (L): | Generally take about 10 times diameter of welding wire, i.e. L=10d | ||||||

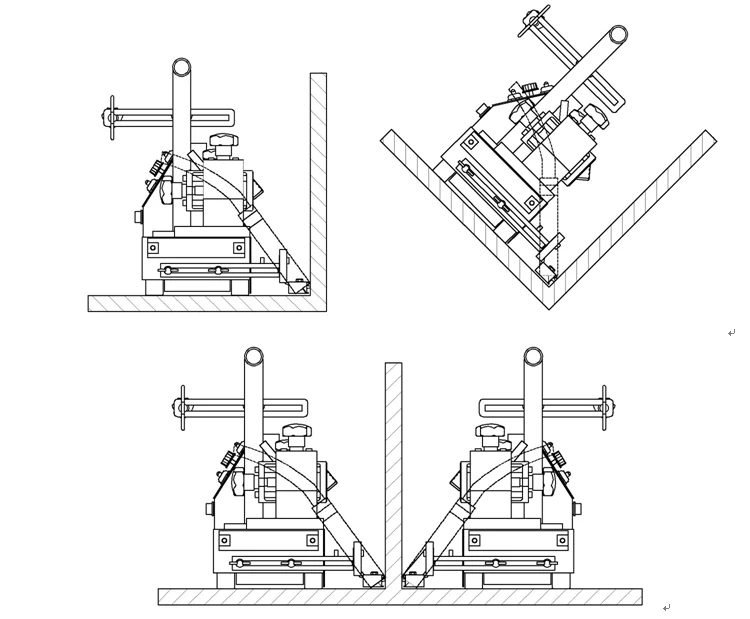

Welding application
After-sale Service
Perfect after-sales service system
1. 24h online customer service, timely reply.
2. The product is guaranteed for 12 months and the core parts are guaranteed for three years.
3. Video online technical support.
4. Free spare parts.
2. The product is guaranteed for 12 months and the core parts are guaranteed for three years.
3. Video online technical support.
4. Free spare parts.
Company Profile
FAQ
1.Q:Are you a factory or a trading company？
We are a modern company integrating industry and trade.
Our company specializes in the production of welding and cutting equipment, including MIG/TIG/MMA arc welders, and plasma cutting machines in 4 categories.
Note: if you need other mechanical and electrical equipment, we can also recommend professional supply to you.
Note: if you need other mechanical and electrical equipment, we can also recommend professional supply to you.
2.Q:Where is your factory and how can we get there?
Our factory is located in Linyi Economic and Technological Development Zone, Shandong Province.
Linyi Qiyang Airport:5mins by car
High speed railway station:45mins by car
Train station:20mins by car
3.Q:What is your delivery time?
Normally, we will deliver the goods within 45 days after confirming the sales contract and product details.
4.Q:What payment terms do you accept?
T/T or L/C at sight.
5.Q:Does your product support OEM?
Yes, we support OEM/ODM.
6.Q:How about your warranty?
Complete goods are guaranteed for one year and core parts for three years. We also offer free spare parts.
