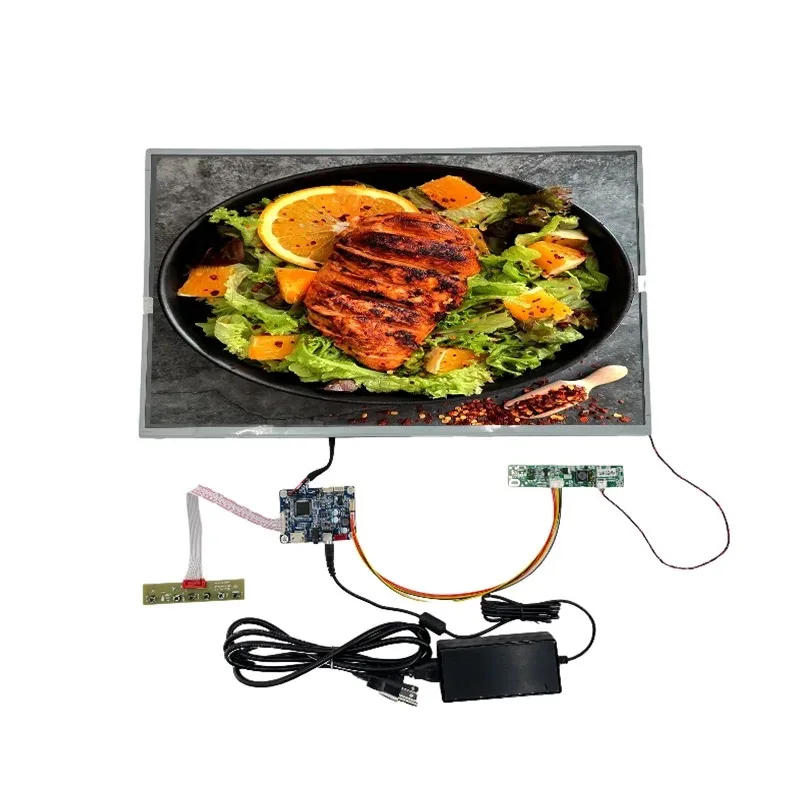

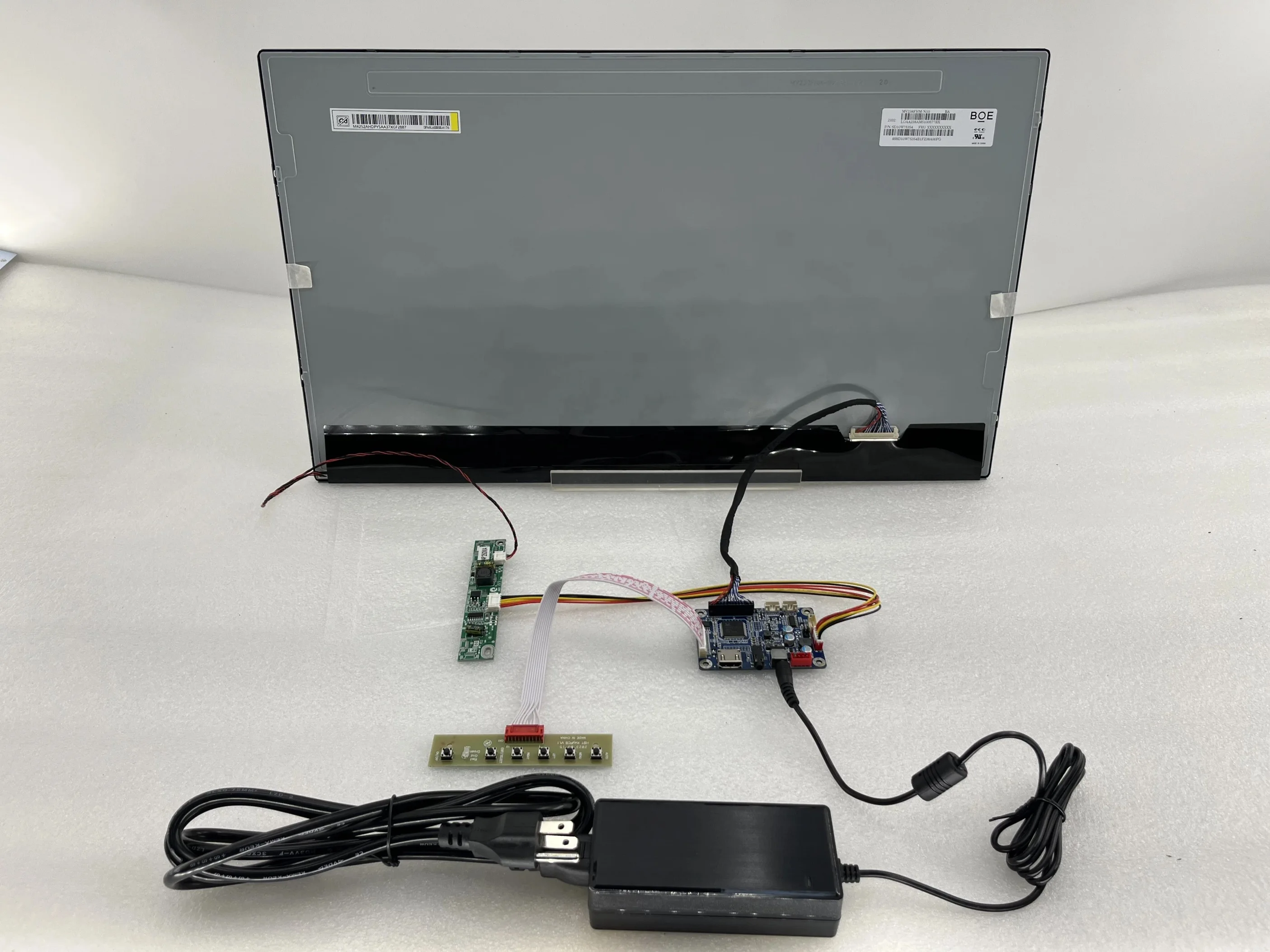

21 5 дюймовый ЖК модуль AUO TFT M215HTN01.1 1920*1080 60 Гц 30P LVDS RTD2513A панель HDM I вход поддерживается
- Категория: >>>
- Поставщик: Shenzhen Caison Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1600987954936:
Описание и отзывы
Характеристики
Product Description

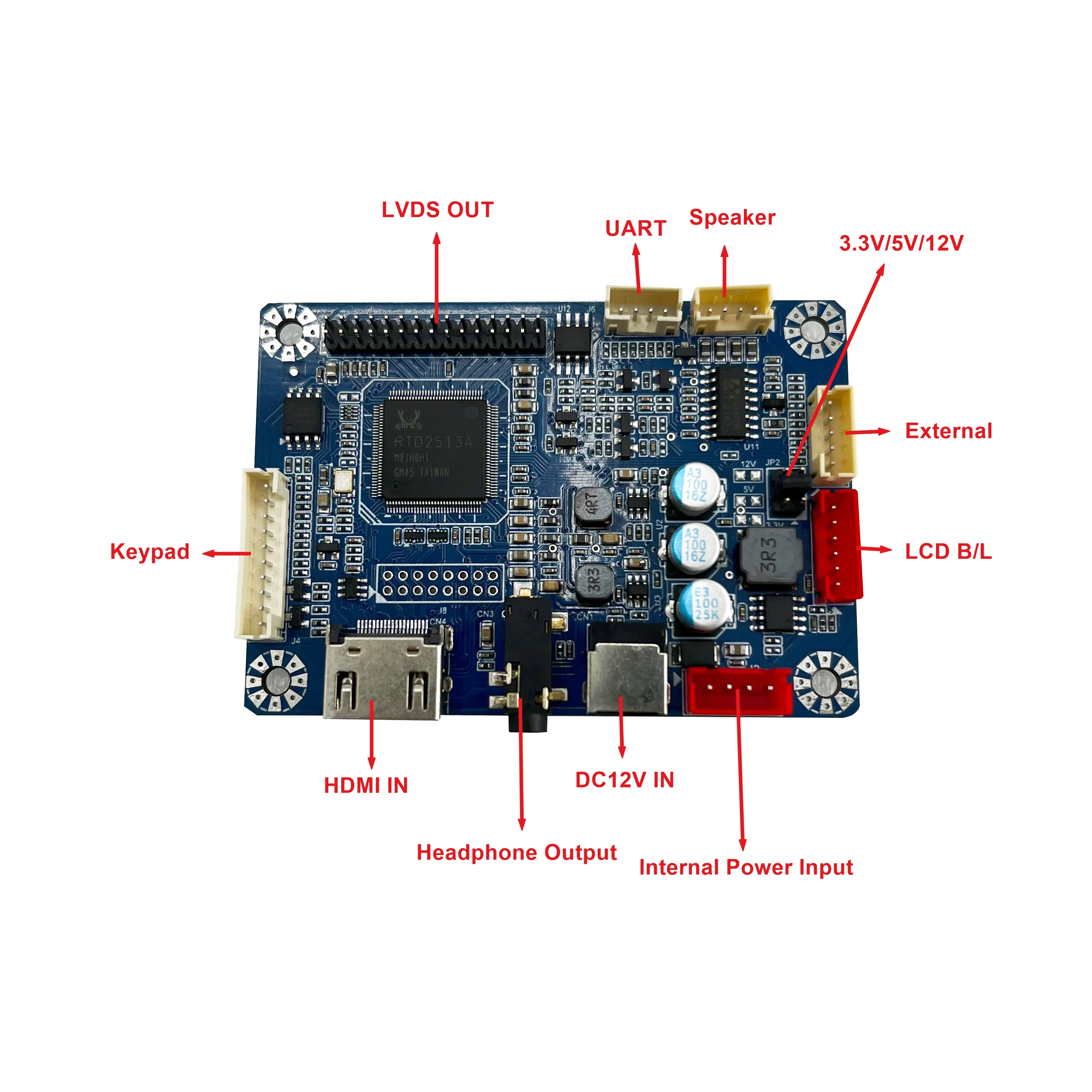

Max. Resolution up to 1920x1200@60Hz
Support 1-ch/2-ch 6-bit/8-bit LVDS panel
Support 3.3V/5V/12V panel voltage
1*HDMI1.4a input
Support 2x3W Class-D AMP at 4ohm
Support Headphones output
Keypad(5Key/6Key/7Key)
12V DC power input
Standby mode power consumption less than 0.5W
Support DDC/CI/2B protocol
Support UART protocol(TTL)
Support external sensor control(via I2C or ADC)
Support 1-ch/2-ch 6-bit/8-bit LVDS panel
Support 3.3V/5V/12V panel voltage
1*HDMI1.4a input
Support 2x3W Class-D AMP at 4ohm
Support Headphones output
Keypad(5Key/6Key/7Key)
12V DC power input
Standby mode power consumption less than 0.5W
Support DDC/CI/2B protocol
Support UART protocol(TTL)
Support external sensor control(via I2C or ADC)

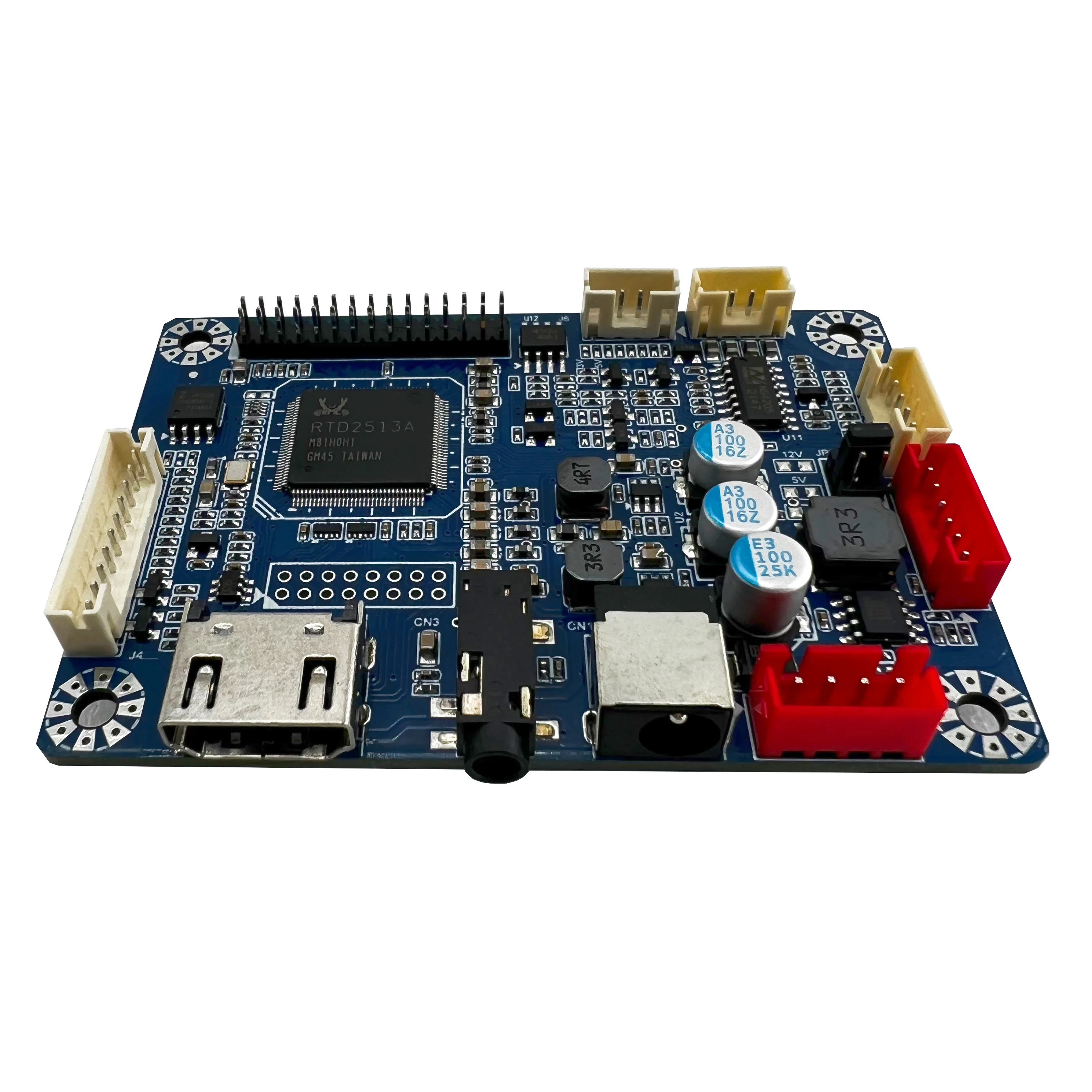

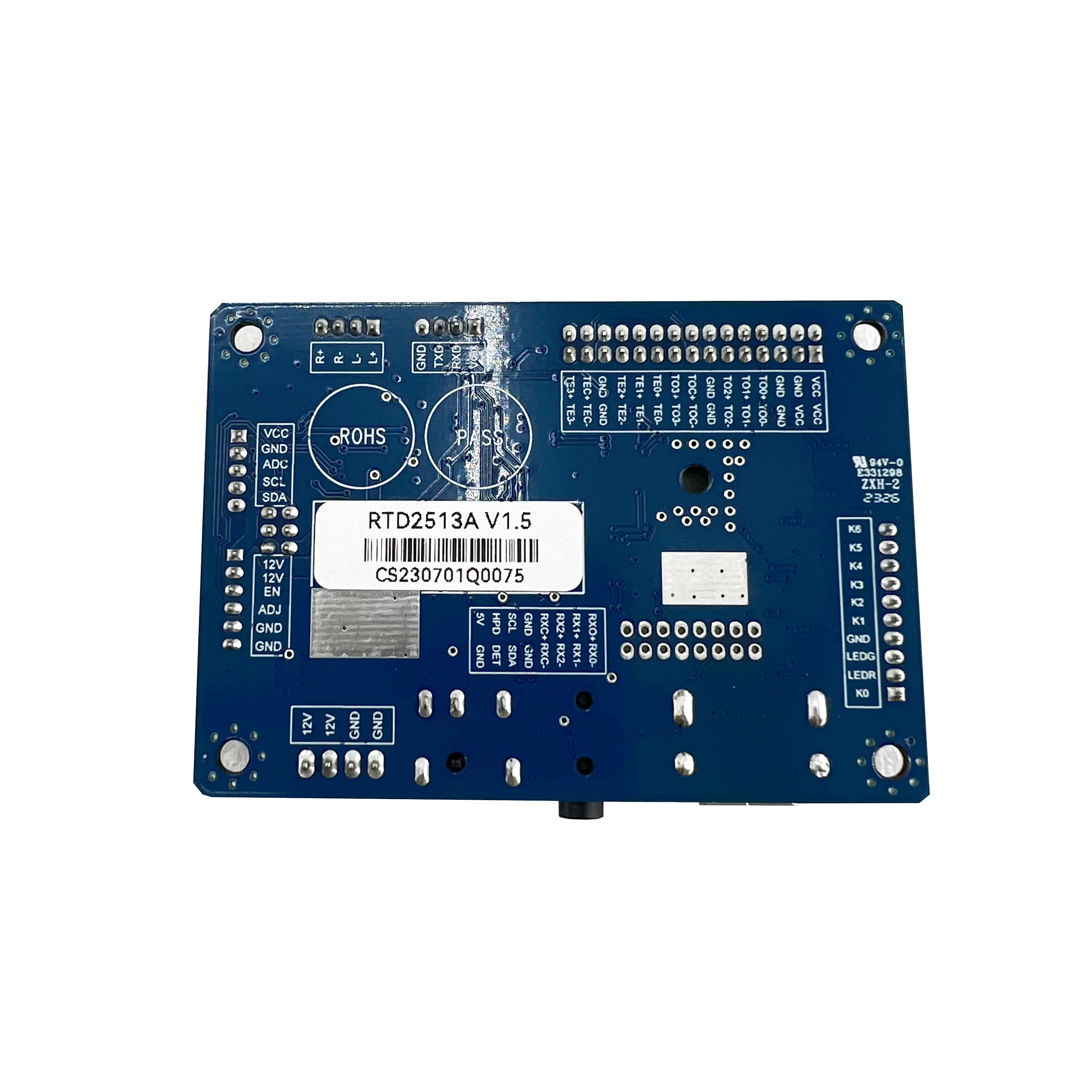

Chipset | RTD2513A | ||
Target Market | Industrial Display | ||
OSD Language | English、Simplified Chinese | ||
Voltage | 3.3V/5V/12V | ||
Interface | 1-ch/2-ch 6-bit/8-bit LVDS | ||
Resolution | 1920x1200@60Hz | ||
LED Backlight | Dimming | PWM/DC(Default is PWM) | |
Video Input | 19P Type-A, Max. resolution is 1920x1200@60Hz | ||
2.0mm 2x8P, Max. resolution is 1920x1200/60Hz | |||
Power Input | DC 12V | ||
Normal Consumption | Max. 3W(not include panel consumption) | ||
Standby Consumption | < 0.5W | ||
Standby Consumption | Power、Menu、Right、Left、Exit、Auto(Default) | 116mm(L) x 87.3mm(W) x 19mm(H) | |
2.Specification of the LCD panel
Brand | AUO | Model P/N | M215HTN01.1 | ||
Diagonal Size | 21.5" | Panel Type | a-Si TFT-LCD, LCM | ||
Resolution | 1920(RGB)×1080, FHD 102PPI | Pixel Format | RGB Vertical Stripe | ||
Active Area | 476.64(W)×268.11(H) mm | Bezel Opening | 479.84(W)×271.31(H) mm | ||
Outline(mm) | 495.6×292.2×10.8 (H×V×D) | Treatment | Antiglare, Hard coating (3H) | ||
Luminance | 250 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (TM) | ||
Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Work Mode | TN, Normally White, Transmissive | ||
View Direction | - | Response Time | 3.8/1.2 (Typ.)(Tr/Td) ms | ||
Support Color | 16.7M 72% NTSC | Light Source | 12S4P WLED , 30K hours , No Driver | ||
Weight | 1.75Kgs (Typ.) | Touch Screen | Without | ||
Refresh Rate | 60Hz | ||||
Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector | ||||
Input Voltage | 5.0V (Typ.) | ||||
Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C | ||||
