Product Description
Product Description

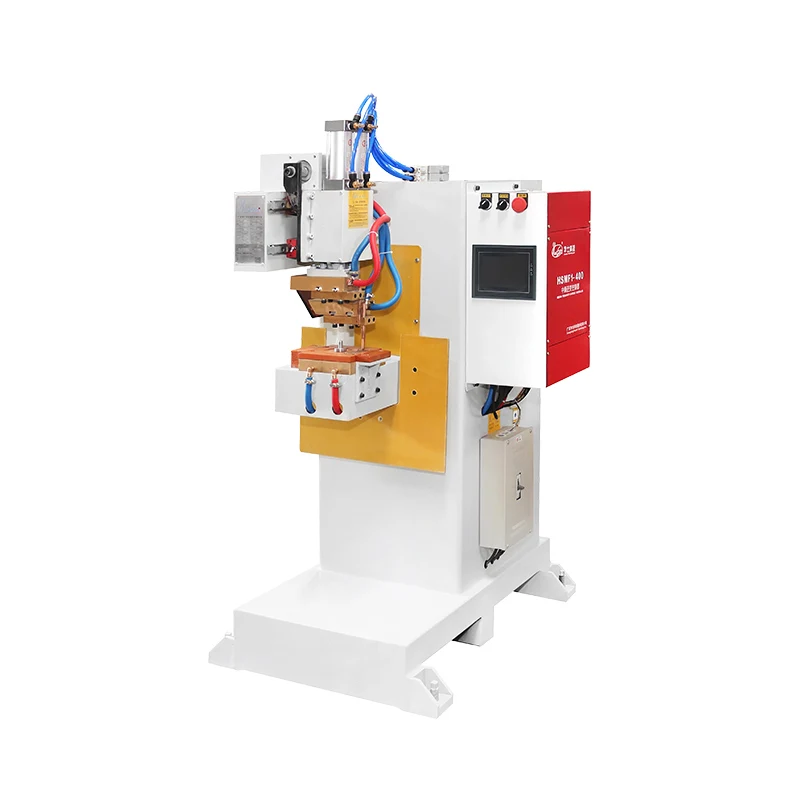

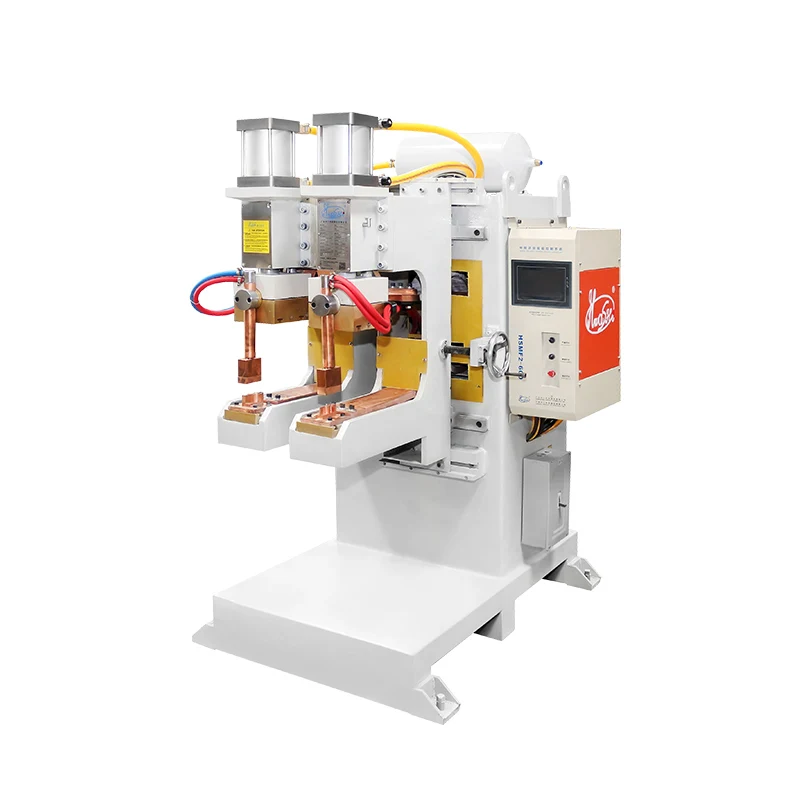

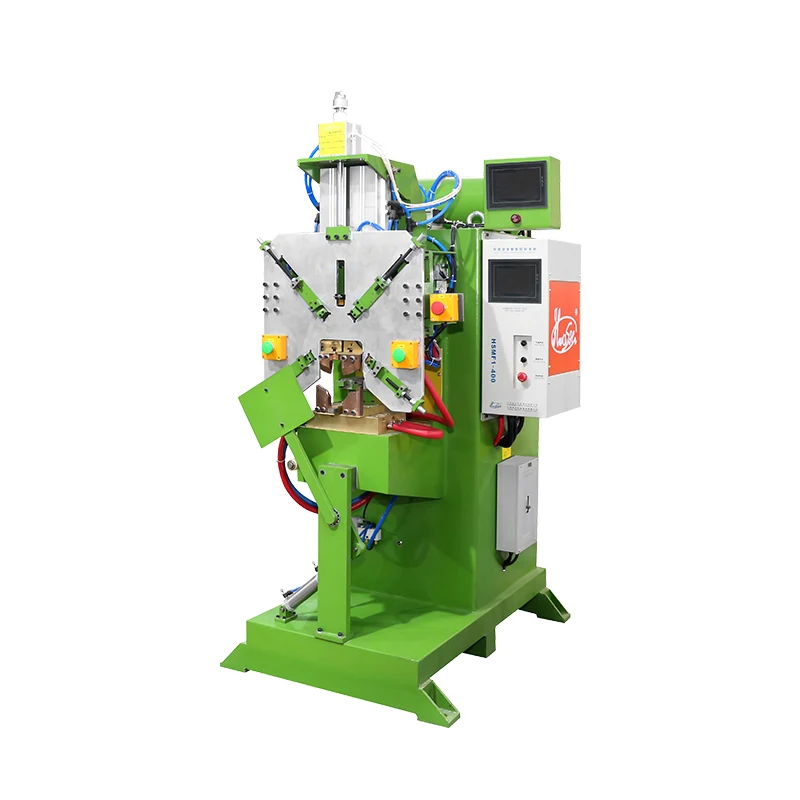

Medium frequency inverter DC spot welder Adopting the latest generation of medium frequency inverter welding controller, it has many advantages such as short power-on time, high thermal efficiency, three-phase DC output, high working frequency and small transformer loss. It is suitable for welding carbon steel, stainless steel, galvanized, copper, aluminum, aluminum alloy, iron, nickel, high strength steel, hot forming steel and other metal materials. Medium frequency spot welding machine can be widely used in auto parts, auto body, aerospace, high and low voltage electrical, household appliances, elevator, hardware and furniture, new energy and other industries.
Intelligent welding control system
Intelligent Touch Screen Controller
Input and read welding parameters.
Input and read welding parameters.
Raw materials made to standard
Thicker Copper Plate or Copper Belt To ensure stable conductivity in welding
Custom processing of electrodes
Customized Electrodes which will be suitable for Welding material like steel, aluminium, silver, stainless Steel, and nickel steel.
Shape structure and welding method
Design the right machine shape and mold according tothe welding product.
Features of The Intermediate Frequency Spot Welder
1. Three-phase power supply, grid balance, small impact on the grid
The power factor is as high as 0.7-0.9 (power frequency 0.4), which greatly reduces the reactive power loss.
2. Significantly improved welding control accuracy
The inverter frequency reaches above 1000Hz, and the welding current control ability and control accuracy are 20 times higher than those of AC welding machines.
3. Great leap in welding quality
The current waveform is straight, the size of the nugget is stable, the spatter is less, and the surface quality of the solder
joint is good.
4. Save basic investment and save energy
The grid power demand is low, only 2/3 of the AC resistance welding machine; the welding time is short and the electrode life is long.
5. Human-computer interface, easy to operate
Multiple sets of welding specifications can be stored and called with one key, real-time display of welding current and time, monitoring and alarm functions of welding pressure, cold water flow, and welding current.
The power factor is as high as 0.7-0.9 (power frequency 0.4), which greatly reduces the reactive power loss.
2. Significantly improved welding control accuracy
The inverter frequency reaches above 1000Hz, and the welding current control ability and control accuracy are 20 times higher than those of AC welding machines.
3. Great leap in welding quality
The current waveform is straight, the size of the nugget is stable, the spatter is less, and the surface quality of the solder
joint is good.
4. Save basic investment and save energy
The grid power demand is low, only 2/3 of the AC resistance welding machine; the welding time is short and the electrode life is long.
5. Human-computer interface, easy to operate
Multiple sets of welding specifications can be stored and called with one key, real-time display of welding current and time, monitoring and alarm functions of welding pressure, cold water flow, and welding current.

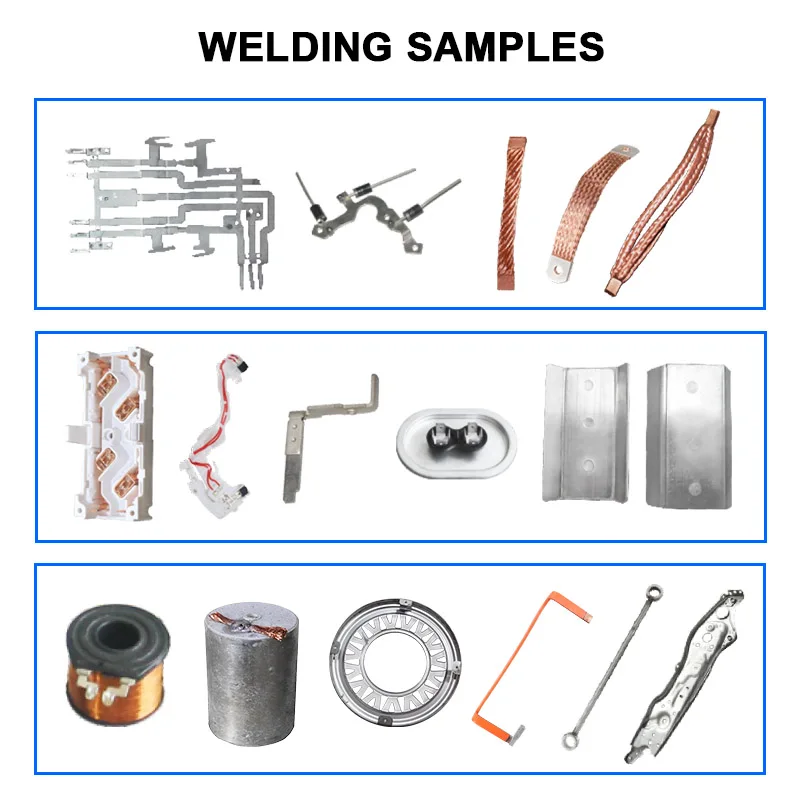

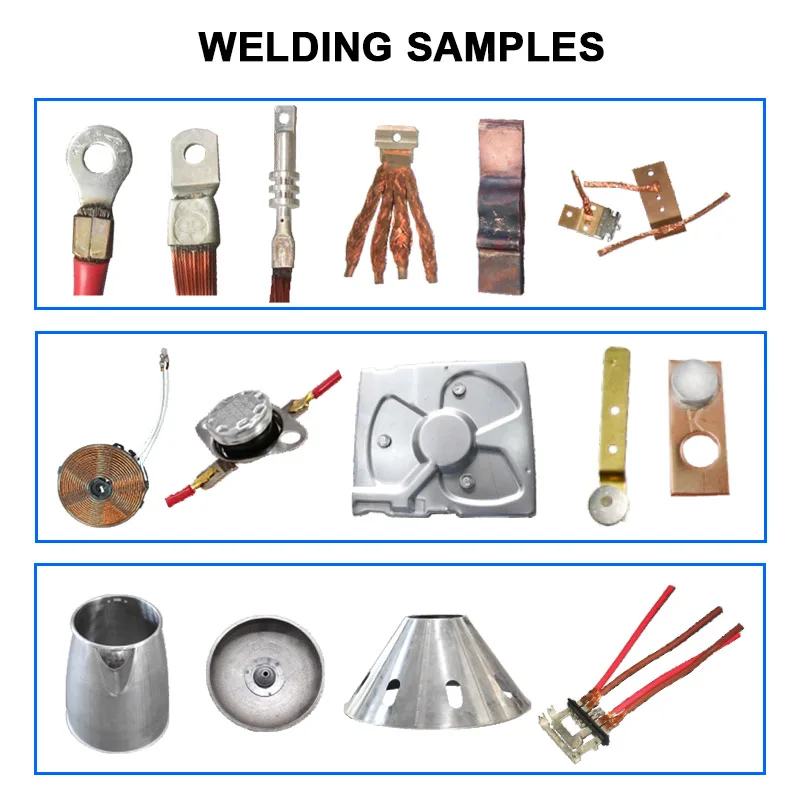

Application and samples
We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out withthe suitable technical proposal based on your samples or drawings.
Application Industry
For copper, aluminum, nickel, molybdenum, tungsten, manganese, gold, silver and other non-ferrous metal welding. Widely used in low carbon steel plate, stainless steel plate, galvanized sheet, aluminum plate, wire welding, multipoint projection welding, the automobile manufacturing industry of high strength steel, steel spot welding, nut projection welding, as well as the high and low voltage electrical industry welding of copper, silver contact and copper sheet.
Specification
Model | Voltage V | Rated Capacity KVA | Max Short Circuit Current KA | Duty Cycle Rate % | Electrode Force KG | Electrode Stroke mm | Cooling Water L/min |
WL-MF-5K | 380 3PH | 5 | 1.5 | 50 | 30 | 25 | 10 |
WL-MF-10K | 380 3PH | 10 | 3 | 50 | 100 | 50 | 20 |
WL-MF-15K | 380 3PH | 15 | 4.5 | 50 | 100 | 50 | 20 |
WL-MF-25K | 380 3PH | 25 | 7.5 | 50 | 350 | 80 | 20 |
WL-MF-35K | 380 3PH | 35 | 10 | 50 | 350 | 80 | 20 |
WL-MF-50K | 380 3PH | 50 | 13 | 50 | 800 | 100 | 30 |
WL-MF-75K | 380 3PH | 75 | 18 | 50 | 800 | 100 | 30 |
WL-MF-100K | 380 3PH | 100 | 21 | 50 | 1000 | 100 | 30 |
WL-MF-120K | 380 3PH | 120 | 23 | 50 | 1000 | 100 | 30 |
WL-MF-160K | 380 3PH | 160 | 28 | 50 | 1000 | 100 | 30 |
WL-MF-200K | 380 3PH | 200 | 32 | 50 | 1500 | 100 | 30 |
WL-MF-250K | 380 3PH | 250 | 40 | 50 | 1500 | 100 | 50 |
WL-MF-300K | 380 3PH | 300 | 48 | 50 | 2000 | 100 | 50 |
WL-MF-350K | 380 3PH | 350 | 55 | 50 | 2000 | 100 | 60 |
WL-MF-400K | 380 3PH | 400 | 62 | 50 | 2000 | 100 | 60 |
WL-MF-500K | 380 3PH | 500 | 70 | 50 | 2000 | 100 | 60 |
Factory & Certificate
HWASHI 22 years+ experience welding solutions expert
Guangdong Hwashi Technology Inc. which was established in 2001, is located in Huizhou, Guangdong province in China. We are the high-tech enterprise which is specialized in developing, manufacturing, and selling of resistance welding machine, automatic welding machine and industrial robot station. We have total two manufacturing plants covering an area about 60000 square meters.There are about 200 staffs in Hwashi, and among which there are more than 20 mechanical and electrical engineers. Most of our engineers got more than 10 years experience in welding industry. Until now, we got more than 70 patents regarding the welding machine projects. Our machines have been exported to more than 70 counrties in the world. And we have local distributor in Russia, Turkey, Romania, Saudi Arabia, Malaysia, Indonesia, India, and USA, etc. who will provide you professional pre-sales and after-sales service in local.
Certifications
We have passed the international certifications such as CE certification, ISO 9001 quality management system certification, Alibaba enterprise certification and design patents.
After-sales service & Customer visiting
1.spot welding machine 1 years warranty except consumable parts
2.Plenty of technical support online is available
3.Quick Back-up Parts Available&Technical Assistance
4."Training Video","Instruction Book",and"Operation Manual"will be offered
2.Plenty of technical support online is available
3.Quick Back-up Parts Available&Technical Assistance
4."Training Video","Instruction Book",and"Operation Manual"will be offered
Packing & Delivery
Acceptable Delivery Terms
EXW, FOB, C&F, CIF, DDU, DDP
Quality Control
Strictly control all aspects of incoming materials, processing, assembly, commissioning, testing, packaging and shipping to ensure the performance and quality of welding products.
Professional Package
1. Whole film packaging machine;
2. Anti-collision package edge;
3. Wooden box and pallets with iron binding belt.
EXW, FOB, C&F, CIF, DDU, DDP
Quality Control
Strictly control all aspects of incoming materials, processing, assembly, commissioning, testing, packaging and shipping to ensure the performance and quality of welding products.
Professional Package
1. Whole film packaging machine;
2. Anti-collision package edge;
3. Wooden box and pallets with iron binding belt.
Service Team& feedback
Professional Team
Over the years, Hwashi has cultivated a large number of talented, dedicated and innovative Hwashi people. We have a professional team of experts with rich experience in electrical engineering, mechanical design and welding technology.
Since its establishment 22 years ago, hwashi technology has traveled to all corners of the world, participated in more than 100 exhibitions and served more than 8,000 customers
FAQ
Q1: What is the price of your machine?
Answer: our machines are customized for your requirements. If you want to get the appropriate price, please provide us the following information.
Answer: our machines are customized for your requirements. If you want to get the appropriate price, please provide us the following information.
* The material and thickness of your product
* The minimum and maximum size of your product
* The welding position of your products
* The automation level that you want to achieve
* It would be better if you can provide us the detailed product drawings so our engineer can come out with the suitable
technical proposal and price for you.
Q2: What is the warranty period of your machine?
Answer: our standard warranty period is one year after shipment. If you want to extend the warranty period, there will be extra cost.
Q3: What if my machine damaged doing the warranty period?
Answer: firstly, our engineer will help you to diagnose the problem via online guidance. if any parts damaged during the warranty period, we will send the parts to you for replacement free of charge. If you can not fix he problem by replacement of the new parts, we will send engineer to your factory to help fixing the machine.
Q4: What is the delivery time of your machine?
Answer: it depends on the complexity of your machine. Most of our standard machine we got in stock, then we can shape the machine with the seven days after receiving your payment. If you need the Customized machine, normally it would take about 30-90 days to complete the machine.
Q5: Can we send the sample to you for welding test?
Answer: yes. You can send us the samples for welding test and we will send you the pictures and videos after the testing. If you need, we can also send the samples back to your country so you can check the welding quality by yourself before ordering the machine.
Q6: Can you provide us the machine drawings and technical proposal?
Answer: yes. After receiving your detailed requirement and product drawings, our engineer will come out with the suitable
technical proposal with the basic machine concept drawings to you. Be size after you placing the order we will send you the more detailed design drawings of the machine to you for confirmation. Only after you confirming the drawings then we will start the manufacturing process.
Q7: What’s your payment terms?
Answer: we can accept the following payment terms: T/T, L/C, Western Union, Alibaba trade assurance. (we prefer you to choose the Alibaba trade assurance order. If you are not satisfied with the machine that you order, or we delay the shipping time, then you can apply the complaint on alibaba.com. )
Q8: How can we install the machine?
Answer: for some simple machines we will provide you the english operation manual, the operation video and also we will provide you the online guidance and training to your engineer so you can set up the machine easily. For some complicated machines, we will send engineer to your country to help installation and training. But there will be extra cost for Engineer, including the salary,visa cost, round-trip ticket cost, and accommodation fee will be covered by the buyer.
* The minimum and maximum size of your product
* The welding position of your products
* The automation level that you want to achieve
* It would be better if you can provide us the detailed product drawings so our engineer can come out with the suitable
technical proposal and price for you.
Q2: What is the warranty period of your machine?
Answer: our standard warranty period is one year after shipment. If you want to extend the warranty period, there will be extra cost.
Q3: What if my machine damaged doing the warranty period?
Answer: firstly, our engineer will help you to diagnose the problem via online guidance. if any parts damaged during the warranty period, we will send the parts to you for replacement free of charge. If you can not fix he problem by replacement of the new parts, we will send engineer to your factory to help fixing the machine.
Q4: What is the delivery time of your machine?
Answer: it depends on the complexity of your machine. Most of our standard machine we got in stock, then we can shape the machine with the seven days after receiving your payment. If you need the Customized machine, normally it would take about 30-90 days to complete the machine.
Q5: Can we send the sample to you for welding test?
Answer: yes. You can send us the samples for welding test and we will send you the pictures and videos after the testing. If you need, we can also send the samples back to your country so you can check the welding quality by yourself before ordering the machine.
Q6: Can you provide us the machine drawings and technical proposal?
Answer: yes. After receiving your detailed requirement and product drawings, our engineer will come out with the suitable
technical proposal with the basic machine concept drawings to you. Be size after you placing the order we will send you the more detailed design drawings of the machine to you for confirmation. Only after you confirming the drawings then we will start the manufacturing process.
Q7: What’s your payment terms?
Answer: we can accept the following payment terms: T/T, L/C, Western Union, Alibaba trade assurance. (we prefer you to choose the Alibaba trade assurance order. If you are not satisfied with the machine that you order, or we delay the shipping time, then you can apply the complaint on alibaba.com. )
Q8: How can we install the machine?
Answer: for some simple machines we will provide you the english operation manual, the operation video and also we will provide you the online guidance and training to your engineer so you can set up the machine easily. For some complicated machines, we will send engineer to your country to help installation and training. But there will be extra cost for Engineer, including the salary,visa cost, round-trip ticket cost, and accommodation fee will be covered by the buyer.
