API 16A всех размеров F HF S U типа резиновый уплотнитель для протирки
542 179,50 ₽
Гидравлический и ручной Обрезной конический резиновый кольцевой противовыбросовый превентор
- Категория: >>>
- Поставщик: Orchid Energy Co. Ltd.
Сохранить в закладки 1601003647043:
Описание и отзывы
Характеристики
Products Description
Blowout preventers (BOP) are the most important well control devices and play an important role in drilling, especially in underbalanced drilling. The purpose of designing a blowout preventer is to close the wellbore under pressure, maintain continuous control of the well, and circulate the formation fluid entering the well.

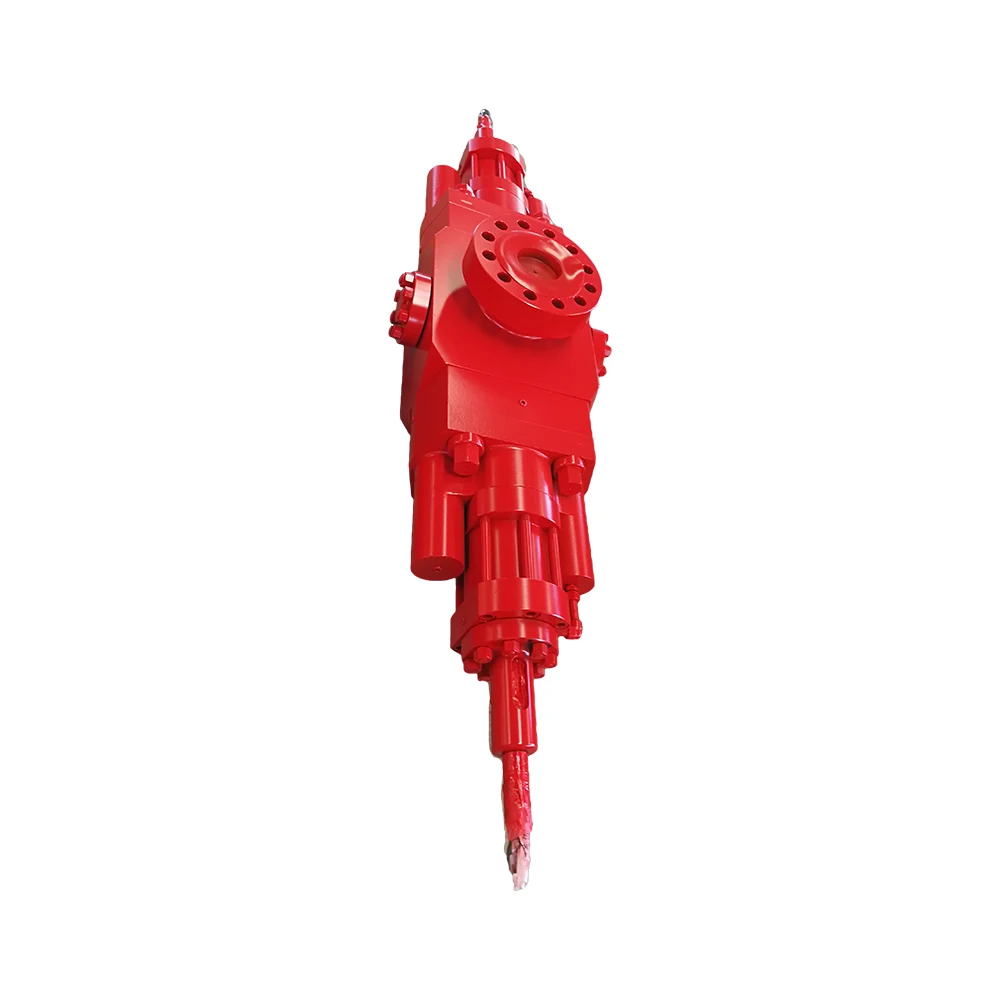

Hydraulic BOP mainly come in two forms: RAM BOP and ANNULAR BOP.

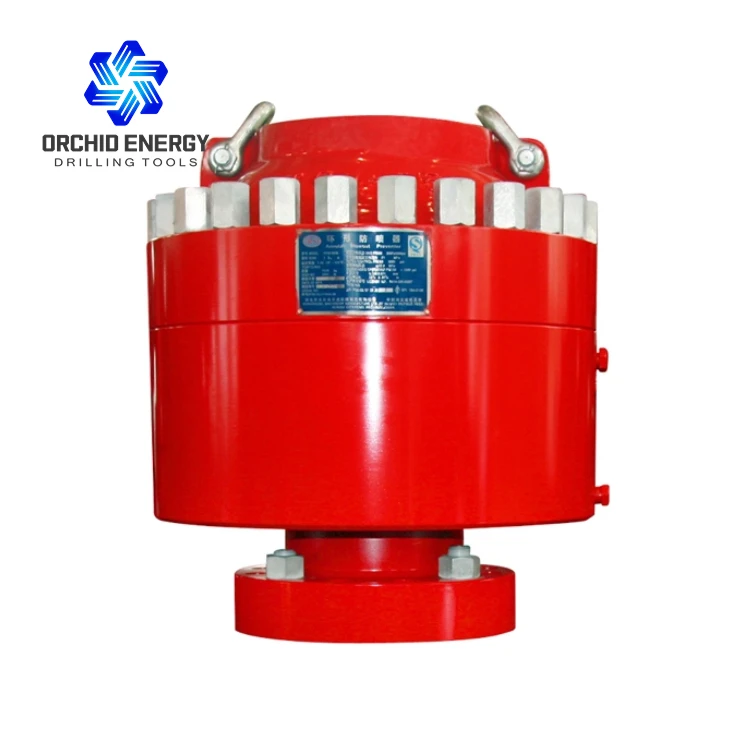

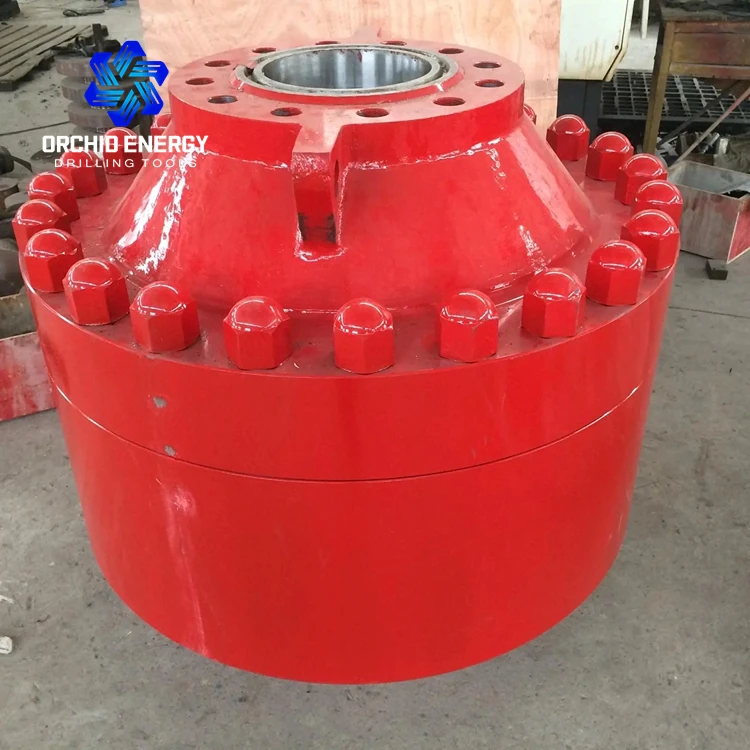

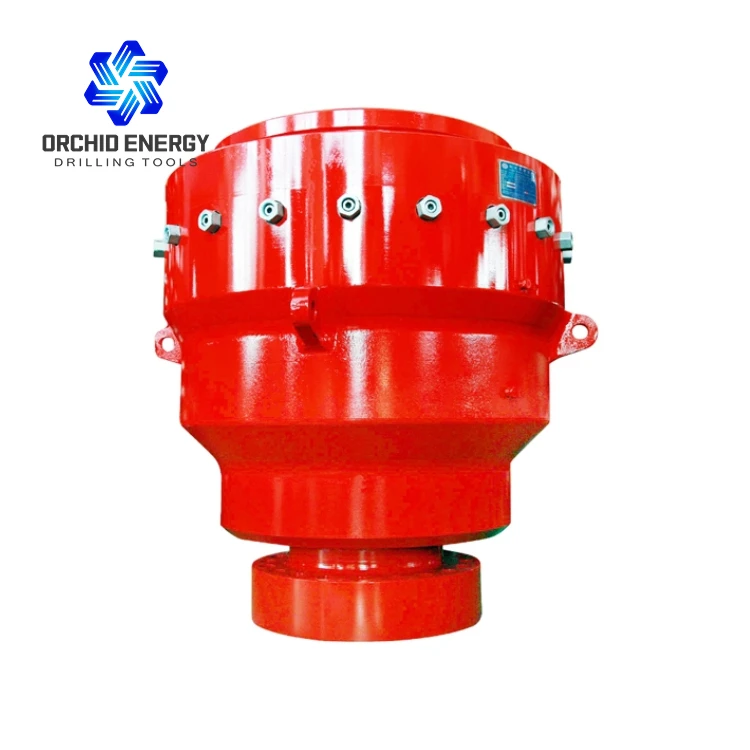

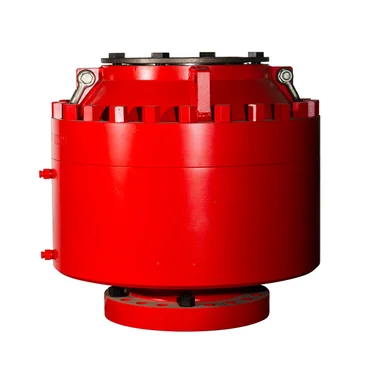

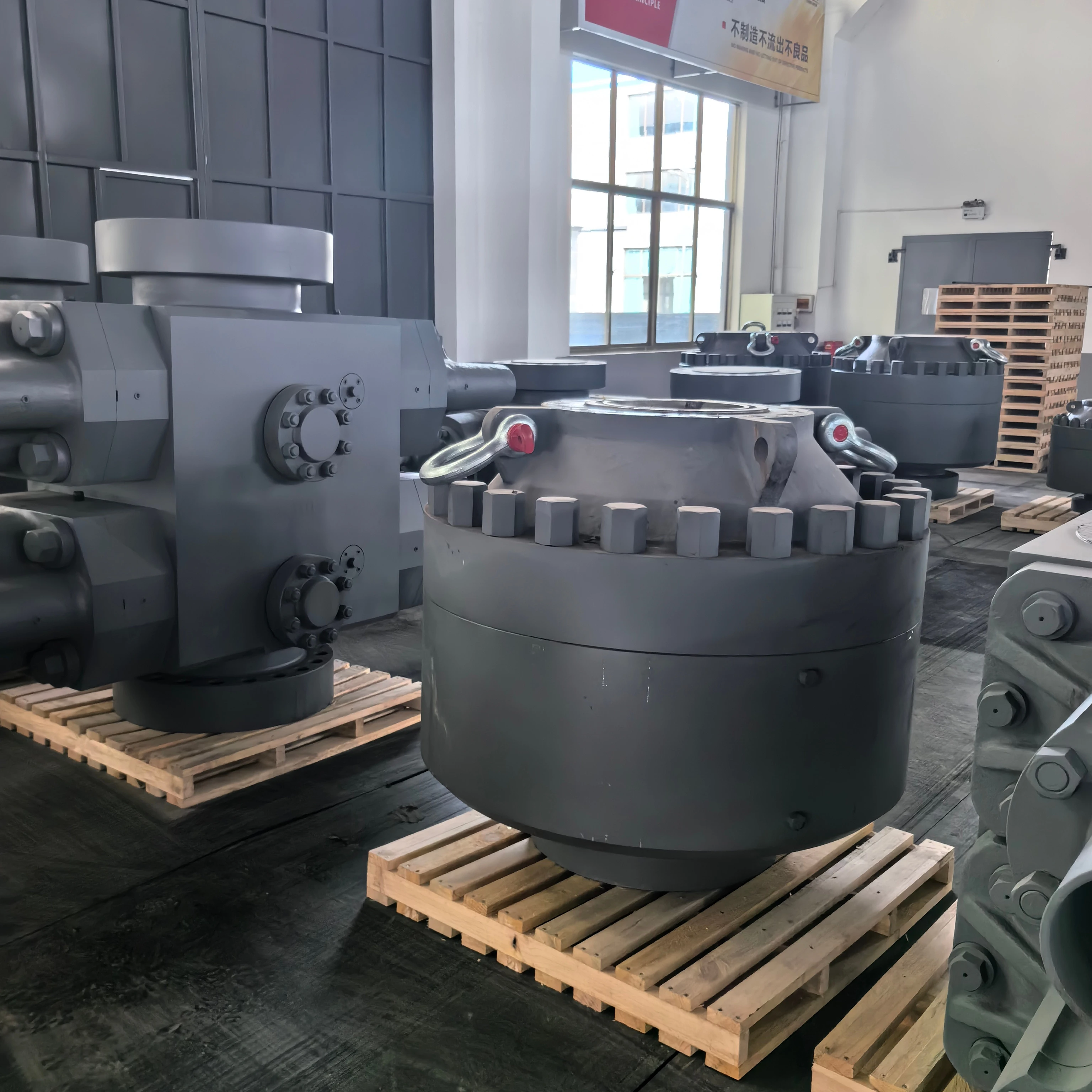

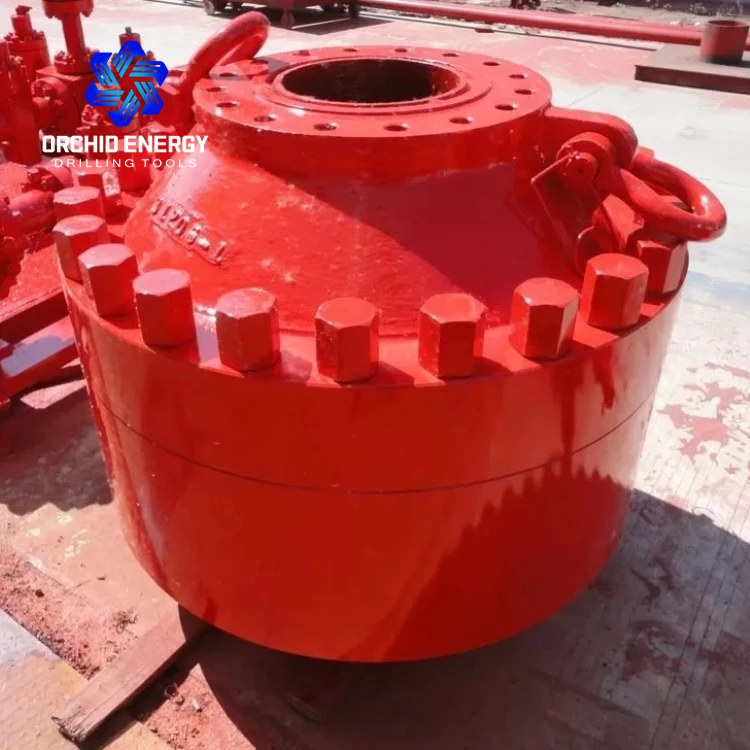

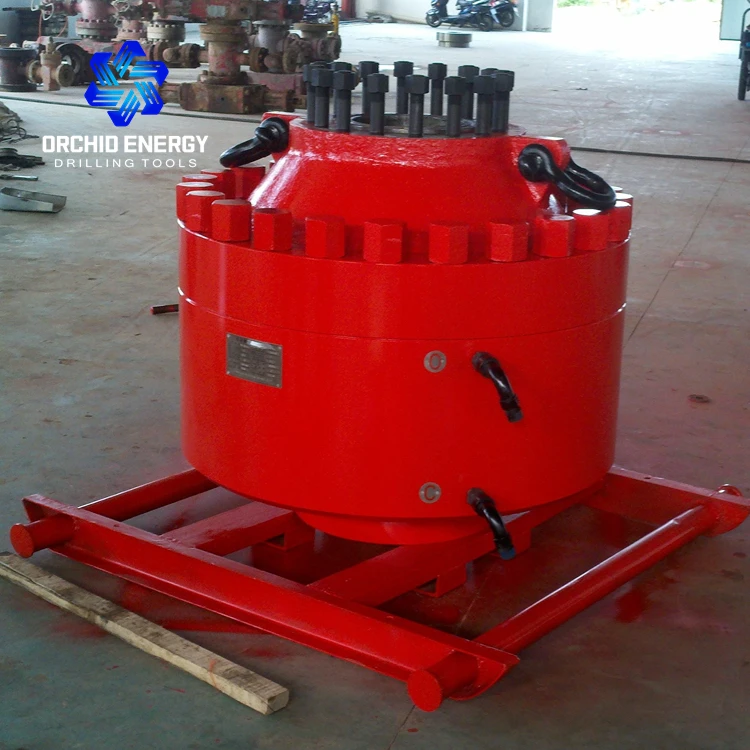

The types of annular BOP can be divided into conical annular BOP and spherical annular BOP according to the shape of their sealant cores. Their structure mainly consists of four major components: shell, top cover, rubber core, and piston. When there are drilling tools, tubing, or casing in the well, the annular blowout preventer can use a rubber core to seal various annular spaces of different sizes. When there are no drilling tools in the well, it can fully seal the wellhead during drilling, coring, logging, and other operations. It can also seal the annular space formed by the square drill pipe, coring tools, electric cables, and steel wires with the wellbore. When using a pressure reducing and regulating valve, the drilling tool can be forcibly lifted and lowered through the drill pipe.
Two types of annular BOP have similar working principles. When a kick is discovered and a well needs to be sealed, high-pressure oil from the control system enters the lower closed chamber of the piston from the lower oil port, pushing the piston upward. The spherical rubber core moves upward along the ball face, while the conical rubber core moves closer to the center under the restriction of the top cover and the compression of the inner cone surface of the piston, tightening and embracing the drilling tool, achieving the sealing of the drilling tool or the full sealing of the wellhead when the well is opened, the rubber core is reset under its own elastic force to open the wellhead.
Hydraulic BOP mainly come in two forms: RAM BOP and ANNULAR BOP.
The types of annular BOP can be divided into conical annular BOP and spherical annular BOP according to the shape of their sealant cores. Their structure mainly consists of four major components: shell, top cover, rubber core, and piston. When there are drilling tools, tubing, or casing in the well, the annular blowout preventer can use a rubber core to seal various annular spaces of different sizes. When there are no drilling tools in the well, it can fully seal the wellhead during drilling, coring, logging, and other operations. It can also seal the annular space formed by the square drill pipe, coring tools, electric cables, and steel wires with the wellbore. When using a pressure reducing and regulating valve, the drilling tool can be forcibly lifted and lowered through the drill pipe.
Two types of annular BOP have similar working principles. When a kick is discovered and a well needs to be sealed, high-pressure oil from the control system enters the lower closed chamber of the piston from the lower oil port, pushing the piston upward. The spherical rubber core moves upward along the ball face, while the conical rubber core moves closer to the center under the restriction of the top cover and the compression of the inner cone surface of the piston, tightening and embracing the drilling tool, achieving the sealing of the drilling tool or the full sealing of the wellhead when the well is opened, the rubber core is reset under its own elastic force to open the wellhead.
Specification
A Type Annular Blowout Preventer | ||||||||||||
Type | Bore Size In (mm) | Working pressure (Mpa/psi) | Close volume oil(L) | Open volume oil(L) | Outer size (mm) | Weight (KGS) | ||||||
FH18-70 | 7 1/16(179.4) | 70/10000 | 36 | 27 | 1200*1250 | 6,293 | ||||||
FH28-70 | 11(279.4) | 66 | 66 | 1465*1653 | 12,290 | |||||||
FH35-70 | 13 5/8(346.1) | 116 | 117 | 1554*1742 | 15,190 | |||||||
FH43-35 | 16 3/4(425.4) | 35/5000 | 134 | 134 | 1680*1590 | 14,100 | ||||||
FH54-14 | 21 1/4(539.8) | 14/2000 | 136.5 | 84.9 | 1380*1503 | 7,660 | ||||||
D Type Annular Blowout Preventer | ||||||||||||||
Type | Bore in(mm) | Working Pressure (MPa/psi) | Hydraulic control pressure (MPa) | Close volume oil(L) | Open volume oil(L) | Weight (kgs) | Hydraulic control connection | |||||||
FH18-21 | 7 1/16(179.4) | 21/3000 | <=0.5/1500 | 20 | 13 | 1,200 | NPT1” | |||||||
FH18-35 | 7 1/16(179.4) | 35/5000 | 1,500 | NPT1” | ||||||||||
FH23-21 | 9(228.6) | 21/3000 | 34 | 22.8 | 2,398 | VNPT1” | ||||||||
FH23-35 | 9(228.6) | 35/5000 | 42 | 33 | 2,986 | NPT1” | ||||||||
FH28-21 | 11(279.4) | 21/3000 | 50 | 39 | 2,950 | Rc1/2” | ||||||||
FH28-35 | 11(279.4) | 35/5000 | 72 | 56 | 4,675 | NPT1” | ||||||||
FH35-35 | 13 5/8(346.1) | 35/5000 | 94 | 69 | 6,415 | NPT1 1/2” | ||||||||
FH43-35 | 16 3/4(425.4) | 35/5000 | 220 | 171 | 16,000 | NPT1” | ||||||||
FH53-21 | 20 3/4 (527) | 21/3000 | 173 | 110 | 6,994 | Rc 1/2” | ||||||||
FH54-35 | 21 1/4(539.8) | 35/5000 | 241 | 181 | 20,230 | NPT1” | ||||||||
Recommended for You
Packaging and Delivery
Factory & Workshop
Company Profile
Introduction
Orchid Energy Ltd. is a factory manufacturer of drilling tools with over 20 years' experience. Our core products include drilling motors, stabilizers, drill collars, mud pump and spare parts, as well as key components such as kellys, tubulars, drilling jars, fishing tools, and bearings according to customers' needs.
Orchid Energy has not only standard-sized products but also supports the customized production of products according to customers' requirements. In the two aspects of price and quality, Orchid Energy do not hesitate to choose to adhere to the premise of ensuring product quality, and then as far as possible to suppress the price of the product, because of this, the price of our products may not necessarily be the lowest in the industry, but we firmly believe that the time will help us win more praise from our customers.
Orchid Energy has not only standard-sized products but also supports the customized production of products according to customers' requirements. In the two aspects of price and quality, Orchid Energy do not hesitate to choose to adhere to the premise of ensuring product quality, and then as far as possible to suppress the price of the product, because of this, the price of our products may not necessarily be the lowest in the industry, but we firmly believe that the time will help us win more praise from our customers.
Contact Us
You can contact us through the online chatting of alibaba, meanwhile, other ways are also available as following:
FAQ
Are you a factory manufacturer?
Yes, we are a factory manufacturer with dual production capacity and quality assurance. We have our own technical R&D engineers and production workshops, providing customers with high-quality and affordable tools and equipment related to the petroleum industry.
What's your process for handling my inquiry?
First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr-epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days if we don’t have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
How can I pay for the order?
After you confirm our PI, we will request you to pay. T/T, L/C, D/P, Western Union are the most usual ways we are using. We could discuss other payment method convenient for you.
How about your after-sales service?
When you need after-sales service, please contact our sales manager and make it clear, our after-sales support team will involved
into the case until the problem be solved. There are two common types of after-sales requirement:
1) Related to this batch of goods: You have a series of questions about the operation, maintenance, and upkeep of the product,
most of which are clearly stated in the product manual. If you still have questions, you can contact our sales manager;
2)Non-relate to this batch of goods: The project cannot proceed normally due to the lack of other software and hardware, which is
not caused by our products. We can provide you with all feasible assistance in this process.
into the case until the problem be solved. There are two common types of after-sales requirement:
1) Related to this batch of goods: You have a series of questions about the operation, maintenance, and upkeep of the product,
most of which are clearly stated in the product manual. If you still have questions, you can contact our sales manager;
2)Non-relate to this batch of goods: The project cannot proceed normally due to the lack of other software and hardware, which is
not caused by our products. We can provide you with all feasible assistance in this process.
Похожие товары
Стальные противовыбросовые превенторы боп с резкой
6 451 936,05 ₽ - 6 506 154,00 ₽
Боп-противовыбросовый превентор кольцевого типа под заказ, кованое буровое оборудование, сертифицированное API, стальной сплав, бурение скважин
487 961,55 ₽

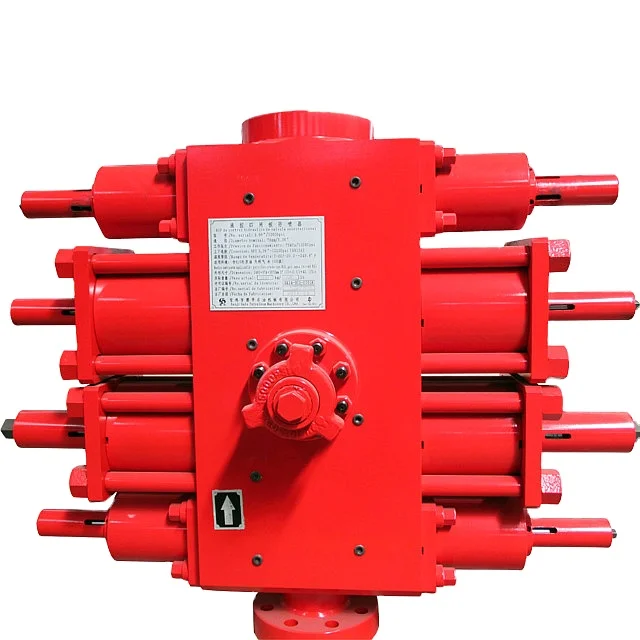

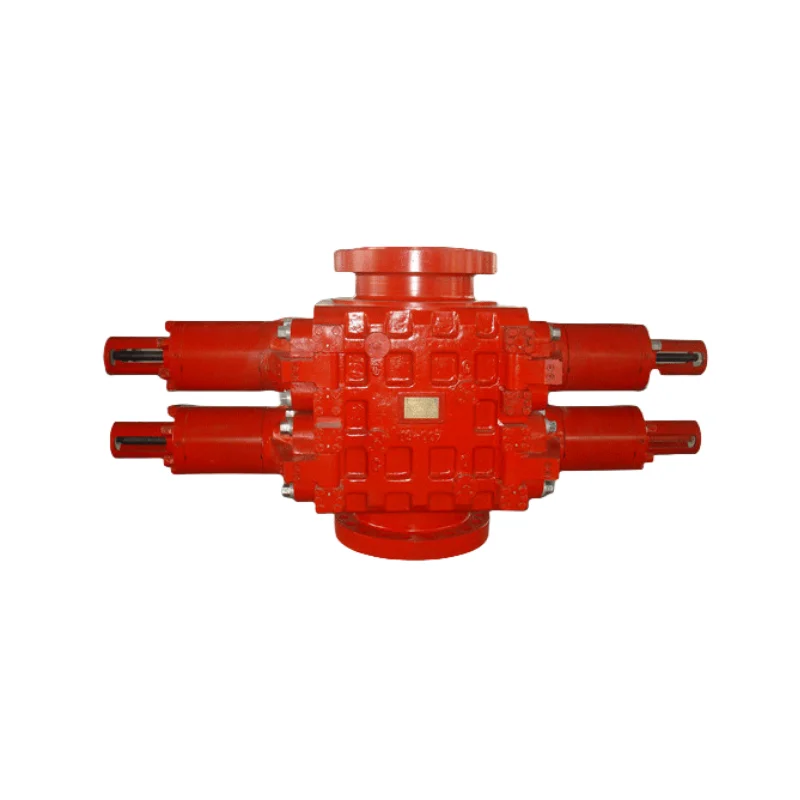

Ручной противовыбросовый превентор для нефтяных месторождений с двойным тараном и апи
5 747 102,70 ₽ - 6 072 410,40 ₽
Противовыбросовый превентор API 16A, для головки корпуса
542 179,50 ₽
Прямая поставка с завода, смазка для нефтепромыслового оборудования для устройства противовыбросового превентора
325 307,70 ₽
Китайский завод, 4 1/16-15K гидравлический Квадрокоптер, противовыбросовый превентор
542 179,50 ₽

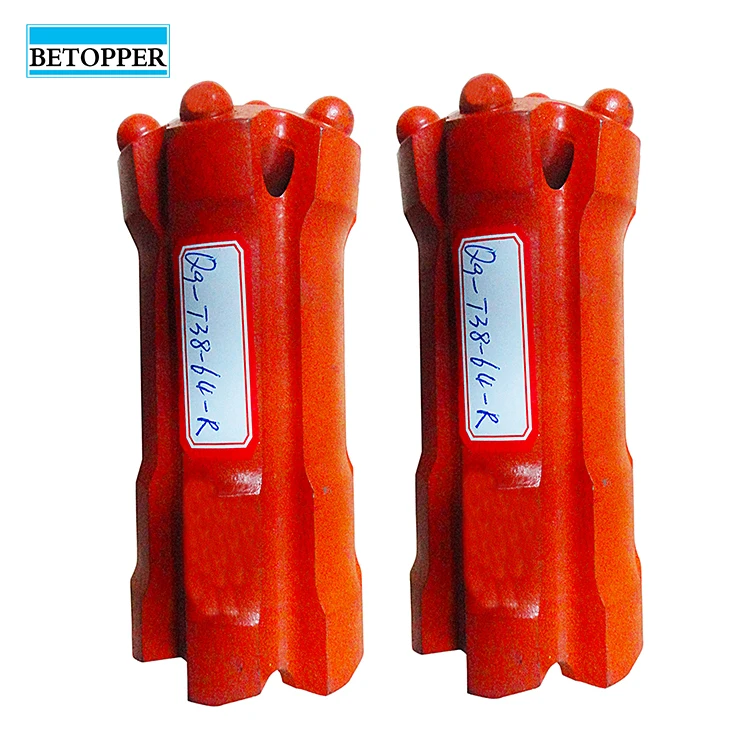

Бренд Betopper, высокое качество, Retrac, Буровое Сверло T38 T45 T51 Gt60
