115KW 230KWh 250kW 500kWh гибридная промышленная система хранения энергии солнечной батареи BESS 280Ah
- Категория: >>>
- Поставщик: Shenzhen Sinostorage Energy Co. Ltd.
Сохранить в закладки 1601006331187:
Описание и отзывы
Характеристики
Product Description

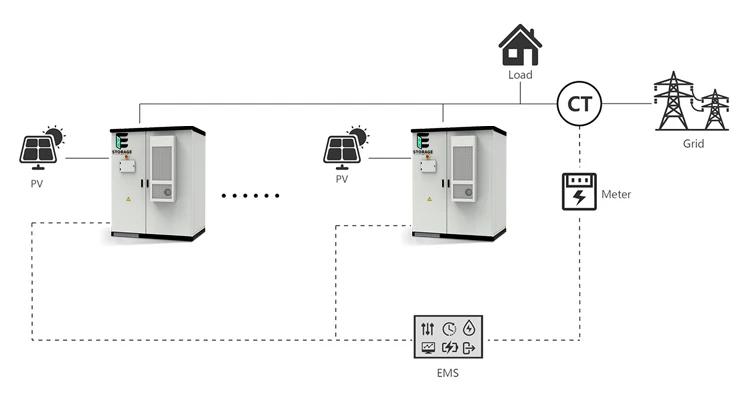

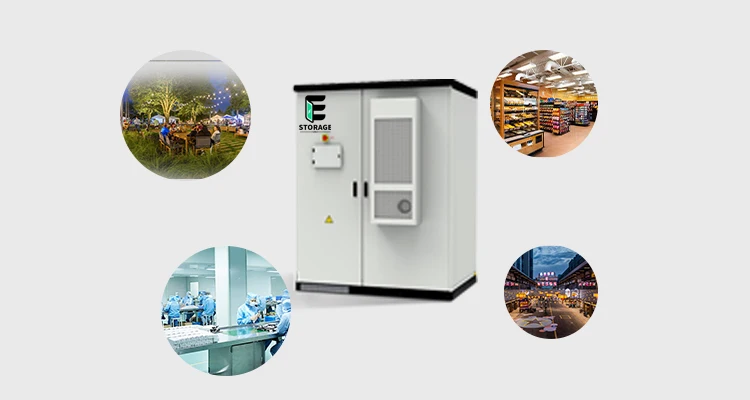

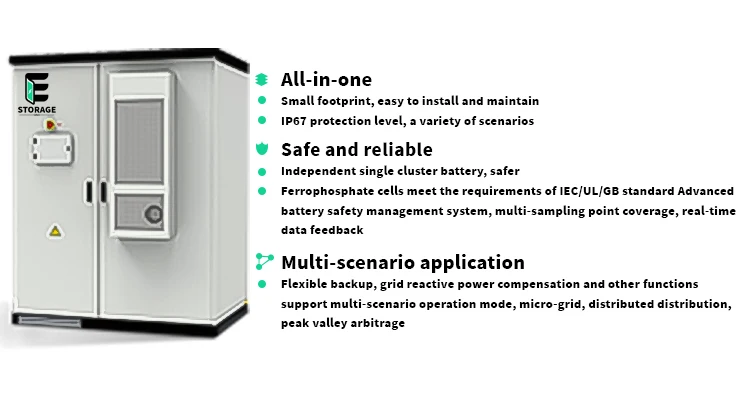

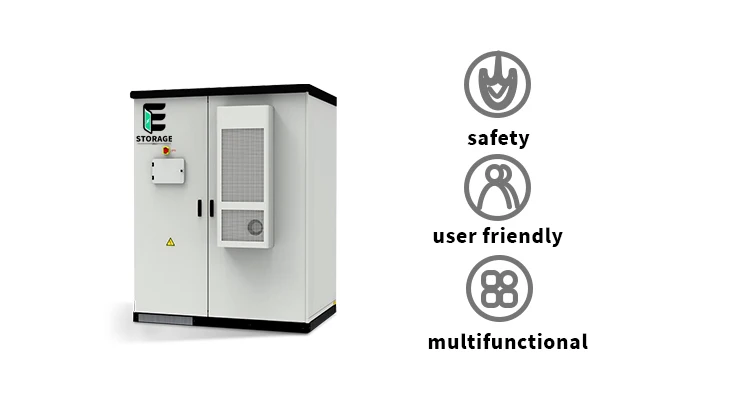

The 250KW/500KWh energy storage system includes one set of 250KW energy storage converter (PCS), 500KWh battery system, one set of energy management system (EMS), fire protection system, security system, temperature control system, etc., with high integration, safety and reliability, and strong environmental adaptability.
Specification
Model | 50kW/100kWh | 100kW/215kWh | 250kW/500kWh | |||
Battery parameters | ||||||
Battery rated energy storage capacity | 101kWh | 215.04kWh | 516.09kWh | |||
System rated voltage | 844.8V | 768V | 768V | |||
Battery type | Lithium iron phosphate battery | |||||
Cell capacity | 120Ah | 280Ah | 280Ah | |||
Battery pack series and parallel mode | 1P“24S*11Pack | 1P“20S*12Pack | 2P“20S*12Pack | |||
AC parameters | ||||||
Rated AC power | 50kW | 100kW | 250kW | |||
Rated AC current | 72A | 144A | 288A | |||
Rated AC voltage | 400V， 3P+N+PE,50Hz | |||||
Total current distortion | <3% | |||||
Power factor | -1 advance ~ + 1 lag | |||||
Conventional parameters | ||||||
Protection | IP54 | |||||
Isolation method | Non-isolation (optional transformer) | |||||
Working temperature | -25-60°C(derate above 45 °C) | |||||
Height above sea level | 3000m(derate over 3000m) | |||||
Communication interface | RS485/CAN2.0/Ethernet / Dry Contact | |||||

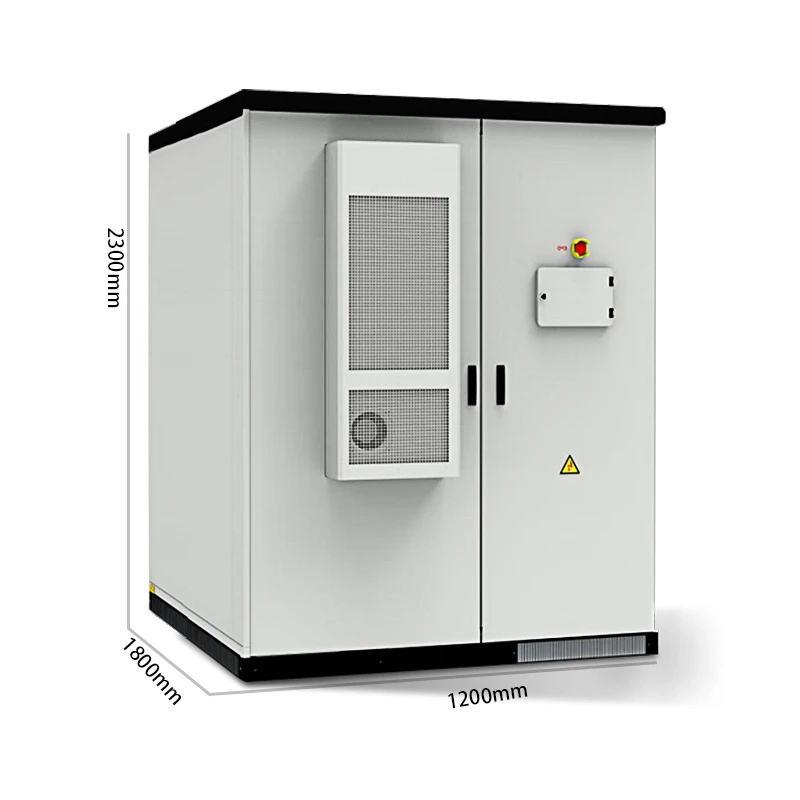

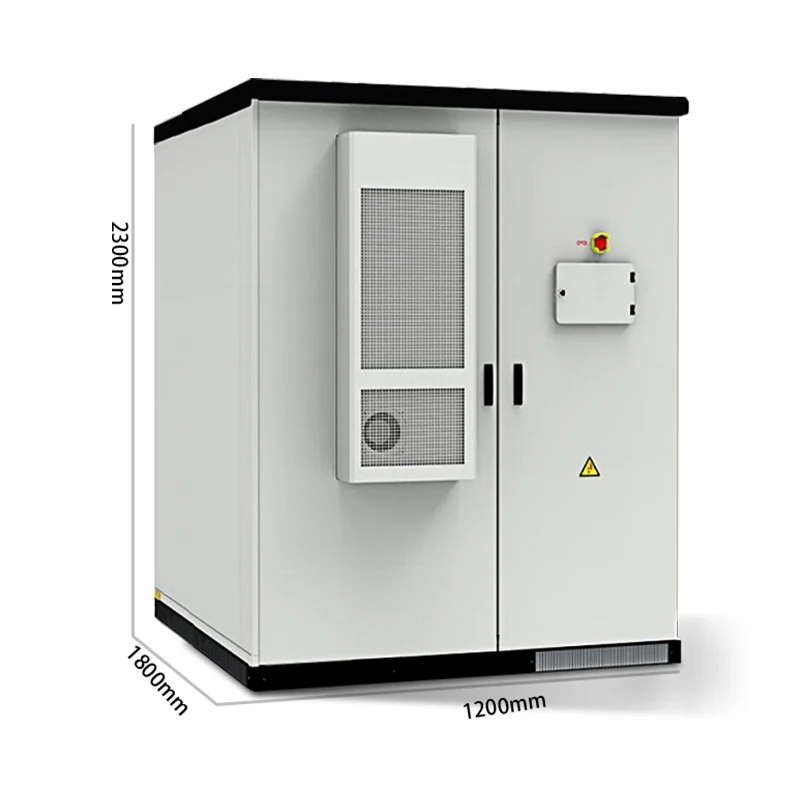

Dimensions (W * D * H/mm) | 1200"1200*2300 | 1800"1200*2300 | 3000 *1200 *2300 | |||
Weight(Kg) | 2000 | 3000 | 5000 | |||
PV port | ||||||
Rated PV input power | 50kW | 100kW | 250kW | |||
Meet quantity | 1/2 | 1/2 | 1/2 | |||
PV voltagge range | 200~850V | 200~850V | 200~850V | |||
Details Images
Company Profile
Based in China, Shenzhen Sinostorage Energy Co., Ltd is a specialist manufacturer of battery energy storage systems and back-up power solutions for various commercial, industrial, and residential scenarios. With years of field experience, professional R&D team, reliable quality, and effective supply chain management, we are capable of delivering high-quality solutions and customized production to help our customers realize greater value.
We boast a cutting edge R&D team, fully automatic battery pack assembly lines, manufacturing ability of the whole industry chain including SMT patch mold injection molding, Battery Management System(BMS), Power Conversion System(PCS), Energy Management System(EMS), cabinet assembly, and comprehensive machine testing. We follow rigorous IS09001 quality management system, and implement strict production process control. Our products have been certified and sold to over one hundred countries and regions, and have been recognized repeatedly by world users and markets.
By sticking to the industrial manufacturing concept of “safety, stability, quality, and reliability”, Sinostorage is committed to providing reliable products and integrated solutions to our customers worldwide, and will continue to do our bits in transition of clean power and minimizing carbon footprint for greener future.
Certifications
Packing & Delivery
FAQ
1.Q:How long is the delivery time of your products?
A:We can ship in 7-30 days from factory warehouse.
2.Q:Can you supply OEM &ODM service ?
A:Yes, but there is a minimum order quantity required.
3.Q:How Long is the warranty?
A:Our warranty is 10 years .
4.Q:Can I customize the products as my requests ?
A:Yes. Let me know the specific customization requirements and we will get back to you as soon as possible.
5.Q:How do you provide after-sales service?
A:Please contact with us we will arrange that
6.Q:Can I order a sample ?
A:Yes, please leave your contact information and our sales manager will contact you soon.
A:We can ship in 7-30 days from factory warehouse.
2.Q:Can you supply OEM &ODM service ?
A:Yes, but there is a minimum order quantity required.
3.Q:How Long is the warranty?
A:Our warranty is 10 years .
4.Q:Can I customize the products as my requests ?
A:Yes. Let me know the specific customization requirements and we will get back to you as soon as possible.
5.Q:How do you provide after-sales service?
A:Please contact with us we will arrange that
6.Q:Can I order a sample ?
A:Yes, please leave your contact information and our sales manager will contact you soon.
>> Click here to get more details <<
Похожие товары
Система хранения солнечной энергии малой мощности 20 кВт 30 50 для коммерческой и промышленной системы Бесс автономной жилой Сертификация CE
AT115KW 232KWh автономная система с жидкостным охлаждением интегрированный PV генератор солнечной энергии LFP батарея хранения BESS шкаф
100 кВт 130 кВтч 150 А · ч
100 кВт 215 кВтч 280 мАч с воздушным охлаждением батарея LFP наружный интегрированный шкаф коммерческая и промышленная Сертификация

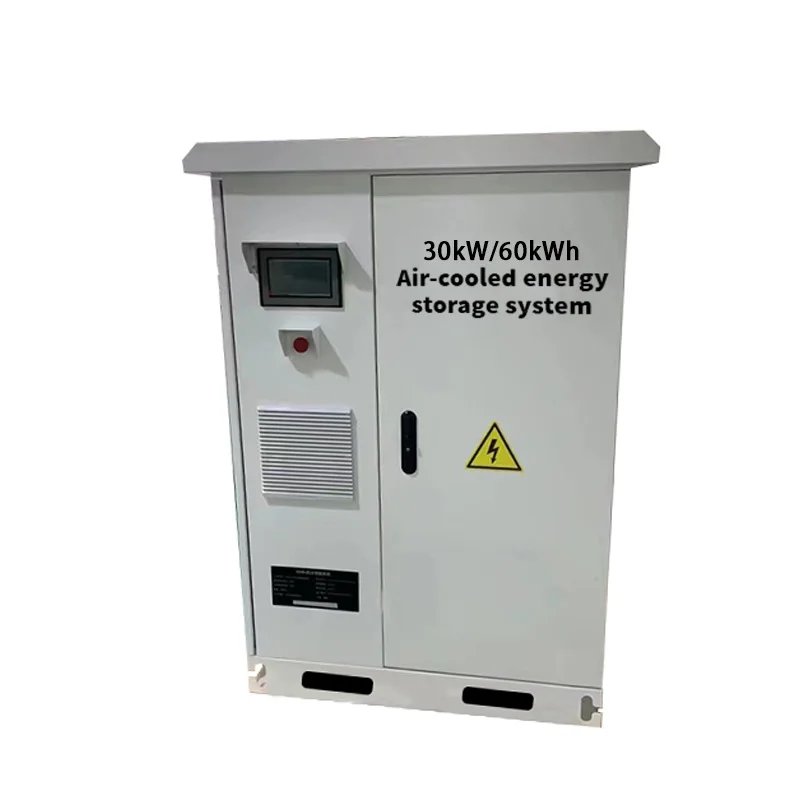

30 кВт/60 кВтч Солнечный автономный Гибридный шкаф для хранения энергии аккумуляторная система с воздушным охлаждением уличный 100 А · ч
50 кВт 100 кВтч 120 А/ч 3 2 В LFP Солнечная интеллектуальная аккумуляторная система хранения энергии для жилого дома BESS уличный шкаф

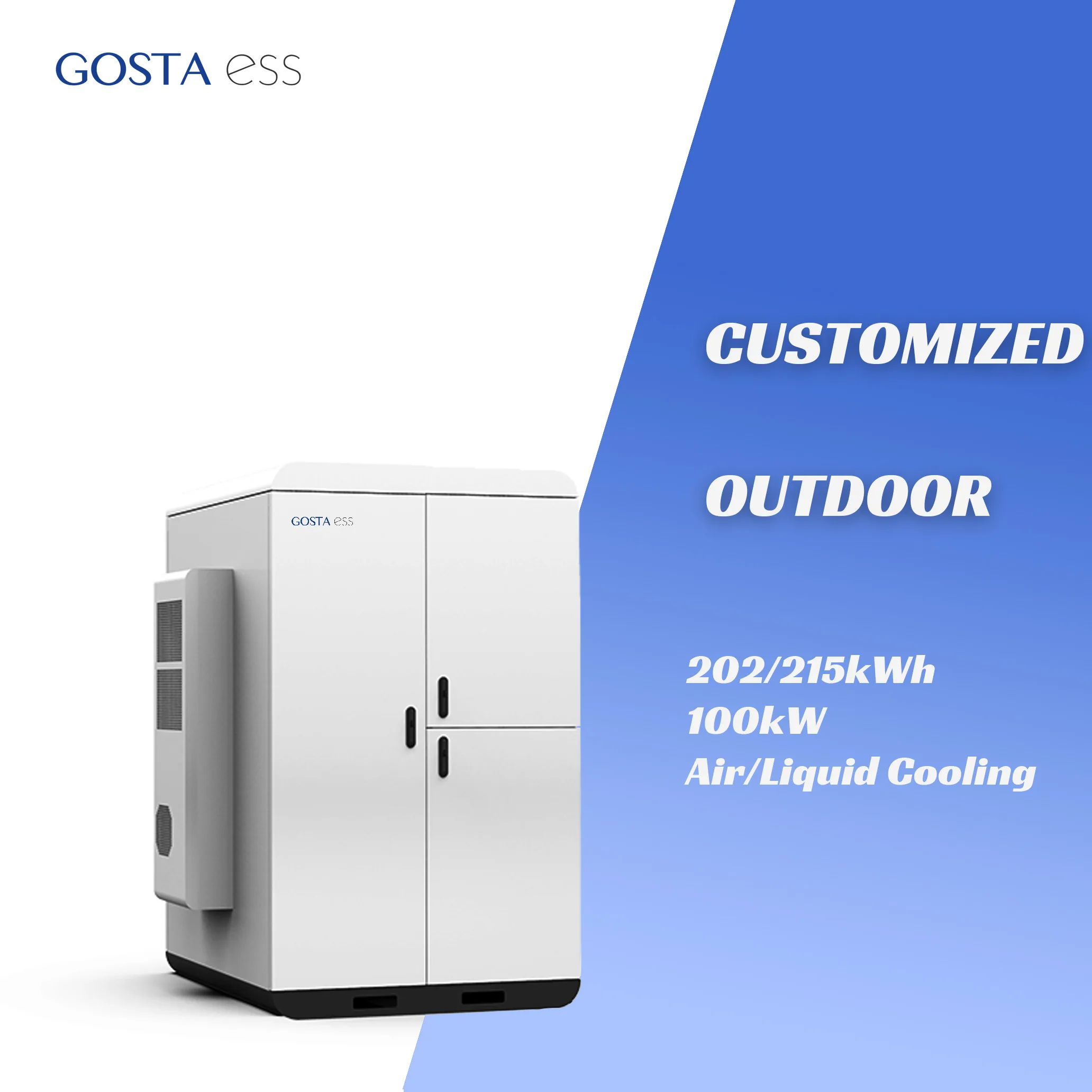

Наружные литиевые батареи GOSTA CAS215K IP55 IP65 с вентиляторами и кондиционером для предотвращения насекомых серверный шкаф снаружи
