iTeaQ Power 10kva-180kva 3 phase UPS 380v
Product Description

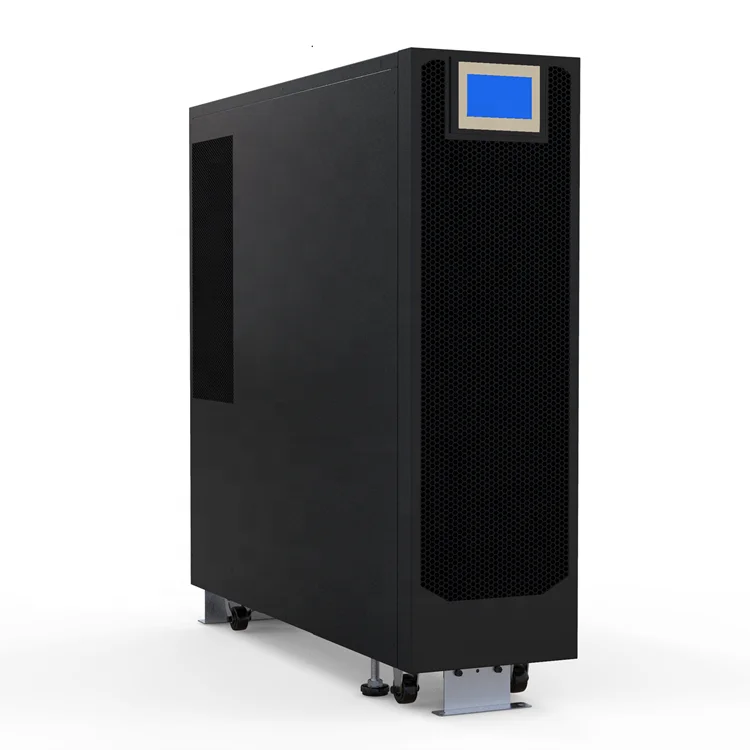

High Frequency Tower UPS 10-40kVA -Front Case
Model: TM33010/TM33020/TM33030/TM33040

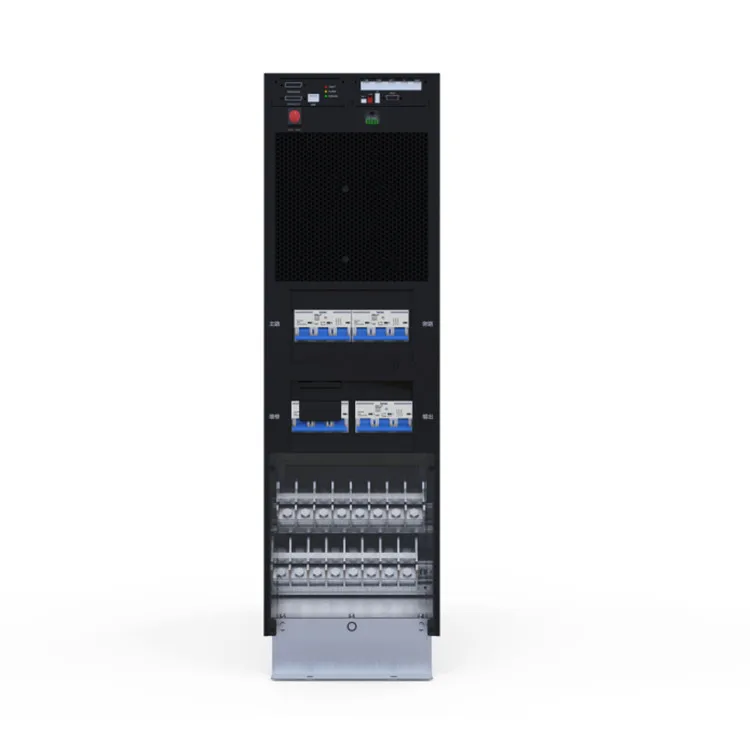

High Frequency Tower UPS 10-40kVA -Rear
Model: TM33010/TM33020/TM33030/TM33040
High Frequency Tower UPS 60-180KVA -Front Case
Model: TM33060/TM33080/TM33100/TM33160/TM33180

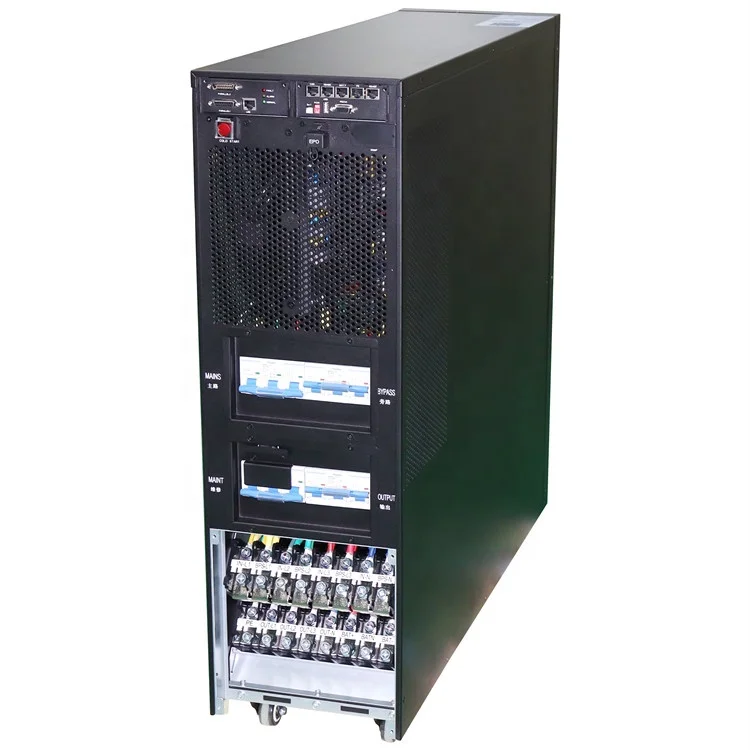

High Frequency Tower UPS 60-180KVA -Rear
Model: TM33060/TM33080/TM33100/TM33160/TM33180
Introduction:
TM33 10-180kVA adopts online double conversion technology, which can completely eliminate all kinds of grid problems and provide customers with stable and pure sinusoidal power supply protection. Innovative design makes these products have unparalleled reliability and high performance. The high input power factor and low input current harmonics ensure the UPS green and environmental protection and high efficiency ensures energy saving.
Scenarios:
Small and medium-sized data centers, IT machine rooms, financial institutions, traffic dispatch centers, security monitoring, etc.
Features:
1. Wide input voltage range
2. Online double conversion technology
3. DSP digital control technology
4. Output power factor 0.9
5.N+X redundancy
6. Communications: RS485/Relay card/USB/SNMP option
Benefits:
1. Wide input voltage range adapts to the harsh power grid
2. DSP technology greatly improves the system reliability
3. Friendly man-machine interface, easy to operate
4. Intelligent battery management extends battery life
5.N+X redundancy, expanding as required, saves initial investment
TM33 10-180kVA adopts online double conversion technology, which can completely eliminate all kinds of grid problems and provide customers with stable and pure sinusoidal power supply protection. Innovative design makes these products have unparalleled reliability and high performance. The high input power factor and low input current harmonics ensure the UPS green and environmental protection and high efficiency ensures energy saving.
Scenarios:
Small and medium-sized data centers, IT machine rooms, financial institutions, traffic dispatch centers, security monitoring, etc.
Features:
1. Wide input voltage range
2. Online double conversion technology
3. DSP digital control technology
4. Output power factor 0.9
5.N+X redundancy
6. Communications: RS485/Relay card/USB/SNMP option
Benefits:
1. Wide input voltage range adapts to the harsh power grid
2. DSP technology greatly improves the system reliability
3. Friendly man-machine interface, easy to operate
4. Intelligent battery management extends battery life
5.N+X redundancy, expanding as required, saves initial investment
Specification
Model | TM33010/20 | TM33030 | TM33040 | TM33060 | TM33080 | TM33100 | TM33120 | TM33180 | |||||||||
Capacity (VA) | 10/20 KVA | 30KVA | 40KVA | 60KVA | 80KVA | 100 KVA | 120 KVA | 180 kVA | |||||||||
Phase | 3 Phase 4 Wires and Ground | ||||||||||||||||
Rated Voltage | 380/400/415Vac | ||||||||||||||||
Operating voltage range | 208~478Vac | 138~485Vac | |||||||||||||||
Operating frequency range | 40Hz-70Hz | ||||||||||||||||
Power factor | ≥0.99 | ||||||||||||||||
Harmonic distortion (THDi) | ≤3% (100% non-linear load ) | ||||||||||||||||
Bypass voltage range | Max.voltage: 220Vac +25%(optional +10%,+15%,+20% ); 230Vac: +20%(optional +10%,+15% ); 240Vac: +15%(optional +10% ) | ||||||||||||||||
Min. voltage:-45 %( optional -10%, -20%,-30%) | |||||||||||||||||
Frequency protection range: ±10% | |||||||||||||||||
Generator input | Support | ||||||||||||||||
Phase | 3 Phase 4 Wires and Ground | ||||||||||||||||
Output voltage | 380/400/415Vac | ||||||||||||||||
Power factor | 0.9 | ||||||||||||||||
Voltage regulation | ±1% | ||||||||||||||||
Output frequency | Utility Mode: ±1%/±2%/±4%/±5%±10% optional; Battery Mode:(50/60±0.1%)Hz | ||||||||||||||||
Crest factor | 3:1 | ||||||||||||||||
THD | ≤2% with linear load; ≤4% with non linear load | ||||||||||||||||
Efficiency | 94.5% | 95.5% | |||||||||||||||
Overload | Load≤110%, last 60min; ≤125%, last 10min; ≤150%, last 1min; >150% change to bypass | ||||||||||||||||
±180V/192V/±204V/±216V/±228V/±240/±252/±264/±276/±288/±300Vdc(30/32/34/36/38/40/42/44/46/48/50pcs optional) | |||||||||||||||||
Charge Current | Max. 10A | Max. 20A | Max. 60A | ||||||||||||||
Transfer Time | Transfer Time | Utility to Battery : 0ms; Utility to bypass: 0ms | |||||||||||||||
Operating temperature | 0℃～40℃ | ||||||||||||||||
Storage temperature | -25℃～55℃(no battery) | ||||||||||||||||
Humidity range | 0～95% (non condensing) | ||||||||||||||||
Altitude | < 1500m | ||||||||||||||||
Noise level | <55dB | <58dB | <60dB | <65dB | |||||||||||||
Alarm | overload, utility abnormal, UPS fault, battery low, etc | ||||||||||||||||
Protection | Protection | short circuit, overload, over temperature, battery low, fan fault alarm | |||||||||||||||
Communication | USB, CAN, RS485, FE, LBS, Parallel card, Relay card, SNMP card(optional) | ||||||||||||||||
Physical | Dimension D×W×H (mm) | 690x250x530 | 830x300x700 | 830x300x960 | 850x440x1200 | ||||||||||||
Net weight (kg) | 45.5 | 45.8 | 65 | 82.5 | 101 | 140 | 149 | 199 | |||||||||
Standards | EN62040-1, EN62040-2 | ||||||||||||||||

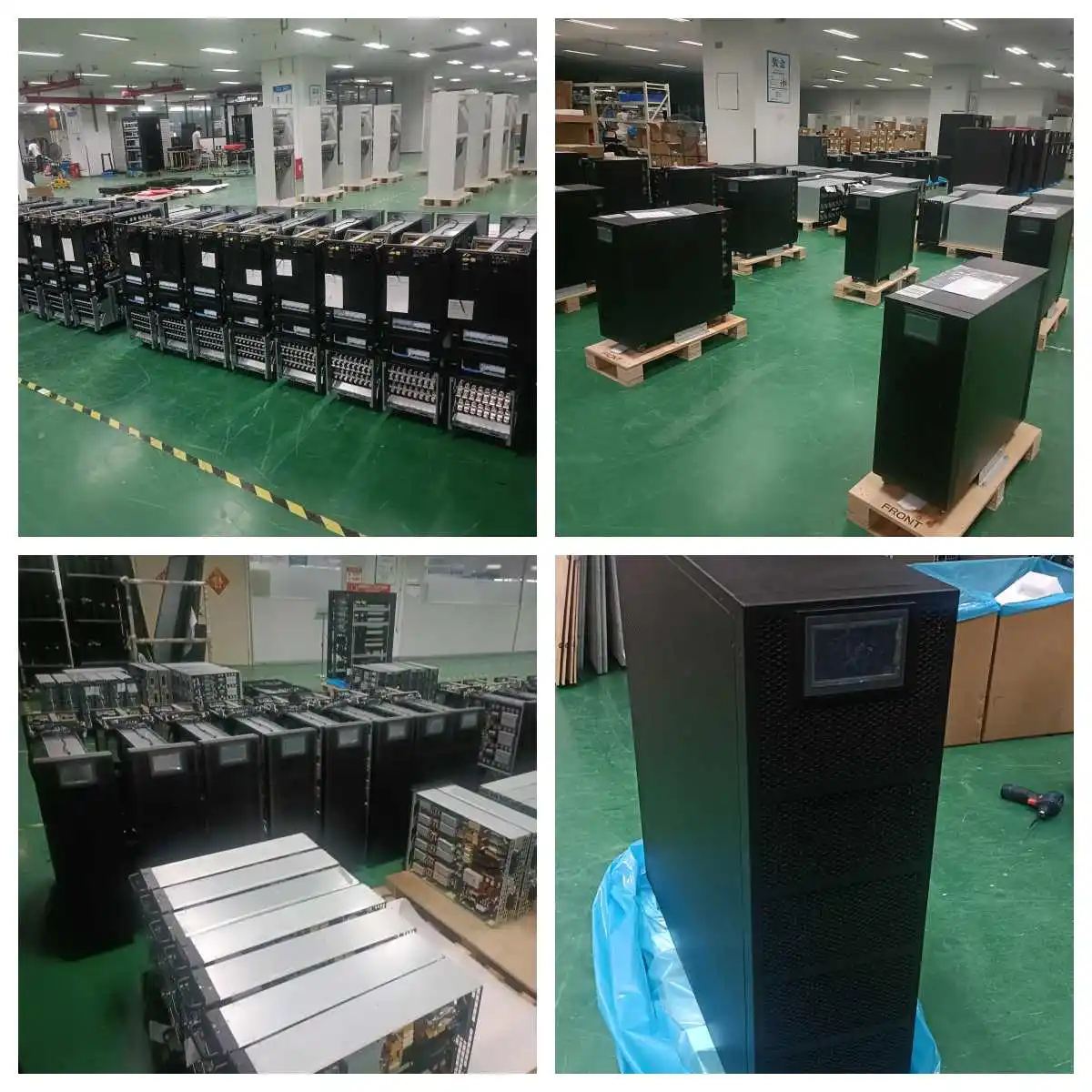

Detail Pictures

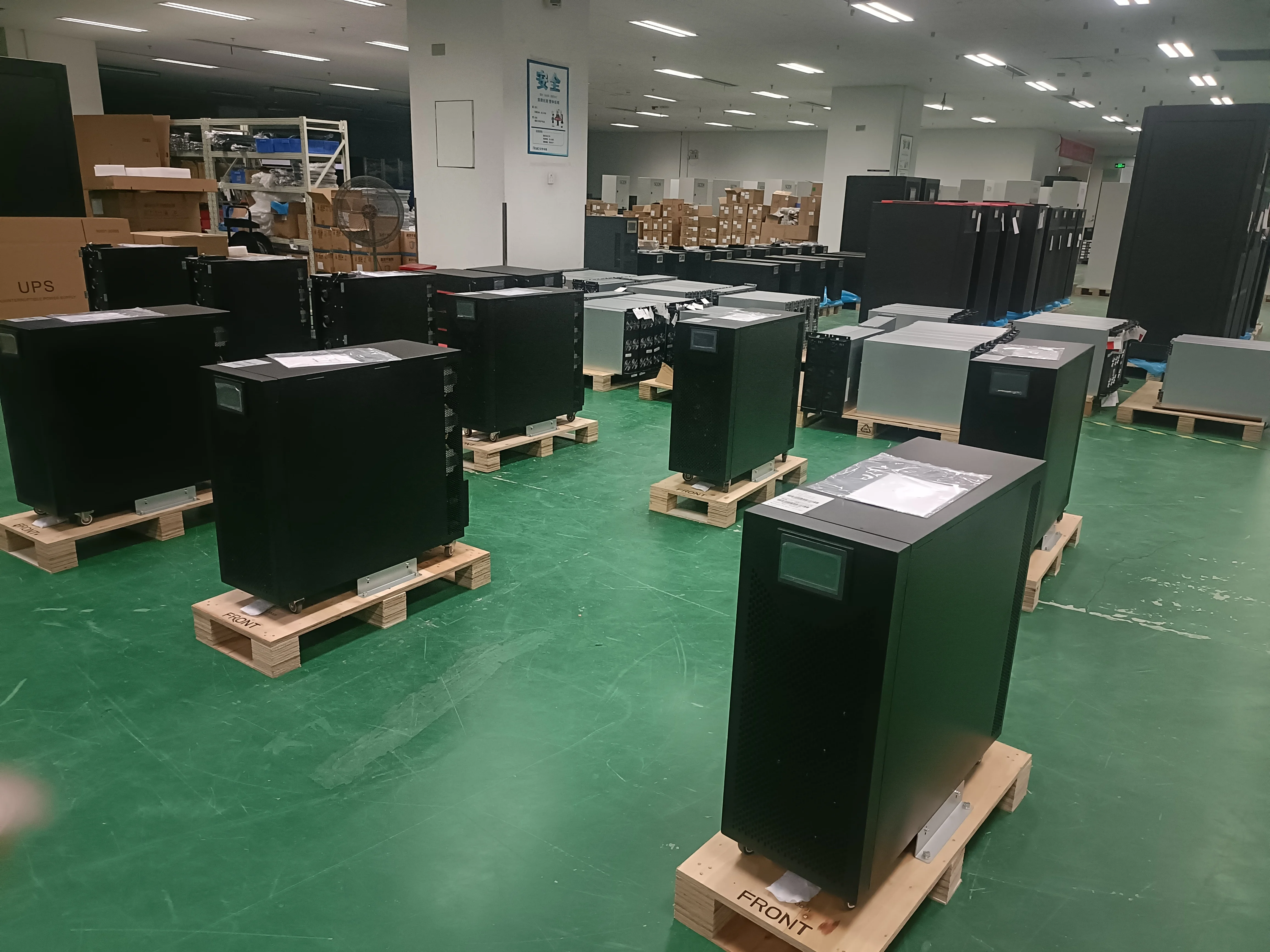

Packing & Delivery
UPS 10-40kVA Package
UPS 60-180kVA Package
Applications
Customer's Feedback
Company Profile
Company
Shenzhen iTeaQ Power Co., Ltd. is the leading manufacturer of modular UPS and network power, located at Guangming High-tech Zone, Shenzhen, China. With 20 years’ experience in power electronics field, we are constantly cooperating with global partners, enabling customers to protect their critical applications and ensuring business continuity. iTeaQ Power is a most growing UPS and network power provider.
R&D
The company dedicates 10% of turnover to R&D, such as cooperation with China top-ranking universities and institutes, advanced research, patent development, etc. It can achieve status of always technology ahead. Benefited from the electronic industry base of Shenzhen, China, all our design engineers have master or above degree in power electronic, and at least 10 years UPS and power practice.
Quality
The company implements total quality management, ranging from selecting right person for appropriate post, components selecting, incoming inspection, producing, testing, and packing to delivery. At present, it has passed ISO9001, ISO14001, OHSAS18001, and has obtained a number of certifications, such as CE (LVD/EMC), TLC certification, energy saving certification, etc.
Shenzhen iTeaQ Power Co., Ltd. is the leading manufacturer of modular UPS and network power, located at Guangming High-tech Zone, Shenzhen, China. With 20 years’ experience in power electronics field, we are constantly cooperating with global partners, enabling customers to protect their critical applications and ensuring business continuity. iTeaQ Power is a most growing UPS and network power provider.
R&D
The company dedicates 10% of turnover to R&D, such as cooperation with China top-ranking universities and institutes, advanced research, patent development, etc. It can achieve status of always technology ahead. Benefited from the electronic industry base of Shenzhen, China, all our design engineers have master or above degree in power electronic, and at least 10 years UPS and power practice.
Quality
The company implements total quality management, ranging from selecting right person for appropriate post, components selecting, incoming inspection, producing, testing, and packing to delivery. At present, it has passed ISO9001, ISO14001, OHSAS18001, and has obtained a number of certifications, such as CE (LVD/EMC), TLC certification, energy saving certification, etc.
Receiption
View of industrial Park
HF 3 phases production line
Modular UPS production line
100KW Test station 1
100KW Test Station 2
800KVA Test station 1
800KW Test Station 2
2000KW Load Test room
PCBA soldering
PCBA soldering machine
PCBA production line
Advanced Material management
Certifications
Exhibition
2OCT 2019 SINGAPORE DATA CENTER WORLD
2020 DATA CENTER SOLUTION EXHIBITION
2021 IT SOLUTION NATIONAL TOUR EXHIBITION
2021 IT SOLUTION NATIONAL TOUR EXHIBITION
FAQ
Q1: Are you a factory or trading company?
A1: Yes, We are leading modular UPS products factory with 20 years experiences
Q2: How about the Shipping Method?
A2:Mainly deliver by sea as the products’ weight and size , if customer require, also can deliver by air.
Q2: How about the delivery date?
A2: In General, the delivery date will be 15-30 working days for normal buy quantity. But if bigger order, please check us
further.
Q3: How about the label and the logo?
A3: Customize label and logo is workable.
Q4: How about the MOQ ?
A4: Neatral products Moq 1pcs , OEM products Moq:10pcs
A1: Yes, We are leading modular UPS products factory with 20 years experiences
Q2: How about the Shipping Method?
A2:Mainly deliver by sea as the products’ weight and size , if customer require, also can deliver by air.
Q2: How about the delivery date?
A2: In General, the delivery date will be 15-30 working days for normal buy quantity. But if bigger order, please check us
further.
Q3: How about the label and the logo?
A3: Customize label and logo is workable.
Q4: How about the MOQ ?
A4: Neatral products Moq 1pcs , OEM products Moq:10pcs
Any other questions , welcome click here to contact the factory customer service by click view more in folowing
