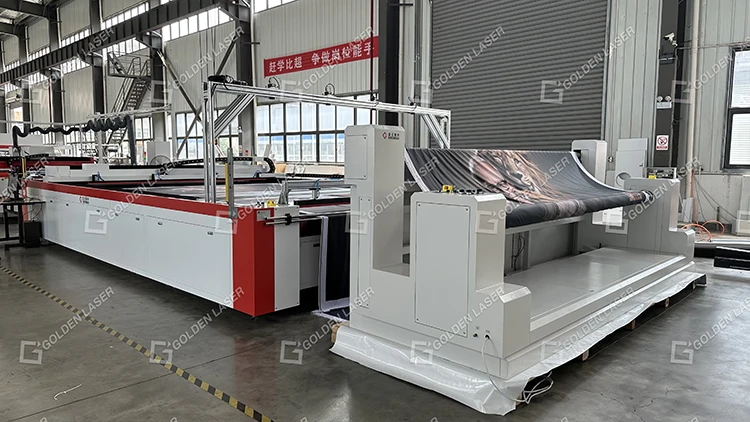

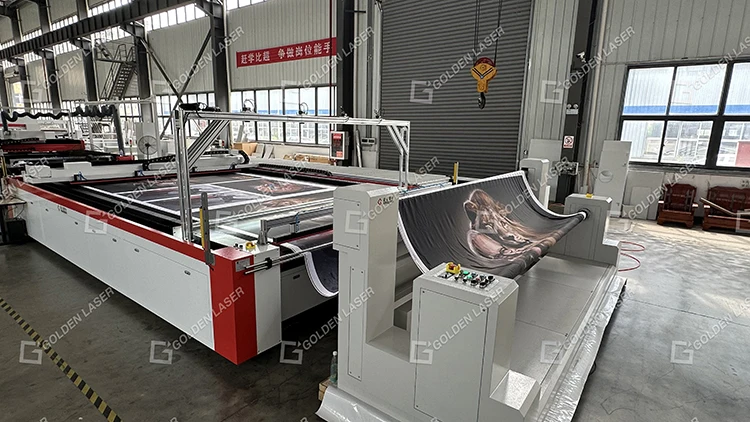

Широкоформатная машина для лазерной резки ткани сублимированных баннеров текстиля
- Категория: >>>
- Поставщик: Wuhan Golden Laser Co. Ltd.
Сохранить в закладки 1601013850439:
Описание и отзывы
Характеристики
NOTE: Different configurations have different prices. The price on Alibaba is NOT real price, please contact us to get the latest quotation. Thank you.;-)
Product Description
Textile Laser Cutting Machine
__
GoldenLaser is constantly looking for possibilities to further develop the laser systems in a customer-oriented way. It should come as no surprise that the materials which are actually used by customers are tested for the laser systems over and over again. GoldenLaser have excellent experiences in laser cutting of digitally printable fabrics. The model of CJGV-320400LD delivers unparalleled capabilities for finishing wide format digitally printed or dye-sublimated textile graphics and soft-signage with 3200mm width and 4000mm length, which is exact suitable for large area flexible materials.
Now it’s time for you to consider using laser solutions and giving your company an edge over the competition.
Now it’s time for you to consider using laser solutions and giving your company an edge over the competition.
Specification
CJGV-320400LD Technical Parameters | ||
Working area | 3.2m×4m (10.5 ft×13.1ft) | |
Camera scanning area | 3.2m×1m (10.5 ft×3.2ft) | |
Working table | Conveyor working table | |
Laser tube | CO2 glass laser tube / CO2 RF metal laser tube | |
Laser power | 70W / 100W / 150W | |
Control system | Servo motor system | |
Cooling system | Constant temperature water chiller | |
Exhaust system | 3KW exhaust fan×4 | |
Power supply | Laser cutter: 220V,50Hz or 60Hz/ single phase | |
Exhaust fan: 380V,50Hz or 60Hz/ three phase | ||
Software | Goldenlaser CAD scanner software package | |
Space occupation | 6.7m(L)×4.8m(W)×2.3m(H) / 21.9ft×15ft×7.5ft | |
Other option | Auto feeder, red dot | |

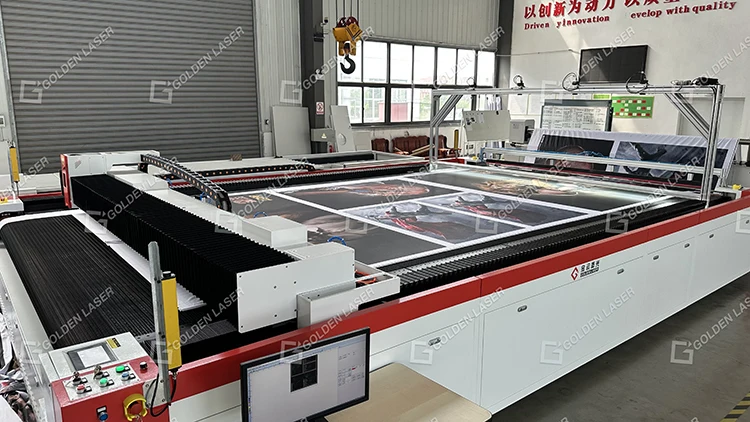

How Vision System Works
__
* Cameras scanning the fabric during the conveyor advance, detect and recognize printed patterns, and send the cutting information to the cutting machine.
* This process is repeating after the machine finishes to cut the current cutting window.
* This system can be adapted on laser cutters of any dimensions; the only factor which depends on cutter width is the number of cameras.
* Depending of required cutting precision the number of cameras can be increased / decreased. For most of the practical applications, 90cm of cutter width requires 1 camera.
Advantages
__
* Detection of printed fabrics directly from rolls, without any preparation;
* Fully automatic process, not required human intervention;
* High precision detection;
* Fast. Comparing with other systems with detection cameras installed on cutting head, situation in which the scanning is an extremely time consuming process. A major advantage, compared with systems using projectors, is that the process is fully automatic, no human intervention is required and is extremely fast (less than 5 seconds for an entire cutting window), while systems using video projectors are entirely manual, time consuming and less precise.
* Cameras scanning the fabric during the conveyor advance, detect and recognize printed patterns, and send the cutting information to the cutting machine.
* This process is repeating after the machine finishes to cut the current cutting window.
* This system can be adapted on laser cutters of any dimensions; the only factor which depends on cutter width is the number of cameras.
* Depending of required cutting precision the number of cameras can be increased / decreased. For most of the practical applications, 90cm of cutter width requires 1 camera.
Advantages
__
* Detection of printed fabrics directly from rolls, without any preparation;
* Fully automatic process, not required human intervention;
* High precision detection;
* Fast. Comparing with other systems with detection cameras installed on cutting head, situation in which the scanning is an extremely time consuming process. A major advantage, compared with systems using projectors, is that the process is fully automatic, no human intervention is required and is extremely fast (less than 5 seconds for an entire cutting window), while systems using video projectors are entirely manual, time consuming and less precise.
Work Flow
Work Flow
__

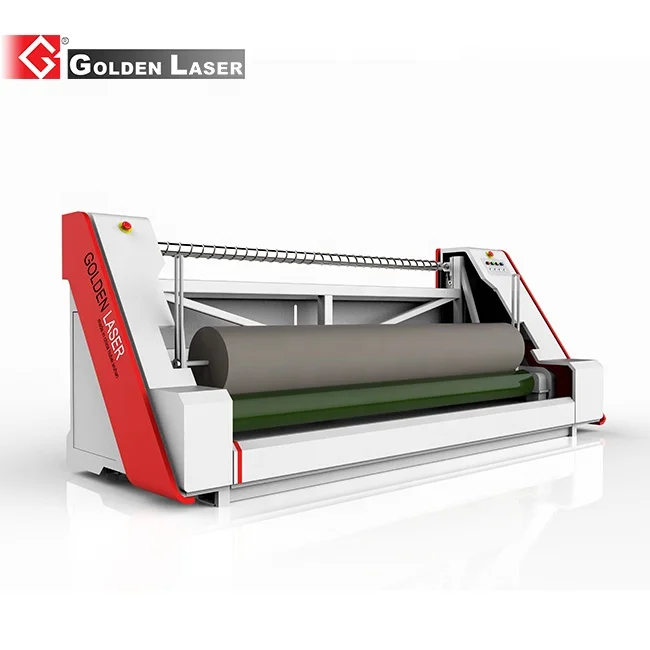

1. Place the roll of printed fabric on the feeder and lay it on the laser cutter.
2. Vision laser system for scanning and cutting.
Scan Mode
__
1. Cameras scan the fabric, detect and recognize printed contour, and then laser cut it out.
2. Cameras pick up printed registration marks and laser cut the chosen designs.
Packing & Delivery
Company Profile
GOLDEN LASER, China's first GEM listed company (stock code: 300220)! Accumulated 20 years of experience in laser equipment manufacturing and exporting. Providing the best cost-effective laser solutions!
► Laser innovative application service platform
► Leading laser solution provider
► 20 years experience in laser industry
► Laser-World of Photonics Exhibitor since 2005
► Strict quality control and exclusive after-sales service team
► Providing customized laser machines for users and distributors globally
Golden Laser - Golden Service
• Installation Service
Installation Services are available with all GOLDEN LASER machines. We dispatch technician to customer's factory for installation and preoperation of machines.
• Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
• Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments. Machine warranty is 1 year. We offer flexible extended warranties if needed.
► Laser innovative application service platform
► Leading laser solution provider
► 20 years experience in laser industry
► Laser-World of Photonics Exhibitor since 2005
► Strict quality control and exclusive after-sales service team
► Providing customized laser machines for users and distributors globally
Golden Laser - Golden Service
• Installation Service
Installation Services are available with all GOLDEN LASER machines. We dispatch technician to customer's factory for installation and preoperation of machines.
• Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
• Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments. Machine warranty is 1 year. We offer flexible extended warranties if needed.
FAQ
Q1. How does a laser work?
A1. LASER stands for ‘Light Amplification by Stimulated Emission of Radiation’. In the resonator of a laser source – in material processing, these are often CO2 lasers – a special kind of light beam is generated by the action of electric energy. With closed CO2 gas mix laser beam sources, the laser is maintenance-free and uses no laser gas - similar to a
fluorescent tube.
Q2. Which advantages do laser systems have compared to conventional processing methods?
A2. Every day, more application possibilities arise for the use of laser technology in the textile market. Our laser systems for cutting, engraving and marking are meanwhile being used efficiently across all sectors of industry, both for short runs and for industrial mass production runs.
Q3. How does non-contact cutting affect cutting results?
A3. There is more to non-contact machining than meets the eye. In contrast to mechanical processing, there is no physical contact with the material being processed at any time during laser cutting. While knifes, routing machines or punches cause stress to the material, which can lead to undesirable consequences such as damage, laser cutting offers many advantages thanks to this extraordinary property.
NOTE: Different configurations have different prices. The price on Alibaba is NOT real price, please contact us to get the latest quotation. Thank you.
fluorescent tube.
Q2. Which advantages do laser systems have compared to conventional processing methods?
A2. Every day, more application possibilities arise for the use of laser technology in the textile market. Our laser systems for cutting, engraving and marking are meanwhile being used efficiently across all sectors of industry, both for short runs and for industrial mass production runs.
Q3. How does non-contact cutting affect cutting results?
A3. There is more to non-contact machining than meets the eye. In contrast to mechanical processing, there is no physical contact with the material being processed at any time during laser cutting. While knifes, routing machines or punches cause stress to the material, which can lead to undesirable consequences such as damage, laser cutting offers many advantages thanks to this extraordinary property.
NOTE: Different configurations have different prices. The price on Alibaba is NOT real price, please contact us to get the latest quotation. Thank you.
Contact
Please contact GoldenLaser for more information. Your response of following questions will help us recommend the most suitable machine.
1. What is your main processing requirement? Laser cutting or laser engraving (laser marking) or laser perforating or ...?
1. What is your main processing requirement? Laser cutting or laser engraving (laser marking) or laser perforating or ...?
2. What material do you need to laser process?
3. What is the size and thickness of the material?
4. What is your application industry? / What is your final product?
5. Your company name, website, Email, Tel (WA ...)?
3. What is the size and thickness of the material?
4. What is your application industry? / What is your final product?
5. Your company name, website, Email, Tel (WA ...)?
