5 тонн чешуйчатого льда машина Refcomp компрессор
- Категория: >>>
- Поставщик: Jinan Robin Machinery Co. Ltd.
Сохранить в закладки 1601030736029:
Описание и отзывы
Характеристики
Product Description
The ice rake system is generally used in conjunction with ice making equipment and installed in the ice storage cold storage. It can effectively use space to store ice. When a large amount of ice is needed in a short time, the ice storage cold storage can automatically deliver ice to meet the demand for ice.
Flake Ice Machine Features
●white attractive appearance;
●sub-cooled, fast product cooling. Temperature approx. -5℃, with greater cooling efficiency. Fit for perishable product immediate cooling;
●completely dry, it won't rapidly freezing together in a low-temperature storage bin or clog screw conveyors or pneumatic delivery systems, easier for storage and distribution;
●large contact area, good mobility, which means large heat exchange surface area, faster and better cooling effect than other types of ice and its flat shape won’t damage the delicate or fragile seafood products;
●thin piece, easy to melt rapidly and dissipate heat, add moisture to mixtures and assist the mixing process;
●the thin ice is easy to crush, mold, and shovel.
●sub-cooled, fast product cooling. Temperature approx. -5℃, with greater cooling efficiency. Fit for perishable product immediate cooling;
●completely dry, it won't rapidly freezing together in a low-temperature storage bin or clog screw conveyors or pneumatic delivery systems, easier for storage and distribution;
●large contact area, good mobility, which means large heat exchange surface area, faster and better cooling effect than other types of ice and its flat shape won’t damage the delicate or fragile seafood products;
●thin piece, easy to melt rapidly and dissipate heat, add moisture to mixtures and assist the mixing process;
●the thin ice is easy to crush, mold, and shovel.
Technology of flake ice machine
Ice production | 5T/24h |
Cooling capacity | 38.6kw |
Evaporation temperature | -20℃ |
Condensation temperature | 40℃ |
Standard ambient temperature | 25℃ |
Standard feed water temperature | 20℃ |
Total installed power | 22.55KW |
Condenser fan input power | 1.32KW |
Compressor input power | 20.7KW |
Reducer power | 0.37 KW |
Pump power | 0.12KW |
Power supply | 3P-380V-50Hz |
Feed water pressure | 0.1Mpa－0.5Mpa |
Refrigerant | R404A |
Flake ice temperature | -5℃ |
Flake ice thickness | 1.6mm-2.3mm |
Water consumption (m3 / h) | 0.2 |
Pipe connection size | 3/4’’ |
Unit net weight | 960KG |
Unit dimension (L * w * h) mm | 2300×1800×1580 |

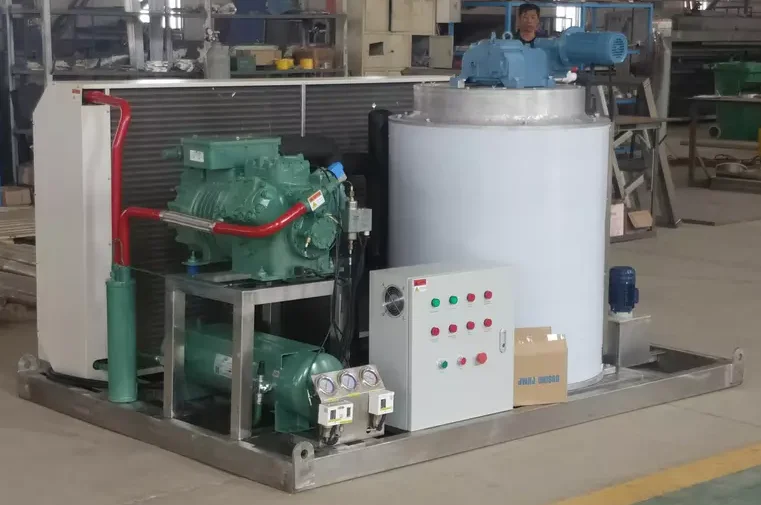

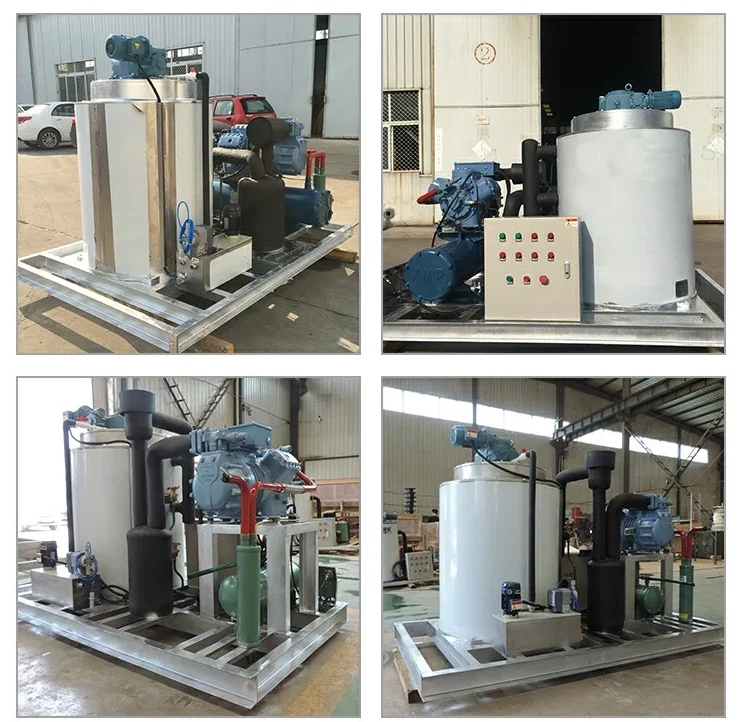

Flake Ice Machine details
Electric box
Microcomputer Intelligent control: the flake ice machine is using PLC control system with world famous brand components.
Meanwhile, it can portect the flake ice machine when there are water shortage, ice full, H / L pressure alarm, and motor reversal.
Meanwhile, it can portect the flake ice machine when there are water shortage, ice full, H / L pressure alarm, and motor reversal.
Evaporator drum
Use stainless steel material or carbon steel chrominum. The style of inside machine ensures constant running at the lowest power consumption.Stainless steel materials, advanced processing equipment and heat treatment to ensure the best heat transfer efficiency;Directly liquid feeding, dry-type evaporation make simple, safe and reliable control.
Ice cutter
Internally-scraping ice remover helps to reduce energy loss, guarantee the supply of refrigerant, and prevent leakage of refrigerant; Ice thickness can be varied by changing the speed of the rotor.
Flake Ice Application
Suit for refreshing vegetable, fruit, food stuff in supermarket; blast cooling for processing of fishery products and butchery;cooling process in fermentation, dairy production; chemical dyes; cooling in concrete and mining, etc.
Main brands on Flake Ice Machine
Company Profile
Jinan Robin Machinery CO., LTD is located in Jinan, Shandong, which is an comprehensive enterprise specializing in design,production,technical support and services for ice making machine, such as flake ice machine, seawater machine, block ice machine,tube ice machine, cold room, refrigeration equipment. The large, medium and small sized ice machine can applied to the supermarket, hotel, Marine fishery, aquatic products processing, food processing, chemical industry, concrete cooling and the coalmine cooling etc.
Based on the principle of "Customer First, Credit First", Robin Machinery has established long-term cooperative relationships with many companies. Sincerely welcome friends from all walks of life to visit, inspect and negotiate business.
Based on the principle of "Customer First, Credit First", Robin Machinery has established long-term cooperative relationships with many companies. Sincerely welcome friends from all walks of life to visit, inspect and negotiate business.
Certificate
Services
Service before sale
1.One-on-one exclusive customer service staff, 24 hours online.
2.Inquiry, email, message will be replied at first time.
3.Supply professional technical parameters, video picture sharing, project design.
Service on sale
1.Ensure customer payment security.
2.Ensure the customer's price is stable and reasonable.
3.Insist on quality first the production standard, every machine before leave the factory we test it ensure the quality is good.
Service after sale
1.Arrange high-efficiency delivery and safe transport.
2.Supply installation training, direction for use, maintenance instructions, techinical support, all necessary documents you need and oversea service.
1.One-on-one exclusive customer service staff, 24 hours online.
2.Inquiry, email, message will be replied at first time.
3.Supply professional technical parameters, video picture sharing, project design.
Service on sale
1.Ensure customer payment security.
2.Ensure the customer's price is stable and reasonable.
3.Insist on quality first the production standard, every machine before leave the factory we test it ensure the quality is good.
Service after sale
1.Arrange high-efficiency delivery and safe transport.
2.Supply installation training, direction for use, maintenance instructions, techinical support, all necessary documents you need and oversea service.
FAQ
1. Can I customize the machine?
Yes. You can choose output, material, accessories brand, etc.
2. Are the prices on the website accurate?
No. Because the price of the machine is affected by many factors, the price of the website is not very accurate.
3. How do I get a more accurate price?
Tell the salesman your requirements and they will give you a more accurate price.
4. How long will it take to make the machines?
The production time required for machines of different output is different. Peak season requires longer production time.
5. Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release your payment to us.
6. How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
2. Are the prices on the website accurate?
No. Because the price of the machine is affected by many factors, the price of the website is not very accurate.
3. How do I get a more accurate price?
Tell the salesman your requirements and they will give you a more accurate price.
4. How long will it take to make the machines?
The production time required for machines of different output is different. Peak season requires longer production time.
5. Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release your payment to us.
6. How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
Packaging and Shipping
Похожие товары
SP-PC-365418 360*540*180 Китая производителя корпуса ПК на открытом воздухе IP65 водонепроницаемый Saip Saipwell проект большие пластиковые корпуса
Высокоскоростной Электрический мотоцикл CHINFUN с мотором-концентратором 3000 Вт и литиевой батареей 72 в 70 Ач, большой диапазон действия EEC COC CE
426,00 $ - 626,00 $

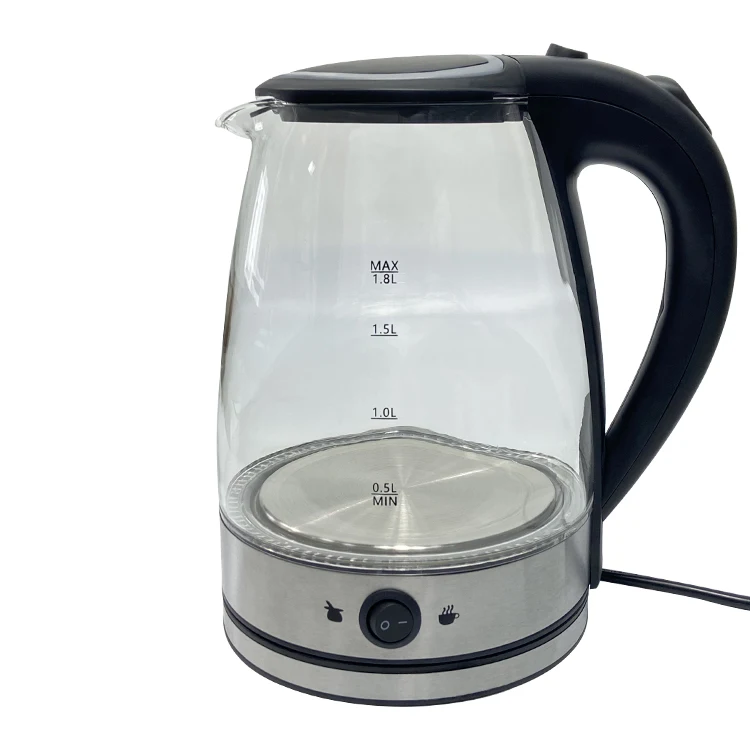

1.8L быстрое закипание эластичной крышкой метод автоматическое выключение воды из твердого английского фарфора Электрический чайник стеклянный чайник
7,51 $ - 7,91 $

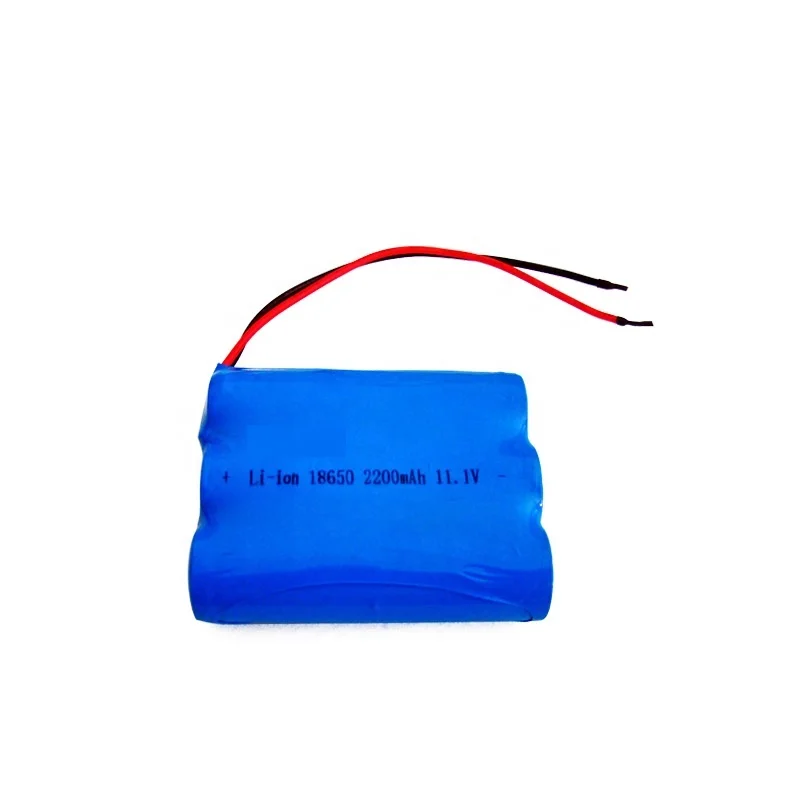

Литий-ионный перезаряжаемый литиевый аккумулятор NMC 12 В 18650 3S1P 11,1 в 2000 мАч

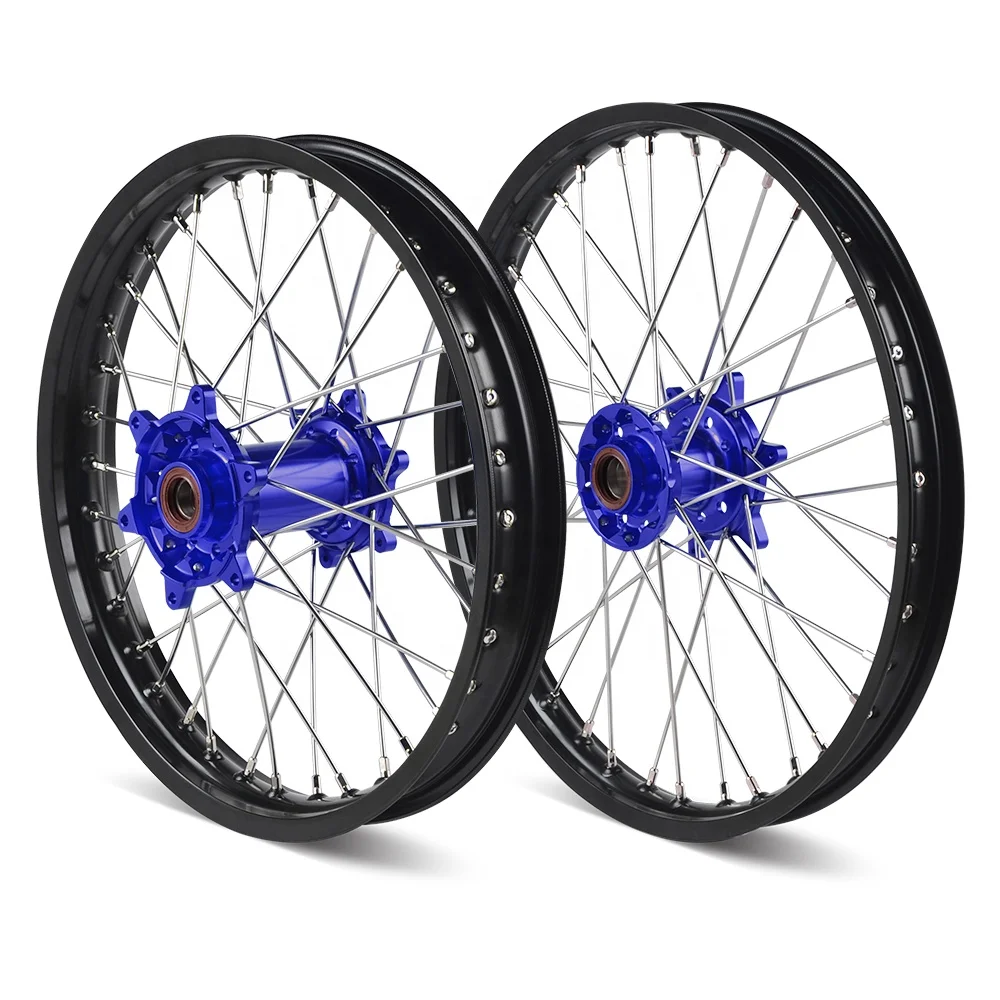

NiceCNC, 21 дюйм, передняя, 18 дюймов, задняя точка, полная ступица обода колеса для Hus qvarna FC FE TC TE 250 350 450 501
245,00 $ - 260,00 $

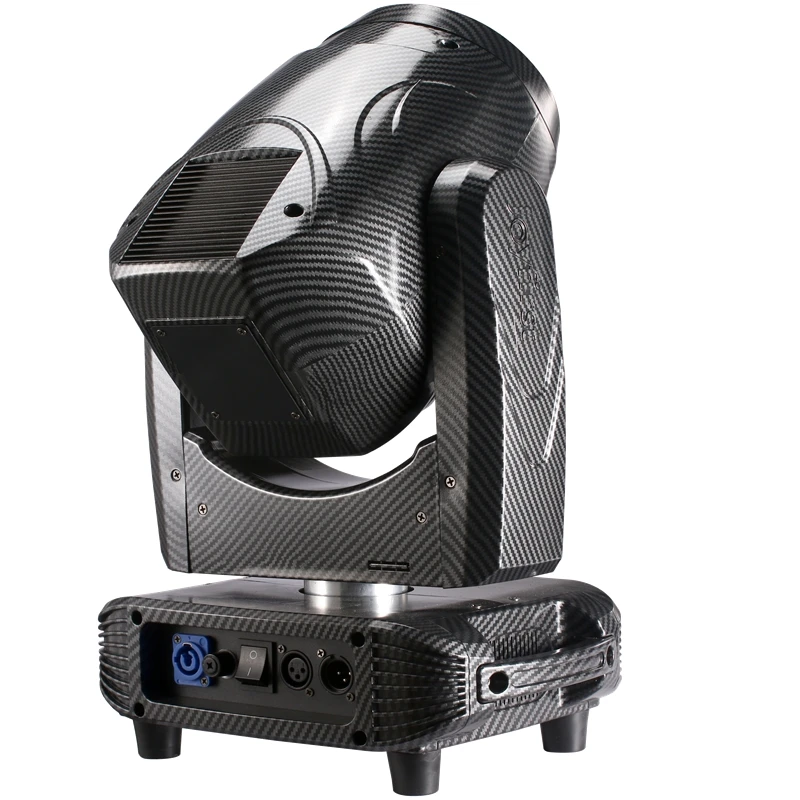

Светодиодная 300 Вт движущаяся головка Luces Dj Night Club Disco Stage Light Lyre Spot Moving Head Sharpy Beam Lights
