Заводская распродажа 1500 Вт 2000 автоматическая металлическая катушка лазерная резка высокоточная Волоконно-Лазерная линия с ЧПУ
2 854 472,67 ₽ - 3 515 740,47 ₽
Dxtech четыре функции материала намотки лазерной резки с 3000*1500 мм стол
- Категория: >>>
- Поставщик: Jinan DXTECH Machinery Co. Ltd
Сохранить в закладки 1601033676810:
Описание и отзывы
Характеристики
Laser 1.5KW-6KW Material Coiling Metal Sheet Laser Cutting Machine IPG/Raycus Head
Products Description

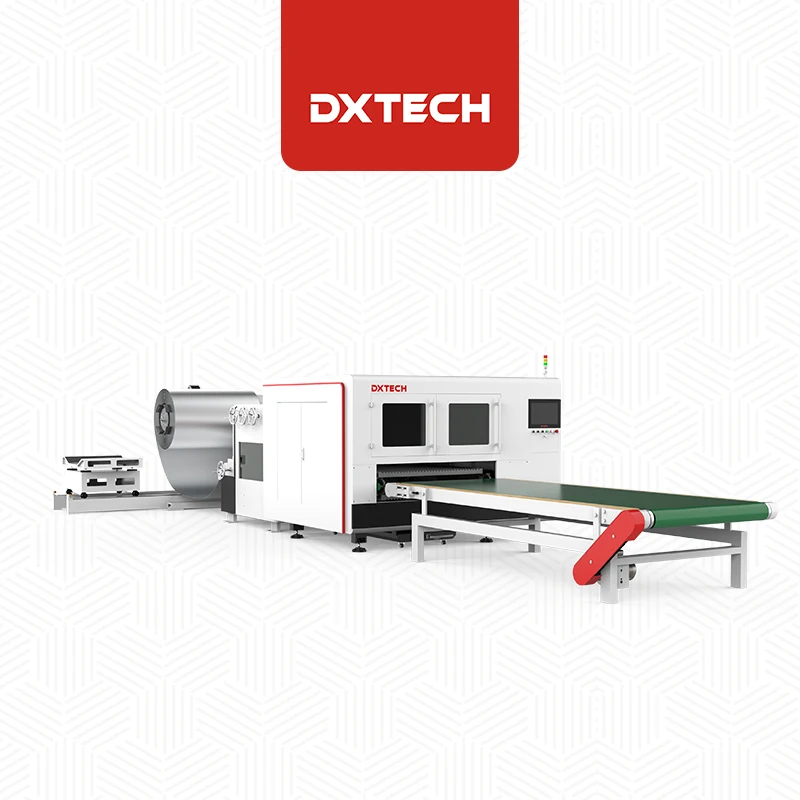

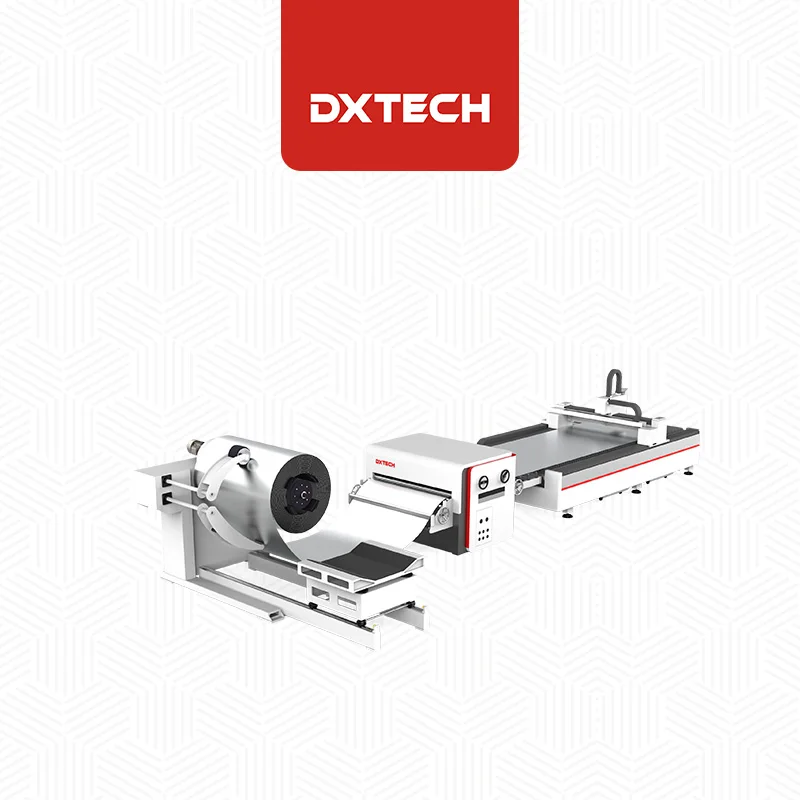

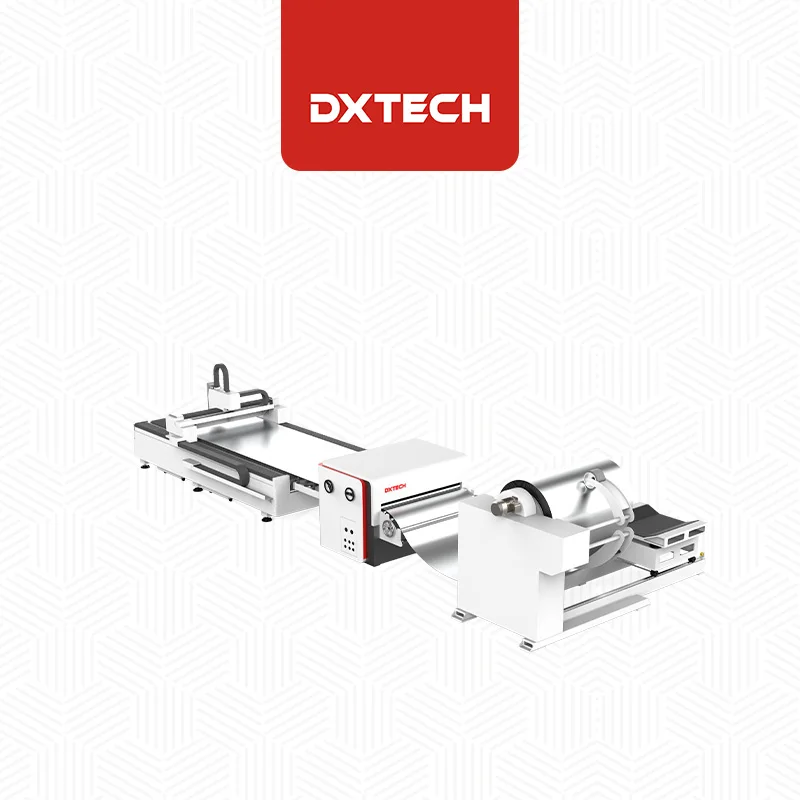

TEEL COILS LASER METAL CUTTING MACHINE WITH DECOILING AND LEVELLING ADVANTAGES
1. The loading material weight can reach 20T, breaking through the feeding limit of ordinary 3T, which is 6 times the efficiency of ordinary feeding equipment.
2. Stronger stress relief: after the coil is uncoiled, the sheet metal is leveled by the leveling machine, and the stress of the sheet material during the leveling process is eliminated. So the sheet material is flatter and a better cutting experience is obtained.
3. High-precision transmission structure: using ultra-precision transmission system, the transmission accuracy of sheet metal is about ±0.5MM, which can ensure higher accuracy.

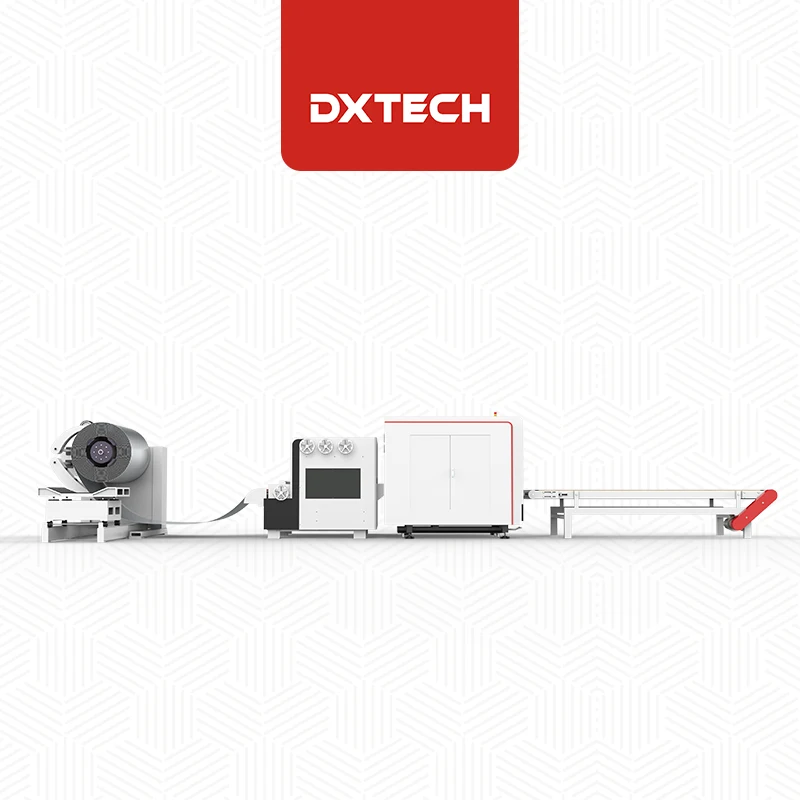

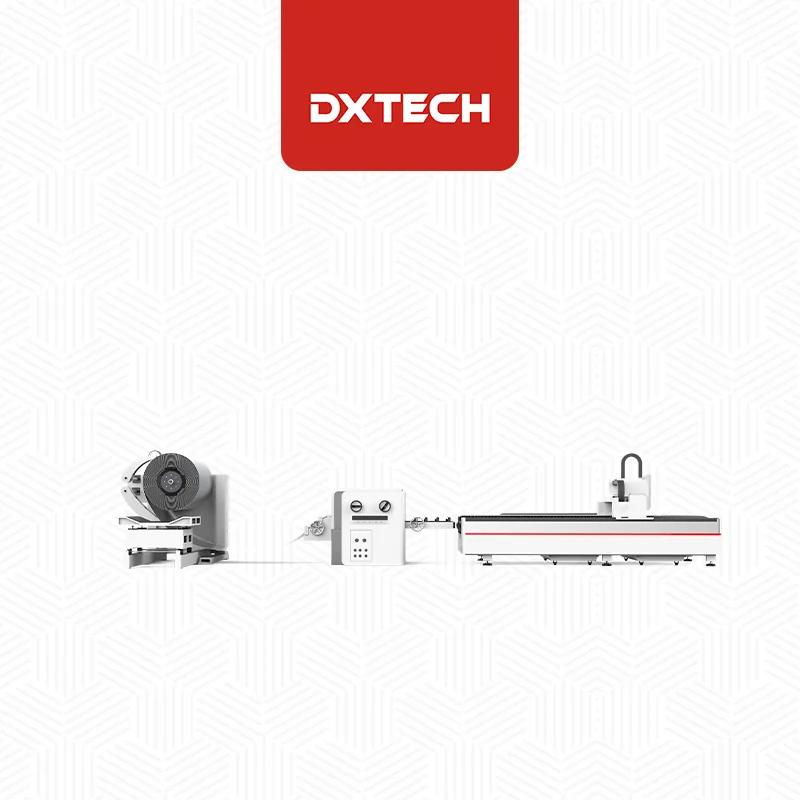

4. Fully automatic assembly line: from feeding – uncoiling – leveling – cutting – unloading, the whole process is automated, which can achieve zero waste of coil material and improve the utilization efficiency of sheet materials.
5. Flexibility: this coil production line breaks through the limit of the ordinary laser cutting length, and has subversive significance in some fields.
1. The loading material weight can reach 20T, breaking through the feeding limit of ordinary 3T, which is 6 times the efficiency of ordinary feeding equipment.
2. Stronger stress relief: after the coil is uncoiled, the sheet metal is leveled by the leveling machine, and the stress of the sheet material during the leveling process is eliminated. So the sheet material is flatter and a better cutting experience is obtained.
3. High-precision transmission structure: using ultra-precision transmission system, the transmission accuracy of sheet metal is about ±0.5MM, which can ensure higher accuracy.
4. Fully automatic assembly line: from feeding – uncoiling – leveling – cutting – unloading, the whole process is automated, which can achieve zero waste of coil material and improve the utilization efficiency of sheet materials.
5. Flexibility: this coil production line breaks through the limit of the ordinary laser cutting length, and has subversive significance in some fields.
Aviation Aluminum Beam
1) It has the characteristics of corrosion resistance, light weight, and high rigidity.which ensures high-speed movement during
laser processing.
2) It has perfect dynamic performance, such as anti-distortion, anti-overturning
anti-deformation, etc, ensuring higher cutting accuracy.
laser processing.
2) It has perfect dynamic performance, such as anti-distortion, anti-overturning
anti-deformation, etc, ensuring higher cutting accuracy.
Intelligent focusing laser head
Cooling: Both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is
added, which effectively protects the nozzle and the ceramics and prolongs the working time. Chasing Aperture: Through the 35 mm
aperture, the interference of stray light is effectively reduced. Autofocus: Without human interference, the focusing speed can
reach 10m/min, and the repeatability is about 50 microns.
added, which effectively protects the nozzle and the ceramics and prolongs the working time. Chasing Aperture: Through the 35 mm
aperture, the interference of stray light is effectively reduced. Autofocus: Without human interference, the focusing speed can
reach 10m/min, and the repeatability is about 50 microns.
Thick-walled carbon steel pipe welding bed
Adopting high-quality carbon steel welding bed, it is more stable and durable. The high-strength machine tool adopts 600 ℃ stress
relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.
relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.
Technical Paramenters
Model | DXTECH-1390QC | DXTECH-9090QC |
Working area | 1310*910 | 910*910 |
Positioning accuracy | ±0.05mm | ±0.05mm |
Repositioning accuracy | ±0.03mm | ±0.03mm |
Max. acceleration | 1.2G | 1.2G |
Laser power | 1kW – 2kW | 1kW – 2kW |
Coil sheet thickness | 0.5-3mm | 0.5-3mm |
Coil weight | ≤10t | ≤10t |
X/Y-axis max. linkage speed | 100m/min | 100m/min |
Laser | Multiple options | Multiple options |
Focusing method | Auto/manual | Auto/manual |
Leveling speed | ≤20m/min | ≤20m/min |
Sample Show
Product Category
Company Profile
Quality Control
FAQ
01What is fiber laser cutting machine?
A:Fiber laser is a special type of solid state laser. Generally, fiber lasers are optically
pumped.This is done by coupling the radiation of diode laseers or other fiber lasers into the cladding or the core itself in a
direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power. What's material can fiber laser cut? All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, etc.
02What's the max. cutting thickness?
A:Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflectionsheet metal.
03Do you have CE document and other documents for customs clearance?
A:Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
04 Payment terms?
A:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
05 I don't know how to use after i receive Or i have problem during use, how to do?
A:We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.
06 I don't know which one is suitable for me?
A:just tell us below information
pumped.This is done by coupling the radiation of diode laseers or other fiber lasers into the cladding or the core itself in a
direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power. What's material can fiber laser cut? All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, etc.
02What's the max. cutting thickness?
A:Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflectionsheet metal.
03Do you have CE document and other documents for customs clearance?
A:Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
04 Payment terms?
A:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
05 I don't know how to use after i receive Or i have problem during use, how to do?
A:We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.
06 I don't know which one is suitable for me?
A:just tell us below information
1) Max work size:choose most suitable model.
2) Materials and Cutting thickness:Power of laser generator.
3) Business industries:We sell a lot and give advice on this business line.also provide Door service if you need.
Похожие товары
Высокая эффективность 3000 Вт 2000 металлические листы стальная катушка для резки волоконно-лазерной
2 291 292,93 ₽ - 4 202 356,87 ₽
Leadshine безуходный 3-х фазный шаговый двигатель 573/ 57 для станок лазерной гравировки/части отрезного станка
2 204,23 ₽

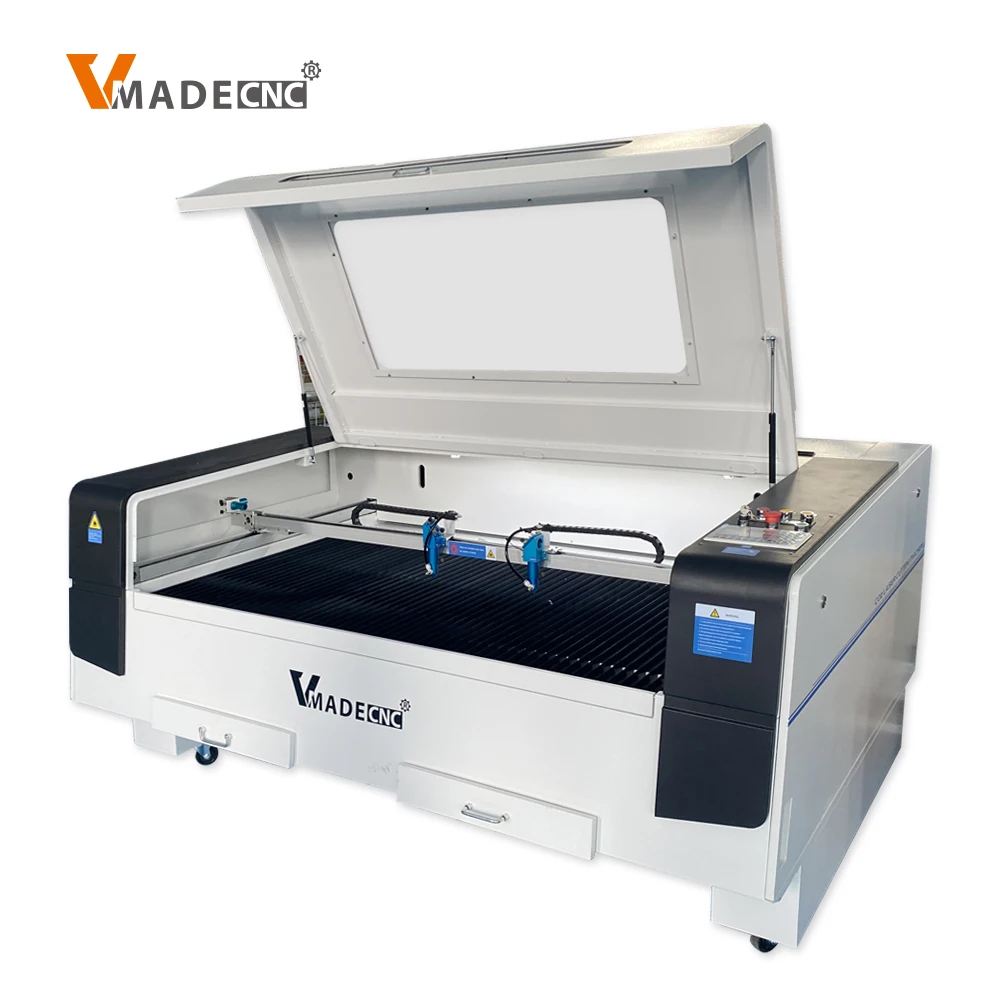

Leiquan лидер продаж Смешанная металлическая Лазерная резка с сенсорной панелью управления
716 373,45 ₽ - 771 479,10 ₽
Машина для лазерной резки co2 современный дизайн 100 Вт запасные части SHANTUI
1610 1613 для лазерной резки с автоматической системой подачи Двойные головки одежды из кожаной ткани
286 549,38 ₽ - 330 633,90 ₽

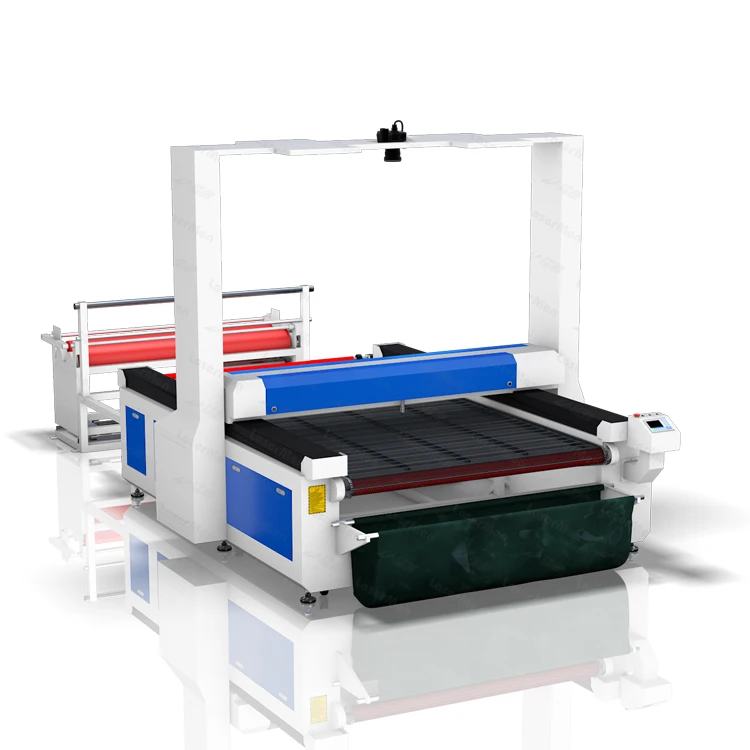

130 Вт 150 180 ткань для резки ткани CCD-камера 1625 1630 лазерная машина
