Складские дверцы, австрийские роликовые ставни, машина для формовки дверей
1 274 473,16 ₽ - 1 512 086,80 ₽
Высокоскоростная автоматическая машина для изготовления стеллажей
- Категория: >>>
- Поставщик: Henan Dingkou Industrial Co. Ltd.
Сохранить в закладки 1601035057626:
Описание и отзывы
Характеристики
Product information
1. Product Image

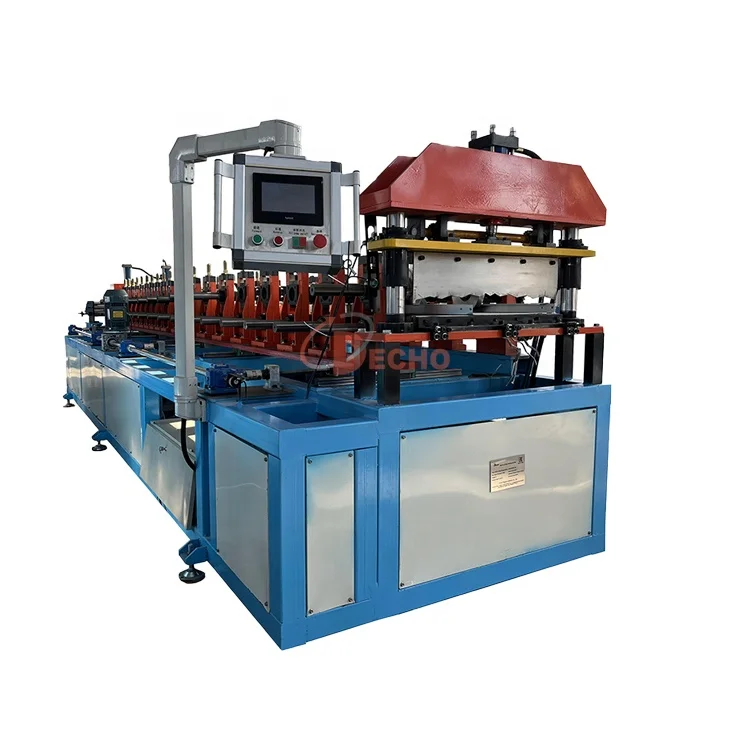

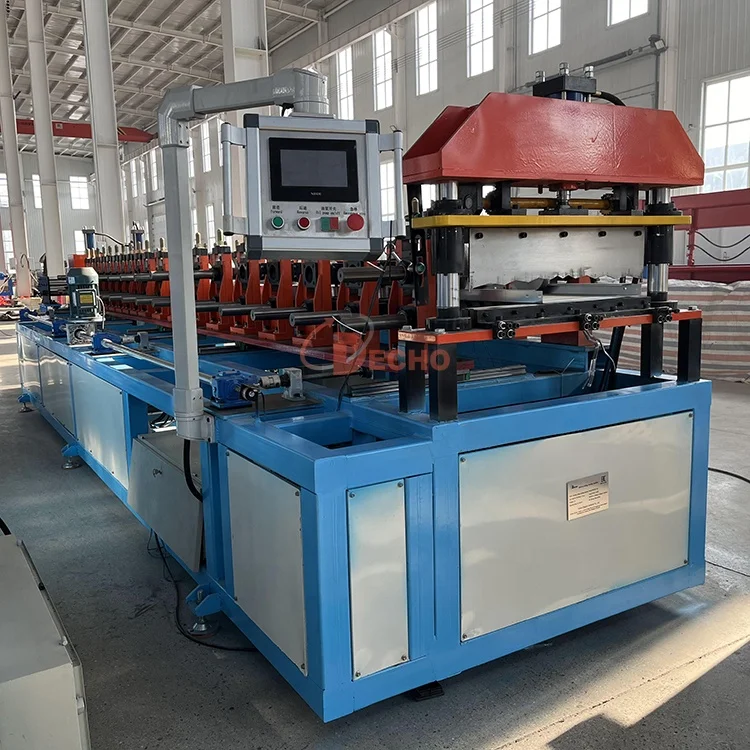

Supermarket Storage Pallet Roll Forming Machine is used to produce shelf components for warehousing series, and the finished product is “shelf panel”. It is mostly used for light shelf components such as goods display, placement, and merchandise display in warehouses, supermarkets, and small and large shopping centers.(Customized according to customer configuration requirements.)
2. Work Flow
Capacity of the entire production line is 10- 20 m / min . It consists of 6 parts.Un-coiler →Feeding material →Hydraulic punching→Roll forming → Auto cutting → Products receiving table, but It only takes 1 -2 worker.
3. Equipment List
NUM | Equipment Name | Quantity |
1 | Uncoiling Device | 1 set |
2 | Hydraulic Punching Device | 1 set |
3 | Forming Main Device | 1 set |
4 | Hydraulic Cutting System | 1 set |
5 | Material Receiving Table | 1 set |
6 | PLC Control System | 1 set |
7 | Supporting Accessories | 1 set |
4. Product Specification
1.Raw Material | Type | GI / GL /PPGI / PPGL /Customization |
Thickness(mm) | 0.8-1.5 /Customization | |
2.Un-coiler Device | Type | Manual / Electric / Hydraulic Decoiler（optional） |
Bearing(Tons) | 5T/8T | |
Way of working | Manual / Electric / Hydraulic tensioning crank. The center of the four-bar linkage is supported outward. | |
Panel Width | 200-700mm | |
Coil Inner diameter | φ480-500mm | |
Inner contraction range | φ450-550mm | |

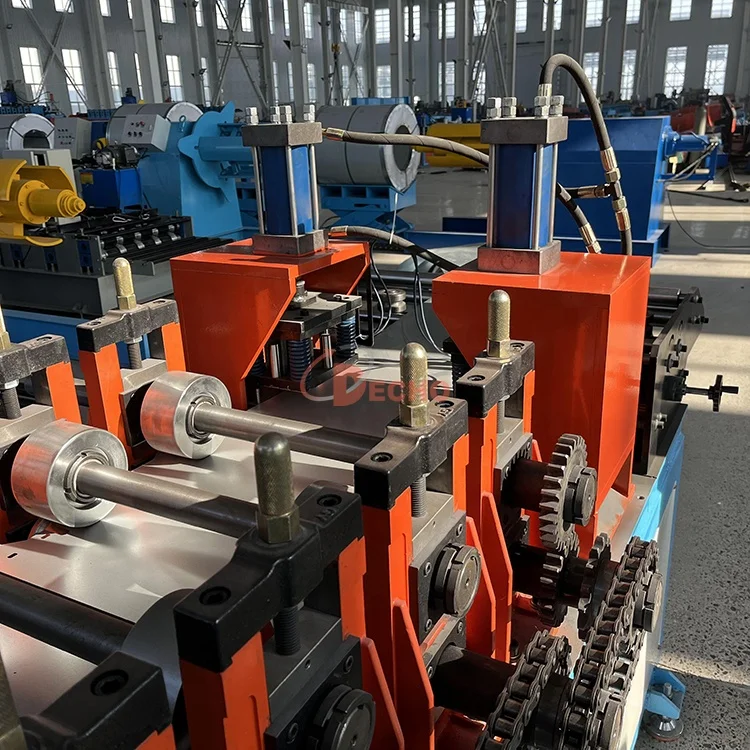

3.Hydraulic punching | Type | Punching mold: DC53 heat treatment |
4.Forming Main Machine | Material:Galvanized steel square tube, section size:80×80(mm). Material wall thickness:3mm Processing:Welding box frame | |
Material:Fine cast iron Thickness:18mm Processing:Casting, precision machining, heat treatment, surface electroplating. | ||
Material:45# steel with chrome 0.05mm Diameter : 70-75mm Processing : Precision machining, heat treatment, precision grinding | ||
Material: GCr15 Processing:Precision machining - polishing - electroplating surface with hard chromium plating | ||

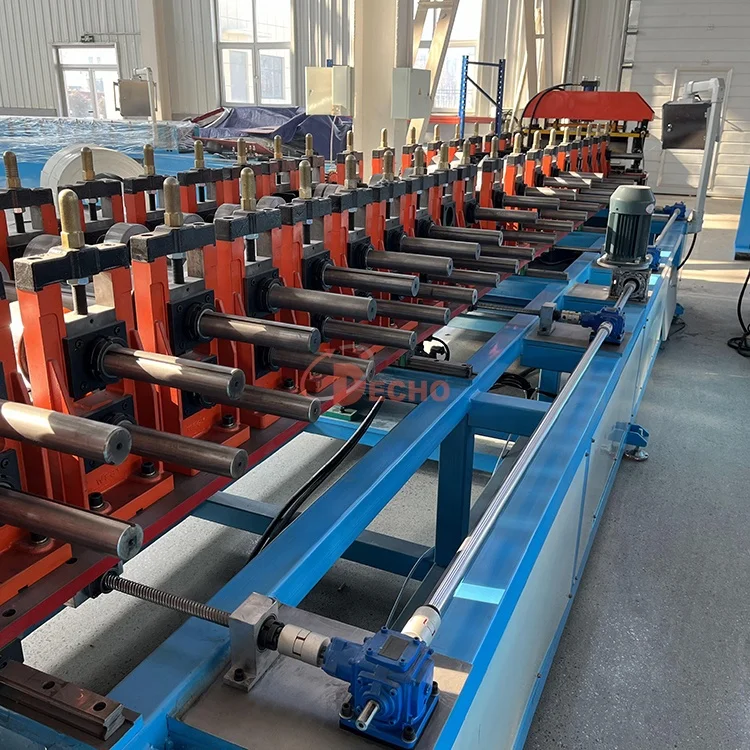

Roller Station | 22-24 stations or Customization | |
Specifications:1.2 inch chain wheel with gear transmission Processing :Quenching heat treatment Gear oil:18 # hyperbolic gear oil | ||
Main Motor | Power:3KW+5.5KW Servo motor Brand：Lichao(optional) Reducer: Cycloidal reducer Protection level:IP55 Explosion-proof level:ExdIICT4 | |
Type | Automatic Hydraulic | |
Blade material | Cr12MOV heat treatment process | |
Pump | hydraulic pressure:10-12mpa Hydraulic oil:46# | |
Pump motor for cutter | Power: 5.5KW | |
6.Receiving rack | Type | manual receiving rack |
7.PLC Control System | PLC Control System | Plc brand：Delta(optional) Text control box：Vertical LCD touch screen control box/Swing arm LCD touch screen control box Language: English / Chinese / Customized |
Inverter | Rated power:10KW |
5. Product Details
Packaging & Shipping
1. One container (20ft or 40ft ) for loading one set machine with manual decoiler and receiving rack.
2. The whole wiped Anti Rust Oil, PLC controller covered by foam film.
3. Spare parts and some small parts packed in plastic tooling box.
2. The whole wiped Anti Rust Oil, PLC controller covered by foam film.
3. Spare parts and some small parts packed in plastic tooling box.
Related Products
About Us
1.About Decho
Decho is a verified supplier by Alibaba and TUV .We have 20 years of export experience serving global quality customers.Have a professional R&D team and technical engineers.Realize the integrated service from design to installation and commissioning.Our products provide customer more convenient in their business and expect to have more cooperate in future. Main products are as follows：
Roofing forming machine | Purlin forming machine | Storage Rack System forming machine |
Light steel keel forming machine | Floor decking forming machine | Shutter door forming machine |
Highway Guardrall forming machine | Solar Panel Bracket forming machine | Truss roll forming machine |
Channel roll forming machine | Ceiling roll forming machine | Slitter & cutter machine |
Leveling & cutting machine | Bending machine | Decoiler (uncoiler) |
2. Certificate
3. Customer Project
Project in Thailand
Project in India
Project in Russia
FAQ
Q1: Are you a manufacturer?
A1:Yes, we are professional manufacturer of the roll forming machine.
Q3. Can you provide OEM service for roll forming machine?
A3: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q4. How about the after-sale service?
A4: We provide 2-5 years free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
Q5:I do not know about the machine and do not know how to install it. Can you install the machine in my factory?
A5: If you need us to send engineers to your factory, you will pay for the travel expense such as visa, round tickets, hotel, food Salary of 80 -100 USD per day per person (from departure from our factory, until we are back to our factory). You also need to take care of his safety.
Q6: I receive a lot of quotations, they are big range, How could i choose?
A6: I have many easy ways to solve it. Fox example, I can teach you how to find the Traders out. Just contact me. It is free for contacting with me.
Q7: I have not whatsapp and skype, how could I contact with you?
A7: Send me one inquiry in the end of this page. Leave your contact information for me. I will contact you. It is free.
Q8. If I am in Beijing, Shanghai or Guangzhou, how to visit your company?
A8: Please contact me and I will arrange a suitable itinerary for you.
A1:Yes, we are professional manufacturer of the roll forming machine.
Q2. What are the main key points for selecting right machines?
A2: Whole structure, Roller Shaft, Roller Material, Motor&Pump, and Control system. As the new buyer, please kindly know that price not the final point. Good quality is for long-term business cooperation.
A2: Whole structure, Roller Shaft, Roller Material, Motor&Pump, and Control system. As the new buyer, please kindly know that price not the final point. Good quality is for long-term business cooperation.
Q3. Can you provide OEM service for roll forming machine?
A3: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q4. How about the after-sale service?
A4: We provide 2-5 years free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
Q5:I do not know about the machine and do not know how to install it. Can you install the machine in my factory?
A5: If you need us to send engineers to your factory, you will pay for the travel expense such as visa, round tickets, hotel, food Salary of 80 -100 USD per day per person (from departure from our factory, until we are back to our factory). You also need to take care of his safety.
Q6: I receive a lot of quotations, they are big range, How could i choose?
A6: I have many easy ways to solve it. Fox example, I can teach you how to find the Traders out. Just contact me. It is free for contacting with me.
Q7: I have not whatsapp and skype, how could I contact with you?
A7: Send me one inquiry in the end of this page. Leave your contact information for me. I will contact you. It is free.
Q8. If I am in Beijing, Shanghai or Guangzhou, how to visit your company?
A8: Please contact me and I will arrange a suitable itinerary for you.
Похожие товары

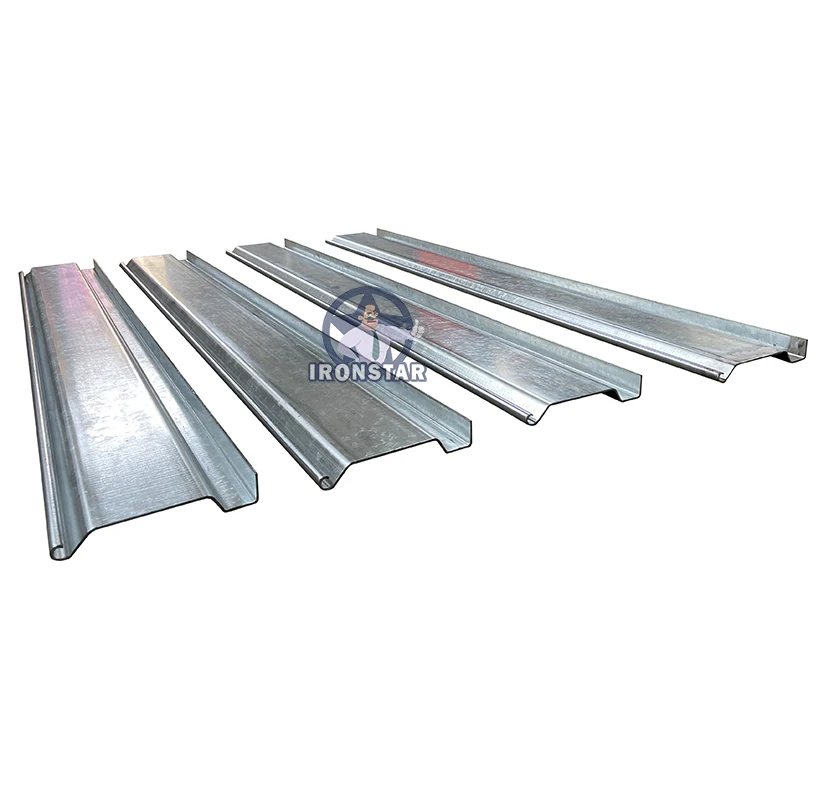

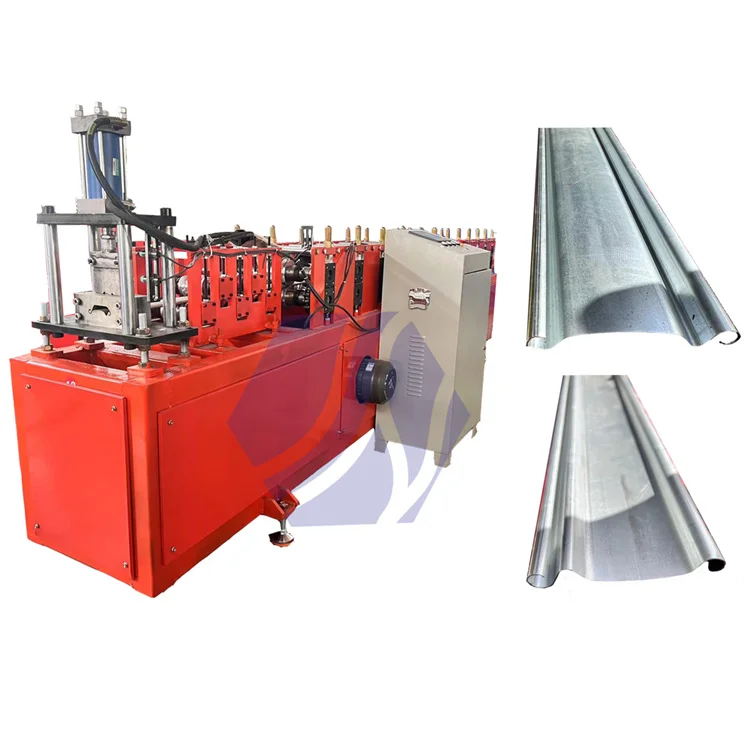

Концевой изоляционный стальной профиль, рулонная машина для гаражных ворот
1 350 077,50 ₽ - 1 512 086,80 ₽

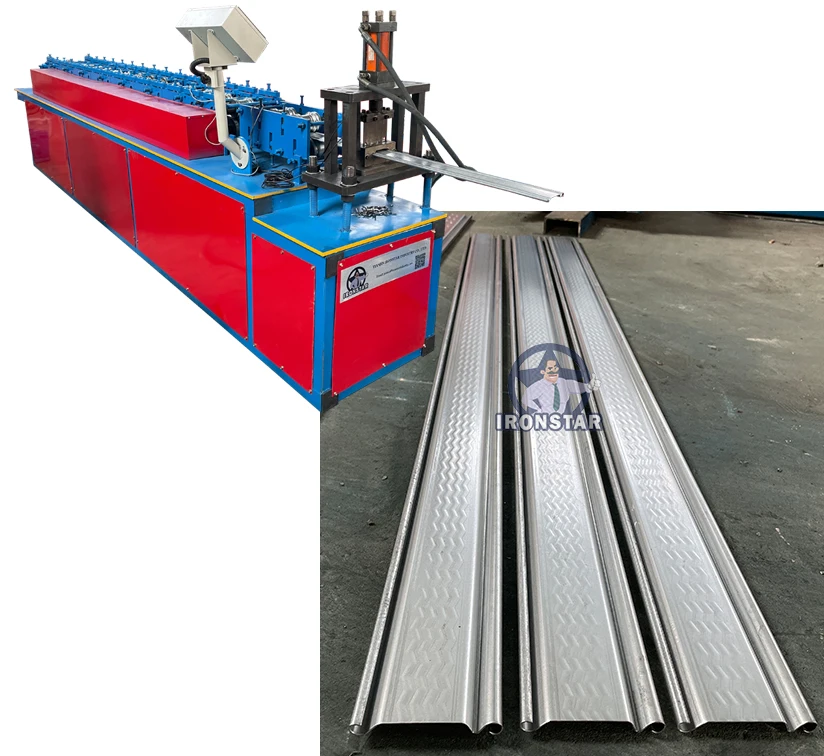

Роликовая машина для профилирования рулонных затворов дверей/роликовый затвор/Роликовые ремни от профессионального производителя
756 043,40 ₽ - 864 049,60 ₽
Заводская цена, машина для производства рулонные двери
529 230,38 ₽ - 702 040,30 ₽

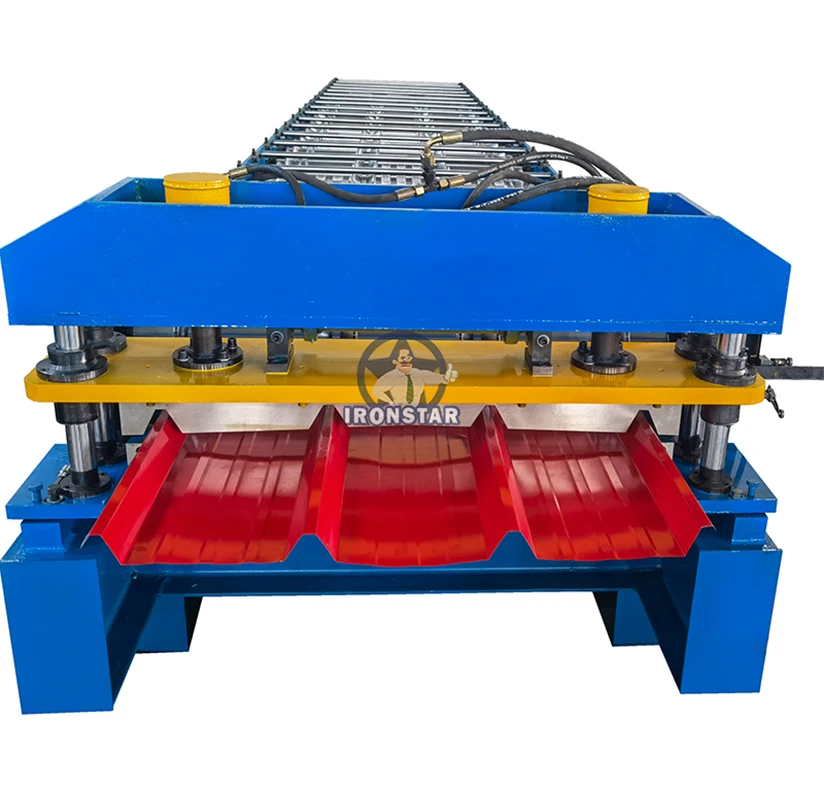

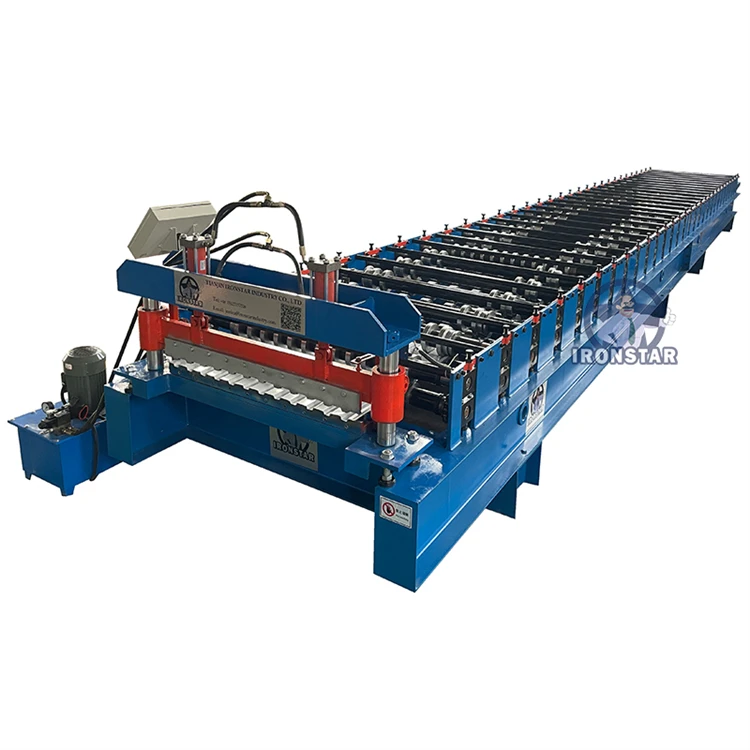

Вес крыши Alu сталь делая машину 0,7 мм толщиной алюминиевый цинковый кровельный лист
950 454,56 ₽ - 1 058 460,76 ₽
Производство машины цены сырья металла кровельный цинковый лист крыши цена
950 454,56 ₽ - 1 058 460,76 ₽

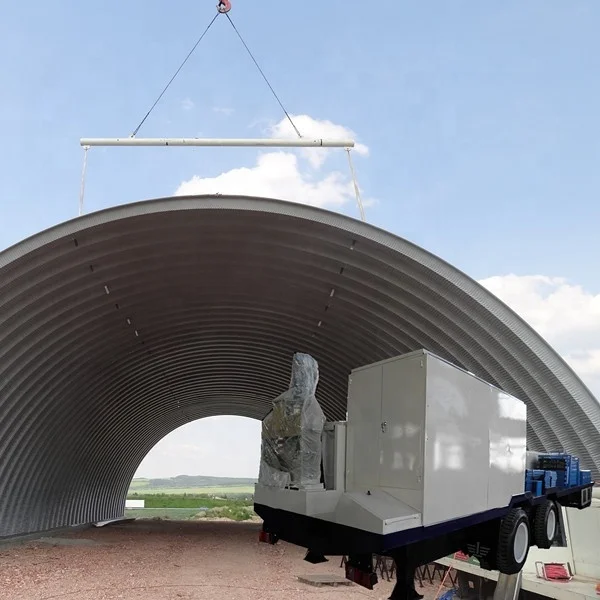

Машина для формовки крупнопролетной глазурованной стальной плитки грузовика для строительства

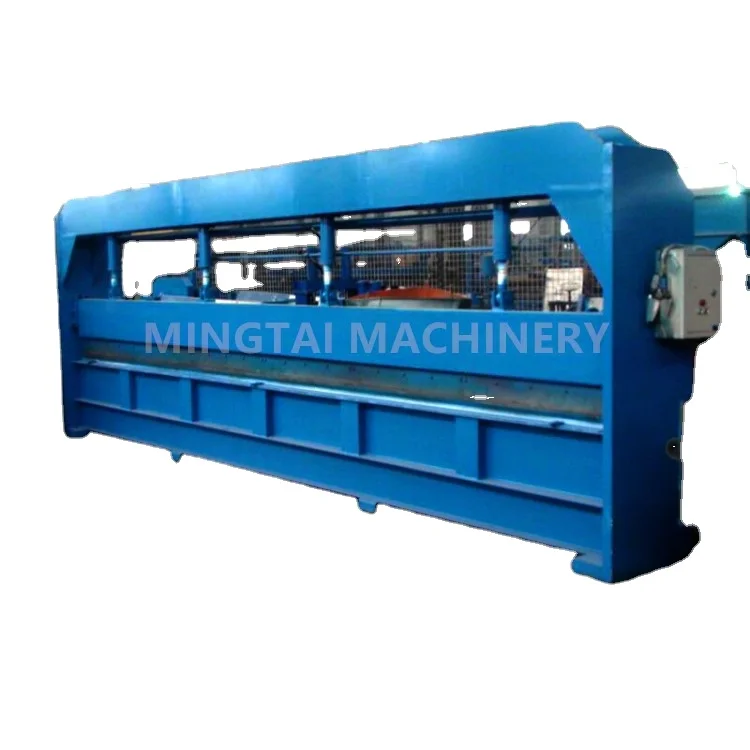

Красивый дизайн, машина для резки листового железа, холодная гидравлическая машина для гибки листового кровля ibr
