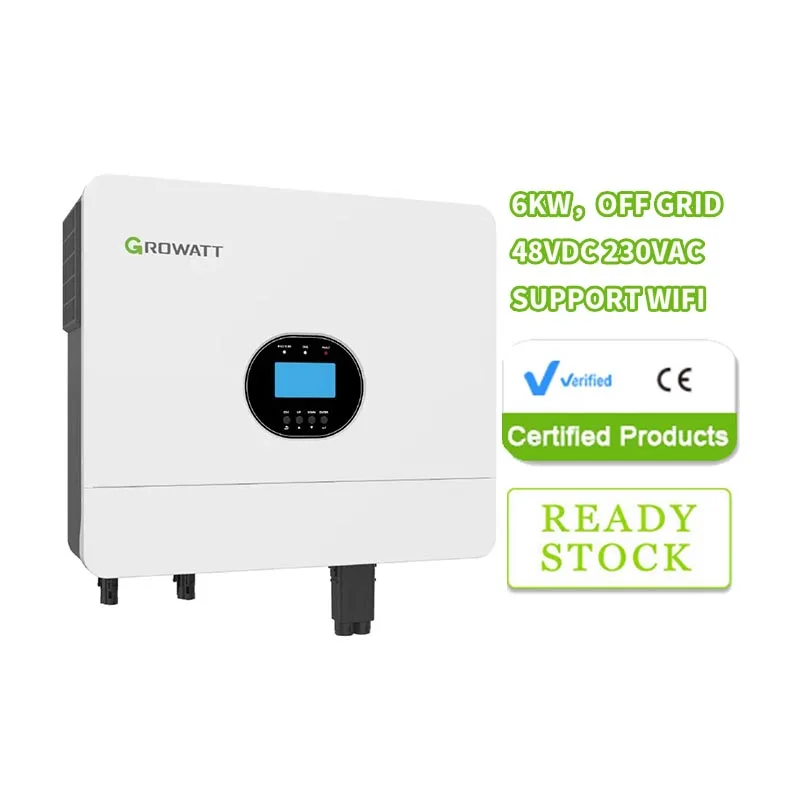

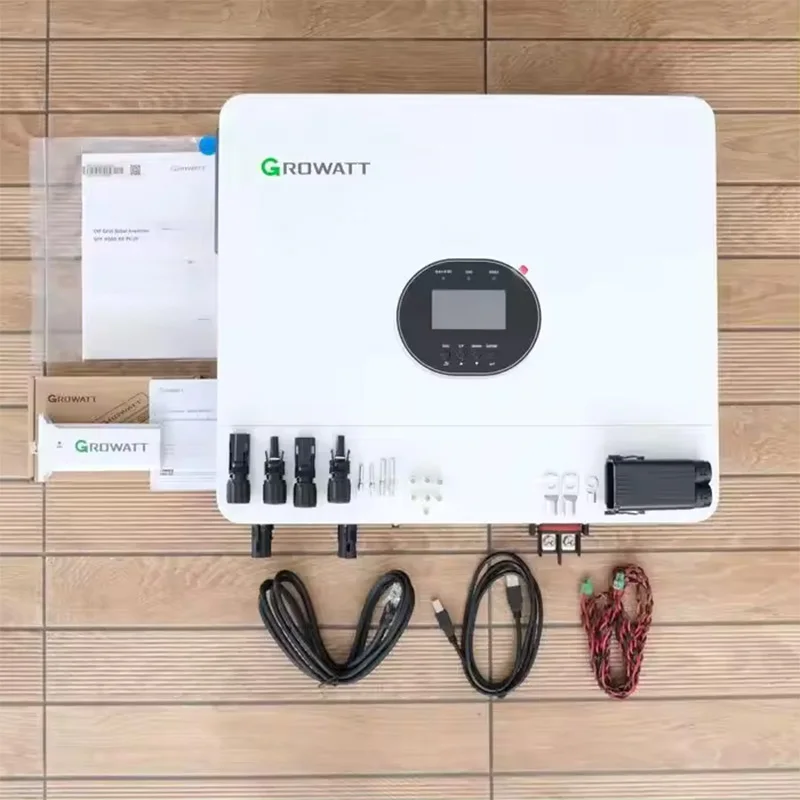

GROWATT Spf 6000 Es ватт 12000 чистый синусоидальный инвертор переменного тока однофазный 48 В 230 12 кВА 6 Солнечный

Сохранить в закладки 1601044971946:


Цена:67 385,21-69 928,05 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики









Product Datasheet




Datasheet

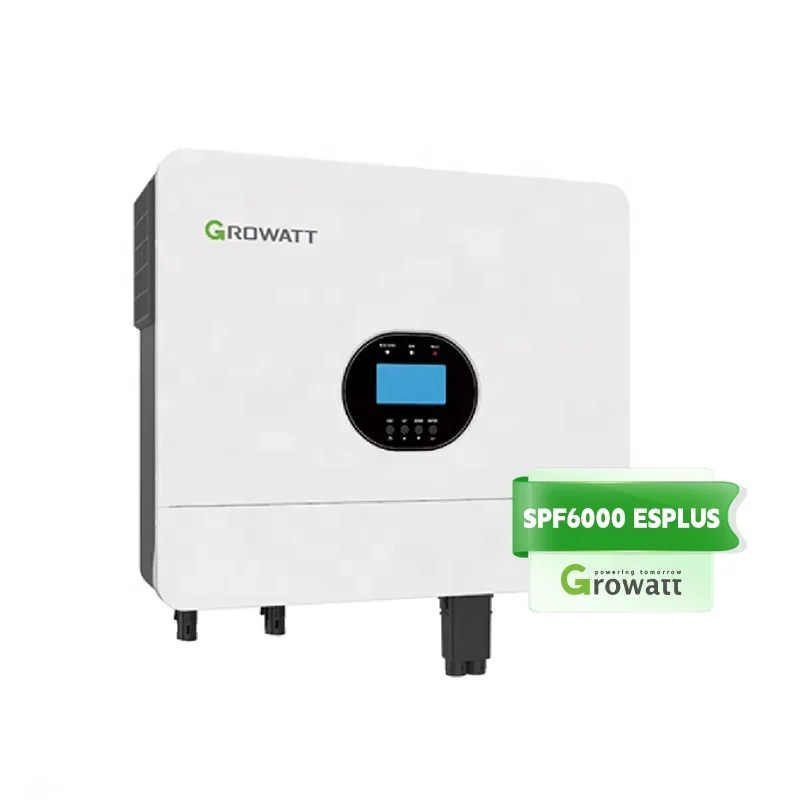

SPF 6000 ES Plus
Battery Voltage
48VDC
Battery Type
Lithium/Lead-acid
Inverter Output
Rated Power
6000VA/6000W
Parallel Capability
Yes, 6 units maximum
AC Voltage Regulation
(Battery Mode)
230VAC ± 5% @ 50/60Hz
Surge Power
12000VA
Efficiency (Peak)
93%
Waveform
Pure sine wave
Transfer Time
10ms typical,20ms Max
Solar Charger
Maximum PV Array Power
8000W
MPPT Range @ Operating Voltage
120VDC ~ 450VDC
Number of Independent MPP Trackers/
Strings Per MPP Tracker
2/1
Max. input current per MPP tracker
16A
Maximum PV Array Open
Circuit Voltage
500VDC
Maximum Solar Charge Current
100A
AC Charger
Charge Current
80A
AC Input Voltage
230VAC
Selectable Voltage Range
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range
50Hz/60Hz (Auto sensing)
Physical

Protection Degree
IP20
Dimension (W/H/D)
460/395/132mm
Net Weight (kgs)
13.5
Operating Environment
Humidity
5% to 95% Relative Humidity(Non-condensing)
Altitude
<2000m
Operating Temperature
0°C - 55°C
Storage Temperature
-15°C - 60°C

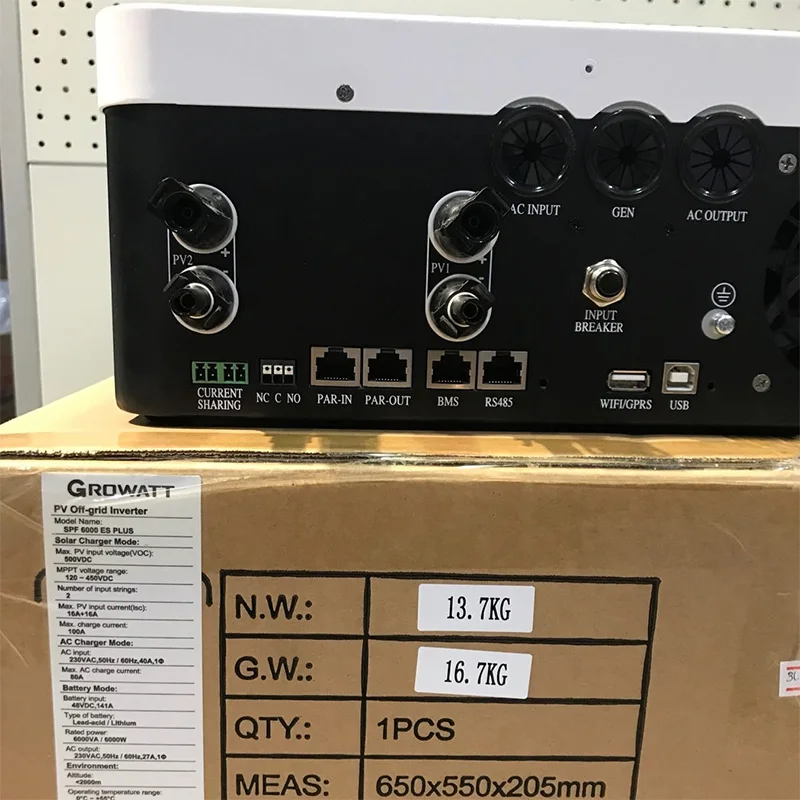

Product Details












Related Products

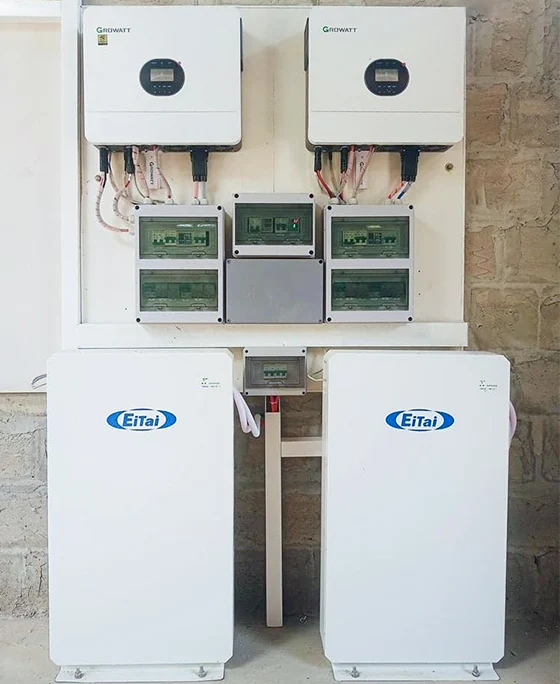

Product Application

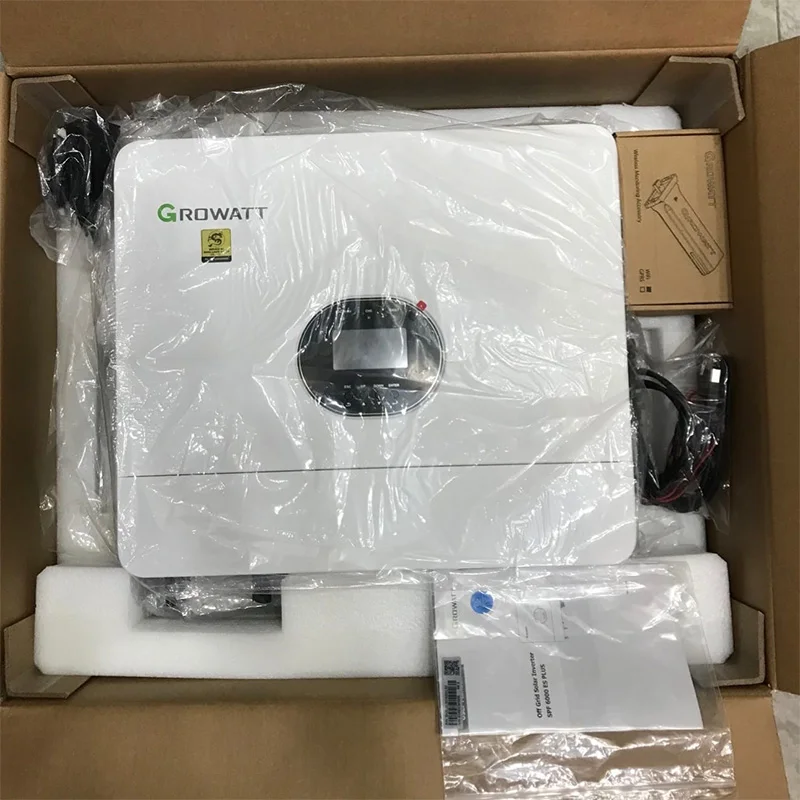

Package&Payment








Company Profile




Growatt is a new energy enterprise dedicated to the R&D and manufacturing of PV inverters including on-grid, off-grid and storage inverters, and user side smart energy management solutions as well. The power capacity of Growatt on-grid inverters ranges from 1kW to 100 kW, meanwhile its off-grid and storage inverters cover a power range from 1 kW to 630 kW. Growatt inverters are extensively used worldwide for applications in residential, commercial, utility-scale scenarios as well as other storage power station projects.




Since its foundation in 2010, Growatt has established branch offices one after another in Germany, US, UK, Australia,
Thailand,India, Netherlands, etc in order to better serve the customers across the globe. Growatt always sticks to the R&D
investment and technology innovation, and provides customers with premium products and services through its core inverter technology, rigorous quality control and continuous improvement of customer service. By end of September 2018, Growatt has shipped over 1.2 million inverters to over 100 countries and regions across the globe, growing into a Global Top 10 Inverter Brand and becoming the No.1 Chinese Residential PV Inverter Brand.


GROWATT Hot Selling Off Grid Inverter 5000Va 6Kw 3Kw 5.5Kw Mppt 48V 230Vac Pure Sine Wave Solar Inverter With Wifi
