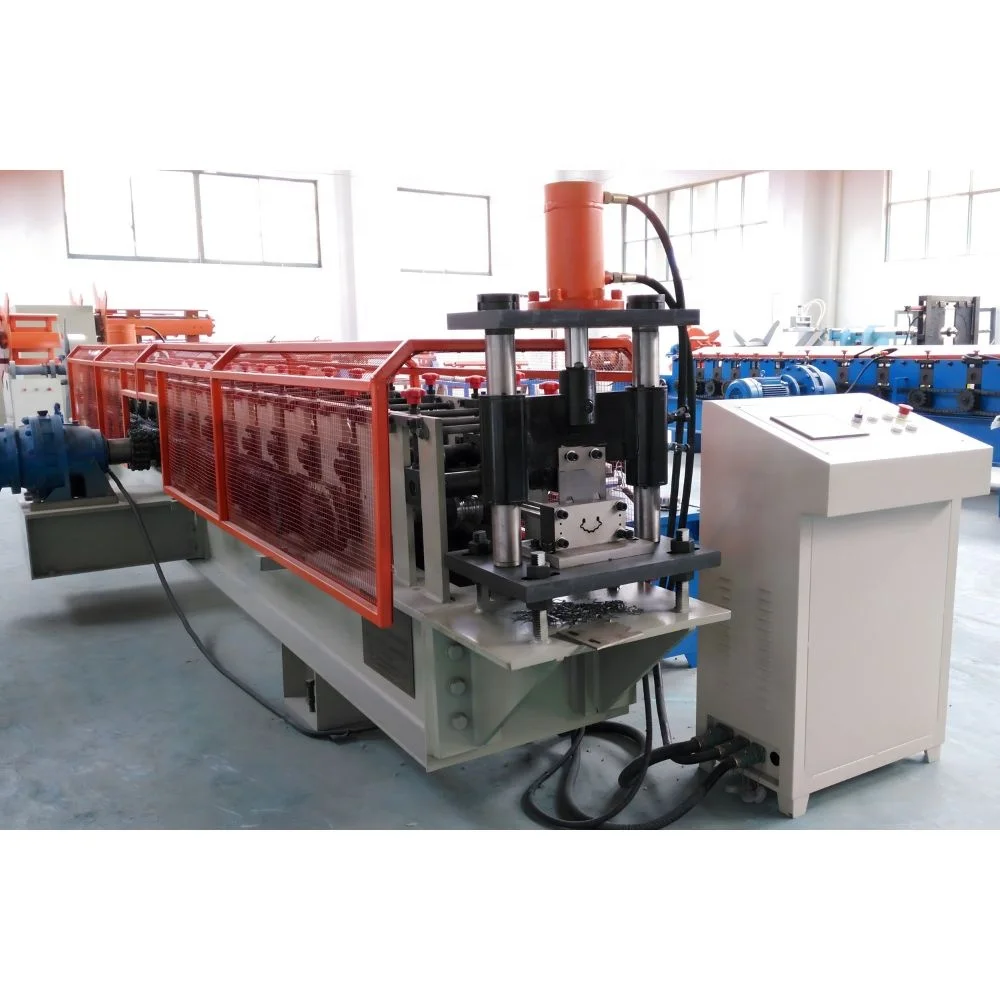

Роликовый станок
969 859,44 ₽
1 2 мм 2 5 мм толщина Z275 оцинкованная стальная решетчатая стойка для виноградников роликовая машина
- Категория: >>>
- Поставщик: Sussman Modular House (wuxi) Co. Ltd.
Сохранить в закладки 1601047580794:
Описание и отзывы
Характеристики
Product Description
Vineyard post, also called vineyard stake, vineyard trellis stake and grape trellis. It is a type of high strength, long service
life and little maintenance post for supporting grape and other fruit normal growth in vineyard, orchard, grape manor and
agriculture plantation and farming. The vineyard post is popular in European market and American market, such as Spain, France, Chile and so on.
life and little maintenance post for supporting grape and other fruit normal growth in vineyard, orchard, grape manor and
agriculture plantation and farming. The vineyard post is popular in European market and American market, such as Spain, France, Chile and so on.
* Surface treatment: hot dipped galvanized.
* Post thickness: 1.2 mm, 1.5 mm, 1.8 mm, 2.0 mm or 2.5 mm. 1.5 mm is the most common used.
* Section size: 50 mm × 30 mm, 54 mm × 30 mm, 50 mm × 40 mm, 60 mm × 40 mm.
* Length: 1.8 m to 2.8 m. commonly is 2.4 m or 2.5 m.
* Post thickness: 1.2 mm, 1.5 mm, 1.8 mm, 2.0 mm or 2.5 mm. 1.5 mm is the most common used.
* Section size: 50 mm × 30 mm, 54 mm × 30 mm, 50 mm × 40 mm, 60 mm × 40 mm.
* Length: 1.8 m to 2.8 m. commonly is 2.4 m or 2.5 m.
Technical Data:
5.1. Suitable Plate Material: thickness 1.5-2.0mm, Galvanized steel or blank steel
5.2. Working Speed: about 20meters / minute
5.3. Forming machine: about 16 stations
5.4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
5.5. Material of Shaft: 45# Advanced Steel (Diameter: 75mm), thermal refining
5.6. Drive system: Gearbox
5.7. Main Power with reducer: 11KW WH Chinese Famous
5.8. Cutting: Hydraulic Cutting Cr12mov
5.9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62
5.10. Hydraulic Station Power: 4KW Wuxi Wanshen Famous Chinese Brand
5.11. The whole machine is controlled by industry computer-PLC.
5.12 PLC--Delta, English and Chinese Language
5.13 Touch Screen—Delta
5.14 Encoder--Omron, Japan
5.2. Working Speed: about 20meters / minute
5.3. Forming machine: about 16 stations
5.4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
5.5. Material of Shaft: 45# Advanced Steel (Diameter: 75mm), thermal refining
5.6. Drive system: Gearbox
5.7. Main Power with reducer: 11KW WH Chinese Famous
5.8. Cutting: Hydraulic Cutting Cr12mov
5.9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62
5.10. Hydraulic Station Power: 4KW Wuxi Wanshen Famous Chinese Brand
5.11. The whole machine is controlled by industry computer-PLC.
5.12 PLC--Delta, English and Chinese Language
5.13 Touch Screen—Delta
5.14 Encoder--Omron, Japan
Machine List:
No | Name | quantity |
1 | 3 tons passive decoiler | 1 set |
2 | Hydraulic punching device | 1 set |
3 | Main roll forming machine | 1 set |
4 | Hydraulic cutting device | 1 set |
4 | Passive output table | 1 unit |
5 | Control box | 1 unit |
6 | Spare part | 1 package |
7 | Safety cover | 1 set |
Profile Drawing:

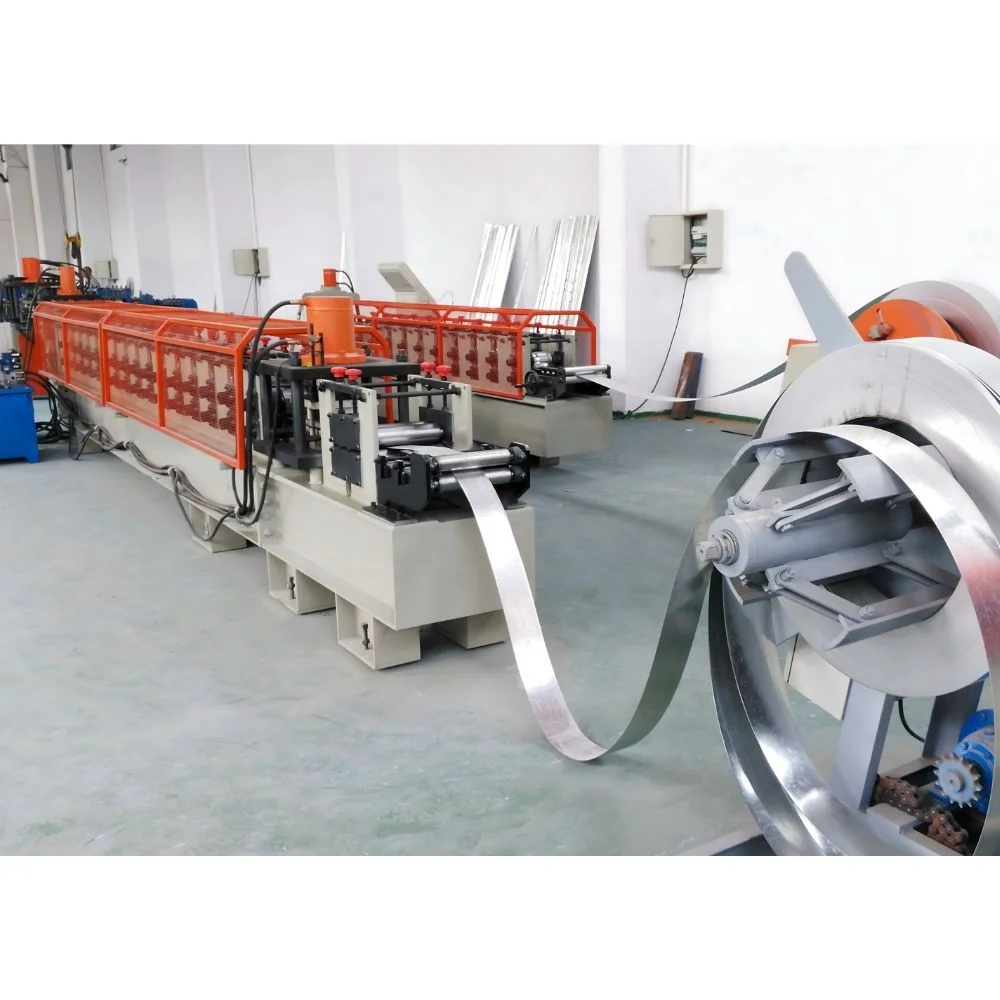

Product Display
3 Tons Passive Output Table
Coil inner Diameter: ￠460-520mm
Max out diameter of the coil: ￠800mm
Max Coil Width: 500mm
Max out diameter of the coil: ￠800mm
Max Coil Width: 500mm

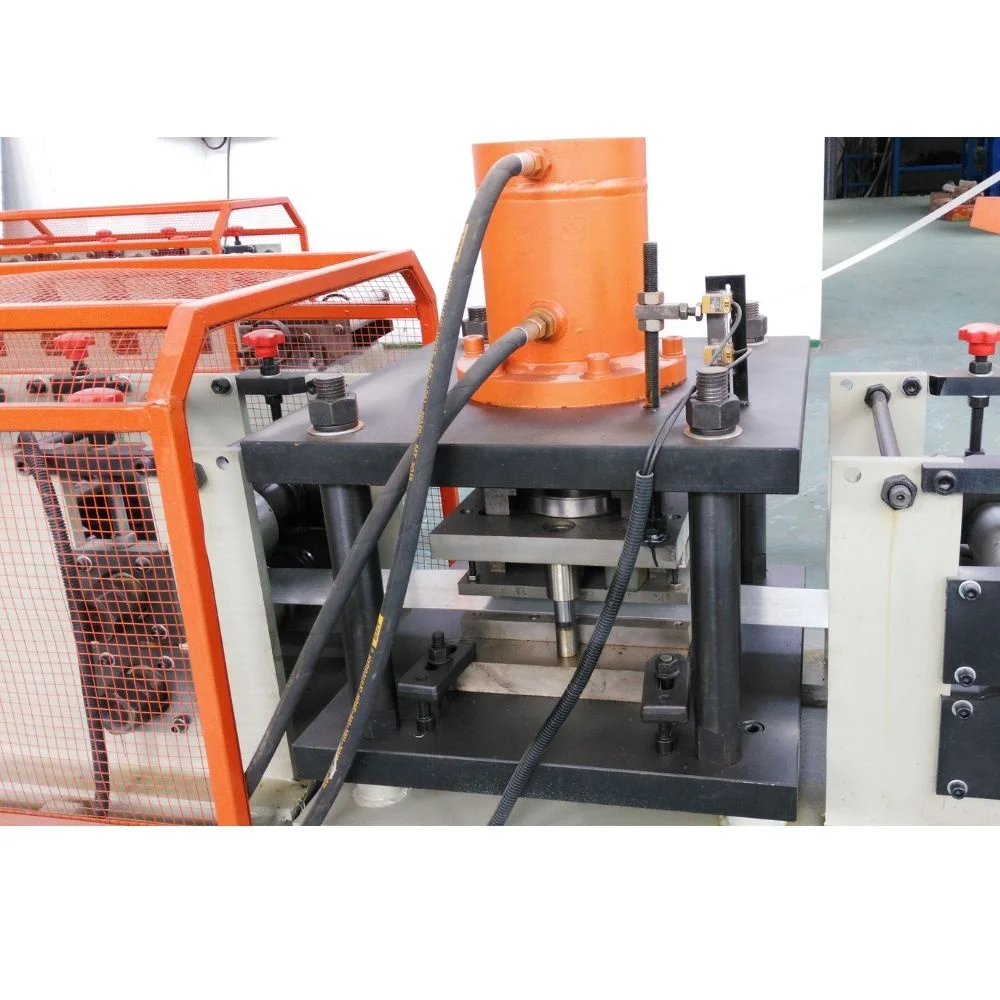

Hydraulic Punching On Roll Forming Machine

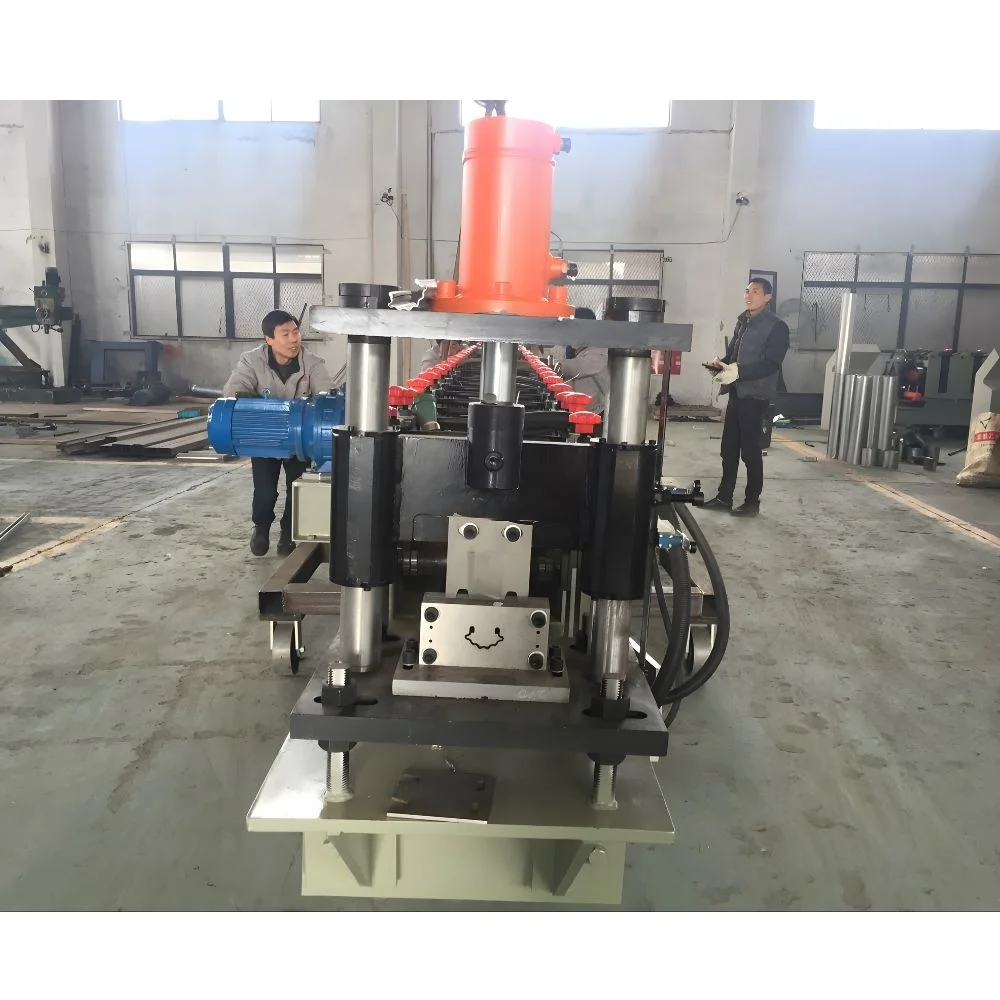

Hydraulic Stop Cutting
1), Cutting after forming: Cut the sheet after roll forming to required length
2), Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will
automatically start.
3), Material of blade: CR12mov with heat treatment
4), Length measuring: Automatic length measuring
5), Tolerance of length: 6m+/- 1mm
2), Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will
automatically start.
3), Material of blade: CR12mov with heat treatment
4), Length measuring: Automatic length measuring
5), Tolerance of length: 6m+/- 1mm
6 Meters Output Table
Length: 6 meters
Quantity: 1 unit
Control Box
1), Power supplier: 380V, 50 Hz, 3Phase (adjusted with the requestment)
2), Length & quantity measurement automatically;
3), Length & quantity controlled by PLC
4), Length inaccuracy can be amended easily.
5), Control panel: Button-type switch and touch screen
6), Unit of length: millimeter (switched on the control panel)
2), Length & quantity measurement automatically;
3), Length & quantity controlled by PLC
4), Length inaccuracy can be amended easily.
5), Control panel: Button-type switch and touch screen
6), Unit of length: millimeter (switched on the control panel)
Application
The vineyard post is mainly used in vineyard, orchard, grape manor, agriculture plantation and farming. It can supply high
strength for normal growth and good harvest.
strength for normal growth and good harvest.
Steel vineyard post has far more advantages:
* High strength. Hot rolled steel strip material supply high strength to withstand high wind and heavy weight of grapes.
* High corrosion and rust resistance. The vineyard post is commonly made of hot dipped galvanized or PVC coating, which supplies excellent anti-corrosion performance.
* Easy to install. The installation of vineyard post is very simple, it need no special tools and few labor compared with wooden vineyard post.
* Good fastening performance. The wire slot along the post provides complete control of trellis wires.
* Little maintenance. The vineyard post has smooth and bright surface, which needs less maintenance during its long service life.
* Long service life. The high tensile and quality material and anti-corrosion performance of vineyard post make the post a long service life in good performance.
* High strength. Hot rolled steel strip material supply high strength to withstand high wind and heavy weight of grapes.
* High corrosion and rust resistance. The vineyard post is commonly made of hot dipped galvanized or PVC coating, which supplies excellent anti-corrosion performance.
* Easy to install. The installation of vineyard post is very simple, it need no special tools and few labor compared with wooden vineyard post.
* Good fastening performance. The wire slot along the post provides complete control of trellis wires.
* Little maintenance. The vineyard post has smooth and bright surface, which needs less maintenance during its long service life.
* Long service life. The high tensile and quality material and anti-corrosion performance of vineyard post make the post a long service life in good performance.
About Us
Sussman Machinery(Wuxi) Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 20 years before, it' s always design and produce various type profile of roll forming machine.
The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile roll forming machine, Automatical C/Z Purlin roll forming machine, Floor Deck roll forming machine, Guardrail roll forming machine, Down Pipe roll forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises's growing demand.
Company building area is 5000 square meters, it has a highly efficient design, manufacturing, sales of high- quality team. The machine is covering in 30 provinces of China and world.
The company always adhere to the "quality first, integrity first, service fast, continuous innovation" concept. Adoption of new technologies, development of new products, the application of advanced scientific management, and strive to make product quality better and better.
The company sincerely cooperated with the steel, car, the city of road&bridge construction industry field. The roll forming
machine can be designed according to customer's profiles.
Thanks for the supporting and trust from the domestic and foreign customers. Our success is refine on and try to be better and better.
The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile roll forming machine, Automatical C/Z Purlin roll forming machine, Floor Deck roll forming machine, Guardrail roll forming machine, Down Pipe roll forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises's growing demand.
Company building area is 5000 square meters, it has a highly efficient design, manufacturing, sales of high- quality team. The machine is covering in 30 provinces of China and world.
The company always adhere to the "quality first, integrity first, service fast, continuous innovation" concept. Adoption of new technologies, development of new products, the application of advanced scientific management, and strive to make product quality better and better.
The company sincerely cooperated with the steel, car, the city of road&bridge construction industry field. The roll forming
machine can be designed according to customer's profiles.
Thanks for the supporting and trust from the domestic and foreign customers. Our success is refine on and try to be better and better.
Certifications
Our Customers
Feedback
Packing & Delivery
Похожие товары
Быстрая установка вейпов на строительной площадке экономит время станках для стеновых панелей из сборного бетона Eps
3 196 127,70 ₽

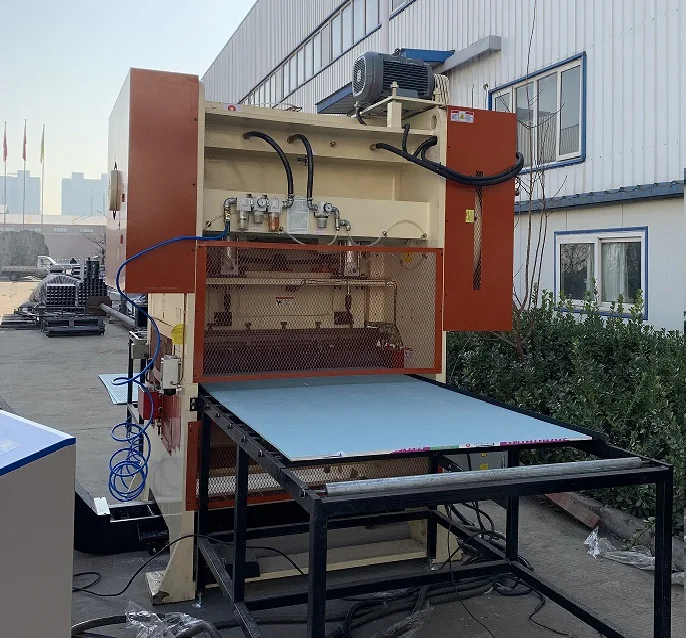

Перфорированная гипсовая потолочная плитка делая машину доска отверстие сверлильное оборудование
1 102 113,00 ₽
Высокая плотность KTV гостиничный Настенный декор без краски ПВХ древесный шпон для шкафа
5 290 142,40 ₽ - 5 455 459,35 ₽

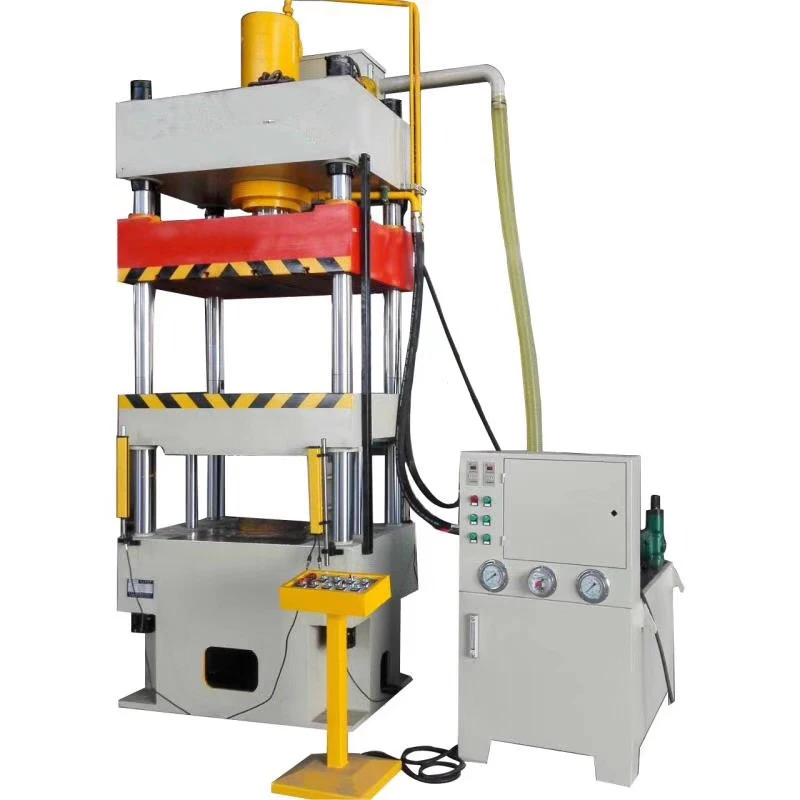

100 тонн механический автоматический гидравлический пресс для глубокой вытяжки
1 080 070,74 ₽ - 1 190 282,04 ₽

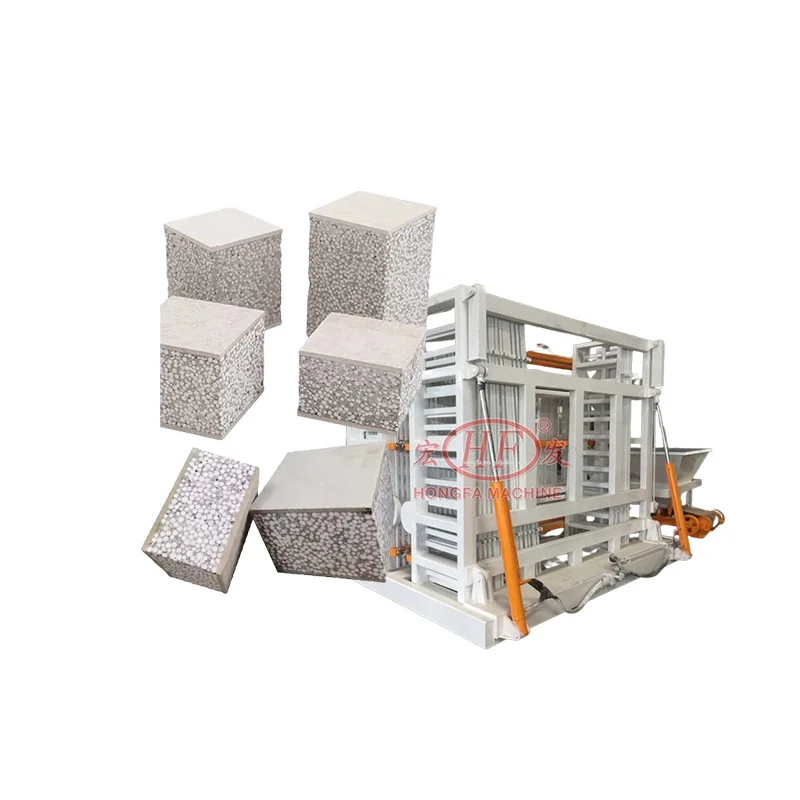

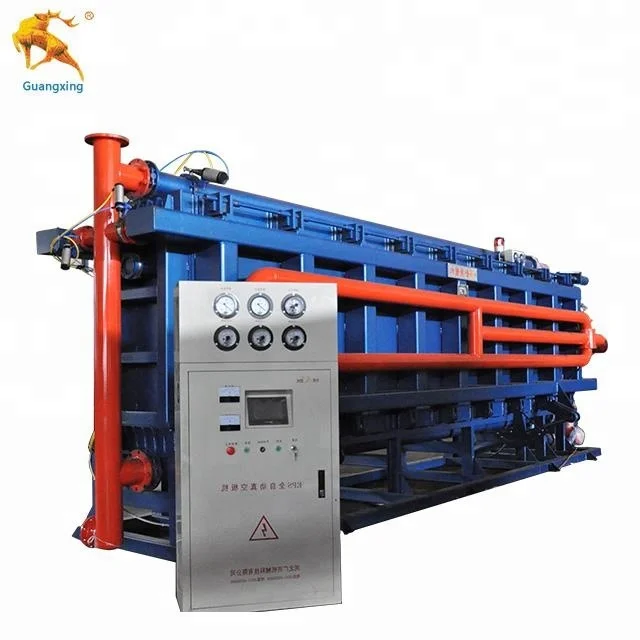

Блок изоляции пены EPS делая машину
15 677 337,01 ₽

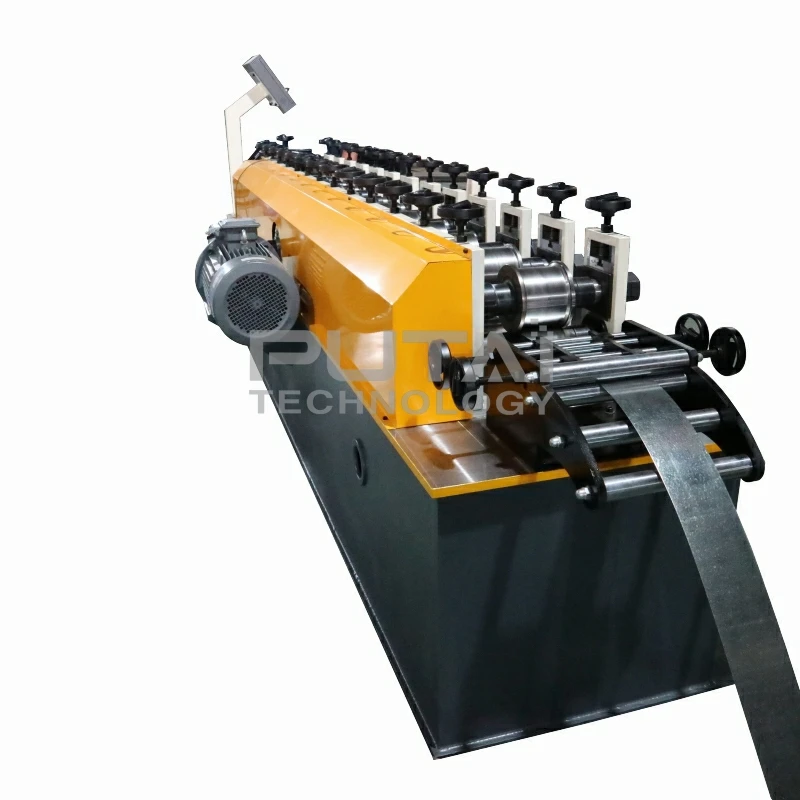

Станок для изготовления металлических штифтов из гипсокартона световой манометр шпилька гусеница канальный стальной рулон формовочная машина
