Коммерческая и промышленная батарея Lifepo4 215Kwh 1290Kwh контейнерные проекты трубопроводная система хранения солнечной энергии
36 212,00 $
Литиевая батарея Lifepo4 мощностью 215 кВтч для хранения солнечной энергии 20 футов 40 под Ключ C & I Ess система в контейнере
- Категория: >>>
- Поставщик: Shenzhen Ace Battery Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601049236097:
Описание и отзывы
Характеристики
Product Display
HIGH SAFETY AND RELIABLE TECHNOLOGY
Patented LFP lithium-ion technology boasts high reliability and safety, complete with pressure relief and fire protection features.
BATTERY MANAGEMENT SYSTEM (BMS)
Standard 3-level battery management system ensures optimal performance and longevity.
INTELLIGENT DESIGN-TURNKEY PRODUCT
AC/DC all-in-one design makes installation and transportation a breeze, with turnkey products delivered for your convenience (battery included).
FUNCTION EXPANSION
Optional expansion features such as optical storage integration and micromesh allow you to customize the product to fit your specific needs.
Product Paramenters
1.High Safety and Reliable Technology
Patented LFP lithium-ion technology boasts high reliability and safety, complete with pressure relief and fire protection features.
2.Battery Management System (BMS)
Standard 3-level battery management system ensures optimal performance and longevity.
3.Intelligent Design-Turnkey Product
AC/DC all-in-one design makes installation and transportation a breeze, with turnkey products delivered for your convenience (battery included).
4.Function Expansion
Optional expansion features such as optical storage integration and micromesh allow you to customize the product to fit your specific needs.
Patented LFP lithium-ion technology boasts high reliability and safety, complete with pressure relief and fire protection features.
2.Battery Management System (BMS)
Standard 3-level battery management system ensures optimal performance and longevity.
3.Intelligent Design-Turnkey Product
AC/DC all-in-one design makes installation and transportation a breeze, with turnkey products delivered for your convenience (battery included).
4.Function Expansion
Optional expansion features such as optical storage integration and micromesh allow you to customize the product to fit your specific needs.
Model | EnerBlock-60P | |
Battery Parameters | ||
Cell Type | LFP-280Ah | |
Module Model | IP20S | |
System Configuration | IP240S | |
Battery Capacity (BOL) | 215kWh | |
Battery Voltage Range | 672V-864V | |
AC On-Grid Parameters | ||
Grid Type : | 3P4W | |
Rated Charge/Discharge Power | 60kW | |
Rated Grid Voltage | AC400V | |
Grid Voltage Range | -15%~+ 15% | |
Rated Grid Frequency | 50Hz | |
Frequency Range | 士5Hz | |
Rated Current | 86A | |
Power Factor | 0.8 (Leading) ~0.8 (Lagging) | |
Output Harmonics (Rated power) | ≤3% | |
General Parameters | ||
Dimension (W*H*D) | 1900*2100*1230mm | |
Max Weight | 2500kg | |
IP Protection Rating | IP54 (Battery room) IP54 (Electrical room) | |
Seismic Intensity Rating | 8 degree (IEC60980) | |
Anti-Corrosion Grade | C3 | |
Operating Temperature | -20°C~50°C | |
Relative Humidity | 0-95% (Non-condensing) | |
Altitude | < 2000m | |
Cooling Method | Battery room: air conditioning; Electrical room:forced air cooling | |
Noise | ≤75dB | |
System Efficiency | ≥85% | |
Cycle Life | 6000 Cycle | |
Design Standard | System (BS7671, GB/T 36558, IEC 62933); Cell (GB/T 36276, IEC 62619, UL1973, UL9540A); PCS (GB/T 34120, G99,EN 50549,VDE4105) | |
Sales Territory | UK/China/Germany ( More countries will follow ) | |
Diagram
Intelligent Solar Energy Storage Solution
EnerBlock Typical Function Diagram
(Millisecond class seamless on-grid/off-grid switching)
Application Scenario

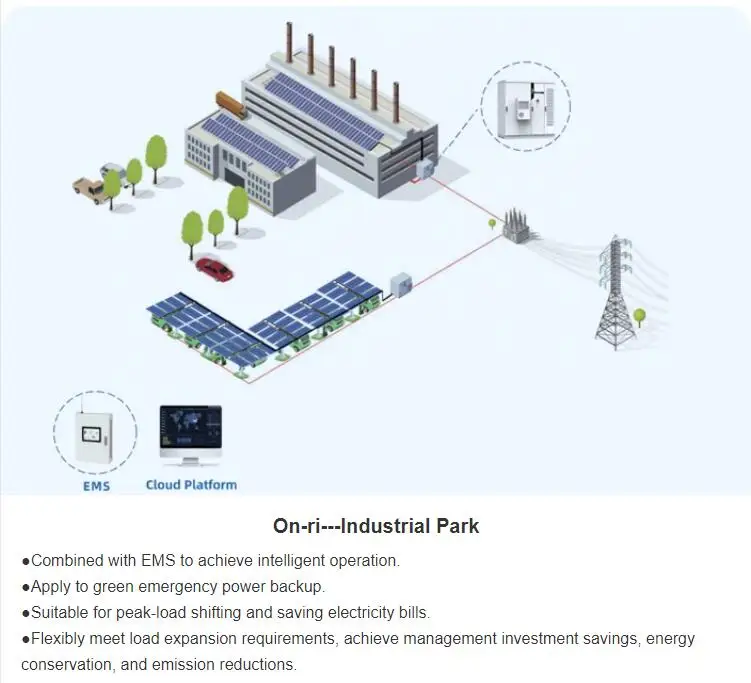

On-ri---Industrial Park
●Combined with EMS to achieve intelligent operation.
●Apply to green emergency power backup.
●Suitable for peak-load shifting and saving electricity bills.
●Flexibly meet load expansion requirements, achieve management investment savings, energy conservation, and emission reductions.
●Apply to green emergency power backup.
●Suitable for peak-load shifting and saving electricity bills.
●Flexibly meet load expansion requirements, achieve management investment savings, energy conservation, and emission reductions.

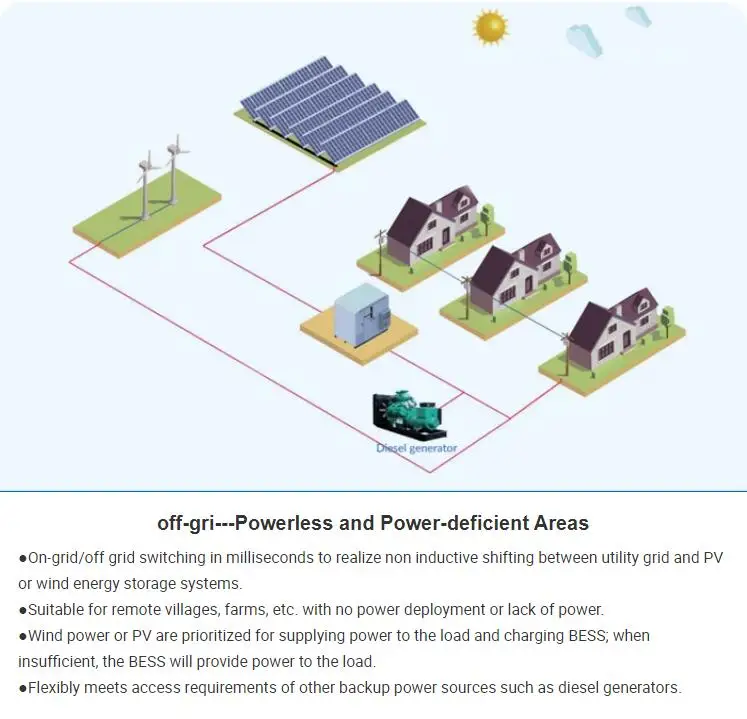

off-gri---Powerless and Power-deficient Areas
●On-grid/off grid switching in milliseconds to realize noninductive shifing between utilit grid and PV or wind energy storage systems.
●Suitable for remote villages, farms, etc. with no power deployment or lack of power.
●Wind power or PV are prioritized for supplying power to the load and charging BESS; when insufficient, the BESS will provide power to the load.
●Flexibly meets access requirements of other backup power sources such as diesel generators.
●Suitable for remote villages, farms, etc. with no power deployment or lack of power.
●Wind power or PV are prioritized for supplying power to the load and charging BESS; when insufficient, the BESS will provide power to the load.
●Flexibly meets access requirements of other backup power sources such as diesel generators.

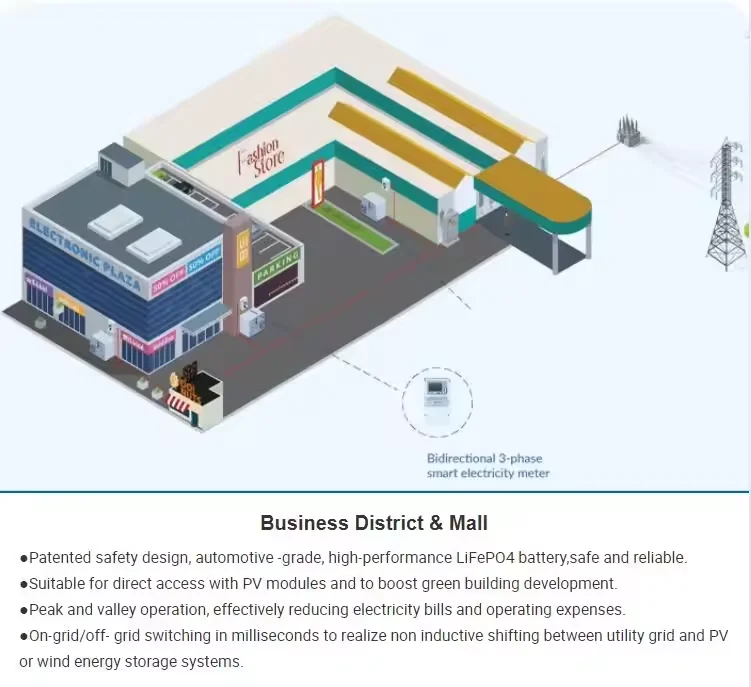

Business District & Mall
●Patented safety design, automotive -grade, high-performance LiFePO4 battery,safe and reliable.
●Suitable for direct access with PV modules and to boost green building development.
●Peak and valley operation, effectively reducing electricity bills and operating expenses.
●On-grid/off- grid switching in milliseconds to realize noninductive shifting between utilit grid and PV or wind energy storage systems.
●Suitable for direct access with PV modules and to boost green building development.
●Peak and valley operation, effectively reducing electricity bills and operating expenses.
●On-grid/off- grid switching in milliseconds to realize noninductive shifting between utilit grid and PV or wind energy storage systems.

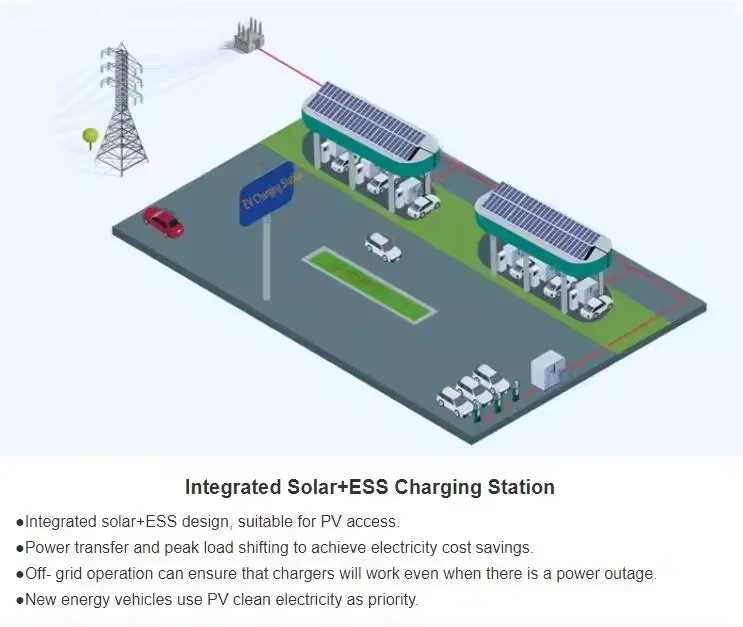

Integrated Solar+ESS Charging Station
●Integrated solar+ESS design, suitable for PV access.
●Power transfer and peakload shifting to achieve electricity cost savings.
●Off- grid operation can ensure that chargers will work even when there is a power outage.
●New energy vehicles use PV clean electricity as priority.
●Power transfer and peakload shifting to achieve electricity cost savings.
●Off- grid operation can ensure that chargers will work even when there is a power outage.
●New energy vehicles use PV clean electricity as priority.
ENERGY MANAGEMENT SYSTEM
●Combined with third-party cloud to realize intelligent operation and maintenance.
●Remote visual management.
●High-performance edge computing, real-time security control.
●Real-time storing of system operation log, convenient for fault tracing.
●Multiple business operation modes to focus on maximizing revenue, precise & efficient
control strategies.
Project
About Us
Certificate
Exhibition
Product Process
Packing & Shipping
FAQ
Q1.Are you a factory or trade company?
Quality Management Systems：
ACE Group has been certified to ISO9001, ISO13485, ISO14001, ISO45001, ISO17025, OHSAS18000 and IATF16949, the world's best-known quality management systems.
Battery Safety and Quality Certifications：
ACE Group's battery certifications include UL2054, UL1973, UL2580, UL9540A, UL1642, IEC62133 and more, which have testing requirements on the safety and quality of batteries, and ensure compliance with relevant rules and regulations.
TÜV Rheinland / UL CTDP & WTDP Authorized Lab：
ACE Group's testing center has been certified as the TUV/UL CTDP authorized lab. The Client Test Data Program (CTDP) is offered to all qualified UL customers with previous experience in the Witnessed Test Data Program (WTDP), for UL1973, UL2580, UL1642, UL2054, UL2056, UL2595, UL2743, UL2271, IEC/UL62368-1, IEC62133-2, JIS C62133-2, IEC62619, IEC61960-3, EN50604-1, and UN38.3 standard testings.
Remark: We can collaborate to complete the certification requirements as long as the business conditions for cooperation are met.
A:We are a manufacturing company with seven well-established factories in China, located in Shenzhen, Sichuan, Henan, and Hunan. We are also planning to establish three new factories in America, Germany, and Mexico. Since our establishment, we have invested in advanced infrastructure and technology to support our operations. Our factories are equipped with automated production lines, ensuring efficient and precise manufacturing processes. With our factories, we have complete control over the production process, allowing us to maintain high-quality standards and ensure the timely delivery of our products.
Q2.Are you open to OEM/ODM partnerships?
A:Absolutely! We have been fully capable of providing OEM/ODM services for our valued partners since the establishment of our company. We are the core partner of many Fortune Global 500. At our company, we are committed to fostering strong OEM/ODM partnerships. We have a dedicated team that specializes in offering comprehensive OEM and ODM services to our esteemed partners.
We value long-term partnerships and are dedicated to providing exceptional support and service to our OEM/ODM clients. If you are interested in exploring an OEM/ODM collaboration with us or have any specific inquiries, please don't hesitate to contact our team. We look forward to the opportunity to work together and bring your vision to life.
Q3.What certifications have your products obtained?
A:Our products undergo rigorous testing and adhere to industry standards to ensure their quality, safety, and compliance. We are proud to hold a lot of certifications for our products, including but not limited to:Quality Management Systems：
ACE Group has been certified to ISO9001, ISO13485, ISO14001, ISO45001, ISO17025, OHSAS18000 and IATF16949, the world's best-known quality management systems.
Battery Safety and Quality Certifications：
ACE Group's battery certifications include UL2054, UL1973, UL2580, UL9540A, UL1642, IEC62133 and more, which have testing requirements on the safety and quality of batteries, and ensure compliance with relevant rules and regulations.
TÜV Rheinland / UL CTDP & WTDP Authorized Lab：
ACE Group's testing center has been certified as the TUV/UL CTDP authorized lab. The Client Test Data Program (CTDP) is offered to all qualified UL customers with previous experience in the Witnessed Test Data Program (WTDP), for UL1973, UL2580, UL1642, UL2054, UL2056, UL2595, UL2743, UL2271, IEC/UL62368-1, IEC62133-2, JIS C62133-2, IEC62619, IEC61960-3, EN50604-1, and UN38.3 standard testings.
Remark: We can collaborate to complete the certification requirements as long as the business conditions for cooperation are met.
Q4.Are you able to handle shipment transportation?
A:Absolutely! Our services include both shipment transportation and customs clearance. Our dedicated team handles logistics, timely delivery, and all necessary documentation for smooth customs clearance. We have expertise in international shipping regulations and work closely with customs authorities to ensure a hassle-free process. You can rely on us for efficient and reliable shipment transportation, including seamless customs clearance.
Q5.What is the duration of the product warranty?
A:Different products have different warranties. You are always welcome to check with our sales team. For example, the Residential Energy Storage System warranty lasts for 10 years.
Q6.How can I effectively address battery issues?
A:Rest assured that our batteries are built for long-lasting performance and come with a comprehensive ten-year warranty. We have integrated a resilient battery management system (BMS) and advanced 4G modules into our batteries, enabling remote monitoring, diagnostics, and hassle-free software updates.
Q7.How to deal with the quality problem?
A:When addressing quality problems, we promptly collect and analyze customer feedback and information regarding any issues or defective products. If the problem is within the warranty period and caused by a battery defect, we provide free replacement or repair services. For issues resulting from improper usage or falling outside the warranty period, we offer paid repair or maintenance assistance. Our ultimate goal is to ensure customer satisfaction by promptly resolving quality problems while considering warranty coverage and user responsibility.
