Es Editor версии 3.2.0 Lite ключ программист для BMW 3 серии 7
- Категория: >>>
- Поставщик: Chengdu Chexinwang Electronic Technology Co. Ltd.
Сохранить в закладки 1601049304527:
Описание и отзывы
Характеристики
Products Description
Product sellpoints
* strong and sturdy: Made of high quality abs material, strong and durable.
* high quality: High quality pcb board with keyless and stylish design.
* protection: If your car monitor feels full, limited lifetime warranty against defects, it will not affect user experience.
* dependable: If your car feeling is a new one or more expensive, the newly active gaming system is not applicable to you. It's also very suitable for cartridge refills.

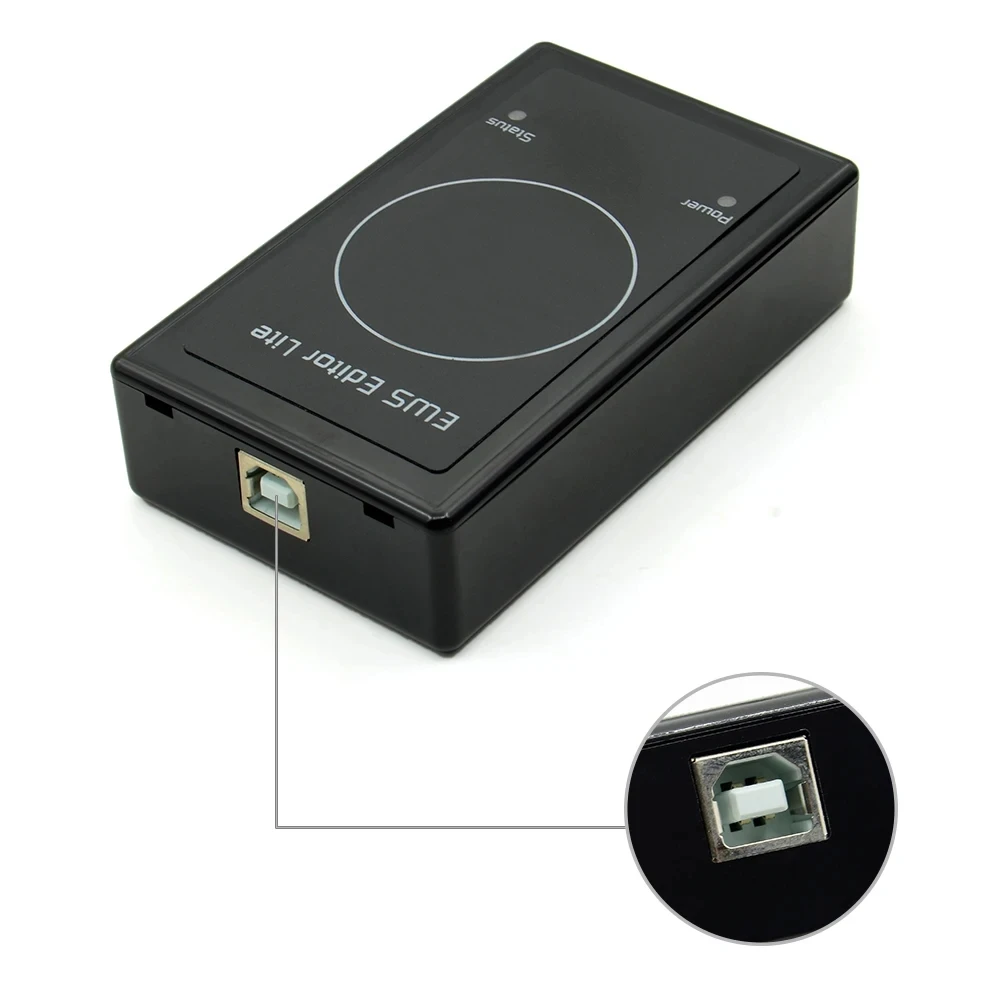

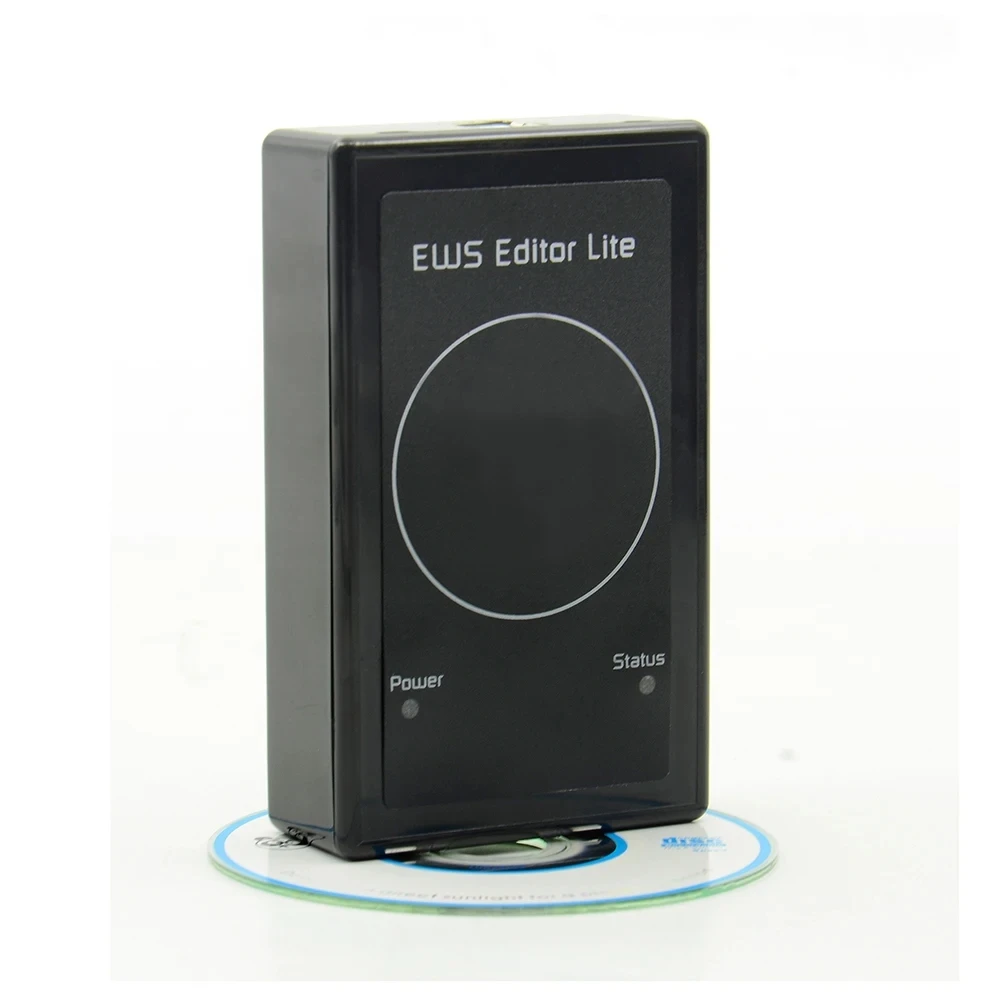

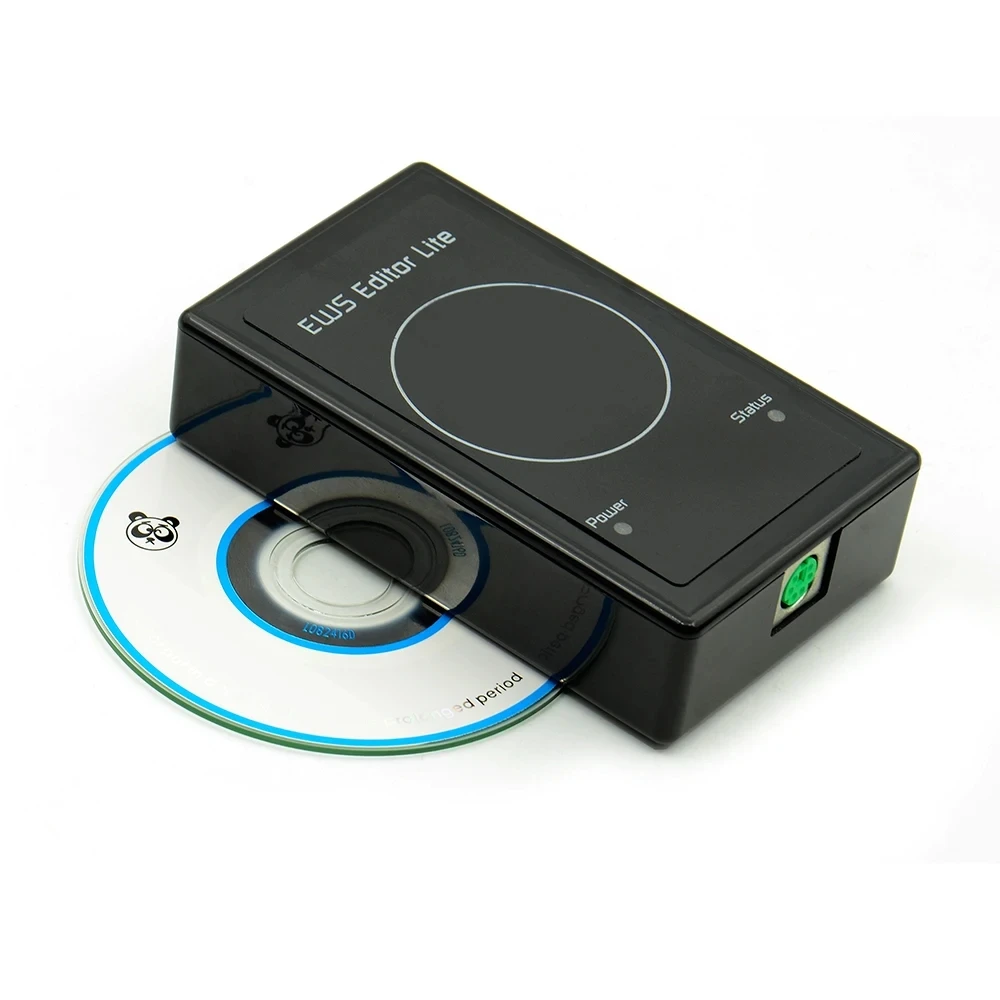

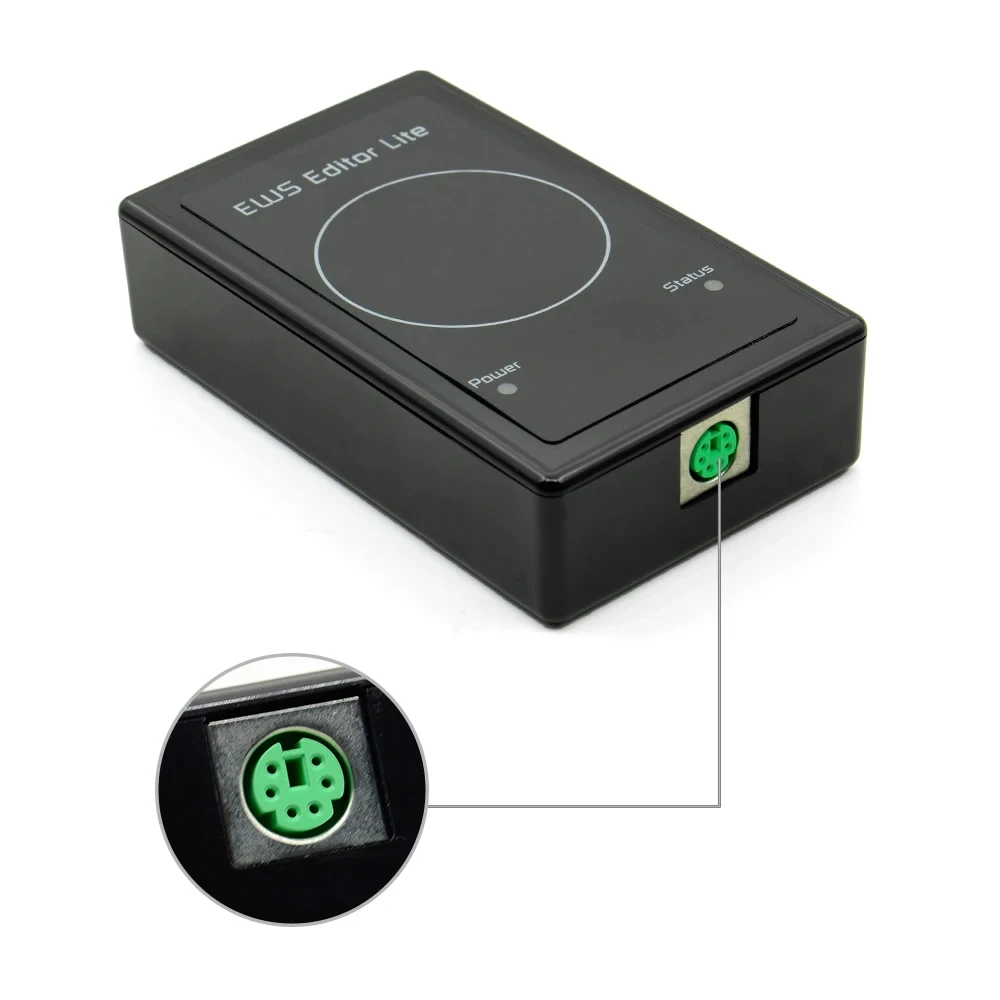

FOR BMW EWS Editor
Software Version: V3.2.0
Notice:
1. Selecting wrong test point you may damage or break EWS3 unit!
2. PCB of EWS3 unit is covered with non-conductive compound, it may lead to poor contact of probe with test point on the PCB of EWS3 unit, and you will be unable to connect to EWS3 unit.
Description:
This device is designed to work with factory anti-theft system (immobilizer) EWS. Immobilizer EWS has been installed on the BMW AG vehicles since 1996. Cars such as BMW 3 series (E46), 5 series (E39), 7 series (E38), X3 (E83), X5 (E53), Z4 (E85) and other vehicles of BMW AG - MiniCooper, Rover 75, Range Rover are equipped with this system.
USB interface:
No AC/DC adaptor required
All modifications of factory immobilizers are supported: EWS1, EWS2, EWS3, EWS3+
Reading and writing of EWS3 and EWS3+ via k-line
Automatic version determination of EWS via reading the memory dump
Adding new keys
Adding used keys (if key’s password is available)
Resetting used keys into a “new” state (if key’s password is available)
Recovery of key's synchronization (matching keys)
Blocking and releasing vehicle access via the specific key
Recovering of coding data (vehicle's specific information)
Changing EWS parameters (product number, date of manufacturing, etc)
Resetting used EWS3 (loading default values)
Changing VIN number which is contained in EWS unit
Changing VIN number which is contained in key (since 1998)
Changing mileage in EWS (contained in EWS since 1998 and on)
Changing mileage in key (contained in key since 1998 and on)
Software creates log-file of read and written keys, which helps to exclude the error of casual blocking key with password, etc.
Possibility of control and recovery of variable part of matching code for EWS and engine control unit DME/DDE
Configuring new transponders PCF7930 and PCF7935 to work with EWS unit.
Supports FSU (Firmware Secure Update) from Internet.Except processors with mask set D47J. EWS unit equipped with this processor has read protection, attempt of reading the processor with this mask set results EEPROM data loss.
To recover the data in EWS3 unit with processor (D47J) use the function [ Reset to factory defaults ]
Supported Cars:
3 series (E46)
5 series (E39)
7 series (8)
X3 (E83) 53)
Z4 (E85)
Range Rover Vogue
Rover 75
Mini Cooper
Checking of MOTOROLA processor mask set which is used in some EWS units. Before proceed to reading of EWS data using the function [ EWS Read ]
Read the marking (maskset) plotted on processor (Picture):
1. Mask set D47J -old versions of EWS1, EWS2 and EWS3 hw:2 sw:5. Refer to #Recovering of EWS
2. Mask set D46J -new versions of EWS3 and EWS3+. This processor does not contain unpleasant
Driver Installation:
1. Start EWS_EditorInst.exe file
2. Select installation path. The default path is C: Program Files AvtoTools EWS_Editor
3. Please connect device to USB
4. Install drivers from folder C:Program FilesAvtoTools EWS_EditorDrivers Reading EWS
5. Unplug and detach EWS3 unit from the car. Attaching points of EWS3 unit can be found in BM
6. Take the plastic case off from EWS3

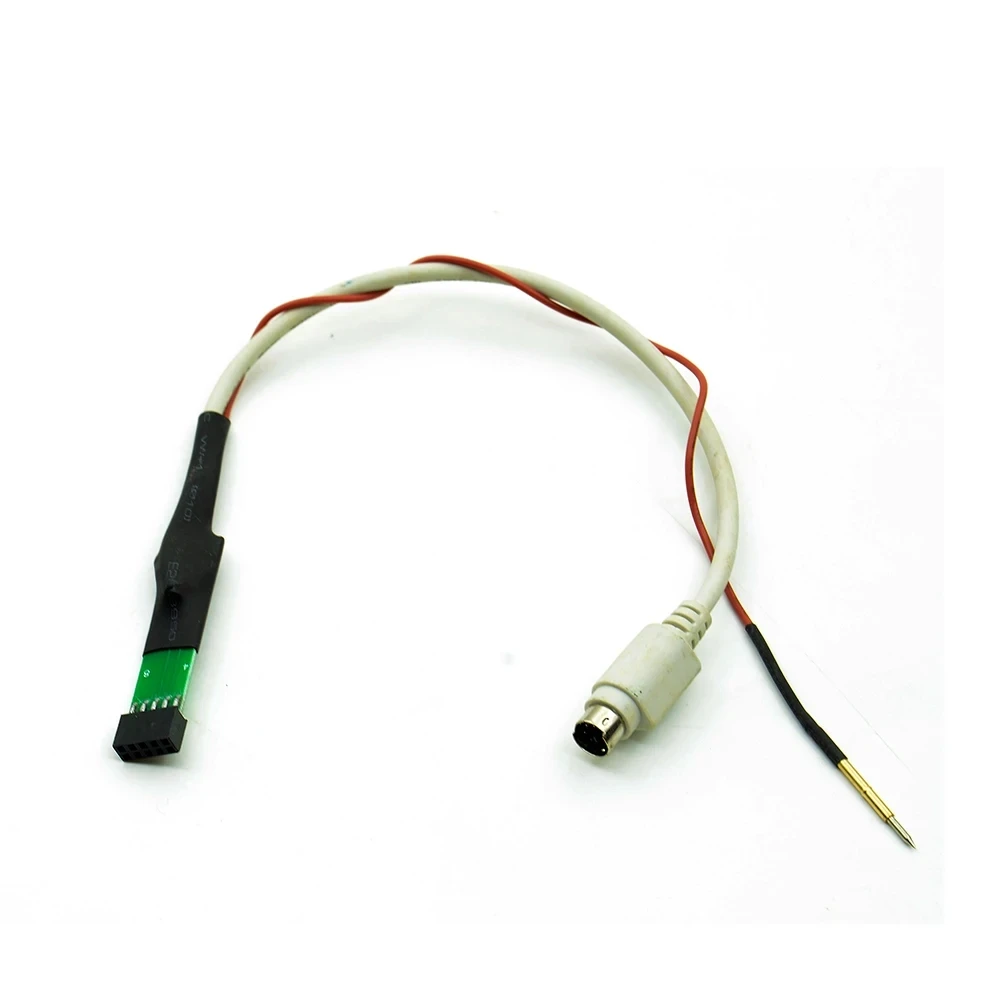

7. Connect EWS3 to the socket of the cable for reading/writing EWS3
8. Reassure that in EWS Editor programme type of EWS is switched to Auto
9. In EWS Editor programme select [ Read EWS ] function
10. Programme tries to read contents of EWS3 four times, meantime you must touch test point on the PCB (printed circuit board) of EWS3 with probe (see picture below), hold it on the test point untill reading procedure starts.
11. If the connection established successfully, progress bar appears:
12. Remove the probe off the PCB
Writing EWS:
1. Connect EWS3 to the socket of the cable for reading/writing EWS3
2. Perform all the necessary changes
3. Select [ Save EWS ] function in EWS Editor programmer
* strong and sturdy: Made of high quality abs material, strong and durable.
* high quality: High quality pcb board with keyless and stylish design.
* protection: If your car monitor feels full, limited lifetime warranty against defects, it will not affect user experience.
* dependable: If your car feeling is a new one or more expensive, the newly active gaming system is not applicable to you. It's also very suitable for cartridge refills.
FOR BMW EWS Editor
Software Version: V3.2.0
Notice:
1. Selecting wrong test point you may damage or break EWS3 unit!
2. PCB of EWS3 unit is covered with non-conductive compound, it may lead to poor contact of probe with test point on the PCB of EWS3 unit, and you will be unable to connect to EWS3 unit.
Description:
This device is designed to work with factory anti-theft system (immobilizer) EWS. Immobilizer EWS has been installed on the BMW AG vehicles since 1996. Cars such as BMW 3 series (E46), 5 series (E39), 7 series (E38), X3 (E83), X5 (E53), Z4 (E85) and other vehicles of BMW AG - MiniCooper, Rover 75, Range Rover are equipped with this system.
USB interface:
No AC/DC adaptor required
All modifications of factory immobilizers are supported: EWS1, EWS2, EWS3, EWS3+
Reading and writing of EWS3 and EWS3+ via k-line
Automatic version determination of EWS via reading the memory dump
Adding new keys
Adding used keys (if key’s password is available)
Resetting used keys into a “new” state (if key’s password is available)
Recovery of key's synchronization (matching keys)
Blocking and releasing vehicle access via the specific key
Recovering of coding data (vehicle's specific information)
Changing EWS parameters (product number, date of manufacturing, etc)
Resetting used EWS3 (loading default values)
Changing VIN number which is contained in EWS unit
Changing VIN number which is contained in key (since 1998)
Changing mileage in EWS (contained in EWS since 1998 and on)
Changing mileage in key (contained in key since 1998 and on)
Software creates log-file of read and written keys, which helps to exclude the error of casual blocking key with password, etc.
Possibility of control and recovery of variable part of matching code for EWS and engine control unit DME/DDE
Configuring new transponders PCF7930 and PCF7935 to work with EWS unit.
Supports FSU (Firmware Secure Update) from Internet.Except processors with mask set D47J. EWS unit equipped with this processor has read protection, attempt of reading the processor with this mask set results EEPROM data loss.
To recover the data in EWS3 unit with processor (D47J) use the function [ Reset to factory defaults ]
Supported Cars:
3 series (E46)
5 series (E39)
7 series (8)
X3 (E83) 53)
Z4 (E85)
Range Rover Vogue
Rover 75
Mini Cooper
Checking of MOTOROLA processor mask set which is used in some EWS units. Before proceed to reading of EWS data using the function [ EWS Read ]
Read the marking (maskset) plotted on processor (Picture):
1. Mask set D47J -old versions of EWS1, EWS2 and EWS3 hw:2 sw:5. Refer to #Recovering of EWS
2. Mask set D46J -new versions of EWS3 and EWS3+. This processor does not contain unpleasant
Driver Installation:
1. Start EWS_EditorInst.exe file
2. Select installation path. The default path is C: Program Files AvtoTools EWS_Editor
3. Please connect device to USB
4. Install drivers from folder C:Program FilesAvtoTools EWS_EditorDrivers Reading EWS
5. Unplug and detach EWS3 unit from the car. Attaching points of EWS3 unit can be found in BM
6. Take the plastic case off from EWS3
7. Connect EWS3 to the socket of the cable for reading/writing EWS3
8. Reassure that in EWS Editor programme type of EWS is switched to Auto
9. In EWS Editor programme select [ Read EWS ] function
10. Programme tries to read contents of EWS3 four times, meantime you must touch test point on the PCB (printed circuit board) of EWS3 with probe (see picture below), hold it on the test point untill reading procedure starts.
11. If the connection established successfully, progress bar appears:
12. Remove the probe off the PCB
Writing EWS:
1. Connect EWS3 to the socket of the cable for reading/writing EWS3
2. Perform all the necessary changes
3. Select [ Save EWS ] function in EWS Editor programmer
Specifications
item | value |
Type | Auto Key Programmer |
Voltage | 12V |
Applicable Models | For BMW |
Combination | For BMW 3 Series, For BMW E46 5 E39, For BMW 7 Series |
Place of Origin | China |
Guangdong | |
Brand Name | ITCARDIAG |
Warranty | 12Months |
Electronic | No |
Material Type | Plastic&Metal |
External Testing Certification | ce |
Software Version | Latest Version Software |
Hardware Version | Latest Version |
Certification | CE |
Certifications
Company Profile
Chengdu Chexinwang Electronic Technology Co., Ltd. established in 20 20, is a professional engaged in the sales
and service of Auto diagnostic Tool, Auto repair tools, automotive electronics, auto parts, new energy auto parts.
We are located in Sichuan Chengdu with convenient transportation access. Dedicated to strict quality control and
thoughtful customer service, our experienced staff members are always available to discuss your requirements and
ensure full customer satisfaction. In addition, We have registered our own brands: ITCARDIAG, ThinkElk, chipsoft
pro, S M 2 PRO, and we are also cooperate with Launch, Autel, Yanhua, MTOOL and so on. We are authorized
dealers of Launch and Yanhua. Selling well in all cities and provinces around China, our products are also exported
to clients in such countries and regions as U S A, Russia, Brazil, Mexico, France, Poland, Spain, U K, Chile, Saudi
Arabia and more than 200 countries and regions. Our company has a dedicated technical service team, and when
customers meet product usage problems, we will provide perfect technical solutions. The warehouse has sufficient
product inventory so that we can ship the package within 24-48 hours to ensure that the goods can be quickly
delivered to customers. We also welcome O E M and O D M orders. Whether selecting a current product from our
catalog or seeking engineering assistance for your application, you can talk to our customer service center about
your sourcing requirements.
and service of Auto diagnostic Tool, Auto repair tools, automotive electronics, auto parts, new energy auto parts.
We are located in Sichuan Chengdu with convenient transportation access. Dedicated to strict quality control and
thoughtful customer service, our experienced staff members are always available to discuss your requirements and
ensure full customer satisfaction. In addition, We have registered our own brands: ITCARDIAG, ThinkElk, chipsoft
pro, S M 2 PRO, and we are also cooperate with Launch, Autel, Yanhua, MTOOL and so on. We are authorized
dealers of Launch and Yanhua. Selling well in all cities and provinces around China, our products are also exported
to clients in such countries and regions as U S A, Russia, Brazil, Mexico, France, Poland, Spain, U K, Chile, Saudi
Arabia and more than 200 countries and regions. Our company has a dedicated technical service team, and when
customers meet product usage problems, we will provide perfect technical solutions. The warehouse has sufficient
product inventory so that we can ship the package within 24-48 hours to ensure that the goods can be quickly
delivered to customers. We also welcome O E M and O D M orders. Whether selecting a current product from our
catalog or seeking engineering assistance for your application, you can talk to our customer service center about
your sourcing requirements.
Our Factory
Customer Photos
Packing&Shipping
Похожие товары
CGDI Prog MSV80 программатор автомобильных ключей для CAS1/CAS2/CAS3/CAS3 + C Программирование ключей и все ключи потери, добавление Фем/BDC
61 049,42 ₽ - 62 784,39 ₽
Лучшее качество для B-M-W Es IMMO Auto EWS2 EWS3.2 эмулятор для b-m-w E34 E36 E38 E39 E46 Auto EWS IMMO Immobilizer
780,74 ₽ - 834,96 ₽
VXSCAN EWS-4.3 и 4,4 IC адаптер (нет необходимости связывания провода) для R280 плюс, X-PROG, AK90 & R270 программист

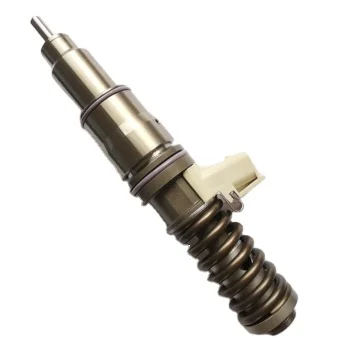

Дизельный инжектор 20972222 - BEBE4D16004 Application RENAULT MAGNUM DXI 13. VOLVO FH 13
21 687,18 ₽

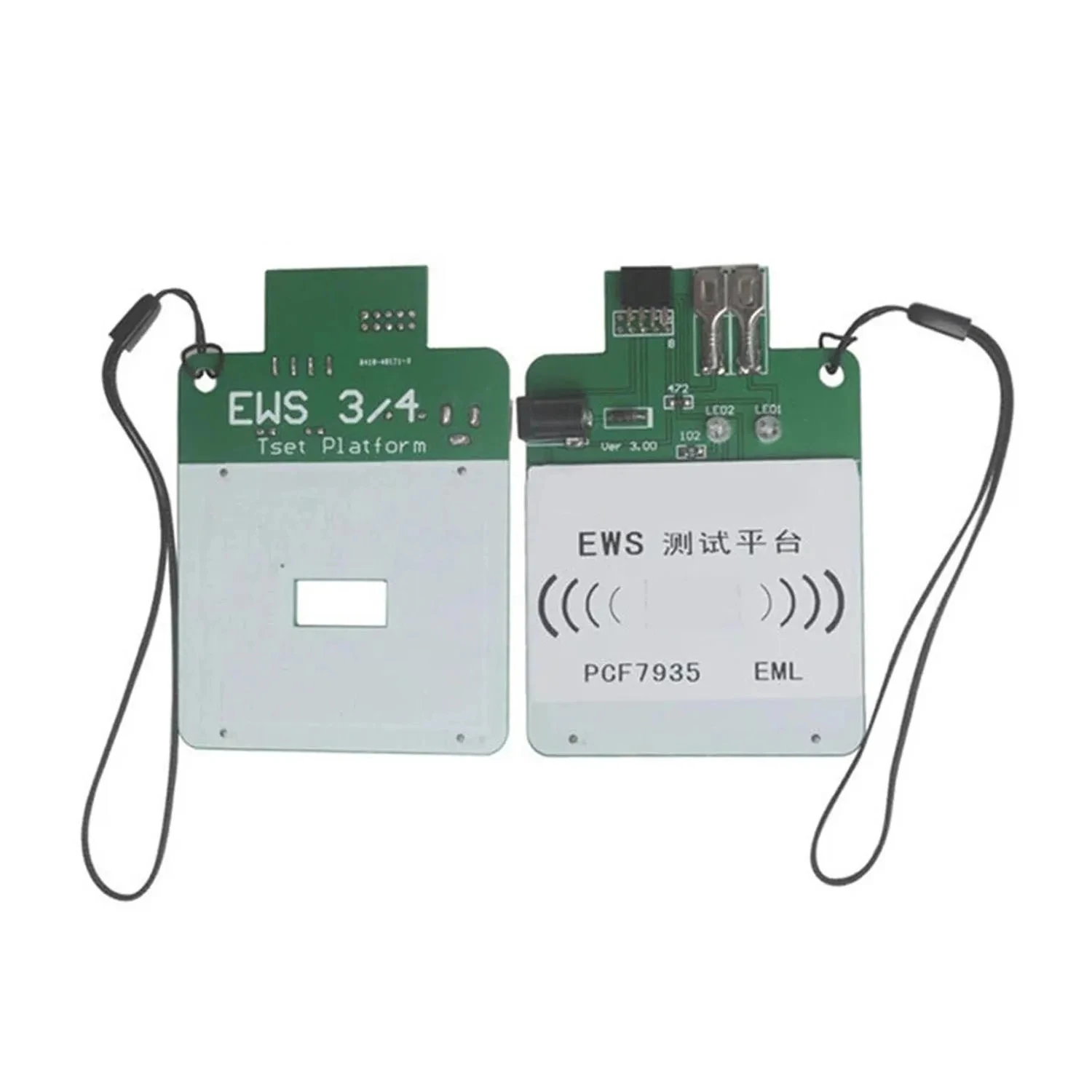

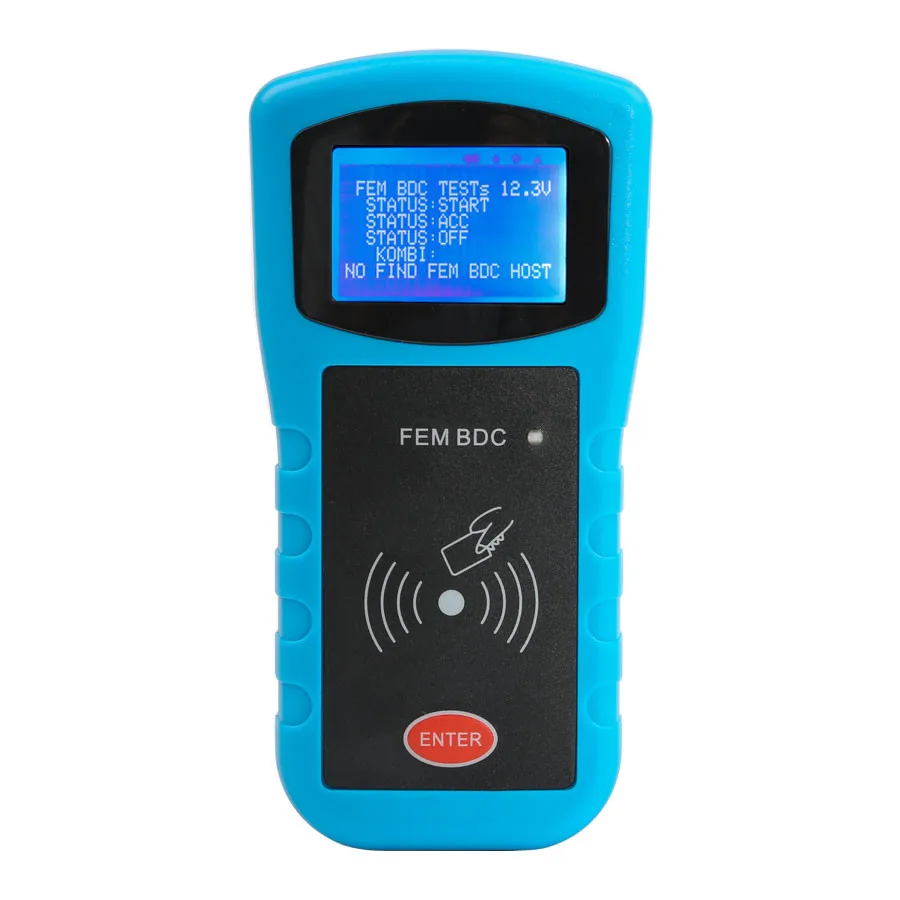

Тестовая платформа для настольного программатора ключей Фем/BDC для ключей и программ коробка передач ECU

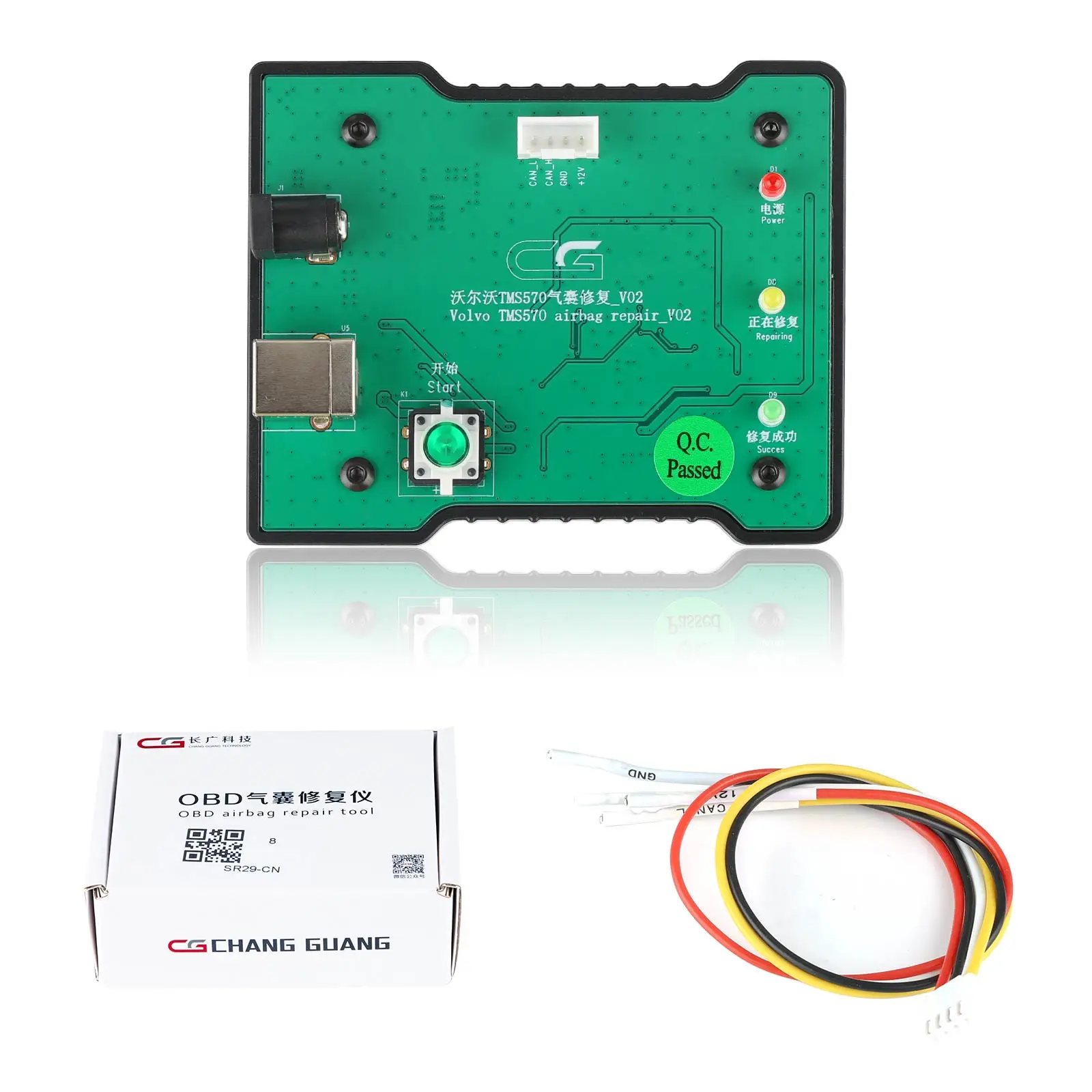

2023 новейший инструмент для сброса подушки безопасности CG TMS570
