Круговой вибрационный просеиватель вибро-сдвижной порошковый
1 500,00 $
Низкопрофильный сепаратор пищевой соды круглый Вибрационный скрининг машина
- Категория: >>>
- Поставщик: Xinxiang Karp Machinery Equipment Co. Ltd.Xinxiang Ltd.
Сохранить в закладки 1601051707167:
Описание и отзывы
Характеристики
Product Description

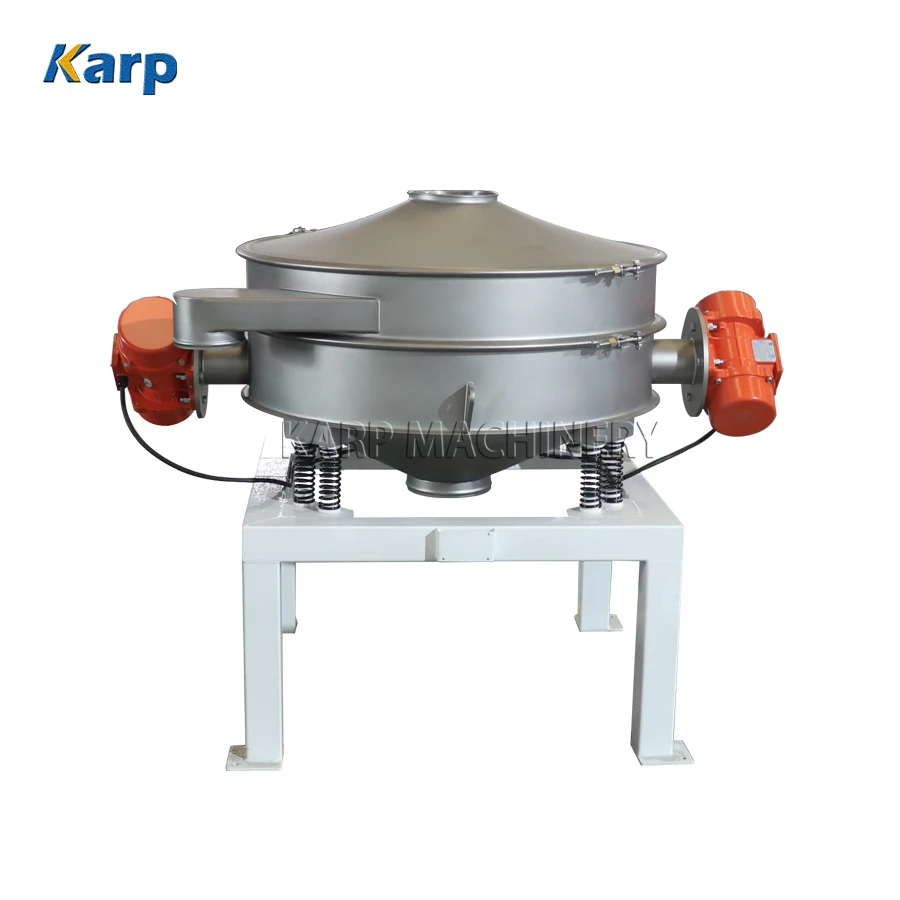

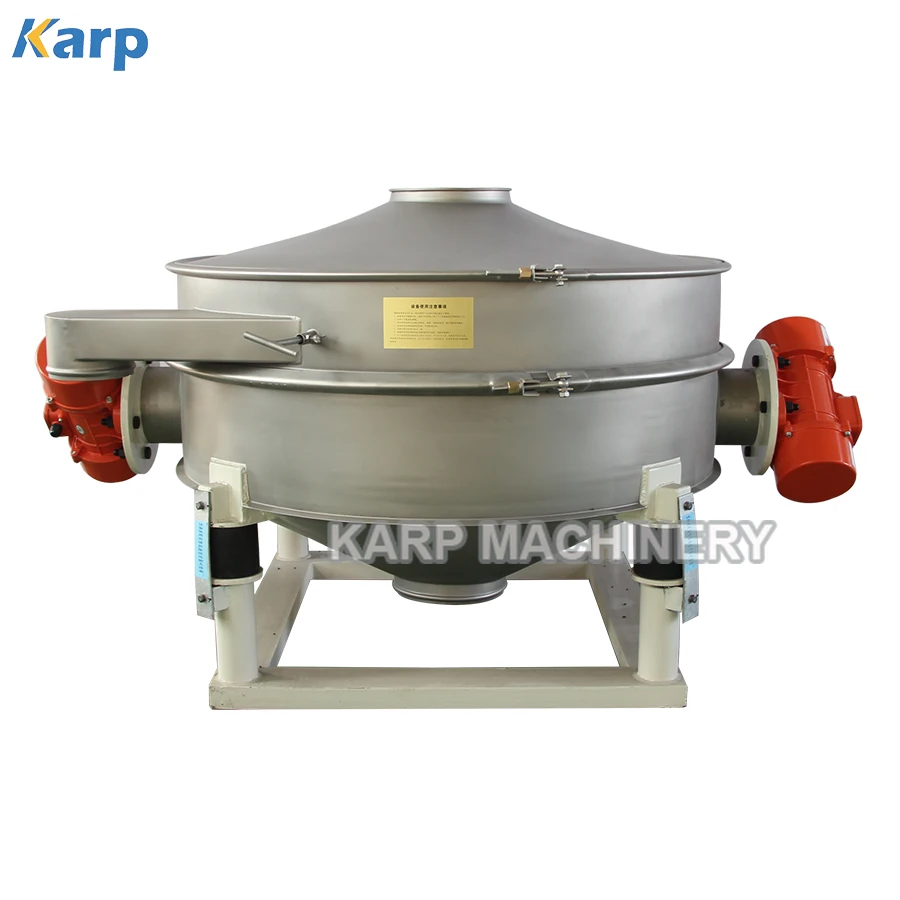

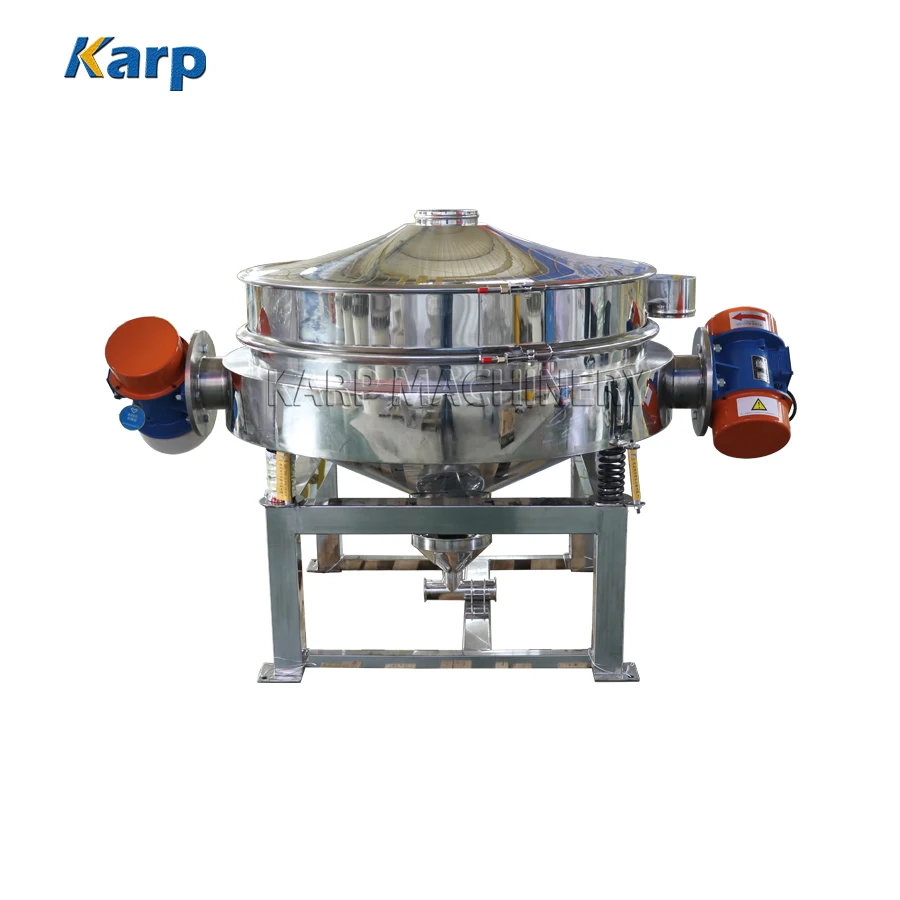

Baking Soda Low Profile Flow Thru Separator Round Vibrating Screening Machine
Introduction:

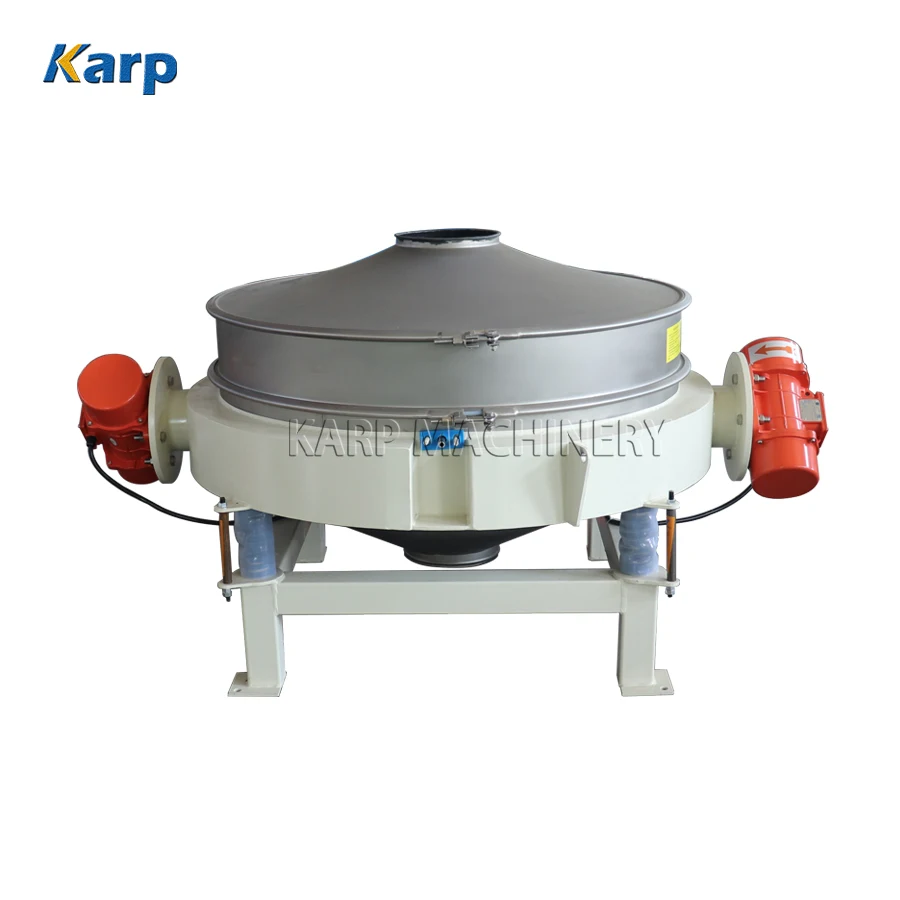

Baking Soda Low Profile Flow Thru Separator Round Vibrating Screening Machine uses two horizontal vibration motors as the excitation source. The vibration motors are placed on the side of the machine body. During the screening process, the material will make an elliptical motion trajectory on the surface of the screen under the action of the excitation force. While quickly reciprocating to complete the mesh movement, the vibration force can continuously peel off, disperse and reorganize the materials, allowing the materials to quickly pass through the mesh. Larger impurities are discharged from the upper outlet to complete the screening process.
The inline screen is characterized by large screening capacity because the material is discharged directly from the bottom outlet. It is mainly used for filtering out the impurities from the granular powder raw material in flour, starch, washing powder, metal powder, additives, chemical industry, non-mining and other industries. It has large processing capacity and is easy to integrate with the production line. Model diameters range from 600mm to 1500mm.
The inline screen is characterized by large screening capacity because the material is discharged directly from the bottom outlet. It is mainly used for filtering out the impurities from the granular powder raw material in flour, starch, washing powder, metal powder, additives, chemical industry, non-mining and other industries. It has large processing capacity and is easy to integrate with the production line. Model diameters range from 600mm to 1500mm.
Product Details
01
Quick Clamps
* The quick clamps are designed to make the process of changing screens or cleaning the machine as quick and effortless as possible.
02
Buffer board & Viewing hole
* The buffer board makes the materials flow into the screen surface evenly.
* Check the materials through the viewing port.
* Check the materials through the viewing port.
03
Bouncing balls cleaning
* Bouncing balls cleaning systems to prevent the screen mesh from being blocked.
04
Discharge valve
* Control the rate of material discharge and the amount by adjusting the valve manually.
* Ensure optimal screening performance and accurate particle size distribution.
Fine weld treatment
* Our machine is built to the highest standards of quality, with a focus on fine weld treatment.
* This attention to detail ensures that the machine is not only strong and durable but also visually appealing.
Top discharge outlet for large impurities
Bottom discharge outlet for final products
1. Removing out the impurity from raw material simply and rapidly.
2. Easy to clean inside and outside, no hygiene dead angle, suitable for the standard of food and chemical industry.
3. Its fast screen change reduces downtime and maintenance time.
4. No special flooring or foundation is needed and less volume.
5. Full enclosed structure, easy to operate, less power consumption.
Specification
Baking Soda Low Profile Flow Thru Separator Round Vibrating Screening Machine can be made of stainless steel 304/316 or carbon steel. We also offer a fully customizable vibrating sieve, like inlet and outlet options, to fit your processing line.
Model | Diameter (mm) | Effective area (m²) | Layer | Power (KW) |
KPZP400 | 400 | 0.09 | 1 | 2*0.04 |
KPZP600 | 600 | 0.22 | 2*0.06 | |
KPZP800 | 800 | 0.4 | 2*0.08 | |
KPZP1000 | 1000 | 0.63 | 2*0.25 | |
KPZP1200 | 1200 | 0.95 | 2*0.4 | |
KPZP1500 | 1500 | 1.5 | 2*0.45 |
Product Show
Product flow:
Product show:
Inline Vibrating Screen Sieve, surface treatment: sand-blasting
Plaster Powder Vibratory Sieve Sifter In Line Discharge Vibrating Screen
Double Motor Direct Discharge Vibrating Screen Sieve
Direct Discharge Vibrating Sieve with a hopper, exported to Thailand
Direct Discharge Vibrating Sieve works with bag dumping station
Related products:
Application
Baking Soda Low Profile Flow Thru Separator Round Vibrating Screening Machine is widely used in many industries as below:
1. Chemical industry: resin, paint, industrial powder, cosmetics, herbal powder, plastic, PVC powder, etc.
2. Food industry: sugar powder, starch, salt, rice powder, milk powder, soybean milk, egg powder, soy sauce, juice, coffee bean, etc.
3. Metals and metallurgical mining: aluminum powder, lead powder, copper powder, ore, alloy powder, electrode powder, manganese dioxide, electrolytic copper powder, electromagnetic material, grinding powder, refractory materials, kaolin, lime, alumina, heavy calcium carbonate, quartz sand, etc.
4. 3D Printing materials: titanium alloy powder, aluminium alloy powder, stainless steel powder, iron base alloy, nickel base alloy, titanium powder, copper powder, aluminum powder, molybdenum powder.
5. Lithium battery industry: battery cathode material, battery anode materials, artificial graphite, natural graphite, lithium iron phosphate, battery material powder, etc.
6. Other industries: waste oil, waste water, dyeing and finishing waste water, paper making, additives, activated carbon, etc.
Packing & Delivery
Packing for Baking Soda Low Profile Flow Thru Separator Round Vibrating Screening Machine.
Outside package: standard export wood box.
Inner package: stretch film for machine, accessories in carton.
Outside package: standard export wood box.
Inner package: stretch film for machine, accessories in carton.
Company Profile
Xinxiang KARP Machinery Equipment CO.,Ltd is one of the leading manufacturer of vibrating screen sifter, conveying machines, feeding machines, elevating machines and related products with 11-year designing and manufacturing experiences.
We are committed to solve all screening and conveying problems of bulk materials. To engineer and manufacture equipment that provides quality, value and dependability. To pursue all avenues that may enhance or improve our products and the products of our customers. Our main products are Rotating Vibration Screener (like Baking Soda Low Profile Flow Thru Separator Round Vibrating Screening Machine), rectangular separator, drum screen, gyratory screen, tumbler screen, screw conveyor, belt conveyor, vacuum feeder, bag dump station, vibration table, standard laboratory inspection sieve, bucket elevator, vibration motor, vibrating conveyor, feeding machine and related parts.
All of our products are widely used in food, additive, chemical, metallurgy, building materials, mining, environmental protection and other fields. Warmly welcome friends from all over the worlds to our company, we looks forward to sincere cooperation and mutually beneficial development with you.
Customer visit:
Warmly welcome friends from all over the worlds to our company, we looks forward to sincere cooperation and mutually beneficial development with you.
Customer information of our transactions last year:
Our equipment has been widely praised:
FAQ
Tell me the following questions, then I can send you an accurate quotation soon, including additional discount! Your email address and telephone will not be shared or published!
The proper selection of the Baking Soda Low Profile Flow Thru Separator Round Vibrating Screening Machine depends on the raw material, mesh size, required output, method of input, abrasiveness of the material, etc:
1. Material:_____, specific gravity/density:_____2. Moisture:_____%
3. Capacity:________kg/ hour
4. Screen mesh size:______ mesh
5. Voltage:______V, Frequency:______HZ, 3 phase
6. SS304/316L stainless steel or carbon steel?
Q: How long for the manufacturing time?
A: 10-15 working days.
Q: How long for warranty time?
A: 13 months from the shipping date.
Q: Can your engineer come to the construction site to guide the installation?
A: Yes, we can arrange our engineer to guide your installation.
Q: How can we guarantee the quality?
A: We provide a set of the sealing parts and installation tools of vibrating screen with our machine for free. And one year warranty period.
Q: What can you buy from us?
A: We provide one stop solution for powder materials: screening, conveying, weighing, mixing, packing and dumping.
Похожие товары

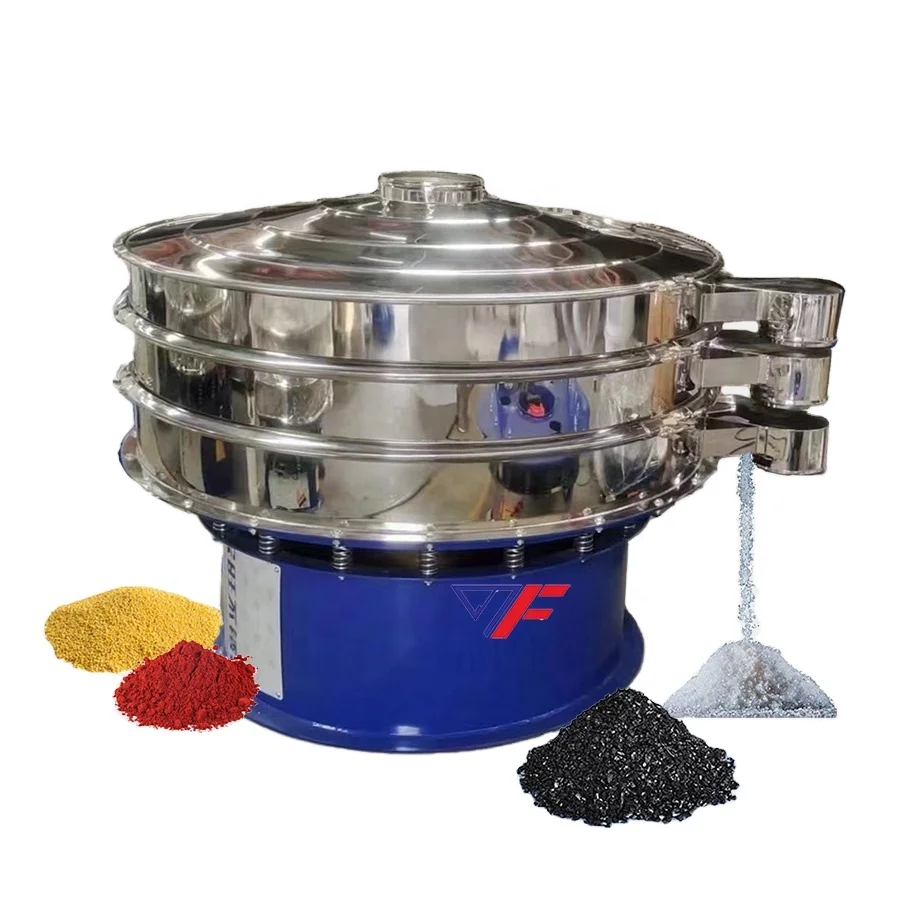

Заводская Центробежная ситечная машина с диаметром сита 400 ~ 2000 мм
2 300,00-2 500,00 $
Маленький портативный Вибрационный сепаратор экран 4 слоя вибрационный для каменной дробилки
1 380,00-4 200,00 $

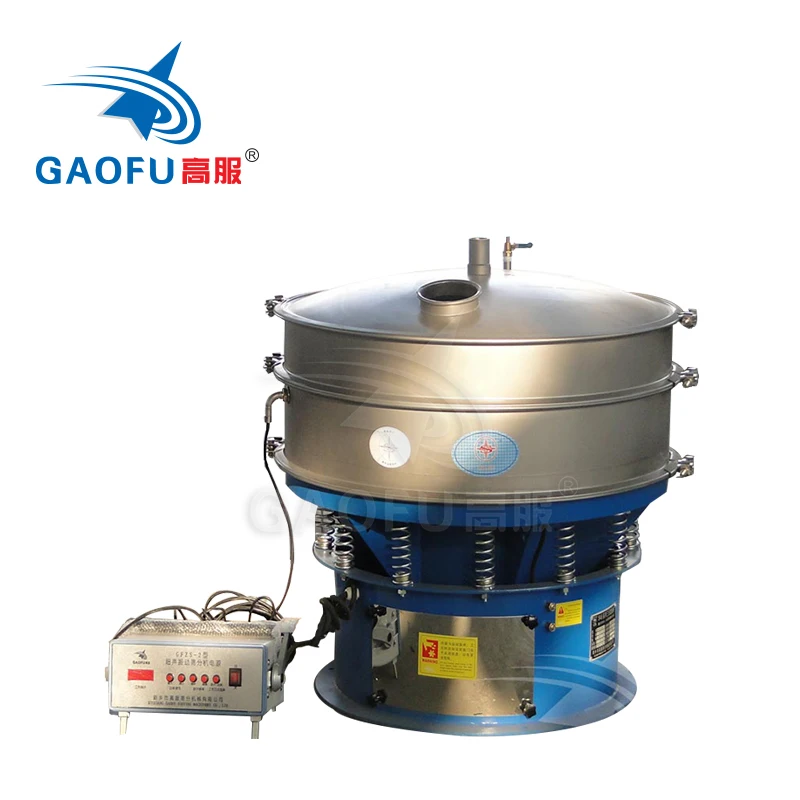

S49-AC1000 двухслойный круговой Вибрационный сито для удаления примесей Ультразвуковой вибрационный экран полевого шпата натрия
2 159,00-3 980,00 $

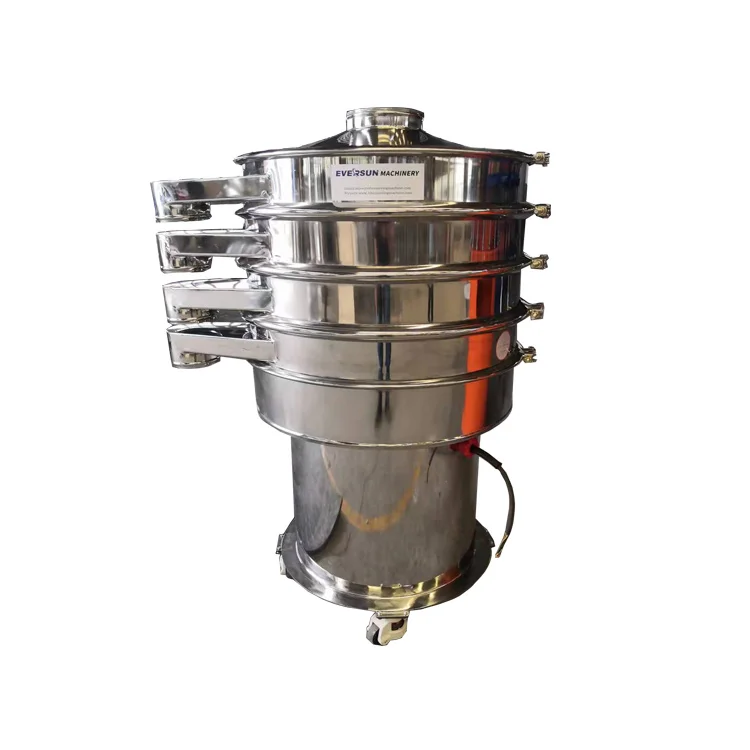

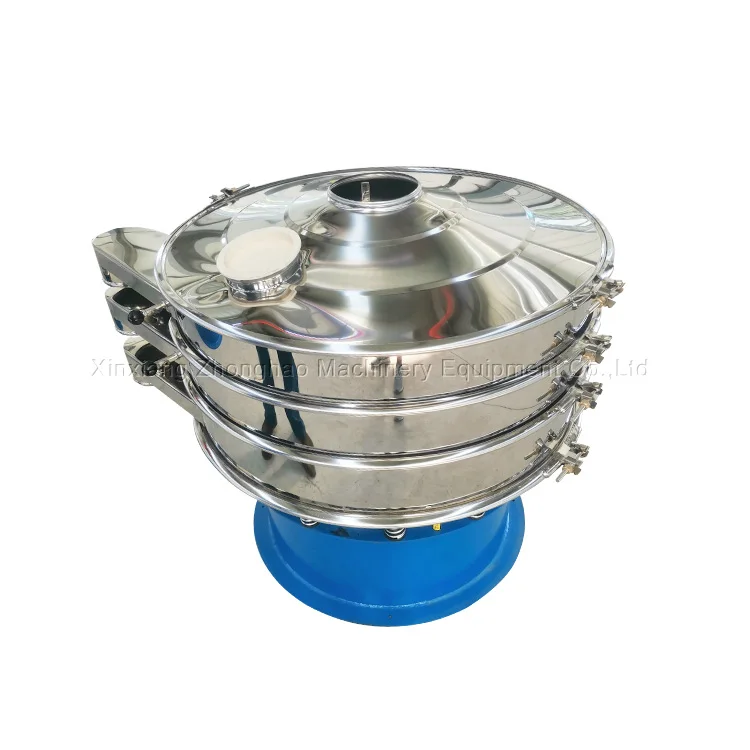

Круглая Порошковая просеивальная машина из нержавеющей стали вибрационное сито для баобаба
900,00-950,00 $

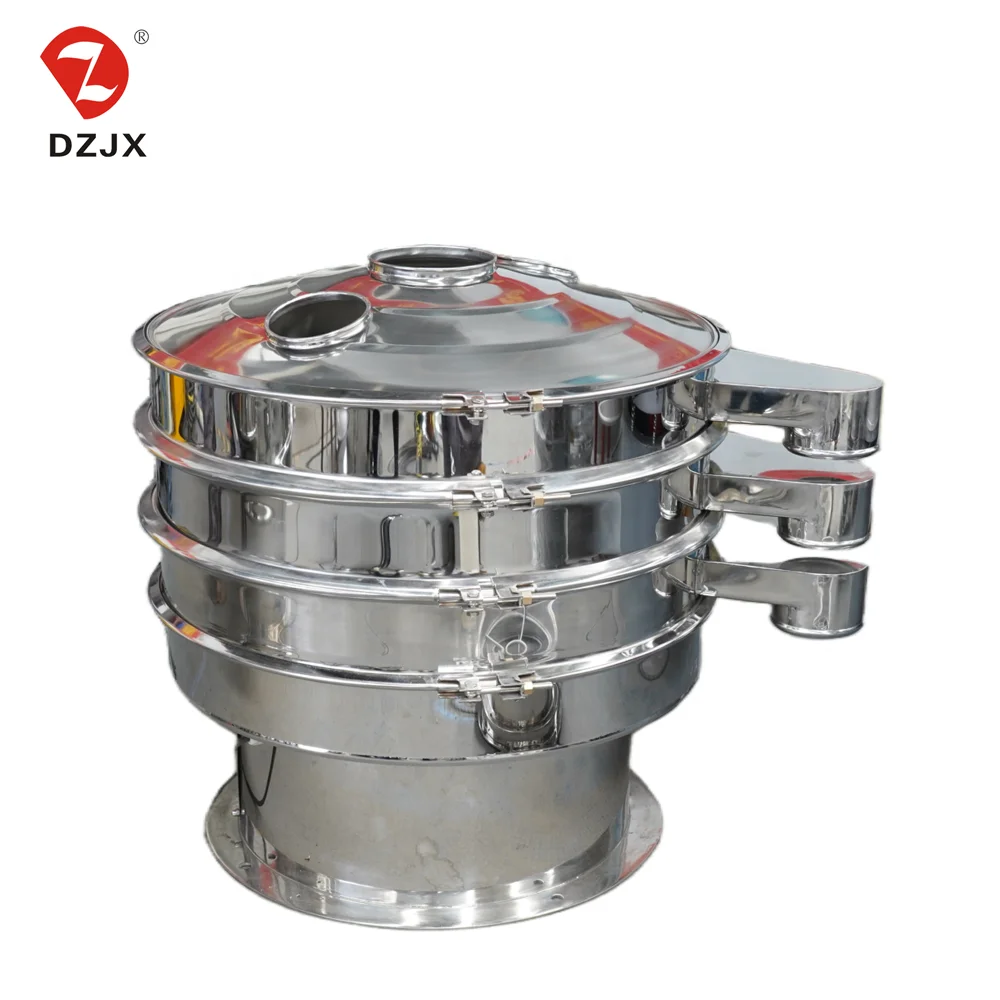

DZJX дешевая цена ротационная многопалубная высокочастотная тонковибрирующая просеиватель для удаления пыли вибросито
950,00-1 150,00 $

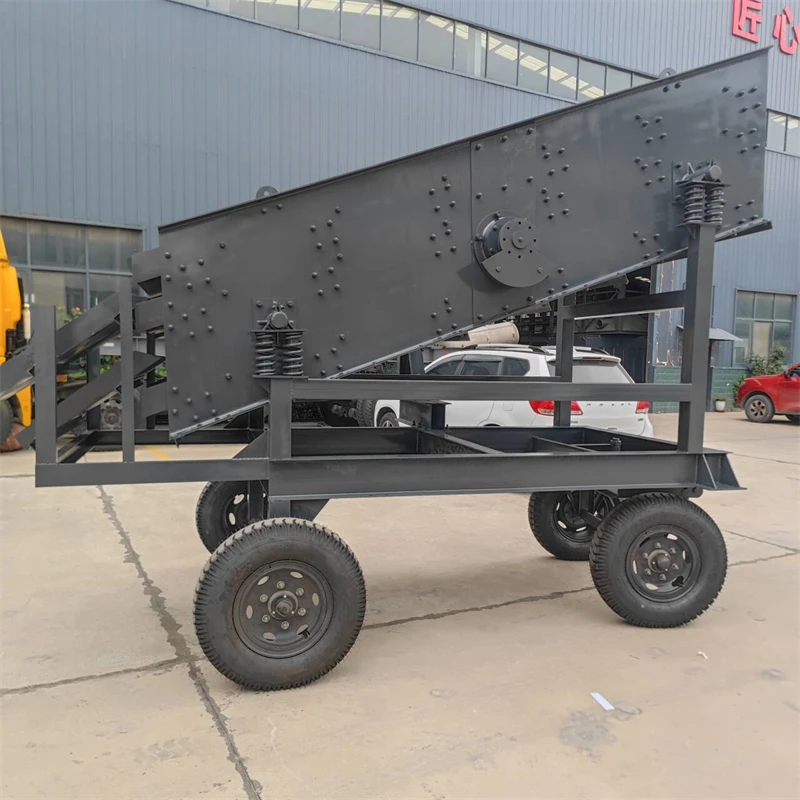

Индивидуальный круговой Вибрационный экран Кварцевый Песок двухпалубный мобильный питающий гранулятор скрининг машина

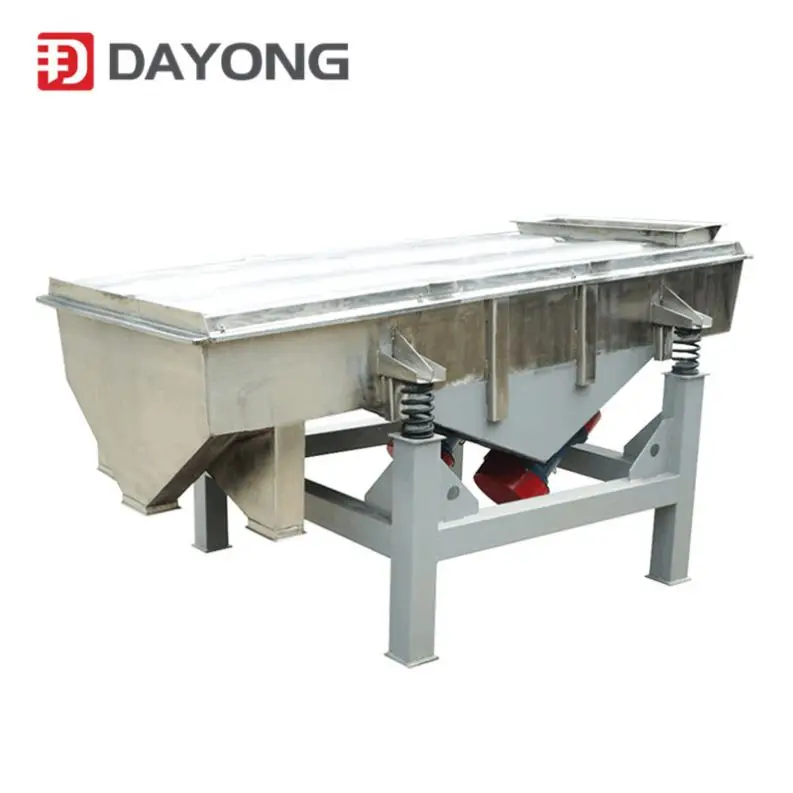

DAYONG настраиваемый вибрационный просеиватель оборудование для просеивания порошка линейный экран
