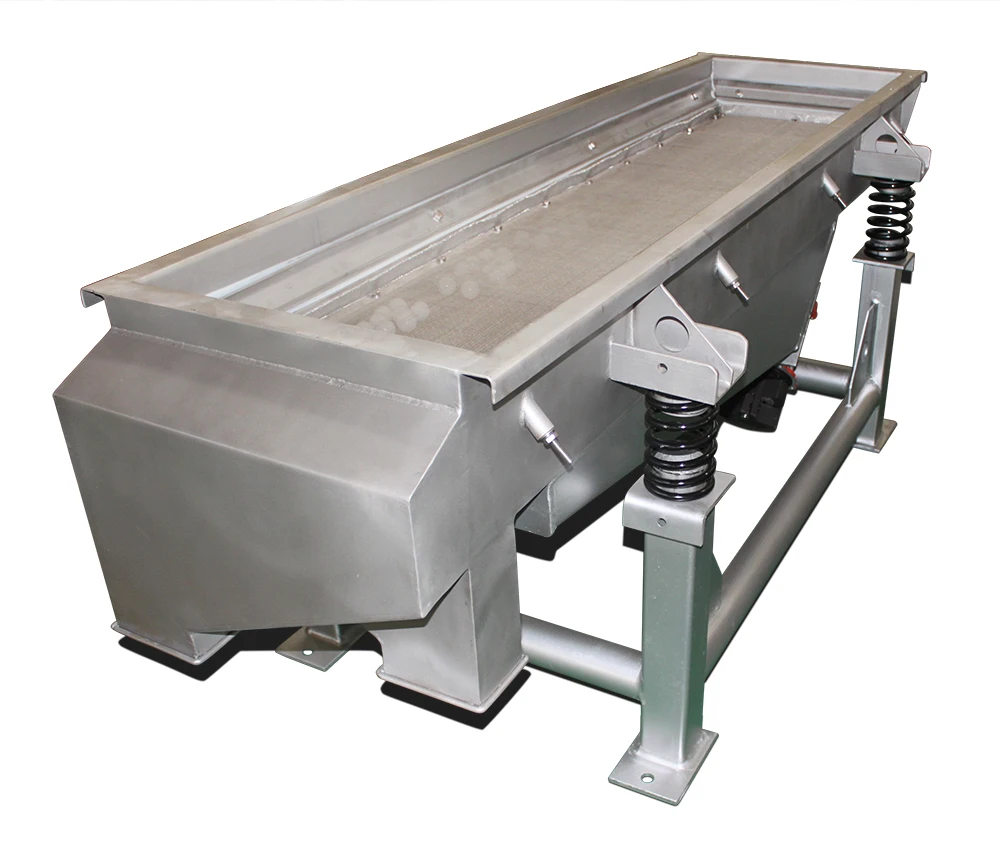

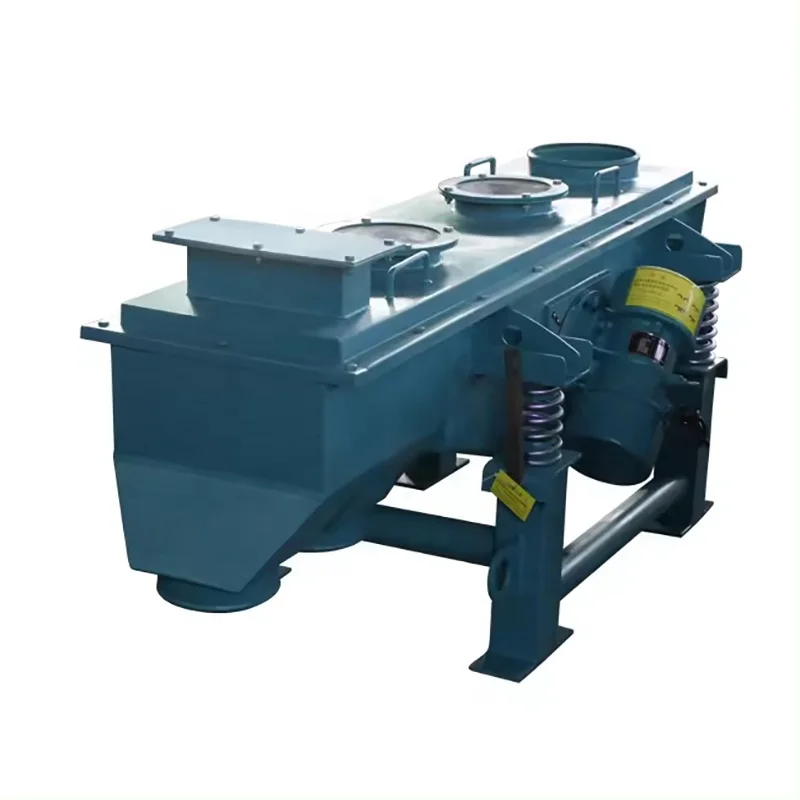

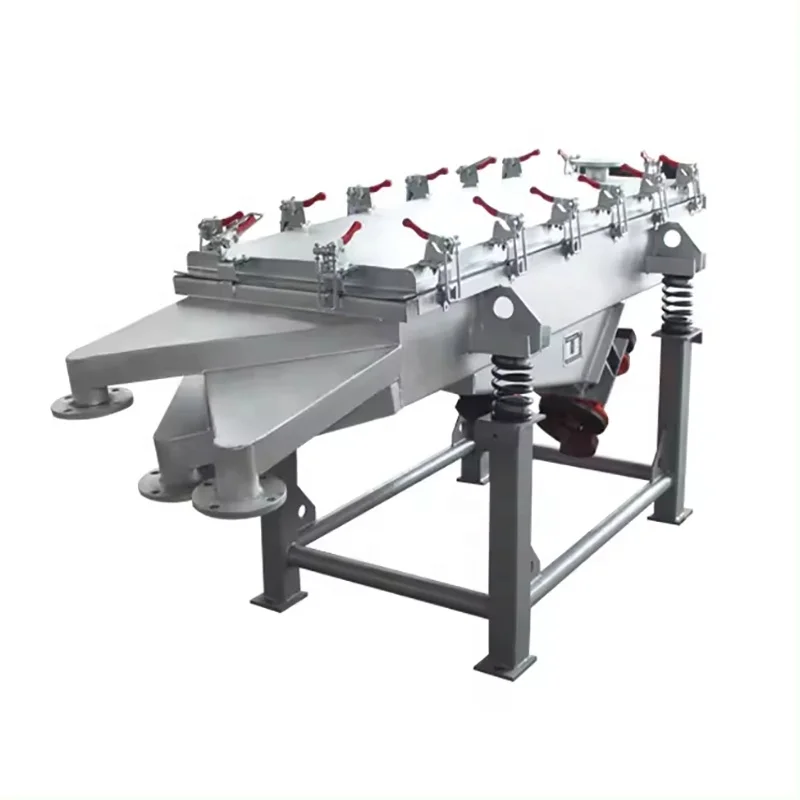

Зерно семян вибрационное сито линейный вибрационный экран
176 338,08 ₽ - 198 380,34 ₽
Промышленный Пескоструйный сепаратор прямоугольный Вибрационный линейный вибрационный экран
- Категория: >>>
- Поставщик: Henan Vibrate Machinery Equipment Co. Ltd.
Сохранить в закладки 1601057534248:
Описание и отзывы
Характеристики
linear screen is a product with large output and accurate screening. It is especially suitable for quarrying sand and gravel materials. It can also be used for product classification, such as coal preparation, mineral processing, building materials, electric power and chemical industry.

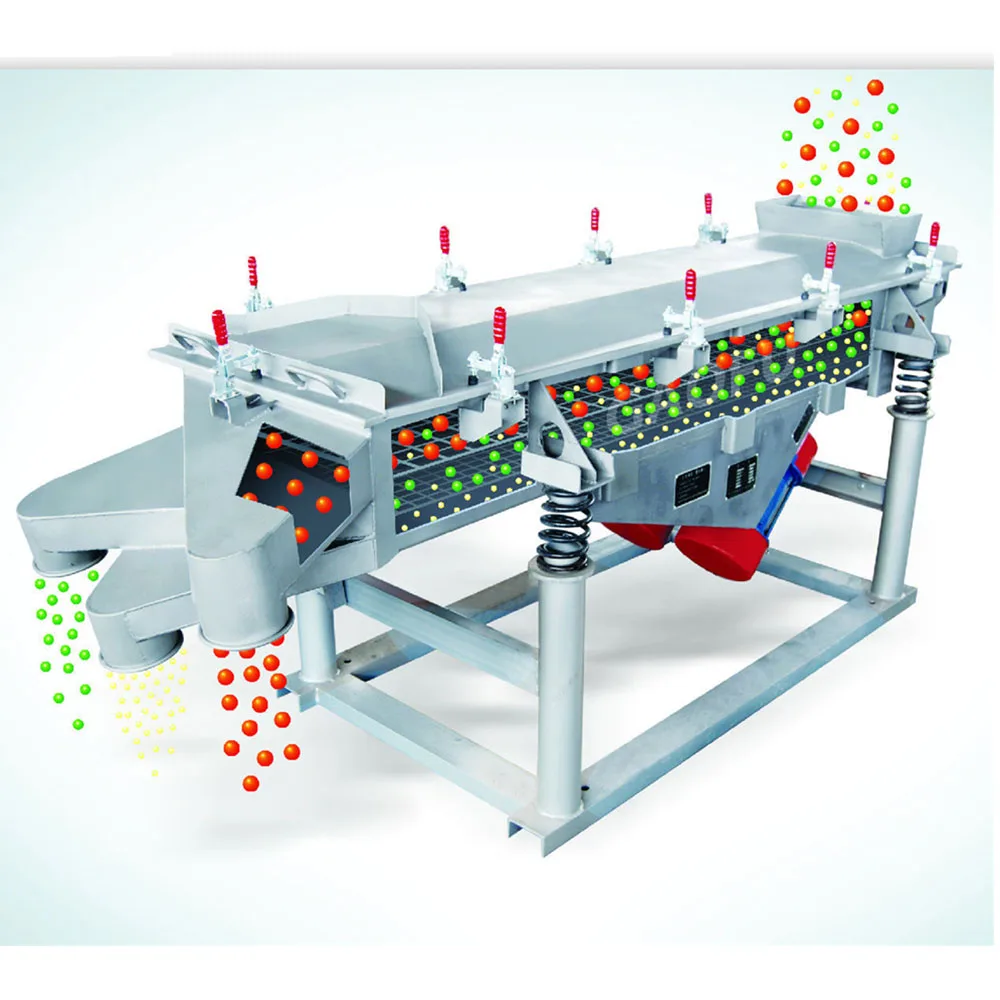

* The motion trajectory of VBSQ linear vibrating screen is a straight line, abbreviated as linear screen, which can be widely used in dry screening operations for medium and small powder and particle materials in industries such as mining, metallurgy, chemical industry, building materials, food processing, etc. This series of screening machines adopts dual vibration motor self synchronous drive, with adjustable excitation.
* It has the advantages of simple structure, less spare parts, light weight, low energy consumption, low noise, and convenient installation and maintenance.
* This series of screening machines are divided into single layer and double layer, and can also be designed as multiple layers according to user requirements;
* The sieve is divided into carbon steel wire, spring steel wire, and stainless steel wire woven mesh, welded mesh, slot mesh, and other special material sieve plates.
* It has the advantages of simple structure, less spare parts, light weight, low energy consumption, low noise, and convenient installation and maintenance.
* This series of screening machines are divided into single layer and double layer, and can also be designed as multiple layers according to user requirements;
* The sieve is divided into carbon steel wire, spring steel wire, and stainless steel wire woven mesh, welded mesh, slot mesh, and other special material sieve plates.
Discharge port
Opening direction can be designed according to requirements;The machine material can be carbon steel or high quality 304/316
stainless steel according to requirements
stainless steel according to requirements
Screen
The screen mesh is made of high quality 304 stainless steel, screening size can be customized according to customer requirements.
Vibration motor
High quality Italian Oli motor, more durable
Spring
Adopt high quality domestic famous brand spring.
Dust-proof cover
According to customer requirements, add dust-proof cover for the equipment, design observation hole, and the use of quick switch,convenient cleaning screen.
Main Technology Parameters:
Model | Effective screening area | Granularity size | Deck | Power(kw) | Speed(r/min) | Amplitude(mm) |
520 | 500*2000 | 0.074-60 | 1-4 | 2*0.75 | 960 | 4-8 |
840 | 800*4000 | 0.074-60 | 1-4 | 2*1.5 | 960 | 4-8 |
1030 | 1000*3000 | 0.074-60 | 1-4 | 2*1.9 | 960 | 4-8 |
1255 | 1200*5500 | 0.074-60 | 1-4 | 2*2.2 | 960 | 4-8 |
1650 | 1600*5000 | 0.074-60 | 1-4 | 2*3.0 | 960 | 4-8 |
Henan vibrate Machinery
Henan vibrate Machinery is a production of food, chemical equipment enterprises, located in Henan Xinxiang City. We design custom solutions for the production, washing, cutting, meat processing, packaging and filling of vegetables, spices, meat, liquids, powders and pellets in many industries such as food, pharmaceutical, plastics, chemical, etc. Our main products include: packaging machines, filling machines, cleaning machines, cutting machines, meat processing machines and related products. the company has passed iso9001 quality management system certification and SGS certification, and all products have passed CE certification.
At present, the products have been exported to 96 countries and regions. We also have in-depth cooperation with local agents in key markets such as Indonesia, Malaysia, Singapore, Thailand, India, Vietnam, Brazil, Australia, France, United Kingdom, Hungary, etc., to provide localized after-sales service and technical support.
Factory Show
Our Certification
Q: 1. Are you a manufacturer, trading company or third party?
A: We are a manufacturer, located in the high-tech zone of Xinxiang City, Henan Province, China. You are warmly welcome to visit our company.
A: We are a manufacturer, located in the high-tech zone of Xinxiang City, Henan Province, China. You are warmly welcome to visit our company.
Q:2. What is your minimum order quantity and can you send me samples?
A: Our MOQ is 1 set, because our products are mechanical equipments, so it is difficult to send you samples, if you have any questions about the products, please feel free to contact us for more details, we will be happy to provide you with more information, such as specifications, videos and so on.
A: Our MOQ is 1 set, because our products are mechanical equipments, so it is difficult to send you samples, if you have any questions about the products, please feel free to contact us for more details, we will be happy to provide you with more information, such as specifications, videos and so on.
Q:3. How does your factory perform quality control?
A:(1) All raw materials we use are environmentally friendly.
(2) Skilled workers pay attention to every detail during production and packaging.
(3) The quality control department specializes in the quality of each process.36 Over the years, we continue to introduce advanced technology and provide high quality products, and our products are also widely exported to many countries, such as Russia, Middle East, Africa, Southeast Asia, and the European Union, and we have won a high reputation among our customers.
A:(1) All raw materials we use are environmentally friendly.
(2) Skilled workers pay attention to every detail during production and packaging.
(3) The quality control department specializes in the quality of each process.36 Over the years, we continue to introduce advanced technology and provide high quality products, and our products are also widely exported to many countries, such as Russia, Middle East, Africa, Southeast Asia, and the European Union, and we have won a high reputation among our customers.
Q: 4. What is the delivery time of your machines?
A: Generally speaking, the delivery period of our machines is about 30 days, and the customized machines will be delivered according to the negotiation with customers.
A: Generally speaking, the delivery period of our machines is about 30 days, and the customized machines will be delivered according to the negotiation with customers.
Q: 5. How about after-sales service?
A:(1) TM is online 24 hours a day, also can be contacted by email, skype, MSN, whatsapp etc.
(2) Problem solving by video/picture.
(3) One year warranty for spare parts replacement. If you encounter any other problems, please feel free to contact us.
A:(1) TM is online 24 hours a day, also can be contacted by email, skype, MSN, whatsapp etc.
(2) Problem solving by video/picture.
(3) One year warranty for spare parts replacement. If you encounter any other problems, please feel free to contact us.
If you meet any other questions, please feel free to contact us. click here.
Похожие товары
Вибрационная просеивающая машина для порошка слюды высокой мощности
99 190,17 ₽ - 109 109,19 ₽

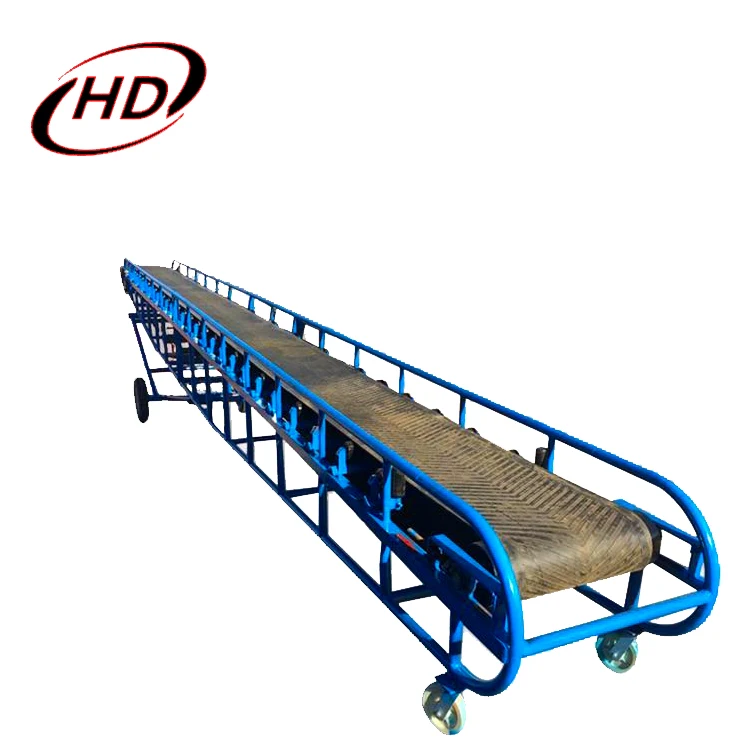

Hongda подвижный портативный твердый наклонный ленточный конвейер для сортировки отходов
