Вибрационная просеивающая машина для порошка слюды высокой мощности

Сохранить в закладки 62467773771:


Цена:99 190,17 ₽ - 109 109,19 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики

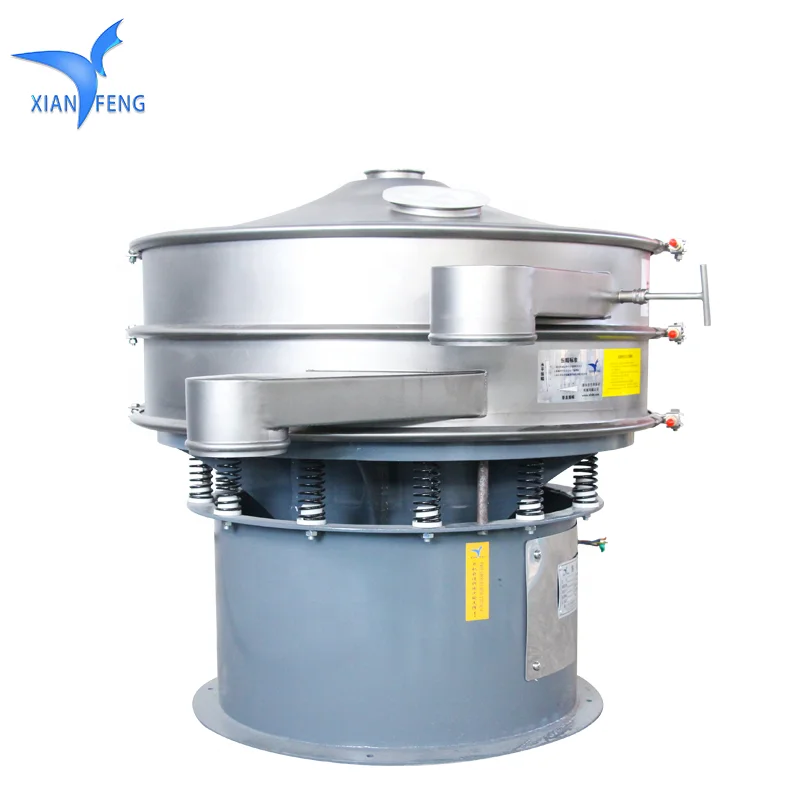

Product introduction


.jpg


xiangqye_06-3Rotary vibration screen is a high precision fine powder screening machine, with low noise and high efficiency. It takes 3-5 minutes to quickly change the net.The rotary screen is made of an upright motor as the excitation source. The upper and lower ends of the motor are equipped with eccentric hammer. The rotary motion of the motor is transformed into horizontal, vertical and inclined tridimensional motion, which is then transmitted to the screen surface.By adjusting the phase Angle of upper and lower ends, the movement track of materials on the screen surface can be changed.Materials can be fine screening, probability screening, etc.


IMG_9506-9-1                    overall carbon steel             contact stainless steel with material        All 304/316 stainless steel








Product parameters







































Model NO.




Screen Surace [mm]




Unit Screen Area




Product

particle size [mm]




Capacity

[kg/hour]




Sizing Accuracy [%]



XF600-1



560




0.25




0.02~20




200




85-95



XF800-1



760




0.45




0.02~20




500




85-95



XF1000-1



950




0.71




0.02~20




800




85-95






Offers different materials, different models of vibrating screen and can be customized







Application industry




Customer case




Quality control
