OEM bsd система контроля слепых зон Система помощи при смене полосы для грузового автомобиля 24 ГГц 15 м волновой радар-датчик
3 526,77 ₽ - 5 510,57 ₽
Система STONKAM 8 CH MDVR 4G ADAS DMS BSD/360 алгоритм IP69K Водонепроницаемый 1080P видеовыход H.264/H.265 для управления автопарком
- Категория: >>>
- Поставщик: Stonkam Co. Ltd.
Сохранить в закладки 1601068768047:
Описание и отзывы
Характеристики
Product Description
STONKAM Best Selling Ahd CCTV ADAS AVM Fatigue Detect 4 Channel / 8 Channel MDVR For Truck adopts H.264/H.265 compression technology and supports real-time remote monitoring, which makes fleet management more efficient. Thanks to its multi-core processor and neural networks inference engine, the intelligent MDVR is able to integrate ADAS, DMS, BSD, AVS algorithm in one device and provide various systems featured with different driving assistance functions. It can be combined with ADAS and DMS function, blind spot monitoring function, or 360 degree around view function, which allows the driver to have a safer driving without spending extra time and money for separate installation.
* Integrated with DMS and ADAS algorithm, STONKAM Best Selling Ahd CCTV ADAS AVM Fatigue Detect 4 Channel / 8 Channel MDVR For Truck has recognition, warning, recording and remote reporting functions to improve driving safety in fleet management.
* Integrated with BSD algorithm, the intelligent MDVR can detect pedestrians at the front, side and rear of the vehicle in real time, avoiding accidents caused by blind spots.
* Integrated with 360° around view algorithm, the intelligent MDVR can realize true 360° bird-view monitoring with wide angle cameras , ensuring driving safety.
* GPS tracking adopts adaptive sparse algorithm and supports offline upload.
* Multiple trigger recording modes with 15 seconds pre-recording function: motion trigger, G-sensor trigger, over-speeding trigger, 6-channel customized alarm input trigger, panic button trigger recording, and DMS/ADAS/BSD warning trigger.
* Support3G/4G/ WIFI/ GPS tracking; can achieve real-time remote monitoring on iOS, Android and Windows client
* With WiFi station and AP mode; AP mode can support that mobile directly connects to device for easy preview and configuration on mobile through WebUI.
* Automatically upload data for remotely intelligent data analysis and management, including data: alarm recording, alarm information, log information, GPS trajectory, real-time videos and images
* Support HD touch screen control and IR Remote Control. Flat interactive interface makes operation easy.
* IP69K waterproof and dustproof control box, suitable for all kinds of environments.
* Support H.264/H.265 Encode, improve storage and make better use of wireless network traffic.
* Integrated with DMS and ADAS algorithm, STONKAM Best Selling Ahd CCTV ADAS AVM Fatigue Detect 4 Channel / 8 Channel MDVR For Truck has recognition, warning, recording and remote reporting functions to improve driving safety in fleet management.
* Integrated with BSD algorithm, the intelligent MDVR can detect pedestrians at the front, side and rear of the vehicle in real time, avoiding accidents caused by blind spots.
* Integrated with 360° around view algorithm, the intelligent MDVR can realize true 360° bird-view monitoring with wide angle cameras , ensuring driving safety.
* GPS tracking adopts adaptive sparse algorithm and supports offline upload.
* Multiple trigger recording modes with 15 seconds pre-recording function: motion trigger, G-sensor trigger, over-speeding trigger, 6-channel customized alarm input trigger, panic button trigger recording, and DMS/ADAS/BSD warning trigger.
* Support3G/4G/ WIFI/ GPS tracking; can achieve real-time remote monitoring on iOS, Android and Windows client
* With WiFi station and AP mode; AP mode can support that mobile directly connects to device for easy preview and configuration on mobile through WebUI.
* Automatically upload data for remotely intelligent data analysis and management, including data: alarm recording, alarm information, log information, GPS trajectory, real-time videos and images
* Support HD touch screen control and IR Remote Control. Flat interactive interface makes operation easy.
* IP69K waterproof and dustproof control box, suitable for all kinds of environments.
* Support H.264/H.265 Encode, improve storage and make better use of wireless network traffic.
System | Operating system | Linux | |||||
Operating interface | Graphical menu operation interface(OSD) | ||||||
Video permission | Administrator & user setting | ||||||
Video | Video input | Max 8ch 1080P analog high definition | |||||
HD output | Support CVBS,VGA and AHD output | ||||||
Video display | 1、2、3、4、8、9CH | ||||||
Compression | H.264/H.265 | ||||||
Audio | Audio input | 8 channels | |||||
Audio output | 1 channels | ||||||
Record format | Synchronized video & audio recording | ||||||
Audio compression | ADPCM | ||||||
Digital processing & storage | Video resolution | 4*1080P(1920*1080) | |||||
Video bit rate | 128kbps~6Mbps/channel | ||||||
Storage | 56~2700MB/(channel*hour) | ||||||
Audio bit rate | 32kbps | ||||||
Storage | SD card * 4, max 128GB | ||||||
Playback resolution | 4*1080P (encoding & decoding at the same time) | ||||||
Video quality | 1~8 level adjustable | ||||||
Alarm | Alarm input | 8 channels | |||||
Alarm output | 2 channels, 1 buzzer | ||||||
Motion detection | Adjustable high / low sensitivity | ||||||
Interface for communication | IR | 1 channel | |||||
RS232 | 1 channels | ||||||
RS485 | 2 channels | ||||||
RJ45 | 1 channel | ||||||
USB2.0 | 1 channel for file backup and firmware upgrade | ||||||
Wireless | 2G/3G/4G | Optional | |||||
WIFI | Standard | ||||||
WIFI hotspot/AP | Available | ||||||
GPS | Tracking and speed recorded | ||||||
G-Sensor/Gyroscope | G-Sensor | ||||||
Software | Windows client | Available | |||||
iOS client | Available | ||||||
Web portal | Support windows,android,mac, ios and more | ||||||
Power | Input | 10~32V | |||||
Output | 12V@3.5A | ||||||
Max Power Consumption | 60W | ||||||
Standby Power Consumption | 50mW | ||||||
Electrical specifications | Operating temperature & humidity | -20～70 ℃<80% | |||||
Electronic Clock | Built-in clock, Calendar | ||||||
Super Capacitor | Available | ||||||
Are You Always Wondering...
How to get a perfect fleet management solution?
How to quickly know whether the driver drives illegally?
How to quickly provide evidence for traffic accident, theft, racketeering, etc.?
......
How to get a perfect fleet management solution?
How to quickly know whether the driver drives illegally?
How to quickly provide evidence for traffic accident, theft, racketeering, etc.?
......
Option One: MDVR System Combined with ADAS&DMS Function
It’s designed for various vehicles management, and widely used in buses, coaches, construction machinery, taxis, lorries, fire trucks, ambulances, passenger vehicles, etc. STONKAM Best Selling Ahd CCTV ADAS AVM Fatigue Detect 4 Channel / 8 Channel MDVR For Truck adopts ADAS&DMS technology to provide better performance. DMS can detect and warn against drivers’ misbehaviors like fatigue, distraction, making phone call, yawning, no driver, not wearing seat-belt or mask, as to contribute to safe driving and easy fleet management.
ADAS functions include forward collision warning (FCW), lane departure warning (LDW), pedestrian detection (PD), preceding car starting reminder, and speed sign recognition (SSR) & over speed alarm, which can warn drivers of potential collision risks and make driving safer.
Option Two：MDVR System Combined with BSD Function
With BSD algorithm, STONKAM Best Selling Ahd CCTV ADAS AVM Fatigue Detect 4 Channel / 8 Channel MDVR For Truck can detect pedestrians at the front, side and rear of the vehicle in real time, avoiding accidents caused by blind spots. Thus, this driving assistance device is essential for large-size vehicles like trucks, buses, construction machines, etc.Through the PC CMS Client or Mobile APP, the current location and historical driving trajectory of vehicles can be clearly queried on OS map/ Google map/ Baidu map.
Option Three: MDVR System Combined with 360 Degree Around View Monitoring
With 360 AVS algorithm, STONKAM Best Selling Ahd CCTV ADAS AVM Fatigue Detect 4 Channel / 8 Channel MDVR For Truck can be compatible with wide-angle camera and realize true 360° bird-view monitoring with no blind area. Meanwhile, the system supports auto calibration to save installation time and cost.With BSD algorithm, the intelligent MDVR can detect pedestrians at the front, side and rear of the vehicle in real time, avoiding accidents caused by blind spots. Thus, this driving assistance device is essential for large-size vehicles like trucks, buses, construction machines, etc.Through the PC CMS Client or Mobile APP, the current location and historical driving trajectory of vehicles can be clearly queried on OS map/ Google map/ Baidu map.
GPS Vehicle Historical Track Playback

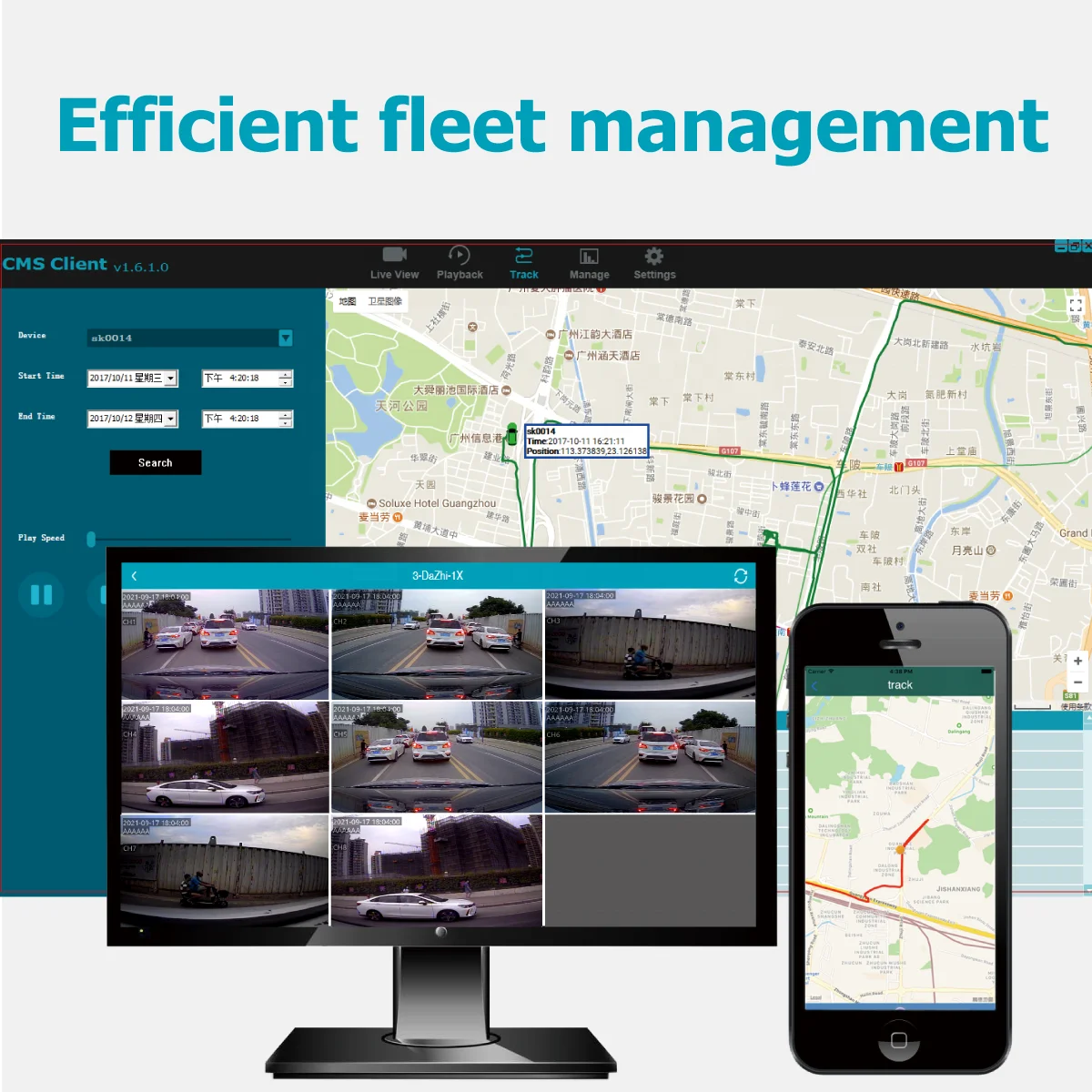

Through the PC CMS Client or Mobile APP, the current location and historical driving trajectory of vehicles can be clearly queried on OS map/ Google map/ Baidu map.
Support motion trigger, G-sensor trigger, over-speeding trigger, 6-channel customized alarm input trigger, panic button trigger recording, and DMS/ADAS/BSD warning trigger. And the 15-sec prerecording can catch the scene before the accident so as to provide evidence.
Through the PC CMS Client or Mobile APP, the current location and historical driving trajectory of vehicles can be clearly queried on OS map/ Google map/ Baidu map.
MDVR could be linked to the server to provide API for customers to realize the interface with customer systems. Customers can either use our client or connect to their own system through the API. Thus, data exchange and information sharing could be achieved.
Preview with WIFI Connection
With WiFi station and AP mode; AP mode can support directly connecting to device for easy preview and configuration on mobile phone through WebUI.
Help to analyze irregular situation easily while providing vehicle tracking and traceable information.
Help to analyze irregular situation easily while providing vehicle tracking and traceable information.

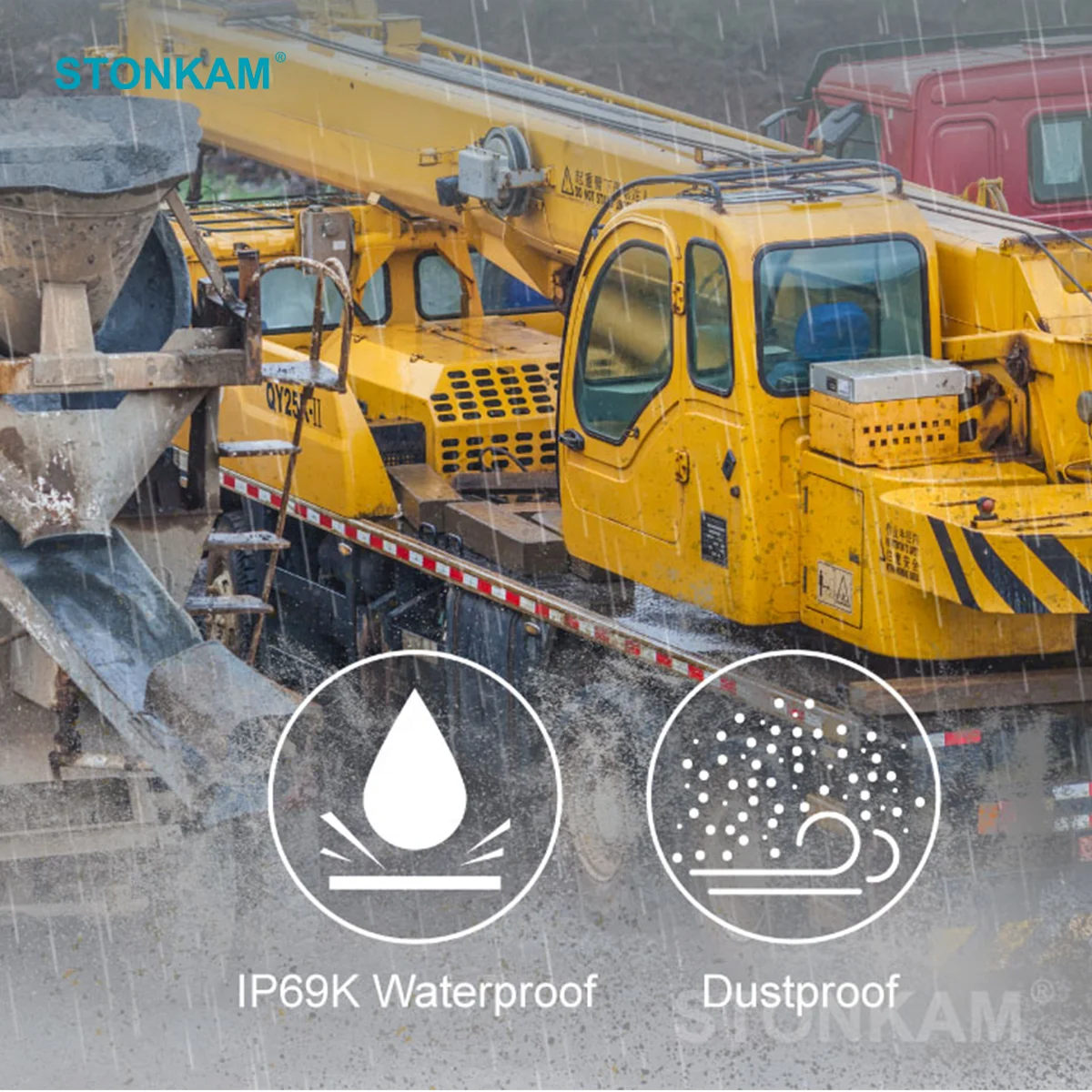

With IP69K rating, STONKAM Best Selling Ahd CCTV ADAS AVM Fatigue Detect 4 Channel / 8 Channel MDVR For Truck is suitable for all kinds of environments.
STONKAM Best Sell 4/8 Channel Driver Fatigue Monitor System Mdvr 8Ch In Vehicle can set video recording quality—1080P/720P/D1.
STONKAM Best Selling Ahd CCTV ADAS AVM Fatigue Detect 4 Channel / 8 Channel MDVR For Truck features diverse recording modes, stable video storage device, integration of vehicle information, and the double protection of recording data.
222
User can watch the real time video by choosing the specific vehicle license number on the left side of the CMS Client. Each vehicle has a unique identification number in the CMS which can be set by the user.
222
Video files can be remotely downloaded by logging in PC CMS Client or mobile APP.
222
Dual-stream Storage Design for More Secure Data Protection
