Мини-передвижные камнедробилки
110 101,09 ₽ - 148 785,26 ₽
Литарочная дробилка с широким применением флюоритовая квадратная большим коэффициентом дробления каменная тяжелое оборудование
- Категория: >>>
- Поставщик: Henan Gaoda Machinery Manufacturing Co. Ltd.
Сохранить в закладки 1601072772217:
Описание и отзывы
Характеристики

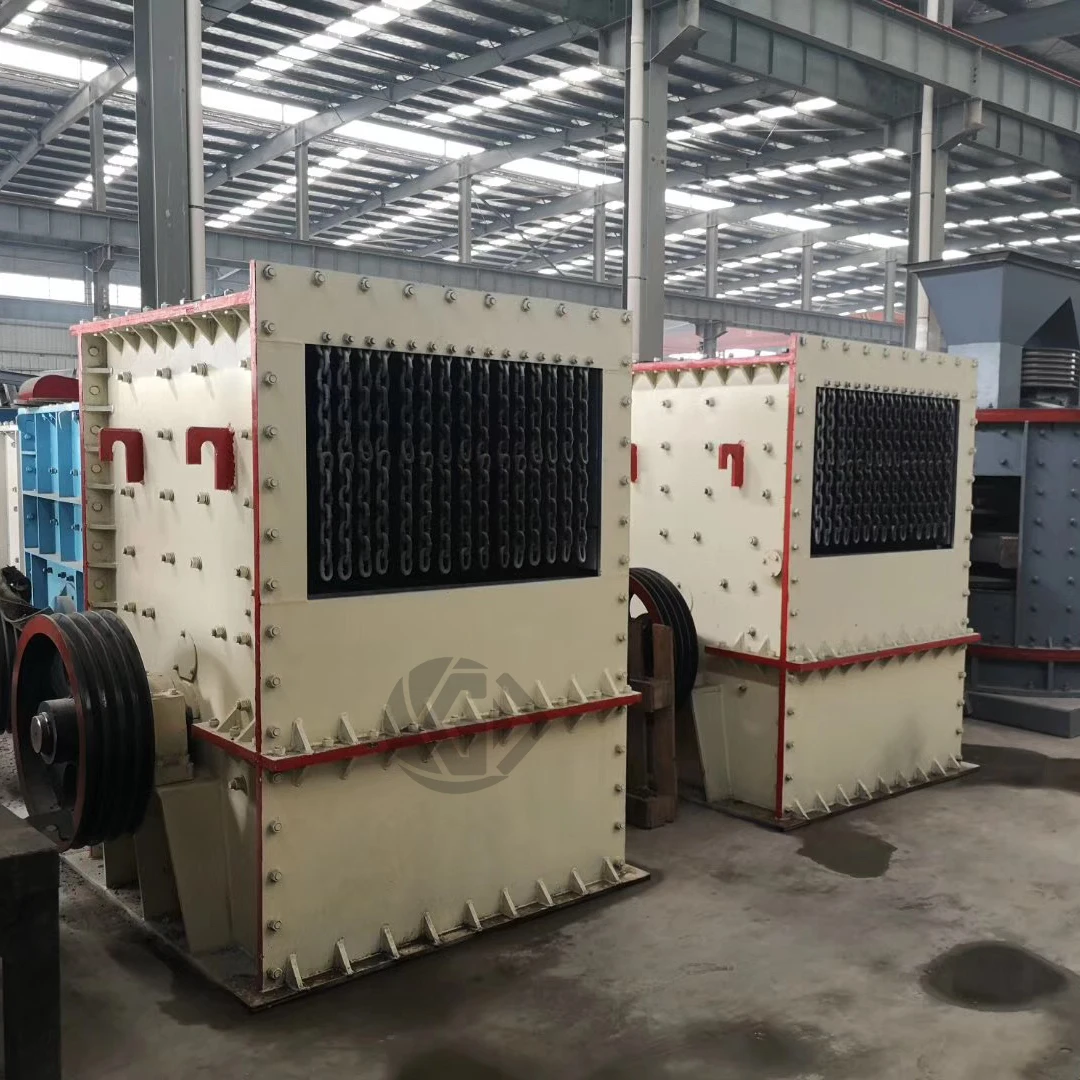

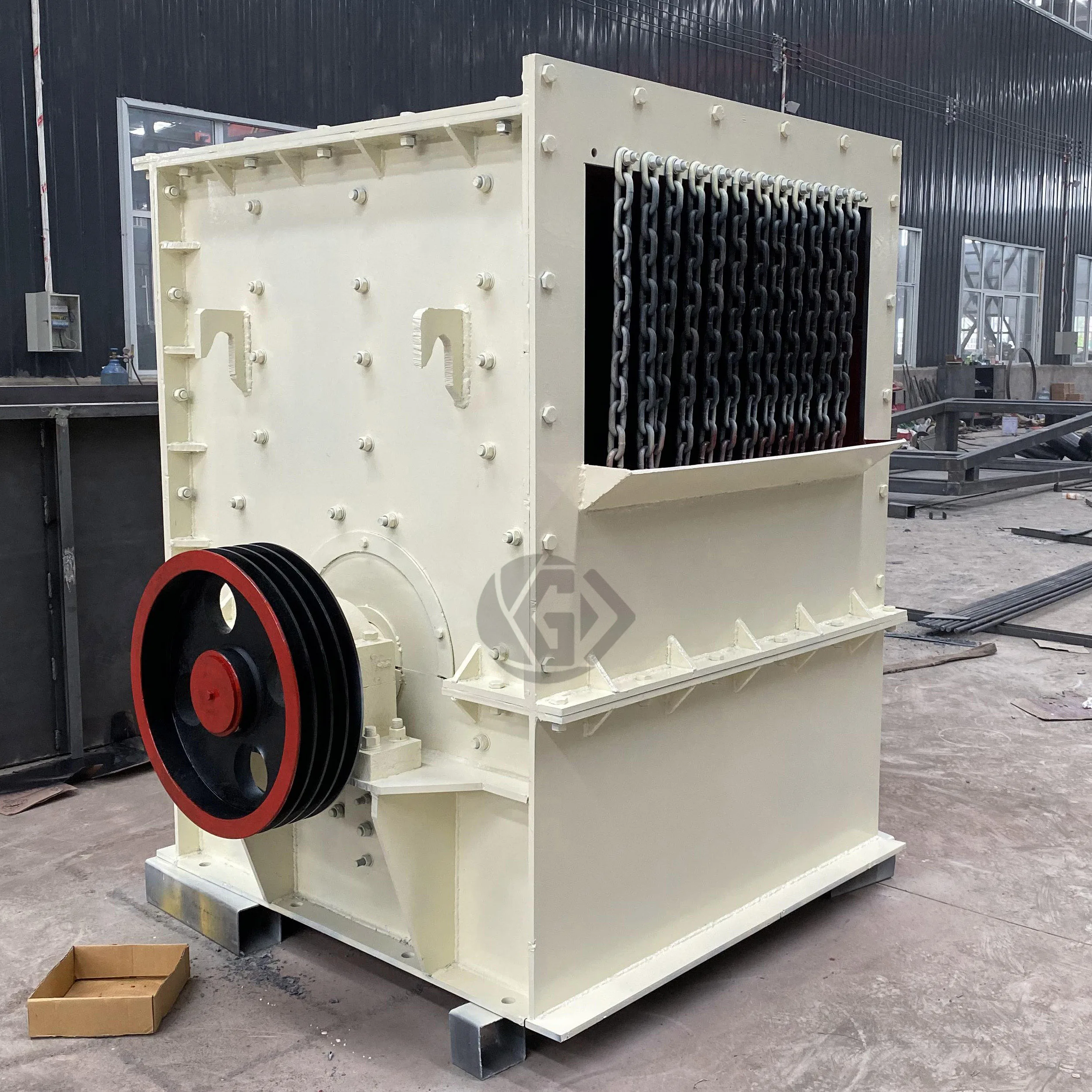

Box crusher product introduction:
Box-type breaker also weighs hammer crusher, square box crusher, is to absorb advanced technology at home and abroad, integrated ordinary hammer crusher, impact crusher, vertical shaft heavy hammer crusher and a variety of hammer (plate hammer) to hit and crush the mechanical principle of stone, after optimized design, the latest generation of crushing machinery products has been manufactured, and the method of controlling the size of the discharge particles with grate strips has been changed, and the wear of the hammer head in the crushing cavity has been reduced. The life of the hammer head is increased by 4-6 times, and each hammer head can crush 3-40,000 tons of stone, which has achieved a major breakthrough in crushing technology and truly achieved twice the result with half the effort.
Advantages of box crusher:

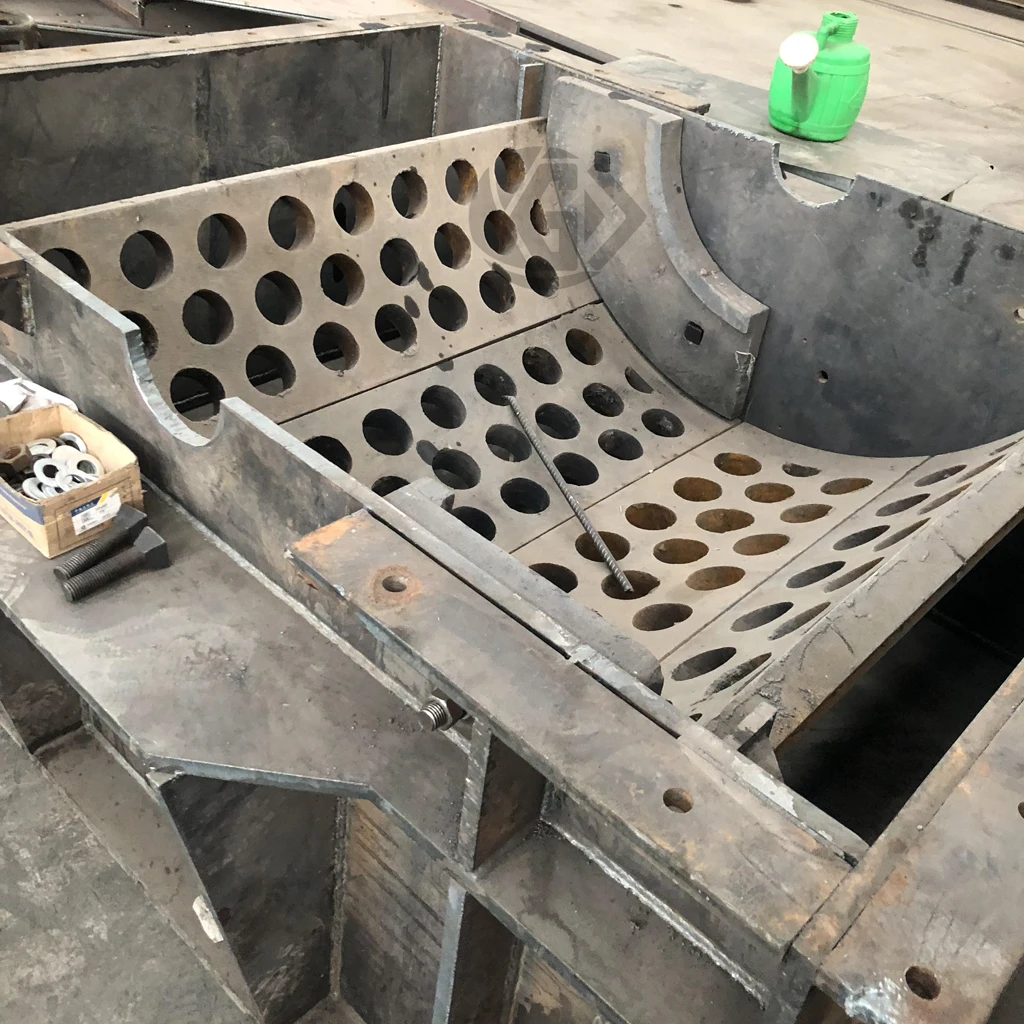

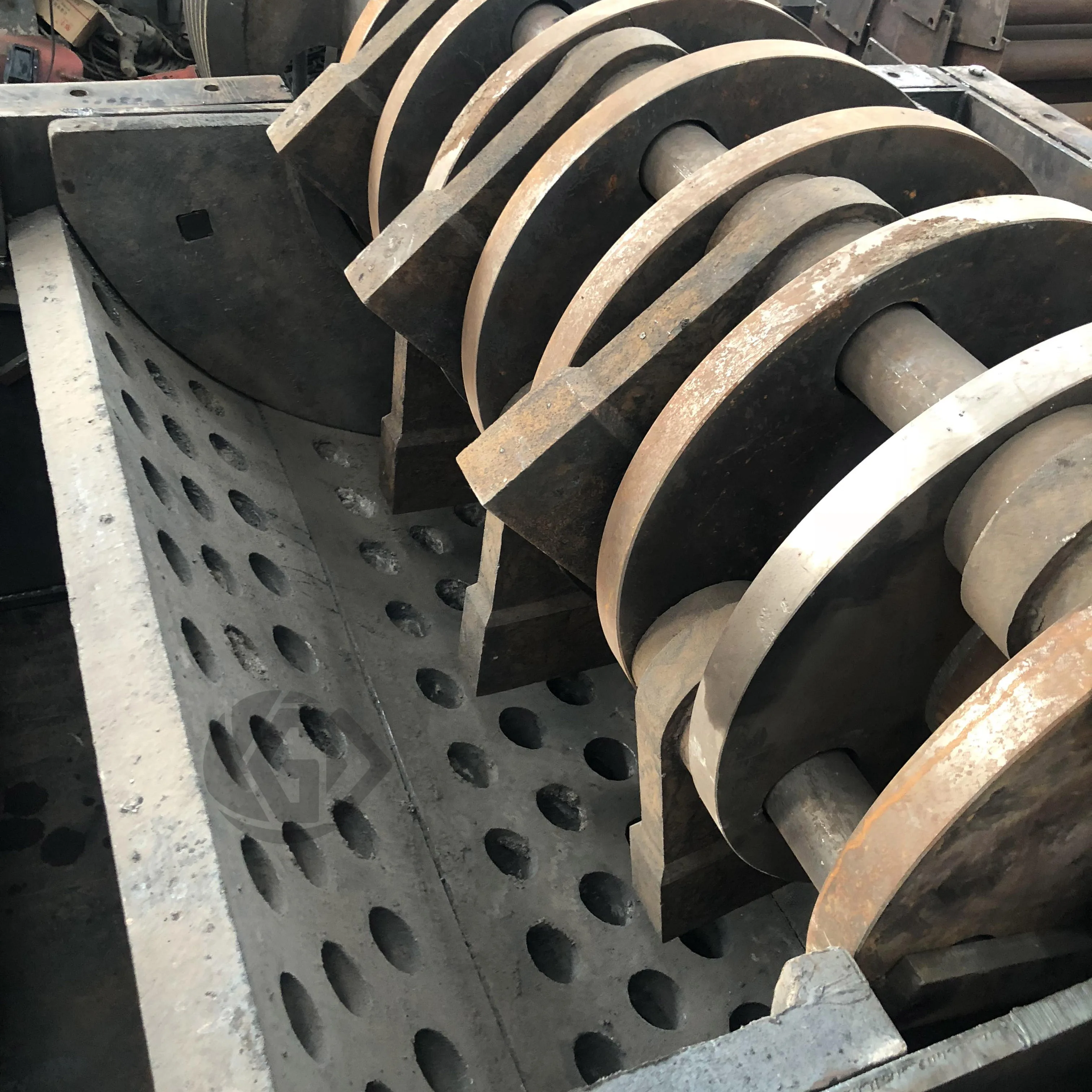

The development of new medium and fine crushing equipment is widely used in the world to replace cone crushers, roller machines, and ball mills. The structure is novel, unique and stable. It has the function of shaping, and the product is square and has a large bulk density, and the stone can form a protective bottom layer during the production process, and the fuselage is wearfree and durable. A small number of wearable parts are made of extra-hard wear-resistant materials, which are small in size and light in weight, and easy to replace accessories. When the material enters the crushing chamber, the large material is stacked on the special middle stretcher in the machine, and the material with a particle size greater than the required after crushing is crushed with the new material along the tangential direction of the hammer head to the impact plate and crushed again, so that the coarse and medium crushing are in place in one step, and finally the material that meets the requirements is discharged after the grate plate is integrated into the grid.
Model | 700×1000 | 900×1200 | 1000×1000 | 1200×1200 | 1400×1400 | 1600×1600 | 1800×1800 | ||||||
Diameter(mm) | 700 | 900 | 1000 | 1200 | 1400 | 1600 | 1800 | ||||||
Roller length (mm) | 1000 | 1200 | 1000 | 1200 | 1400 | 1600 | 1800 | ||||||
Production(t/h) | 50-80 | 70-100 | 90-120 | 130-160 | 190-210 | 250-300 | 300-400 | ||||||
Feed particle size (mm) | ≤500 | ≤800 | ≤800 | ≤900 | ≤1000 | ≤1000 | ≤1200 | ||||||
For stone | All kinds of stone | ||||||||||||
Motor(kw) | 45-55 | 75-90 | 75-90 | 110-132 | 132-160 | 160-210 | 210-280 | ||||||
Our company
Henan Gaoda Mechanical Manufacturing Co., Ltd. is located on the Central West Road of Gongyi City, Henan Province. It is a
professional manufacturer of mining equipment and environmental protection equipment, with many years of technical strength and
experience. The main products developed and produced are: crushing equipment, sand making equipment, screening and washing
equipment, mobile crushers, mobile screening equipment, sand washing and recovery equipment, dehydration screens, vibrating screen
separators, etc. 5 major series and nearly 50 products, which are widely sold to various parts of China as well as Indonesia,
Iran, Russia, Pakistan, India, South Africa and other 10 countries.
professional manufacturer of mining equipment and environmental protection equipment, with many years of technical strength and
experience. The main products developed and produced are: crushing equipment, sand making equipment, screening and washing
equipment, mobile crushers, mobile screening equipment, sand washing and recovery equipment, dehydration screens, vibrating screen
separators, etc. 5 major series and nearly 50 products, which are widely sold to various parts of China as well as Indonesia,
Iran, Russia, Pakistan, India, South Africa and other 10 countries.
Q: How long is your delivery time?
A: 7-10 days for the stock, 15-30 days for the mass production.
Q: How long is the warranty? Does your company supply the spare parts?
A: One year. Spare parts for you at lowest cost.
Q: If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
Q: What are the special advantages of the Jaw crusher equipment?
A: These Jaw crushers have features of a deep, symmetrical crushing chamber, easy settings adjustment, a large feed opening for its size, and an ideal nip angle that offers smooth material flow and high reduction efficiency.
A: 7-10 days for the stock, 15-30 days for the mass production.
Q: How long is the warranty? Does your company supply the spare parts?
A: One year. Spare parts for you at lowest cost.
Q: If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
Q: What are the special advantages of the Jaw crusher equipment?
A: These Jaw crushers have features of a deep, symmetrical crushing chamber, easy settings adjustment, a large feed opening for its size, and an ideal nip angle that offers smooth material flow and high reduction efficiency.
