SIB 12 В, 90Ah Din, сверхвысокая CCA, 1700 натриево-ионный аккумулятор для морского применения, натриево-ионный аккумулятор
15 533,87 ₽ - 19 472,03 ₽
Натриево ионный аккумулятор 12 В 20 А ч для гольфа троллинга мотора мотоцикла
- Категория: >>>
- Поставщик: Shenzhen Yichen S-Power Tech Co. Ltd.
Сохранить в закладки 1601075942250:
Описание и отзывы
Характеристики
Products Description

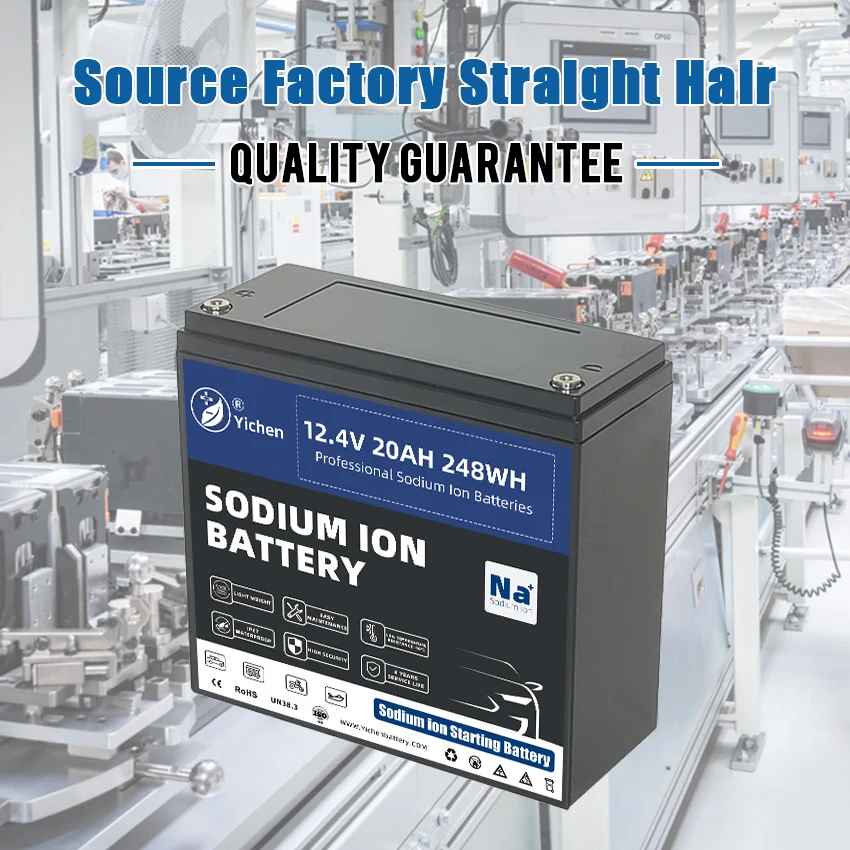

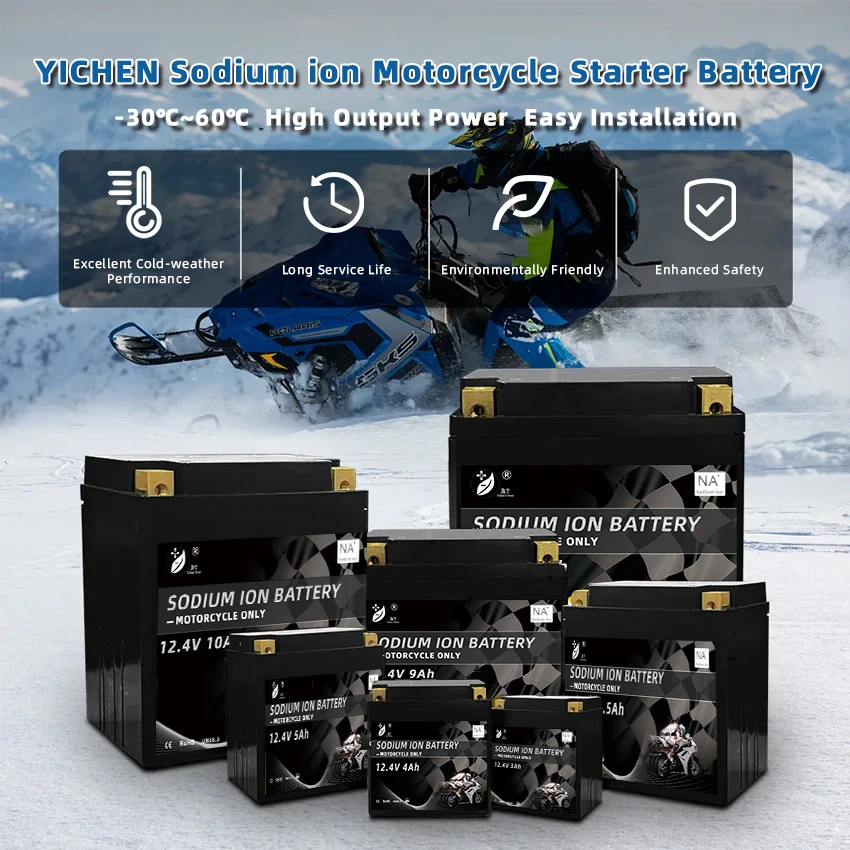

12.4V 20ah Sodium Ion Motorcycle Motorbike Battery
【Excellent Performance】The life cycle of our sodium ion motorcycle battery: 3000, and the service life is as long as 8 years. Lightweight (4kg), the weight is only one-third of the lead-acid battery, the energy density is 3 to 5 times that of lead-acid battery, working temperature: discharge: -30 to 90℃.
【Safety and Environmental Protection】The use of lead-acid batteries will cause heavy metal pollution to the natural environment, while lithium batteries will not. Choosing lithium batteries helps protect the environment.
【Compatibility】Our 12v sodium ion battery can replace the following motorcycle battery models: YTX7A-BS,YTX9-BS，YTZ10S,YT12A-BS，YTZ10S,YT12A-BS. It can also be used as a starter to start a small motorcycle.
【Safety and Environmental Protection】The use of lead-acid batteries will cause heavy metal pollution to the natural environment, while lithium batteries will not. Choosing lithium batteries helps protect the environment.
【Compatibility】Our 12v sodium ion battery can replace the following motorcycle battery models: YTX7A-BS,YTX9-BS，YTZ10S,YT12A-BS，YTZ10S,YT12A-BS. It can also be used as a starter to start a small motorcycle.
Product Paramenters
Electrical Characteristics | Model number | YCST-NA1220-S |
Nominal Voltage | 12.4 V | |
Nominal capacity | 20ah | |
Energy | 248Wh | |
Internal Resistance | ≤ 3mΩ | |
Cycle life | ≥3000 cycles @ 60%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Cut-off Voltage | 15.8V ±0.2 |
Charge Mode | 0.2C to 15.8V, then 15.8V,charge current to 0.02C (CC/CV) | |
Standard Charge Current | 0.2C | |
Max. Charge Current | 3C | |
Standard Discharge | Continuous Current | 1C |
Max. Pulse Current | 10C | |
Discharge Cut-off Voltage | 6V | |
Environmental | Charge Temperature | -10°C~45°C @60±25% Relative Humidity |
Discharge Temperature | -50°C~90°C @60±25% Relative Humidity | |
Storage Temperature | -10℃ to 60 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP67 | |
Plastic Case | ABS | |

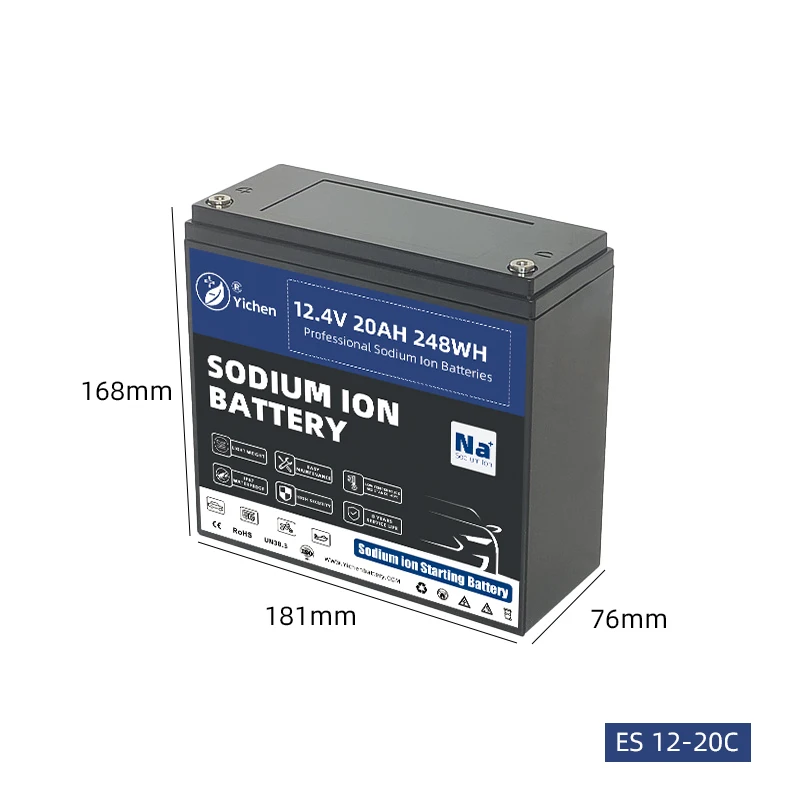

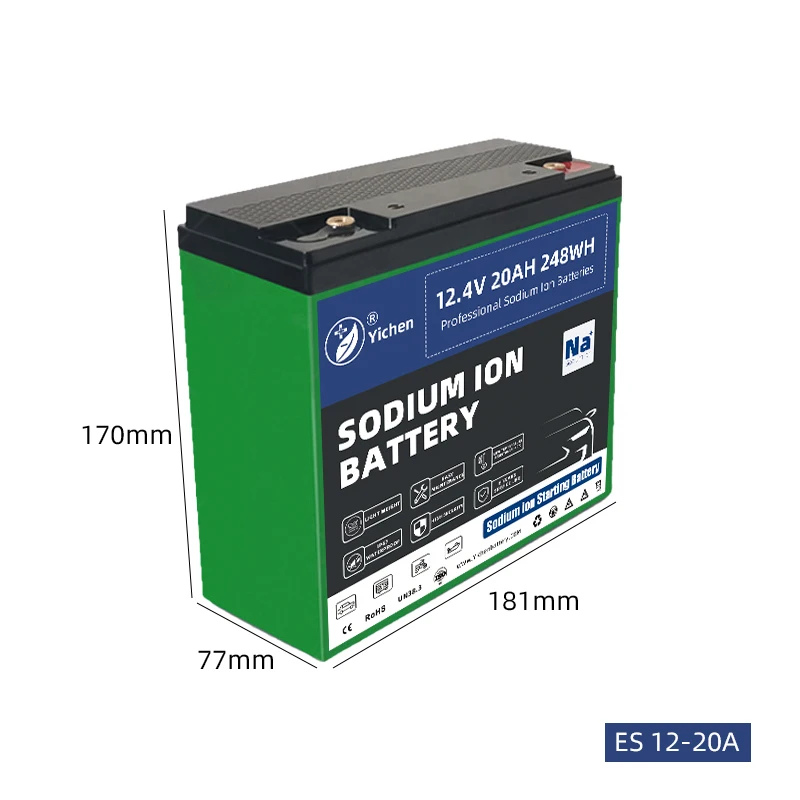

Dimensions (mm) | 181*77*170mm | |
Weight | 4 kg | |
Terminal | Customize | |
Function | Support Customization | |
Color | Black, Green or Customize |
Features and Applications
Why choose Yichen Sodium Ion Battery?
* Na ion batteries have better high and low temperature performance. The high temperature discharge capacity (55°C and 80°C) exceeds 100% of the rated capacity, and the low temperature -40°C discharge capacity exceeds 70% of the rated capacity. And it can realize 0.1C charging and discharging at low temperature -20°C, and its charging and discharging efficiency is close to 100%, which has better low temperature charging performance than lithium batteries.
* Na ion batteries have better rate performance. The Stokes diameter of sodium ions is smaller than that of lithium ions, and the electrolyte with the same concentration has higher ionic conductivity than lithium salt electrolytes. The solvation energy of sodium ions is lower than that of lithium ions, resulting in faster kinetics and interfacial diffusion properties in the electrolyte
Related Products
Why Choose YichenLFP Battery?
Active equalization module
Certification support
About production:
1. Our current production capacity is about 5300KWH / Month ( ≈ { 48V 100Ah } * 1000pcs / Month ) . If your monthly demand exceeds 5300KWH and you need our production , Please contact our salesperson three months in advance.
2. We are a medium-sized battery manufacturer . In addition to samples , the customization of individual products required by individuals will lead to very high
costs for you. The cost of some customization requirements such as mold opening may even be much higher than the retail price . Therefore, if you buy them for personal use,we recommend Purchasing directly by local merchants .
costs for you. The cost of some customization requirements such as mold opening may even be much higher than the retail price . Therefore, if you buy them for personal use,we recommend Purchasing directly by local merchants .
Business Cooperation
As a medium level manufacturer in the development, we are more flexible and efficient in responding to medium volume orders. In addition, the potential of new energy is very promising. So we are looking for the agents and warehouses all over the world. If you are interested in working with us, please enter the command in the message: Cooperation.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
About US
Shenzhen Yichen S-Power Tech Co., Ltd. founded in 2015, has become a comprehensive battery manufacturer with the combination of R&D, manufacturing, marketing and service. The founder has more than 12years experience with Lithium battery. We focus on design and development of High Voltage, Large Capacity Long cyclelife LiFePO4 battery, LTO Battery and system, offer global technical support, Yichen S-Power equipped with advanced production and testing facilities, to supply valuable and high quality products. Currently, we can support CANBUS / Bt App / Rs485 / Rs232 / solution, and developed battery self-heating and Self-cooling(Water cooling). Solve the High Temperatrue and Low Temperatrue environment battery problem.To have Longer Cycle life and More Power. These products are used on Solar, Home storage battery, UPS, AGV, RVcar, Telecom Base Station, Golf Trolley Cart, Fishing Boat, Car Start-Stop system battery.
The products passed TUV , UL , CE , CSA , CEC , JET certifications. Have been exported to more than 50 different countries. OEM/ODEM service offered.
Shenzhen Yichen S-Power Tech Co., Ltd. with great passion and faithfulness, are willing to provide you with perfect services and striding forward with you to create a bright future.
The products passed TUV , UL , CE , CSA , CEC , JET certifications. Have been exported to more than 50 different countries. OEM/ODEM service offered.
Shenzhen Yichen S-Power Tech Co., Ltd. with great passion and faithfulness, are willing to provide you with perfect services and striding forward with you to create a bright future.
Our Workshop & equipment
FAQ
Q1: Can I have samples to test? And what is lead time for sample order?
Yes, we can supply samples in 5-7 days depending on different product items and clients' requirement.
For normal in stock product, 2~5 days; For customized product, 3~7days depends on requirements.
Q2: What is the warranty for the products?
1~10 years,Since our product range is wide,Minimum12v 40Ah, Max 2MW container energy storage system, Different products has different warranty,welcome to check before placing order.
Q3: What is your company's advantage?
We're direct factory,have very rich exprience in customizing kinds of high voltage,high capacity, high performance battery packs for 12v / 24v / 48v / 80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V / 460V / 614V Aircraft tractors, heavy truck, Mine train,110v / 220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.
Q4: Do you accept OEM/ODM?
Yes, welcome!
Q5: What is the lead time for the mass order?
Generally speaking, about 7~20 days depending on different items after getting down payment and confirmation about the samples.
Q6: What is the payment terms?
Sample payment accept Paypal, Western union, Escrow; and Mass order by T/T.
Q7: What kind of certificate can offer?
CE, RoHS, UN38.3, MSDS, etc, If need IEC-62133, PSE and others, please consult with us.
