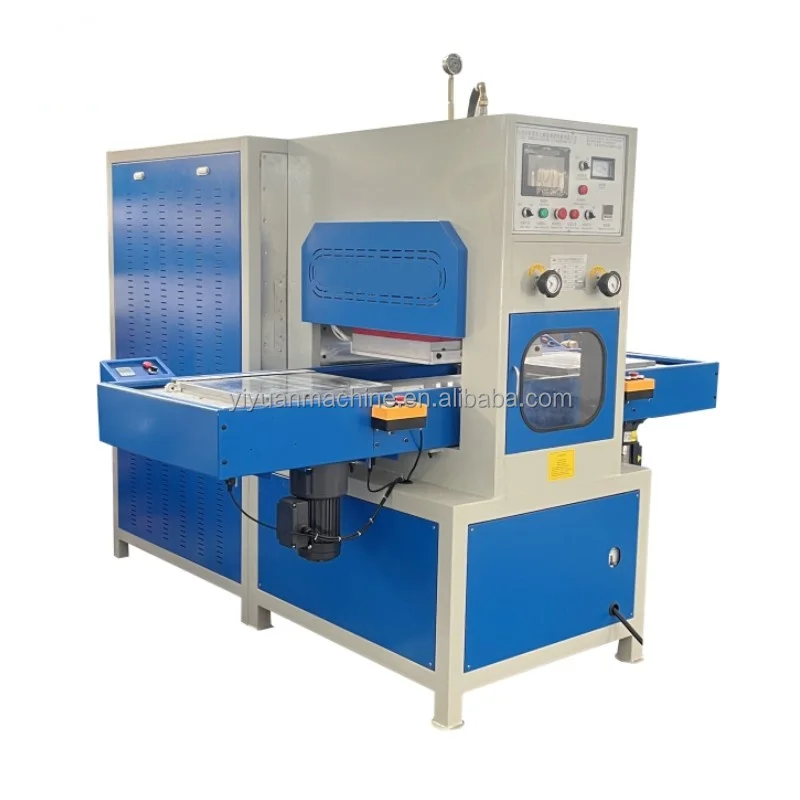

JINGSHUN ПВХ лист ткани RF сварщик распродажа 8 кВт холст колебательная трубка нейлоновая высокочастотная сварочная машина

JINGSHUN ПВХ лист ткани RF сварщик распродажа 8 кВт холст колебательная трубка нейлоновая высокочастотная сварочная машина

Категория: >>>
Поставщик: Xiamen Jingshun High Frequency Equipment Co. Ltd.

Цена:270 561,63 ₽ - 281 582,47 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Specification

High Frequency PVC sheet & Fabric Welding machine high frequency 8 kw welding machine
Model Number	JGP-5T/YRG	JGP-6T/YRG	JGP-8T/YRG	JGP-12T/YRG	JGP-15T/YRG
HF Output (KW)	5	6	8	12	15
Input Power (KVA)	8	10	15	20	25
Power Supply (VAC)	1-Phase 220 OR 3-Phase 380 OR Customized AC Voltage and frequency	3-Phase 380 or Customized.
Oscillation Frequency (MHZ)	40.68MHZ			27.12	20-27.12
Protection Sys.	Standard anti-spark protection / Overload current protection( High sensitivity anti-spark system is required.)	High sensitivity spark protection / Overload current relay
Lower Electrode Size(MM)	350*500 Or Customized.
Gap of Maximum Eletrode	100mm~150mm
Press Stroke	70mm
Oscillation Tube	7T85RB	7T69RB/E3069	7T69RB/E3069	E3130	8T85RB
Machine size (LWH) MM	168012001880	176012001880	176012001910	188012002230	204012002230
N.W. (KGS)	300	345	450	480	500

Product Features:

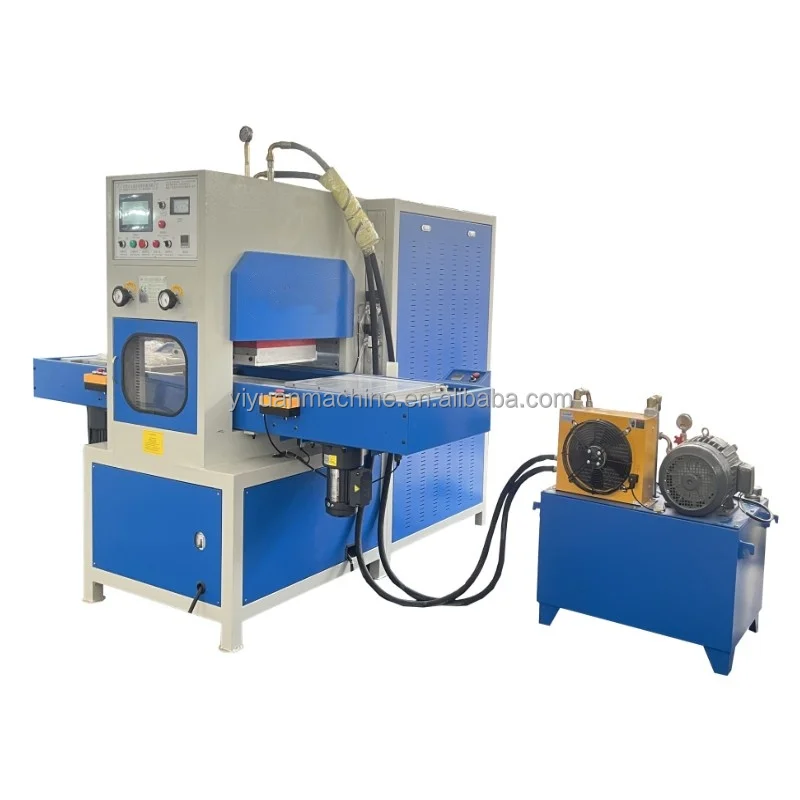

1. Pedal hydraulic electric-heating head model
2. Output strong electric power
3. Machine using a special designed mechanism, the maximum pressure of foot pedal can reach up to 5000KGS so as to meet most operating conditions.The high quality components make these machines work very smoothly and precisely;
4. Machine output power can be adjusted at the tuner according to electrode size and material thickness. In addition, other control devices and special electrical circuits have cut down required welding time considerably to raise the machine productivity;

5. High frequency welding machine equipped with frequency stabilizer and high frequency magnetic leakage suppressor, this device provide leakage of electron magnetic radiation to avoid jamming other electrical instruments such as television and radio,etc.

Packing & Delivery

High Frequency Sports Shoes Logo Welding Machine Standard export plywood cases

Company Profile

Founded in 1995, JINGSHUN is a professional manufacturer in production, R&D and distribution of plastic processing equipment. JINGSHUN products include 10 series over 80 kinds: high frequency plastic welding machines, hydraulic embossing machines etc. equipment. OEM & ODM services are provided according to client's requirements. CE certification is ready for you.

JINGSHUN is located in one international port city----Xiamen, has stable high-class skillful workers team and advanced management experiences. JINGSHUN imported advanced technology from Japan & Taiwan, with powerful technique support & high-end inspection devices & imported components, JINGSHUN products have been sold to many countries with warm reception. International sales agent wanted.

1. Are you a trader or manufacturer?

JINGSHUN is a professional manufacturers in R&D,production and distribution of high frequency plastic welding machine, high frequency fusing machine, high frequency blister packing machine, high frequency canvas welding machine, press machine,etc.

2. What is the payment terms you can accept?

Usually, we can accept TT and L/C. Other payment terms can be negotiated.

3. When can you delivery our orders?

We will arrange shipment within 15 days after the deposit is confirmed by our bank. It takes around 20~25 days to make for customized machines.

4. Can you offer a customized machine for us?

We offer customized machines against requirements from customers.

5. Why us?

We have rigid requirements to ensure the product quality from raw materials to the finished product. All our products are CE certified. We have obtained many awards, such as “Quality &Credit role model enterprise” and “Famous brand of Xiamen City”.
