Great Performancee Mining Truck 30 Tons Articulated 4wd 6*4 Mining Dump Truck XDA30 for Sale



CONTACT US


Wynn Wu

Sinomada Heavy Industry (Changsha) Co., Ltd.
Tel: +86-0731-8515-1898
Whatsapp/Wechat/Mobile: +86-15243560899
E-mail: wynn@sinomada.com
Add: Room 4718, Building C2, Wanda Plaza, Xiangjiang
Middle Road, Kaifu District, Changsha, Hunan, China



PRODUCT DESCRIPTION


1. Technically advanced powerful engine that is specially designed for mining operation lowers fuel consumption and increases working efficiency.
2. The pump controlling hydraulic system and load-sensitive steering system enhance system stability, quicken trouble shooting and save more energy.
3. The application of exclusive traveling control strategy and fault analysis system makes the overall vehicle more intelligent.
4. 6×6 drive and inter-wheel/inter-axle differentials & differential locks take passing performance, reliability and riding
stability to a higher level.
5. ROPS & FOPS that meet ISO standards are equipped in driver's cab, which enlarges interior space, broadens field of view range, secures driver's working safety and increases comfort level of driving experience
6. Driver's cab and engine hood are both flipping designs, and the cab is integrated with a centralized lubrication system, all these designs make maintenance more convenient and more efficient.




PRODUCT PARAMETER


Performance Parameters
Payload
30000 kg
Empty Weight
26700 kg
Gross Vehicle Weight
56700 kg
Drive Style
6x6
Max. Speed
49km/h
Max. Gradeability
45%
Max. Steering Angle
±45°
Body Capacity
Struck
13.6/14m³
2:1 heaped
17.5/18.1m³
Overall dimension (EMPTY, L xW x H)
10100x3200x3700 mm
Main Parts
Engine
Model
QSM11
Rated Poxver/Speed
200/2100 kW/rpm
Max. Torque/Speed
1898/1400 Nm/rpm
Drivetrain
Transmission
RTO-22110B
Speed range
10F2R
BraKe System
Braking System
Drum brake
Hoist System
Hoist Time/s
13
Hoist Angle
70°
Cab
FOPScab
Tires
750/65R25 (Optional 23.5R25)
ELectrical System
24V

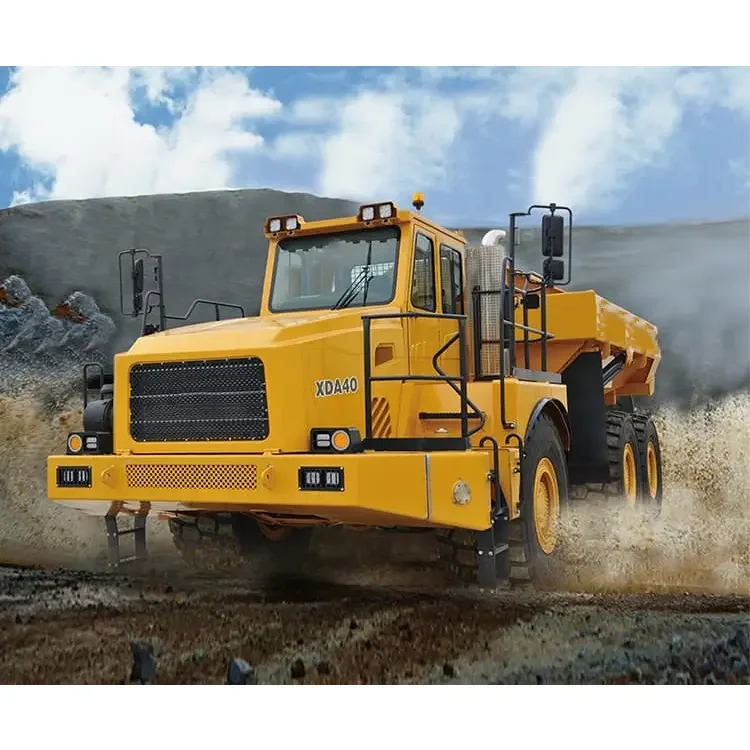

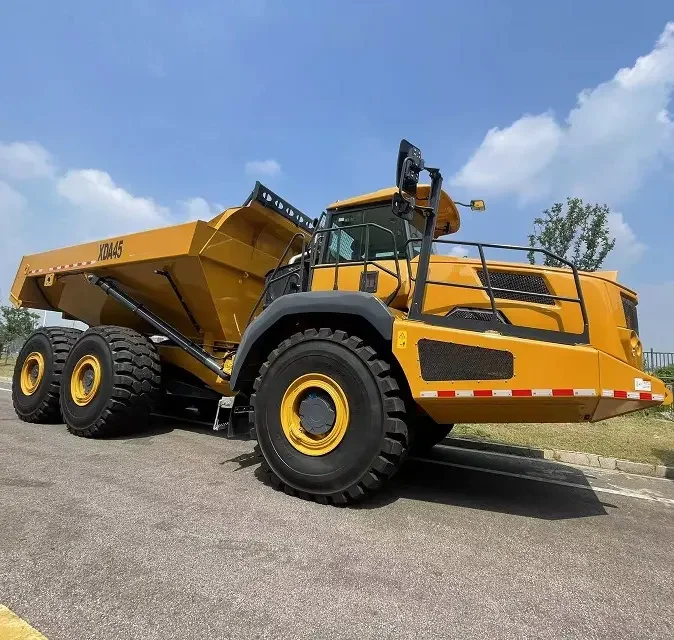

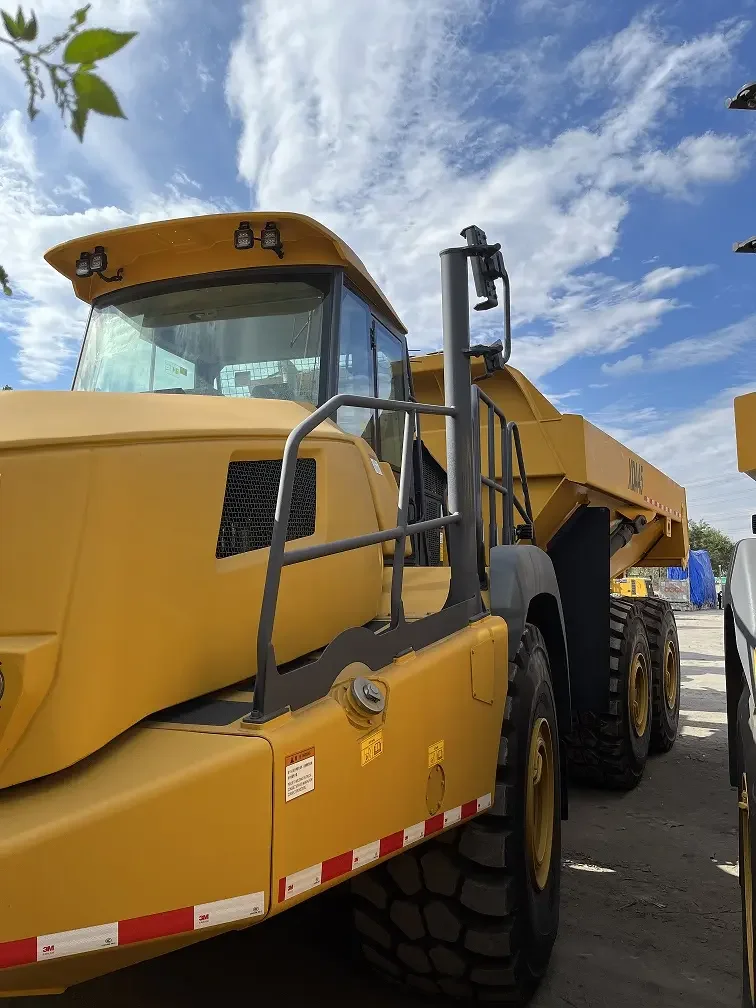

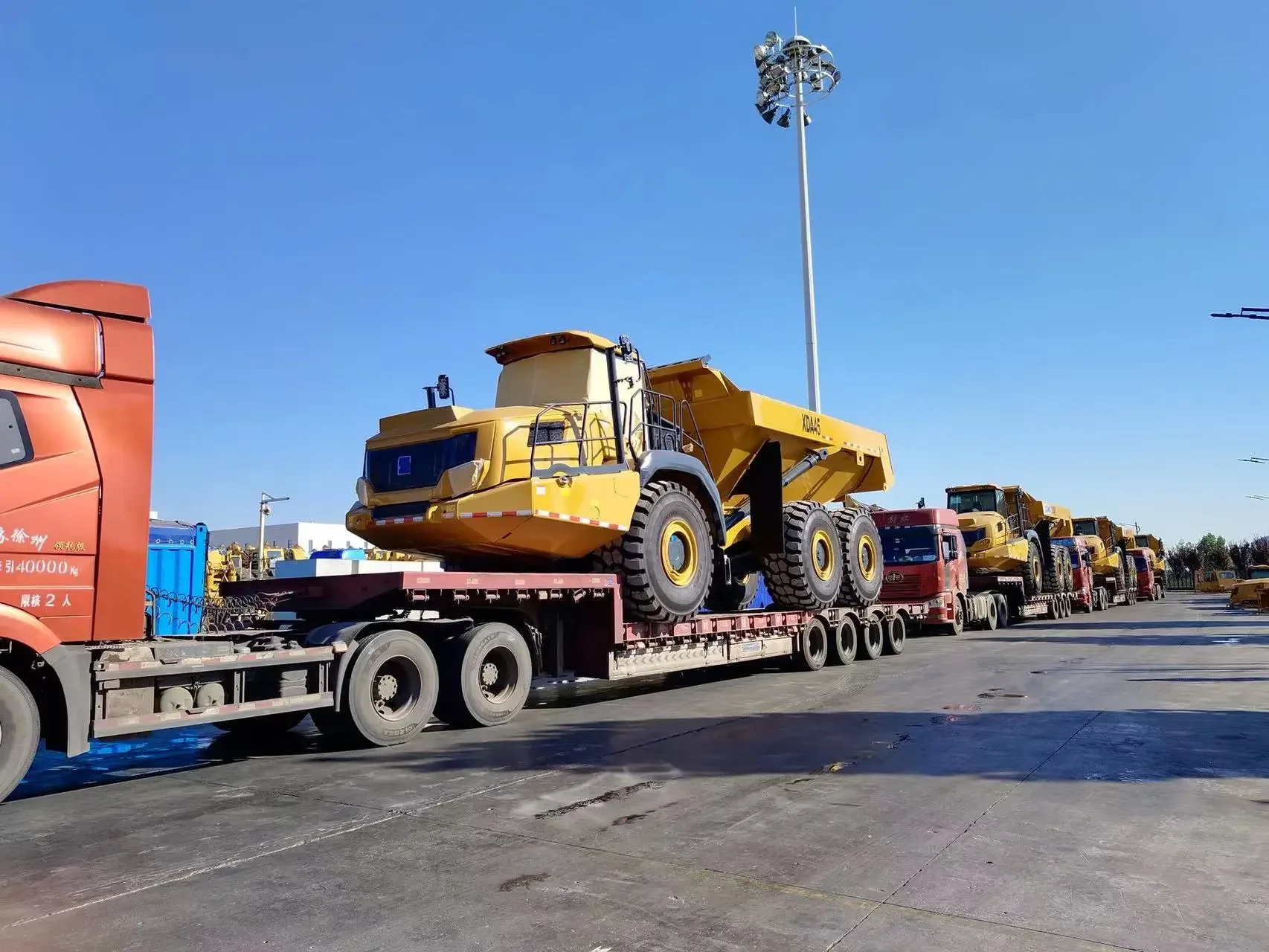

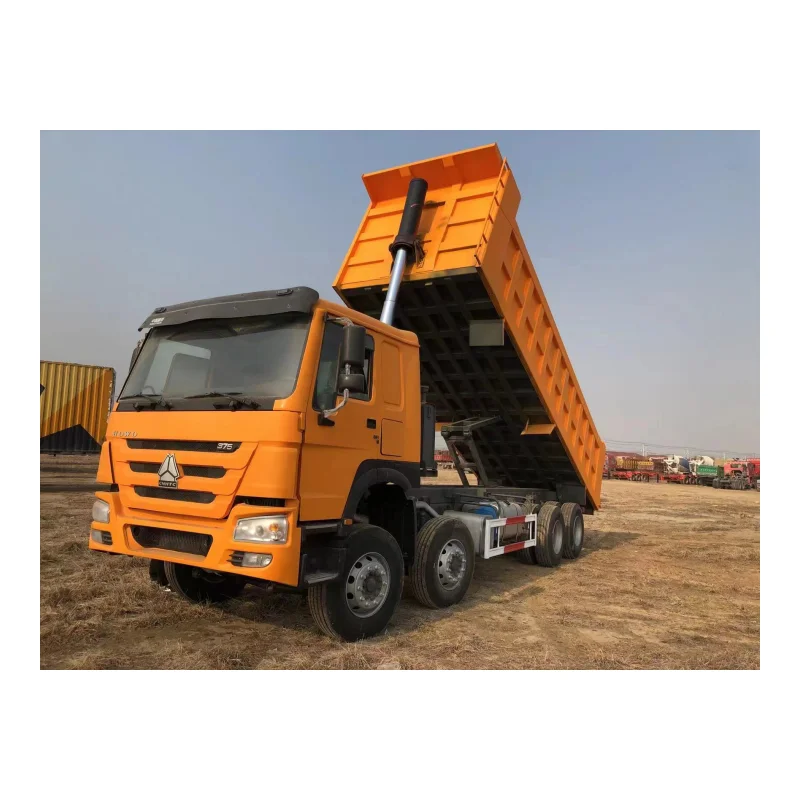

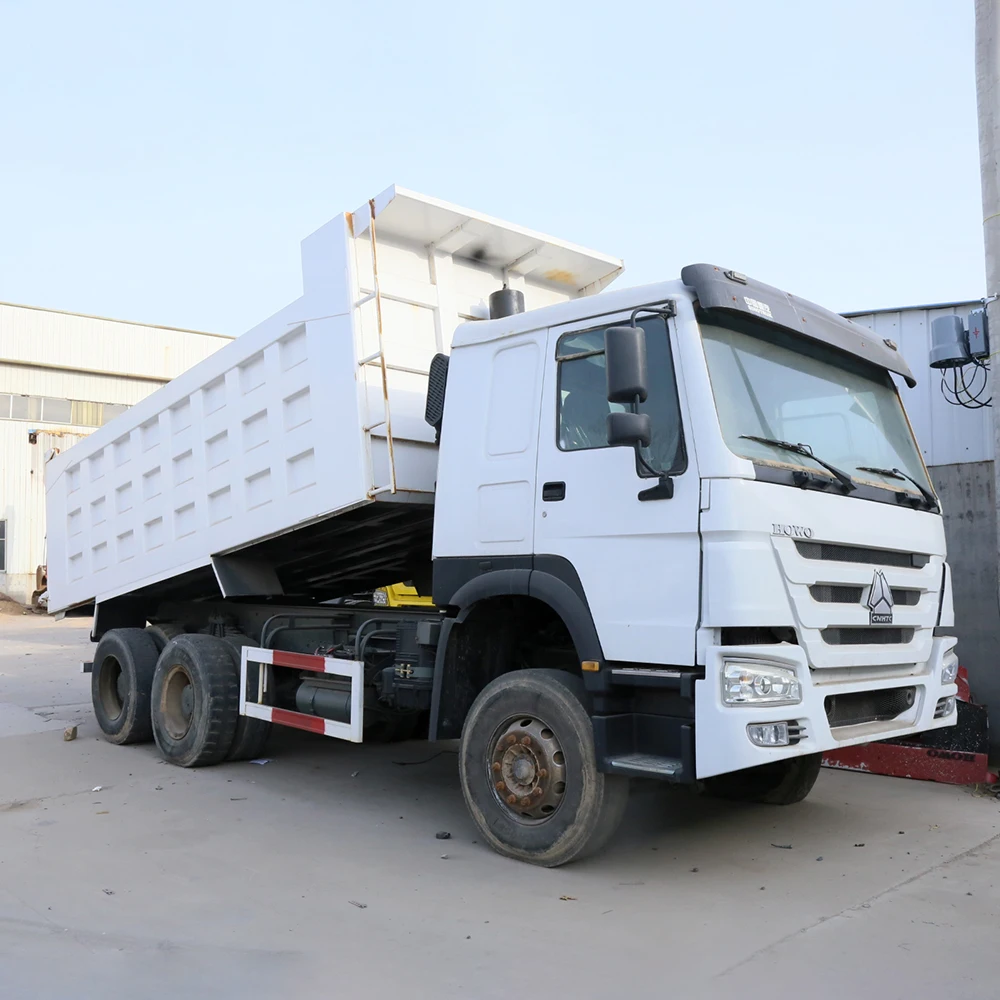

PRODUCT PICTURES
