Лидер продаж 2024 горизонтальный одноступенчатый стандартизированный химический насос RCNKU MMCP из пластика для технологии химической обработки
- Категория: >>>
- Поставщик: Luoyang Pioneer Anticorrosion Equipment Co. Ltd.
Сохранить в закладки 1601097522871:
Описание и отзывы
Характеристики
Product Description
Overview

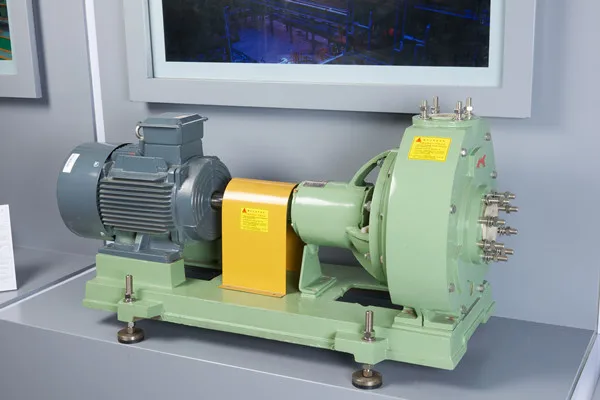

RCNKU type is the single-stage horizontal centrifugal pump with SIC/SICA/ITON mechanical seal system.Connected to the driving part by means of a spacer coupling(back-pull-out version)and installed on a common baseplate,the design is fully compliant with standard DIN22858/ISO2858.The metal armouring applied to components made from thermoplastic resins,such as PP,PPH,PVDF,FEP,PEHD,ensures dimensional stability and mechanical strength. CPD type pump can mount types of single or double mechanical seal of top domestic and international brands.which can work with corrosive liquids containing suspended solids or crystals.Generously-sized shaft,bearings and closed impeller make this series of Hi-Tech Pumps ideally suited for the most demanding process services.
▲ApplicationsBecause of its remarkable features,plastic PIONEER pumps are used in many different industrial sectors.with a wide range of applications, i.e. the following ones:
Chemical Industry: HCI, NaOCI, H2SO4, NaOH, HNO3, HF...
Water treatment: FeCL3,AI2(SO4)3,aluminium polychloride,demineralized water,osmosis sater,membrane cleaning...
Surface treatment: acid degrease, pickling, galvanizing, anodizing ...
Fertilizer industry : H3PO4, H2SO4, H2SiF6, NH4NO3, liquid fertilizer...
Thermal and Nuclear power plants : chlorination of cooling water, neutralization ponds...
Fine chemicals : intermediate products, synthesis reactions, water treatment, cleaning...
Mining: gold, copper, platinum, aluminium, leach liquids...
Temperature range from 0 Deg.C to+100 Deg.C
Sea water: aquariums, fish farms, zoos...* Performance data for 50/60 Hz operation
Pump capacity [Q] up to 1400m3/h
Total differential head [H] up to 100m
Motor rating [P] up to 200KW
Shaft Seal
Single or double mechanical seal
A Flange connection
Standard design to DIN2501,PN16
Alternatively:- to ANSI B16.5,Class 150,
-toGB/T9116 PN16
* Drive
Three-phase a.c. motor, frame type B3 to IEC, BS or NEMA; type of protection, flameproof enclosure and motor voltage to customer specifications.
▲ Painting
Corrosion protection of metallic components by multiple coatings of epoxy resin paint
▲ Design
Chemical Norm Pumps
▲ Materials
Parts of the pump in contact with the liquid are manufactured from the following standard plastics: Polypropylene PP
High Molecular Polyethylene PE
Temperature range from -50 Deg.C to+80 Deg.C
Polyvinylidene Fluoride PVDF
Temperature range from -20 Deg.C to+130 Deg.C
These materials have been selected as a result of many years of experience in the use of chemical engineering materials,to satisfy the special demands made in pump construction.
Specification
item | value |
Warranty | 1 year |
Customized support | OEM, ODM, OBM |
Brand Name | Pioneer |
Model Number | RCNKU65-50-160 |
Place of Origin | Shanghai,China |
Application | Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Family Homes, Food and Beverage Industry, Industrial Boilers, Machining, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry, Raw Water Intake, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions |
Structure | Single-stage Pump |
Outlet Size | 50mm |
Voltage | 380v/440v |
Power | 5.5/7.5/11kW |
motor | IP55 |
Cable Length | 3m |
Impeller | Closed/semi open |
Theory | Centrifugal Pump |
Bearing | NSK/SKF |
Shaft | C45 steel |
Material | PVDF |
Packing & Delivery
Plywood case
Company Profile
Has been more than 30 years since set up, Luoyang Pioneer Anticorrosion Equipment Co.,Ltd. ls a top leader inmanufacturing anticorrosion equipment,pipes and valves inland.Located in the high-developing area ofLuoyang Economic Development zone,the company occupies area more than 32800m3.with modernworkshops and facilities,perfect quality control system and advanced inspect method, and well-educated staffsthat can undertake a full set of anticorrosion equipment of research and development,production andInstallment.
Recent years,We have imported advanced foreign technology and high-tech material,Continuous technological innovation,we have successfully supplied high quality products and services for the majorEngineering project of nation,such as steel cold roll Acid-wash,acid purification，chemical-industry ionicmembrance caustic soda, phosphor fertlizer; environmental protection sewage treatment and so on,which notonly substitute the import, settle the exact for these engineerings,but also saved great foreign exchange, thatgain considerable economic and social benefit.The main products of the company can be divided into twotypes:1.Full plastic type: PTFE, PVDF,PPH, RPP, PE80，PE100, UHMWPE,UPVC and CPVC full plastic valve,pipe，fitting，strainer，board material ,filing ring and equipments(Tanks,Purifying Tower，Ventilator)series.2.Steel lining type: PTFE,PVDF，FEP, PEA, PPH,RPP, PO,PE,UHMWPE lining, PU valve， pipe， pipefitting,equipment，PTFE ripple compensator,and tube，widely used, in the fields of steel,metallurgy,petroleum,chemical industry, fertilizer，dye,pharmacy，electric power，environmental protectionsewage treatment,mining industry. Has the advantages of structure innovation，unique craftwork，widetemperature adaption,long service life and high benefit,the products is the ideal Anticorrosion engineeringmaterial that well favored by the customers and developed its unique outlet in market.
Customer as fundamental, to win the market with credit. Through many years, on the base of strengthening enterprise management, AlI products in Pioneer have passed the national security (TS) and national industrial product production license certification, the certification of IS09001: 2015 International quality system certification. IS014001 : 2015 Environment management system certification. Continually improve the quality of products and service, was named the titles as "Luoyang city pump valve industrial association vicechairman unit", "National level Spark enterprises","State Torch Program Enterprises", "AA+ degree credit enterprise", "keep the contact and credit "advanced unit, "City level technology center enterprise "，"high-tech enterprise", "key enterprise in Luoyang".
The company always pursues the tenet of "quality first, credit first and customer supreme" to meet the customers' requirements.
FAQ
1. who are we?
We are based in Henan, China, start from 2019,sell to Domestic Market(20.00%),Southeast Asia(20.00%),Eastern Asia(10.00%),Mid East(10.00%),South America(10.00%),Northern Europe(10.00%),Africa(5.00%),South Asia(5.00%),North America(5.00%),Central America(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
centrifugal pump,industrial valve,PTFE lined pipe,chemical pump,Plastic pipe
4. why should you buy from us not from other suppliers?
Luoyang Pioneer Anticorrosion is specialized in the manufacturing of international quality anti corrosion pumps,valves,pipes and fittings. The products are widely used for scrubbing, steel pickling, electroplating, paints, dye stuffs, chlor alkali,
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,DAF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Russian
We are based in Henan, China, start from 2019,sell to Domestic Market(20.00%),Southeast Asia(20.00%),Eastern Asia(10.00%),Mid East(10.00%),South America(10.00%),Northern Europe(10.00%),Africa(5.00%),South Asia(5.00%),North America(5.00%),Central America(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
centrifugal pump,industrial valve,PTFE lined pipe,chemical pump,Plastic pipe
4. why should you buy from us not from other suppliers?
Luoyang Pioneer Anticorrosion is specialized in the manufacturing of international quality anti corrosion pumps,valves,pipes and fittings. The products are widely used for scrubbing, steel pickling, electroplating, paints, dye stuffs, chlor alkali,
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,DAF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Russian
