Неоден T12L конвейер типа Smt оплавильный станок для пайки печатных плат
- Категория: >>>
- Поставщик: Zhejiang Neoden Technology Co. Ltd.
Сохранить в закладки 1601100396852:
Описание и отзывы
Характеристики
NeoDen T12L Conveyor Type Smt Reflow Oven Machine For Pcb Soldering
Product Description
Feature
1. Power:Three phrase 380V, five-wire system connect with main circuit. 2. Drive motor: The AC motor is used to drive the conveyor belt. The transmission mode is sprocket type, speed adjustment is controlled by automatic electronic analog switch. Its sensitivity is not more than 1 degree, control accuracy ±10mm/min.
3. Blower Motor: The function of fan in the oven is to make the heat distribute more uniform, smooth,so that the temperature in oven will be uniform, it also has cooling function when the machine is down.
4. Cooling fan: Mainly to cool the welded PCB,or cool the heat parts inside machine to guarantee their good work.
5. Heater: Heater provide 0-400℃temperature and evenly distributed in the reflow oven, the temperature range of each zone is different, the power of each heater will be also different
reflow soldering oven soldering machine solder reflow oven reflow soldering machine smd soldering oven wave soldering
Specification
Model | ND T12L |
Heating Zone Length | 2080mm |
Cooling Zone Length | 530mm |
Heating Method | Hot Air |
PCB Maximum Size | on conveyor max.300mm |
on belt max.400mm | |
Conveyor Speed | 90-1000mm/min |
Working Power | 4.5-6KW |
Peak Power | 22KW |
Heat-up time | 20~30 mins |
Temperature control accuracy | ±1℃ |
PCB temperature distribution deviation | ±2℃ |
Dimension | 3500×1100×1250mm |
Weight | 540KG |
Related Products
About Us
「About NEODEN」
Zhejiang NeoDen Technology Co., Ltd. has been manufacturing and exporting various small pick and place machines since 2010. Taking advantage of our own rich experienced R&D, well trained production, NeoDen wins great reputation from the world wide customers.
With global presence in over 130 countries, the excellent performance, high accuracy and reliability of NeoDen PNP machines make them perfect for R&D, professional prototyping and small to medium batch production. We provide professional solution of one-stop SMT equipment.
In our global Ecosystem, we collaborate with our best partners to deliver a more closing sales service, high professional and efficient technical support.
We believe that great people and partners make NeoDen a great company and that our commitment to Innovation, Diversity and Sustainability ensures that SMT automation is accessible to every hobbyist everywhere.
Payment & Shipping
FAQ
Q1: Do you provide software updates?
For customers who buy our machine, we can offer free upgraded software for you.
Q2: Does our machine need air supply?
We have vacuum pumps inside the machine, it does not need air supply.
Q3: This is the first time I use this kind of machine, is it easy to operate?
We have English user manual and guide video to teach you how to use the machine. If you still have question, pls contact us by email/skype/phone etc for online service.
Q4: How about the warranty?
We have 2 years warranty for NeoDen4, K1830, NeoDen9, In6, IN12 and 1 year for all other models with lifetime after-sale support.
Q5: How can I buy machine from you?
(1) Consult us on line or by e-mail;
(2) Negotiate and confirm the final price, shipping, payment method and other terms;
(3) Send you the proforma invoice and confirm your order;
(4) Make the payment according to the method put on proforma invoice;
(5) We prepare your order in terms of the proforma invoice after confirming your full payment . And 100% quality check before shipping;
(6) Send your order via express or by air or by sea.
For customers who buy our machine, we can offer free upgraded software for you.
Q2: Does our machine need air supply?
We have vacuum pumps inside the machine, it does not need air supply.
Q3: This is the first time I use this kind of machine, is it easy to operate?
We have English user manual and guide video to teach you how to use the machine. If you still have question, pls contact us by email/skype/phone etc for online service.
Q4: How about the warranty?
We have 2 years warranty for NeoDen4, K1830, NeoDen9, In6, IN12 and 1 year for all other models with lifetime after-sale support.
Q5: How can I buy machine from you?
(1) Consult us on line or by e-mail;
(2) Negotiate and confirm the final price, shipping, payment method and other terms;
(3) Send you the proforma invoice and confirm your order;
(4) Make the payment according to the method put on proforma invoice;
(5) We prepare your order in terms of the proforma invoice after confirming your full payment . And 100% quality check before shipping;
(6) Send your order via express or by air or by sea.
If you have any questions, welcome to contact us!
Похожие товары

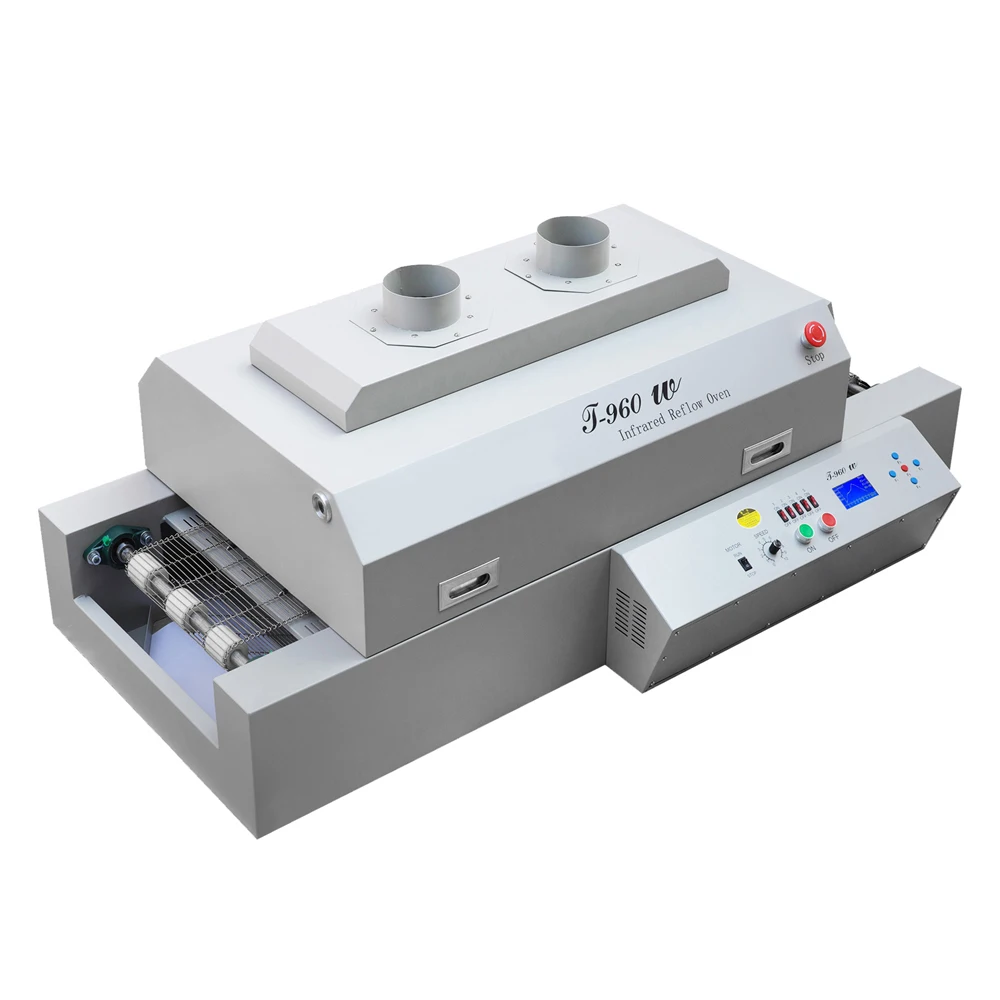

Новый ЖК-дисплей с сенсорным экраном T-960W SMT PCB Чип свинца паять reflow печь пок и место производства сборочная машина
